强激光到靶总能量测量对激光系统性能评价十分重要. 然而, 到靶光斑具有功率密度高、时空分布不均匀及光斑尺寸大等特点, 给总能量准确测量带来极大挑战. 瞄准大面积光斑总能量高精度测量需求, 本工作发展了平板量热技术. 首先, 开展了激光加热平板物理过程研究, 得到了温度场变化解析解, 并基于此发现: 均匀排布的阵列温度传感器可显著缩短调整段时间; 然后, 针对传统能量反演算法中需要预热吸收体和可能受非均匀温度影响的问题, 提出了改进方法; 最后, 研制了平板测量装置, 开展了激光标定实验, 得到了系统的重复性2.7%和线性度0.3%, 合成标准不确定度为4%. 本文为平板测量技术在到靶总能量测量中奠定了理论基础, 对装置的优化设计、好用易用性提升、能量高精度反演具有重要参考价值.The measurement of total energy on the target is a critical step in evaluating the performance of high-power laser systems. However, the laser spot on the target exhibits characteristics such as high power density, non-uniform spatial and temporal distribution, and large spot size, which pose significant challenges to accurate total energy measurement. To address the demand for high-precision measuring total energy of a large spot, this work focuses on the plate energy measurement technology. First, we investigated the physical processes of laser-heated plates and obtained analytical solutions, demonstrating that uniformly arranged temperature sensor arrays can shorten the relaxation period. Second, to overcome the limitations of traditional energy inversion algorithms—such as the need to preheat the absorber and potential non-uniform temperature effects—we proposed correction methods. The non-preheated calorimetry method eliminates the requirement that the absorber temperature must be higher than the ambient temperature during the initial rating period. It iteratively optimizes ambient temperature and heat loss coefficients based on corrected temperature invariance. Additionally, a non-uniform temperature correction algorithm is applied to minimize errors caused by limited sensor sampling rates by reconstructing the temperature curve during injection and adjustment periods. Finally, we developed a plate measurement device and conducted laser calibration tests, achieving system repeatability 2.7%, linearity 0.3% and a combined standard uncertainty of 4%. This study establishes a theoretical foundation for flat-plate laser energy measurement technology, providing important insights for optimizing the apparatus design, improving usability, and enabling high-precision energy inversion.
-
Keywords:
- laser parameter measurement /
- energy /
- flat-plate calorimetry /
- energy inversion algorithm
-

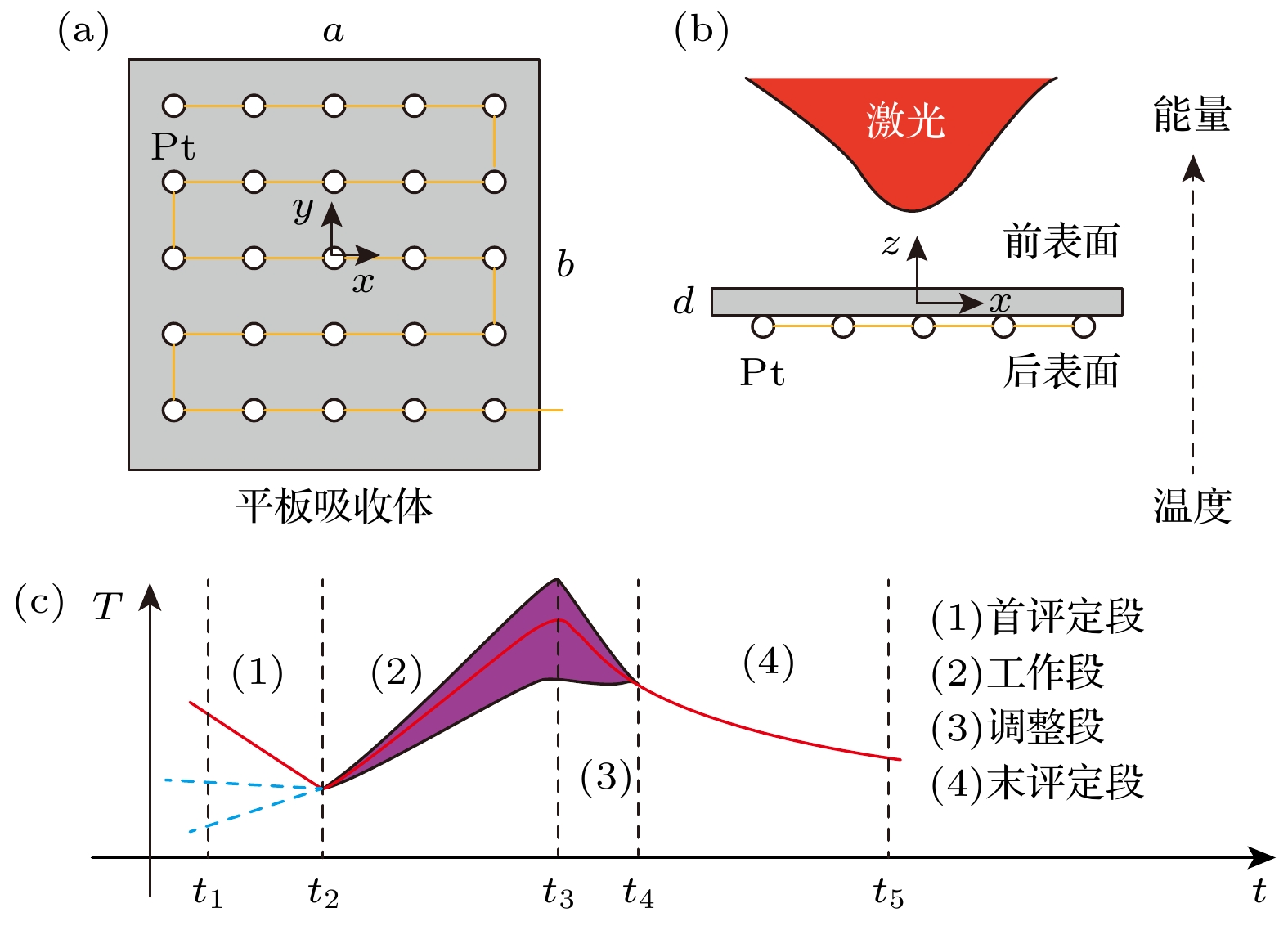

图 1 物理模型 (a) 后视图; (b) 侧视图; (c) 典型温度变化历程
Fig. 1. Physics model. (a) Rear view; (b) Side view; (c) Temperature changing curve.

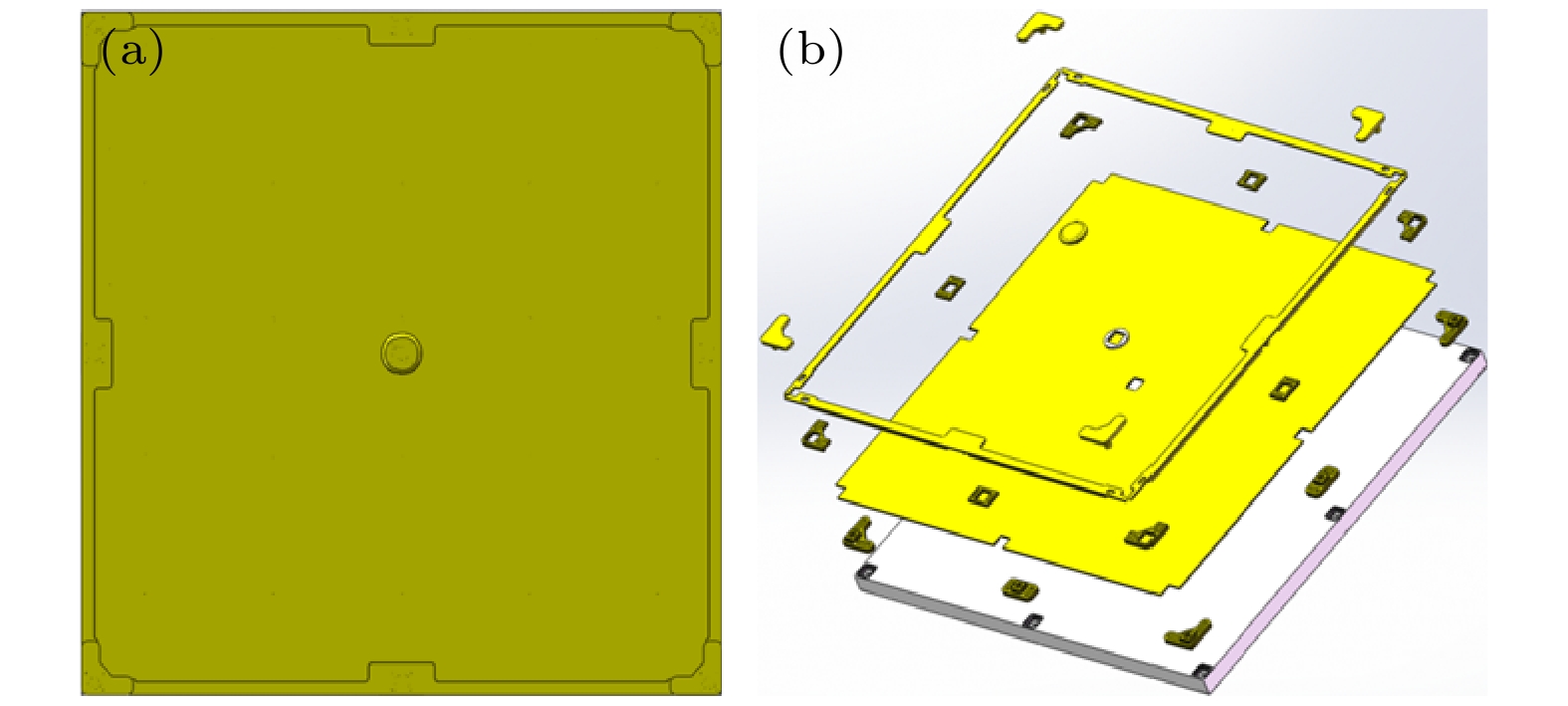

图 3 机械结构 (a) 前视图; (b) 爆炸图
Fig. 3. Mechanical structure. (a) Front view; (b) Exploded view

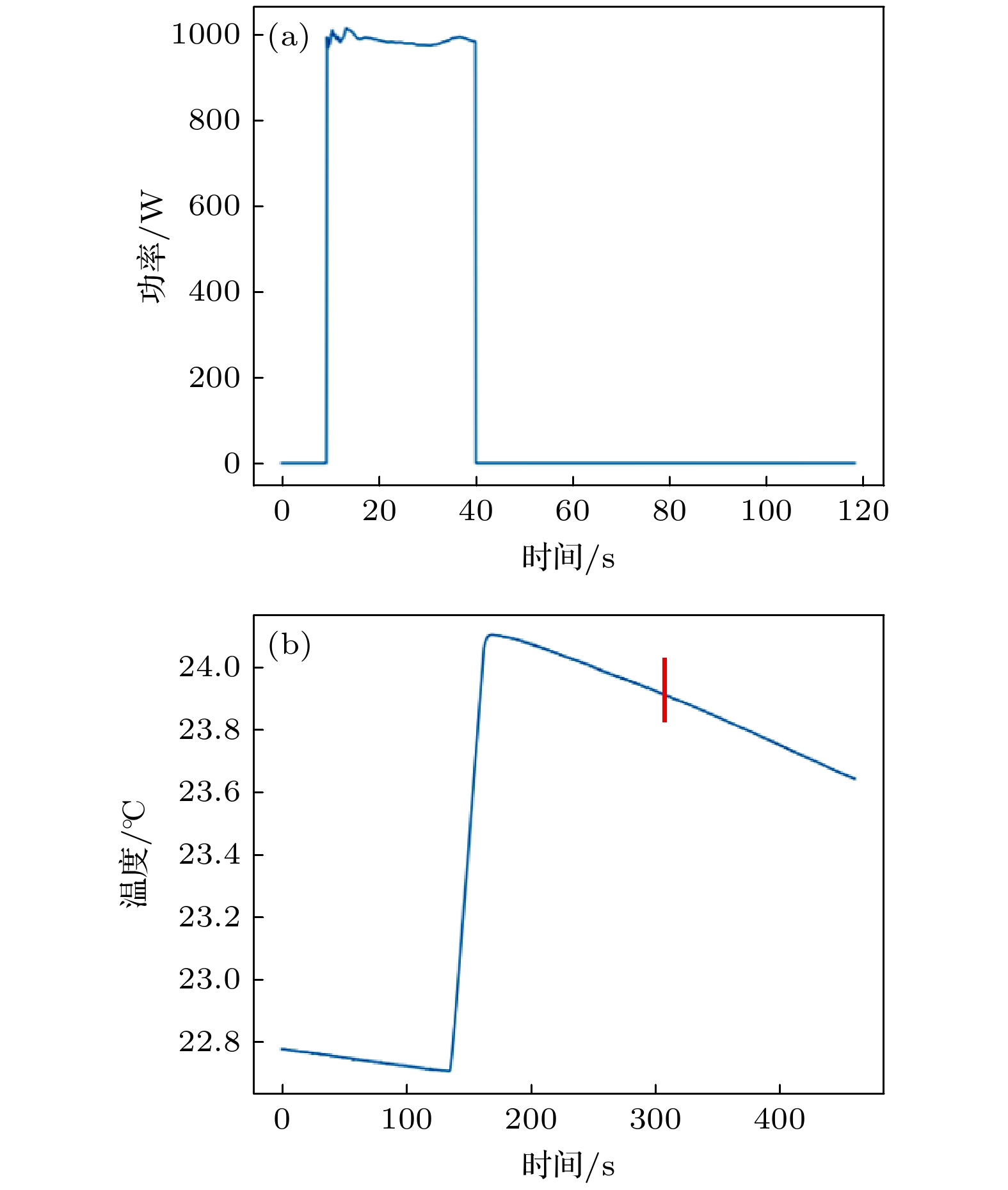

图 5 测量结果 (a) 监测光强; (b) 温度变化历程
Fig. 5. Measurement results. (a) Monitor power; (b) Temperature changing curve.
-
