Grain refinement is an effective approach to enhance the comprehensive properties of alloys. In industrial production, Al-5Ti-1B master alloys are commonly used to refine the microstructure of aluminum alloys. However, the grain refinement potency of Al-Ti-B master alloys is limited and can’t meet the requirements for the high-performance aluminum alloy applications. It has been demonstrated that adding trace amount of micro-alloying element La to the aluminum alloy melt inoculated with Al-5Ti-1B master alloy can further refine the solidification microstructure. Previous research indicates that the addition of 0.06 wt% La is sufficient to achieve an ideal α-Al grain refinement. Our recent experimental results demonstrated that for an Al-Mg alloy of high Mg content inoculated with Al-5Ti-1B master alloy, the optimal addition level of La is about 0.02 wt%.

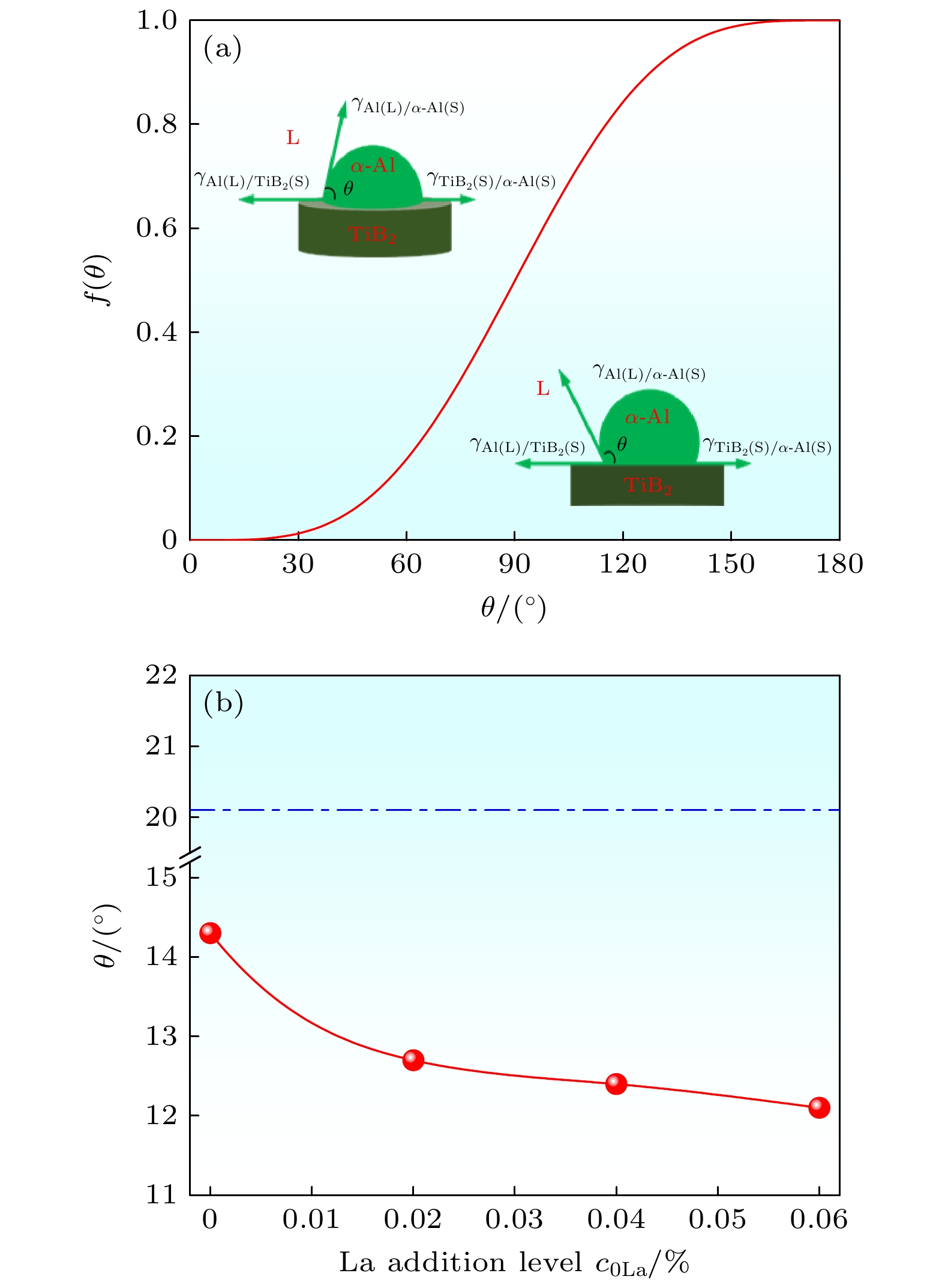

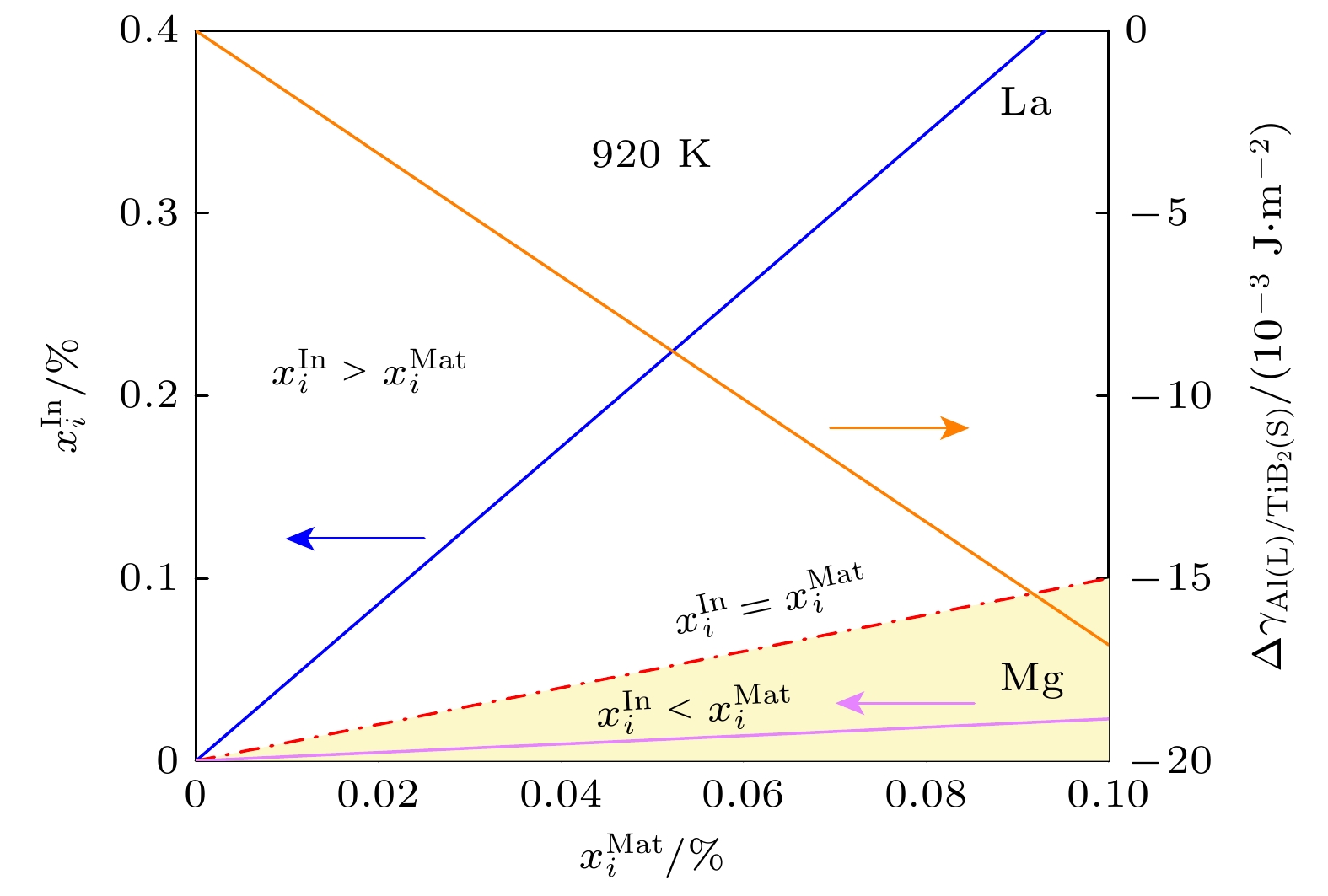

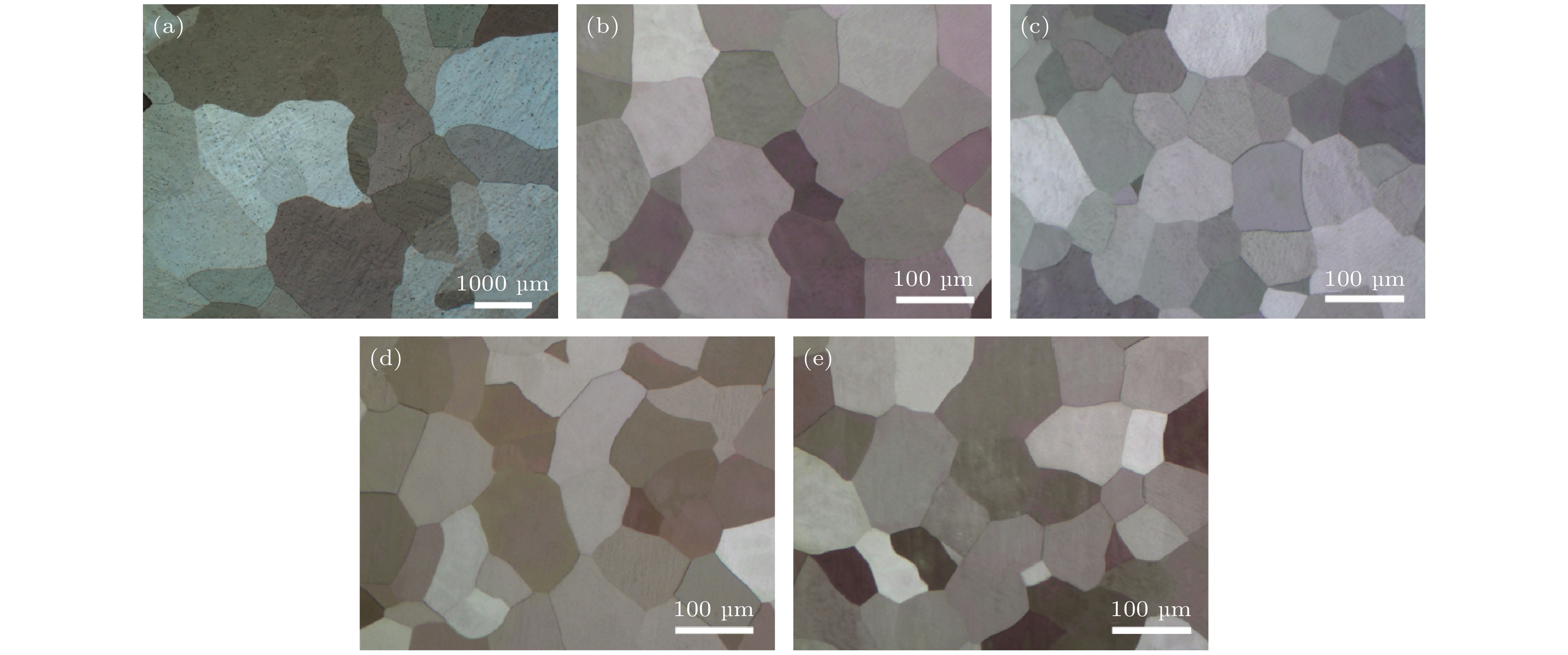

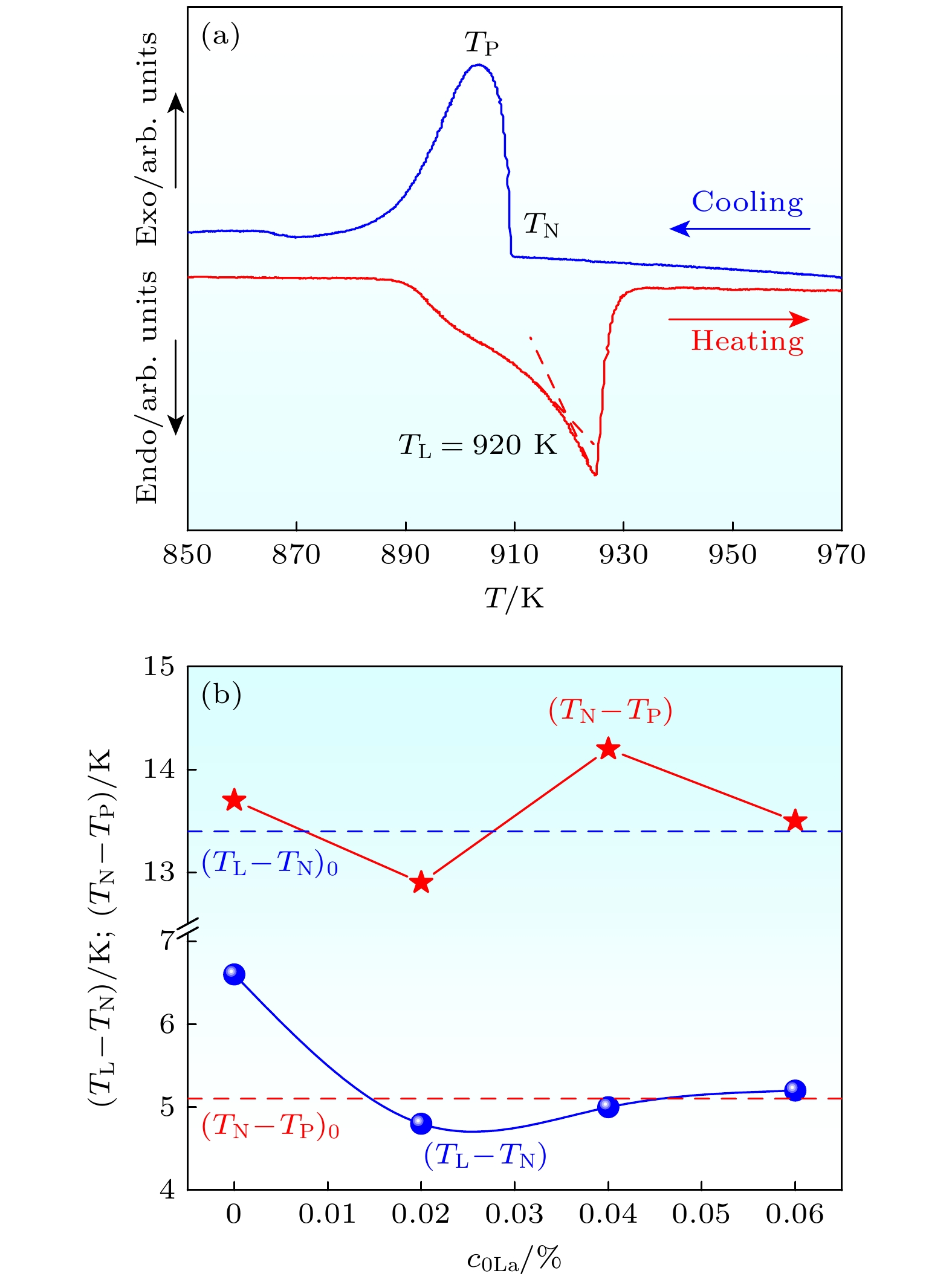

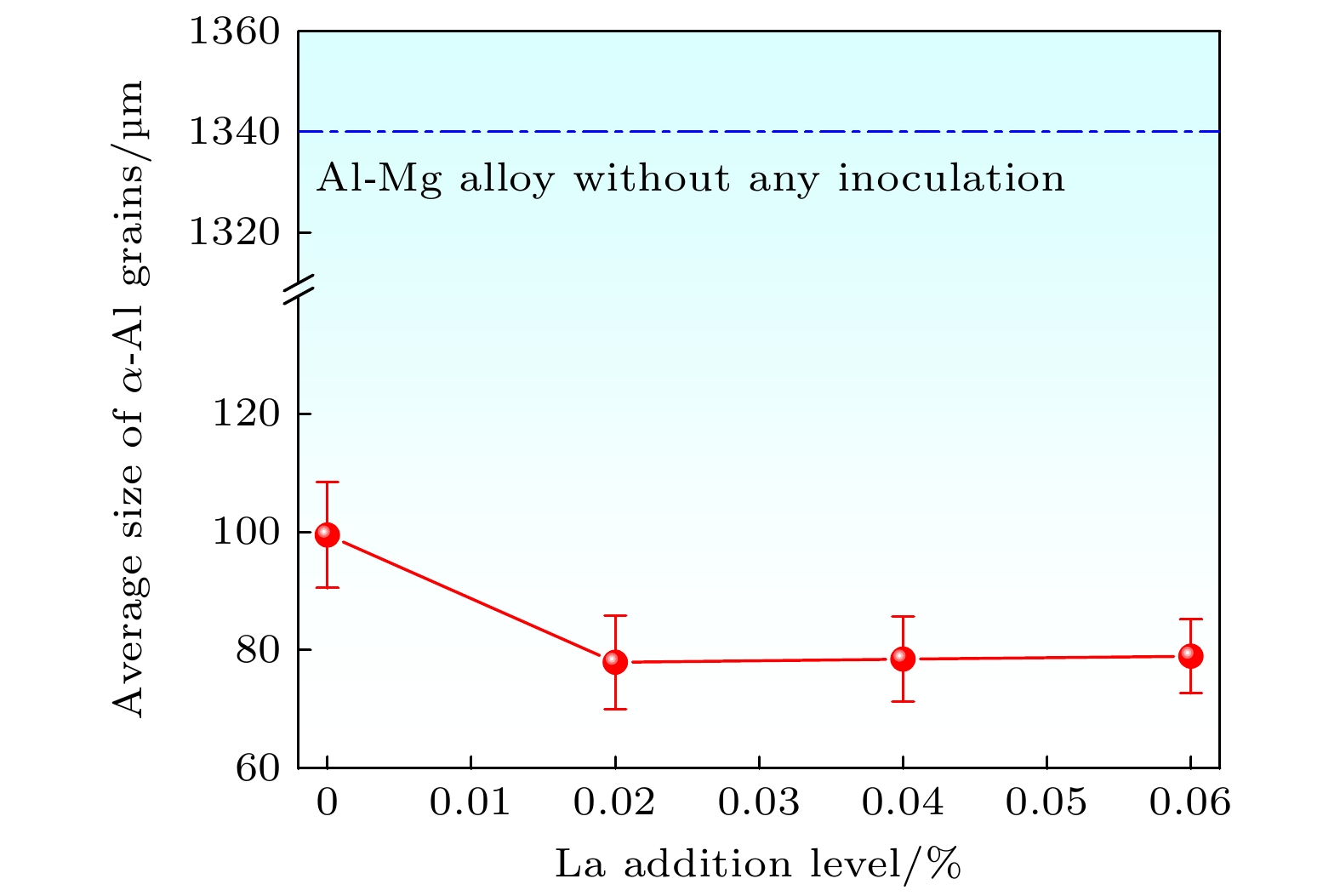

Solidification experiments were carried out for Al-Mg alloys inoculated with Al-5Ti-1B master alloy and different addition levels of micro-alloying element La. It is demonstrated that the trace addition of micro-alloying element La shows a further grain refinement effect on Al-Mg alloy and reduces the nucleation undercooling of α-Al. A model was proposed for the segregation behavior of micro-alloying element La at the interface between the Al alloy melt and TiB2. The mechanism of the enhancement in the efficiency of TiB2 particles to nucleate α-Al by micro-alloying element La was clarified. The calculation results indicated that La shows a strong segregation tendency to the interface between the Al melt and TiB2 particles, reduces the interfacial energy and contact angle between TiB2 and α-Al, enhancing the efficiency of TiB2 to nucleate α-Al, and further refining α-Al grains.-
Keywords:
- Al-Mg alloys /
- Grain refinement /
- Micro-alloying element La /
- Al-5Ti-B
-
[1] Kramer L, Phillippi M, Tack W T, Wong C 2012 J. Mater. Eng. Perform. 21 1025
[2] VRSALOVIĆ L, KLIŠKIĆ M, RADOŠEVIĆ J, GUDIĆ S 2005 J. Appl. Electrochem. 35 1059
[3] Popovic M, Romhanji E 2002 J. Mater. Process. Technol. 125-126 275
[4] Estrin Y, Vinogradov A 2013 Acta Mater. 61 782
[5] Kuzmina M, Ponge D, Raabe D 2015 Acta Mater. 86 182
[6] Huang C Q, Liu J X, Jia X D 2019 Int. J. Miner. Metall. Mater. 26 1140
[7] Lu R Q, Zhang L, Zheng S W, Fu D F, Teng J, Chen J C, Zhao G D, Jiang F L, Zhang H 2022 Int. J. Miner. Metall. Mater. 29 108
[8] Fan Z, Wang Y, Zhang Y, Qin T, Zhou X R Thompson G E, Pennycook T, Hashimoto T 2015 Acta Mater. 84 292
[9] Li J H, Hage F S, Ramasse Q M, Schumacher P 2021 Acta Mater. 206 116652
[10] Wu J Z, Jia J Y, Jiang J X 2018 Rare Earth Inform. 2 30 (in Chinese) [吴俊子, 贾锦玉, 姜佳鑫 2018 稀土信息 2 30]
[11] Zheng Q J, Jiang H X, He J, Zhang L L, Zhao J Z 2021 Sci. China Technol. Sc. 64 2012
[12] Zheng Q J, Ye Z F, Jiang H X, Lu M, Zhang L L, Zhao J Z, 2021 Acta Metall. Sin. 57 103 (in Chinese) [郑秋菊，叶中飞，江鸿翔，卢明，张丽丽，赵九洲 2021 金属学报 57 103]
[13] Yang L J, Zhang L L, Jiang H X, He J, Zhao J Z 2023 Acta Phys. Sin. 72 240 (in Chinese) [杨林洁，张丽丽，江鸿翔，何杰，赵九洲 2023 物理学报 72 240]
[14] Zhang L L, Jiang H X, Zhao J Z, He J 2017 J. Mater. Process. Technol. 246 205
[15] Han Y F, Shu D, Wang J, Sun B D 2006 Mater. Sci. Eng. A 430 326
[16] Kori S A, Murty B S, Chakraborty M 1999 Mater. Sci. Eng. 15 986
[17] Ding X, Meng L G, Jiang L, Fang C F, Zhou B W, Ya B, Zhao F, Zhang X G 2018 Spec. Cast. Nonferrous Alloys 38 772 (in Chinese) [丁旭，孟令刚，姜立，房灿峰，周秉文，亚斌，赵丰，张兴国 2018 特种铸造及有色合金 38 772]
[18] Li M M, Zhang H H, Shao G J, Xu L P, Ma Z Q, Zhang X N 2005 Spec. Cast. Nonferrous Alloys 25 61 (in Chinese) [李敏敏，张恒华，邵光杰，许珞萍，马竹青，张先念 2005 特种铸造及有色合金 25 61]
[19] Li J H, Hage F S, Ramasse Q M, Schumacher P 2021 Acta Mater. 206 1359
[20] Cheng X H, Mao J 2017 Hot Working Technol. 46 95
[21] Zhang L L, Zheng Q J, Jiang H X, He J, Zhao J Z 2020 J. Mater. Sci. 55 7546
[22] Elliott R P, Shunk F A 1981 Bull. Alloy Phase Diagrams 2 219
[23] Jones G P, Pearson J 1976 Metall. Trans. 7 223
[24] Liu D M, Zhao J Z, Ye H Q 2004 Mater. Sci. Eng. A 372 229
[25] Li S B, Du W B, Wang X D, Liu K, Wang C H 2018 Acta Metall. Sin. 54 911 (in Chinese) [李淑波，杜文博，王旭东，刘轲，王朝辉 2018 金属学报 54 911]
[26] Zhang L L, Zheng Q J, Jiang H X, Zhao J Z 2019 Scr. Mater. 160 25
[27] Wynblatt P 2008 Annu. Rev. Mater. Res. 38 173
[28] Men H, Fan Z Y 2014 Metall. Mater. Trans. A 45 5508
[29] Wynblatt P, Chatain D 2006 Metall. Mater. Trans. A 37 2595
[30] Zhang L L, Ji Z W, Zhao J Z, He J, Jiang H X 2023 Acta Metall. Sin. 59 1541 [张丽丽，吉宗威，赵九洲，何杰，江鸿翔 2023 金属学报 59 1541]
[31] Zhang L L, Jiang H X, He J, Zhao J Z 2020 Scr. Mater. 179 99
[32] Zhong Y, Yang M, Liu Z K 2005 Calphad 29 303
[33] Mohanty P S, Gruzleski J E 1995 Acta Metall. Mater. 43 2001
