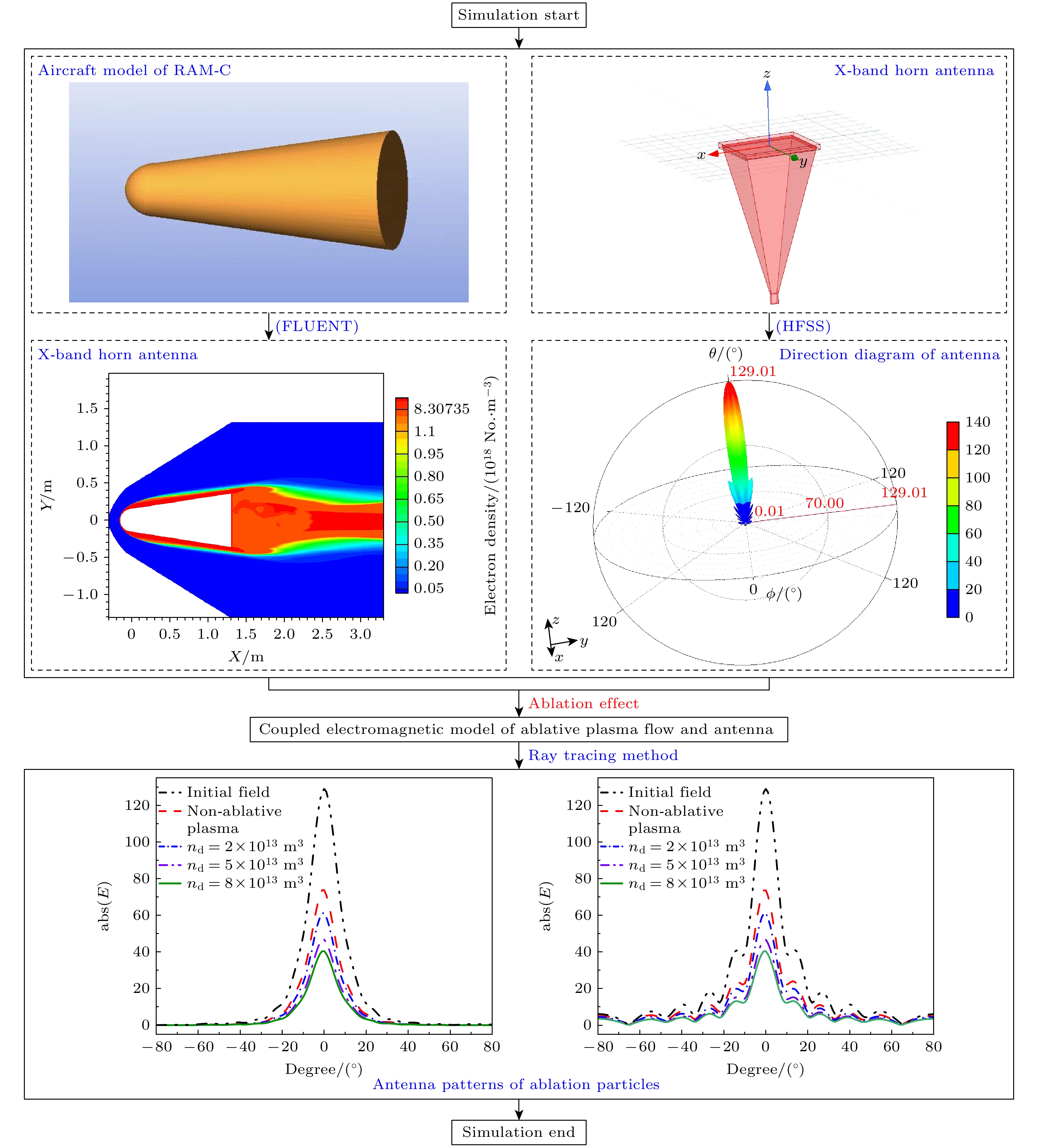

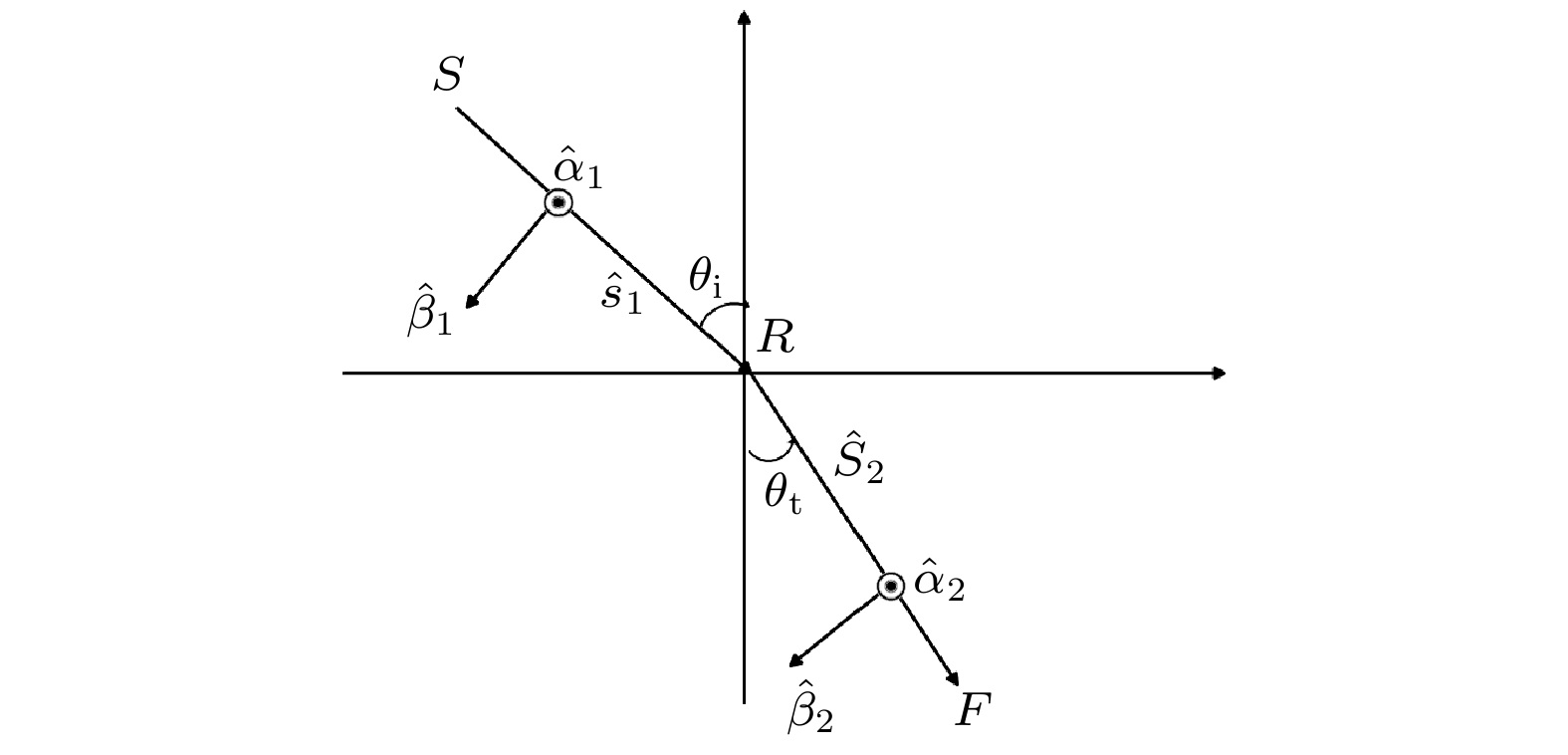

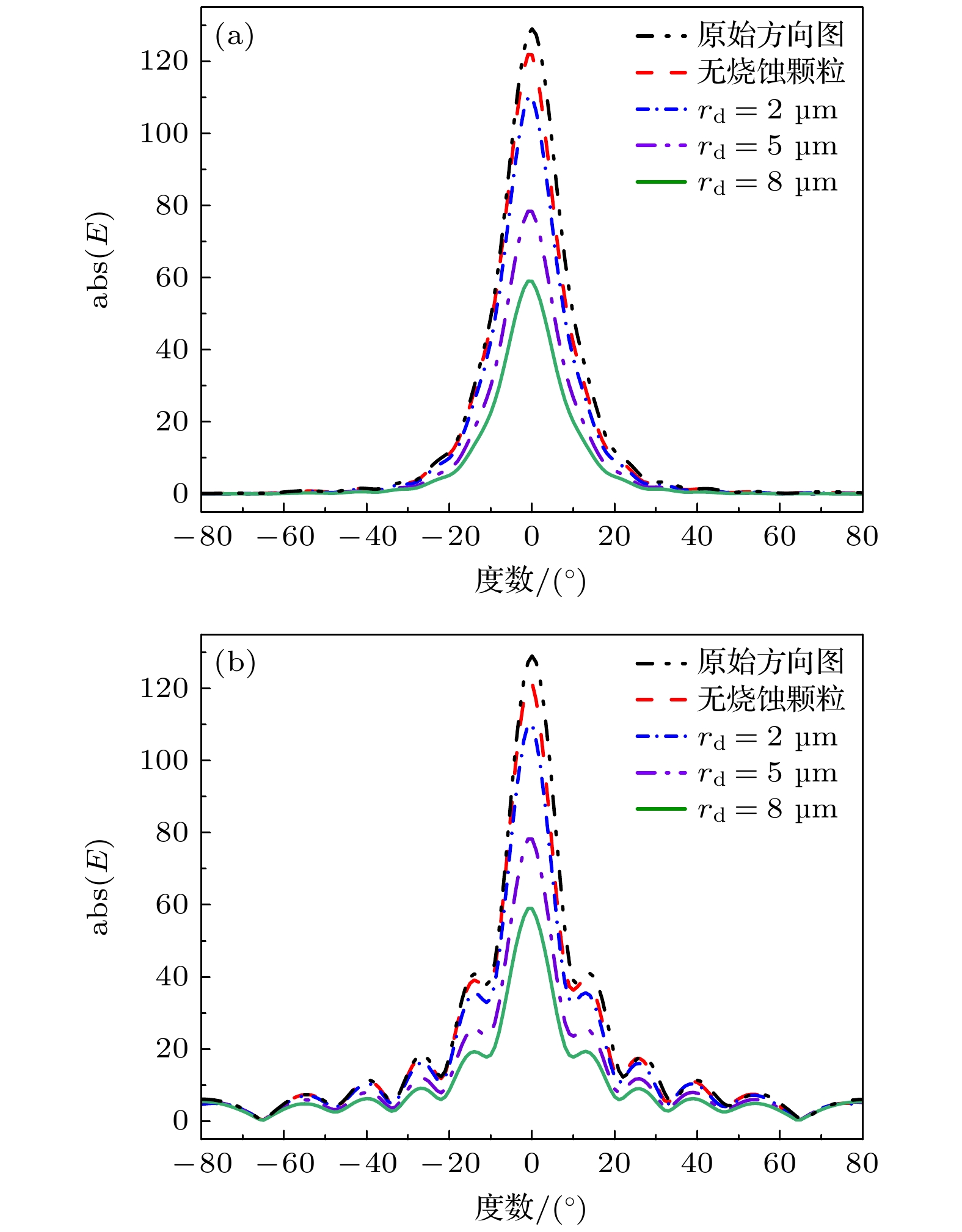

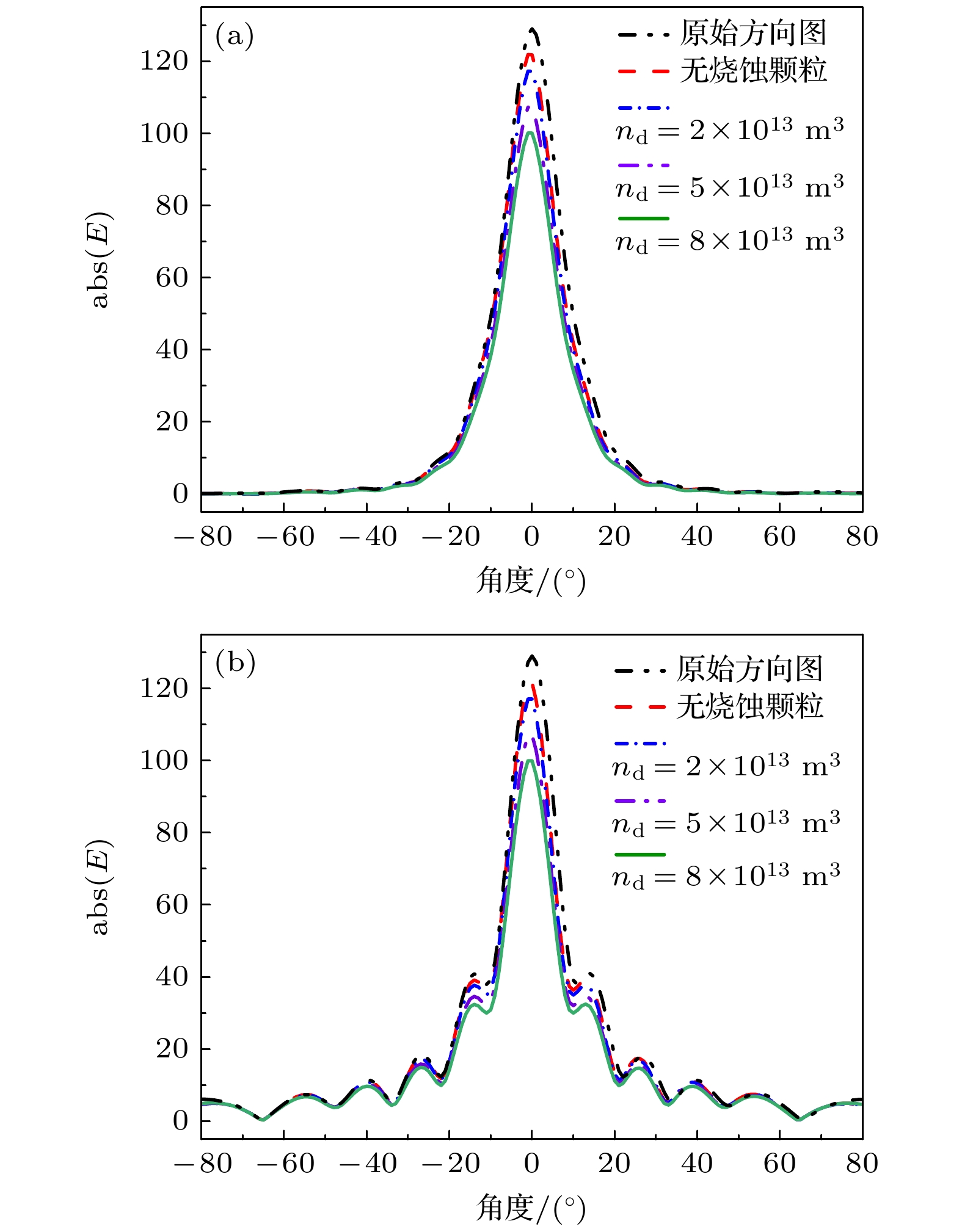

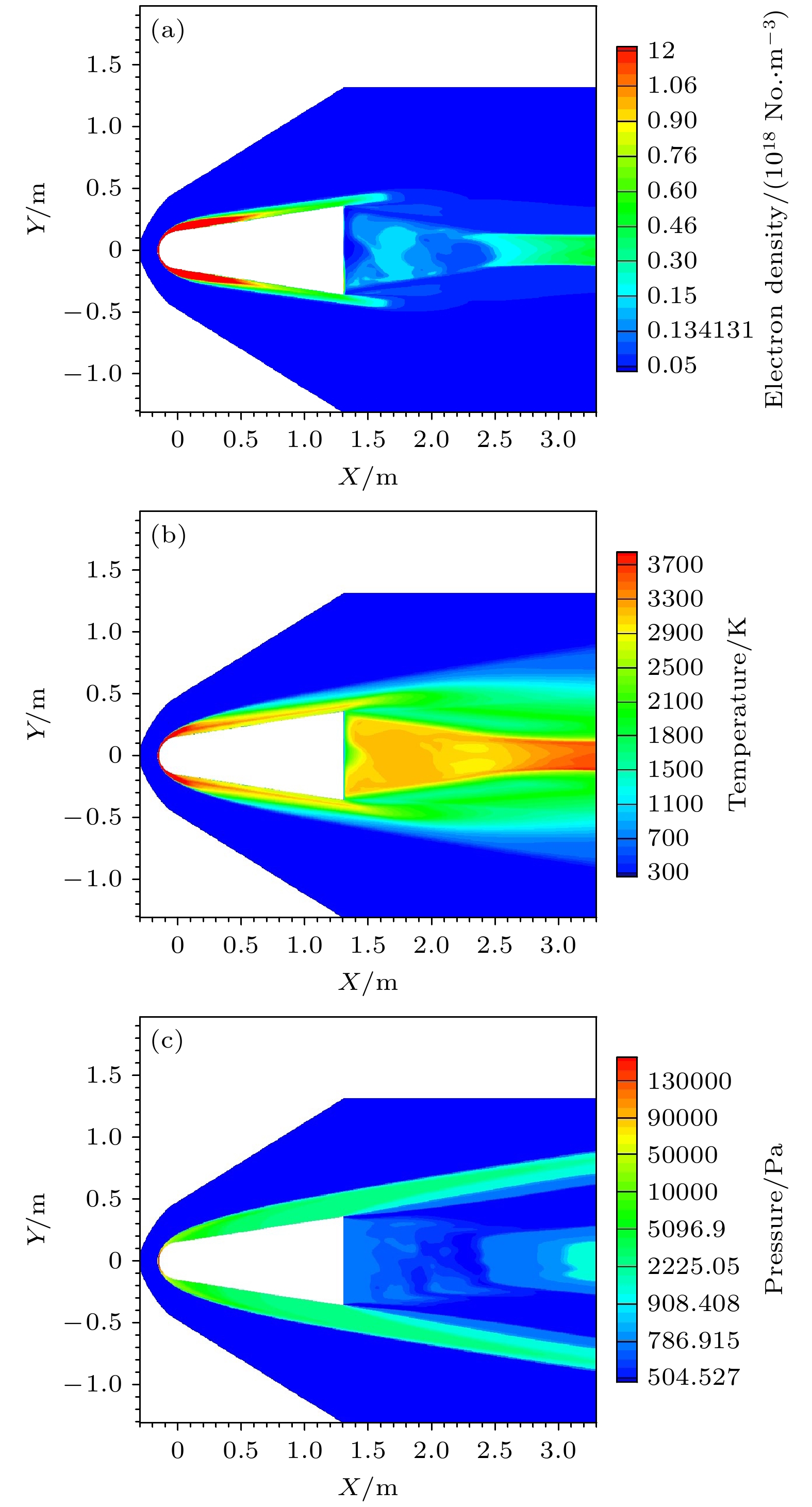

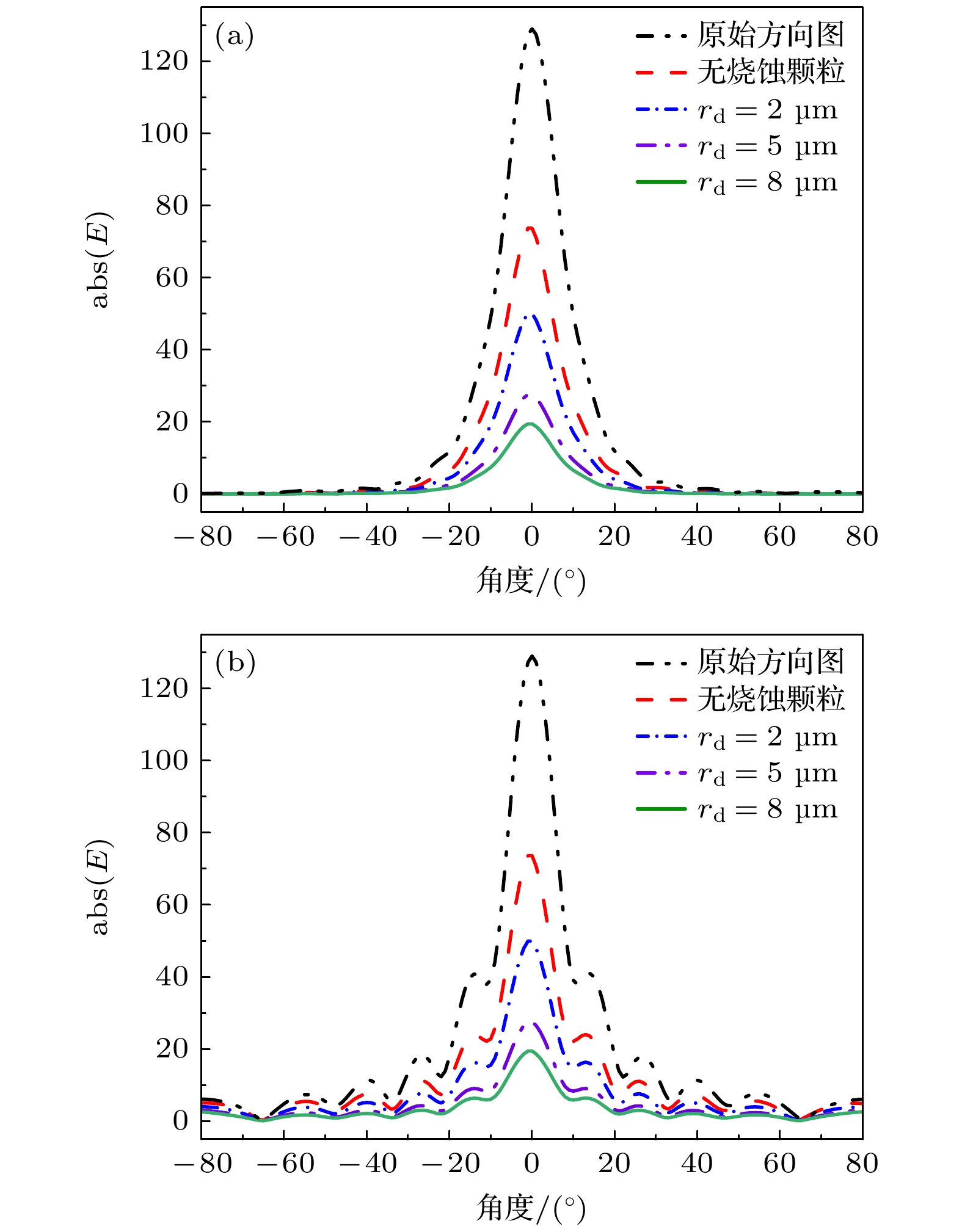

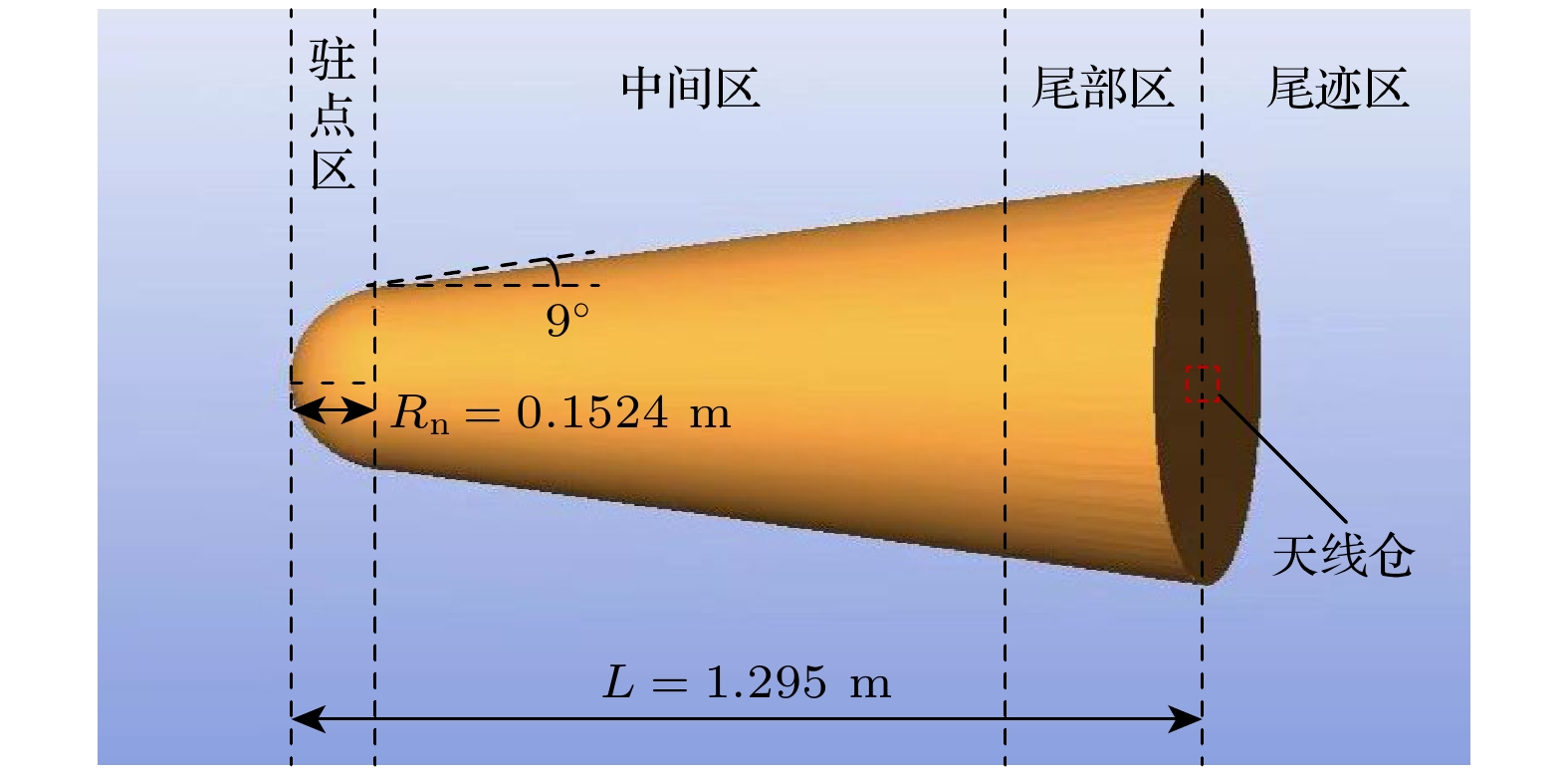

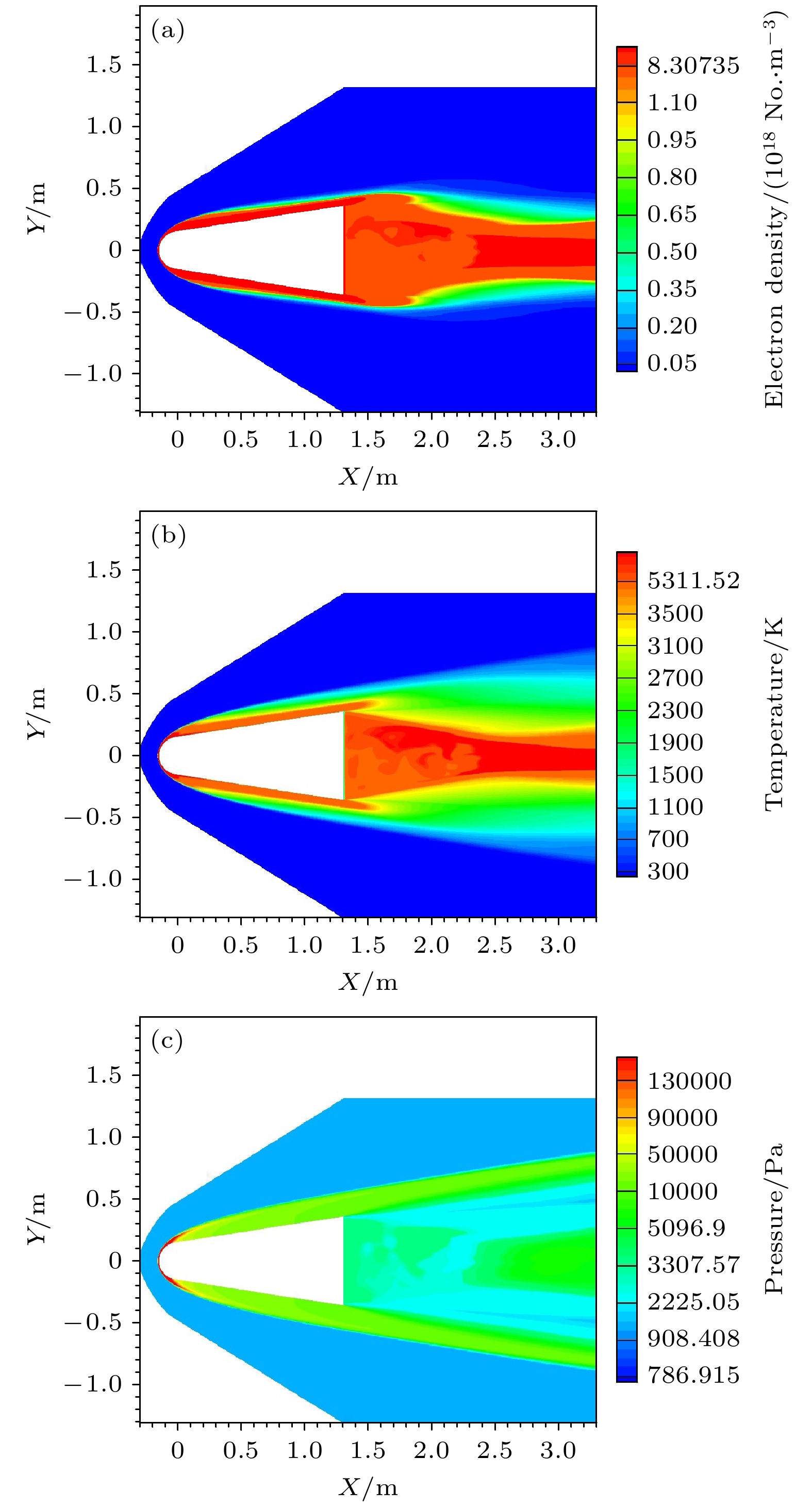

在超音速气动热能的加热下, 当飞行器表面防/隔热材料的壁面温度超过其耐受极限时, 表面区域将出现高温热化学烧蚀及机械剥蚀等退化损伤现象, 产生的烧蚀扩散产物(烧蚀颗粒)引射到周围等离子体流场中悬浮在飞行器周围, 形成伴有烧蚀扩散物的高超声速等离子体流场, 烧蚀扩散物的存在可对原等离子体流场的物理特征及电磁特性产生重要影响. 本文通过建立包覆钝头锥体的等离子体流场及机载天线的耦合电磁模型, 采用射线追踪方法, 定量分析了伴生烧蚀产物的尾迹区等离子体流场对喇叭天线辐射特性的影响. 研究结果表明, 包覆飞行器的等离子体流场可造成一定量的天线辐射能量损失, 而流场中弥散的烧蚀颗粒将会使这一情况加重, 且烧蚀产物的密度及几何尺寸都可对天线辐射能量的损失产生影响. 该研究可为解决临近空间高超声速飞行器信息传输瓶颈背后的电磁波传播提供参考, 为进一步深入研究高超声速飞行器的目标探测、识别、防/隔热材料及系统设计等技术提供理论参考.When the wall temperature of the thermal protection or insulation materials on the surface of an aircraft exceeds their tolerance limits under the heating of supersonic aerodynamic heat energy, degradation damage phenomena such as high-temperature thermochemical ablation and mechanical erosion will occur in the surface area. The ablation diffusion products (ablation particles) generated are ejected into the surrounding plasma flow field and suspended around the aircraft, forming a hypersonic plasma flow field with ablation diffusion substances. The presence of ablation diffusion substances can significantly affect the physical and electromagnetic characteristics of the original plasma flow field. To solve this problem, this study establishes a coupled electromagnetic model of an ablative plasma flow field surrounding a blunt-nosed cone aircraft and analyzes the antenna radiation characteristics in the wake region of the ablative flow field. The research method consists of several key steps. Firstly, the plasma flow field around the blunt-nosed cone is simulated using ANSYS FLUENT, a computational fluid dynamics (CFD) software. This step provides the fundamental flow field parameters such as electron density, temperature, and pressure distributions. Secondly, ablation particles, generated from thermal protection material degradation, are uniformly dispersed into the plasma flow. Then, the ablative plasma flow field is obtained. Thirdly, an X-band horn antenna is designed in ANSYS HFSS and loaded into the center of the wake region of the ablative plasma flow field. Based on the above models, the ray-tracing method is employed to quantitatively evaluate the attenuation of antenna radiation as it propagates through the wake region. The numerical results demonstrate that the plasma flow field enveloping the aircraft induces significant attenuation of antenna radiation energy. It is more noteworthy that the presence of ablation particles within the flow field substantially amplifies this energy dissipation effect. Both the ablation particle density and size distribution are identified as dominant factors controlling radiative energy loss, exhibiting proportional relationships with the attenuation of the incident field. This study systematically proves the influences of ablation particle density and size on initial field energy attenuation. This research can provide a reference for solving the problem of electromagnetic wave propagation that causes the information transmission bottleneck of near-space hypersonic aircraft. It can also serves as a theoretical basis for further in-depth research on technologies such as target detection, identification, thermal protection/insulation materials, and system design of hypersonic aircraft.
-

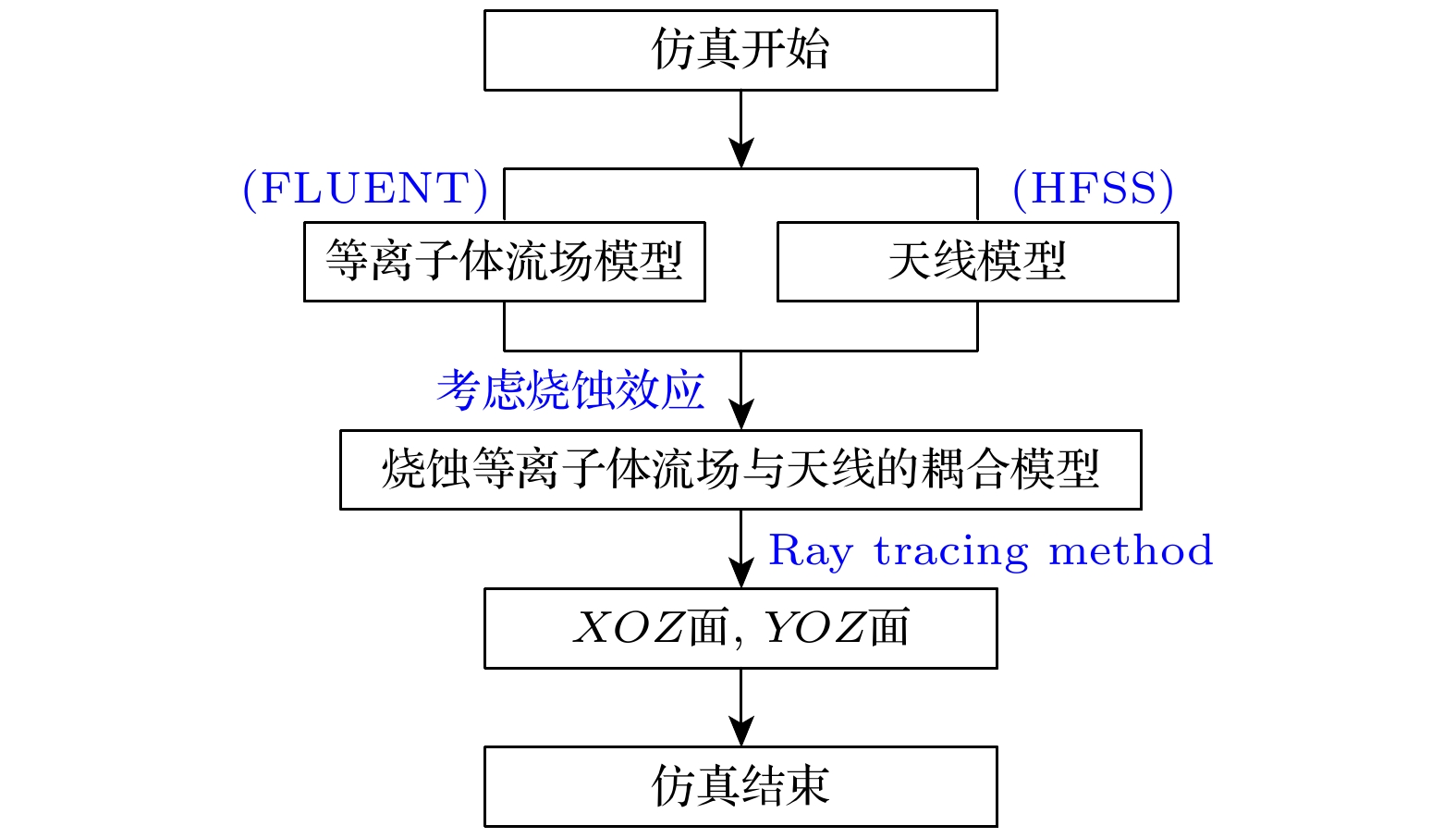

Keywords:
- supersonic /
- ablation /
- plasma flow /
- antenna radiation characteristics.
-

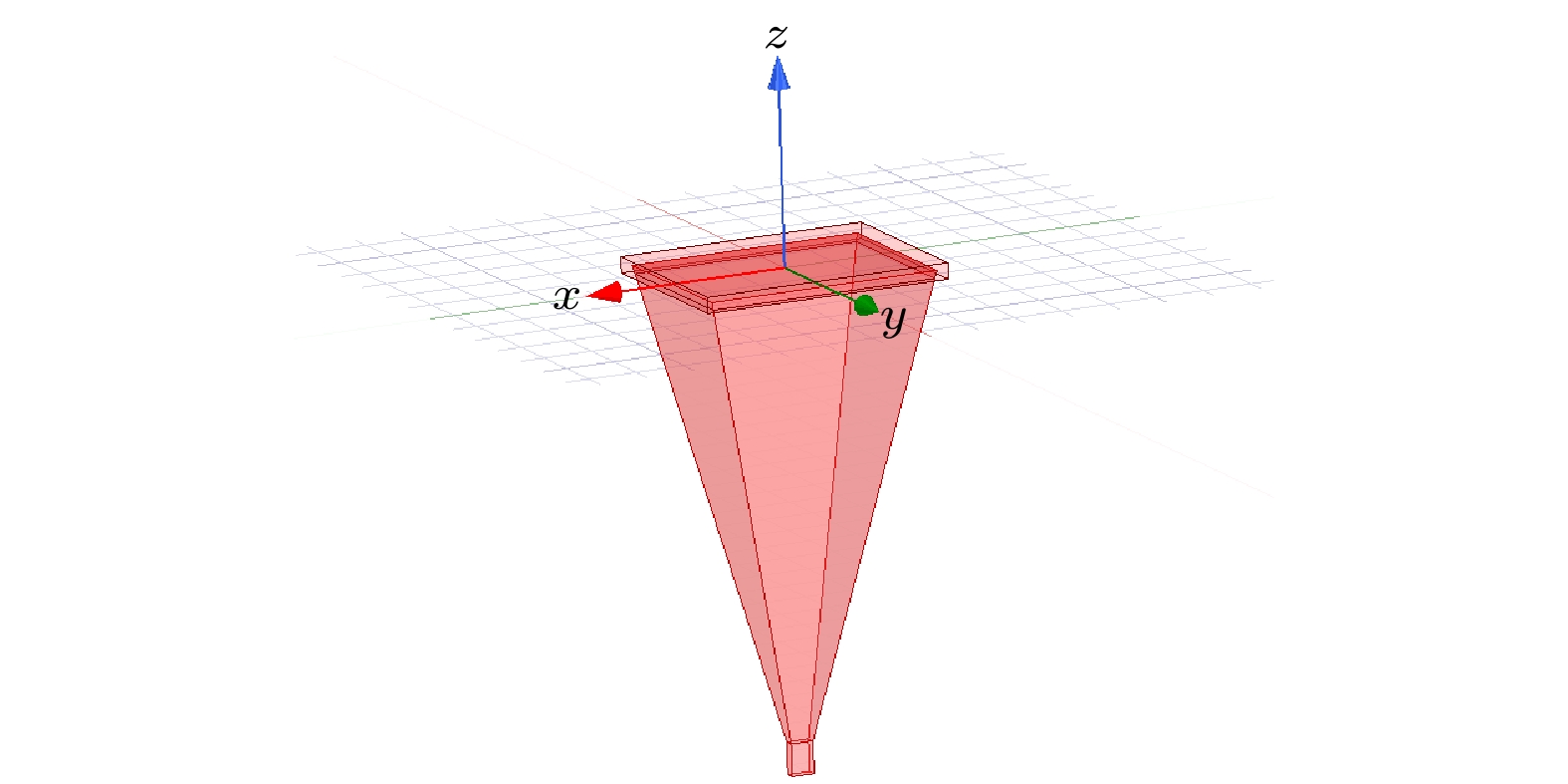

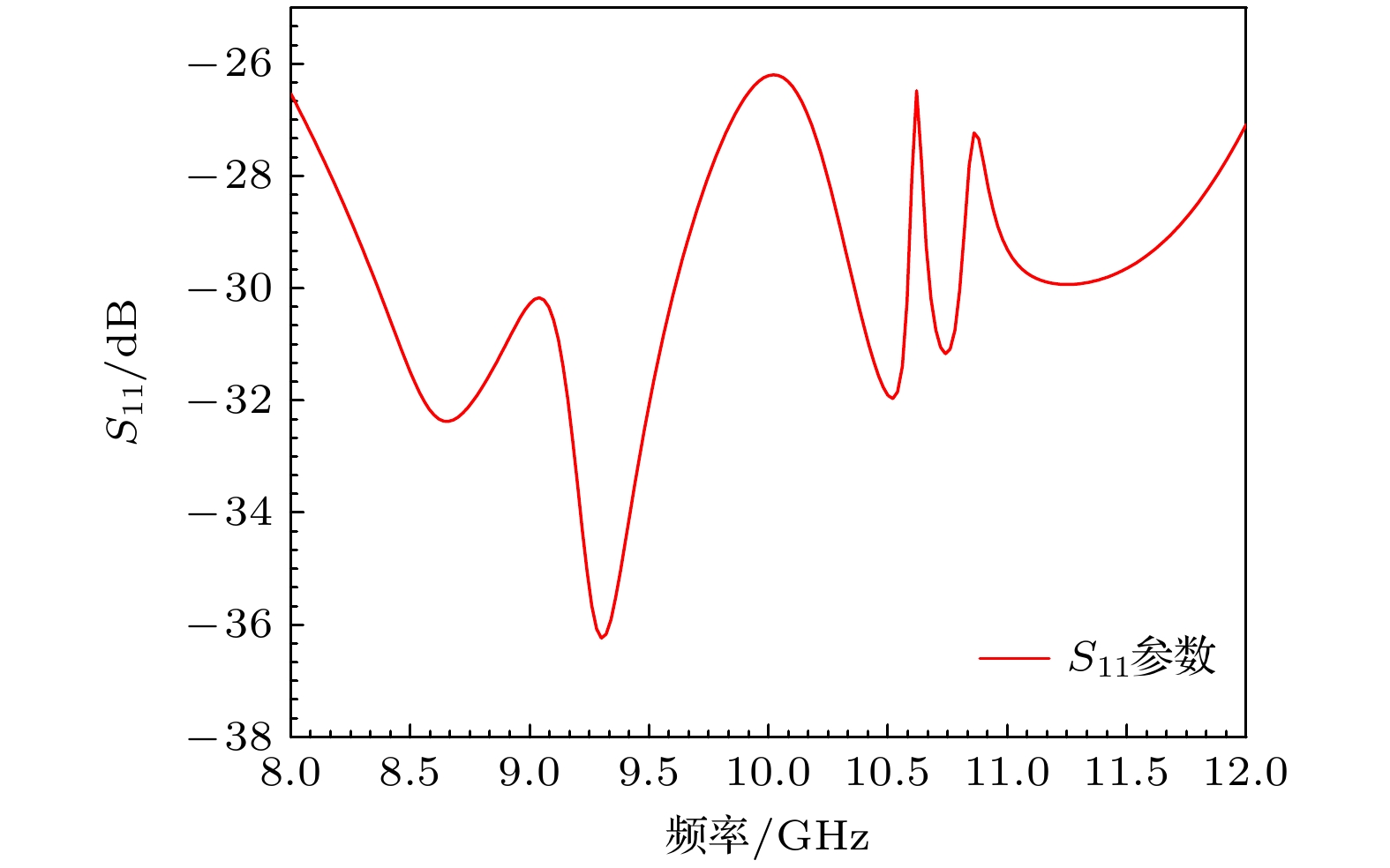

表 1 X波段喇叭天线结构参数
Table 1. Structural parameters of X-band horn antenna.
波导
宽度W/mm波导
高度H/mm波导长度/mm 喇叭口径
宽度W1/mm喇叭口径
高度H1/mm喇叭长度/mm 23 10 32 238 176 465 -
[1] Korotkevich A O, Newell A C, Zakharov V E 2007 J. Appl. Phys. 102 083305
Google Scholar
[2] Li J F, Wang Y, Zhou Z X, Yao J F, Liu J L, Lan Z H, Yuan C X 2023 Nanophotonics 12 1847
Google Scholar
[3] Chen S G, Hou L, Shi W, Yang L, Dong C G, Wang Z Q, Chang Z S, Zhang G J 2023 IEEE Trans. THz Sci. Technol. 13 28
Google Scholar
[4] Yang W O, Liu Q, Mao W, Gao S, Wu Z 2023 IEEE Trans. Antennas Propag. 71 2710
Google Scholar
[5] Zhang Y, Xu G, Zheng Z 2021 Waves Random Complex Media 31 2466
Google Scholar
[6] Bogatskaya A V, Klenov N V, Tereshonok M V, Adjemov, S S, Popov, A M 2018 J. Phys. D: Appl. Phys. 51 185602
Google Scholar
[7] 李小平, 刘彦明, 谢楷 2018 高速飞行器等离子体鞘套电磁波传播理论与通信技术(北京: 科学出版社) 第35页
Li X P, Liu Y M, Xie K 2018 Theory and Communication Technology of Electromagnetic Wave Propagation in Plasma Sheath of High Speed Aircraft (Beijing: Science Press) p35
[8] Sha Y X, Zhang H L, Guo X Y, Xia M Y 2019 IEEE Trans. Antennas Propag. 67 2470
Google Scholar
[9] Li J, He M, Li X P, Zhang C F 2018 IEEE Trans. Antennas Propag. 66 3653
Google Scholar
[10] Zhao Z Y, Yuan K, Tang R X, Lin H, Deng X H 2022 IEEE Trans. Plasma Sci. 50 517
Google Scholar
[11] Ni Y X, Zhao Z Y, Yuan K, Tang Y X, Hong L J 2023 IEEE Trans. Plasma Sci. 51 2736
Google Scholar
[12] Mei J, Xie Y J 2017 IEEE Trans. Plasma Sci. 45 364
Google Scholar
[13] Xu J, Bai B W, Dong C X, Zhu Y T, Dong Y Y, Zhao G Q 2017 IEEE Antennas Wireless Propag. Lett. 16 1056
Google Scholar
[14] Chen X Y, Li K X, Liu Y Y, Zhou Y G, Li X P, Liu Y M 2017 IEEE Trans. Plasma Sci. 45 3166
Google Scholar
[15] 郑永康, 叶友达, 田浩, 田浩, 蒋勤学 2024 空天技术 458 54
Zheng Y K, Ye Y D, Tian H, Tian H, Jiang Q X 2024 Aerosp. Technol. 458 54
[16] Mao M Y, Peng K P, Zhao Z Y, Yuan K, Xiong J W, Tang R X, Deng X H 2024 IEEE Trans. Plasma Sci. 52 240
Google Scholar
[17] Deng Q Q, Chen W, Yang L X, Chen C X, Bo Y, Guo L X 2024 IEEE Trans. Plasma Sci. 52 1452
Google Scholar
[18] Guo Y J, Shi W B, Zeng L, Du B H 2019 Mechanism of Ablative Thermal Protection Applied To Hypersonic Vehicles p25 ((in Chinese)[国义军, 石卫波, 曾磊, 杜百合 2019 高超声速飞行器烧蚀防热理论与应用(北京: 科学出版社) 第25页]
[19] Bisek N J, Poggie J 2011 42th AIAA Plasmadynamics and Lasers Conference Hawii, USA, June 27-30, 2011, AIAA 2011-897
[20] 曾学军, 李海燕 2017 宇航学报 38 109
Zeng X J, Li H Y 2017 J. Astronaut. 38 109
[21] 李开 2017 博士学位论文 (长沙: 国防科学技术大学)
Li K 2017 Ph. D. Dissertation (Changsha: National University of Defense Technology
[22] 李开, 刘伟强 2016 物理学报 65 064701
Google Scholar
Li K, Liu W Q 2016 Acta Phys. Sin. 65 064701
Google Scholar
[23] 姚霄, 刘伟强, 谭建国 2018 物理学报 67 174702
Google Scholar
Yao X, Liu W Q, Tan J G 2018 Acta Phys. Sin. 67 174702
Google Scholar
[24] Robin A M, Adam S P, Partho P 2019 J. Thermophys. Heat TR 33 1018
Google Scholar
[25] 丁明松, 刘庆宗, 江涛, 傅杨奥骁, 李鹏, 梅杰 2024 物理学报 73 115204
Google Scholar
Ding M S, Liu Q Z, Jiang T, Fu Y A X, Li P, Mei J 2024 Acta Phys. Sin. 73 115204
Google Scholar
[26] Shao C, Nie L, Chen W F 2016 Aerosp. Sci. Technol. 51 151
Google Scholar
[27] 赵文文 2014 博士学位论文(杭州: 浙江大学)
Zhao W W 2014 Ph. D. Dissertation (Hangzhou: Zhejiang University
[28] Chang P C Y, Walker J G, Hopcraft K I 2005 J. Quant. Spectrosc. Radiat. Transfer 96 327
Google Scholar
[29] Li L Q, Wei B, Yang Q, Yang X, Ge D B 2017 IEEE Trans. Antennas wireless propag. Letter. 16 2078
Google Scholar
[30] Wang M Y, Li H L, Dong Y L, Li G P, Jiang B J, Zhao Q, Xu J 2016 IEEE Trans. Antennas Propag. 64 286
Google Scholar
