混合阴离子硫卤化物凭借其独特的晶格动力学和可调电子结构, 在热电与光电材料领域备受关注. 本文基于密度泛函理论的第一性原理计算, 结合玻尔兹曼输运方程、声子重整化模型, 研究了AgBiSCl2的光电、热电性能. 结果表明, AgBiSCl2为直接带隙半导体且带隙为1.72 eV, 紫外区光吸收系数达到1 × 106 cm–1, 3 μm厚度下光谱极限最大效率为28.06 %. AgBiSCl2中Ag原子离域引起的rattling振动引发强非谐声子散射, 导致极低的晶格热导率, 在300 K时平均热导率中kp和kc分别为0.246 W/mK 和0.132 W/mK. 700 K 时p型和 n 型最大ZT分别为0.77和0.69. 由此表明AgBiSCl2在高效热电能量转换与紫外光电探测器领域具有重要应用潜力, 为设计多功能材料提供了理论参考.
-
关键词:
- 非谐晶格动力学 /
- 热电材料 /
- 混合阴离子卤化物-硫族化物
This work systematically investigates the potential of the hybrid anion semiconductor AgBiSCl2 for photovoltaic and thermoelectric applications, aiming to provide theoretical guidance for high-performance energy conversion devices. Structural analysis reveals favorable ductility and a relatively low Debye temperature (219 K). Electronic structure calculations show that AgBiSCl2 is a direct band gap semiconductor, with a gap of approximately 1.72 eV after including spin–orbit coupling effects. The conduction band is mainly derived from Bi 6p orbitals, while the valence band is dominated by contributions from Ag 4d, Cl 3p, and S 3p orbitals. Analysis of interatomic interactions indicates that Ag—S and Ag—Cl bonds are relatively weak, resulting in local structural softness and enhanced lattice anharmonicity. These weak bonds facilitate phonon scattering and give rise to low-frequency localized “rattling” vibrations primarily associated with Ag atoms, contributing to reduced lattice thermal conductivity. In contrast, Bi—S bonds exhibit stronger, more directional interactions, which help stabilize the overall structure. The coexistence of weak bonding and strong lattice coupling enables favorable modulation of thermal transport properties. Optically, AgBiSCl2 possesses a high static dielectric constant (ε1(0) = 5.60) and exhibits strong absorption in the ultraviolet region, with absorption coefficients rapidly exceeding 1 × 106 cm–1. A theoretical solar conversion efficiency of up to 28.06% is predicted for a 3 μm-thick absorber layer,highlighting its potential as a high-performance photovoltaic material. In terms of thermal transport, phonon spectra exhibit mode hardening with temperature increasing, while flat optical branches in the 30–70 cm–1 range enhance phonon scattering. The localized Ag vibrations intensify the anharmonicity, reducing phonon lifetimes and group velocities. As a result, at 300 K, the lattice thermal conductivities via the Peierls and coherent channels are calculated to be 0.246 W·m–1·K–1 and 0.132 W·m–1·K–1, respectively. For electronic transport, the p-type material maintains a higher Seebeck coefficient than the n-type, while the latter shows greater electrical conductivity. At 700 K, the thermoelectric figure of merit (ZT) reaches 0.77 for p-type and 0.69 for n-type AgBiSCl2, indicating promising high-temperature thermoelectric performance. In summary, AgBiSCl2 exhibits excellent potential for dual photovoltaic and thermoelectric applications. Its unique bonding features and lattice response mechanisms offer valuable insights into designing multifunctional energy conversion materials. -
Keywords:
- anharmonic lattice dynamics /
- thermoelectric materials /
- mixed-anion halide–chalcogenides.
-

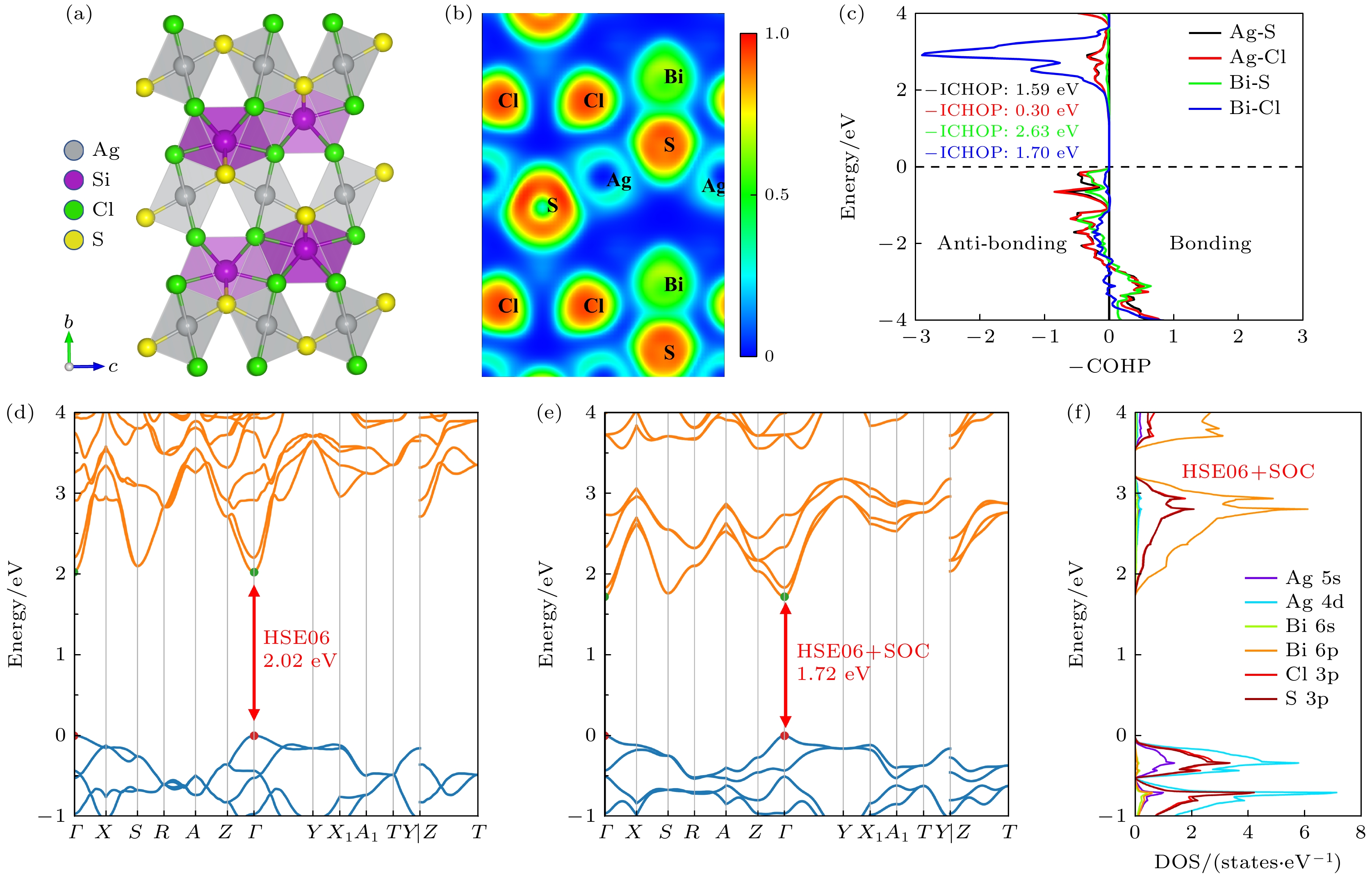

图 1 (a) AgBiSCl2的晶体结构; (b)电子局域函数; (c)最近邻原子对的COHP分析; (d)能带结构(考虑HSE06); (e)能带结构(考虑HSE06+SOC); (f)态密度
Fig. 1. (a) Crystal structure of AgBiSCl2; (b) electron localization function; (c) COHP analysis of nearest-neighbor atom pairs; (d) band structure (HSE06); (e) band structure (HSE06 + SOC); (f)density of states.

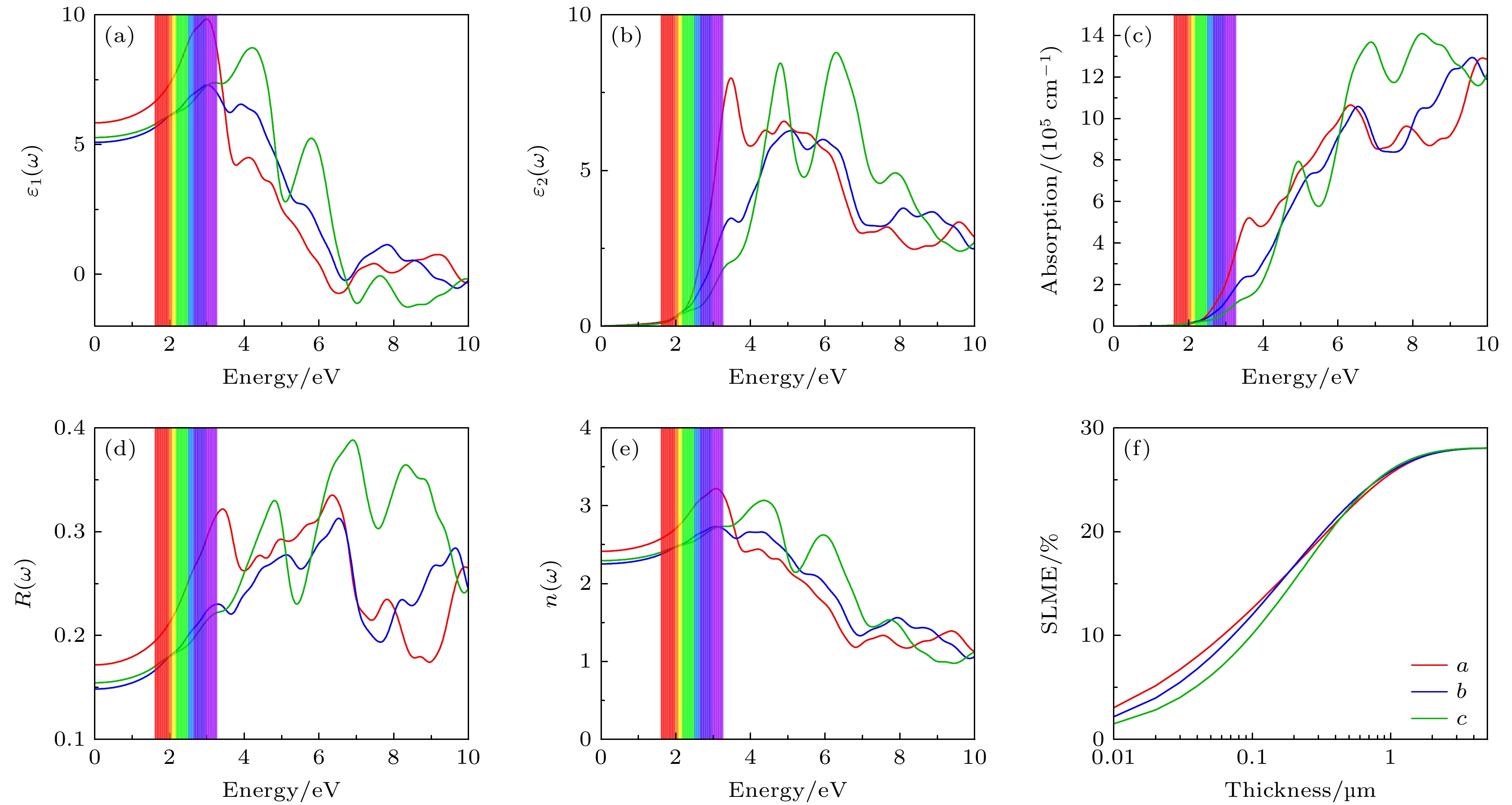

图 2 (a) 介电函数实部; (b) 介电函数虚部; (c) 光吸收系数; (d) 反射率; (e) 折射率; (f) SLME
Fig. 2. (a) Real part of the dielectric function; (b) imaginary part of the dielectric function; (c) optical absorption coefficient; (d) reflectivity; (e) refractive index; (f) SLME.

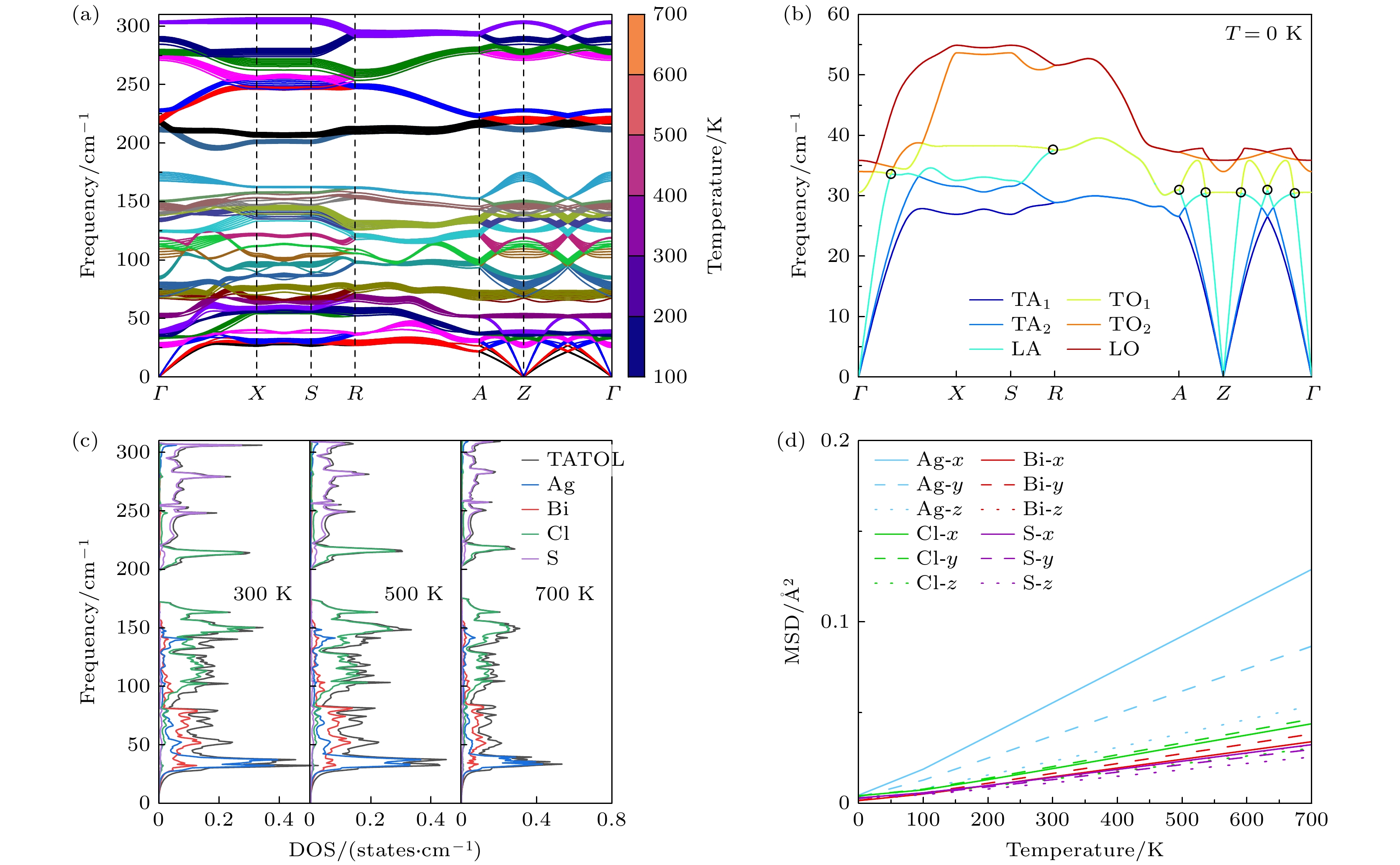

图 3 (a) AgBiSCl2不同温度下的声子谱; (b) 温度为0 K时的声学支和低频光学支; (c) 温度300 K, 500 K和700 K时的声子态密度; (d) 不同温度下均方位移
Fig. 3. (a) Phonon dispersion of AgBiSCl2 at different temperatures; (b) acoustic branches and low-frequency optical branches at 0 K; (c) density of states at 300 K, 500 K, and 700 K; (d) root-mean-square displacement at different temperatures.

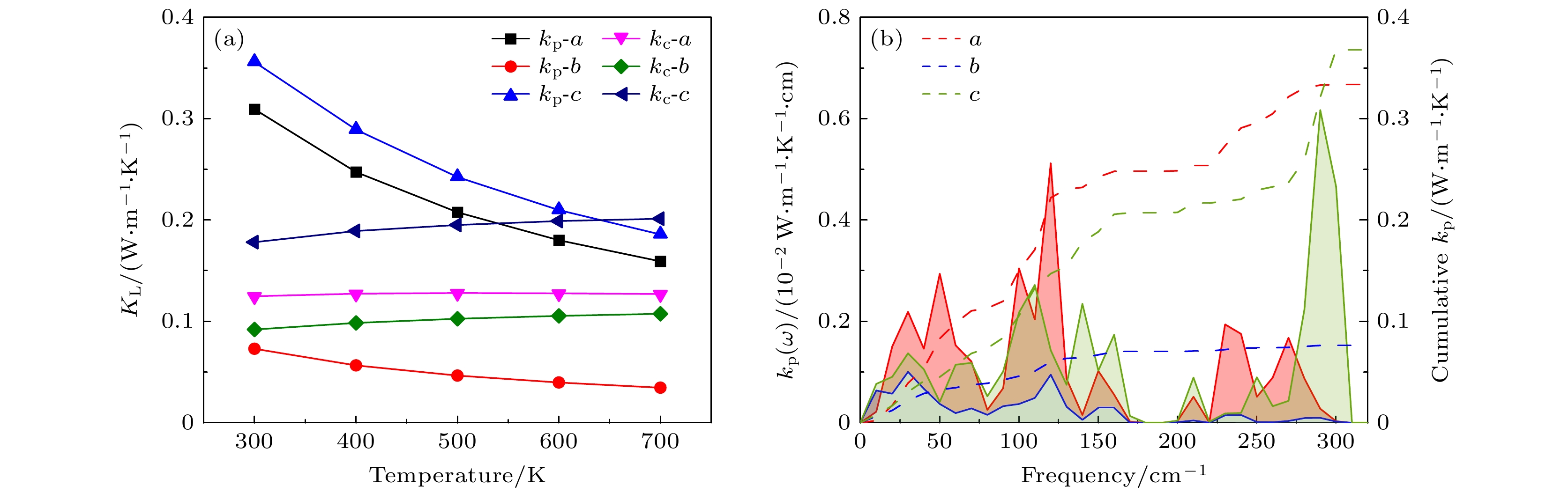

图 4 (a) AgBiSCl2温度依赖的晶格热导率; (b) 温度为300 K时热导率和累积热导随频率的变化
Fig. 4. (a) Temperature-dependent lattice thermal conductivity of AgBiSCl2; (b) variation of thermal conductivity and cumulative thermal conductivity with frequency at 300 K.

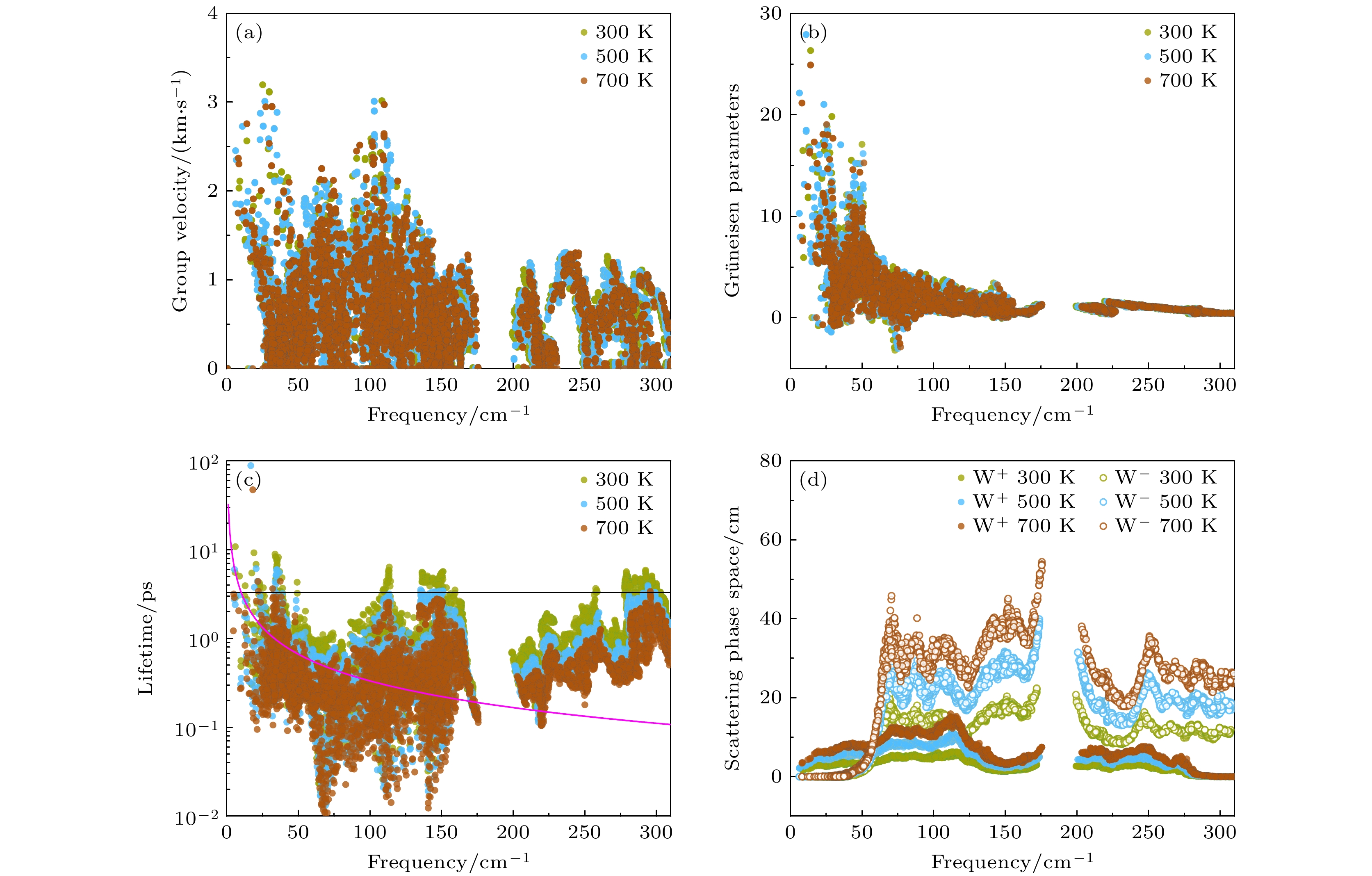

图 5 (a) 群速度; (b) Grüneisen常数; (c) 声子寿命(黑色表示Wigner极限, 紫色表示Ioffe-Regel极限); (d) 三声子散射相空间
Fig. 5. (a) Group velocity; (b) Grüneisen parameter; (c) phonon lifetime (black denotes the Wigner limit, purple denotes the Ioffe–Regel limit); (d) three-phonon scattering phase space.

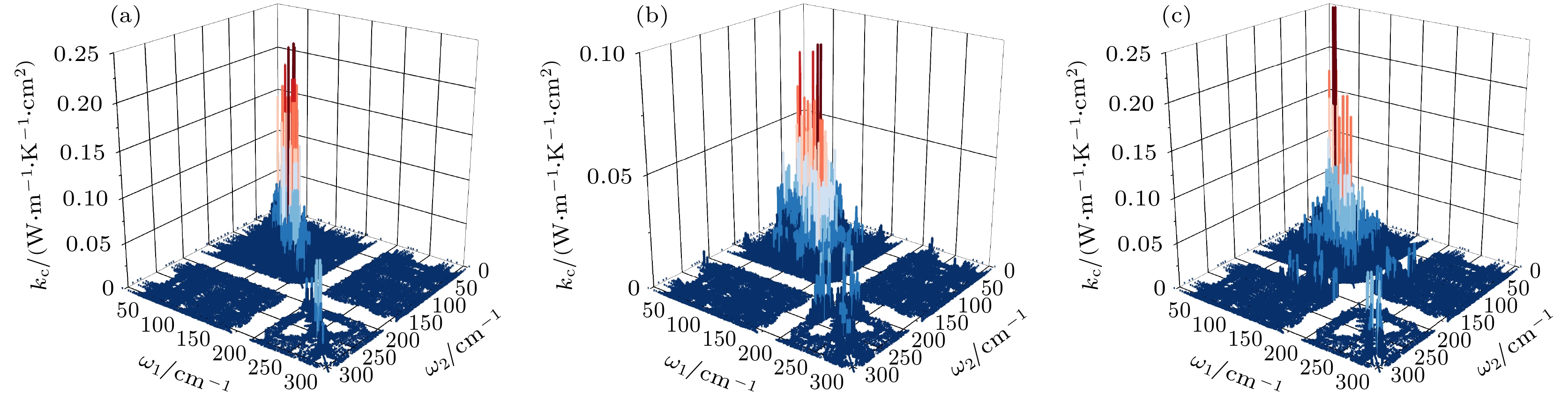

图 6 在300 K时a, b和c方向相干热导率模式特定贡献的三维可视化
Fig. 6. Three-dimensional visualization of mode-specific contributions to coherent thermal conductivity along the a, b, and c directions at 300 K.

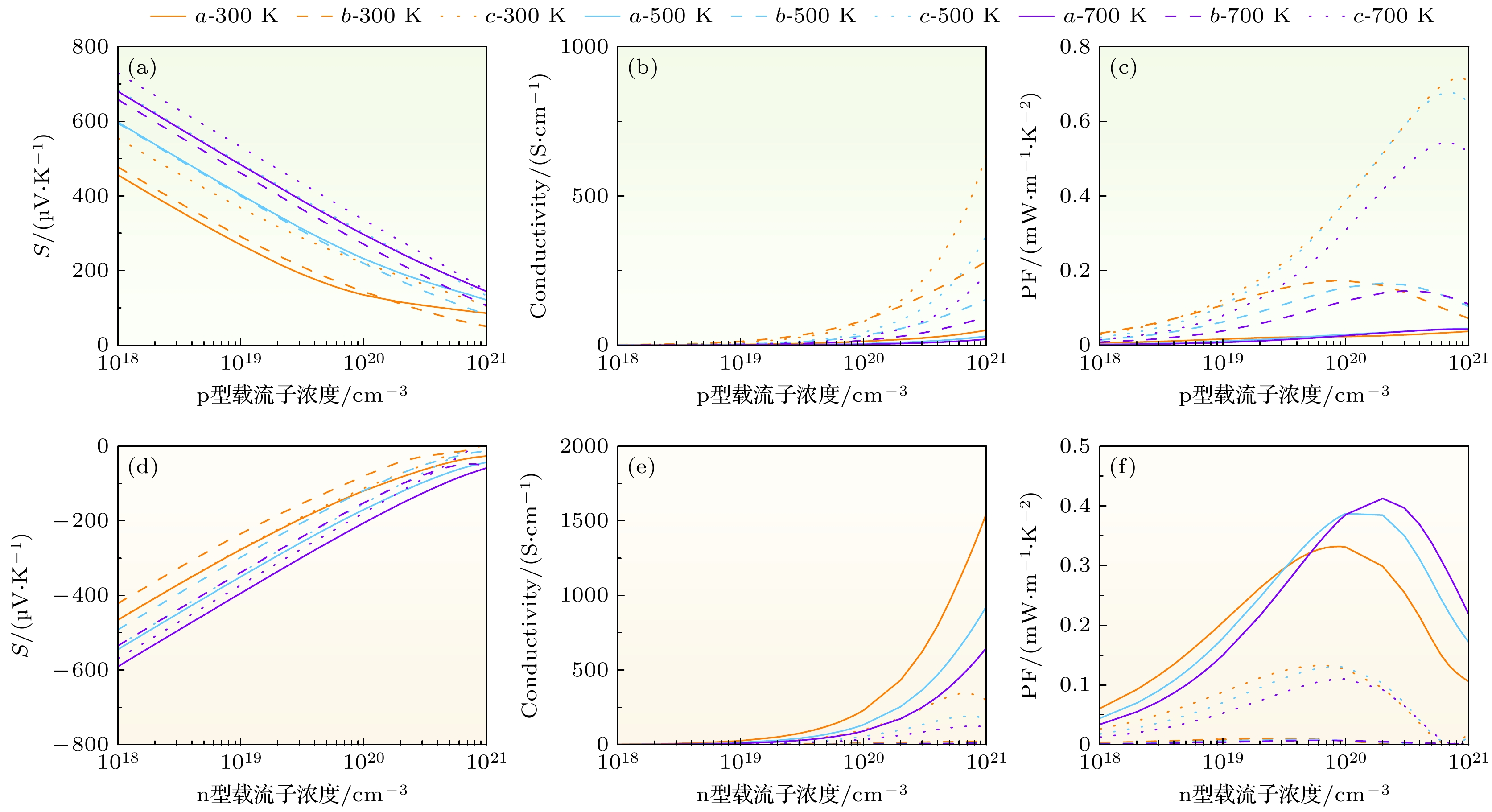

图 7 AgBiSCl2的电输运参数与载流子浓度关系 (a), (d) 塞贝克系数; (b), (e) 电导率; (c), (f) 功率因子
Fig. 7. Electrical transport parameters of AgBiSCl2 as a function of carrier concentration: (a), (d) Seebeck coefficient; (b), (e) electrical conductivity; (c), (f) power factor.

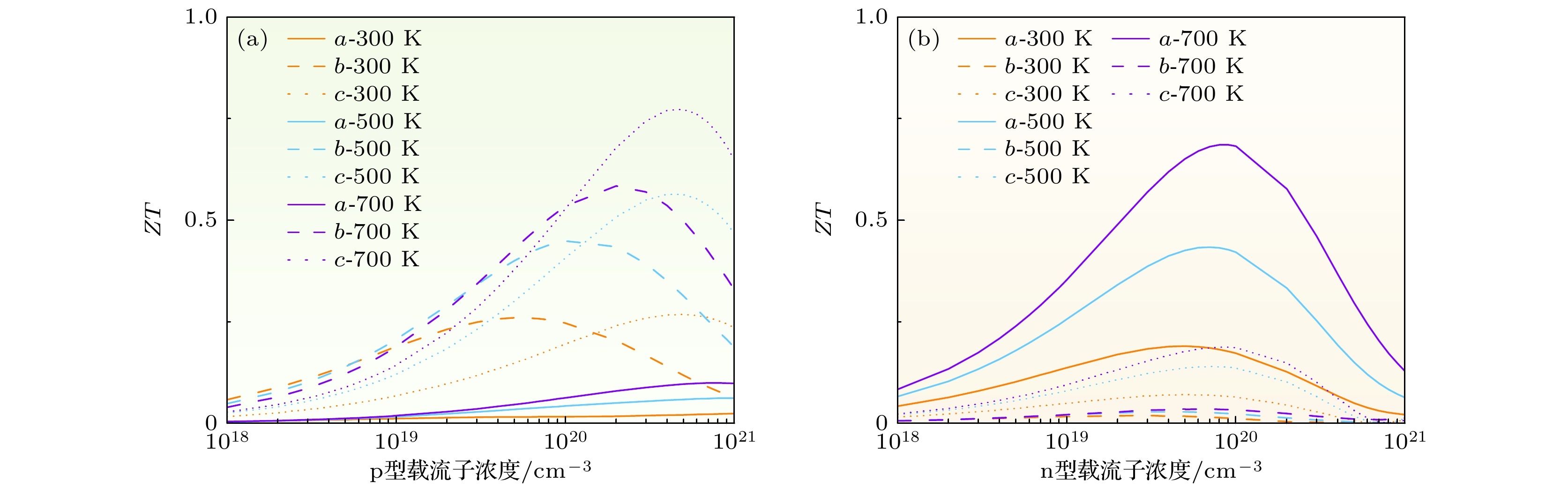

图 8 AgBiSCl2在(a) p型掺杂和(b) n型掺杂下的ZT值
Fig. 8. ZT of AgBiSCl2 at different temperatures: (a) p-type doping; (b) n-type doping.
表 1 AgBiSCl2空穴和电子的有效质量(m0 = 9.1 × 10–31 kg)
Table 1. Effective masses of holes and electrons of AgBiSCl2 (m0 = 9.1 × 10–31 kg).
Carrier type mx/m0 my/m0 mz/m0 h 0.873 0.873 0.666 e 0.274 0.274 0.537
下载: 导出CSV
表 2 零频率下 AgBiSCl2 的介电常数、反射率与折射率
Table 2. Calculated zero-frequency dielectric constant, reflectivity, and refractive index of AgBiSCl2.
Parameters a b c Average ε1(0) 5.84 5.08 5.27 5.40 R(0) 0.17 0.15 0.15 0.16 n(0) 2.42 2.25 2.3 2.32
下载: 导出CSV
-
