Neutral atom arrays have emerged as one of the most promising physical platforms for quantum computing and quantum information processing due to their precise single-atom control and tunable strong interactions. The acousto-optic deflector (AOD) is a key device for constructing and manipulating neutral atom arrays, enabling rapid and high-precision atom trapping and arrangement. However, TeO2-based anomalous Bragg AODs still face challenges in practical applications, such as unclear broadband diffraction conditions, polarization sensitivity, and low efficiency, which limit their performance in multi-degree-of-freedom control.

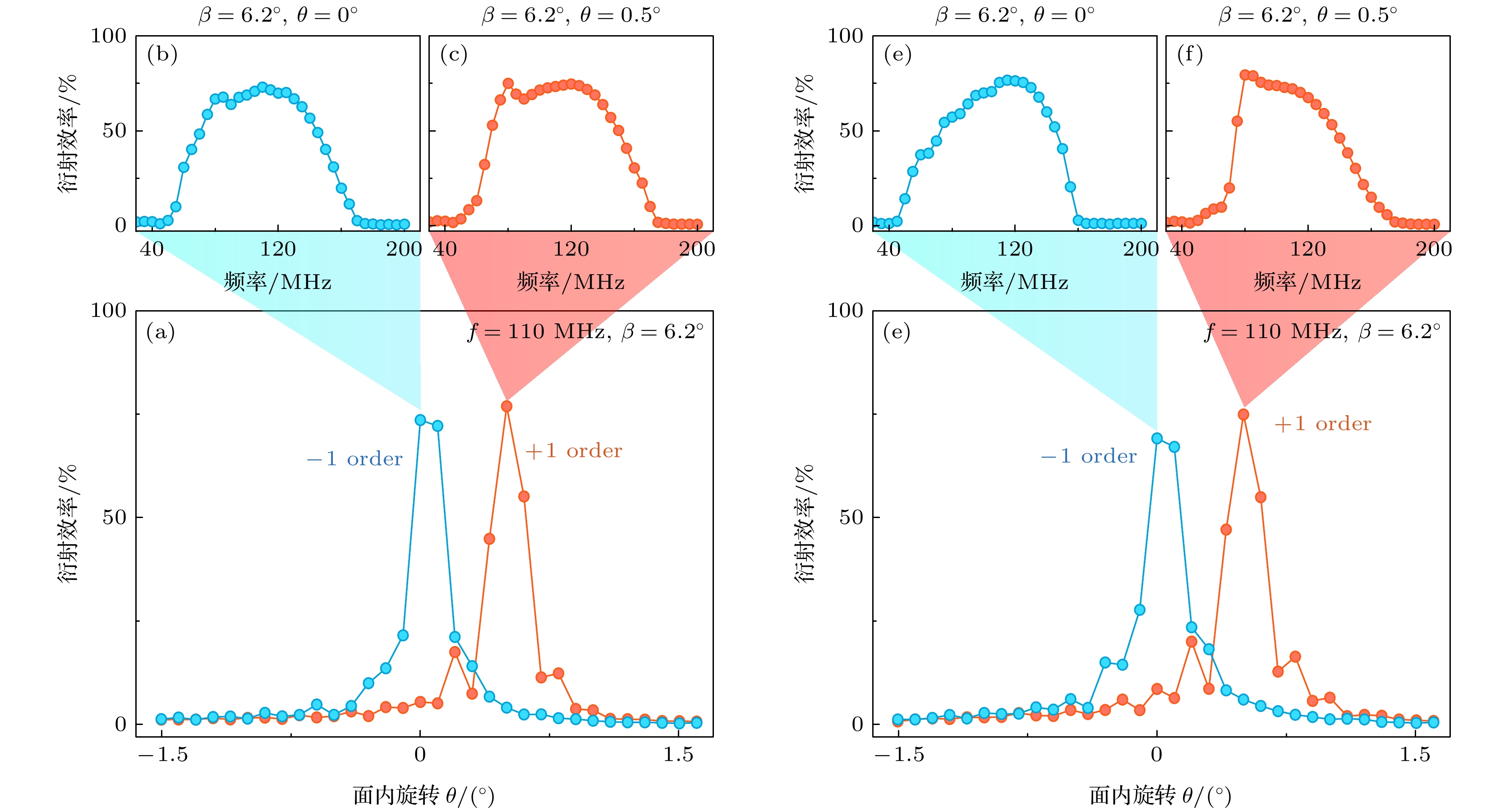

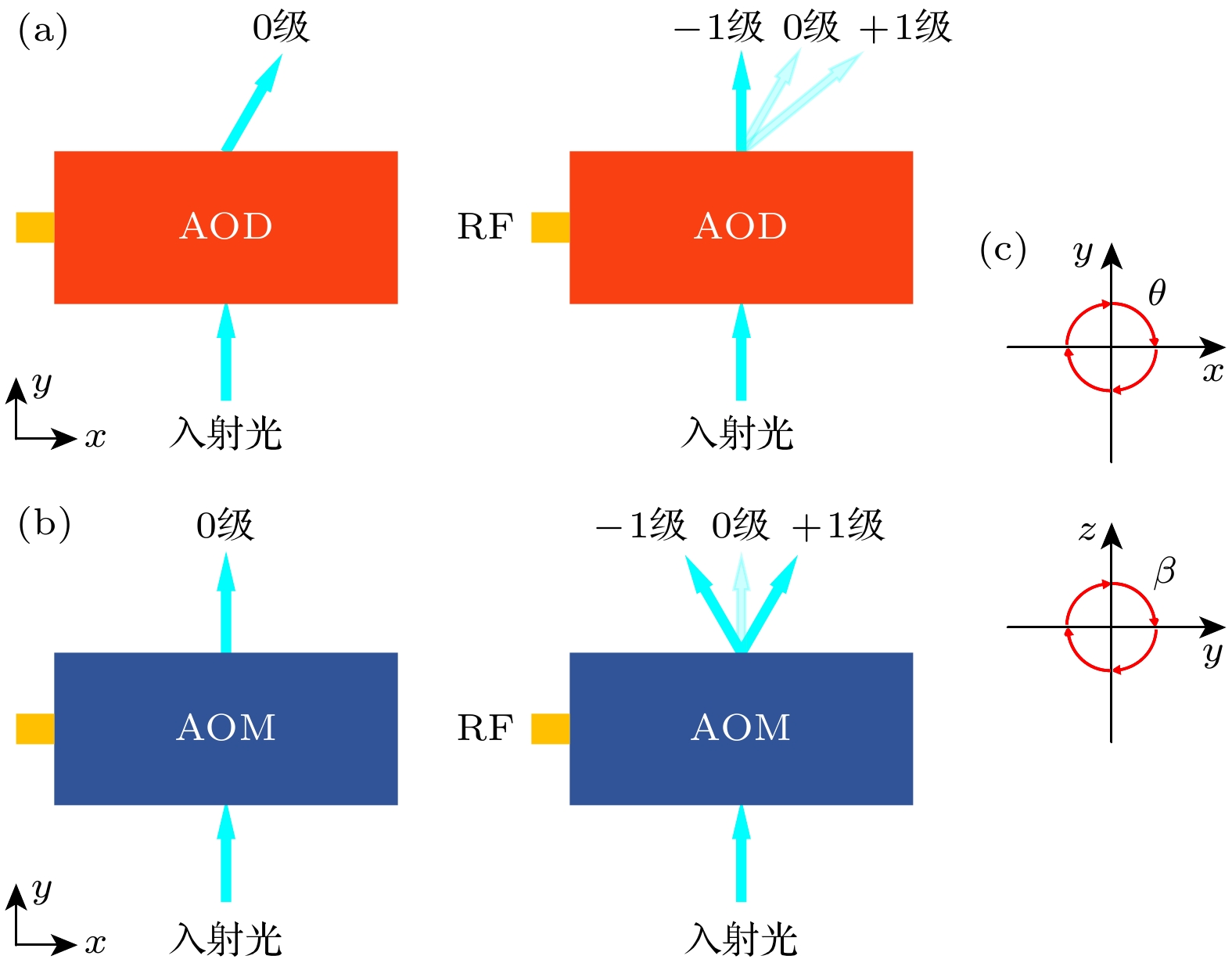

This study investigates the acousto-optic effects in AOD and acousto-optic modulator (AOM), revealing their differences in diffraction efficiency, polarization characteristics, and applications. By adjusting the azimuthal angle of the AOD, we measured the efficiency and RF bandwidth of the ±1st-order diffracted beams under horizontal and vertical polarization incident light, proposed an experimental method to determine the broadband diffraction center frequency and diffraction order. Additionally, we systematically characterized the operational parameters of AOM, clarifying their performance mechanisms and application-specific differences compared to AOD. The main conclusions are as follows:
(I) The beam deflection performance of an AOD is closely related to the ultrasonic mode or acoustic velocity: a lower sound velocity results in a larger deflection angles. For TeO2 crystals, when a shear wave propagates along the [110] axis (sound velocity: 0.617 km/s), the diffraction angle reaches 0.842 mrad/MHz (laser wavelength: 532 nm). In contrast, when TeO2 is used in AOM with a longitudinal wave along the [001] axis (sound velocity: 4.26 km/s), the diffraction angle decreases to 0.133 mrad/MHz under the same wavelength.

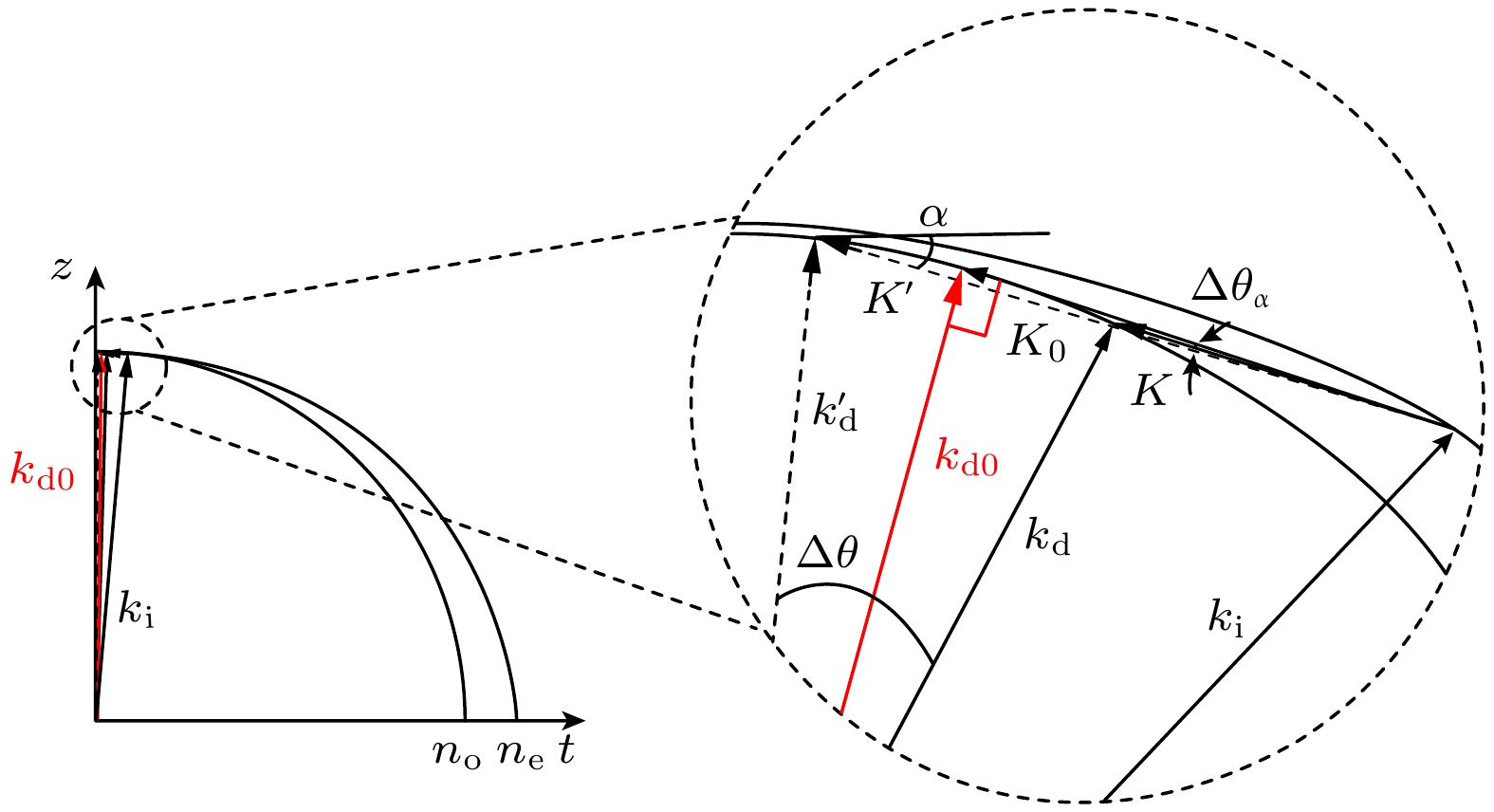

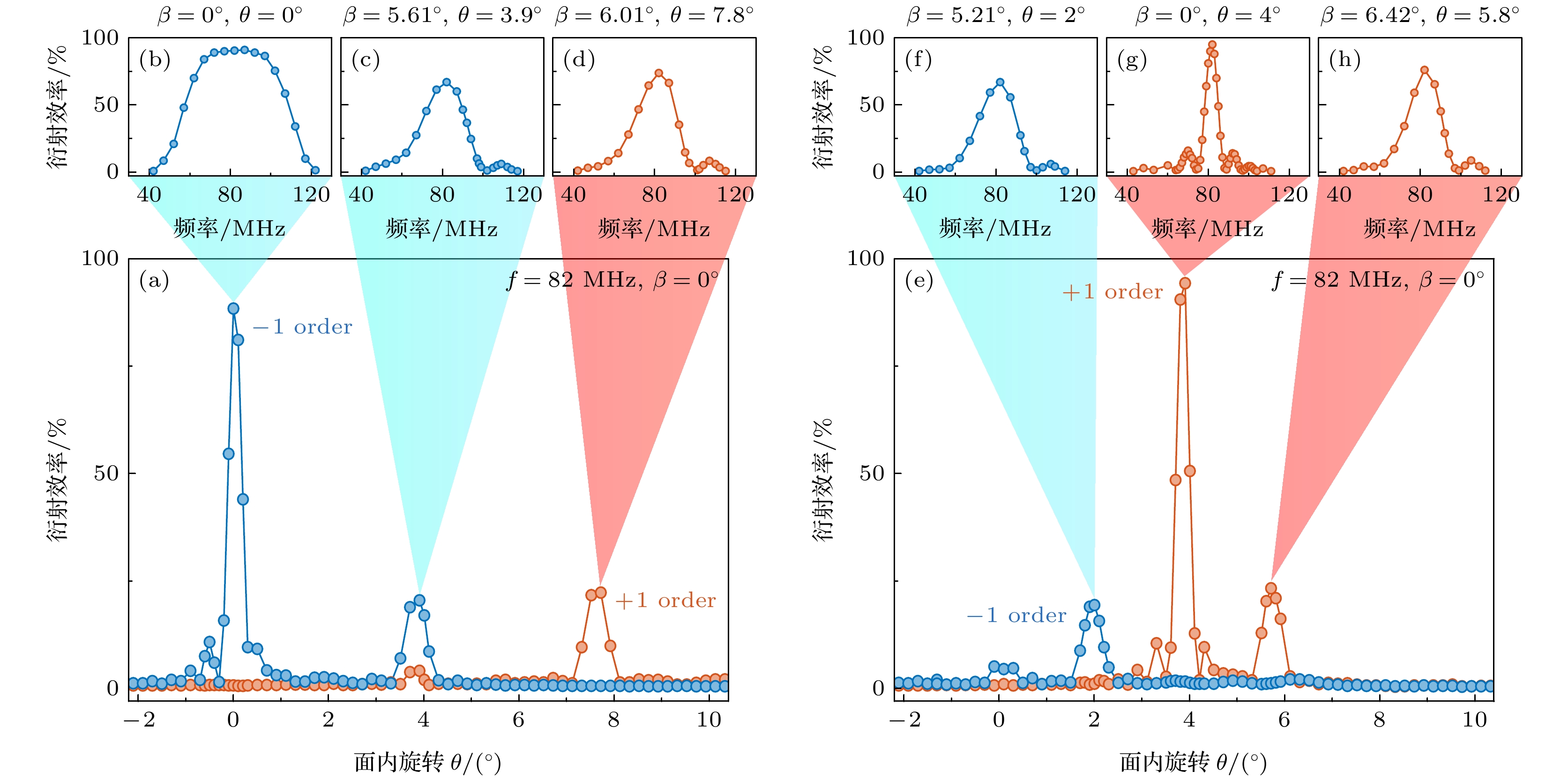

(II) To achieve high diffraction efficiency and a broad operational frequency range, the AOD must satisfy the phase-matching condition for anomalous Bragg diffraction. Taking the AOD (model: AA DTSX-250) as an example, it operates in a unidirectional incident mode: when horizontally polarized light (extro-ordinary light) is incident, only the -1st-order diffracted beam satisfies the anomalous Bragg condition. The beam undergoes polarization conversion to vertically polarized light (ordinary light), enabling high-efficiency broadband deflection (center frequency: 82 MHz, bandwidth: 45 MHz). To support future twodimensional deflection implementations, the input and output surfaces of the TeO2 crystal are fabricated with slight bevel angles, ensuring collinearity between the -1st-order diffracted beam and the incident beam at the center frequency. In other cases — (i) +1st-order diffraction of horizontally polarized light and (ii) ±1st-order diffraction of vertically polarized light — the anomalous Bragg condition is not met. These beams retain their original polarization and allow only narrowband deflection.
These results demonstrate that AODs, leveraging anomalous acoustooptic effects, can achieve high diffraction efficiency, wide frequency tuning ranges, and large deflection angles, making them suitable for high-speed, high-precision beam steering applications. In contrast, AOMs utilize normal acousto-optic effects to perform rapid modulation of beam intensity, frequency, and phase, and are widely used in laser communication and optical fiber transmission. This study provides a detailed technical reference for understanding the operational principles of AODs and their applications in programmable neutral atom arrays.-
Keywords:
- acousto-optic deflectors /
- acousto-optic modulators /
- tellurium dioxide crystals /
- anomalous Bragg diffraction /
- Broadband diffraction
-
[1] Henriet L, Beguin L, Signoles A, Lahaye T, Browaeys A, Reymond G, Jurczak C 2020 Quantum 4327
[2] Barredo D, Léséleuc S, Lienhard V, Lahaye T, Browaeys A 2016 Science 3541021
[3] Endres M, Bernien H, Keesling A, Levine H, Anschuetz E, Krajenbrink A, Senko C, Vuletic V, Greiner M, Lukin M D 2016 Science 3541024
[4] N Antonov S, Kotelnikov V 2019 PAIJ 3, 235
[5] Wang L W, Wen K, Liu F D, Li Y D, Wang P J, Huang L H, Chen L C, Han W, Meng Z M, Zhang J 2022 Chin. Phys. B 31103401
[6] Barredo D, Lienhard V, Léséleuc S, Lahaya T, Browaeys A 2018 Nature 56179
[7] Bluvstein D, Levine H, Semeghini G, Wang T T, Ebadi S, Kalinowski M, Keesling A, Maskara N, Phchler H, Greiner M, Vuletić V, Lukin M D 2022 Nature 604451
[8] Semeghini G, Levine H, Keesling A, Ebadi S, Wang T T, Bluvstein D, Verresen R, Pichler H, Kalinowski M, Samajdar R, Omran A, Sachdev S, Vishwanath A, Greiner M, Vuletić V, Lukin M D 2021 Science 3741242
[9] Jiang RH, Zhou Z Q, Lv X H, Zeng S Q 2012 Rev. Sci. Instrum. 83043709
[10] Lyer V, Losavio B, Saggau P 2003 J Biomed. Opt. 8460
[11] Xu H Q, Jiang Y 2005 Journal of Air & Space Early Warning Research 193 (in chinese) [徐海全, 蒋跃2005空天预警研究学报193]
[12] Jiang H Y, He N, Chen M 2008 Optical Technique 34299(in chinese) [蒋红艳, 何宁, 陈明2008光学技术34299]
[13] Nikulin V, Khandekar R, Sofka J 2008 Optical Engineering 47064301
[14] Yan J W, Yu X D, Han Z, Li T C 2023 Photon. Res. 11600
[15] Meng Z M, Wang L W, Han W, Liu F D, Wen K, Gao C, Wang P J, Chin C, Zhang J 2023 Nature 615231
[16] Wu Y Q, Shankar P M, Lewin P A, Koller D P 1994 T-UFFC 41166
[17] Ruan L F, Tang Z L, Liu X L 2013 Acta Optica Sinica 36 (in chinese) [阮立锋, 唐志列, 刘雪凌2013光学学报3 6]
[18] Das P, Chen H L 1987 Piezoelectrics & Acoustooptics 344(in chinese) [Das P, 陈焕林1987压电与声光3 44]
[19] Li Q, Zheng Y J, Wang Z Y, Li G, Zuo T C 2003 Chinese Journal of Lasers 30795(in chinese) [李强, 郑义军, 王智勇, 李港, 左铁钏2003中国激光30795]
[20] Zhang Z W, Wen Z Y, Shang Z G, Li D L, Hu J 2012 J. Semicond. 33094009
[21] Schrödel Y, Hartmann C, Zheng J A, Lang T, Steudel M, Rutsch M, Salman S H, Kellert M, Pergament M, Hahn-Jose T, Suppelt S, Dörsam J H, Harth A, Leemans W P, Kärtner F X, Hartl I, Kupnik M, Heyl C M 2024 Nat. Photon. 1854
[22] Baryshev V N, Epikhin V M 2010 Quantum Electronics 40431
[23] Wen K, Meng Z M, Wang L W, Chen L C, Huang L H, Zhou L H, Cui X L, Zhang J 2020 Sci. Rep. 105870
[24] Chen L C, Wang P J, Meng Z M, Huang L H, Cai H, Wang D W, Zhu S Y, Zhang J 2018 Phys. Rev. Lett. 120193601
[25] Wang P J, Chen L C, Mi C D, Meng Z M, Huang L H, Nawaz K S, Cai H, Wang D W, Zhu S Y, Zhang J 2020 npj Quantum Inf. 618
[26] Xu J, Stroud R 1992 Acousto-Optic Devices: Principles, Design, and Applications (Wiley-Interscience)
[27] Xu J P 1978 Acta Phys. Sin. 27421(in chinese) [徐介平1978物理学报27421]
[28] Li D R, Lü X H, Wu P, Luo Q M, Chen R. W, Zeng S Q 2006 Acta Phys. Sin. 554729(in chinese) [李德荣, 吕晓华, 吴萍, 骆清铭, 陈伟, 曾绍群 2006物理学报554729]
