One-step-annealing-process constructed WSe<sub>2</sub> complementary transistors

CUI Xinyu; SHAN Junjie; SUN Xiaoyu; PAN Chen; SUN Jiameng; YU Wentao; LIANG Shijun; MIAO Feng

doi:10.7498/aps.74.20250648

Abstract

Two-dimensional (2D) semiconductor materials exhibit tremendous potential for post-Moore integrated circuits due to their unique physical properties and superior electrical characteristics. However, critical challenges in polarity modulation and complementary integration have significantly hindered the practical applications of 2D materials. The development of compatible polarity-modulation techniques has emerged as a critical step in achieving device functional integration for constructing 2D materials-based complementary circuits. This study innovatively proposes a one-step-annealing-driven polarity-modulation strategy for 2D semiconductors. It is demonstrated in this study that the conduction behavior of Pd-contacted WSe₂ transistors transitions from n-type to p-type dominance after annealing, while Cr-contacted devices maintain n-type dominance. Based on this polarity-modulation strategy, by selectively fabricating source and drain electrodes with different metal materials (Pd and Cr) on the same WSe₂, combined with a one-step annealing process, the monolithic integration of complementary transistors is achieved, thereby realizing inverter function through device interconnection. The fabricated inverters exhibit a high voltage gain of 23 and a total noise margin of 2.3 V(0.92 V_dd) at an applied V_dd of 2.5 V. This work not only establishes a novel technical pathway for polarity modulation in 2D materials but also provides crucial technological support for developing 2D semiconductor-based complementary logic circuits.

Keywords:

Authors and contacts

1.
National Laboratory of Solid State Microstructures, School of Physics, Nanjing University, Nanjing 210093, China
2.
Key Laboratory of State Manipulation and Advanced Materials in Provincial Universities, School of Physics and Technology, Nanjing Normal University, Nanjing 210023, China
3.
Institute of Interdisciplinary Physical Sciences, School of Physics, Nanjing University of Science and Technology, Nanjing 210094, China

Corresponding author: SHAN Junjie, junjieshan@njnu.edu.cn ; PAN Chen, chenpan@njust.edu.cn ; LIANG Shijun, sjliang@nju.edu.cn ;

Funds: Project supported by the National Key R&D Program of China (Grant Nos. 2022YFA1402500, 2023YFF1203600), the National Natural Science Foundation of China (Grant Nos. 62122036, 62034004, 61921005, 62204112), and the Natural Science Foundation of Jiangsu Province, China (Grant No. BK20220774).

FullText HTML

References

[1]	Desai S B, Madhvapathy S R, Sachid A B, Llinas J P, Wang Q X, Ahn G H, Pitner G, Kim M J, Bokor J, Hu C M, Wong H S P, Javey A 2016 Science 354 99 Google Scholar
[2]	Liu Y, Duan X D, Huang Y, Duan X F 2018 Chem. Soc. Rev. 47 6388 Google Scholar
[3]	Radisavljevic B, Radenovic A, Brivio J, Giacometti V, Kis A 2011 Nat. Nanotechnol. 6 147 Google Scholar
[4]	Wu F, Tian H, Shen Y, Hou Z, Ren J, Gou G Y, Sun Y B, Yang Y, Ren T L 2022 Nature 603 259 Google Scholar
[5]	Akinwande D, Huyghebaert C, Wang C H, Serna M I, Goossens S, Li L J, Wong H S P, Koppens F H L 2019 Nature 573 507 Google Scholar
[6]	Das S, Sebastian A, Pop E, McClellan C J, Franklin A D, Grasser T, Knobloch T, Illarionov Y, Penumatcha A V, Appenzeller J, Chen Z H, Zhu W J, Asselberghs I, Li L J, Avci U E, Bhat N, Anthopoulos T D, Singh R 2021 Nat. Electron. 4 786 Google Scholar
[7]	Jayachandran D, Pendurthi R, Sadaf M U K, Sakib N U, Pannone A, Chen C, Han Y, Trainor N, Kumari S, Mc Knight T V, Redwing J M, Yang Y, Das S 2024 Nature 625 276 Google Scholar
[8]	Sun X, Zhu C, Yi J, Xiang L, Ma C, Liu H, Zheng B, Liu Y, You W, Zhang W, Liang D, Shuai Q, Zhu X, Duan H, Liao L, Liu Y, Li D, Pan A 2022 Nat. Electron. 5 752 Google Scholar
[9]	Xie M S, Jia Y Y, Nie C, Liu Z H, Tang A, Fan S Q, Liang X Y, Jiang L, He Z Z, Yang R 2023 Nat. Commun. 14 5952 Google Scholar
[10]	Yu J, Wang H, Zhuge F, Chen Z, Hu M, Xu X, He Y, Ma Y, Miao X, Zhai T 2023 Nat. Commun. 14 5662 Google Scholar
[11]	Zhang Q, Wang X F, Shen S H, Lu Q, Liu X, Li H, Zheng J, Yu C P, Zhong X, Gu L, Ren T L, Jiao L 2019 Nat. Electron. 2 164 Google Scholar
[12]	Zhu K, Wen C, Aljarb A A, Xue F, Xu X, Tung V, Zhang X, Alshareef H N, Lanza M 2021 Nat. Electron. 4 775 Google Scholar
[13]	Haynes T E, Eaglesham D J, Stolk P A, Gossmann H J, Jacobson D C, Poate J M 1996 Appl. Phys. Lett. 69 1376 Google Scholar
[14]	Pandey K C, Erbil A, Cargill I G, Boehme R F, Vanderbilt D 1988 Phys. Rev. Lett. 61 1282 Google Scholar
[15]	Cai J, Sun Z, Wu P, Tripathi R, Lan H Y, Kong J, Chen Z H, Appenzeller J 2023 Nano Lett. 23 10939 Google Scholar
[16]	Kim J K, Cho K, Jang J, Baek K Y, Kim J, Seo J, Song M, Shin J, Kim J, Parkin S S P, Lee J H, Kang K, Lee T 2021 Adv. Mater. 33 2101598 Google Scholar
[17]	Luo W, Zhu M J, Peng G, Zheng X M, Miao F, Bai S X, Zhang X A, Qin S Q 2018 Adv. Funct. Mater. 28 1704539 Google Scholar
[18]	Qi D Y, Han C, Rong X M, Zhang X W, Chhowalla M, Wee A T S, Zhang W J 2019 ACS Nano 13 9464 Google Scholar
[19]	Tosun M, Chuang S, Fang H, Sachid A B, Hettick M, Lin Y J, Zeng Y P, Javey A 2014 ACS Nano 8 4948 Google Scholar
[20]	Yu L L, Zubair A, Santos E J G, Zhang X, Lin Y X, Zhang Y H, Palacios T 2015 Nano Lett. 15 4928 Google Scholar
[21]	Liu Y, Guo J, Zhu E, Liao L, Lee S J, Ding M, Shakir I, Gambin V, Huang Y, Duan X 2018 Nature 557 696 Google Scholar
[22]	Wang Y, Kim J C, Li Y, Ma K Y, Hong S, Kim M, Shin H S, Jeong H Y, Chhowalla M 2022 Nature 610 61 Google Scholar
[23]	Pan C, Wang C-Y, Liang S-J, Wang Y, Cao T, Wang P, Wang C, Wang S, Cheng B, Gao A, Liu E, Watanabe K, Taniguchi T, Miao F 2020 Nat. Electron. 3 383 Google Scholar
[24]	Pang C S, Thakuria N, Gupta S K, Chen Z 2018 IEEE International Electron Devices Meeting (IEDM), San Francisco, CA, USA, December 1–5, 2018 pp22.2.1–22.2.4
[25]	Resta G V, Balaji Y, Lin D, Radu I P, Catthoor F, Gaillardon P E, De Micheli G 2018 ACS Nano 12 7039 Google Scholar
[26]	Guo Y, Li J, Zhan X, Wang C, Li M, Zhang B, Wang Z, Liu Y, Yang K, Wang H, Li W, Gu P, Luo Z, Liu Y, Liu P, Chen B, Watanabe K, Taniguchi T, Chen X-Q, Qin C, Chen J, Sun D, Zhang J, Wang R, Liu J, Ye Y, Li X, Hou Y, Zhou W, Wang H, Han Z 2024 Nature 630 346 Google Scholar
[27]	Kong L G, Zhang X D, Tao Q Y, Zhang M L, Dang W Q, Li Z W, Feng L P, Liao L, Duan X F, Liu Y 2020 Nat. Commun. 11 1866 Google Scholar
[28]	Li R, Lu F, Deng J, Fu X, Wang W, Tian H 2024 J. Semicond. 45 012701 Google Scholar
[29]	Jobayr M R, Salman E M T 2023 J. Semicond. 44 032001 Google Scholar
[30]	Chou S A, Chang C, Wu B H, Chuu C P, Kuo P C, Pan L H, Huang K C, Lai M H, Chen Y F, Lee C L, Chen H Y, Shiue J, Chang Y M, Li M Y, Chiu Y P, Chen C W, Ho P H 2025 Nat. Commun. 16 2777 Google Scholar
[31]	Herrmann P, Klimmer S, Lettau T, Weickhardt T, Papavasileiou A, Mosina K, Sofer Z, Paradisanos I, Kartashov D, Wilhelm J, Soavi G 2025 Nat. Photonics 19 300 Google Scholar
[32]	Oberoi A, Han Y, Stepanoff S P, Pannone A, Sun Y, Lin Y C, Chen C, Shallenberger J R, Zhou D, Terrones M, Redwing J M, Robinson J A, Wolfe D E, Yang Y, Das S 2023 ACS Nano 17 19709 Google Scholar
[33]	Liu X, Shan J, Cao T, Zhu L, Ma J, Wang G, Shi Z, Yang Q, Ma M, Liu Z, Yan S, Wang L, Dai Y, Xiong J, Chen F, Wang B, Pan C, Wang Z, Cheng B, He Y, Luo X, Lin J, Liang S J, Miao F 2024 Nat. Mater. 23 1363 Google Scholar
[34]	拉贝艾简M著 (周润德译) 2004 数字集成电路—电路、系统与设计 (北京: 电子工业出版社) 第136—140页 {译著} Rabaey J M (translated by Zhou R D) 2004 Digital Integrated Circuits A Design Perspective (Beijing: Publishing House of Electrnics Industry) pp136–140
[35]	Park Y J, Katiyar A K, Anh Tuan H, Ahn J H 2019 Small 15 1901772 Google Scholar

Cited By

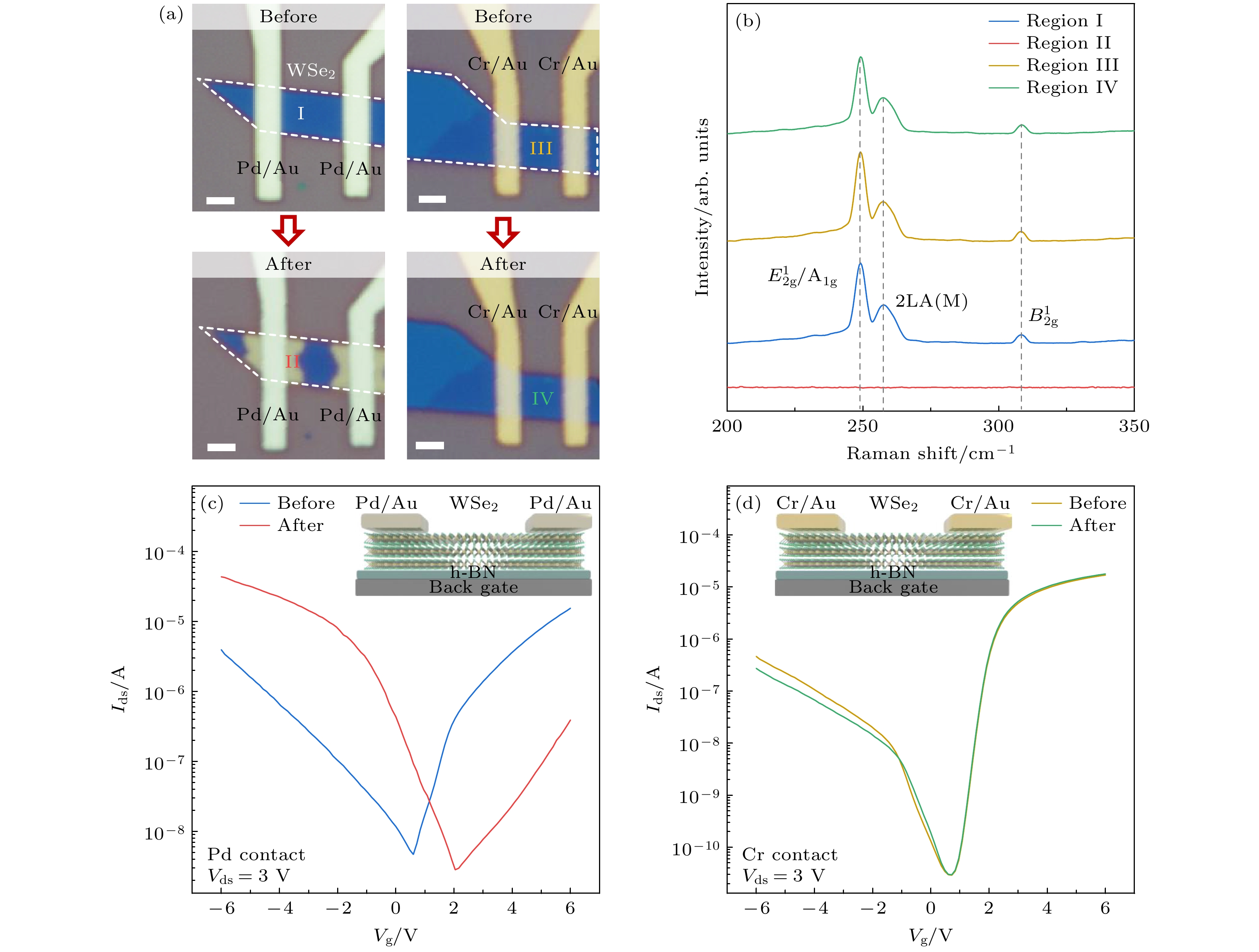

图 1 WSe₂ FETs的极性调控　(a) 以Pd和Cr作为源漏接触电极的WSe₂器件在退火前后的光学照片对比, 其中将退火前后Pd-WSe₂与Cr-WSe₂器件电极近邻沟道区域分别标记为区域Ⅰ, Ⅱ, Ⅲ和Ⅳ, 比例尺为1 μm; (b) 图(a)中对应区域“Ⅰ—Ⅳ”的拉曼光谱表征结果; 以Pd(c)和Cr(d)为源漏接触电极的背栅结构WSe₂ FETs退火前后的转移特性曲线, 施加V_ds为3 V, 器件结构示意图如插图所示

Figure 1. Polarity modulation of WSe₂ FETs: (a) Comparative optical micrographs of Pd-contact and Cr-contact WSe₂ devices before and after annealing. The electrode-proximal channel zones in Pd-WSe₂ and Cr-WSe₂ devices are labeled as regions Ⅰ, Ⅱ, Ⅲ and Ⅳ before and after annealing states, respectively, the scale bar is 1 μm. (b) Raman spectrum characterization results of the corresponding regions “Ⅰ–Ⅳ” marked in Figure (a). Transfer characteristic curves of back-gated WSe₂ FETs with Pd contact (c) and Cr contact (d) before and after annealing, measured at V_ds of 3 V, and the insets illustrate the schematics of device structures.

DownLoad: Full-Size Img PowerPoint

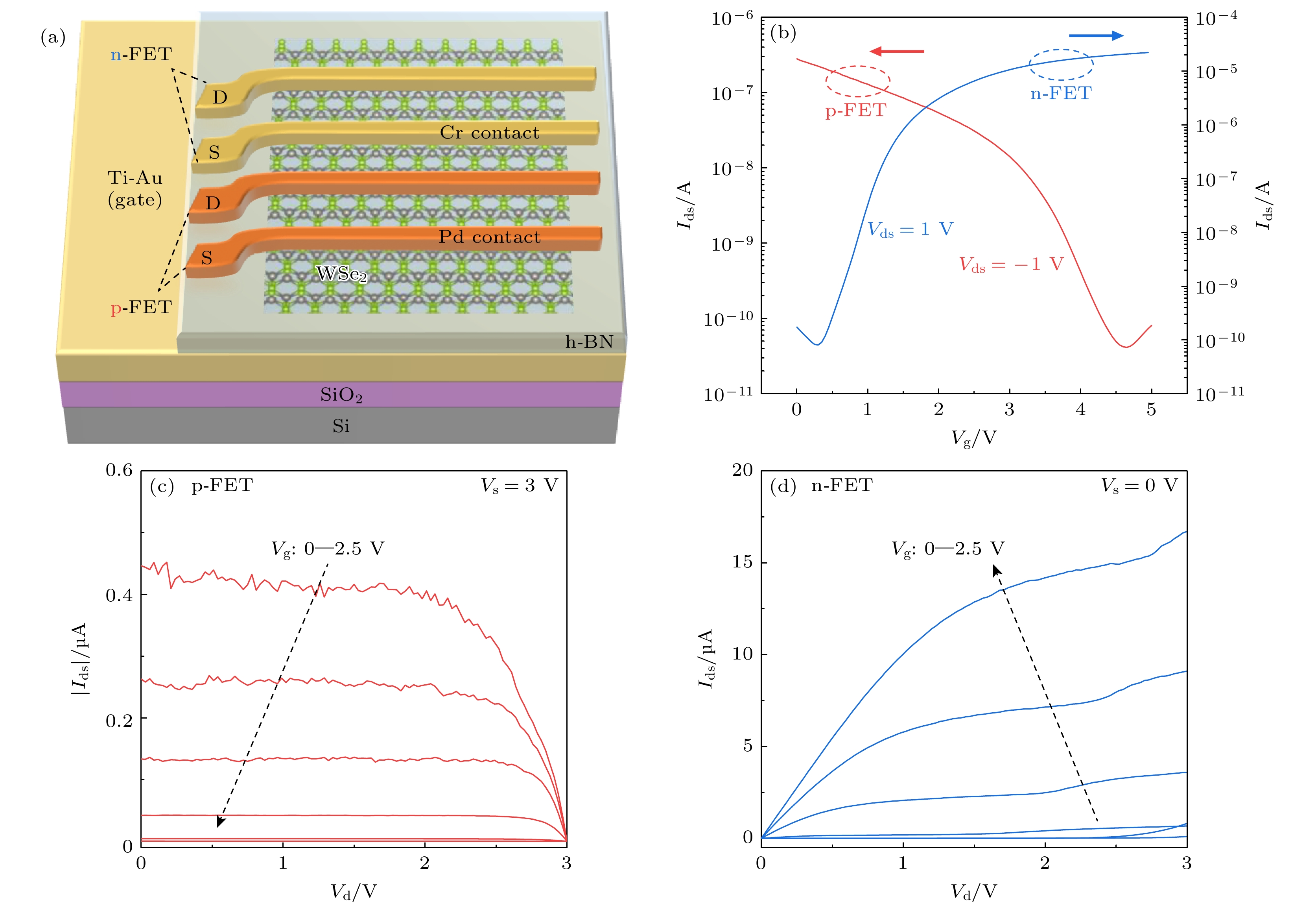

图 2 基于WSe₂的互补FETs的单片集成与电学特性　(a) 在单一WSe₂材料上集成互补FETs的器件结构示意图, 经退火操作后, Pd-WSe₂ FET表现为p-FET, Cr-WSe₂ FET表现为n-FET; (b) p-FET和n-FET的转移特性曲线, 其中红色曲线代表p-FET, 蓝色曲线代表n-FET, 施加的V_ds分别为–1 V和1 V; p-FET(c)和n-FET(d)的输出特性曲线, V_g变化范围为0—2.5 V, 变化步长为0.5 V, 施加的V_s分别为3和0 V

Figure 2. Monolithic integration and electrical characteristics of WSe₂-based complementary FETs: (a) Schematic of the integrated complementary FETs on a single WSe₂ flake, the annealed Pd-WSe₂ FET serves as p-FET and the Cr-WSe₂ FET functions as n-FET; (b) transfer characteristic curves of the p-FET (red curve) and n-FET (blue curve), the applied V_ds are –1 V and 1 V, respectively; output characteristic curves of the p-FET (c) and n-FET (d), the V_g swept from 0 to 2.5 V with step increments of 0.5 V, and the applied V_s are 3 and 0 V, respectively.

DownLoad: Full-Size Img PowerPoint

图 3 基于WSe₂ FETs构建的互补逻辑反相器及其电学性能　(a) p-FET和n-FET串联组成的互补逻辑反相器的电路图; (b) 反相器的电压传输特性曲线, 所施V_dd范围为1—2.5 V, 变化步长为0.5 V; (c) 基于反相器电压传输特性曲线提取的电压增益; (d) 当V_dd为2.5 V时, WSe₂反相器的蝶形电压传输特性曲线

Figure 3. Construction and electrical characteristics of complementary logic inverter based on WSe₂ FETs: (a) Circuit diagram of the complementary logic inverter composed of p-FET and n-FET connected in series; (b) voltage transfer characteristic curves of inverter, the applied V_dd range from 1 to 2.5 V with step increments of 0.5 V; (c) voltage gain extracted from the voltage transfer characteristic curves of the inverter; (d) butterfly voltage transfer characteristic curves of WSe₂ inverter at applied V_dd of 2.5 V.

DownLoad: Full-Size Img PowerPoint

DownLoad: Full-Size Img PowerPoint
