Numerical simulation of magnetism and magnetocaloric effect of Mn-Rich Ni-Mn-Ga alloy

WANG Bo; ZHANG Yufen; SHAO Hui; ZHANG Zeyu; HU Yong

doi:10.7498/aps.75.20251394

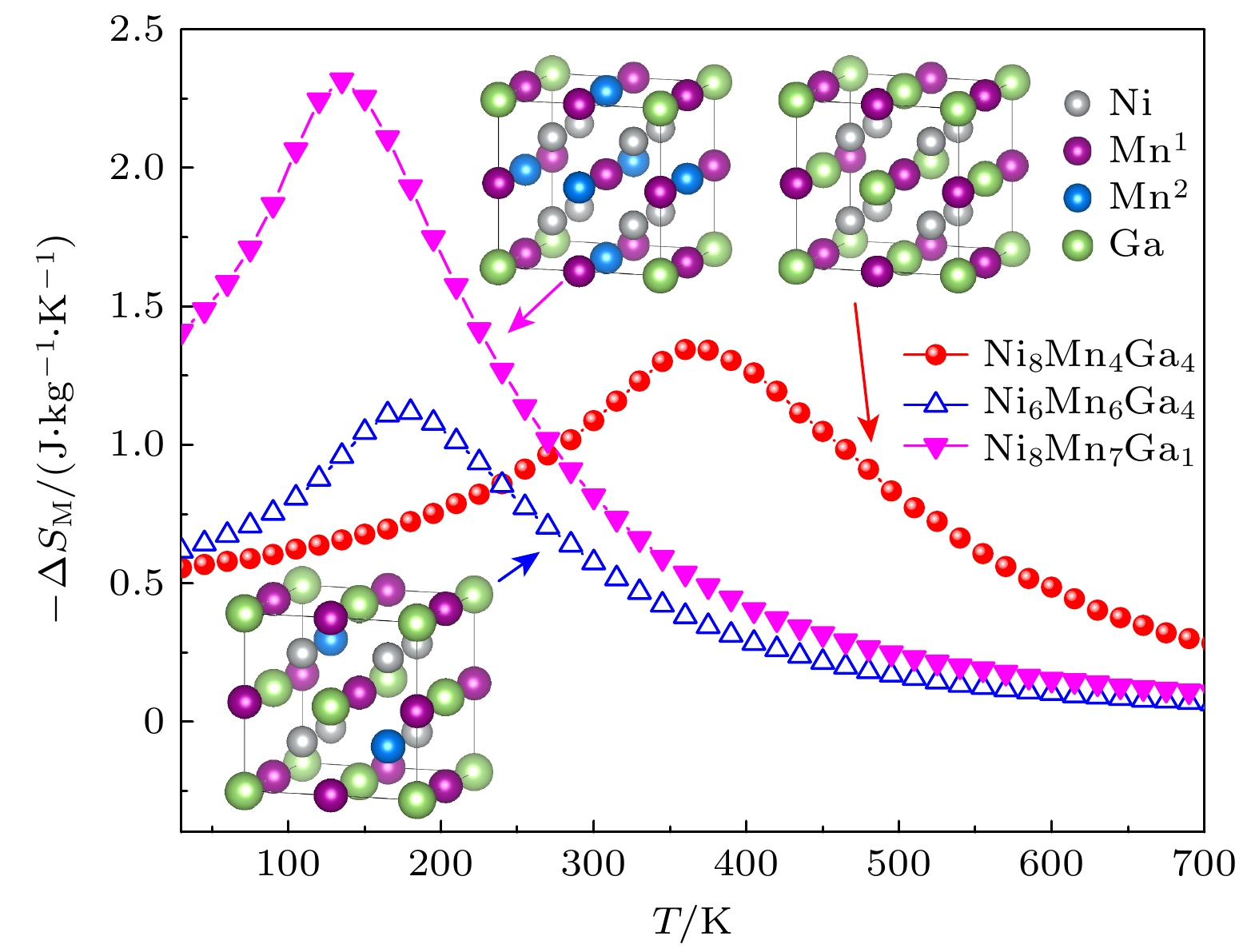

Abstract
This work investigates the magnetocaloric effect-based green magnetic refrigeration technology, with a focus on Ni-Mn-Ga Heusler alloy as a promising magnetic refrigerant candidate. To elucidate the role of Mn-rich composition in regulating the magnetic and magnetocaloric properties, a multi-scale computational approach integrating first-principles calculations and Monte Carlo simulations is adopted. This method enables a detailed analysis of how Mn atoms occupying Ni and Ga sites influence the microstructure, atomic magnetic moments, exchange interactions, and macroscopic magnetocaloric response of the alloy. The results indicate that Mn site occupancy critically affects the magnetic performance: the occupation of Ni sites reduces the total magnetic moment and Curie temperature, thereby reducing the magnetic entropy change; in contrast, Mn occupying Ga sites significantly enhances both the total magnetic moment and the magnetic entropy change. Notably, the Ni₈Mn₇Ga₁ alloy achieves a maximum magnetic entropy change of 2.32 J·kg^–1·K^–1 under a 2 T magnetic field, which significantly exceeds that of the stoichiometric Ni₈Mn₄Ga₄ alloy. Further electronic structure analysis reveals that Mn content variation modulates the density of states near the Fermi level and optimizes orbital hybridization and ferromagnetic exchange interactions, thus adjusting the magnetic phase transition behavior. Critical exponent analysis confirms that the magnetic interactions are inherently long-range and tend toward mean-field behavior with compositional changes. By establishing a clear “composition-structure-magnetism-magnetocaloric performance” relationship on an atomic scale, this work provides theoretical foundations for designing high-performance, low-hysteresis magnetic refrigeration materials.

Keywords:
Ni-Mn-Ga alloy /

magnetocaloric effect /

second-order magnetic phase transition /

Monte Carlo simulation
FullText HTML

Cited By

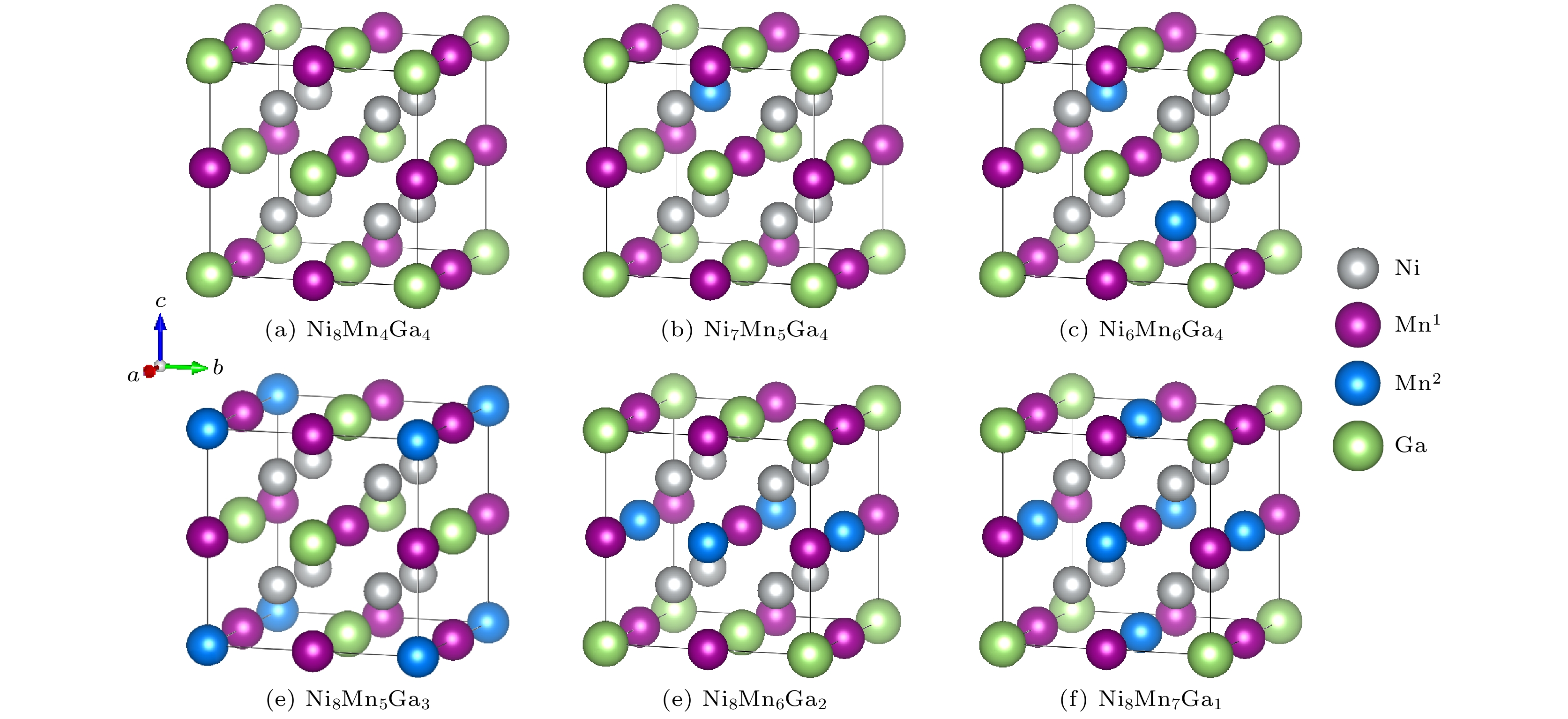

图 1 带有特定成分占比的Ni-Mn-Ga三元合金的晶体结构模型, 其中Mn¹和Mn²分别代表原位和占据Ni或Ga位的Mn原子

Figure 1. Crystal structure models of Ni-Mn-Ga ternary alloys with specific composition ratios, where Mn¹ and Mn² represent Mn atoms of original sites and those occupying Ni or Ga sites, respectively.

DownLoad: Full-Size Img PowerPoint

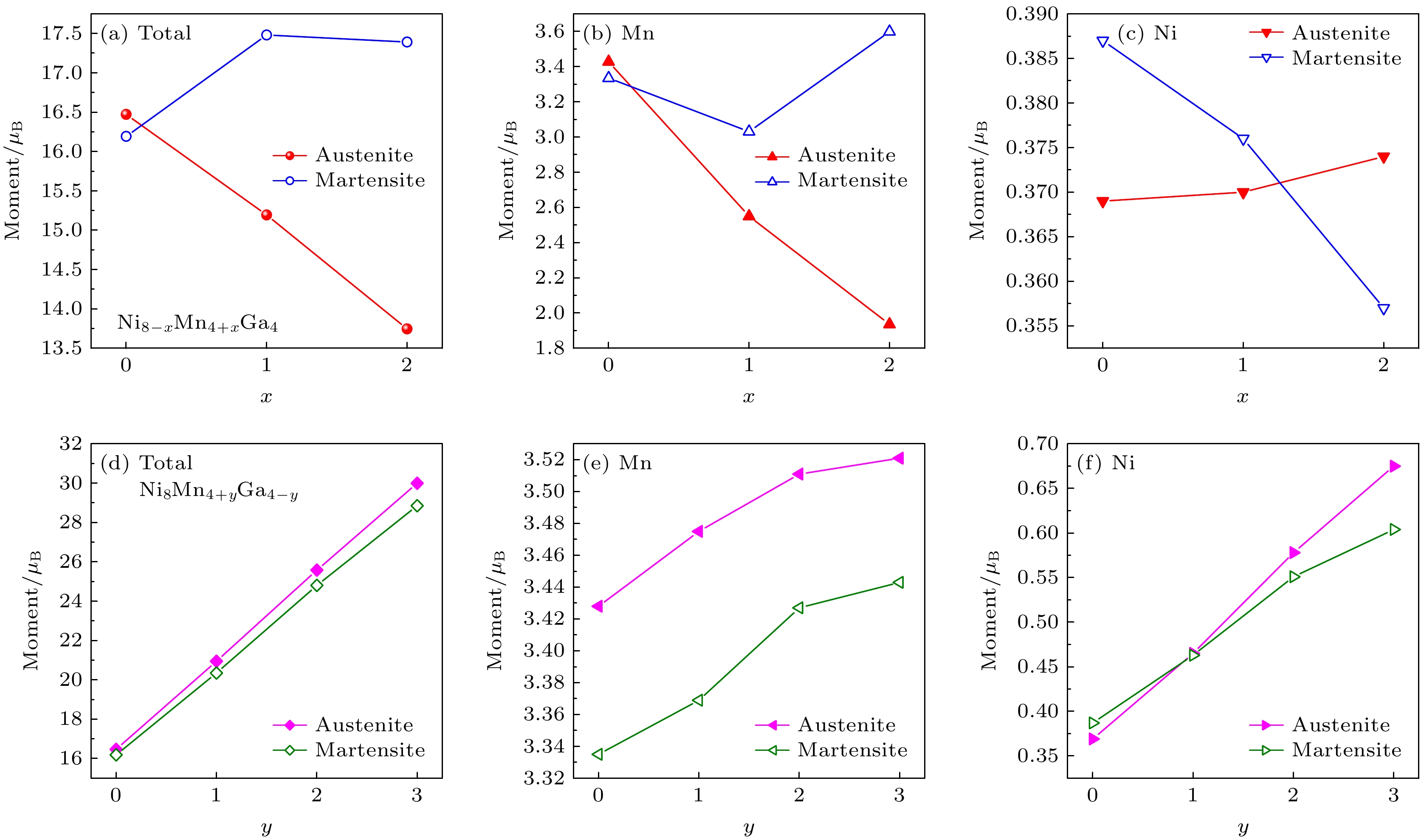

图 2 奥氏体相和马氏体相Ni_8–xMn_4+xGa₄(x = 0, 1, 2)和Ni₈Mn_4+yGa_4–y(y = 0, 1, 2, 3)合金总磁矩和Mn, Ni原子磁矩随成分的变化趋势

Figure 2. Total magnetic moment of alloy and magnetic moments of Mn and Ni atoms as a function of composition in austenitic and martensitic Ni_8–xMn_4+xGa₄ (x = 0, 1, 2) and Ni₈Mn_4+yGa_4–y (y = 0, 1, 2, 3) alloys.

DownLoad: Full-Size Img PowerPoint

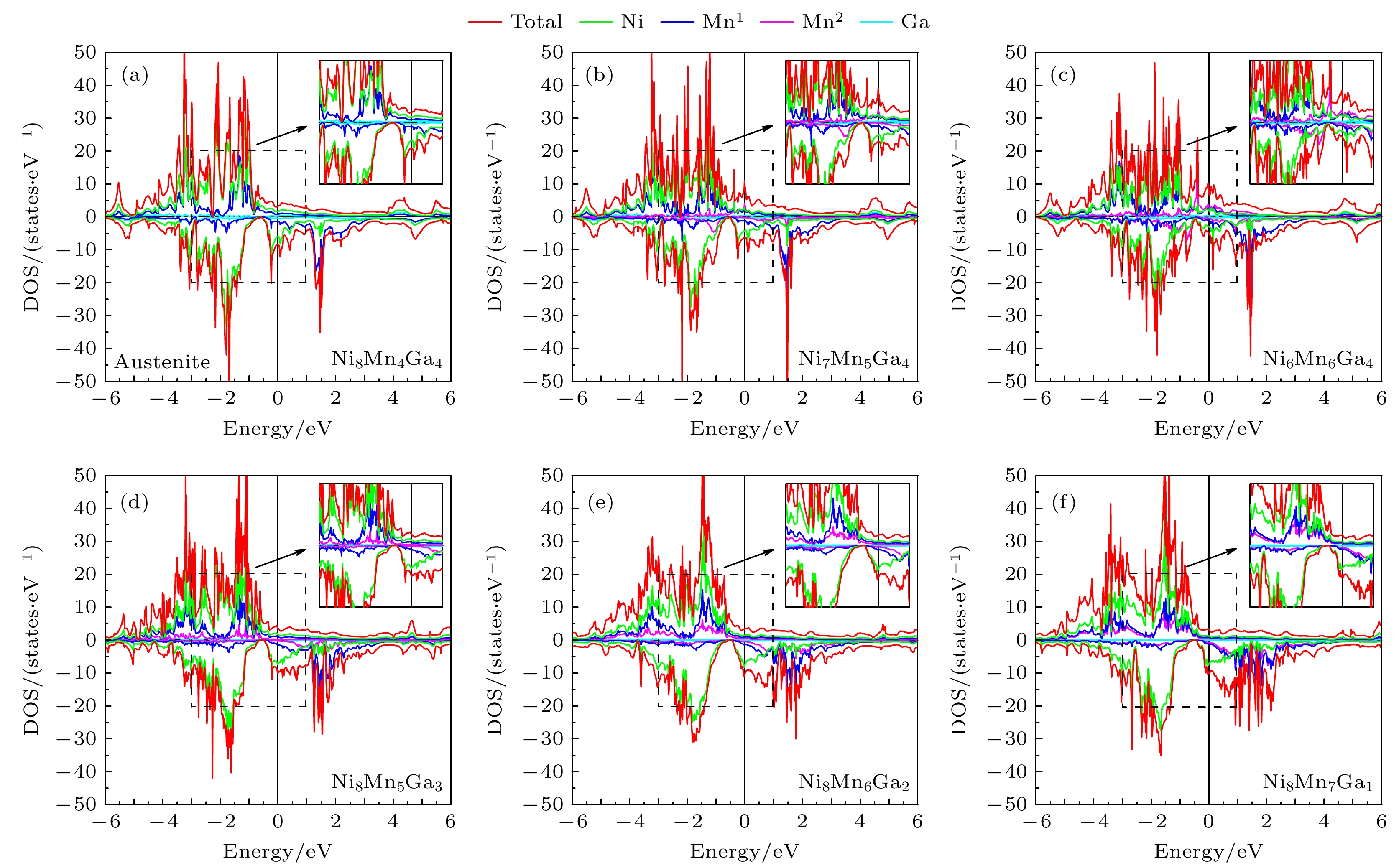

图 3 不同成分配比的奥氏体相Ni-Mn-Ga合金的总态密度和各元素态密度随能量的变化关系

Figure 3. Total density of states and partial density of states of each elements as a function of energy in austenitic Ni-Mn-Ga alloys.

DownLoad: Full-Size Img PowerPoint

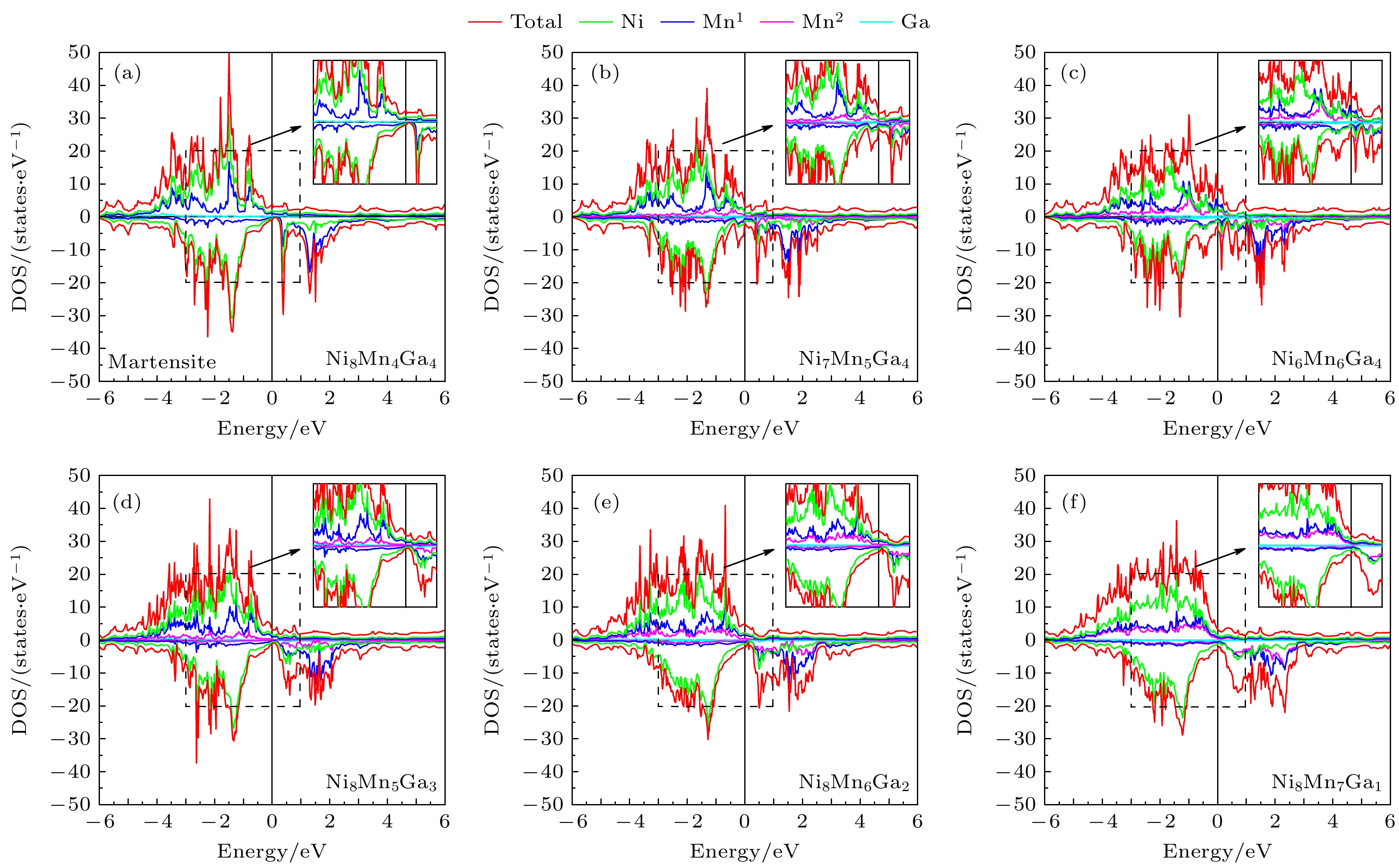

图 4 不同成分配比的马氏体相Ni-Mn-Ga合金的总态密度和各元素态密度随能量的变化关系

Figure 4. Total density of states and partial density of states of each elements as a function of energy in martensitic Ni-Mn-Ga alloys.

DownLoad: Full-Size Img PowerPoint

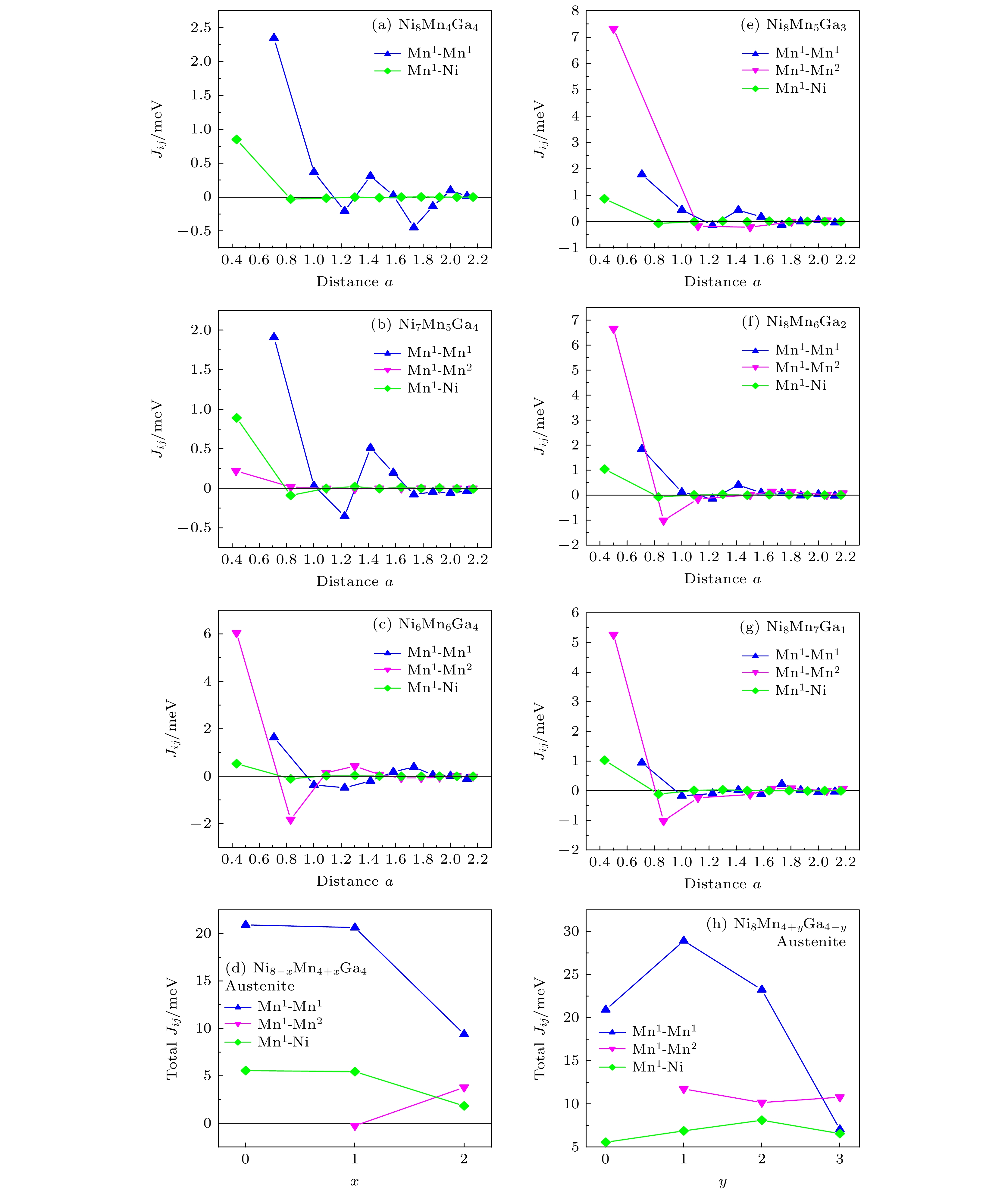

图 5 在奥氏体相Ni_8–xMn_4+xGa₄(x = 0, 1, 2)和Ni₈Mn_4+yGa_4–y(y = 0, 1, 2, 3)合金中, Mn-Mn和Mn-Ni交换作用常数随原子间距的变化关系, 其中Mn¹和Mn²分别代表原位和占据Ni或Ga位的Mn原子, 原子间距以晶格常数a为单位

Figure 5. Exchange coupling constants between Mn-Mn and Mn-Ni as a function of distance in austenitic Ni_8–xMn_4+xGa₄ (x = 0, 1, 2)和Ni₈Mn_4+yGa_4–y (y = 0, 1, 2, 3) alloys, where Mn¹ and Mn² represent Mn atoms of original sites and those occupying Ni or Ga sites, respectively, and distance is given in units of lattice constant a.

DownLoad: Full-Size Img PowerPoint

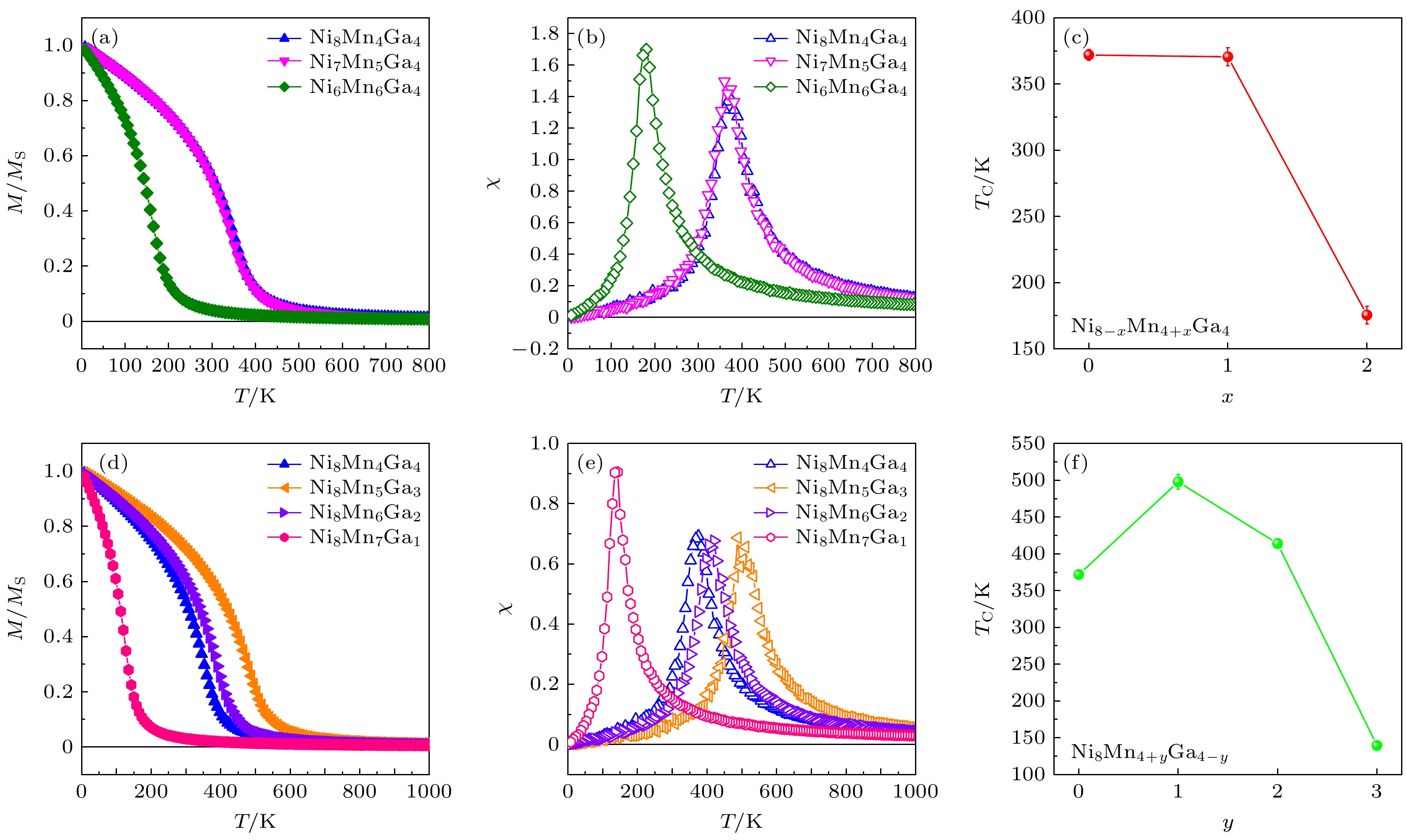

图 6 在零外磁场作用下, 奥氏体相Ni_8–xMn_4+xGa₄(x = 0, 1, 2)和Ni₈Mn_4+yGa_4–y(y = 0, 1, 2, 3)合金的磁化强度和磁化率随温度的变化关系, 其中M_S为饱和磁化强度值; 居里温度随富Mn成分的变化关系

Figure 6. Magnetization and magnetic susceptibility as a function of temperature in austenitic Ni_8–xMn_4+xGa (x = 0, 1, 2) and Ni₈Mn_4+yGa_4–y (y = 0, 1, 2, 3) alloys under zero magnetic field, where M_S is the value of saturated magnetization; Curie temperature as a function of composition of excess Mn.

DownLoad: Full-Size Img PowerPoint

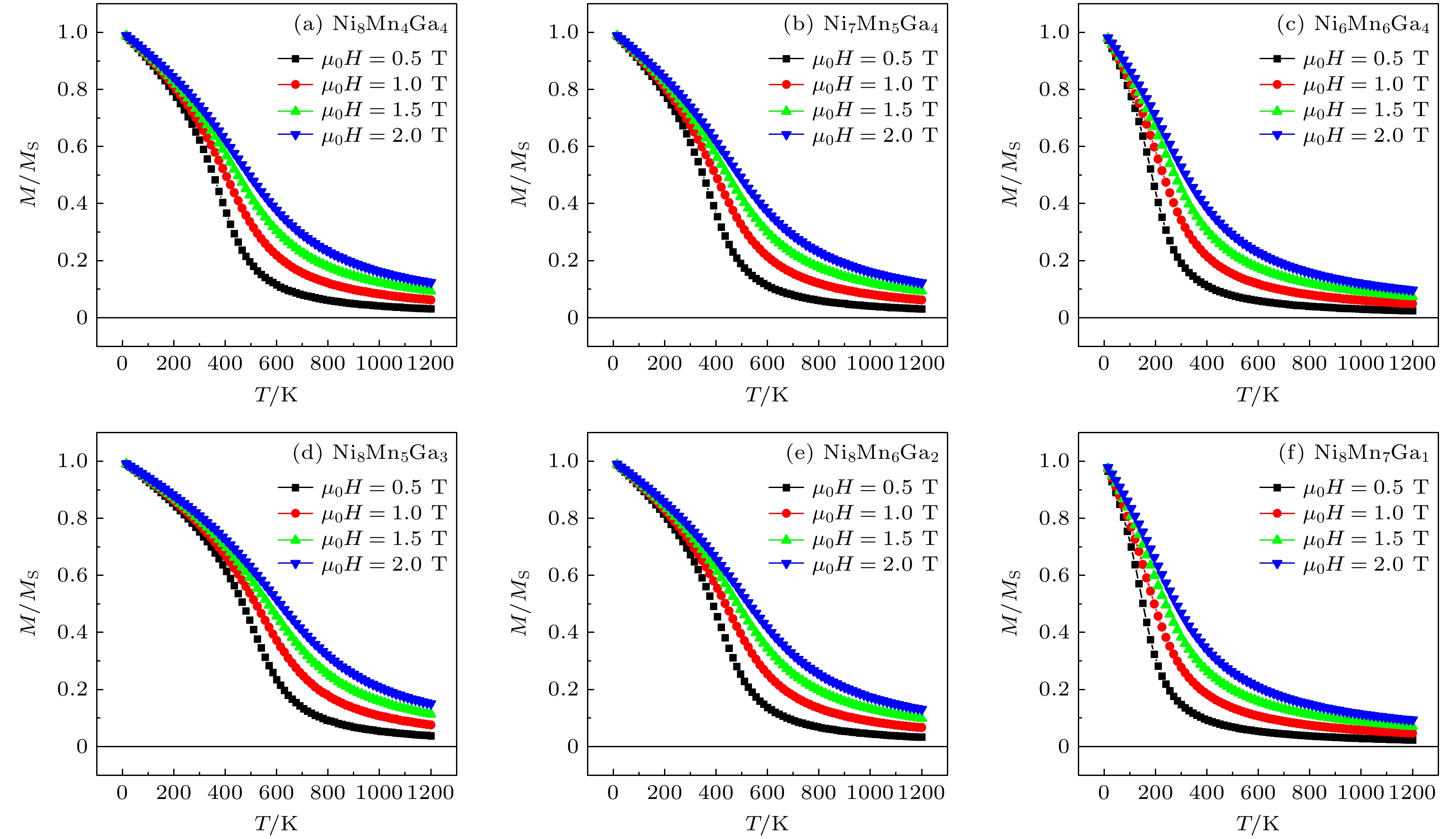

图 7 在选定的外磁场作用下, 不同成分的奥氏体相Ni-Mn-Ga合金的磁化强度随温度的变化关系, 其中M_S为饱和磁化强度值

Figure 7. Magnetization of austenitic Ni-Mn-Ga alloys with different compositions as a function of temperature under selected magnetic fields, where M_S is the value of saturated magnetization.

DownLoad: Full-Size Img PowerPoint

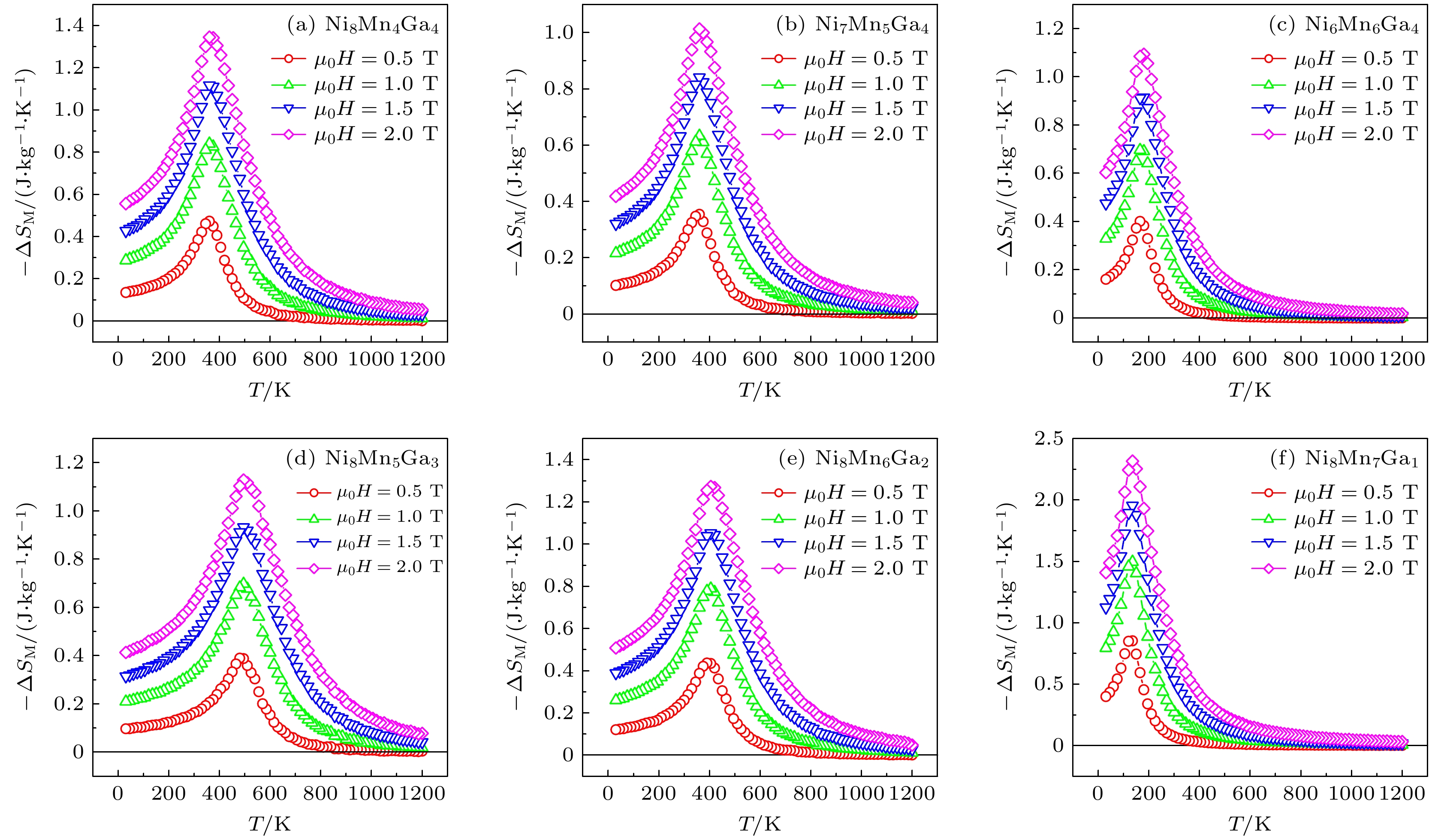

图 8 在选定的外磁场作用下, 不同成分的奥氏体相Ni-Mn-Ga合金的磁熵变随温度的变化关系

Figure 8. Magnetic entropy change of austenitic Ni-Mn-Ga alloys with different compositions as a function of temperature under selected magnetic fields.

DownLoad: Full-Size Img PowerPoint

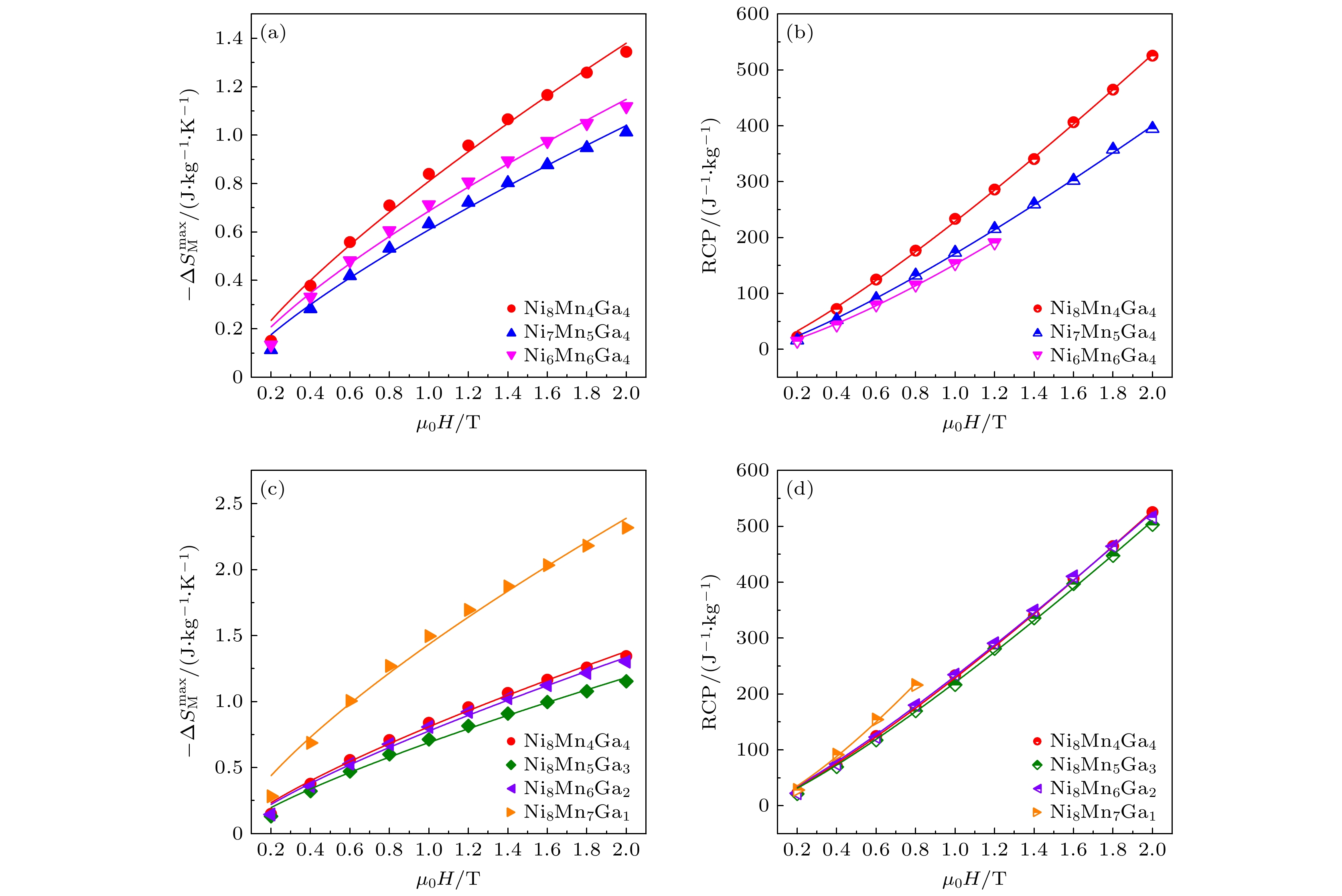

图 9 不同成分的Ni-Mn-Ga合金的最大磁熵变和相对冷却能力随外磁场的变化关系

Figure 9. Maximum magnetic entropy change and relative cooling power as a function of magnetic field in Ni-Mn-Ga alloys with different compositions.

DownLoad: Full-Size Img PowerPoint

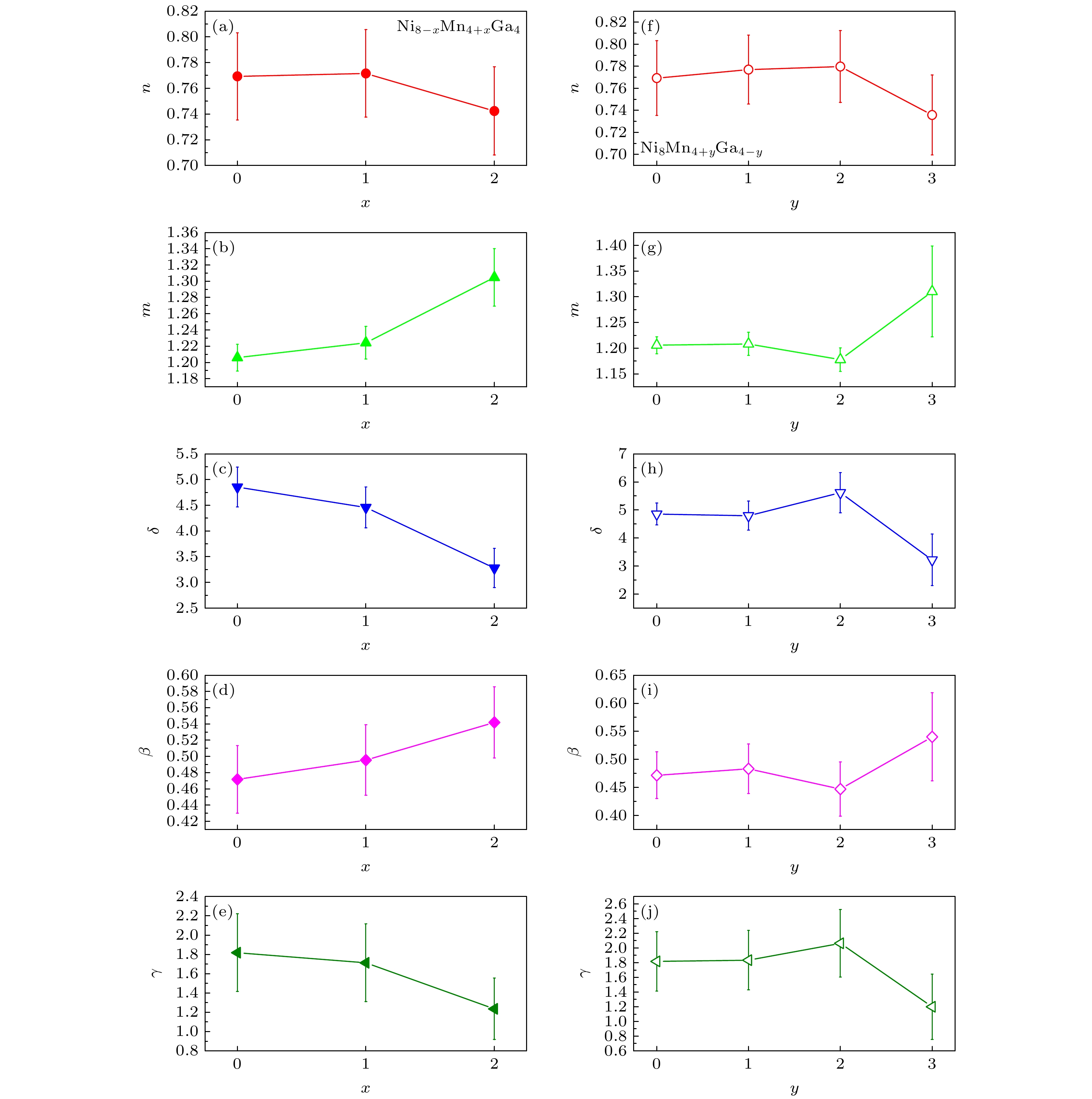

图 10 在Ni_8–xMn_4+xGa₄(x = 0, 1, 2)和Ni₈Mn_4+yGa_4–y(y = 0, 1, 2, 3)合金中, 计算的参数随成分的变化关系

Figure 10. Calculated parameters as a function of composition in Ni_8–xMn_4+xGa₄ (x = 0, 1, 2) and Ni₈Mn_4+yGa_4–y (y = 0, 1, 2, 3) alloys.

DownLoad: Full-Size Img PowerPoint

表 1 不同富Mn成分下的奥氏体相和马氏体相Ni-Mn-Ga合金的晶格常数

Table 1. Crystal lattice constants of austenitic and martensitic Ni-Mn-Ga alloys with different Mn-rich compositions.

	Austenite			Martensite
	a/Å	b/Å	c/Å	a/Å	b/Å	c/Å
Ni₈Mn₄Ga₄ (x/y = 0)	5.809	5.809	5.809	5.322	5.322	6.919
Ni₇Mn₅Ga₄ (x = 1)	5.800	5.800	5.800	5.314	5.314	6.908
Ni₆Mn₆Ga₄ (x = 2)	5.785	5.785	5.785	5.300	5.300	6.891
Ni₈Mn₅Ga₃ (y = 1)	5.818	5.818	5.818	5.331	5.331	6.931
Ni₈Mn₆Ga₂ (y = 2)	5.828	5.828	5.828	5.340	5.340	6.942
Ni₈Mn₇Ga₁ (y = 3)	5.834	5.834	5.834	5.346	5.346	6.949

DownLoad: CSV
