H2 molecule and their isotopes represent one of the modern clean energy sources. It is imperative to understand their thermodynamic properties for comprehending their behaviors under various conditions. Thereby promoting their more in-depth applications. In this paper, an extended improved multiparameter exponential-type potential (EIMPET) combined with the quantum statistical ensemble theory is used to investigate and analyze the thermodynamic properties of H2 and HD molecules. Firstly, reliable energy level data for molecules are obtained using the EIMPET potential. Subsequently, the one-dimensional Schrödinger equation is solved with the LEVEL program to determine the rovibrational energy levels of the molecules. Finally, the quantum statistical ensemble theory is integrated to determine the partition functions, molar heat capacity, molar entropy, molar enthalpy, and reduced molar Gibbs free energy of H2 and HD in a temperature range of 100–6000 K. The calculation results indicate that compared with IHH potential and IMPET potential, the EIMPET potential is closer to RKR data. A comparison of the calculated thermodynamic properties of the molecules reveals that the results from the EIMPET potential-based method accord well with those from the NIST database. Specifically, for H2, the root mean square (RMS) errors for $ {C_{\text{m}}}\left( T \right) $, $ {S_{\text{m}}}\left( T \right) $, $ {G_{\text{r}}}\left( T \right) $, and $ \Delta {H_{\text{r}}}\left( T \right) $are 0.6894 J·K–1·mol–1, 0.3824 J·K–1·mol–1, 0.1754 J·K–1·mol–1, and 0.9586 kJ·mol–1, respectively, while for HD, the RMS errors are 0.3431 J·K–1·mol–1, 0.1443 J·K–1·mol–1, 0.0495 J·K–1·mol–1, and 0.4863 kJ·mol–1, respectively. All of these results are superior to those obtained using IMPET potential, and to those obtained using IHH potential as a whole. These findings demonstrate the advantages and practical applications of the EIMPET potential in calculating the thermodynamic properties of diatomic gas molecules, providing a foundation for subsequently studying the thermodynamic properties of triatomic molecules.
-
Keywords:
- H2 molecule /
- HD molecule /
- EIMPET potential energy model /
- thermodynamic properties
-
图 1 H2和HD分子电子基态势能曲线 (a) H2分子不同势能曲线对比图; (b) HD分子不同势能曲线对比图
Figure 1. Potential energy curves of the ground electronic states for H2 and HD molecules: (a) Comparison of different potential energy curves for the H2 molecule; (b) comparison of different potential energy curves for the HD molecule.
图 2 (a) H2和(b) HD分子不同λ值的EIMPET势能曲线
Figure 2. EIMPET potential energy curves for (a) H2 and (b) HD molecules with various λ values
图 3 H2和HD分子的摩尔热容与NIST实验数据的比较图(AE为绝对误差) (a) H2分子的摩尔热容; (b) HD分子的摩尔热容
Figure 3. Comparison of molar heat capacity of H2 and HD molecules with NIST experimental data (AE represents absolute error): (a) Molar heat capacity of H2 molecule; (b) molar heat capacity of HD molecule.

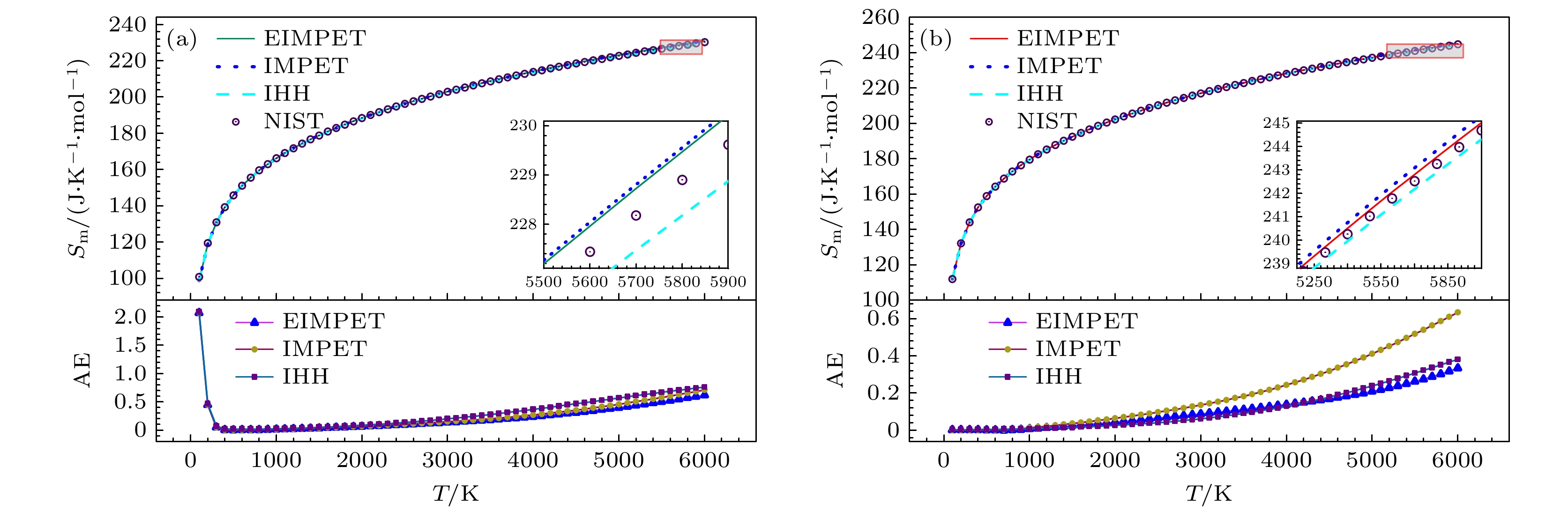

图 4 H2和HD分子的摩尔熵与NIST实验数据的比较图 (a) H2分子的摩尔熵; (b) HD分子的摩尔熵
Figure 4. Comparison of the molar entropy of H2 and HD molecules with NIST experimental data: (a) Molar entropy of H2 molecule; (b) molar entropy of HD molecule.

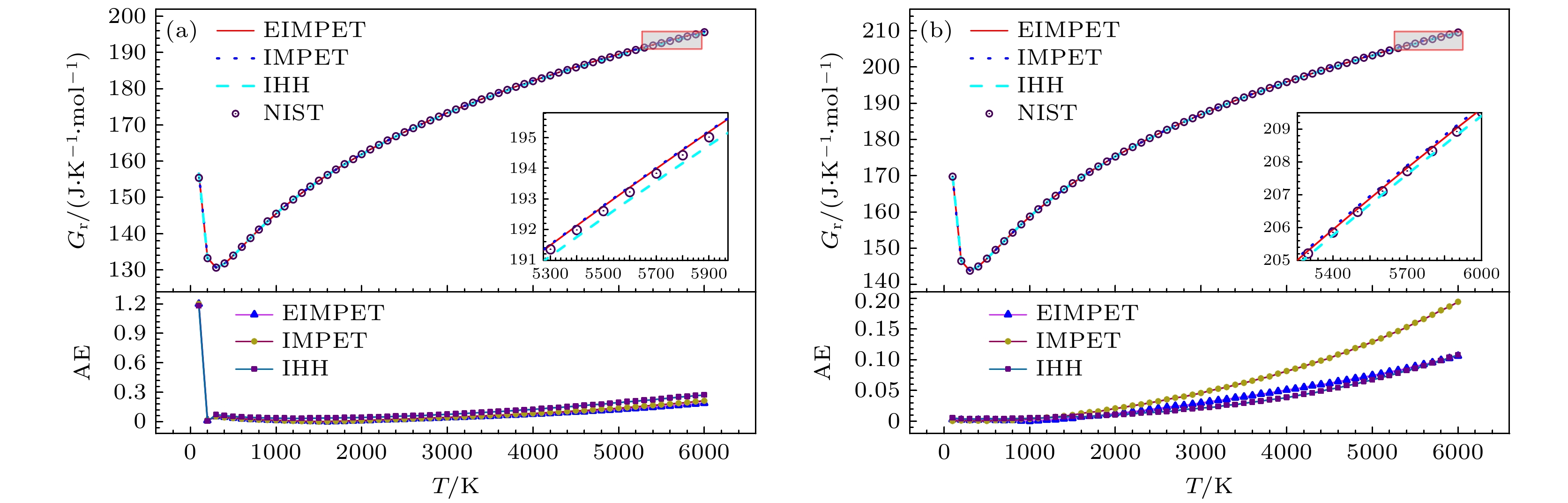

图 6 H2和HD分子的约化摩尔吉布斯自由能 (a) H2分子的约化摩尔吉布斯自由能; (b) HD分子的约化摩尔吉布斯自由能
Figure 6. The reduced molar Gibbs free energy of H2 and HD molecules: (a) The reduced molar Gibbs free energy of the H2 molecule; (b) the reduced molar Gibbs free energy of the HD molecule.

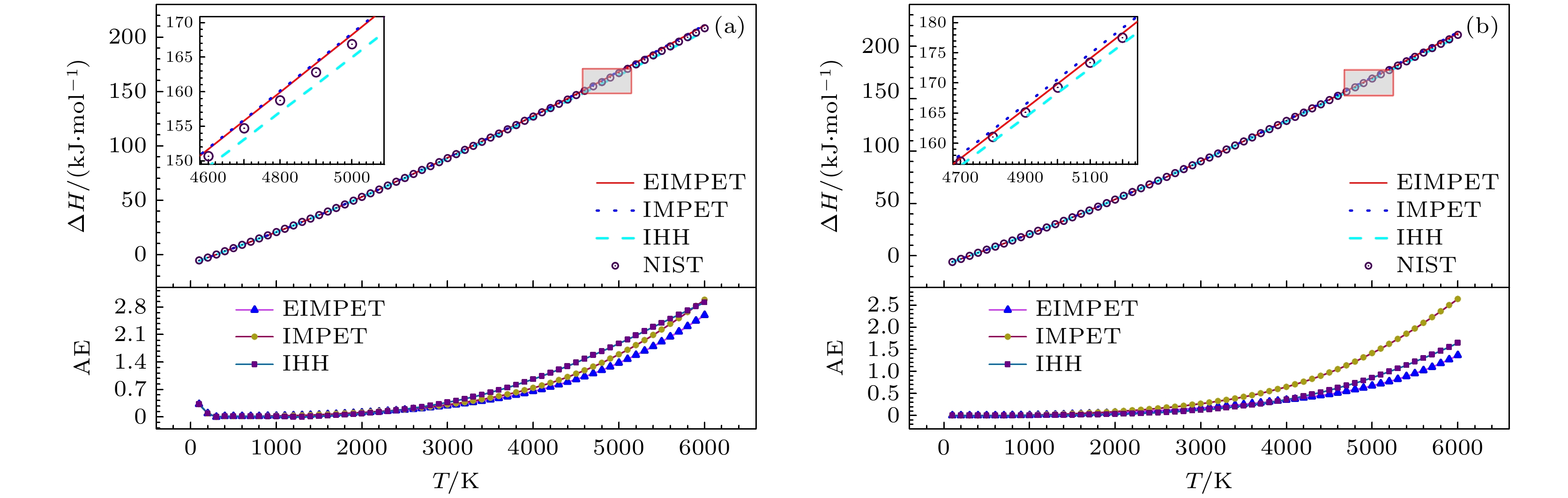

图 5 H2和HD分子的摩尔焓 (a) H2分子的摩尔焓; (b) HD分子的摩尔焓
Figure 5. Molar enthalpy of H2 and HD molecules: (a) Molar enthalpy of the H2 molecule; (b) molar enthalpy of the HD molecule.
表 1 H2和HD分子电子基态的实验光谱常数和可调参数$ \lambda $的值
Table 1. Experimental spectral constants and adjustable parameter $ \lambda $ of the ground electronic states of H2 and HD molecules.
DownLoad: CSV
表 2 H2分子不同温度下的摩尔热容以及绝对误差
Table 2. Molar heat capacity of H2 molecule at different temperatures and absolute errors.
T/K $ {C}_{{\mathrm{m}}}^{{\mathrm{N}}{\mathrm{I}}{\mathrm{S}}{\mathrm{T}}} $
/(J·K–1·mol–1)$ {C}_{{\mathrm{m}}}^{{\mathrm{I}}{\mathrm{H}}{\mathrm{H}}} $
/(J·K–1·mol–1)$ {C}_{{\mathrm{m}}}^{{\mathrm{I}}{\mathrm{M}}{\mathrm{P}}{\mathrm{E}}{\mathrm{T}}} $
/(J·K–1·mol–1)$ {C}_{{\mathrm{m}}}^{{\mathrm{E}}{\mathrm{I}}{\mathrm{M}}{\mathrm{P}}{\mathrm{E}}{\mathrm{T}}} $
/(J·K–1·mol–1)$ \Delta {C}_{{\mathrm{m}}}^{{\mathrm{N}}{\mathrm{I}}{\mathrm{S}}{\mathrm{T}}-{\mathrm{I}}{\mathrm{H}}{\mathrm{H}}} $
/(J·K–1·mol–1)$ \Delta {C}_{{\mathrm{m}}}^{{\mathrm{N}}{\mathrm{I}}{\mathrm{S}}{\mathrm{T}}-{\mathrm{I}}{\mathrm{M}}{\mathrm{P}}{\mathrm{E}}{\mathrm{T}}} $
/(J·K–1·mol–1)$ \Delta {C}_{{\mathrm{m}}}^{{\mathrm{N}}{\mathrm{I}}{\mathrm{S}}{\mathrm{T}}-{\mathrm{E}}{\mathrm{I}}{\mathrm{M}}{\mathrm{P}}{\mathrm{E}}{\mathrm{T}}} $
/(J·K–1·mol–1)100 28.154 29.521 29.520 29.520 1.367 1.366 1.366 300 28.849 29.210 29.212 29.212 0.361 0.363 0.363 500 29.260 29.265 29.270 29.270 0.005 0.010 0.010 700 29.441 29.432 29.452 29.452 0.009 0.011 0.011 900 29.881 29.857 29.910 29.908 0.024 0.029 0.027 1100 30.581 30.535 30.629 30.626 0.046 0.048 0.045 1300 31.423 31.354 31.491 31.487 0.069 0.068 0.064 1500 32.298 32.204 32.384 32.378 0.094 0.086 0.080 1700 33.139 33.017 33.243 33.236 0.122 0.104 0.097 1900 33.917 33.763 34.040 34.031 0.154 0.123 0.114 2100 34.624 34.432 34.768 34.757 0.192 0.144 0.133 2300 35.263 35.029 35.430 35.416 0.234 0.167 0.153 2500 35.842 35.560 36.036 36.018 0.282 0.194 0.176 2700 36.370 36.036 36.595 36.573 0.334 0.225 0.203 2900 36.856 36.464 37.119 37.091 0.392 0.263 0.235 3100 37.311 36.856 37.616 37.581 0.455 0.305 0.270 3300 37.740 37.218 38.096 38.051 0.522 0.356 0.311 3500 38.149 37.558 38.565 38.508 0.591 0.416 0.359 3700 38.544 37.882 39.029 38.958 0.662 0.485 0.414 3900 38.928 38.196 39.491 39.405 0.732 0.563 0.477 4100 39.301 38.502 39.952 39.849 0.799 0.651 0.548 4300 39.665 38.803 40.412 40.292 0.862 0.747 0.627 4500 40.017 39.099 40.868 40.732 0.918 0.851 0.715 4700 40.355 39.388 41.316 41.164 0.967 0.961 0.809 4900 40.676 39.671 41.750 41.585 1.005 1.074 0.909 5100 40.976 39.942 42.163 41.988 1.034 1.187 1.012 5300 41.252 40.199 42.548 42.369 1.053 1.296 1.117 5500 41.498 40.439 42.900 42.721 1.059 1.402 1.223 5700 41.712 40.656 43.211 43.038 1.056 1.499 1.326 5900 41.890 40.849 43.476 43.315 1.041 1.586 1.425 6000 41.965 40.934 43.590 43.436 1.031 1.625 1.471 MAE 0.564 0.587 0.519 *$ \Delta {C}_{{\mathrm{m}}}^{{\mathrm{N}}{\mathrm{I}}{\mathrm{S}}{\mathrm{T}}-{\mathrm{m}}{\mathrm{o}}{\mathrm{d}}{\mathrm{e}}{\mathrm{l}}}=|{C}_{{\mathrm{m}}}^{{\mathrm{N}}{\mathrm{I}}{\mathrm{S}}{\mathrm{T}}}-{C}_{{\mathrm{m}}}^{{\mathrm{m}}{\mathrm{o}}{\mathrm{d}}{\mathrm{e}}{\mathrm{l}}}| $; MAE: mean absolute error
DownLoad: CSV
表 3 H2和HD分子不同势能模型下的预测数据与NIST数据的方均根误差
Table 3. Root mean square error of predicted data for H2 and HD molecules under different potential energy models compared to NIST data.
热力学量 H2EIMPET H2IMPET H2IHH HDEIMPET HDIMPET HDIHH Cm/J·K–1·mol–1 0.6894 0.7750 0.7019 0.3431 0.6338 0.4055 Sm/J·K–1·mol–1 0.3824 0.4096 0.4591 0.1443 0.2732 0.1575 ΔHr/kJ·mol–1 0.9586 1.1052 1.2110 0.4863 0.9749 0.5946 Gr/J·K–1·mol–1 0.1754 0.1805 0.2005 0.0495 0.0859 0.0452
DownLoad: CSV
-
