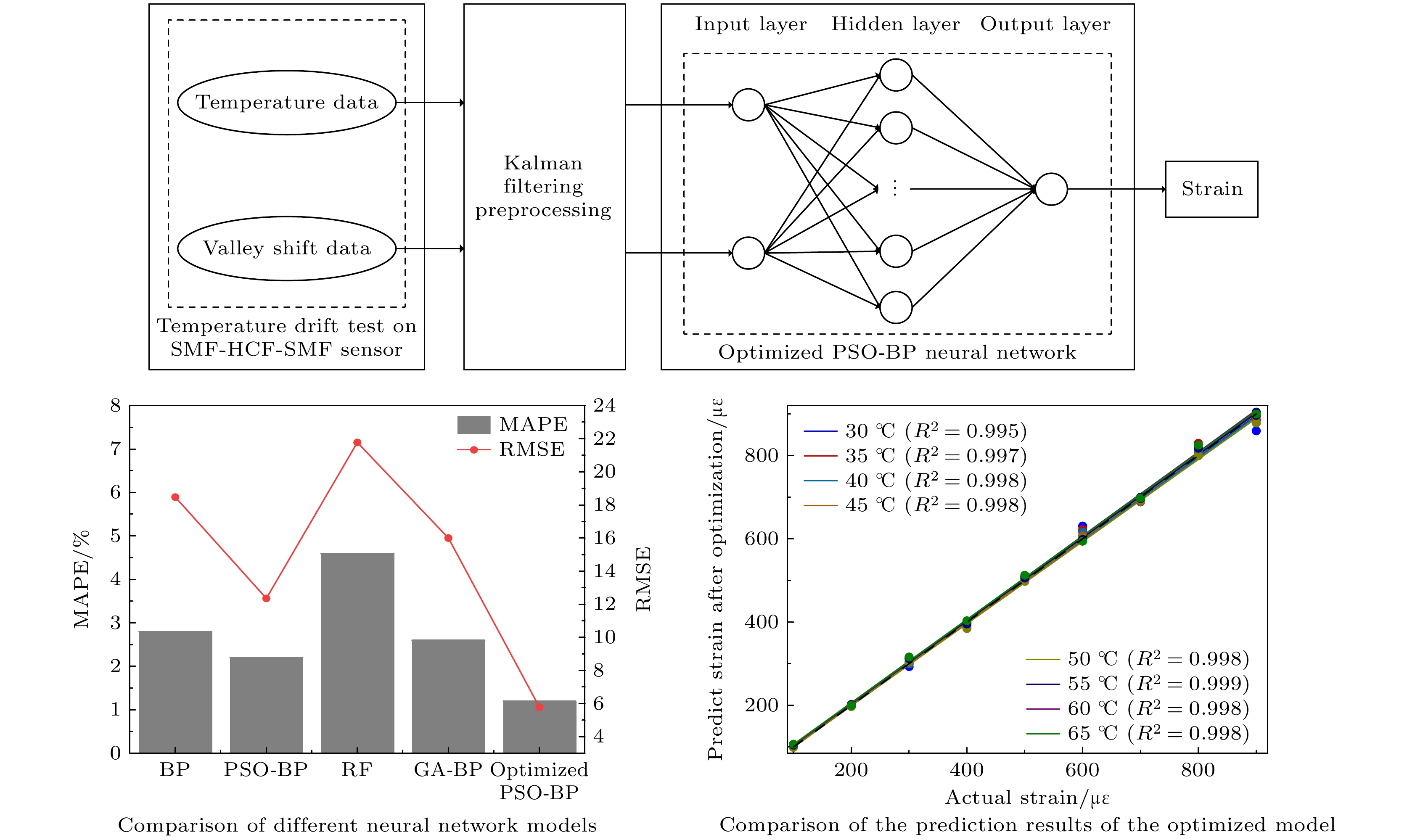

Ambient temperature fluctuations often induce measurement errors in fiber-optic Fabry-Perot strain sensors. To effectively compensate for the influence of temperature on measurement accuracy, this study proposes an optimized particle swarm optimization-back propagation (PSO-BP) neural network algorithm. The combined predictive model is applied to the monitoring data of a Fabry-Perot strain sensor based on a single-mode fiber-hollow-core fiber-single-mode fiber (SMF-HCF-SMF) structure. By preprocessing the data collected from the sensor, the temperature values and spectral valley shift data obtained from the fiber-optic Fabry-Perot strain sensor are directly used as input features to establish a temperature-compensated neural network model. Based on the traditional PSO-BP neural network algorithm, an optimization strategy incorporating adaptive adjustment of inertia weights and learning factors is employed to enhance global search capability and local convergence accuracy, thereby enabling effective compensation for temperature-induced effects. Experimental results demonstrate that in the entire temperature measurement range of the sensor, the optimized PSO-BP neural network achieves a mean absolute percentage error (MAPE) of about 1.2% and a root mean square error (RMSE) of about 5.9, significantly outperforming other methods. Comparative analysis with different model architectures reveals that compared with the BP, PSO-BP, RF, and GA-BP models, the optimized PSO-BP model improves MAPE by 57.14%, 45.45%, 73.91%, and 53.85%, respectively, while reducing RMSE by 68.11%, 52.42%, 72.94%, and 63.13%. Moreover, the coefficient of determination (R2) consistently exceeds 0.995 under various temperature conditions, indicating that the model effectively compensates for temperature-induced errors in the sensor under different thermal and strain conditions, and has excellent stability and adaptability. Therefore, the temperature compensation method proposed in this study not only offers a novel approach for improving the measurement accuracy of fiber-optic Fabry-Perot strain sensors, but also provides a valuable reference for studying the temperature compensation in related sensor technologies. Future research may further explore the applicability of this method to other types of sensors, thereby promoting the sustaining development of intelligent sensing technologies.
-
Keywords:
- optical fiber sensor /
- optimized particle swarm optimization-back propagation neural network /
- temperature compensation /
- Fabry-Perot interference
-

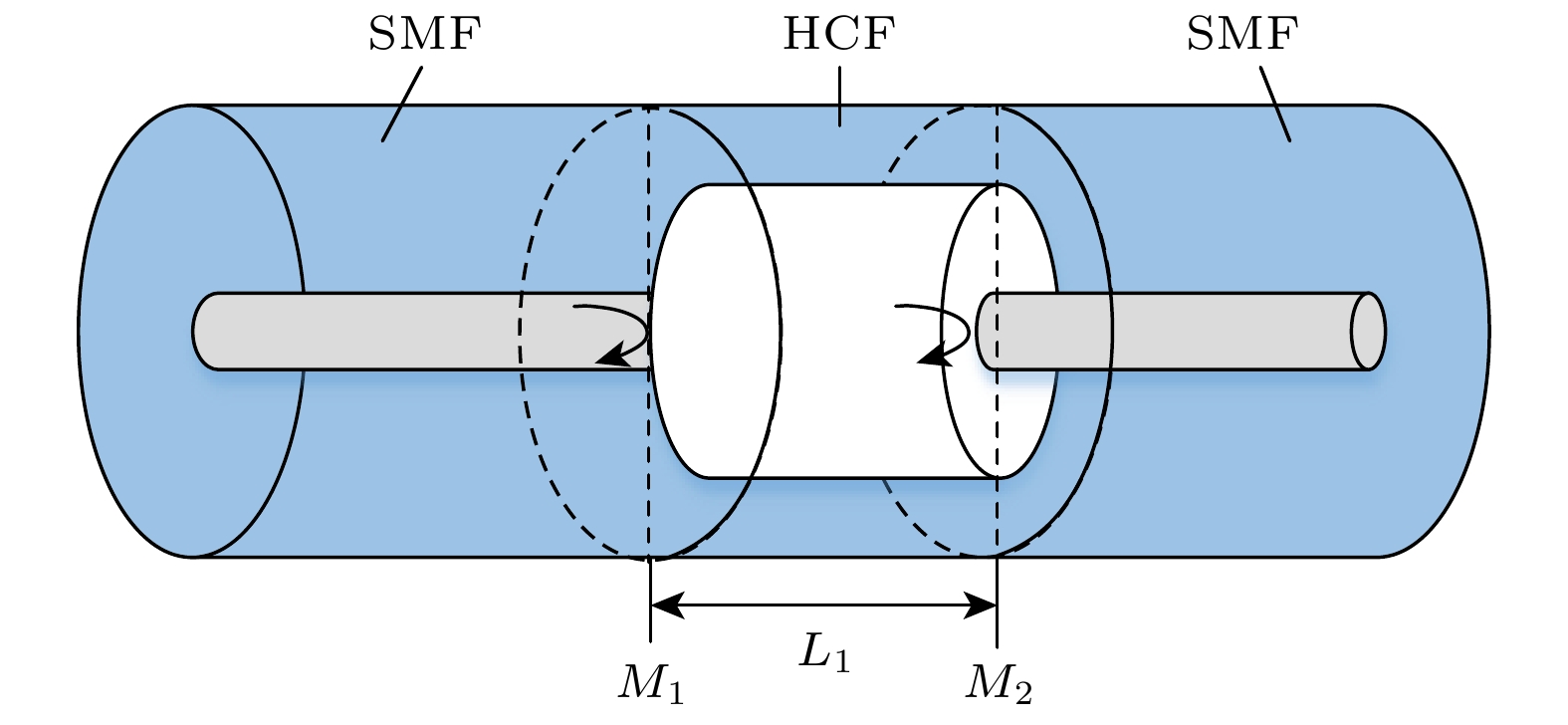

图 1 传感器结构示意图
Figure 1. Structural diagram of sensor.

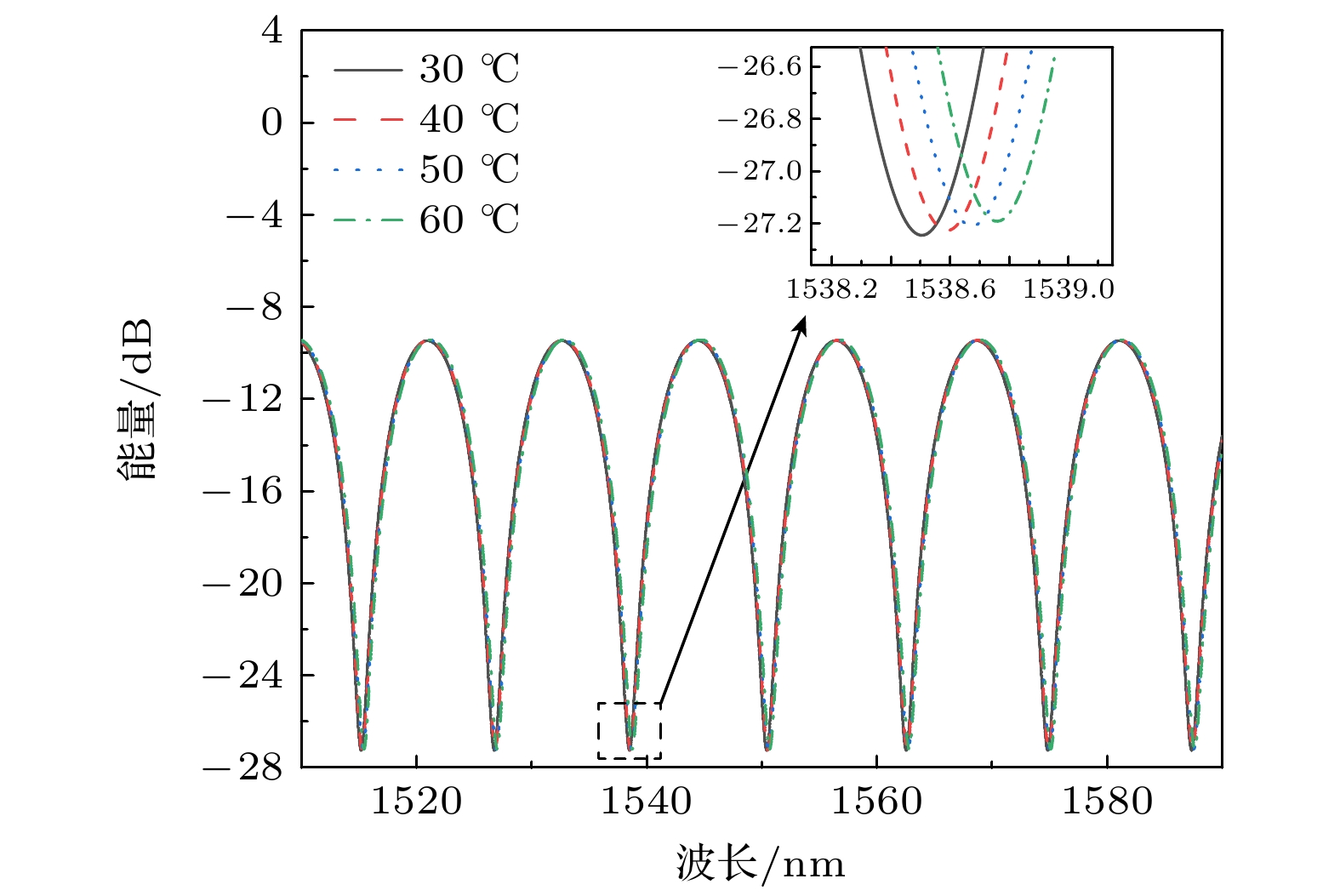

图 2 传感器温度仿真反射光谱漂移图
Figure 2. Temperature-induced drift in simulated reflectance spectra of sensors.

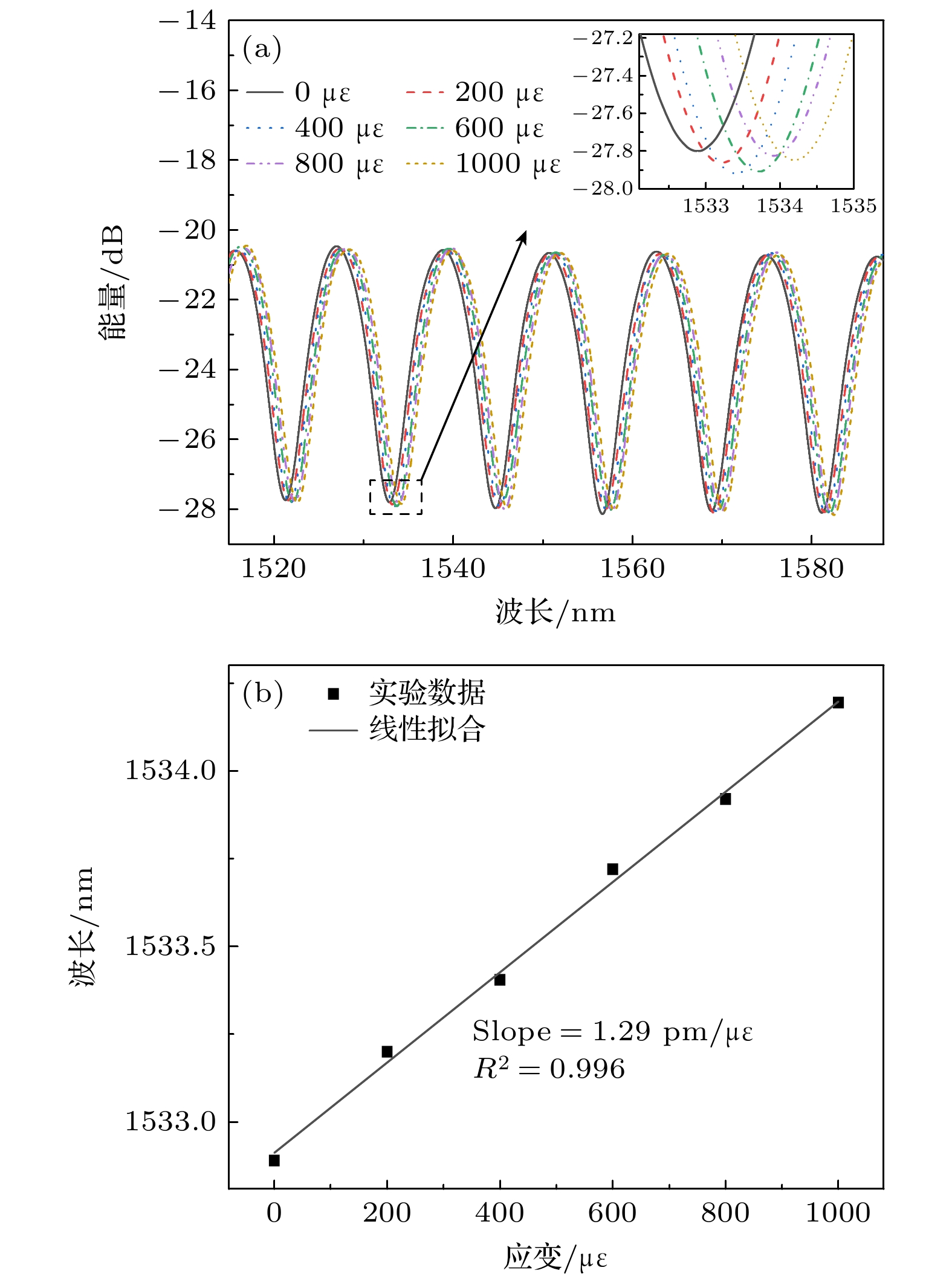

图 3 传感器应变测试 (a) 反射光谱漂移图; (b) 线性拟合图
Figure 3. Sensor strain test: (a) Reflection spectrum drift map; (b) linear fitting map.

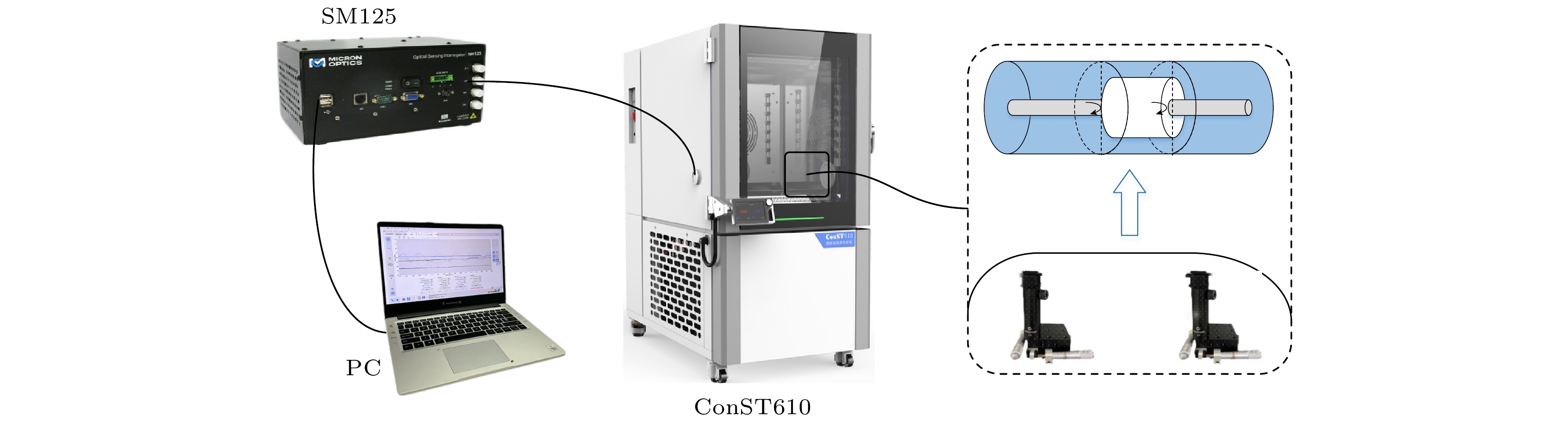

图 4 温度漂移实验装置图
Figure 4. Temperature drift experiment device diagram.

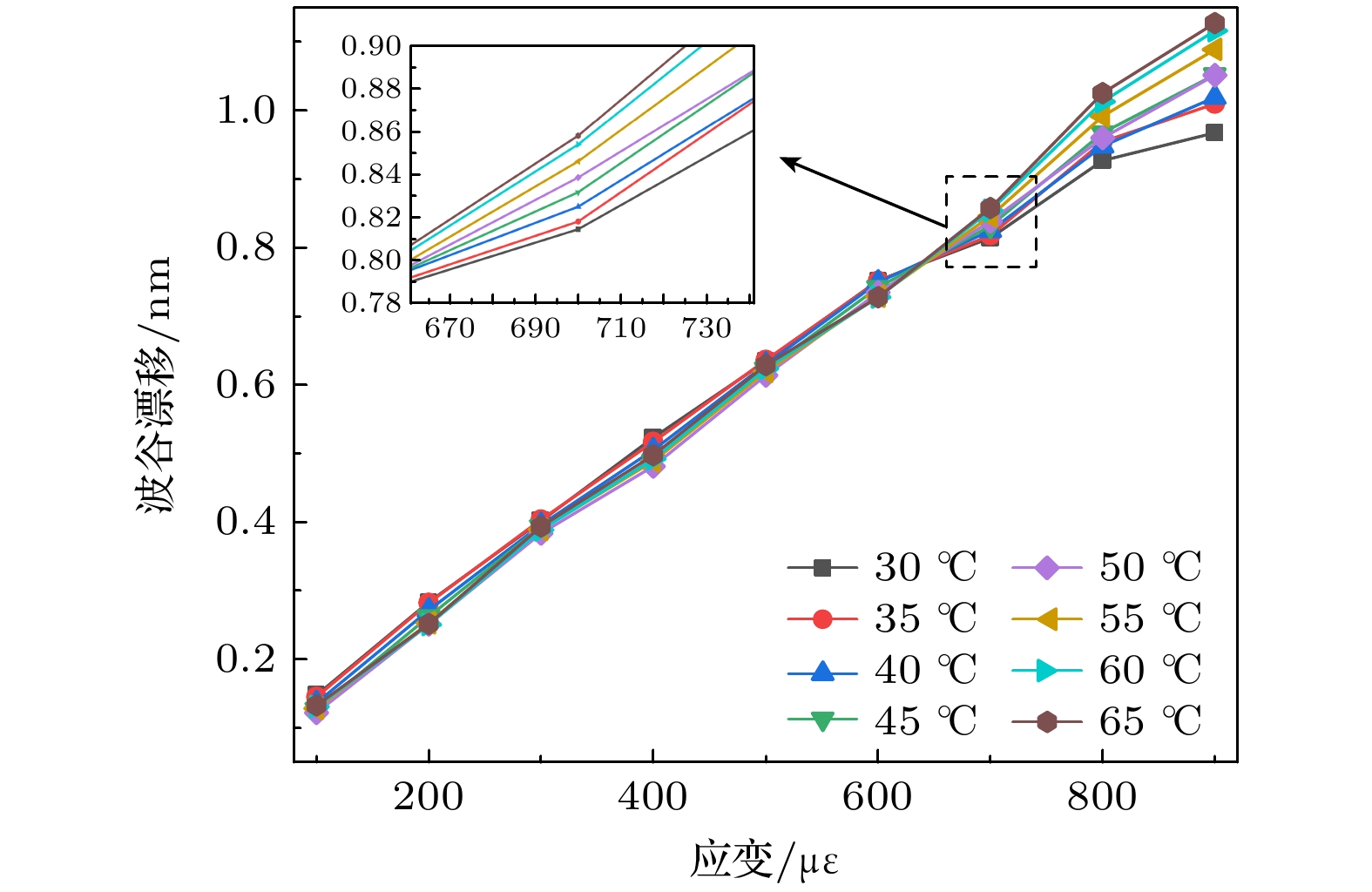

图 5 温度标定实验下不同温度光纤应变传感器的波谷漂移波长特性曲线
Figure 5. Wavelength drift characteristics curve of fiber optic strain sensors at different temperatures under temperature calibration experiment.

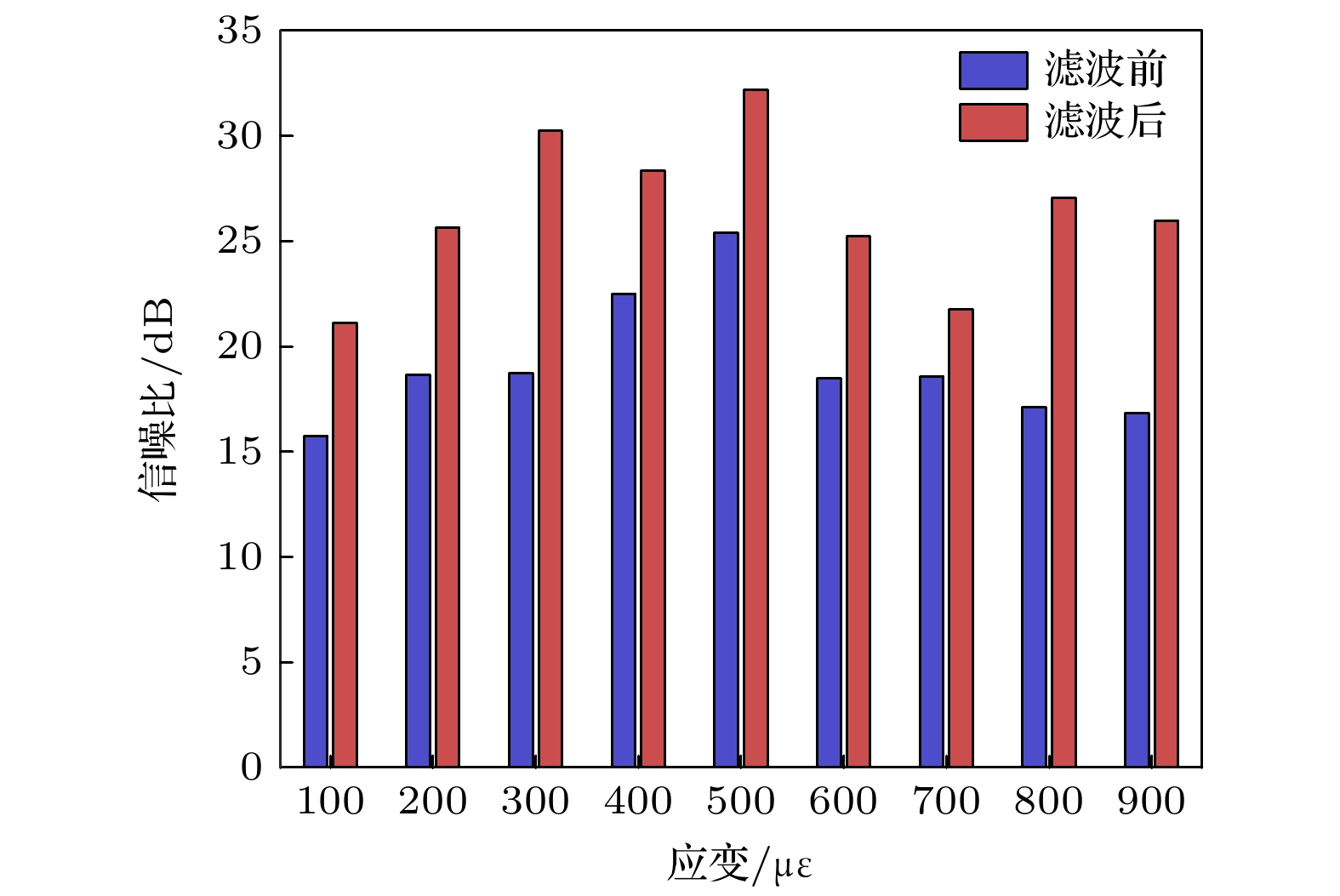

图 6 卡尔曼滤波前后信噪比对比
Figure 6. Comparison of SNR before and after Kalman filtering

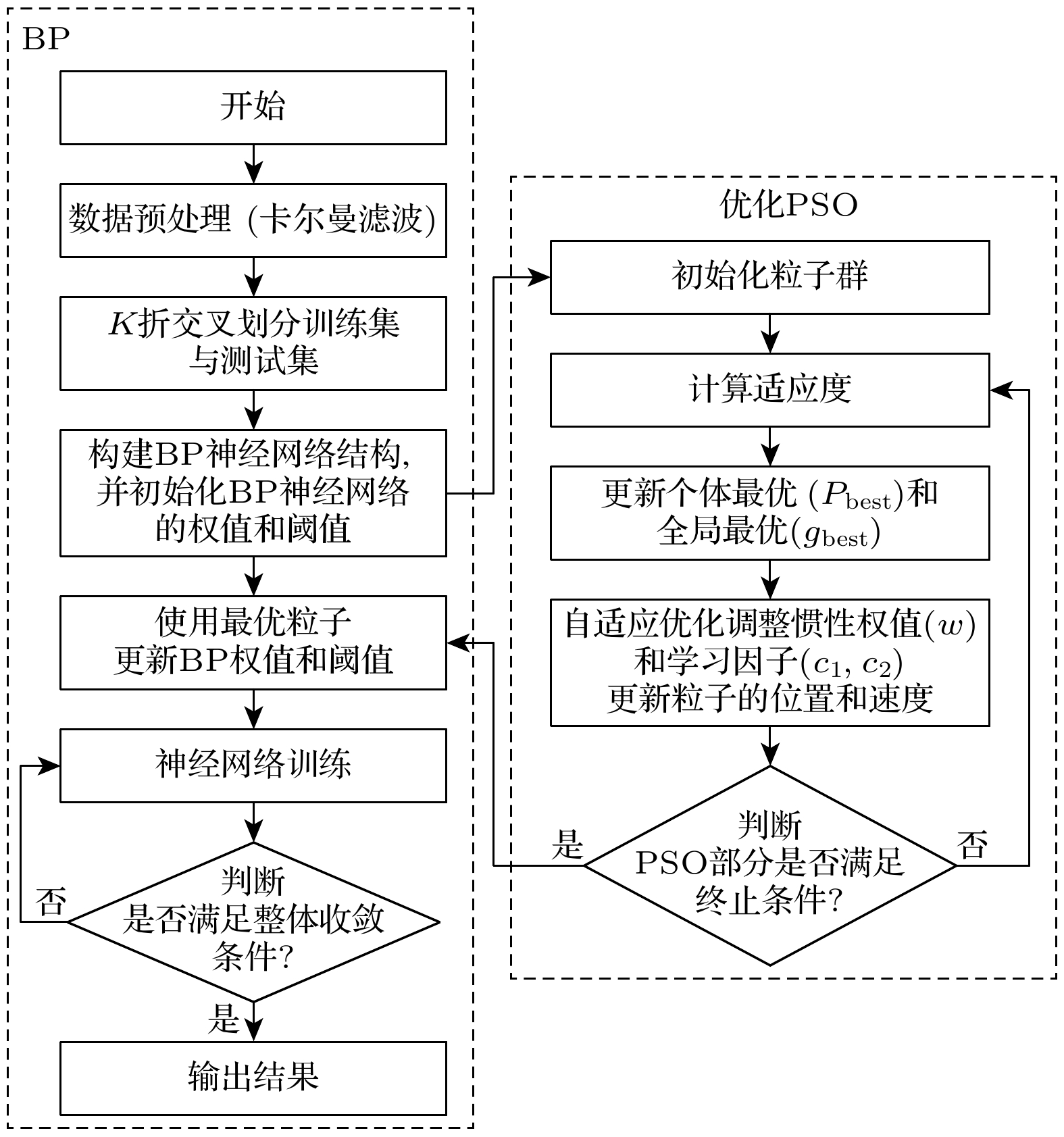

图 7 优化PSO-BP神经网络流程图
Figure 7. Flowchart of the optimized PSO-BP neural network.

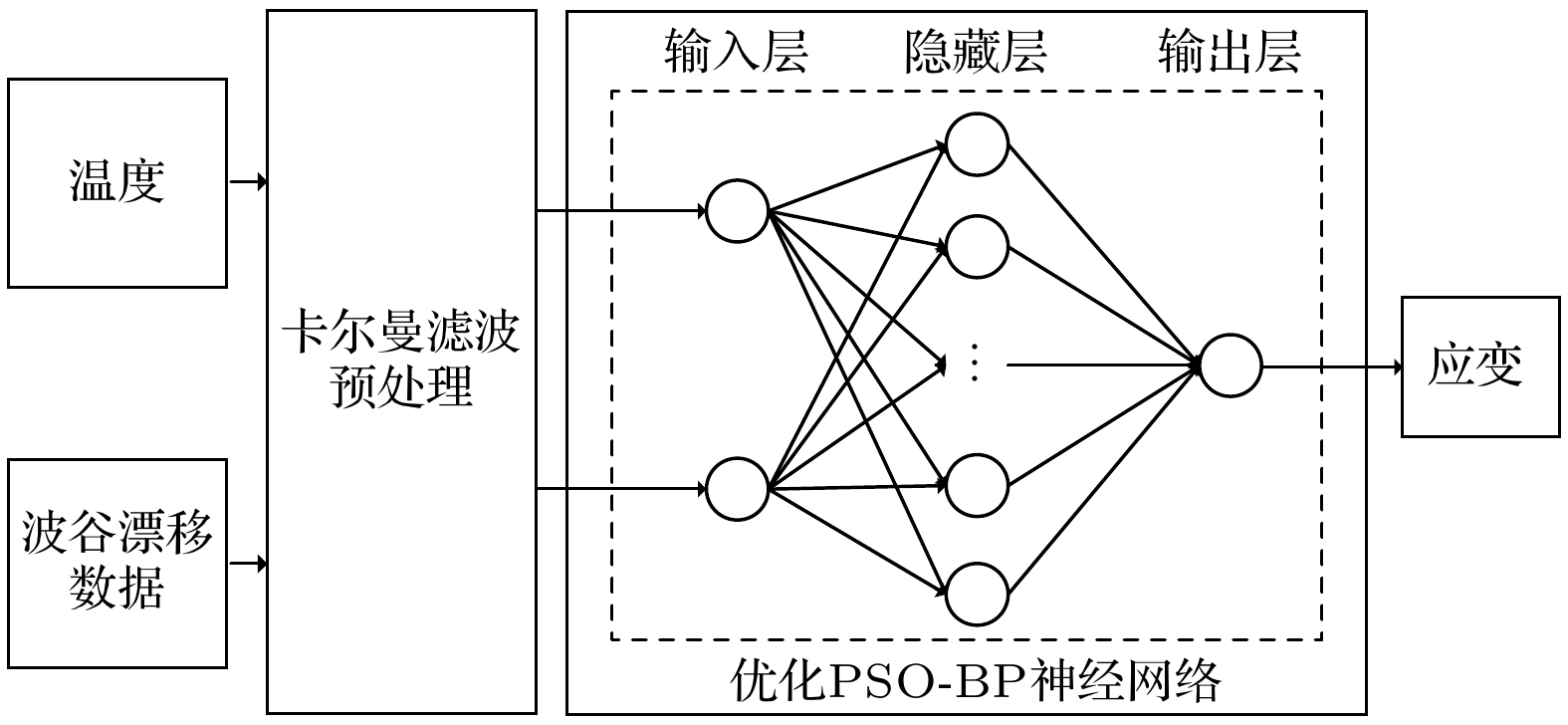

图 8 优化PSO-BP神经网络结构图
Figure 8. Structural diagram of the optimized PSO-BP neural network.
图 9 训练结果 (a) 预测输出; (b) 相对误差
Figure 9. Training results: (a) Predicted output; (b) relative error.

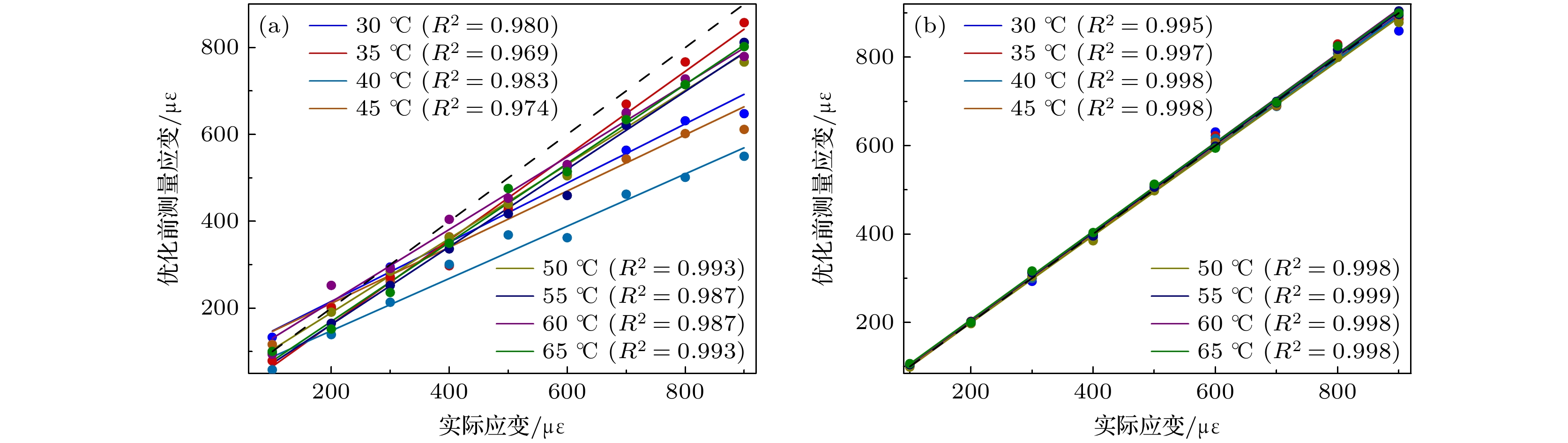

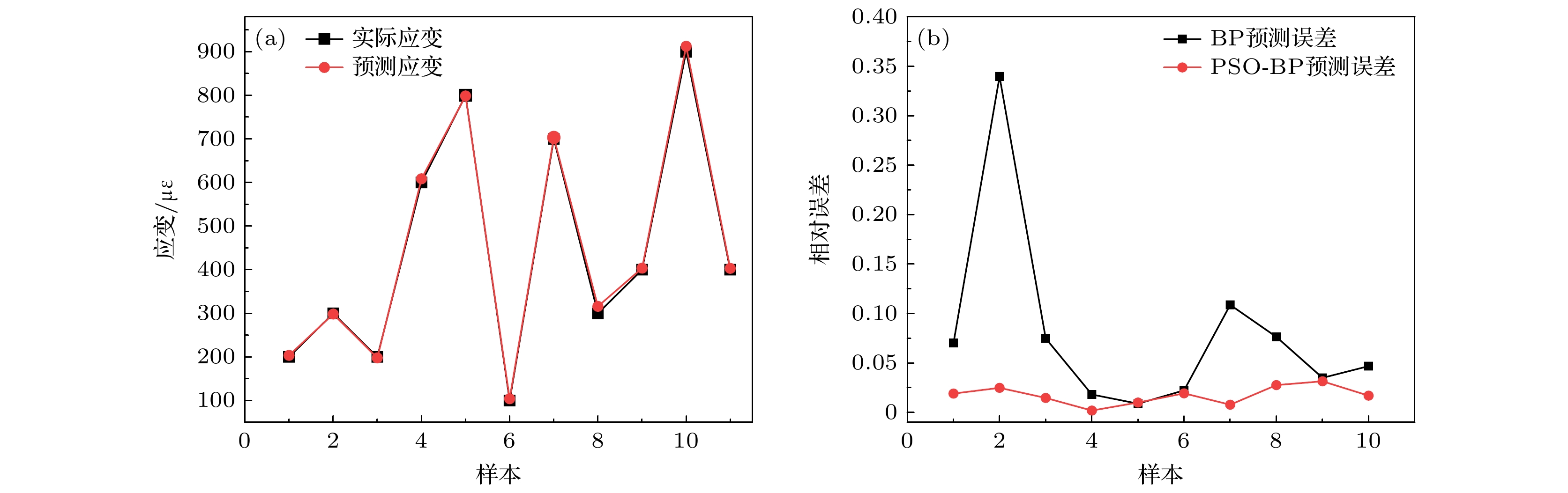

图 10 不同温度下应变预测值与实际值对比图 (a) 优化前; (b) 优化后
Figure 10. Comparison of predicted and actual strain values at different temperatures: (a) Before optimization; (b) after optimization.

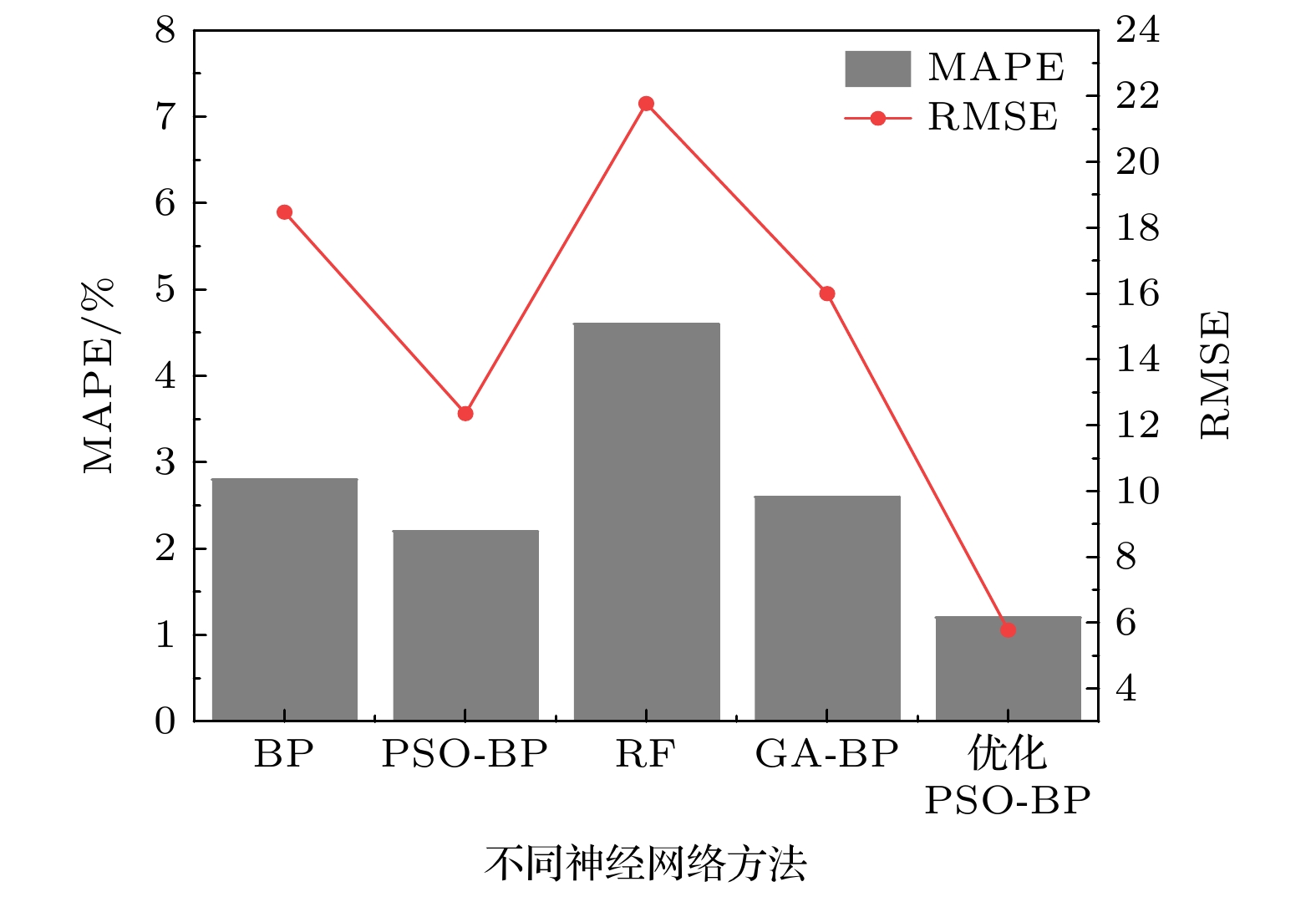

图 11 不同神经网络模型对比
Figure 11. Comparison of different neural network models.
表 1 不同隐藏层误差对比
Table 1. Comparison of errors for different hidden layers.
隐藏层
节点个数3 4 5 6 7 8 9 10 11 MAPE/% 1.96 2.16 1.93 1.47 2.08 1.60 1.96 1.21 1.92
DownLoad: CSV
表 2 不同神经网络模型对比
Table 2. Comparison of different neural network models.
性能指标 BP PSO-BP RF GA-BP 优化PSO-BP MAPE/% 2.8 2.2 4.6 2.6 1.2 RMSE 18.5 12.4 21.8 16.0 5.9
DownLoad: CSV
-
