对称分子${\text{H}}_{\text{2}}^{\text{ + }}$在强短波激光场中高次谐波椭偏率性质的研究

于术娟 刘竹琴 李雁鹏

引用本文:
Citation:

对称分子${\text{H}}_{\text{2}}^{\text{ + }}$在强短波激光场中高次谐波椭偏率性质的研究

于术娟, 刘竹琴, 李雁鹏

Ellipticity properties of symmetric molecules $ {\text{H}}_{\text{2}}^ + $ in strong and short-wavelength laser fields

Yu Shu-Juan, Liu Zhu-Qin, Li Yan-Peng
PDF
HTML
导出引用
  • 通过数值计算, 研究了强短波($ 400—600{\text{ nm}} $)激光场中${\text{H}}_2^+$分子高次谐波辐射的椭偏率性质. 研究表明, ${\text{H}}_2^+$分子在不同激光强度、不同激光波长、不同核间距及不同取向角下高次谐波的椭偏率性质是不同的; 特别是在两中心干涉区, 激发态在高次谐波产生中起着重要作用, 但在不同取向角下, 激发态对谐波椭偏率的影响不同; 分析表明, 这些不同的影响源于沿平行和垂直于激光偏振方向辐射的高次谐波的相对产量, 以及激发态对平行和垂直谐波产量的影响; 此外, 椭偏率的测量检验了强场近似和平面波近似在强短波激光场中是成立的, 并对强短波激光场中分子动力学做了更充分的研究.
    Ellipticity properties of high-order harmonic generation (HHG) from symmetric molecules $ {\text{H}}_{\text{2}}^ + $ in strong and short wavelength (less than 800nm) laser fields are numerically investigated. In this study, the ellipticity of harmonic is compared with the corresponding harmonic spectrum and dipole, and the calculation results are analyzed and the results obtained at different laser intensities, different laser wavelengths, different internuclear distances and different orientation angles are compared with each other. Our numerical simulations show that the influences of laser intensity, laser wavelength, internuclear distance and orientation angle on the ellipticity of harmonic are different. Especially in a two-center interference region, the excited state plays an important role in the HHG, but the effects of the excited state on the ellipticity of harmonic are different at different orientation angles. Further analysis shows that these different effects are due to the influence of the excited state on the harmonic yield. Using the numerical scheme, it is determined that in the two-center interference region, the excited state plays an important role in the parallel harmonic spectrum, while the effects of the excited state on the perpendicular harmonics at different angles are all very small, which results in different phase differences between the accurate harmonic spectrum and the harmonic spectrum only returning to the ground state. Overall, the relative yields of the accurate perpendicular harmonics are lower (higher) than those of the accurate parallel harmonics, but the intensities of the perpendicular harmonics, which only return to the ground state, are comparable to (or farther away from) those of the parallel harmonics which are only to return to ground state in the two-center interference regions. Therefore, the small (large) intensity ratio between the accurate perpendicular harmonic and accurate parallel harmonic can be attributed to the contributions of the excited state to harmonics. Then we can conclude that the harmonic spectra that only go back to the ground state show high (small) ellipticity, whereas the accurate harmonic spectra show small (high) ellipticity, resulting in a strong angle dependence of the influence of the excited state on the ellipticity of harmonic. In addition, in the high-order harmonic plateau region, the relative yields of harmonics can be well predicted by the corresponding dipoles, indicating the applicability of tunneling pictures and plane wave approximation in the strong and short-wave laser fields. When the ellipticity of harmonic occurs in the interference region due to the two-center characteristics of the symmetric potential, the results show that the polarization measurement can also be used to detect the structures of symmetric molecules and track the dynamic behaviors of excited states.
      通信作者: 李雁鹏, liyanpeng1107@163.com
    • 基金项目: 国家自然科学基金青年科学基金(批准号: 11904310)和延安市专项基金(批准号: 2019-03)资助的课题.
      Corresponding author: Li Yan-Peng, liyanpeng1107@163.com
    • Funds: Project supported by the Young Scientists Fund of National Natural Science Foundation of China (Grant No. 11904310), and the Special Foundation of Yan'an City, China (Grant No. 2019-03).
    [1]

    L’Huillier A, Schafer K J, Kulander K C 1991 J. Phys. B 24 3315Google Scholar

    [2]

    Itatani J, Levesque J, Zeidler Hiromichi Niikura D, Pepin H, Kieffer J C, Corkum P B, Villeneuve D M 2004 Nature 432 867Google Scholar

    [3]

    Krausz F, Ivanov M 2009 Rev. Mod. Phys. 81 163Google Scholar

    [4]

    Le V H, Le A T, Xie R H, Lin C D 2007 Phys. Rev. A 76 013414Google Scholar

    [5]

    Vozzi C, Negro M, Calegari F, Sansone G, Nisoli M, Silvestri S De, Stagira S 2011 Nat. Phys. 7 822Google Scholar

    [6]

    Smirnova O, Mairesse Y, Patchkovskii S, Dudovich N, Villeneuve D, Corkum P, Ivanov M Yu 2009 Nature 460 972Google Scholar

    [7]

    Shafifir D, Soifer H, Bruner B D, Dagan M, Mairesse Y, Patchkovskii S, Ivanov M Yu, Smirnova O, Dudovich N 2012 Nature 485 343Google Scholar

    [8]

    Corkum P B 1993 Phys. Rev. Lett. 71 1994Google Scholar

    [9]

    Lewenstein M, Balcou Ph, Ivanov M Yu, L'Huillier Anne, Corkum P B 1994 Phys. Rev. A 49 2117Google Scholar

    [10]

    Keldysh L V 1965 Sov. Phys. JETP 20 1307

    [11]

    Kim V V, Ganeev R A, Boltaev G S, Alnaser A S 2020 J. Phys. B 53 155405Google Scholar

    [12]

    Dong F L, Tian Y Q, Yu S J, Wang S, Yang S P, Chen Y J 2015 Opt. Express 23 18106Google Scholar

    [13]

    Zhou X, Lock R, Wagner N, Li W, Kapteyn H C, Murnane M M 2009 Phys. Rev. Lett. 102 073902Google Scholar

    [14]

    Levesque J, Mairesse Y, Dudovich N, epin H P, Kieffer J C, Corkum P B, Villeneuve D M 2007 Phys. Rev. Lett. 99 243001Google Scholar

    [15]

    Ramakrishna S, Sherratt P A J, Dutoi A D, Seideman T 2010 Phys. Rev. A 81 021802(RGoogle Scholar

    [16]

    Strelkov V V, Gonoskov A A, Gonoskov I A, Ryabikin M Yu 2011 Phys. Rev. Lett. 107 043902Google Scholar

    [17]

    Akagi H, Otobe T, Staudte A, Shiner A, Turner F, Dörner R, Villeneuve D M, Corkum P B 2009 Science 325 1364Google Scholar

    [18]

    Bian X B, Bandrauk A D 2010 Phys. Rev. Lett. 105 093903Google Scholar

    [19]

    Chen Y J, Zhang B 2011 Phys. Rev. A 84 053402Google Scholar

    [20]

    Qin M, Zhu X, Zhang Q, Hong W, Lu P 2011 Opt. Express 19 25084Google Scholar

    [21]

    Du H, Luo L, Wang X, Hu B 2012 Phys. Rev. A 86 013846Google Scholar

    [22]

    Yu S J, Zhang B, Li Y P, Yang S P, Chen Y J 2014 Phys. Rev. A 90 053844Google Scholar

    [23]

    Barreau L, Veyrinas K, Gruson V, Weber S J, Auguste T, Hergott J F, Lepetit F, Carré B, Houver J -C, Dowek D, Salières P 2018 Nat. Commun. 9 4727Google Scholar

    [24]

    Sun F J, Chen C, Li W Y, Liu X, Li W, Chen Y J 2021 Phys. Rev. A 103 053108Google Scholar

    [25]

    Habibović D, Milošević D B 2020 Photonics 7 110Google Scholar

    [26]

    Huo X X, Xing Y H, Qi T, Sun Y, Li Bo, Zhang J, Liu X S 2021 Phys. Rev. A 103 053116Google Scholar

    [27]

    Chen Y J 2011 Phys. Rev. A 84 043423Google Scholar

    [28]

    Chen Y J, Zhang B 2012 Phys. Rev. A 86 023415Google Scholar

    [29]

    Bian X B, Bandrauk A D 2012 Phys. Rev. A 86 053417Google Scholar

    [30]

    Miao X Y, Zhang C P 2014 Phys. Rev. A 89 033410Google Scholar

    [31]

    Han Y C 2013 Phys. Rev. A 87 043404Google Scholar

    [32]

    Feit M D, Jr Fleck J A, Steiger A 1982 J. Comput. Phys. 47 412Google Scholar

    [33]

    Shiner A D, Trallero-Herrero C, Kajumba N, Bandulet H C, Comtois D, Légaré F, Giguère M, Kieffffer J C, Corkum P B, Villeneuve D M 2009 Phys. Rev. Lett. 103 073902Google Scholar

    [34]

    Yu S J, Li W Y, Li Y P, Chen Y J 2017 Phys. Rev. A 96 013432Google Scholar

    [35]

    Chen Y J, Hu B 2009 J. Chem. Phys. 131 244109Google Scholar

    [36]

    Chen Y J, Chen J, Liu J 2006 Phys. Rev. A 74 063405Google Scholar

  • 图 1  ${\text{H}}_2^ + $分子在激光强度$ I = 4 \times {10^{14}}{\text{ W}}/{\text{c}}{{\text{m}}^2} $及波长$ \lambda = 600{\text{nm}} $时谐波的椭偏率、谐波谱及偶极子的比较 (a), (d), (g) 核间距为$ R = 1.7{\text{ a}}{\text{.u}}{\text{. }} $; (b), (e), (h) 核间距为$ R = 2{\text{ a}}{\text{.u}}{\text{. }} $; (c), (f), (i) 核间距为$ R = 2.3{\text{ a}}{\text{.u}}{\text{. }} $

    Fig. 1.  Comparison of the harmonic ellipticity, harmonic spectra and corresponding dipole for ${\text{H}}_2^ + $ molecules at the laser intensity $ I = 4 \times {10^{14}}{\text{ W}}/{\text{c}}{{\text{m}}^2} $and wavelength $ \lambda = 600{\text{ nm}} $: (a), (d), (g) $ R = 1.7{\text{ a}}. {\text{u}}. $; (b), (e), (h) $ R = 2{\text{ a}}. {\text{u}}. $; (c), (f), (i) $ R = 2.3{\text{ a}}. {\text{u}}. $.

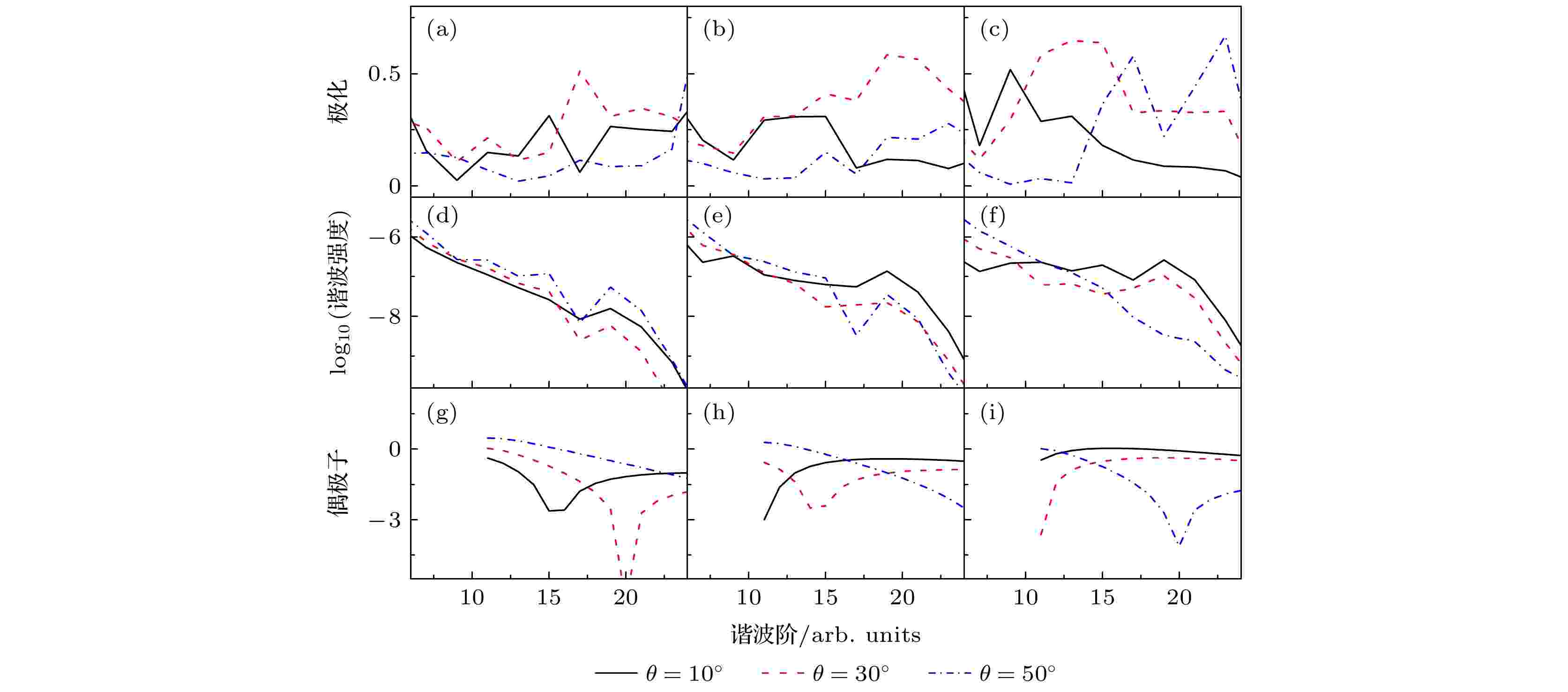

    图 2  与图1相同, 但激光强度$I = 5 \times {10^{14}}\;{\text{W}}/{\text{c}}{{\text{m}}^2}$和波长$\lambda = 400\;{\text{nm}}$

    Fig. 2.  Same as Fig.1, but the laser intensity $ I = 5 \times {10^{14}}{\text{ W}}/{\text{c}}{{\text{m}}^2} $ and wavelength $ \lambda = 400{\text{ nm}} $.

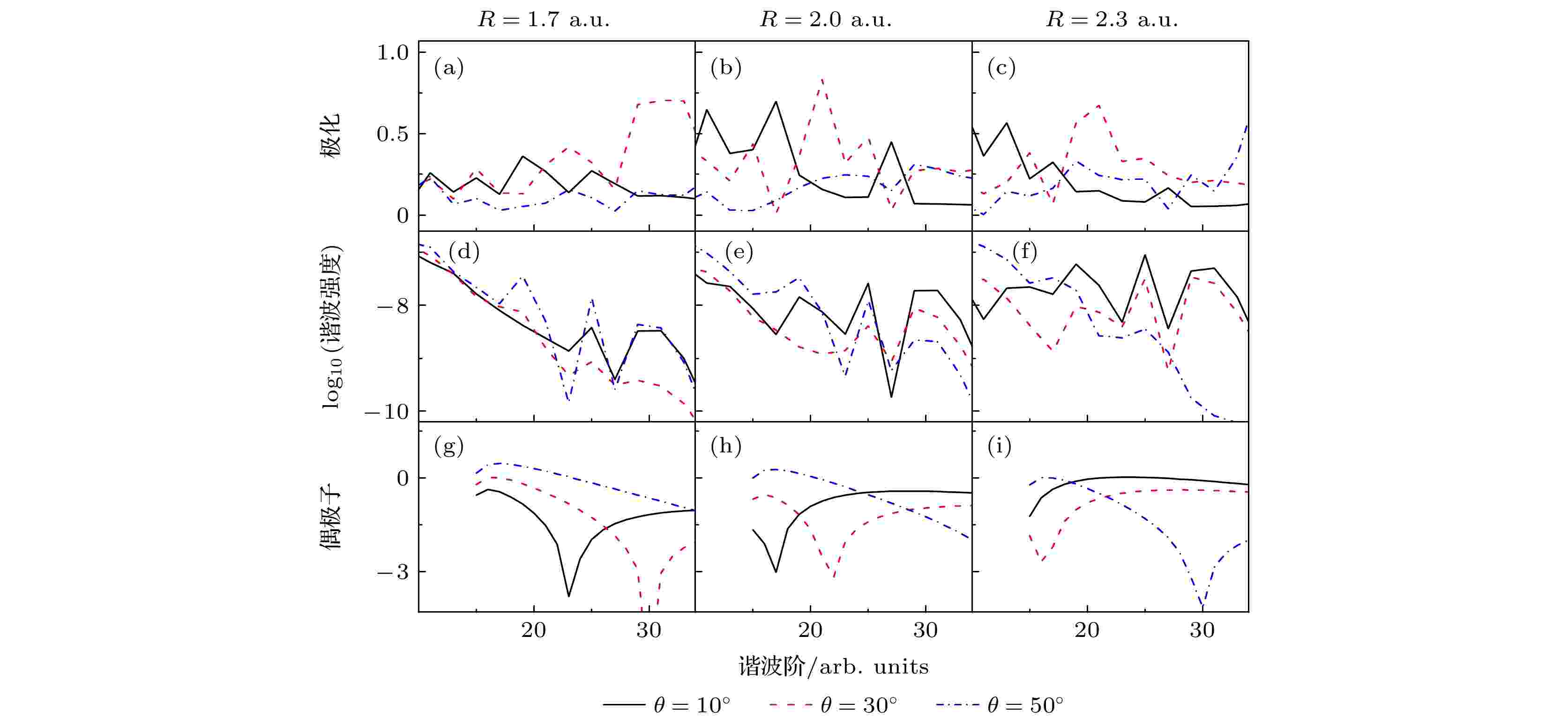

    图 3  与图1相同, 但激光强度$I = 5 \times {10^{14}}\;{\text{W}}/{\text{c}}{{\text{m}}^2}$和波长$\lambda = 500\;{\text{nm}}$

    Fig. 3.  Same as Fig.1, but the laser intensity $I = 5 \times {10^{14}}\;{\text{W}}/{\text{c}}{{\text{m}}^2}$ and wavelength $\lambda = 500\;{\text{nm}}$.

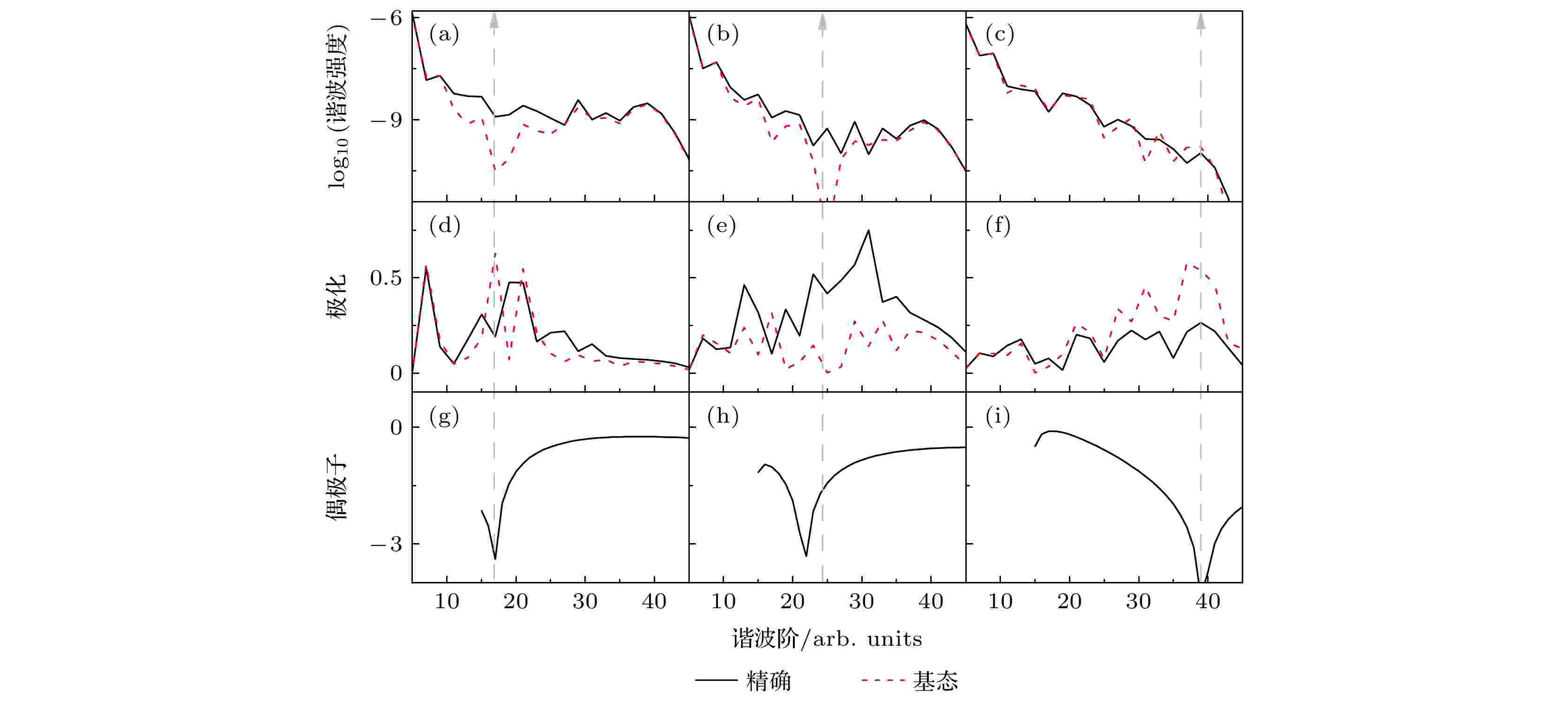

    图 4  ${\text{H}}_2^ + $分子$I = 4 \times {10^{14}}\;{\text{W}}/{\text{c}}{{\text{m}}^2}$, $ \lambda = 600{\text{ nm}} $R=2 a.u.时谐波谱、偶极子和谐波椭偏率的比较 (a), (d), (g) $ \theta = {10^\circ} $; (b), (e), (h) $ \theta = {30^\circ} $; (c), (f), (i) $ \theta = {50^\circ} $

    Fig. 4.  Comparison of the harmonic ellipticity, harmonic spectra and corresponding dipole for ${\text{H}}_2^ + $ molecules with R=2 a.u. at the laser intensity $ I = 4 \times {10^{14}}{\text{ W}}/{\text{c}}{{\text{m}}^2} $and wavelength $ \lambda = 600{\text{ nm}} $: (a), (d), (g) $ \theta = {10^\circ} $; (b), (e), (h) $ \theta = {30^\circ} $; (c), (f), (i) $ \theta = {50^\circ} $.

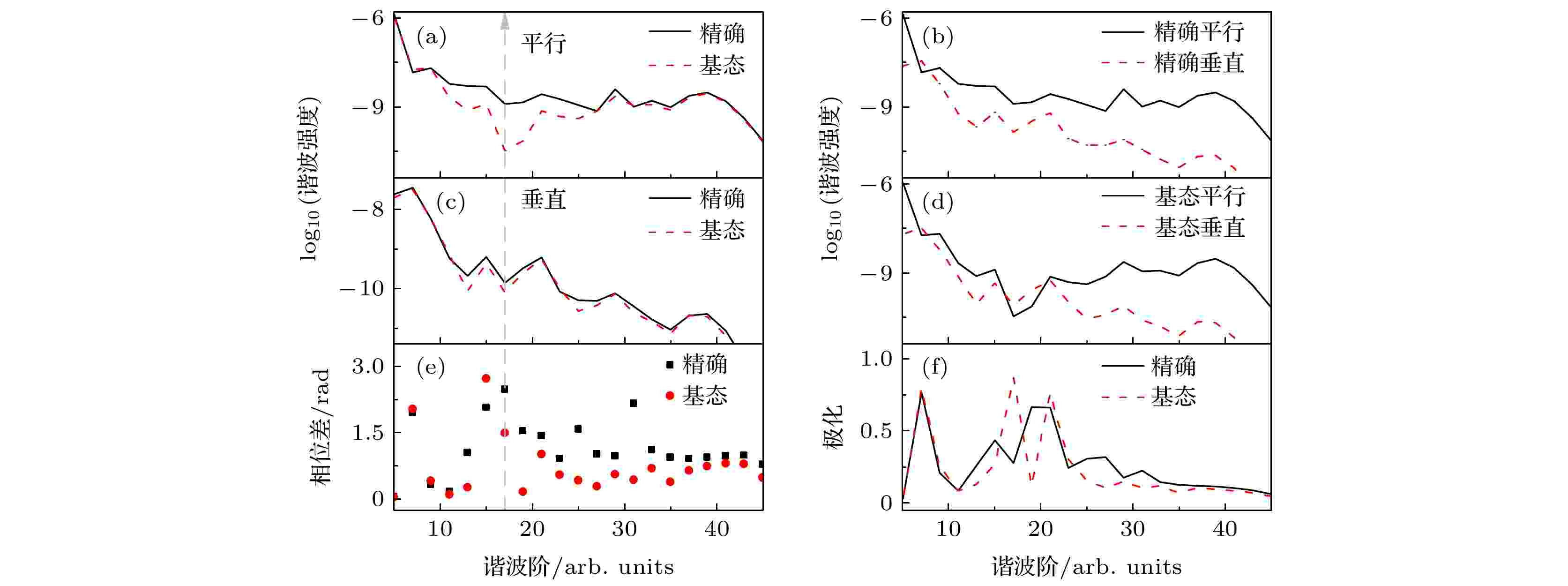

    图 5  ${\text{H}}_2^ + $分子$I = 4 \times {10^{14}}\;{\text{ W}}/{\text{c}}{{\text{m}}^2}$, $\lambda = 600\;{\text{nm}}$, R=2 a.u.及$ \theta = {10^\circ} $时谐波谱、相位差和谐波椭偏率的比较 (a) 精确平行与跃迁回基态的平行谐波谱(基态平行谐波)比较; (b) 精确平行与精确垂直谐波谱的比较; (c) 精确与基态垂直谐波谱的比较; (d) 基态平行与基态垂直谐波谱的比较; (e) 精确与基态谐波相位差比较; (f) 精确与基态谐波椭偏率比较

    Fig. 5.  The comparison of the harmonic spectra, the phase differences $ {\delta _1}\left( d \right) $ and the ellipticity of harmonic for ${\text{H}}_2^ + $ molecules with R=2 a.u. and $ \theta = {10^\circ} $ at the laser intensity $I = 4 \times {10^{14}}\;{\text{W}}/{\text{c}}{{\text{m}}^2}$and wavelength $\lambda = 600\;{\text{ nm}}$: (a) The comparison of accurate parallel harmonic and the parallel harmonic that transition back to ground state (ground-state parallel harmonic); (b) the comparison of accurate parallel and perpendicular harmonic; (c) comparison between accurate and ground state perpendicular harmonic spectrum; (d) comparison between ground-state parallel and ground-state perpendicular harmonic; (e) the comparison of the phase difference of accurate and ground-state harmonic; (f) comparison between accurate and ground-state harmonic ellipticity.

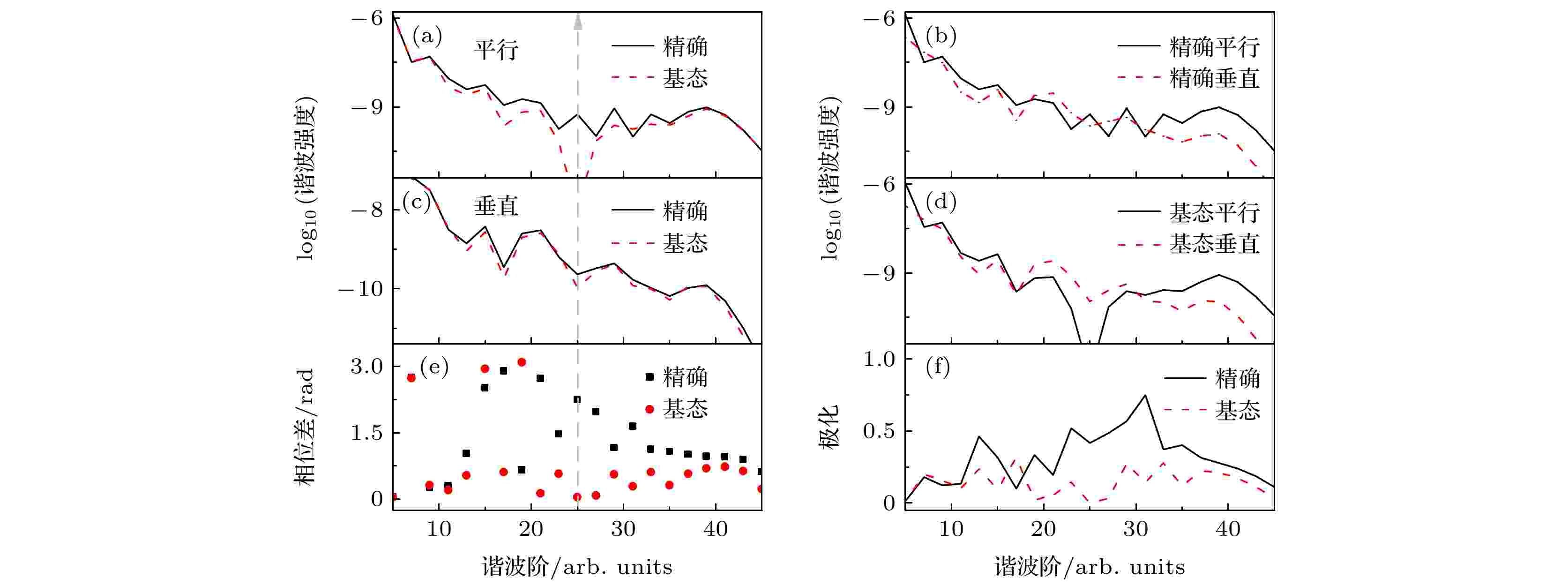

    图 6  与图5相同, 但$ \theta = {30^\circ} $

    Fig. 6.  Same as Fig. 5, but $ \theta = {30^\circ} $.

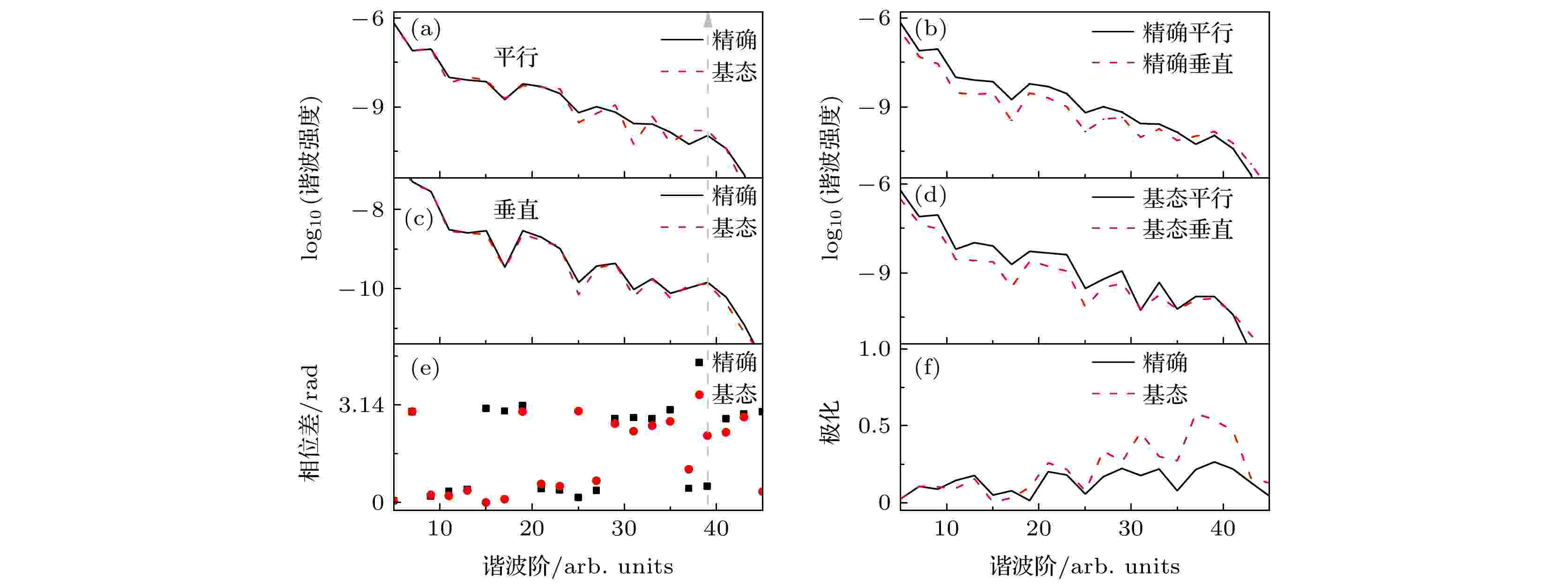

    图 7  与图5相同, 但$ \theta = {50^\circ} $

    Fig. 7.  Same as Fig.5, but $ \theta = {50^\circ} $.
