The regulation of the electronic structure and transport properties of single-hydrogen-vacancy germanane by biaxial strain is investigated using first-principles calculations based on density functional theory in this work. The results reveal that the introduction of single-hydrogen-vacancy defect states not only induces p-type doping-like effects in germanane but also triggers off a transition from non-magnetic to ferromagnetic states. Under –3% to 3% biaxial strain, both the structural parameters (bond length, bond angle, and corrugation height) and the bandgap of single-hydrogen-vacancy germanane linearly vary with strain. The p-type doping-like effect disappears at ε = 0.75%, while an n-type doping-like effect appears when strain increases to ε = 2.5%. Mechanism analysis reveals that biaxial strain primarily modulates the energies of the Fermi level, valence band maximum, and conduction band minimum, causing the relative position of defect state energy levels to shift, making them become acceptor or donor energy levels, and producing doping effect changes regulated by biaxial strain. Transport property calculations further demonstrate that the isotropic I-V characteristics and electron effective mass of single-hydrogen-vacancy germanane can be linearly controlled by biaxial strain, leading to corresponding changes in electron mobility. At ε = 3%, the electrical conductivity and electron mobility of single-hydrogen-vacancy germanane increase significantly to 3660 S/cm and 24252 cm2/(V·s), respectively.
-
Keywords:
- strain /
- single hydrogen vacancy /
- electronic structure /
- transport properties
-

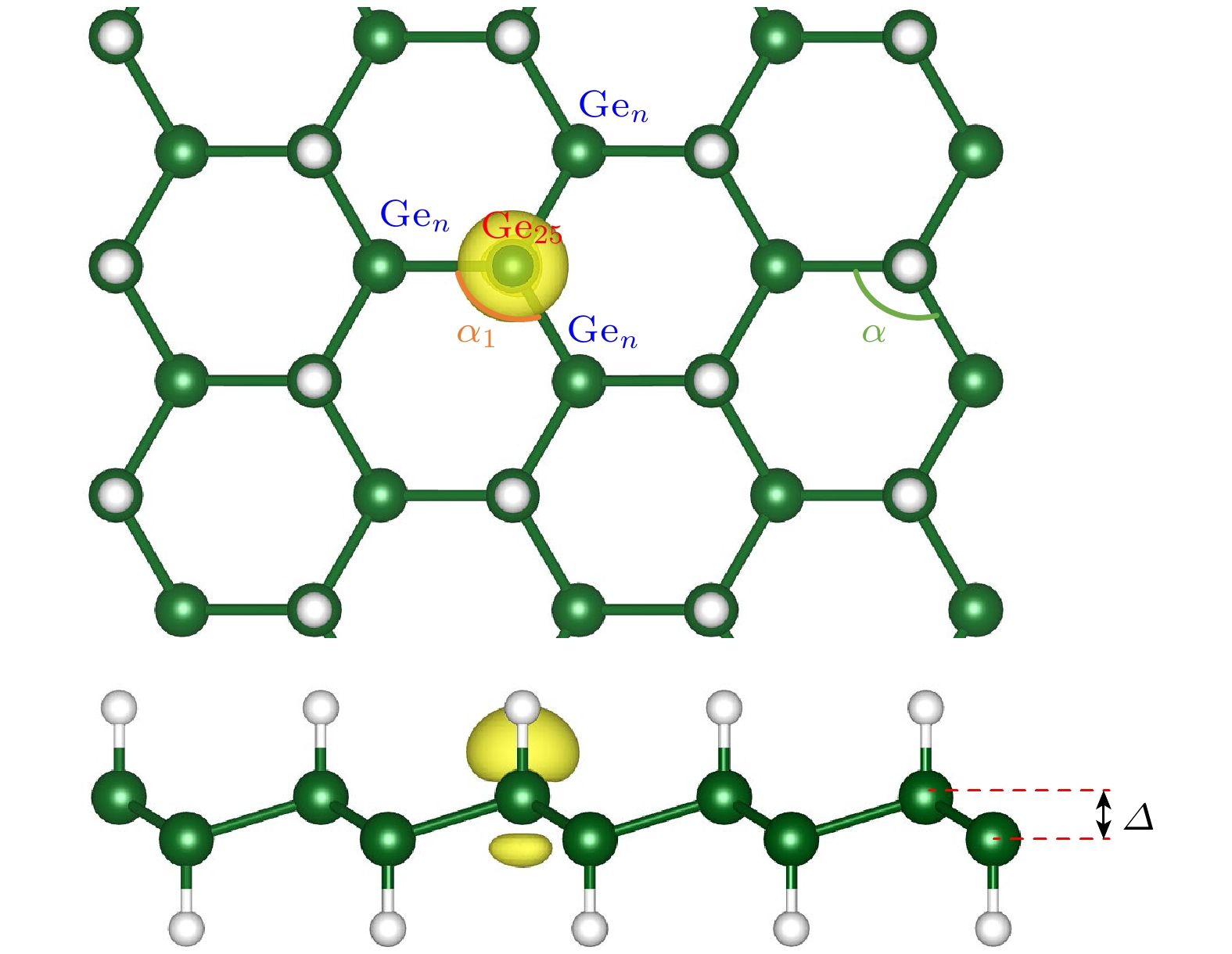

图 1 单氢空位锗烷自旋电荷密度的俯视图和侧视图(绿色和白色球体分别表示锗和氢原子, 等值面设置为0.005 Å–3)
Figure 1. Top and side views of spin charge density of single hydrogen vacancy germanane (green and white spheres represent Ge and H atoms, respectively, the isosurface is set to be 0.005 Å–3).

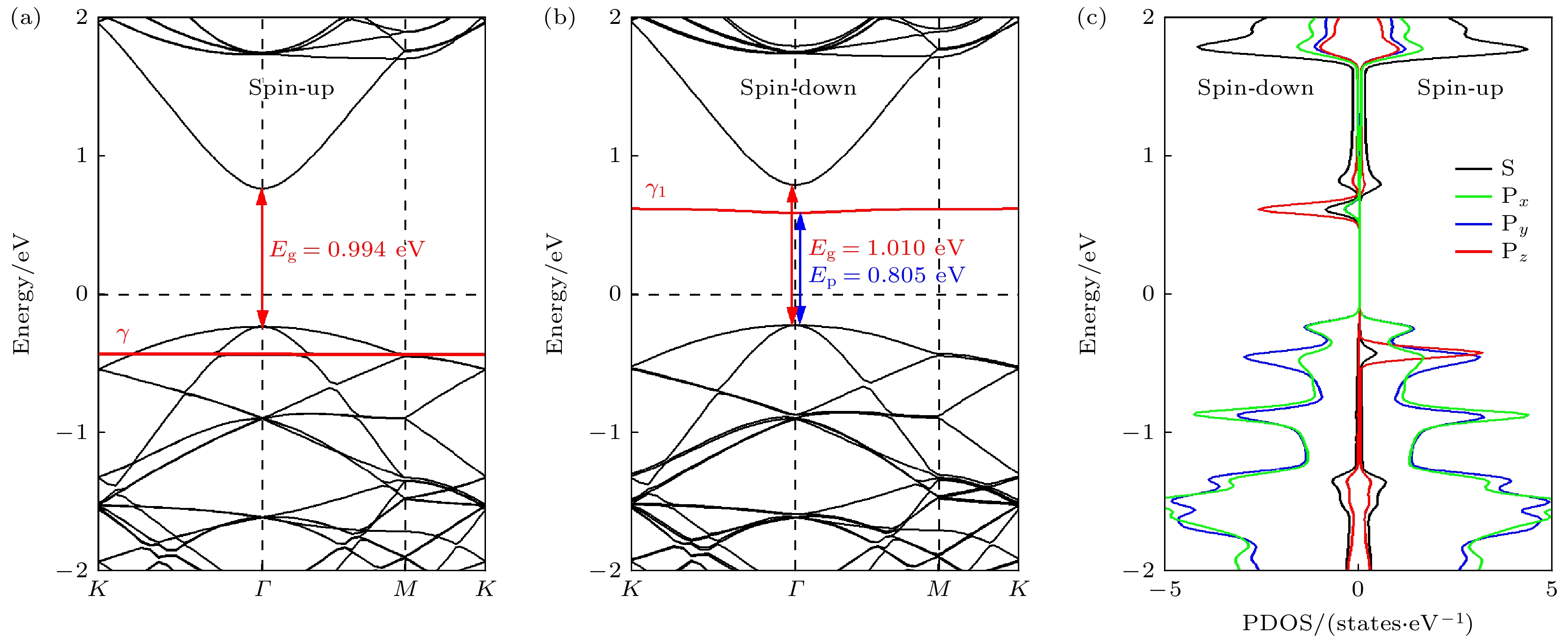

图 2 单氢空位锗烷的能带结构和投影态密度
Figure 2. Band structure and projected density of states of single hydrogen vacancy germanane.

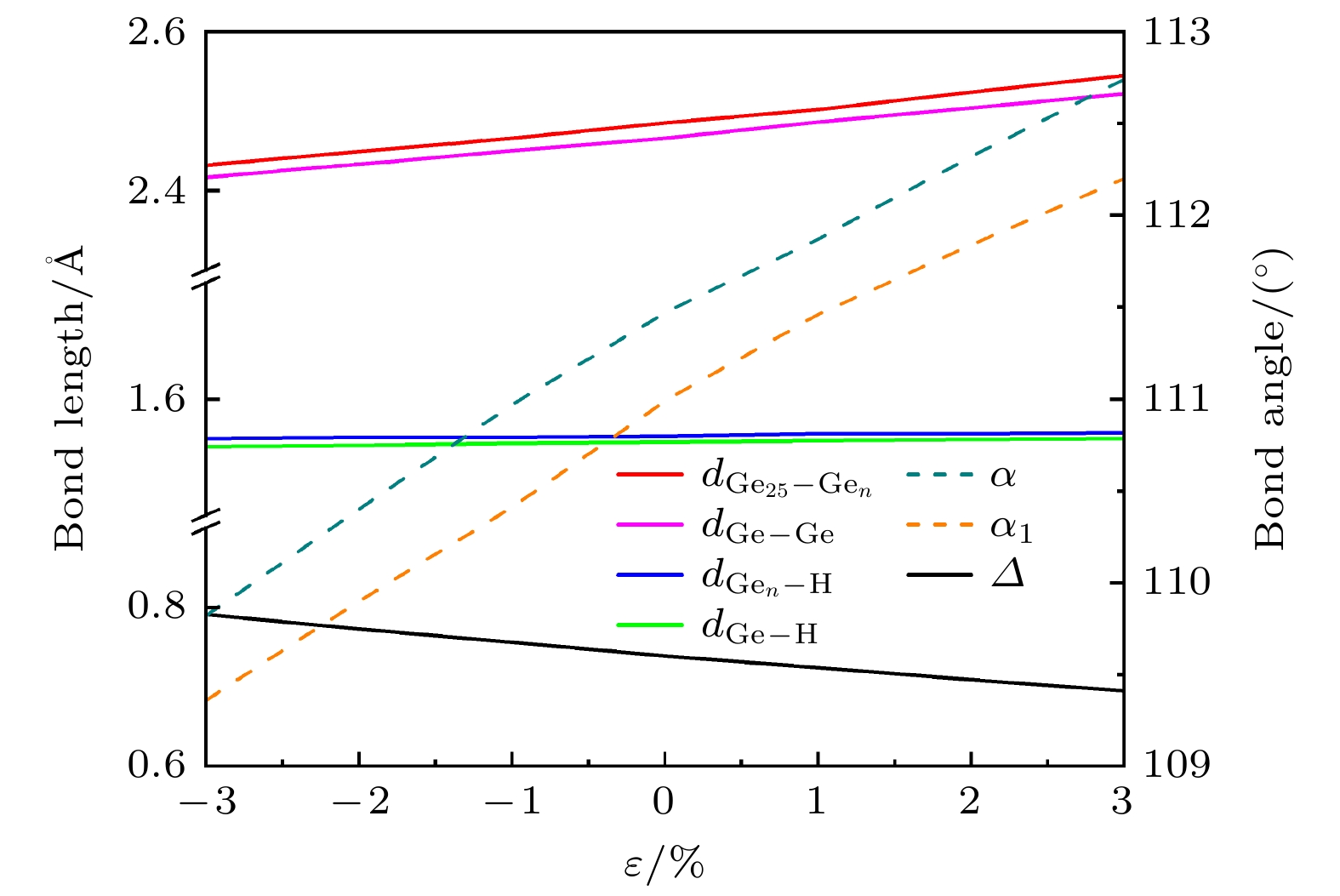

图 3 在–3%—3%双轴应变下单氢空位锗烷键长、键角和平均褶皱高度Δ的变化趋势
Figure 3. The variation trend of bond length, bond angle, and average bending height Δ of single hydrogen vacancy germanane under biaxial strain of –3% to 3%.

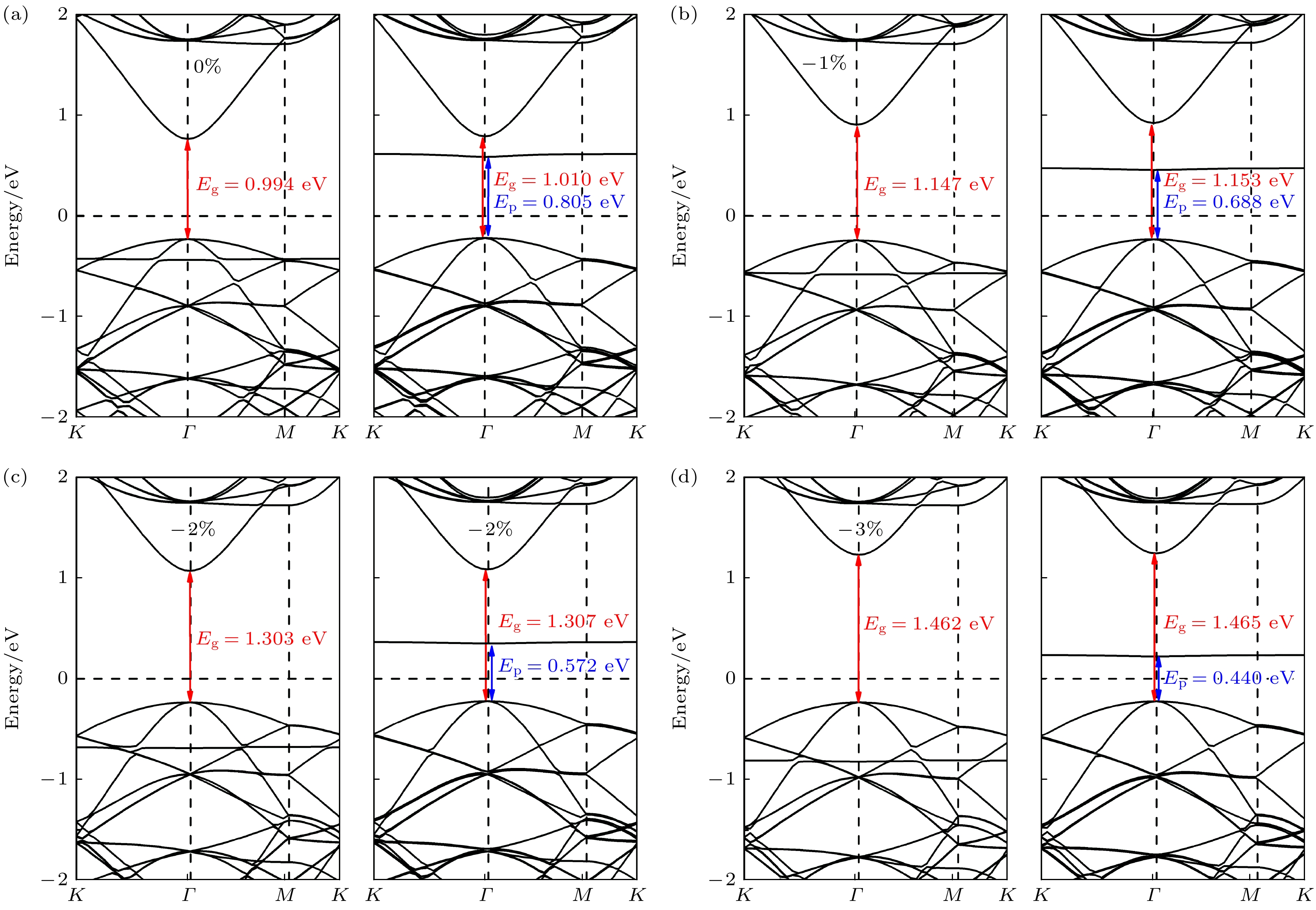

图 4 (a)—(d) 在0%—3%的压缩应变下, 单氢空位锗烷的能带结构
Figure 4. (a)–(d) The band structures of single hydrogen vacancy germanane under compression strain of 0% to 3%.

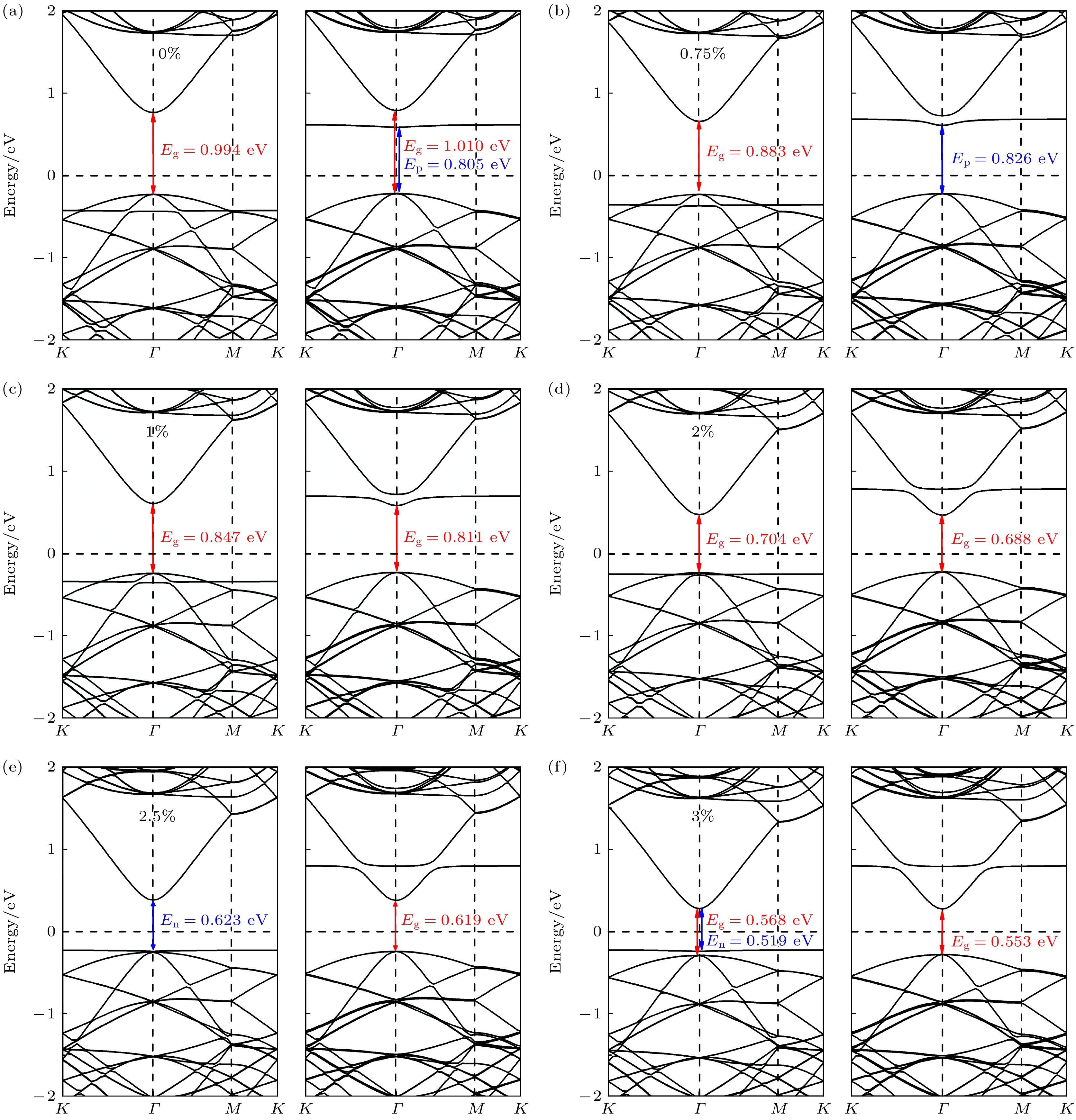

图 5 (a)—(f) 在0%—3%的拉伸应变下, 单氢空位锗烷的能带结构
Figure 5. (a)–(f) The band structures of single hydrogen vacancy germanane under tensile strain of 0% to 3%.

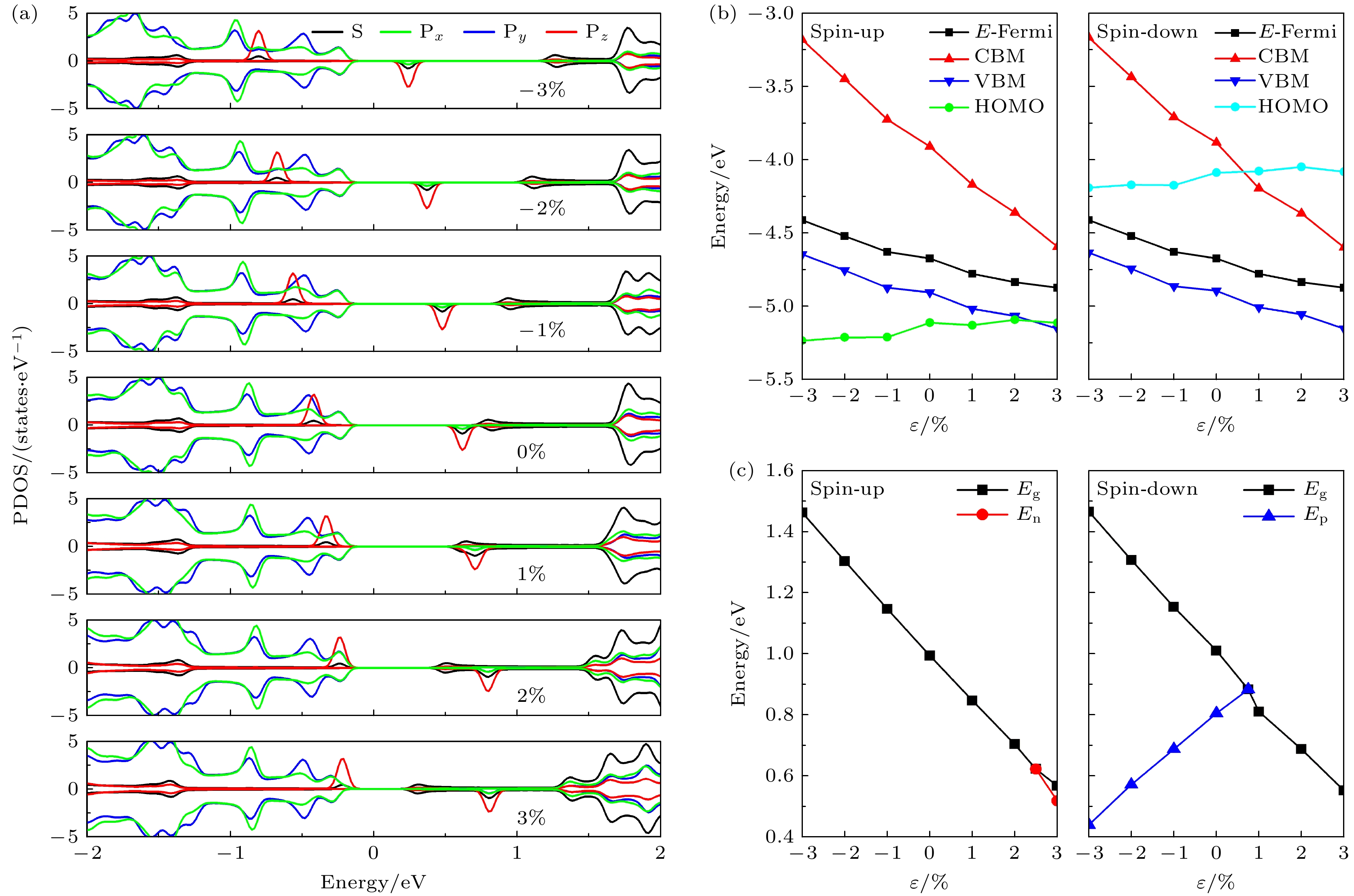

图 6 在–3%—3%的双轴应变下, 单氢空位锗烷 (a) 投影态密度; (b) E-fermi, CBM, VBM, HOMO和LUMO的绝对能量相对于真空能级的变化; (c) Eg, En和Ep的变化
Figure 6. Single hydrogen vacancy germanane under biaxial strain of –3% to 3%: (a) The projected density of states; (b) the evolution of absolute energy of E-fermi, CBM, VBM, HOMO and LUMO with respect to the vacuum level; (c) the evolution of the Eg, En and Ep.

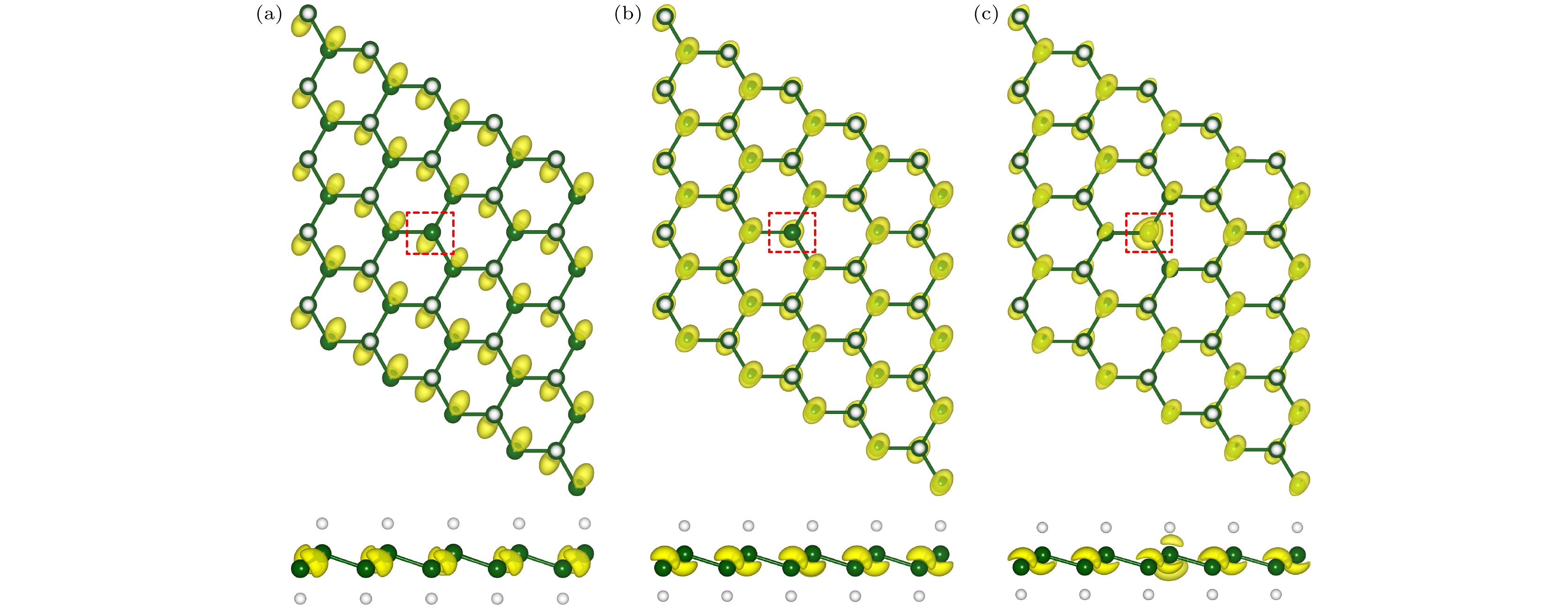

图 7 在Γ点处CBM的能带分解电荷密度图(俯视图和侧视图) (a) ε = –3%; (b) ε = 0%; (c) ε = 3%
Figure 7. The band decomposed charge density of the CBM at the Γ-point (top and side views): (a) ε = –3%; (b) ε = 0%; (c) ε = 3%.

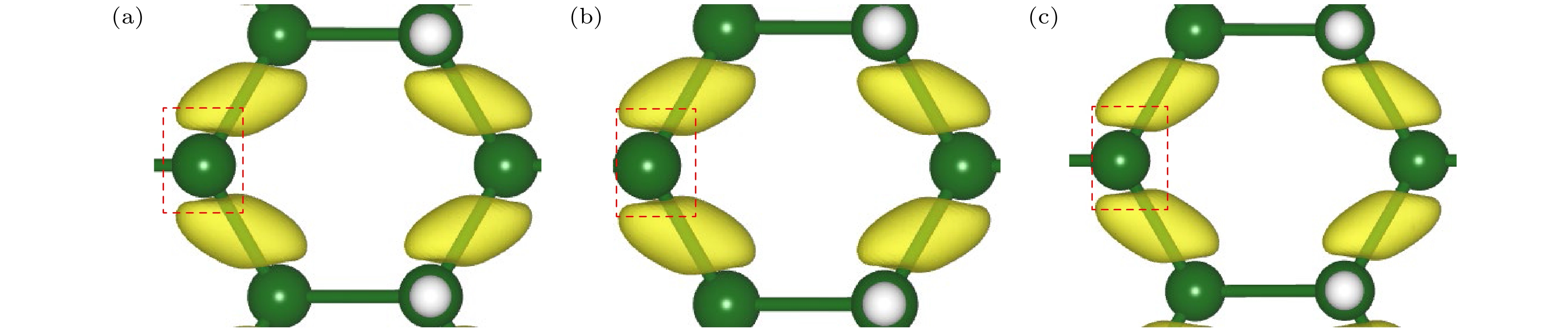

图 8 在Γ点处VBM的能带分解电荷密度图(俯视图) (a) ε = –3%; (b) ε = 0%; (c) ε = 3%
Figure 8. The band decomposed charge density of the VBM at the Γ-point (top views): (a) ε = –3%; (b) ε = 0%; (c) ε = 3%.

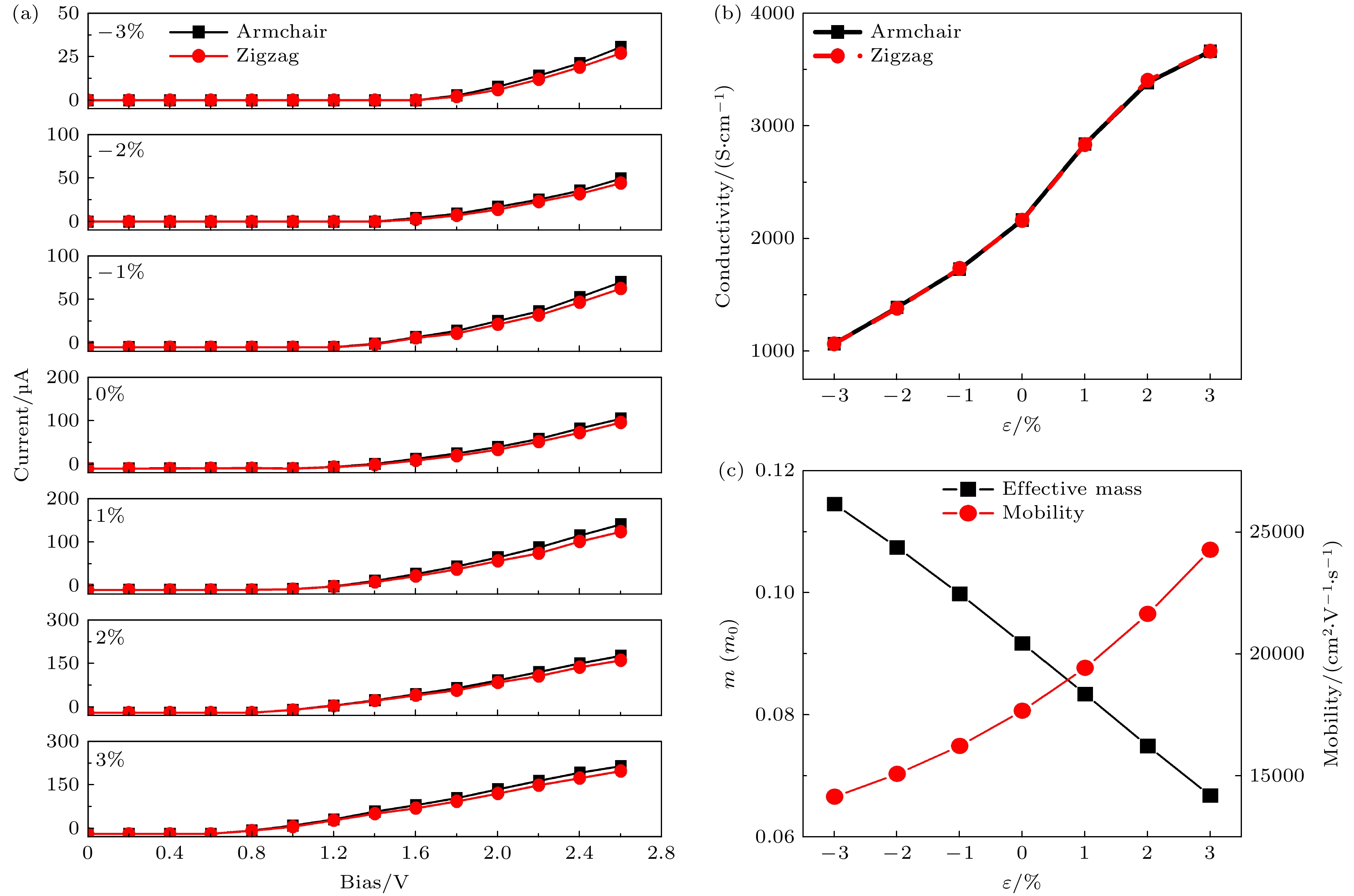

图 9 单氢空位锗烷器件在–3%—3%的双轴应变下 (a) I-V特性曲线; (b) 电导率; (c) 电子有效质量和电子迁移率
Figure 9. Single hydrogen vacancy germanane devices under biaxial strain of –3% to 3%: (a) I-V characteristic curve; (b) conductivity; (c) electronic effective mass and electronic mobility.
表 1 单氢空位锗烷的键长、键角和平均褶皱高度Δ随–3%—3%双轴应变的变化
Table 1. The variation of bond length, bond angle, and average fold height Δ of single hydrogen vacancy germanane with –3%–3% biaxial strain.
Strain dGe-H
/ÅdGe-Ge
/Åα/(°) dGen-H
/ÅdGe25-Gen
/Åα1/(°) Δ/Å –3% 1.559 2.417 109.85 1.566 2.432 109.36 0.791 –2% 1.560 2.433 110.42 1.567 2.449 109.90 0.773 –1% 1.562 2.450 111.00 1.567 2.466 110.41 0.756 0% 1.563 2.466 111.47 1.568 2.485 110.99 0.739 1% 1.564 2.486 111.90 1.570 2.502 111.46 0.724 2% 1.565 2.504 112.39 1.570 2.524 111.84 0.709 3% 1.566 2.522 112.83 1.571 2.545 112.20 0.695
