Entanglement detection and classification of different kinds of entangled states in quantum many-body systems have always been a key topic in quantum information and quantum computation. In this work, we investigate the entanglement detection and classification of three special entangled states: 4-qubit GHZ state, 4-qubit $ W\overline{W} $ state, and 4-qubit SGT state, which cannot be distinguished by the general quantum Fisher information (QFI) under the usual local operations. By utilizing the experimentally mature and controllable one-axis twisting model, accompanied by the optimized rotation and adjustable interaction strength, we successfully classify the three states by QFI. Besides, we have also studied the effects of four types of environmental noises on the entanglement detection, i.e., bit-flip channel, amplitude-damping channel, phase-damping channel, and depolarizing channel. The results show that under the local operation, the change of the QFI from the 4-qubit GHZ state with respect to the decoherence parameter p in four noise channels is significantly different from those from the $ W\overline{W} $ state and SGT state, and it can be distinguished. However, the QFI from the $ W\overline{W} $ state and the SGT state exhibit the same variations and cannot be classified. In the one-axis twisting model, the variation curves of the QFI from the three states under the four noise channels are mutually distinct and can be clearly observed. It should be noted that, in the bit-flip channel, the QFI of the $ W\overline{W} $ state and the SGT state overlaps in the middle region ($ p\approx0.5 $), failing to be classified. Our work provides a new way to realize the entanglement detection and classification in quantum many-body systems, which will contribute to the future research in quantum science and technology.
-
Keywords:
- entanglement detection and classification /
- quantum Fisher information /
- one-axis twisting model /
- GHZ state /
- $W\overline{W} $ state /
- SGT state
-
图 1 (color online) 4量子比特GHZ态、$ W\overline{W} $态和SGT态在单轴旋转模型下的量子Fisher信息. 黑色圆点, 蓝色三角形, 红色方块依次表示GHZ态, $ W\overline{W} $态和SGT态的量子Fisher信息随相互作用参数γ的变化结果. 其中, (a)表示彼此独立优化旋转方向n下的结果, 算式(25); (b)表示单轴旋转为x轴的结果, 算式(26); (c)表示单轴旋转为y轴的结果, 算式(27); (d)单轴旋转为z轴的结果, 算式(29)
Figure 1. The QFI of the 4-qubit GHZ state, $ W\overline{W} $ state and SGT state under the one-axis twisting model. Black dots, blue triangles and red squares represent the QFI of the GHZ state, $ W\overline{W} $, and SGT state with respect to the interaction parameter γ. (a) shows the results under the condition that the rotation directions n are optimized independently, Eq. (25); (b) shows the results when the rotation is along the x-axis, Eq. (26); (c) shows the results when the rotation is along the y-axis, Eq. (27); (d) shows the results when the rotation is along the z-axis, Eq. (29).

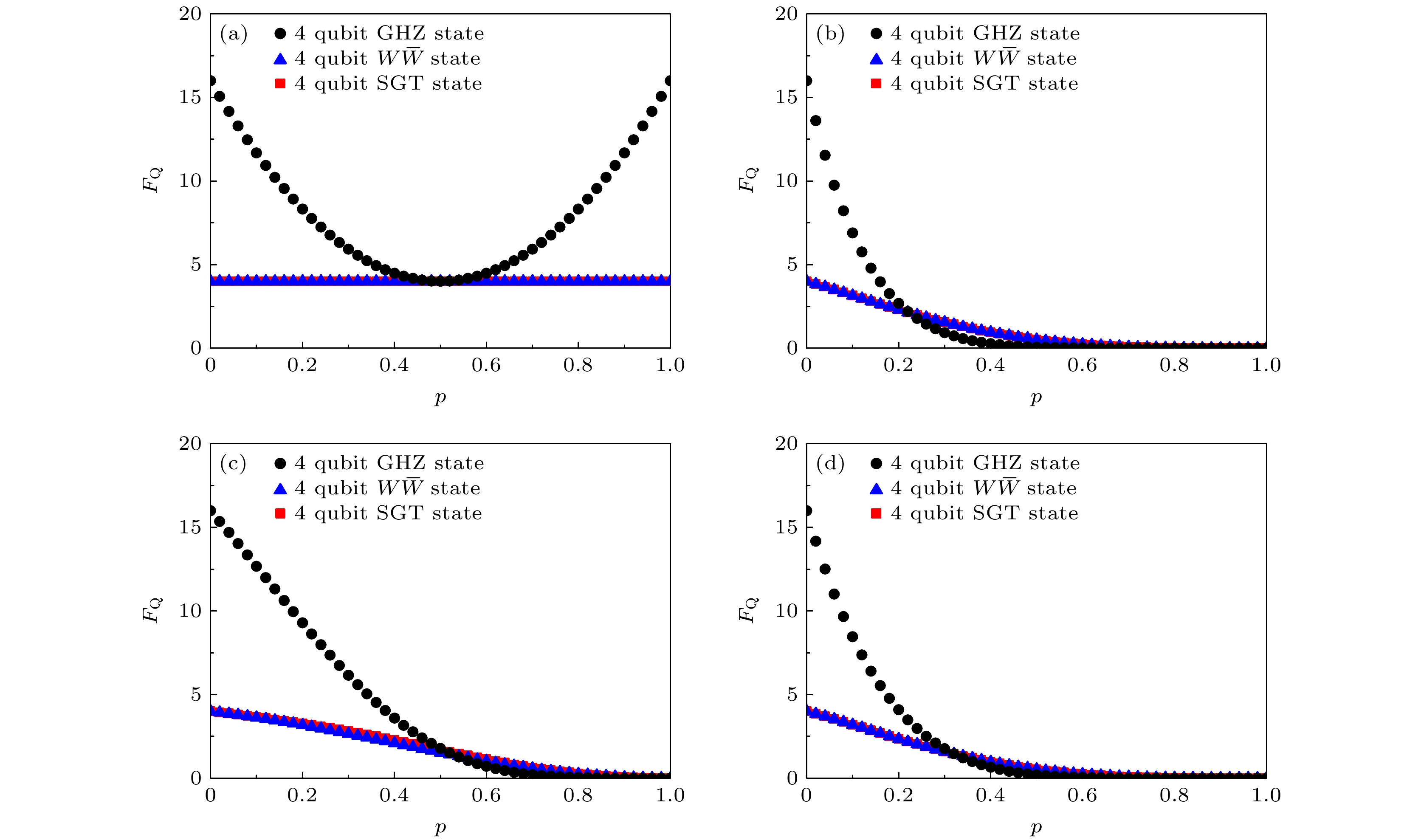

图 2 (color online) 在局域操作下, 4量子比特GHZ态、$ W\overline{W} $态和SGT态在比特翻转, 相位阻尼, 振幅阻尼和去极化通道下的量子Fisher信息. 黑色圆点, 蓝色三角形, 红色方块依次表示GHZ态, $ W\overline{W} $态和SGT态的量子Fisher信息随退相干参数p的变化结果. 其中, (a)表示量子态在比特翻转通道下的结果; (b)表示量子态在相位阻尼通道中的结果; (c)表示在振幅阻尼通道中的结果; (d)表示在去极化通道下的结果
Figure 2. The QFI of the 4-qubit GHZ state, $ W\overline{W} $ state and SGT state under the bit-flip, phase damping, amplitude damping, and depolarizing channels with local operations. Black dots, blue triangles and red squares represent the QFI of the GHZ state, $ W\overline{W} $, and SGT state with respect to the decoherence parameter p. (a) shows the results under the bit-flip channel; (b) shows the results under the phase damping channel; (c) shows the results under the amplitude damping channel; (d) shows the results under the depolarizing channel.

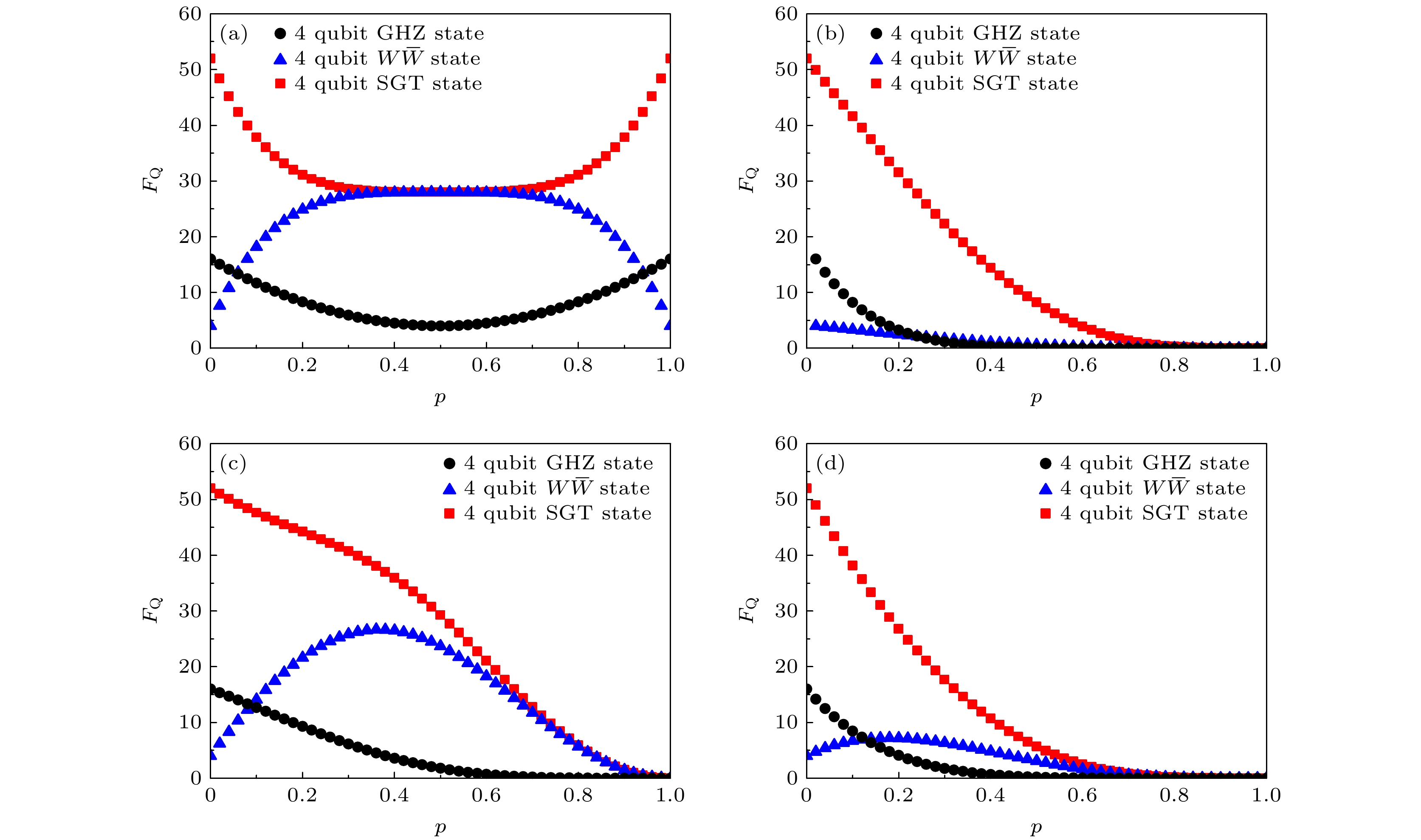

图 3 (color online) 在单轴旋转模型下($ \gamma=2 $), 4量子比特GHZ态、$ W\overline{W} $态和SGT态在比特翻转, 相位阻尼, 振幅阻尼和去极化通道下的量子Fisher信息. 黑色圆点, 蓝色三角形, 红色方块依次表示GHZ态, $ W\overline{W} $态和SGT态的量子Fisher信息随退相干参数p的变化结果. 其中, (a)表示量子态在比特翻转通道下的结果; (b)表示量子态在相位阻尼通道中的结果; (c)表示在振幅阻尼通道中的结果; (d)表示在去极化通道下的结果
Figure 3. The QFI of the 4-qubit GHZ state, $ W\overline{W} $ state and SGT state under the bit-flip, phase damping, amplitude damping, and depolarizing channels in the one-axis twisting model ($ \gamma=2 $). Black dots, blue triangles and red squares represent the QFI of the GHZ state, $ W\overline{W} $, and SGT state with respect to the decoherence parameter p. (a) shows the results under the bit-flip channel; (b) shows the results under the phase damping channel; (c) shows the results under the amplitude damping channel; (d) shows the results under the depolarizing channel.
图 4 (color online) 在单轴旋转模型下($ \gamma=5 $), 4量子比特GHZ态、$ W\overline{W} $态和SGT态在比特翻转, 相位阻尼, 振幅阻尼和去极化通道下的量子Fisher信息. 黑色圆点, 蓝色三角形, 红色方块依次表示GHZ态, $ W\overline{W} $态和SGT态的量子Fisher信息随退相干参数p的变化结果. 其中, (a)表示量子态在比特翻转通道下的结果; (b)表示量子态在相位阻尼通道中的结果; (c)表示在振幅阻尼通道中的结果; (d)表示在去极化通道下的结果
Figure 4. The QFI of the 4-qubit GHZ state, $ W\overline{W} $ state and SGT state under the bit-flip, phase damping, amplitude damping, and depolarizing channels in the one-axis twisting model ($ \gamma=5 $). Black dots, blue triangles and red squares represent the QFI of the GHZ state, $ W\overline{W} $, and SGT state with respect to the decoherence parameter p. (a) shows the results under the bit-flip channel; (b) shows the results under the phase damping channel; (c) shows the results under the amplitude damping channel; (d) shows the results under the depolarizing channel.
-
[1] Gühne O, Tóth G 2009 Phys. Rep. 474 1
Google Scholar
[2] Chefles A 2010 Contemporary Physics 41 401
[3] Bae J and Kwek L C 2015 J. Phys. A 48 083001
Google Scholar
[4] Friis N, Vitagliano G, Malik M and Huber M 2019 Nat. Rev. Phys. 1 72
[5] Chen D X, Zhang Y, Zhao J L, Wu Q C, Fang Y L, Yang C P and Nori F 2022 Phys. Rev. A 106 022438
Google Scholar
[6] Zhu C H, Shi T T, Ding L Y, Zheng Z Y, Zhang X, and Zhang W 2025 arXiv: 2502.20717 v1
[7] Cramer M, Plenio M B, Flammia S T, Somma R, Gross D, Bartlett S D, Landon-Cardinal O, Poulin D, Liu Y K 2010 Nat. Commun. 1 149
Google Scholar
[8] Wang T T, Song M H, Lyu L K, Witczak-Krempa W, Meng Z Y 2025 Nat. Commun. 16 96
Google Scholar
[9] He L, Zhao Q, Li Z D, Yin X F, Yuan X, Hung J C, Chen L K, Li L, Liu N L, Peng C Z, Liang Y C, Ma X F, Chen Y A, Pan J W 2018 Phys. Rev. X 8 021072
[10] Zwerger, M, Dür, W, Bancal J D, Sekatski P 2019 Phys. Rev. Lett. 122 060502
Google Scholar
[11] Pezzè L and Smerzi A 2009 Phys. Rev. Lett. 102 100401
Google Scholar
[12] Hyllus P, Laskowski W, Krischek R, Schwemmer C, Wieczorek W, Weinfurter H, Pezzè L and Smerzi A 2012 Phys. Rev. A 85 022321
Google Scholar
[13] Huang Y L, Che L Y, Wei C, Xu F, Nie X F, Li J, Lu D W, Xin T 2025 npj Quantum Inf. 11 29
Google Scholar
[14] Ayachi F E, Mansour H A and Baz M E 2025 Commun. Theor. Phys. 77 065104
Google Scholar
[15] Feng T F and Vedral V 2022 Phys. Rev. D 106 066013
Google Scholar
[16] Li L J, Fan X G, Song X K, Ye L, and Wang D 2024 Phys. Rev. A 110 012418
Google Scholar
[17] 丘尚锋, 徐桥, 周晓祺 2025 物理学报 74 110301
Google Scholar
Qiu S F, Xu Q, Zhou X Q 2025 Acta Phys. Sin. 74 110301
Google Scholar
[18] Li H, Gao T and Yan F L 2024 Phys. Rev. A 109 012213
Google Scholar
[19] Dong D D, Li L J, Song X K, Ye L, and Wang D 2024 Phys. Rev. A 110 032420
Google Scholar
[20] Strobel H, Muessel W, Linnemann D, Zibold T, Hume D B, Pezzè L, Smerzi A, and Oberthaler M K 2014 Science 345 424
[21] Pezzè L, Li Y, Li W D and Smerzi A 2016 Proc. Natl. Acad. Sci. 113 11459
Google Scholar
[22] Pezzè L, Smerzi A, Oberthaler M K, Schmied R, and Treutlein P 2018 Rev. Mod. Phys. 90 035005
Google Scholar
[23] 任志红, 李岩, 李艳娜, 李卫东 2019 物理学报 68 040601
Google Scholar
Ren Z H, Li Y, Li Y N, Li W D 2019 Acta. Phys. Sin. 68 040601
Google Scholar
[24] Qin Z Z, Gessner M, Ren Z H, Deng X W, Han D M, Li W D, Su X L, Smerzi A, Peng K C 2019 npj Quantum Inf. 5 3
Google Scholar
[25] Ren Z H, Li W D, Smerzi A, Gessner M 2021 Phys. Rev. Lett. 126 080502
Google Scholar
[26] Xu K, Zhang Y R, Sun Z H, Li H, Song P T, Xiang Z C, Huang K X, Li H, Shi Y H, Chen C T, Song X H, Zheng D N, Nori F, Wang H, Fan H 2022 Phys. Rev. Lett. 128 150501
Google Scholar
[27] Li Y, Ren Z H 2023 Phys. Rev. A 107 012403
Google Scholar
[28] Li Y, Ren Z H 2024 Chaos, Solitons and Fractals 186 115299
Google Scholar
[29] 郑盟锟, 尤力 2018 物理学报 67 160303
Google Scholar
Tey Meng-Khoon, You Li 2018 Acta Phys. Sin. 67 160303
Google Scholar
[30] Fisher R A 1922 Philos. Trans. R. Soc. Lond. Ser. A 222 309
Google Scholar
[31] Cramér H, Mathematical methods of statistics (Princeton University, Princeton, 1946
[32] Li Y, Pezzè L, Gessner M, Ren Z H, Li W D and Smerzi A 2018 Entropy 20 628
Google Scholar
[33] Nolan S, Smerzi A and Pezze L 2021 npj Quantum Inf. 7 169
Google Scholar
[34] Han C Y, Ma Z, Qiu Y X, Fang R H, Wu J T, Zhan C, Li M J, Huang J H, Lu B, Lee C H 2024 Phys. Rev. Applied 22 044058
Google Scholar
[35] Li Y, Ren Z H 2022 Physica A 596 127137
Google Scholar
[36] Imai S, Smerzi A, and Pezze L 2025 Phys. Rev. A 111 L020402
Google Scholar
[37] Braunstein S L and Caves C M 1994 Phys. Rev. Lett. 72 3439
Google Scholar
[38] Shen Y, Zhou J G, Huang J H, Lee C H 2024 Phys. Rev. A 110 042619
Google Scholar
[39] Fortes R and Rigolin G 2015 Phys. Rev. A 92 012338
Google Scholar
[40] Kraus K, States, Effects and Operations: Fundamental Notions of Quantum Theory (Springer-Verlag, Berlin, 1983
[41] Nielsen M A and Chuang I L, Quantum Computation and Quantum Information (Cambridge University Press, Cambridge, UK, 2000
