基于自相关与频谱叠层的超分辨成像研究

李宗骏 张龙 龚文林

引用本文:
Citation:

基于自相关与频谱叠层的超分辨成像研究

李宗骏, 张龙, 龚文林

Research on super-resolution imaging based on autocorrelation and frequency ptychography

LI Zongjun, ZHANG Long, GONG Wenlin
Article Text (iFLYTEK Translation)
PDF
导出引用
  • 基于Hanbury Brown-Twiss(HBT)的二阶自相关技术在非相干源照明和近场探测的条件下可以获得目标的傅里叶频谱信息,然而获取高质量的频谱图像所需的测量次数较多、且成像分辨率受到探测器的像素规模的限制。为了解决上述问题,本文结合多点并行关联重建算法和叠层成像的思想,提出了一种基于自相关和频谱叠层的超分辨成像方法。通过多点并行关联重建算法获取目标的不同频率信息,在此基础上,利用傅里叶变换的移频特性和叠层成像的思想实现频谱信息的扩展,进而采用相位恢复算法重建目标的实空间图像。理论分析和实验结果表明,该方法在相同探测器像素规模的条件下可以实现2倍的超分辨率成像,同时可以降低高质量频谱图像重建所需的测量次数。该方法对于超分辨显微成像和高分辨运动目标成像具有重要的借鉴意义。
    Objective The second-order auto-correlation technique based on Hanbury Brown-Twiss (HBT) can obtain the Fourier spectrum information of a target even in the conditions of incoherent source illumination and near-field detection, which has better advantages in the field of moving-target imaging, imaging in scattering media, and X-ray imaging. However, a mass of measurements is required and the imaging resolution is also restricted by the pixel scale of the detector for high-quality Fourier spectrum images for HBT. At present, many related data processing methods and reconstruction algorithms can reduce the number of measurements required for the acquisition of high-quality spectral information, but the time of image reconstruction required by such methods is usually long and cannot improve the system’s imaging resolution. In recent years, Fourier ptychography based on real-space image detection has proven that higher-resolution imaging can be obtained through spectral ptychography and frequency extension. In this paper, by combining the idea of Fourier ptychography with HBT, a processing method based on multi-point parallel correlation reconstruction and spectral ptychography is proposed, which attempts to obtain high-quality spectral information of the target and achieve super-resolution imaging at lower measurement times.

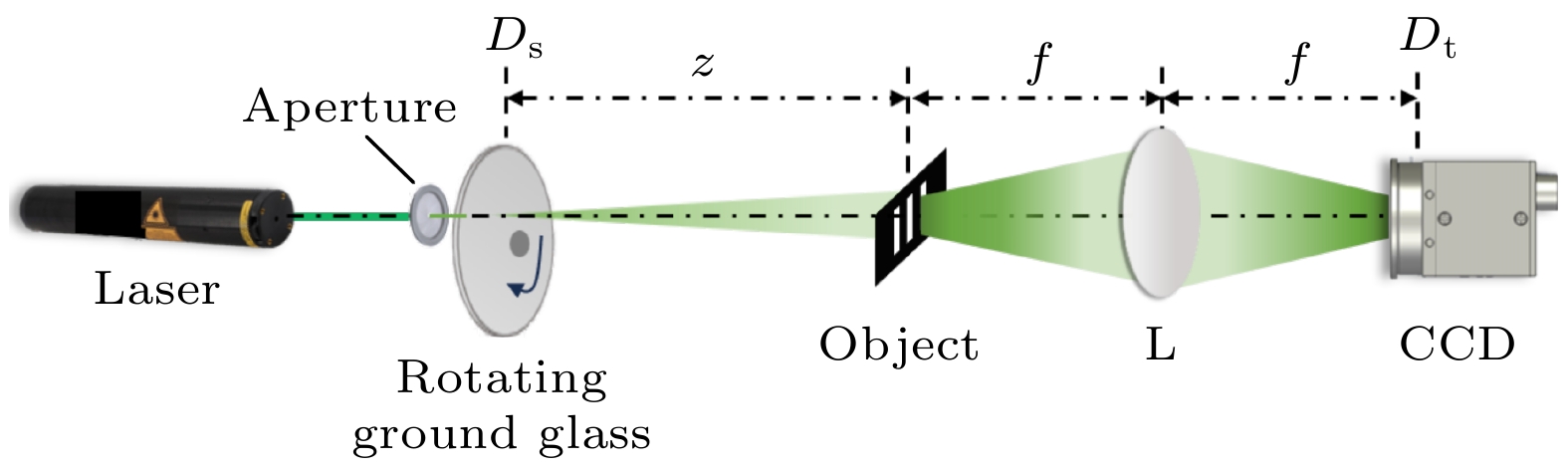

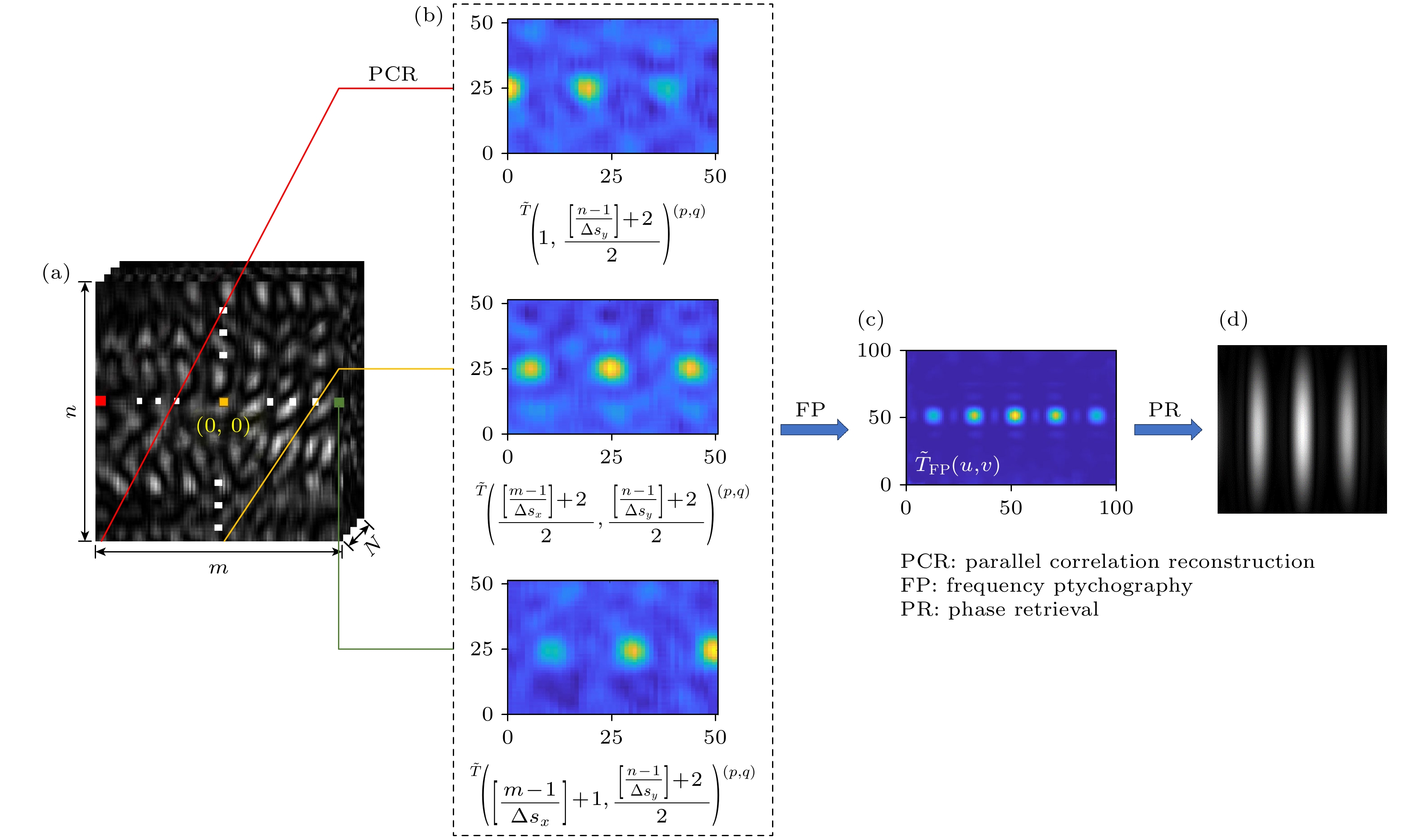

    Methods The proof-of-principle schematic of super-resolution imaging method based on autocorrelation and spectral ptychography is shown in Fig. 1. The corresponding super-resolution reconstruction framework is displayed in Fig. 2, which mainly consists of three steps: multi-point parallel correlation reconstruction, spectral ptychography, and real-space image reconstruction based on phase-retrieval algorithm. Firstly, based on the physical mechanism described by Eq. (5), Fourier spectrum images of the target in different detection points are obtained through multi-point parallel correlation reconstruction. Secondly, according to the idea of spectrum ptychography, the frequency shifted spectrum obtained by multi-point parallel correlation reconstruction is aligned to form an extended spectrum. Finally, the target’s real-space image is reconstructed by phase-retrieval algorithm.

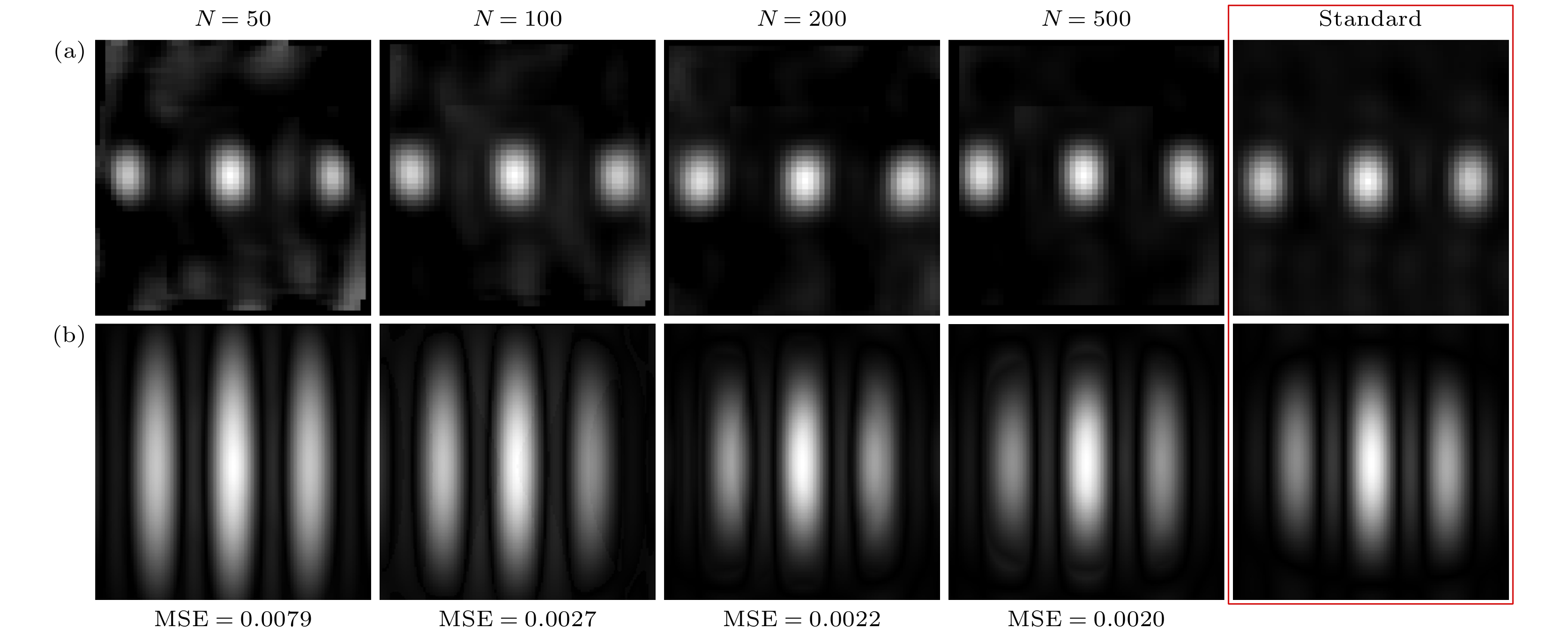

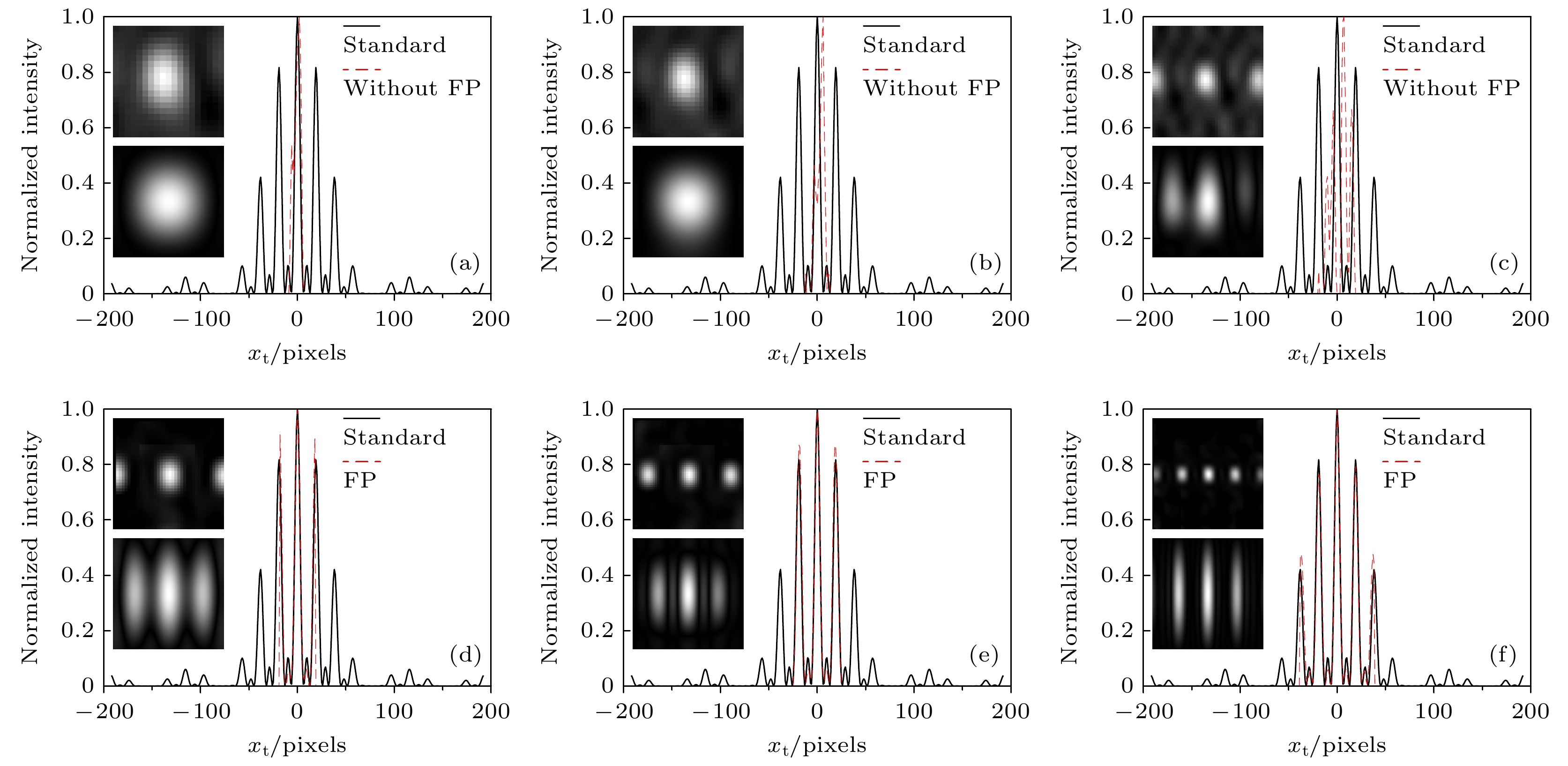

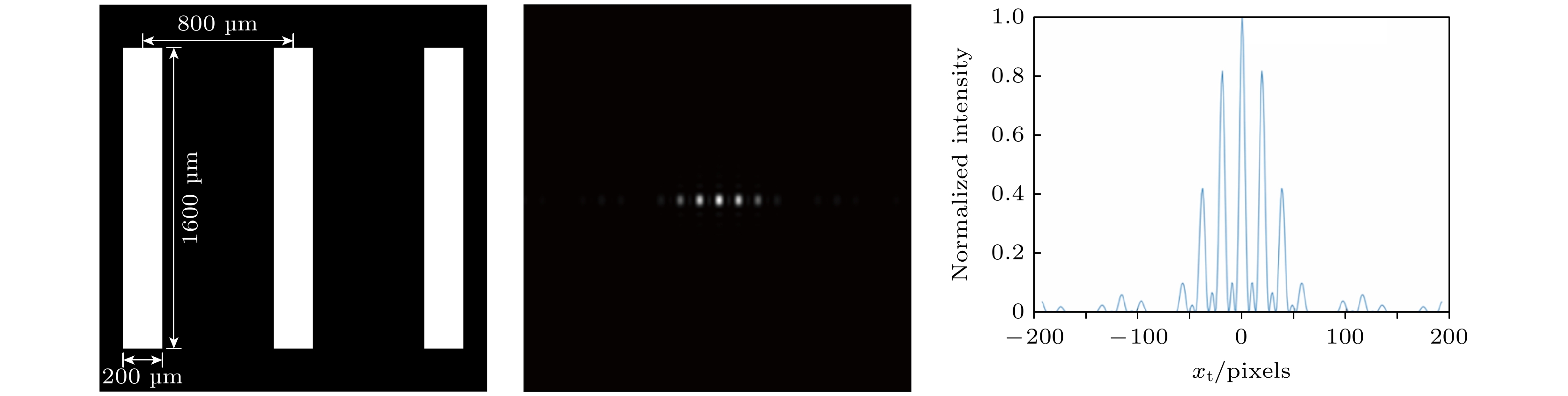

    Results and Discussions The validity of the super-resolution imaging method based on auto-correlation and spectral ptychography is experimentally demonstrated by using the setup in Fig.1. When the number of measurements N=500, Fig. 4 gives the experimental results in different pixel scales of the detector. The results indicate that the imaging resolution increases with the pixel scale of the detector. However, when the number of measurements is small, both the Fourier spectrum and the real-space image obtained by single point detection are poor (Fig. 4 (c)). When the method of multi-point parallel correlation reconstruction and spectral ptychography is adopted, the signal-to-noise ratio of the reconstructed Fourier spectrum can be significantly improved and its spectral bandwidth can be expanded to twice that of the original spectrum in the same parameters (Fig. 4(c) and Fig. 4(f)). In addition, the experiments also show that for a 50×50 spectral image, high-quality super-resolution imaging can still be obtained even if the measurement times are 200 (namely the sampling rate is 8%) (Fig. 5).
    Conclusions In summary, we propose a method based on multi-point parallel correlation reconstruction and spectral ptychography processing to improve the signal-to-noise ratio and spatial resolution of HBT system. Both theoretical and experimental results demonstrate that the proposed method can not only reduce the measurement number required for high-quality Fourier spectrum images of the target (with a sampling rate of 8%), but also achieve super-resolution imaging with two times ability capacity. This method provides important insights for super-resolution microscopy imaging and high-resolution imaging of moving target.
  • [1]

    Brown R H, Twiss R Q 1956 Nature 177 27

    [2]

    Glauber R J 1963 Phys. Rev. 130 2529

    [3]

    Zhang M H, Wei Q, Shen X, Liu Y F, Liu H L, Bai Y F, Han S S 2007 Phys. Lett. A 366 569

    [4]

    Gatti A, Bache M, Magatti D, Brambilla E, Ferri F, Lugiato L A 2006 J. Mod. Opt. 53 739

    [5]

    Shapiro J H, Boyd R W 2012 Quantum Inf. Process. 11 949

    [6]

    Shih Y H 2024 Chin. Opt. Let.t 22 060011

    [7]

    Zhao C Q, Gong W L, Chen M L, Li E R, Wang H, Xu W D, Han S S 2012 Appl Phys Lett. 101 141123

    [8]

    Erkmen B I. 2012 J. Opt. Soc. Am. A 29 782

    [9]

    Gong W L, Zhao C Q, Yu H, Chen M L, Xu W D, Han S S 2016 Sci. Rep. 6 26133

    [10]

    Stellinga D, Phillips D B, Mekhail S P, Selyem A, Turtaev S, Čižmár T, Padgett M J 2021 Science 374 1395

    [11]

    Sun Z, Tuitje F, Spielmann C 2019 Opt. Express 27 33652

    [12]

    Peng J Z, Yao M H, Huang Z B, Zhong J G 2021 APL Photonics 6 046102

    [13]

    Wu D X, Luo J W, Huang G Q, Feng Y H, Feng X H, Zhang R S, Shen Y C, Li Z H 2021 Nat Commun 12 4712

    [14]

    Ota S, Horisaki R, Kawamura Y, Ugawa M, Sato I, Hashimoto K, Kamesawa R, Setoyama K, Yamaguchi S, Fujiu K, Waki K, Noji H 2018 Science 360 1246

    [15]

    Elser V.2003 J. Opt. Soc. Am. A 20 40

    [16]

    Ying G R, Wei Q, Shen X, Han S S 2008 Opt Commun. 281 5130

    [17]

    Zhang C, Gong W L, Han S S 2013 Appl Phys Lett 102 021111

    [18]

    Bo Z W, Gong W L, Han S S 2016 Chin. Opt. Lett. 14 070301

    [19]

    Katz O, Small E, Silberberg Y 2012 Nat. Photonics 6 549

    [20]

    Cheng J, Han S S 2004 Phys. Rev. Lett. 92 093903

    [21]

    Yu H, Lu R H, Han S S, Xie H L, Du G H, Xiao T Q, Zhu D M 2016 Phys. Rev. Lett. 117 113901

    [22]

    Lin J, Cheng J 2010 Acta Opt. Sin. 30 2912 (in Chinese) [林洁,程静 2010光学学报 30 2912]

    [23]

    Lei Z, Wang C F, Zhang D W, Wang L X, Gong W L 2017 IEEE Photonics J. 9 1

    [24]

    Wang H, Han S S 2012 Europhys. Lett. 98 24003

    [25]

    Zhu R G, Yu H, Tan Z J, Lu R H, Han S S, Huang Z F, Wang J 2020 Opt. Express 28 17556

    [26]

    Zheng G A, Horstmeyer R, Yang C H 2013 Nat. Photonics 7 739

    [27]

    Sun J S, Zhang Y Z, Chen Q, Zuo C 2016 Acta Opt. Sin. 36 1011005 (in Chinese) [孙佳嵩,张玉珍,陈钱,左超 2016 光学学报 36 1011005]

    [28]

    Liu H L, Cheng J, Han S S 2007 J. Appl. Phys. 102 103102

    [29]

    Loh N T D, Eisebitt S, Flewett S, Elser V 2010. Phys. Rev. E 82 061128
