基于加权圈比的复杂网络关键节点识别方法

谢涵臣 吴明功 温祥西 张洺瑜

引用本文:
Citation:

基于加权圈比的复杂网络关键节点识别方法

谢涵臣, 吴明功, 温祥西, 张洺瑜

A method of identifying key nodes in complex networks based on weighted cycle ratio

XIE Hanchen, WU Minggong, WEN Xiangxi, ZHANG Mingyu
Article Text (iFLYTEK Translation)
PDF
HTML
导出引用
  • 圈比作为一种基于圈结构的量化指标, 已在无权无向网络中展现出其在识别关键节点方面的显著优势. 传统的圈比未能充分考虑边权信息对网络结构的影响, 限制了其在更广泛网络分析中的应用. 为了解决这一问题, 本文提出了一种加权网络中新的网络分析指标——加权圈比, 旨在提升识别加权网络中关键节点的准确性. 通过对示例网络的分析, 验证了加权圈比的可行性; 进一步的实验在多个真实世界的网络中表明, 加权圈比不仅与现有的基准指标存在显著差异, 而且在评估网络连通性及早期传播覆盖范围方面, 总体表现优于包括传统圈比在内的其他基准指标. 这些发现强调了加权圈比在网络分析中的潜在价值, 尤其是在处理加权网络时的有效性 .
    In the face of the surge of air transport demand and the increasing risk of flight conflicts, it is very important to effectively manage flight conflicts and accurately identify key conflict aircraft. This paper presents a novel method for identifying critical nodes in flight conflict networks by integrating complex network theory with a weighted cycle ratio (WCR). By modeling aircraft as nodes and conflict relationships as edges, we construct a flight conflict network where the urgency of conflicts is reflected in edge weights. We extend the traditional cycle ratio (CR) concept to propose the WCR, which accounts for both the topological structure of the network and the urgency of conflicts. Furthermore, we combine the WCR with node strength (NS) to form an adjustable mixed indicator (MI) that adaptively balances the importance of nodes based on their involvement in cyclic conflict structure and their individual conflict strength. Through extensive simulations, including node deletion experiments and network robustness analyses, we demonstrate that our method can precisely pinpoint critical nodes in flight conflict networks. The results indicate that regulating these critical nodes can significantly reduce network complexity and conflict risks. Importantly, the effectiveness of our method increases with the complexity of the flight conflict network, making it particularly suitable for scenarios with high aircraft density and complex conflict patterns. Overall, this study not only deepens the theoretical understanding of complex aviation network analysis but also provides a practical tool for improving air traffic control efficiency and safety, thereby contributing to achieving more environmentally friendly and sustainable air transportation.

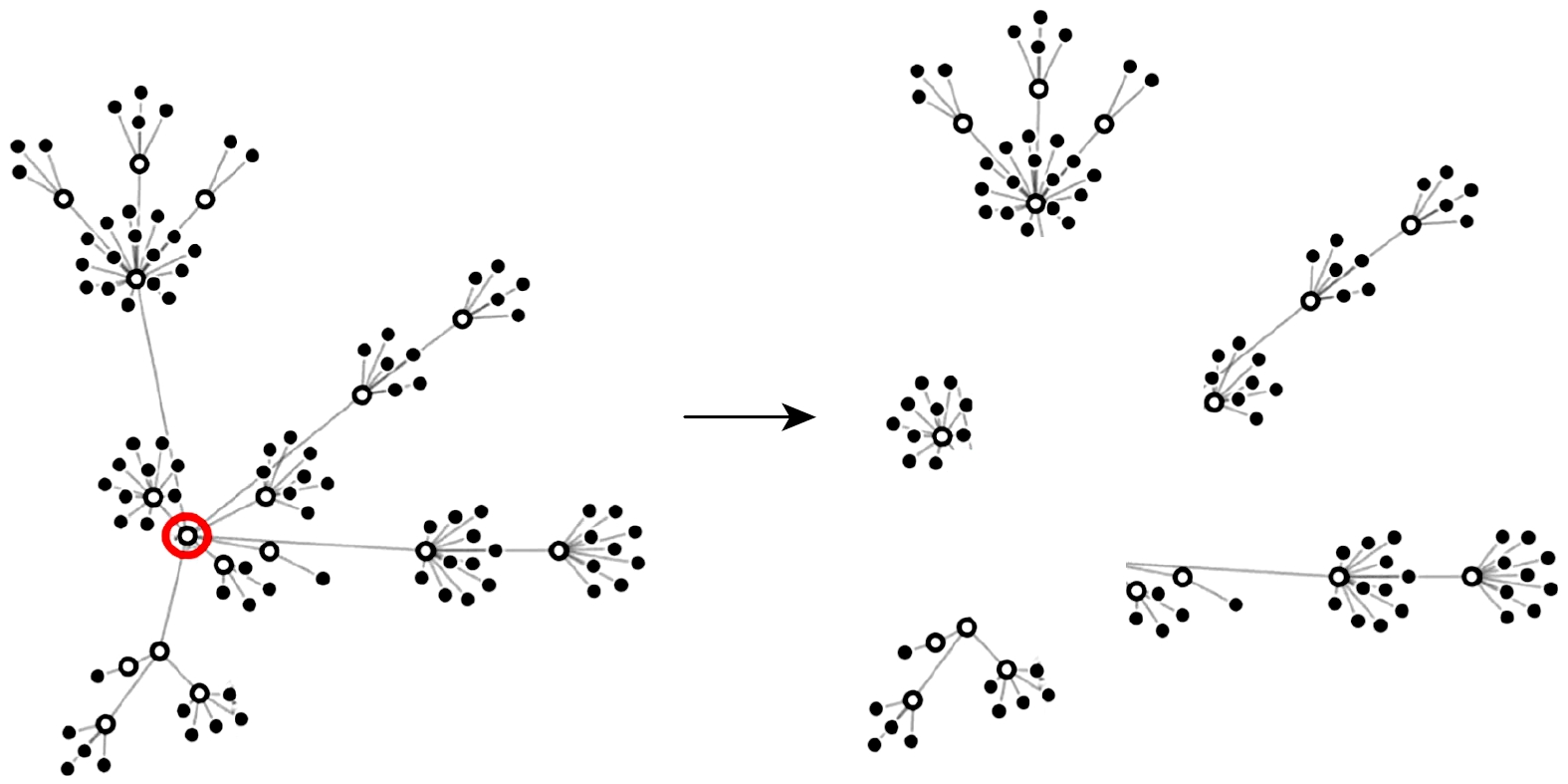

  • 图 1  树状网络脆弱性示例

    Fig. 1.  Examples of tree network vulnerabilities.

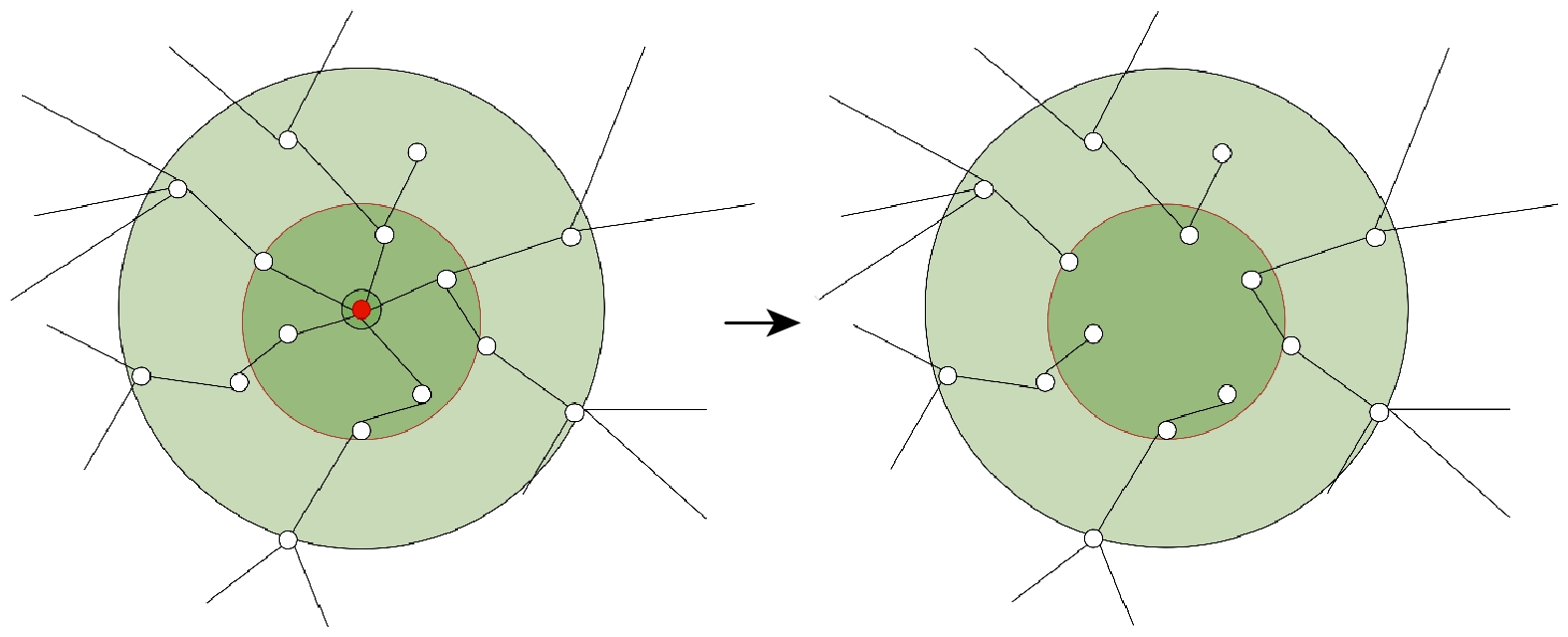

    图 2  树状网络节点删除示例

    Fig. 2.  Example of node removal in a tree-like network.

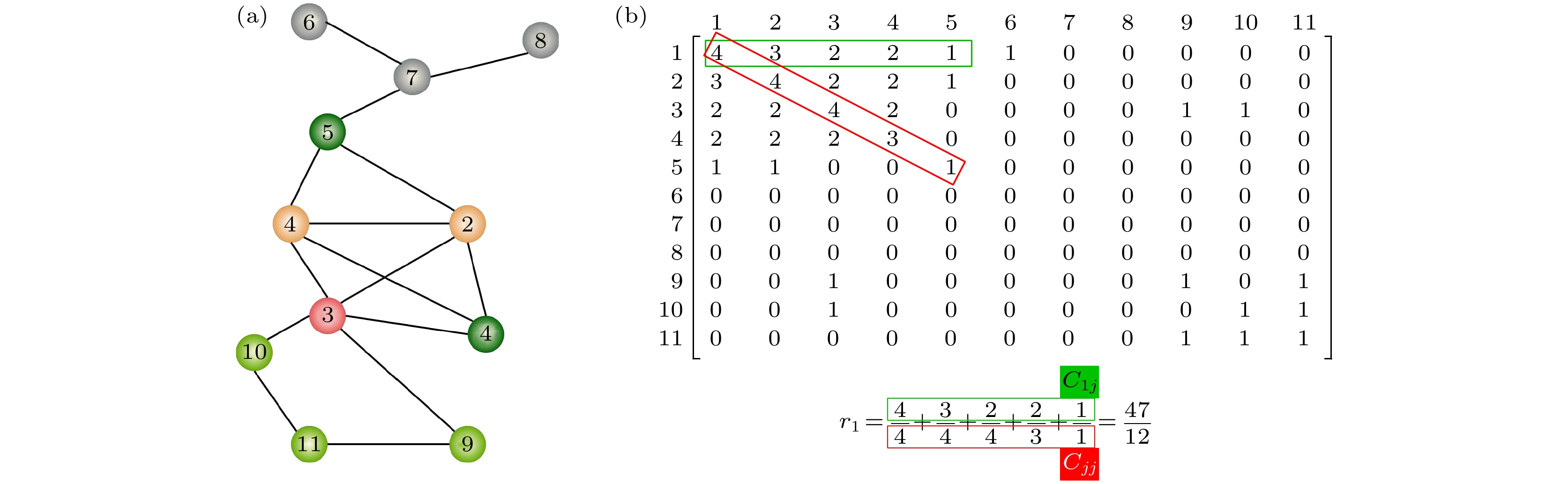

    图 3  示例网络及圈矩阵 (a)示例网络拓扑结构; (b)圈矩阵及节点1圈比的计算过程

    Fig. 3.  Example network and cycle ratio matrix: (a) Example network topology; (b) cycle matrix and node 1 cycle ratio procedure.

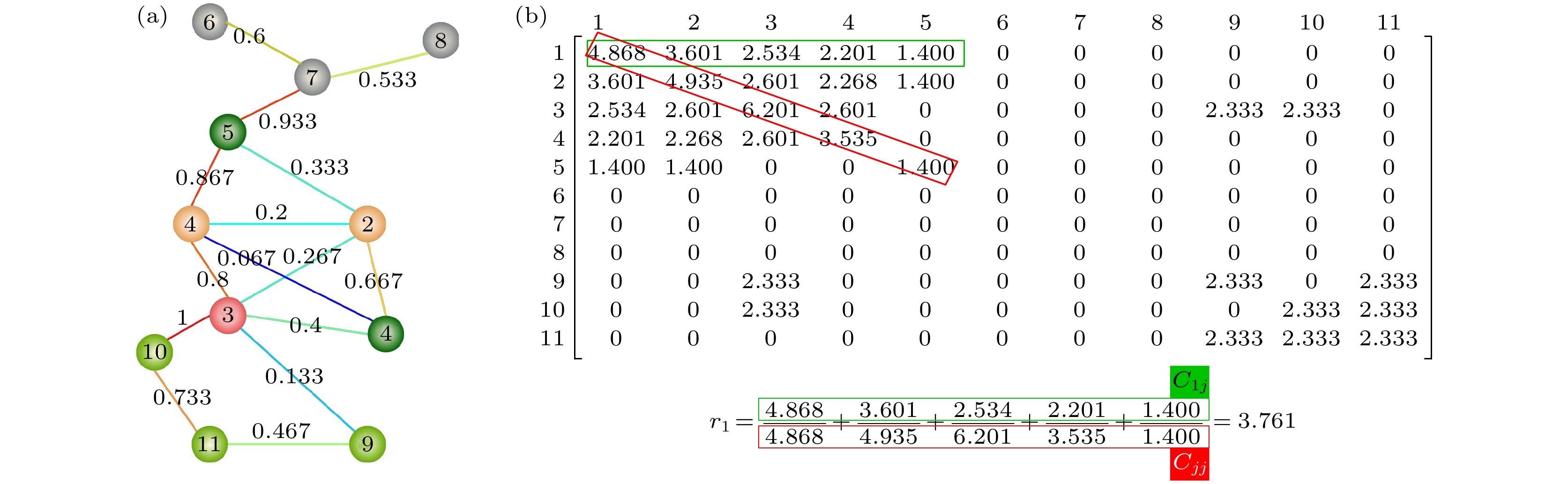

    图 4  加权示例网络及加权圈比矩阵 (a)加权示例网络拓扑结构; (b)加权圈矩阵及节点1加权圈比计算过程

    Fig. 4.  Weighted example network and weighted cycle ratio matrix: (a) Weighted example network topology; (b) weighted cycle matrix and node 1 weighted cycle ratio calculation procedure.

    图 5  示例网络2拓扑结构

    Fig. 5.  Example network 2 topology.

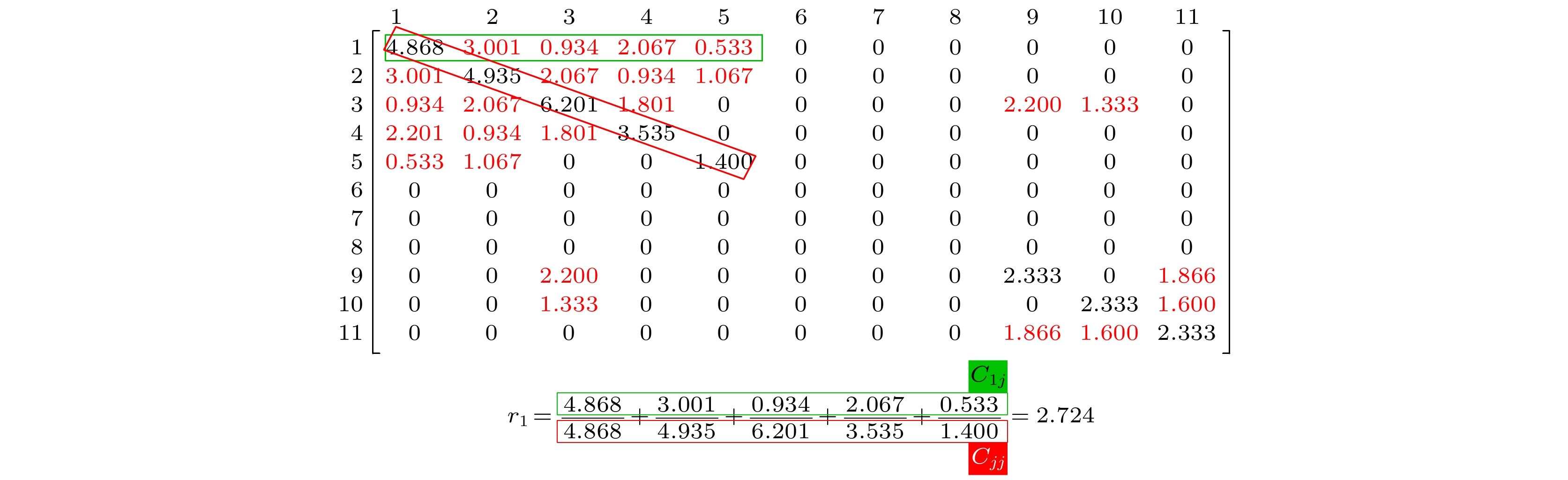

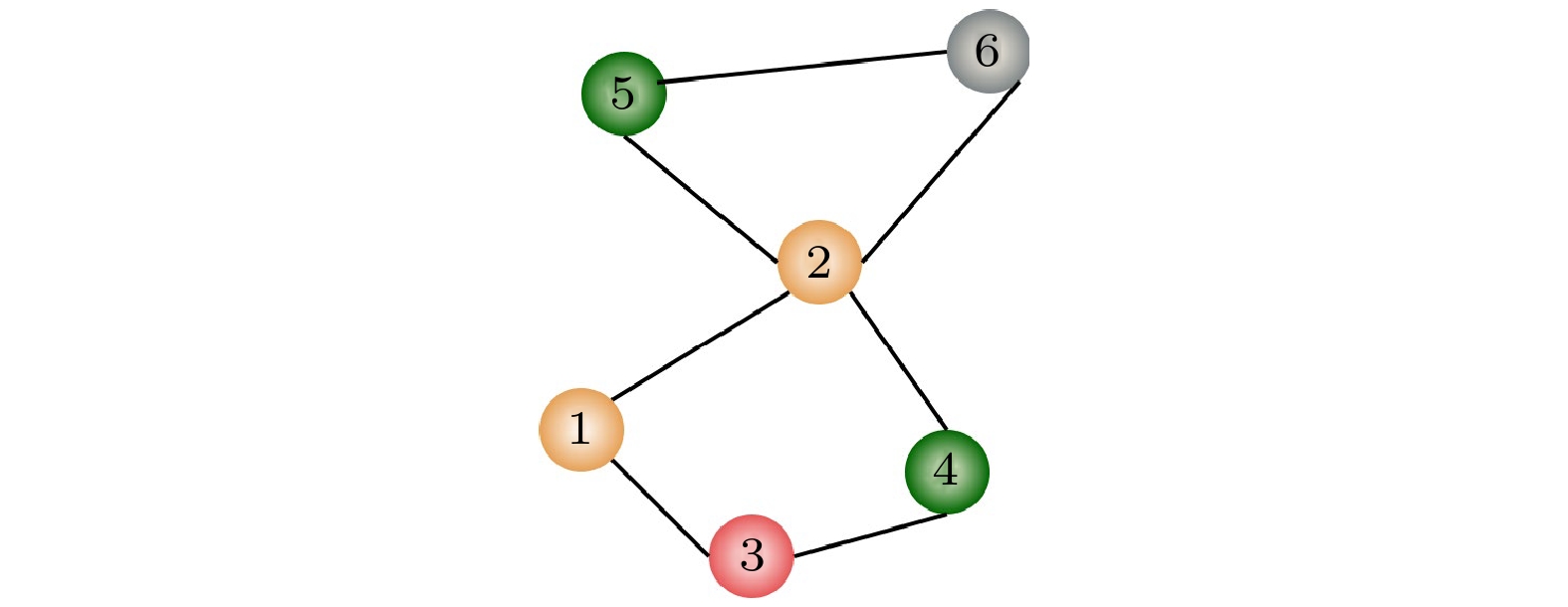

    图 6  改进后的加权圈矩阵及节点1加权圈比的计算过程

    Fig. 6.  Improved weighted cycle matrix and calculation procedure for node 1 weighted cycle ratio.

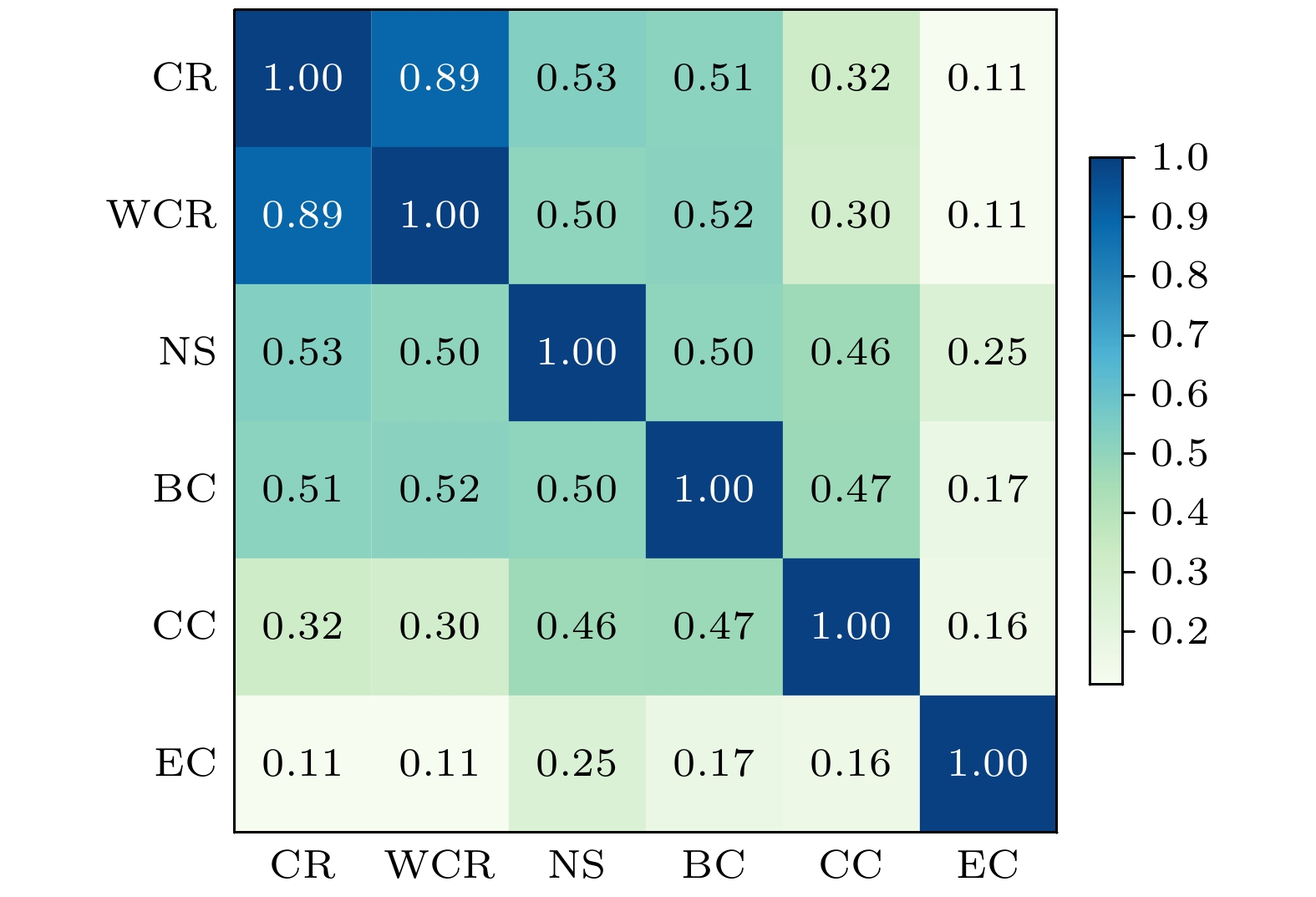

    图 7  网络中节点重要性6个指标的平均相关性矩

    Fig. 7.  Average correlation moments for six indicators of node importance in the network.

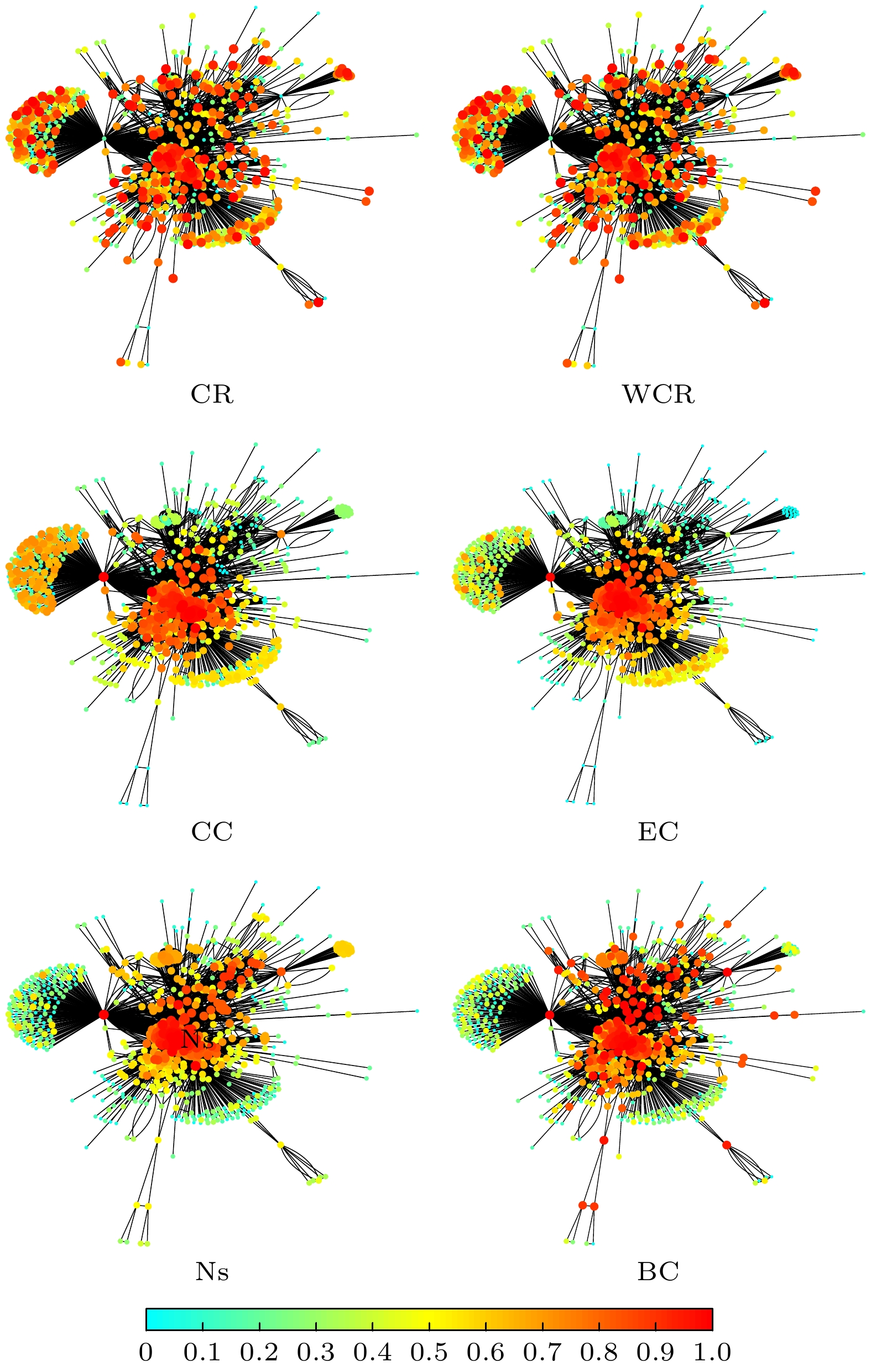

    图 8  邮件网络节点排名可视图

    Fig. 8.  E-mail network node ranking viewable.

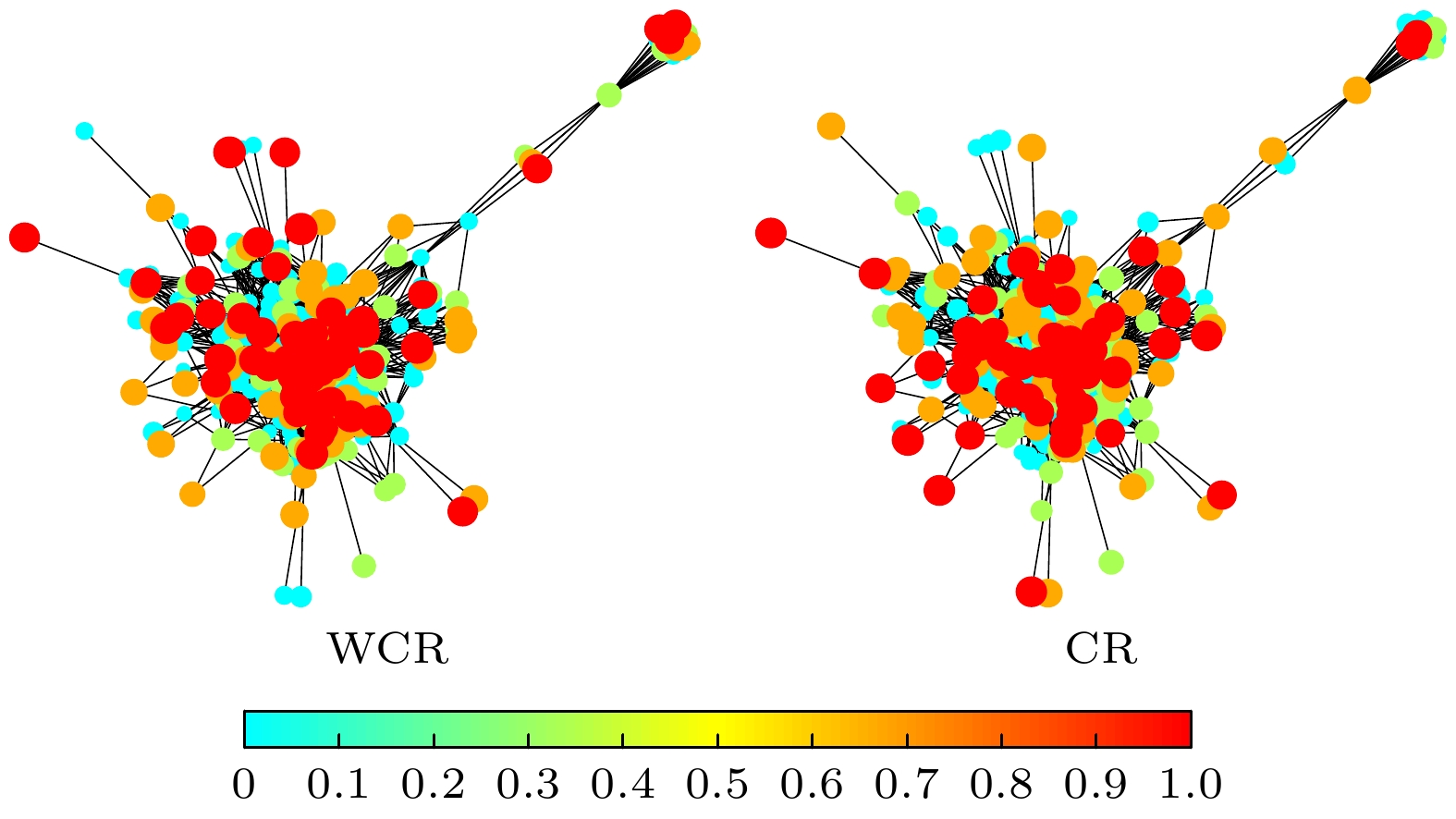

    图 9  海豚社交网络节点排名可视图

    Fig. 9.  Dolphin network node ranking viewable.

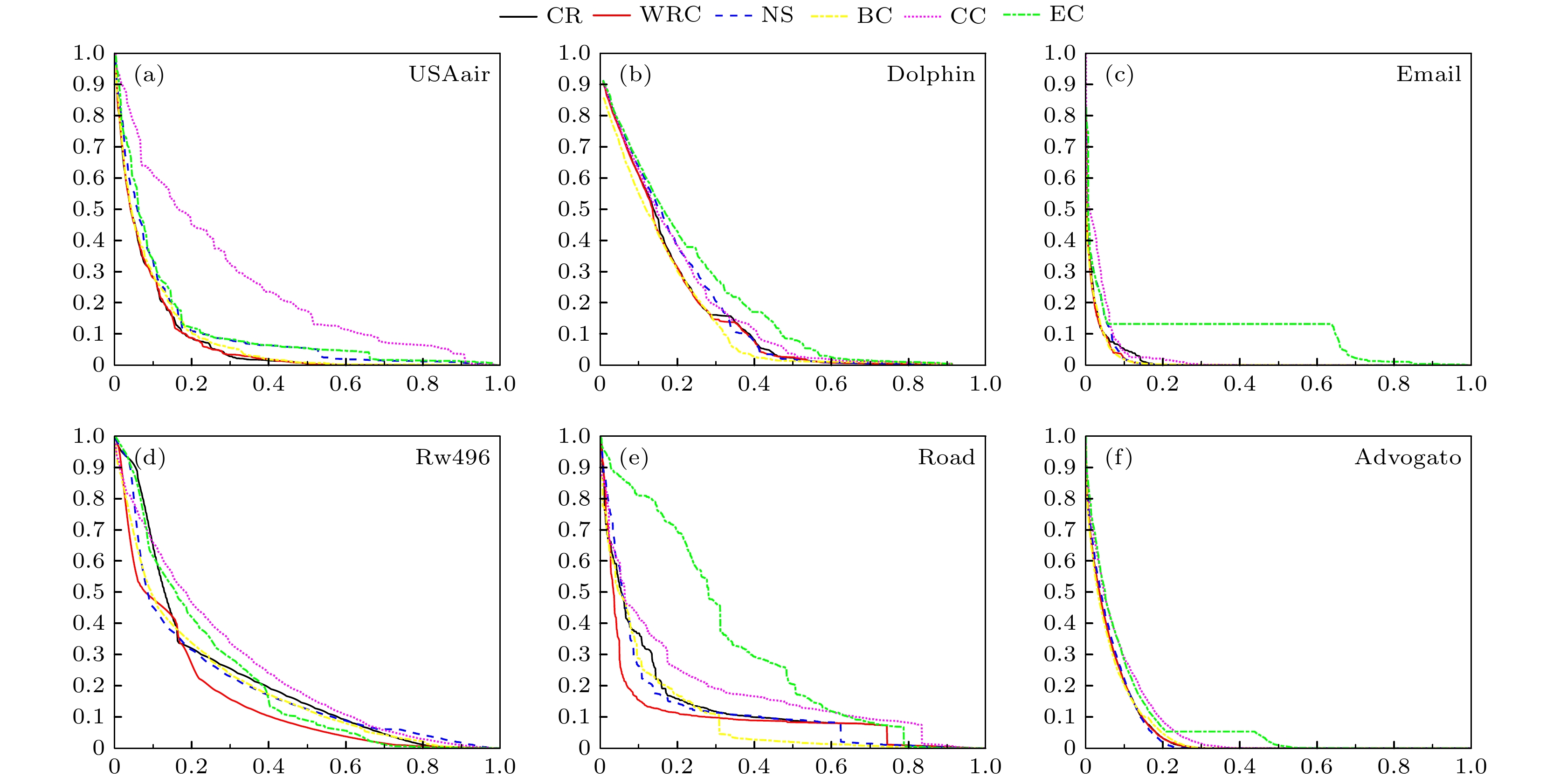

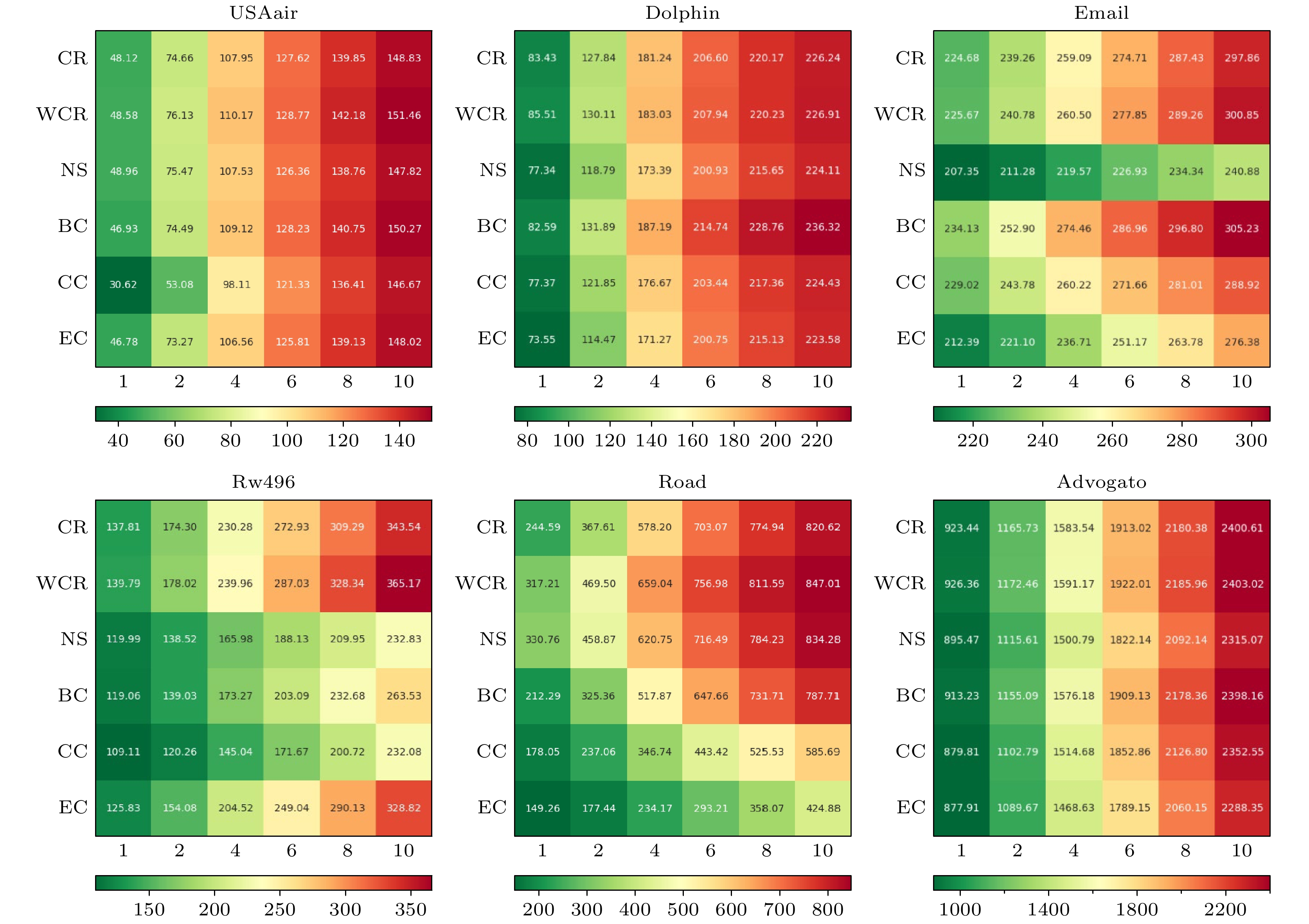

    图 10  6种节点重要性指标对6种真实网络节点移除的网络效率变化

    Fig. 10.  Changes in network efficiency of six node importance metrics for six real network node removals.

    图 11  不同时刻节点累积数量

    Fig. 11.  Cumulative number of nodes at different moments.

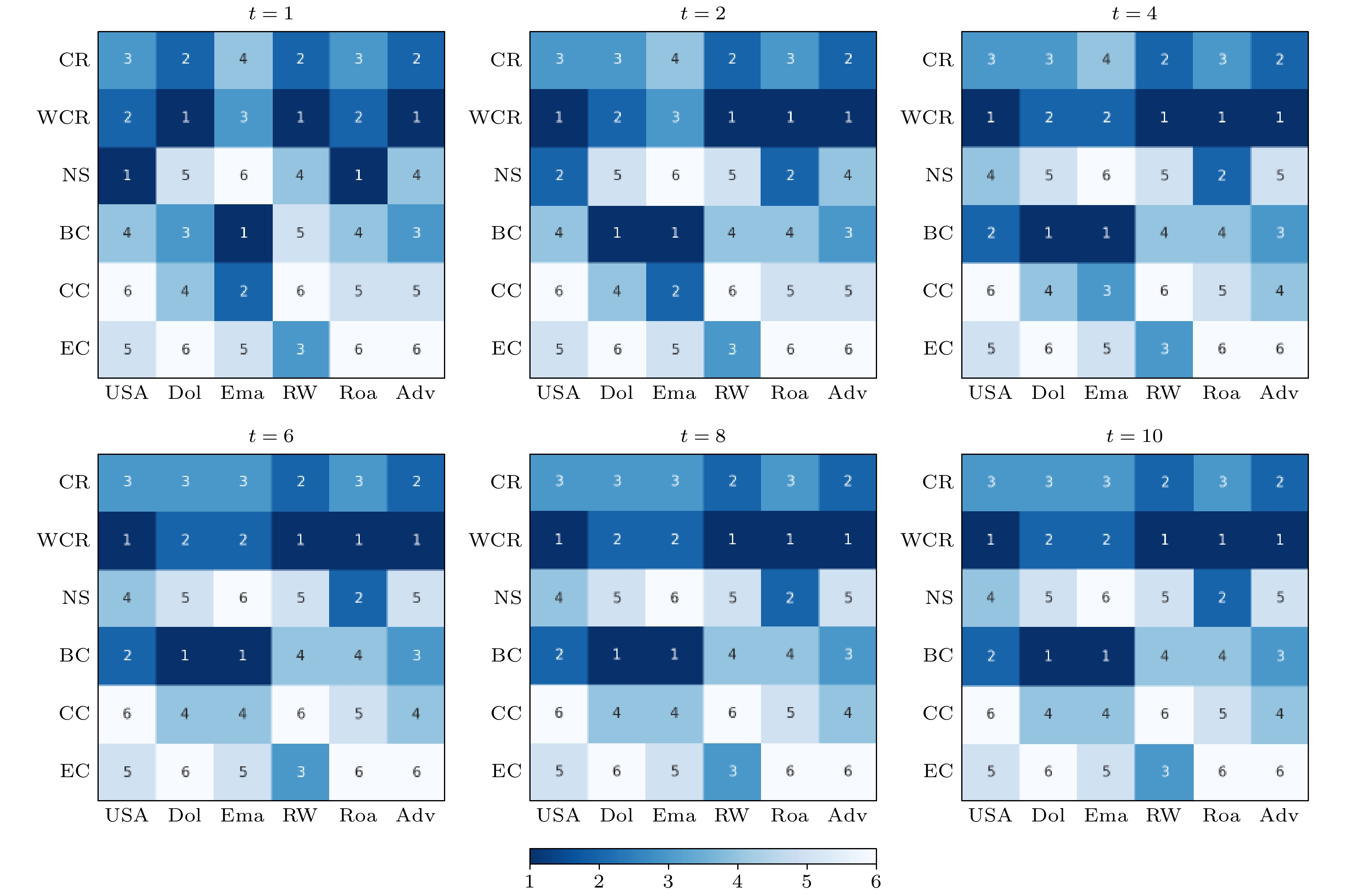

    图 12  不同时刻指标排名

    Fig. 12.  Ranking of indicators at different moments.

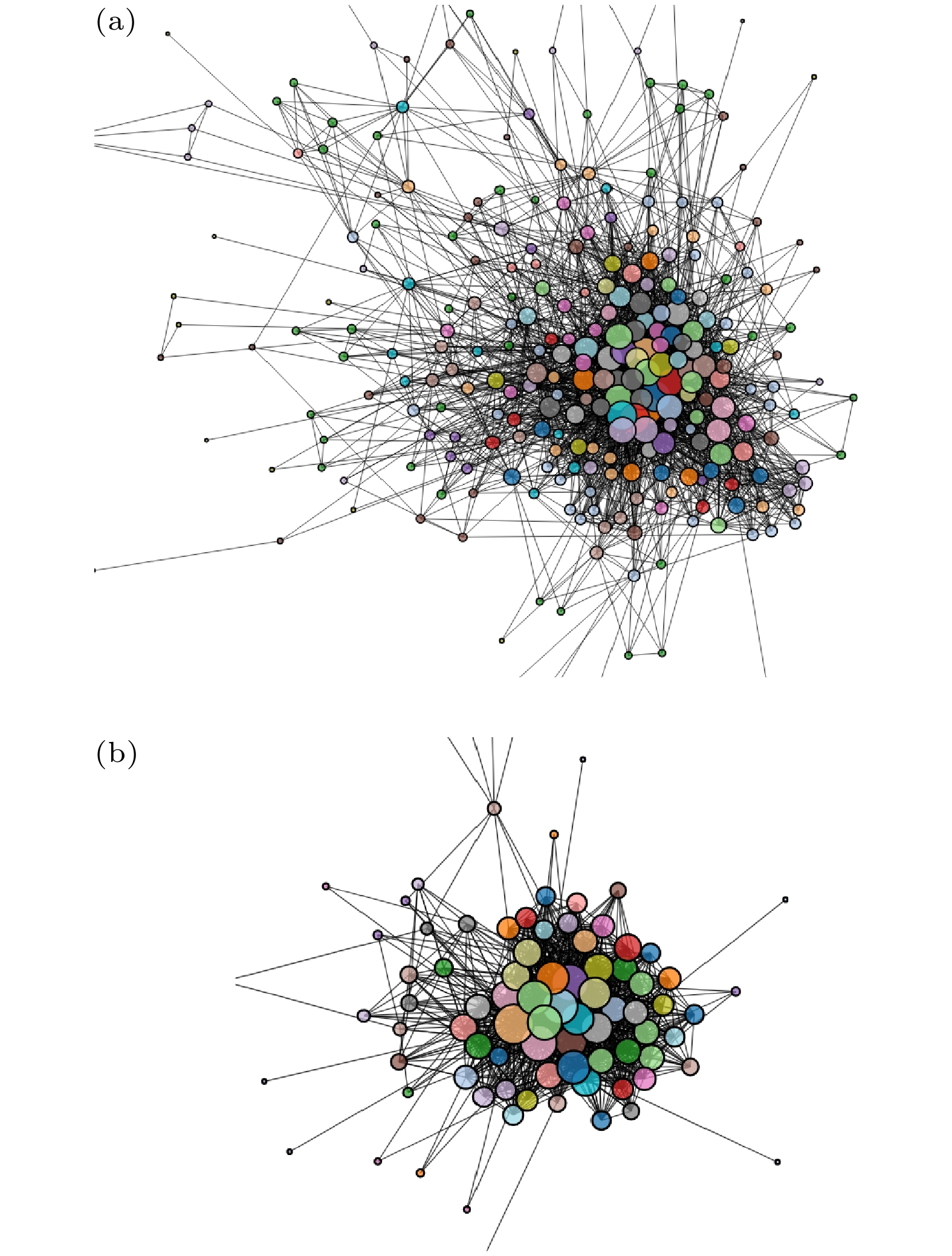

    图 A1  网络拓扑结构 (a) Dolphinq网络; (b) Email网络

    Fig. A1.  Network topology (a) Dolphinq network; (b) Email network.

    表 1  每个节点的基本圈以及其他指标的值

    Table 1.  Value of the base cycle for each node as well as other metrics.

    节点基本圈WCRWCR1CRNSBCCCEC
    1{1, 2, 3}, {1, 2, 4}, {1, 3, 4}, {1, 2, 5}2.723.763.921.9350.1010.158
    2{2, 3, 1}, {2, 4, 1}, {2, 5, 1}, {2, 4, 3}2.983.803.921.4725.750.1170.099
    3{3, 1, 4}, {3, 2, 4}, {3, 2, 1}, {3, 10, 11, 9}3.634.785.672.60220.1090.170
    4{4, 1, 2}, {4, 1, 3}, {4, 2, 3}1.902.332.501.472.250.1000.080
    5{5, 1, 2}1.321.571.502.13210.1050.143
    60000.6000.0510.031
    70002.07170.0700.092
    80000.5300.0530.027
    9{9, 11, 10, 3}2.1562.383.250.6080.0990.027
    10{9, 11, 10, 3}1.902.383.251.7300.0580.117
    11{9, 11, 10, 3}2.4733.251.2000.0740.055
    下载: 导出CSV

    表 2  6个真实网络的基本拓扑特征

    Table 2.  Six basic topological characteristics of real networks.

    节点 连边 平均度 同配性 平均聚类系数
    Usa 332 2.1 k 12 –0.20788 0.625
    Dolphin 291 3.2 k 21 0.177476 0.68233
    Email 906 12.1 k 26 –0.0878 0.6139
    Rw496 496 2 k 7 0.045056 0.395
    Road 1.2 k 1.4 k 2 0.126684 0.0167
    Advogato 5.2 k 47.3 k 18 –0.0834 0.2868
    下载: 导出CSV

    表 3  邮件网络部分节点排序

    Table 3.  Email network partial node ordering.


    排名
    指标
    CRWCRNSBCCCEC
    118741874187416695991874
    2125812581258187416691258
    34539999995991731999
    4999453158645318741963
    516691963196371318541586
    615861669157619522721576
    71963158619877023391987
    82031159112012583441792
    919871768179251114531120
    101159203166911591782465
    115111377419272741323
    1217681440144058592419
    13412511132315631081669
    141440198746519871361440
    ·····················
    n20292029202820292028984
    下载: 导出CSV

    表 4  海豚社交网络部分节点排序

    Table 4.  Dolphin network partial node ordering.


    排名
    指标
    CRWCRNSBCCCEC
    1202202438911843
    23211811879202118
    3118323232129232
    4185185173271173243
    517317320220217449
    64432321334185
    7271410717432107
    8222232243435202
    917410718522242173
    1043174493513332
    112012222047135164
    1223227116411821820
    13862014291222266
    144724386201243225
    ·····················
    n156156156285156274
    下载: 导出CSV

    表 5  不同指标下各网络的鲁棒性R

    Table 5.  The robustness of each network under different metrics R.

    NetworksCRWCRNSBCCCEC
    USAair0.07400.07380.10470.08170.25200.1147
    Dolphin0.38010.37130.42930.35770.37930.3889
    Email0.01730.01410.02050.01460.02870.1003
    Rw4960.21770.15480.2000.19190.25080.2150
    Road0.13410.10310.12210.09790.18380.3152
    Advogato0.27460.25750.28000.26320.7060.3006
    下载: 导出CSV

    表 6  各指标下的平均排名和R平均值

    Table 6.  Average ranking and R-mean under each indicator.

    CRWCRNSBCCCEC
    平均排名3.671.54.1671.674.675.3
    R平均值0.18300.16260.19280.16780.22750.2391
    下载: 导出CSV

    表 7  各指标下累积节点排名

    Table 7.  Cumulative node rankings under each indicator.

    t =1t = 2t = 4t = 6t = 8t = 10平均排名
    CR2.672. 832.832.672.672.672.72
    WCR1.671. 501.331.331.331.331.42
    NS3.504.004.504.504.504.504.25
    BC3.332.832.502.502.502.502.69
    CC4.674.674.674.834.834.834.75
    EC5.175.175.175.175.175.175.17
    下载: 导出CSV

    表 A1  Email和Advogato网络中CR与WCR指标下节点排名

    Table A1.  Ranking of nodes under CR and WCR metrics in E-mail and Advogato networks.


    排名
    Email Advogato
    CR WCR CR WCR
    1 1874 1874 157 157
    2 1258 1258 46 46
    3 453 999 597 597
    4 999 453 30 30
    5 1669 1963 232 126
    6 1586 1669 328 328
    7 1963 1586 126 232
    8 203 1159 438 438
    9 1987 1768 286 286
    10 1159 203 1223 610
    11 511 1377 610 1223
    12 1768 1440 429 62
    13 412 511 9 1378
    14 1440 1987 736 429
    15 1792 412 62 736
    16 1377 457 22 22
    17 457 1792 1378 780
    18 1706 1576 780 9
    19 585 1587 19 604
    20 1751 585 326 326
    21 1587 852 604 19
    22 1952 1144 194 175
    23 1144 1833 329 739
    24 852 1751 214 329
    25 1278 1323 739 214
    26 713 1278 1775 1992
    27 1277 1277 1992 172
    28 1576 1510 801 45
    29 155 155 172 719
    30 1287 1952 175 1775
    31 350 329 45 801
    32 1998 419 399 194
    33 1833 1287 719 584
    34 1550 1894 584 764
    ··· ··· ··· ··· ···
    n 2029 2029 6550 6550
    下载: 导出CSV
