基于光谱诊断和时域有限差分方法计算触发闪电电流与电磁场

索煜航 申晓志 齐奇 张华明

引用本文:
Citation:

基于光谱诊断和时域有限差分方法计算触发闪电电流与电磁场

索煜航, 申晓志, 齐奇, 张华明

Calculation of triggered lightningcurrent and electromagnetic fields based on spectral diagnosis and finite-difference time-domain method

SUO Yuhang, SHEN Xiaozhi, QI Qi, ZHANG Huaming
Article Text (iFLYTEK Translation)
PDF
HTML
导出引用
  • 利用无狭缝摄谱技术获取了中国广东一次人工触发闪电通道等离子体的光谱. 基于光谱诊断方法确定了该触发闪电通道电流的最大值与最小值分别为30.9 kA和25.6 kA, 并采用线性电流衰减传输线模型(modified transmission line with linear current decay, MTLL)对电流进行了模拟. 在此基础上, 采用时域有限差分方法(finite-difference time-domain, FDTD)和传输线模型研究了不同距离处的电场分布特征, 并对58 m处产生的电场进了比较. 结果发现: 当回击速度取1.3×108 m/s时, 辐射电场与实验垂直电场偏差较大, 但与FDTD方法模拟的垂直电场符合一致. 进一步, 采用FDTD方法、偶极子方法、电荷-磁场极限估算法研究了58 m, 90 m, 1.6 km的磁场分布. 与实验数据比较发现: 不同计算方法与实验值在58 m和90 m处有一定差异, 但在1.6 km处符合一致.
    The channel plasma characteristics of an artificially triggered lightning in Guangdong, China, are analyzed using slit-free spectroscopy technology. Based on spectral diagnostic methods, the maximum and minimum values of the triggered lightning channel current are determined to be about 30.9 kA and 25.6 kA (minimum), respectively, and the current is simulated using a modified transmission line model with linear current decay (MTLL). To investigate the electric field distribution, the finite-difference time-domain (FDTD) method and transmission line (TL) model are employed. At a distance of 58 m, assuming a return stroke velocity of 1.3 × 108 m/s, the TL-predicted radiation electric field deviates from experimental electric field, but is very close to the FDTD-simulation of the vertical electric field. Moreover, the analyses of magnetic fields at 58 m, 90 m, and 1.6 km are compared using FDTD simulations, dipole approximation, and charge magnetic field limit (CMFL) estimation. The discrepancies between calculated value and experimental values appear at 58 m and 90 m, which may be due to the near-field interference and measurement limitation. However, they become small at 1.6 km. This work is helpful for the study of lightning electromagnetic field properties and spectral diagnosis.

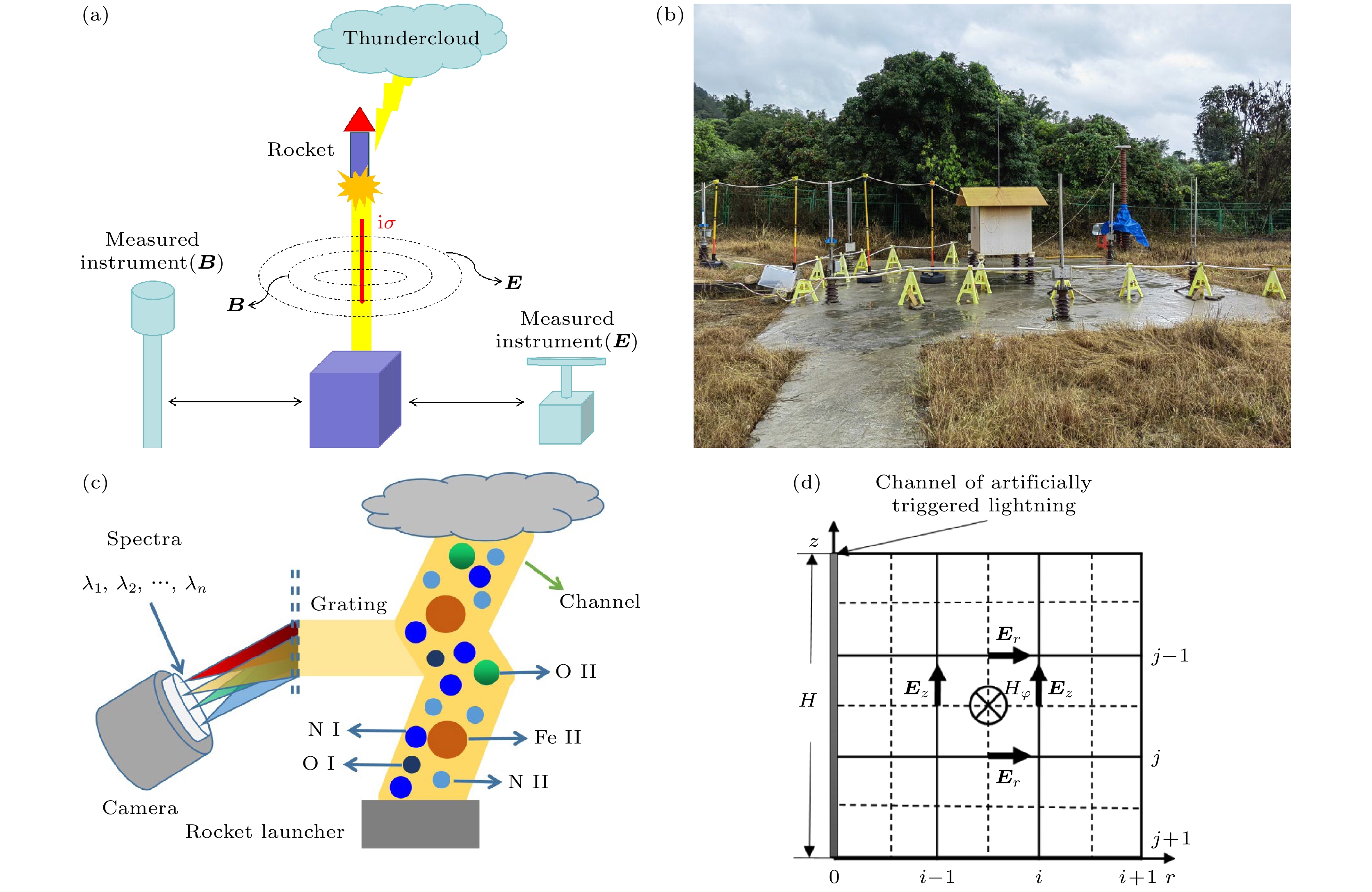

  • 图 1  (a) 触发闪电测量装置示意图; (b) 触发闪电的实验场地; (c) 触发闪电通道示意图; (d) 数值计算模型. $\otimes $表示垂直指向纸上

    Fig. 1.  (a) Schematic diagram of triggering lightning measurement device; (b) the experimental site; (c) schematic diagram of lightning channel; (d) numerical calculation model. $\otimes $: pointing vertically towards the paper.

    图 2  2022年7月5日在中国广东拍摄的某次触发闪电的光谱 (a) 触发闪电通道和衍射光谱; (b) 为触发闪电的分析光谱

    Fig. 2.  The spectrum of a triggered lightning captured on July 5th, 2022 in Guangdong, China: (a) Trigger lightning channel and its diffraction spectra; (b) spectral analysis for triggering lightning.

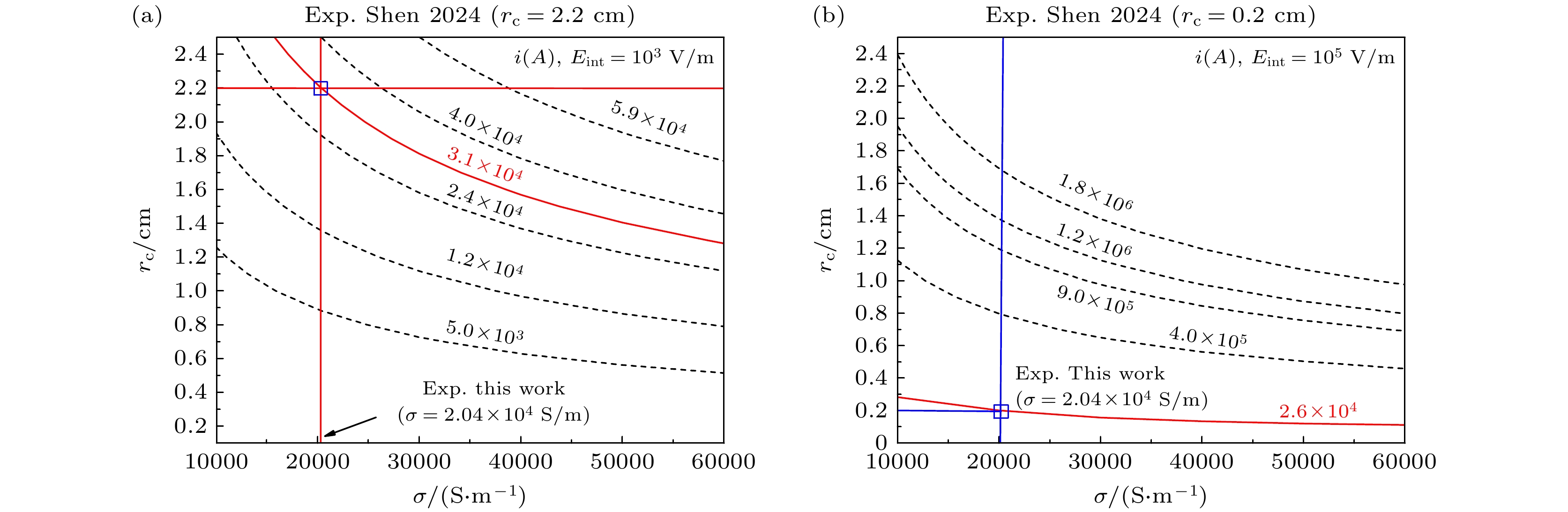

    图 3  电流测量过程. X, Y, Z轴对应于电导率、通道半径、电流. 通道半径和电导率的交点位置对应的电流即为测量电流. Exp.Shen 2024引自文献[9]

    Fig. 3.  Measurement process of Current. X, Y and Z axes correspond to electron conductivity, channel radius, and current. The current corresponding to the intersection of channel radius and electron conductivity is the measured current. Exp. Shen 2024 cites from Ref.[9].

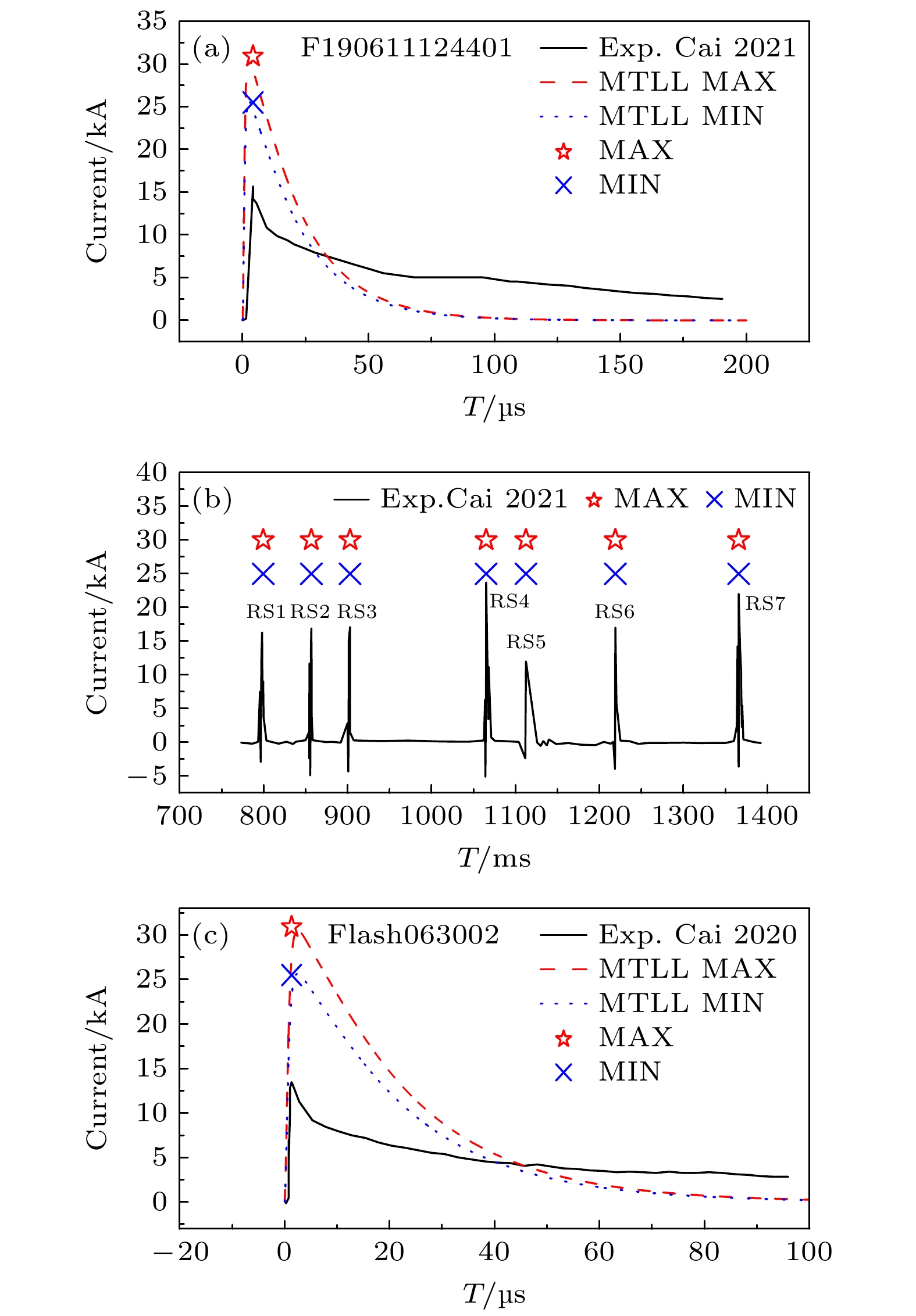

    图 4  MTLL电流模拟. F190611124401和Flash063002为两次实验电流. Exp.Cai引自文献[2,41]

    Fig. 4.  MTLL numerical simulation. F190611124401 and Flash063002 are two measurements. Exp. Cai cites from Ref. [2,41]

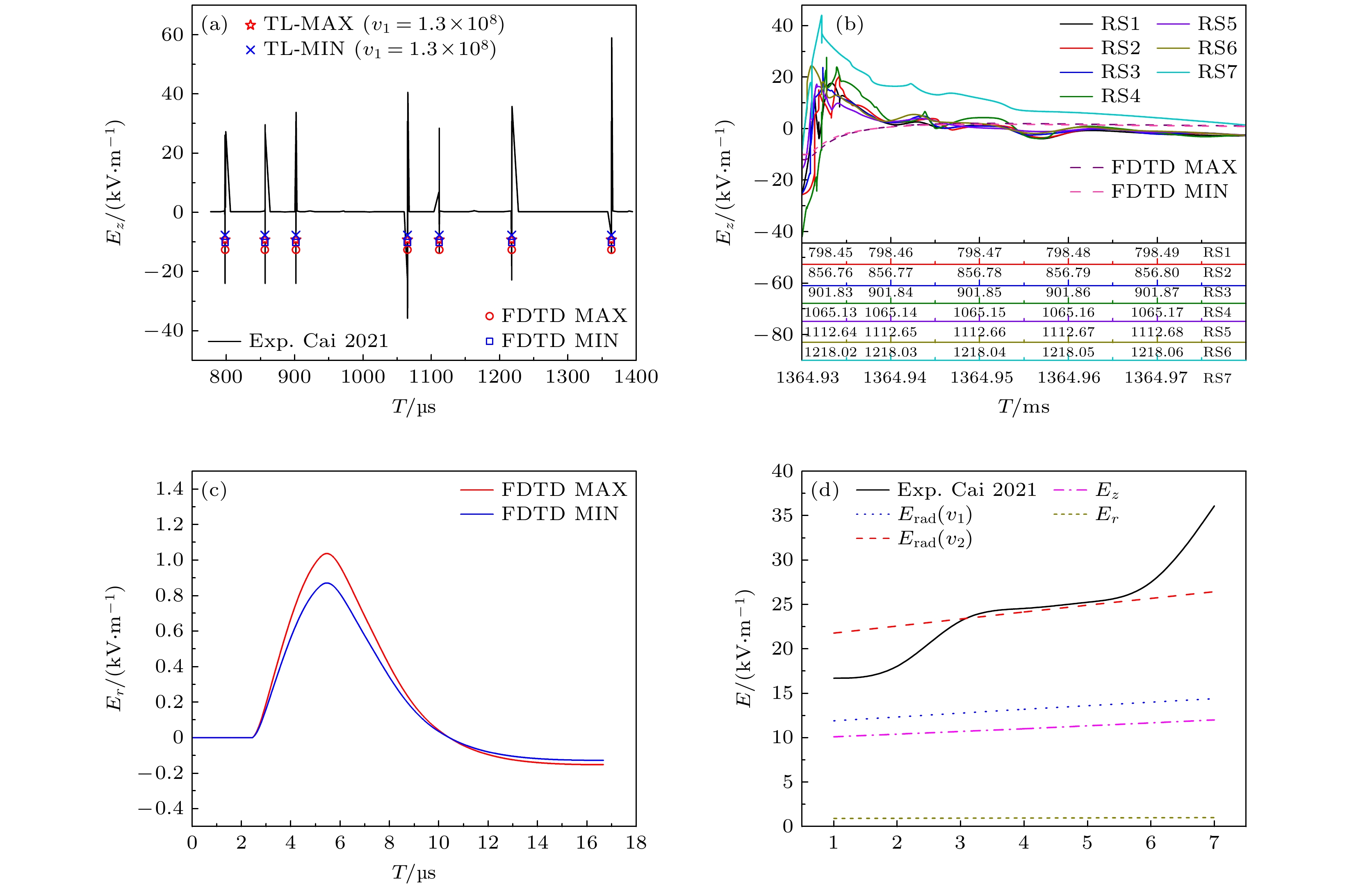

    图 5  (a), (b) FDTD模拟电场与实验电场对比; (c) $ {E}_{r} $分布; (d)电场对比. Exp.Cai 2021引自[41]

    Fig. 5.  (a), (b) Comparison between FDTD simulated electric field and the experimental electric field; (c) Er distribution; (d) electric field comparison. Exp. Cai 2021 quoted from [41].

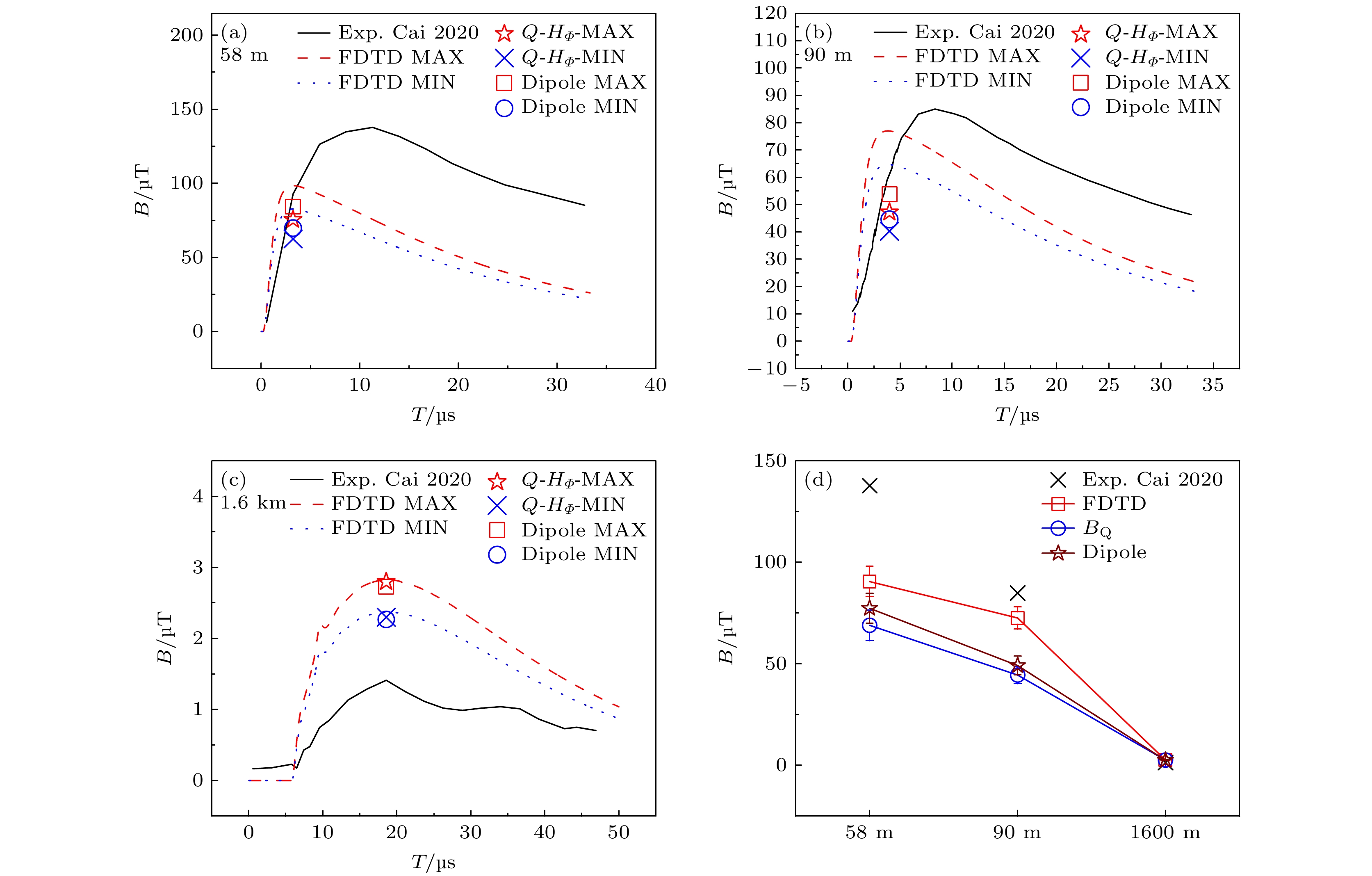

    图 6  (a), (b), (c) FDTD模拟磁场、偶极子方法计算磁场、电荷-磁场、实验磁场; (d) 磁场数据. Exp.Cai 2020引自文献[2]

    Fig. 6.  (a), (b), (c) FDTD simulation of magnetic field, dipole method for calculating magnetic field, charge magnetic field, and (d) experimental magnetic field. Exp. Cai 2020 cited from reference [2].

    表 2  基于实验电流得到的传输线模型和FDTD模拟的电场

    Table 2.  The electric fields for the transmission line model and FDTD simulation based on experimental currents.

    峰值电流/kA 距离/m 电场/(kV·m–1)
    方法 $i_{\text{p}}^{{\text{min}}}$ $i_{\text{p}}^{{\text{max}}}$ D TL model FDTD
    Erad1)c Erad2)c Ez Er
    本文工作
    benwen
    gongzuo
    25.6 30.9 38 18.2—21.9 33.6—40.7
    58 11.9—14.4 22.0—26.7 10.1—12.0 0.9—1.0
    78 8.8—10.7 16.4—19.8
    90 7.7—9.2 14.2—17.2
    102 6.7—8.2 12.5—15.1
    1000 0.4—0.7 1.3—1.5
    1600 0.4—0.5 0.8—0.9
    2200 0.3—0.4 0.6—0.7
    Cai 2021a 12.0 23.6 58 12.6—35.7
    Qie 2007b 11.9 60 18.0
    注: a, b引自文献[41]与[44]. c ν1=1.3e8 m/s; d ν2=2.5e8 m/s.
    下载: 导出CSV

    表 1  触发闪电特征谱线的光谱参数[43]

    Table 1.  Spectral parameters of characteristic spectral lines for triggered lightning[43].

    波长/nm 跃迁率 $ {E}_{k}/{{\mathrm{c}}{\mathrm{m}}}^{-1} $ 谱线跃迁
    上能级 下能级
    N I 493.5 1.76[6] 106, 477 2s22p2(3P)4p 2P1/2 2s22p2(3P)3s 2P3/2
    N I 528.1 2.45[5] 107, 037 2s22p2(3P)4p 4P1/2 2s2p4 4P5/2
    N II 417.6 1.21[8] 210, 732 2s22p4f F(5/2)3 2s22p3d 1D2
    N II 447.8 6.44[6] 188, 909 2s22p3d 3P1 2s22p3d 1D2
    N II 498.7 6.98[7] 188, 937 2s22p3d 3P0 2s22p3p 3S1
    N II 524.1 6.2[5] 221, 246 2s22p5d 1P1 2s22p4p 1P1
    N II 568.0 1.78[7] 166, 521 2s22p3p 3D1 2s22p3s 3P2
    下载: 导出CSV

    表 3  FDTD模拟、偶极子方法和电荷-磁场极限估算得到的磁场

    Table 3.  Magnetic field obtained from FDTD simulation, dipole method, and charge-magnetic field limit estimation.

    实验峰值电流/kA距离/m磁场/μT
    方法$i_{\text{p}}^{{\text{min}}}$$i_{\text{p}}^{{\text{max}}}$DFDTD偶极子方法BQ估算

    本文
    25.630.93895.3—115.3
    5882.6—98.569.8—84.362.4—75.5
    7846.4—56.2
    9068.1—77.044.6—53.840.2—48.7
    10235.5—42.9
    10003.6—4.4
    16002.3—2.82.3—2.72.3—2.8
    22001.6—2.0
    Cai 2020[2]13.058137.8
    9084.9
    16001.4
    Qie 2006[8]28.16066.3
    下载: 导出CSV
