传统硫族化合物中阳离子相同时, 随着阴离子原子序数的增加, 价带顶逐渐升高, 带隙呈减小趋势. 在A2BX4基(A = V, Nb, Ta; B = Si, Ge, Sn; X = S, Se, Te)化合物中, 观察到随着阴离子原子序数增加, 其带隙呈现反常增大的现象. 为了探究其带隙异常变化的原因, 基于第一性原理计算, 对A2BX4基化合物的电子结构展开系统地研究, 包括能带结构、带边相对位置、轨道间耦合作用以及能带宽度等影响. 研究发现, Nb2SiX4基化合物中Nb原子4d轨道能量明显高于阴离子p轨道, 其价带顶和导带底主要由Nb原子4d轨道相互作用组成, 其带宽主要影响带隙大小. Nb2SiX4基化合物的带隙大小通过Nb—Nb和Nb—X键共同作用于Nb原子4d轨道的宽度来控制. 当阴离子序数增加时, Nb—Nb键长增加, 其相互作用减弱, 由Nb原子4d轨道主导的能带变宽, 带隙减小; 另一方面, Nb—X键长增加又使Nb原子4d带宽变窄, 带隙增加, 并且Nb—X键长增长占主导, 所以带隙最终呈现异常增加的趋势.Two-dimensional (2D) niobium silicon telluride (Nb2SiTe4) with good stability, a narrow band gap of 0.39 eV, high carrier mobility and superior photoresponsivity, is highly desired for applications in mid-infrared (MIR) detections, ambipolar transistors. Intensive investigations on its ferroelasticity, anisotropic carrier transport, anisotropic thermoelectric property, etc., have been reported recently. Motivated by the above prominent properties and promising applications, we systematically study the electronic properties of single-layer (SL) A2BX4 analogues (A = V, Nb, Ta; B = Si, Ge, Sn; X = S, Se, Te) and find a band-gap anomaly with respect to anion change, which differs from conventional 2D metal chalcogenide. In conventional binary chalcogenide, when cations are kept fixed, the bandgap tends to decrease as the atomic number of anions in the same group increases. However, in SL A2BX4, as atomic number of anions increases, its bandgaps tend to increase, with cations kept fixed. In order to find the underlying mechanism of such an abnormal bandgap, using first-principles calculations, we thoroughly investigate the electronic structures of Nb2SiX4 (X = S, Se, Te) surving as an example. It is found that the valance band maximum (VBM) and conduction band minimum (CBM) are mainly derived from the bonding and antibonding coupling between Nb 4d states. The bandwidth of Nb 4d states determines the relative value of the band gap in Nb2SiX4. We demonstrate that the band gap is largely influenced by the competition effect between Nb—Nb and Nb—X interactions in Nb2SiX4. As the anion atomic number increases, the Nb—Nb bond length increases, yielding an increased bandwidth of Nb 4d state and a smaller bandgap of Nb2SiX4. Meanwhile, as Nb—X bond length increases, the bandwidth of Nb 4d however decreases, yielding a larger bandgap. The interaction between Nb and X should be dominant and responsible for the overall bandgap increase of Nb2SiX4 compared with the Nb—Nb interaction.
-
Keywords:
- Nb2SiTe4 /
- band-gap anomaly /
- electronic structures /
- first-principles calculations
[1] Guo Q, Pospischil A, Bhuiyan M, Jiang H, Tian H, Farmer D, Deng B, Li C, Han S J, Wang H, Xia Q, Ma T P, Mueller T, Xia F 2016 Nano. Lett. 16 4648
Google Scholar
[2] Youngblood N, Chen C, Koester S J, Li M 2015 Nat. Photonics 9 247
Google Scholar
[3] Yuan H, Liu X, Afshinmanesh F, Li W, Xu G, Sun J, Lian B, Curto A G, Ye G, Hikita Y, Shen Z, Zhang S, Chen X, Brongersma M, Hwang H Y, Cui Y 2015 Nat. Nanotechnol. 10 707
Google Scholar
[4] Li L, Yu Y, Ye G J, Ge Q, Ou X, Wu H, Feng D, Chen X H, Zhang Y 2014 Nat. Nanotechnol. 9 372
Google Scholar
[5] Han C, Hu Z, Gomes L C, Bao Y, Carvalho A, Tan S J R, Lei B, Xiang D, Wu J, Qi D, Wang L, Huo F, Huang W, Loh K P, Chen W 2017 Nano. Lett. 17 4122
Google Scholar
[6] Tian H, Deng B, Chin M L, Yan X, Jiang H, Han S J, Sun V, Xia Q, Dubey M, Xia F, Wang H 2016 ACS Nano 10 10428
Google Scholar
[7] Castellanos-Gomez A, Vicarelli L, Prada E, Island J O, Narasimha-Acharya K L, Blanter S I, Groenendijk D J, Buscema M, Steele G A, Alvarez J V, Zandbergen H W, Palacios J J, vander Zant H S J 2014 2D Mater. 1 025001
Google Scholar
[8] Long M, Gao A, Wang P, Xia H, Ott C, Pan C, Fu Y, Liu E, Chen X, Lu W, Nilges T, Xu J, Wang X, Hu W, Miao F 2017 Sci. Adv. 3 e1700589
Google Scholar
[9] Wood J D, Wells S A, Jariwala D, Chen K S, Cho E, Sangwan V K, Liu X, Lauhon L J, Marks T J, Hersam M C 2014 Nano. Lett. 14 6964
Google Scholar
[10] Zhang T, Ma Y, Xu X, Lei C, Huang B, Dai Y 2020 J. Phys. Chem. Lett. 11 497
Google Scholar
[11] Wang W, Dai S, Li X, Yang J, Srolovitz D J, Zheng Q 2015 Nat. Commun. 6 7853
Google Scholar
[12] Zhao M, Xia W, Wang Y, Luo M, Tian Z, Guo Y, Hu W, Xue J 2019 ACS Nano 13 10705
Google Scholar
[13] Fang W Y, Li P A, Yuan J H, Xue K H, Wang J F 2020 J. Electron. Mater. 49 959
Google Scholar
[14] Ponce’S, Margine E R, Giustino F 2018 Phys. Rev. B 97 121201
Google Scholar
[15] Xu B, Xiang H, Yin J, Xia Y, Liu Z 2018 Nanoscale 10 215
Google Scholar
[16] Wu M, Zeng X 2016 Nano. Lett. 16 3236
Google Scholar
[17] Wang H, Li X, Sun J, Liu Z, Yang J 2017 2D Mater. 4 045020
Google Scholar
[18] 罗雄, 孟威威, 陈国旭佳, 管晓溪, 贾双凤, 郑赫, 王建波 2020 物理学报 69 197102
Google Scholar
Luo X, Meng W W, Chen G X J, Guan X X, Jia S F, Zheng H, Wang J B 2020 Acta Phys. Sin. 69 197102
Google Scholar
[19] Carrier P, Wei S H 2005 J. Appl. Phys. 97 033707
Google Scholar
[20] Wei S H, Zunger A 1997 Phys. Rev. B 55 13605
Google Scholar
[21] Ye Z Y, Deng H X, Wu H Z, Li S S, Wei S H, Luo J W 2015 Npj Comput. Mater. 1 15001
Google Scholar
[22] Perdew J P, Burke K, Ernzerhof M 1996 Phys. Rev. Lett. 77 3865
Google Scholar
[23] Kresse G, Joubert D 1999 Phys. Rev. B 59 1758
Google Scholar
[24] Monkhorst H J, Pack J D 1976 Phys. Rev. B 13 5188
Google Scholar
[25] Heyd J, Scuseria G E, Ernzerhof M 2003 J. Chem. Phys. 118 8207
Google Scholar
[26] Deringer V L, Tchougréeff A L, Dronskowski R 2011 J. Phys. Chem. A 115 5461
Google Scholar
[27] Maintz S, Deringer V L, Tchougréeff A L, Dronskowski R 2016 J. Comput. Chem. 37 1030
Google Scholar
[28] Wang V, Xu N, Liu J C, Tang G, Geng W T 2021 Comput. Phys. Commun. 267 108033
Google Scholar
[29] Wang F, Xu Y, Mu L, Zhang J, Xia W, Xue J, Guo Y, Yang J, Yan H 2022 ACS Nano 16 8107
Google Scholar
[30] Boucher F, Zhukov V, Evain M 1996 Inorg. Chem. 35 7649
Google Scholar
[31] Hu J, Liu X, Yue C L, Liu J Y, Zhu H W, He J B, Wei J, Mao Z Q, Antipina L Y, Popov Z I, Sorokin P B, Liu T J, Adams P W, Radmanesh S M A, Spinu L, Ji H, Natelson D 2015 Nat. Phys. 11 471
Google Scholar
[32] An L, Zhang H, Hu J, Zhu X, Gao W, Zhang J, Xi C, Ning W, Mao Z, Tian M 2018 Phys. Rev. B 97 235133
Google Scholar
-
图 1 A2BX4基(A = V, Nb, Ta; B = Si, Ge, Sn; X = S, Se, Te)化合物带隙异常变化, 阴离子从上往下对应带隙从大到小
Fig. 1. Band gap anomaly in A2BX4 (A = V, Nb, Ta; B = Si, Ge, Sn; X = S, Se, Te) analogues, with anions from the top down corresponds to the band gap from large to small.
图 2 晶体结构及其单层晶体结构俯视图 (a), (d) Nb2SiTe4; (b), (e) Nb3SiTe6; (c), (f) Nb2CaO4
Fig. 2. Crystal structures and top view of single-layer: (a), (d) Nb2SiTe4; (b), (e) Nb3SiTe6; (c), (f) Nb2CaO4.

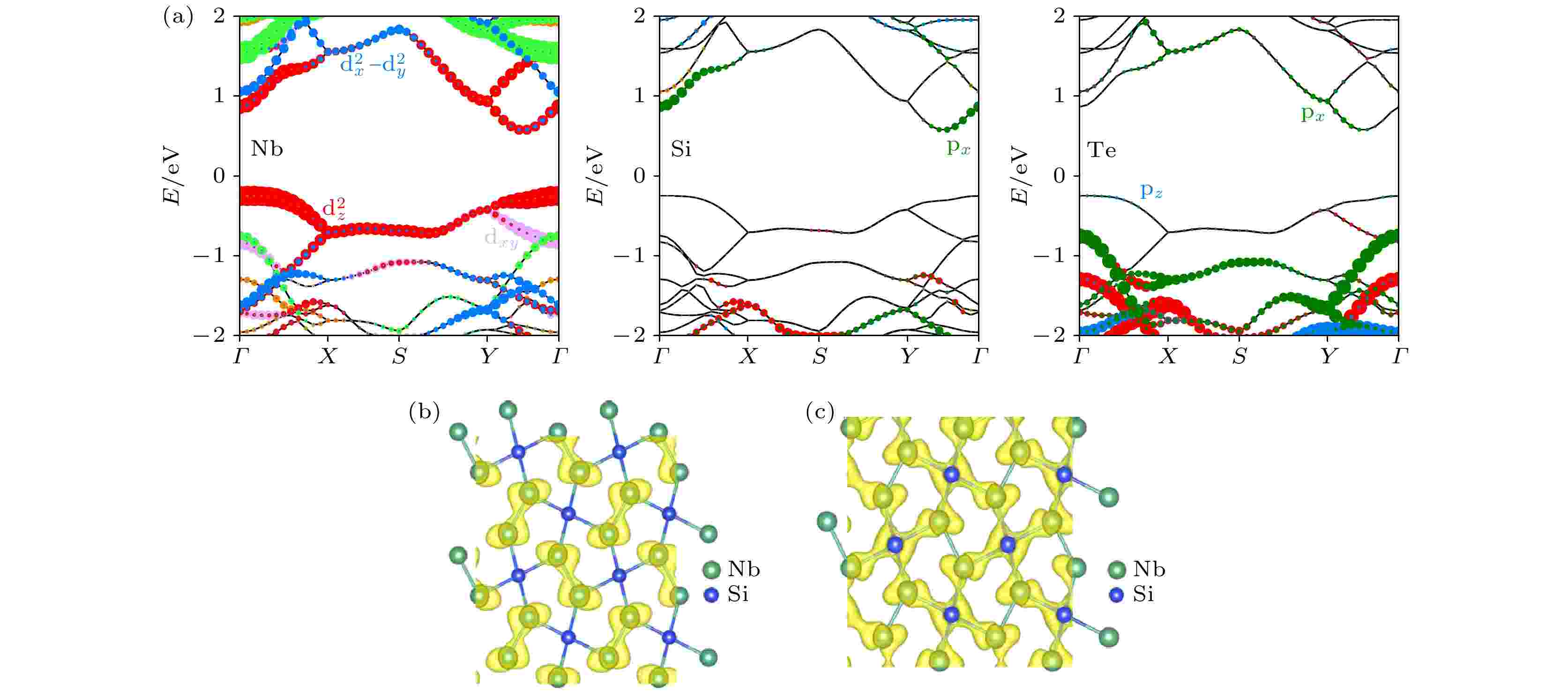

图 3 (a) Nb2SiTe4的轨道投影能带图; (b) Nb2SiTe4 VBM处的电荷密度图; (c) Nb2SiTe4 CBM处的电荷密度图
Fig. 3. (a) Orbit-resolved band structures of Nb2SiTe4; (b) partial charge density at VBM of Nb2SiTe4; (c) partial charge density at CBM of Nb2SiTe4.
图 4 Nb2SiTe4中不同原子间哈密顿轨道布局 (a) Nb-Nb; (b) Nb-Si; (c) Nb-Te; (d) Si-Te; (e)图(b)中红色圆圈的放大部分(横坐标的正(负)表示原子轨道间为成(反)键态, 用图中红(绿)色区域表示)
Fig. 4. Crystal orbital Hamilton populations for different interatomic in Nb2SiTe4: (a) Nb-Nb; (b) Nb-Si; (c) Nb-Te; (d) Si-Te; (e) enlarged portion of the red circle in Fig. (b) (The positive (negative) of COHP represents bonding (antibonding) interaction between ions, as colored in red (green)).
图 5 Nb2SiX4 (X = S, Se, Te) 化合物的能带排列图
Fig. 5. Band alignment of Nb2SiX4 (X = S, Se, Te) compounds.

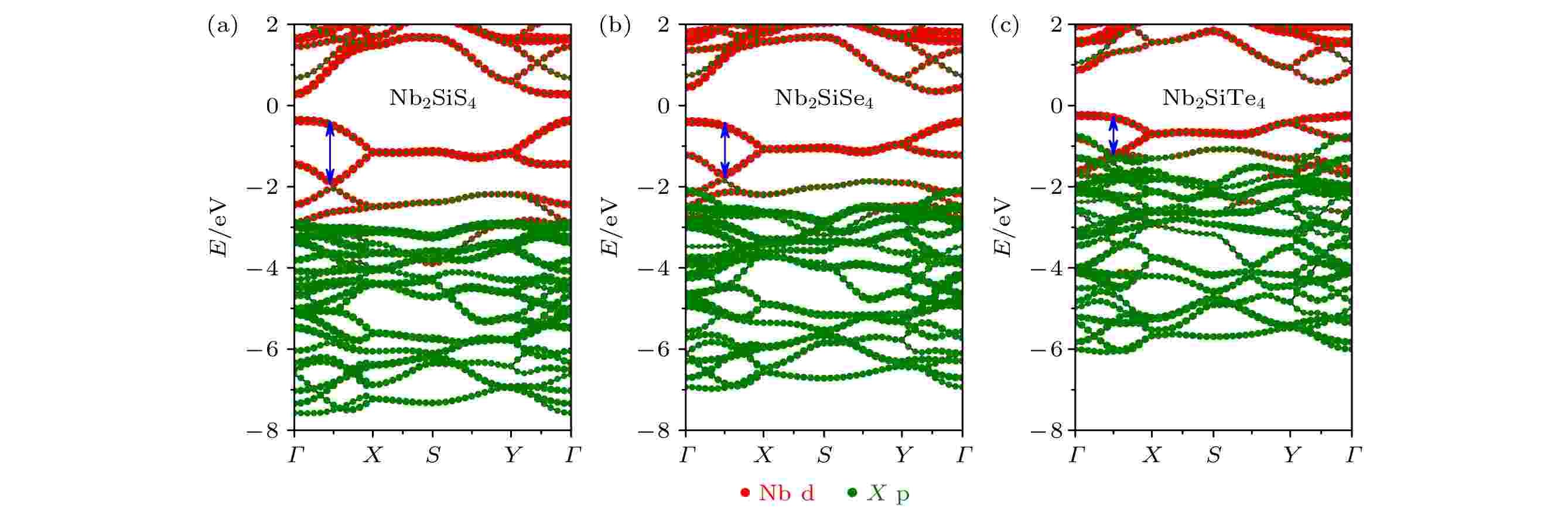

图 6 HSE06计算的轨道投影能带结构 (a) Nb2SiS4; (b) Nb2SiSe4; (c) Nb2SiTe4 (蓝色箭头表示占据态中最靠近VBM的两条Nb原子4d能带的近似带宽)
Fig. 6. Orbit resolved band structures calculated by HSE06: (a) Nb2SiS4; (b) Nb2SiSe4; (c) Nb2SiTe4 (Bandwidths of the two Nb 4d bands below the VBM are represented by blue arrows).

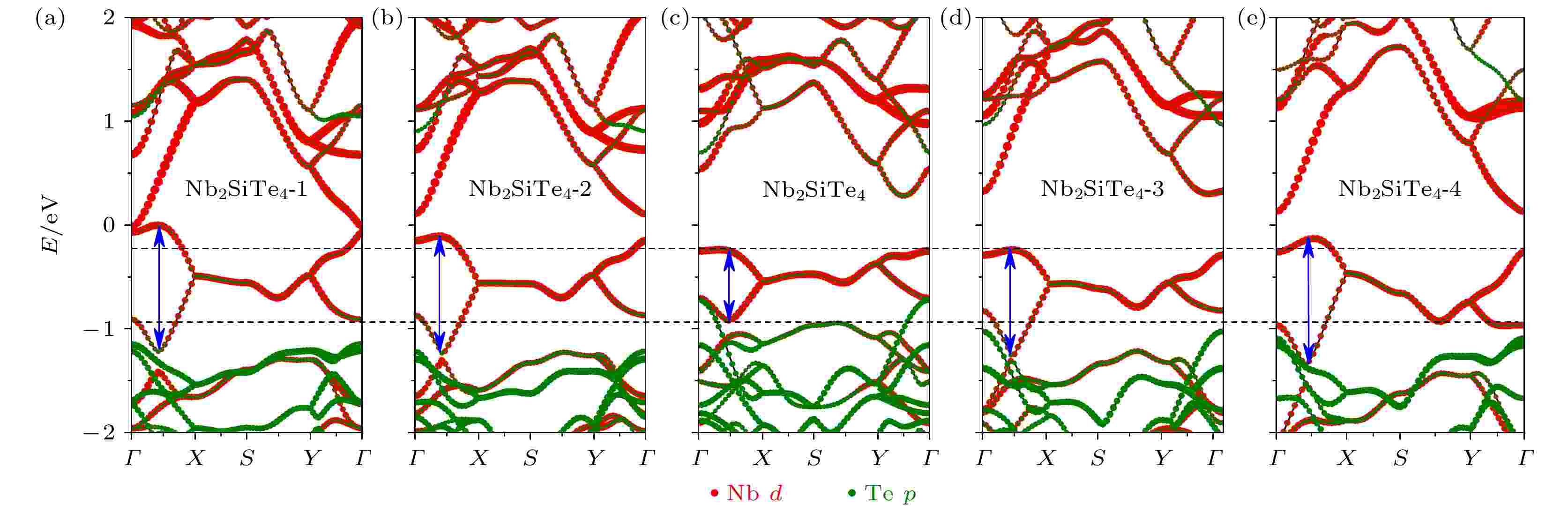

图 7 PBE计算的轨道投影能带结构 (a) Nb2SiTe4-1; (b) Nb2SiTe4-2; (c) Nb2SiTe4; (d) Nb2SiTe4-3; (e) Nb2SiTe4-4
Fig. 7. PBE calculated orbit resolved band structures: (a) Nb2SiTe4-1; (b) Nb2SiTe4-2; (c) Nb2SiTe4; (d) Nb2SiTe4-3; (e) Nb2SiTe4-4.
表 1 系列Nb2SiTe4构型的参数对比
Table 1. Comparisons of representative Nb2SiTe4-based compounds.
Nb—Nb键长/Å Nb—Te键长/Å Nb 4d带宽/Å 带隙Eg /eV Nb2SiTe4-1 2.91 2.72 1.23 –0.01 Nb2SiTe4-2 2.91 2.76 1.14 0.21 Nb2SiTe4 2.91 2.88 0.69 0.52 Nb2SiTe4-3 2.81 2.71 1.03 0.53 Nb2SiTe4-4 2.75 2.59 1.23 0.25
