通过构建一个包含温度场、浓度场和远场来流的数学模型, 运用多重变量展开法与匹配渐近展开法, 推导出胞晶界面扰动振幅变化率的色散关系及界面形态量子化条件, 分析了远场来流作用下定向凝固中深胞晶生长的稳定性, 并揭示了远场来流对不稳定区域大小的影响. 研究结果表明, 在考虑了远场来流的定向凝固中, 深胞晶生长界面形态有两种整体不稳定性机制: 整体振荡(GTW)不稳定性, 其中性模式产生强振荡的枝晶结构; 低频(LF)不稳定性, 其中性模式产生弱振荡的胞晶结构. 通过稳定性分析发现, 在远场来流的影响下, 深胞晶的界面稳定性取决于临界稳定性参数, 而该参数随着流动强度的增强而减小, 整体振荡不稳定性的稳定区域逐渐扩大.
Directional solidification technology artificially controls the propagation rate at the solid-liquid interface to promote the development of the metal microstructure in the expected direction. In the process, the solid-liquid interface will produce complex and diverse microstructures, of which cellular crystal and dendritic structure are typical microstructures in the interface formation process, which have a direct influence on the quality and properties of the final material. Based on the fact that the far-field flow is not strongly affected by local perturbations and has the characteristics of relative stability and homogeneity, a mathematical model including the temperature field, the concentration field and the far field flow is established in this work. According to the interfacial wave theory, a finger coordinate system is constructed using the constant solution of cellular crystal growth as the ground state, and fast variables are introduced for variable replacement using multivariate expansion method and matched asymptotic expansion method used to introduce. The eigenvalue problem of linear perturbation dynamics in the case of far-field flow is solved, and the dispersion relation of the change rate of the perturbation amplitude at the interface of the cellular crystal and the quantization condition of the interface morphology are derived. The stability of the growth of deep cellular crystal in directional solidification under the action of far-field flow is analyzed. and the basis for judging the critical stability of the deep cellular crystal growth is established. The effect of far-field flow on the size of the unstable region is revealed. The results show that in the directional solidification considering the far-field flow, there are two overall instability mechanisms for the interfacial morphology of the growth of deep cellular crystal: the global oscillatory instability (GTW-mode) and the low-frequency instability (IF-mode). The system allows of the symmetric S-mode and the antisymmetric A-mode. The stability analysis shows the following points: the interfacial stability of deep cellular crystal depends on the critical stability parameter; if the interfacial stability parameter of deep cellular crystal is larger than the critical stability parameter, the growth of deep cellular crystal is stable; if it is smaller than the critical stability parameter, the growth of deep cellular crystal is unstable, whereas the critical stability parameter decreases with the enhancement of the flow intensity. Under the influence of far field flow, for the same index n, the growth rate of the GTW-S mode is much greater than that of the GTW-A mode, which is said to be more dangerous than the GTW-A mode, and the n = 0 case in the GTW-S mode is the most dangerous oscillation mode with the largest unstable region. In addition, as the flow intensity Gu increases, the stable region of the overall oscillatory instability of the dendritic structure, where the neutral mode generates strong oscillations, also becomes larger. -
Keywords:
- deep cellular crystal growth /
- far field flow /
- interface stability /
- quantization condition
-

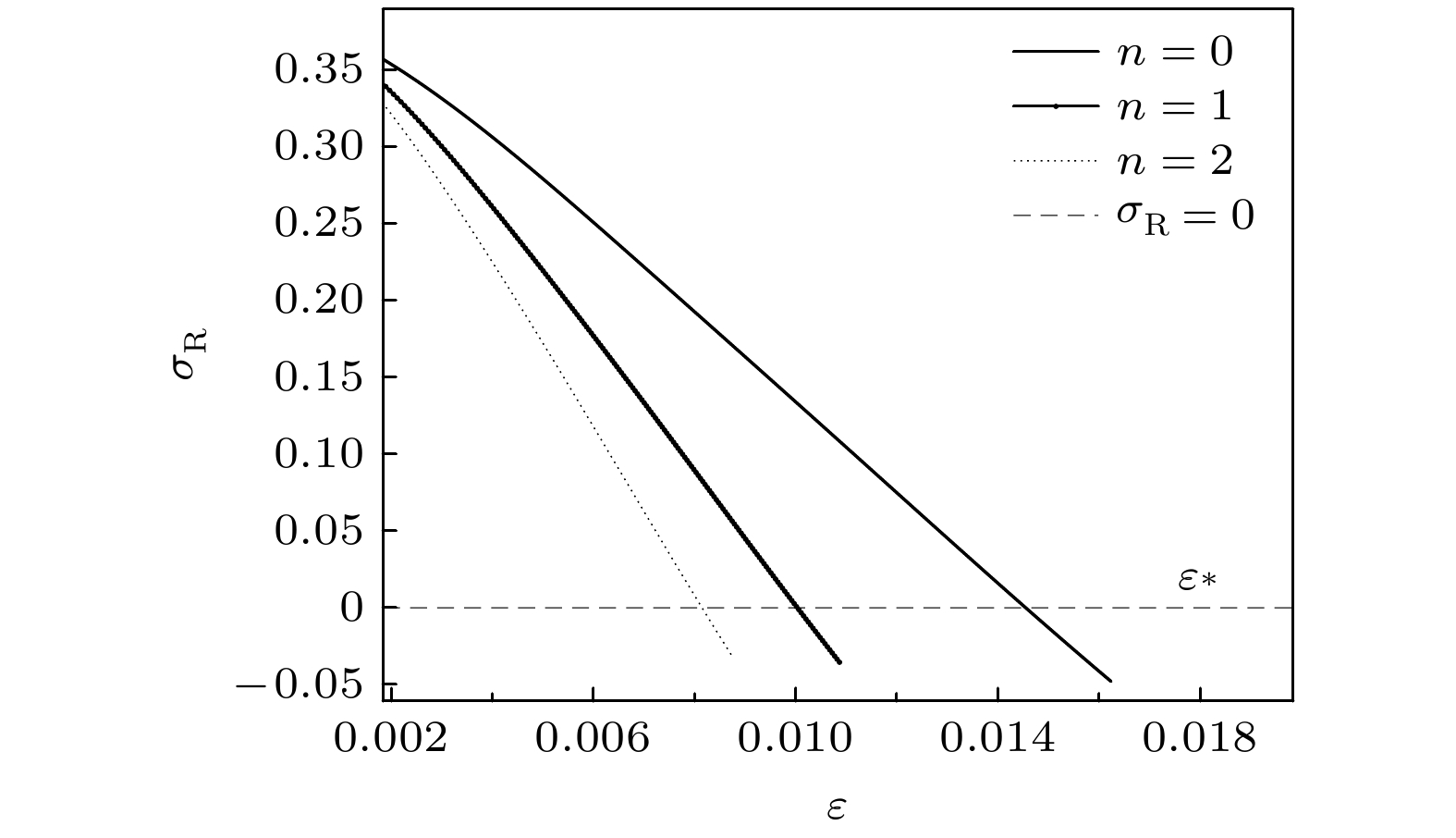

图 3 GTW-S模式的特征值的实部随$ \varepsilon $的变化曲线. 参数分别为$ n = 0, {\text{ 1, 2, }} $$ \kappa = 0.3, $$ Gu = 0.1, $ $ {\lambda _{\text{G}}} = 0.2, $ $ {G_{\text{c}}} =2.0 \times $$ {10^{ - 5}}, $ $ {\varepsilon _{\text{c}}} = 0.01, $ $ M = 0.08, $ $ {\lambda _0} = 0.45, $ $ {W_0} = 2.1332$
Fig. 3. The real parts of the eigenvalues of the GTW-S mode variation with $ \varepsilon $. With the parameters $ n = 0, {\text{ 1, 2, }} $ $ \kappa = 0.3, $ $ Gu = 0.1, $$ {\lambda _{\text{G}}} = 0.2, $ $ {G_{\text{c}}} = 2.0 \times {10^{ - 5}}, $ $ {\varepsilon _{\text{c}}} = 0.01, $ $ M = 0.08, $ $ {\lambda _0} = 0.45 $ and $ {W_0} = 2.1332 $.

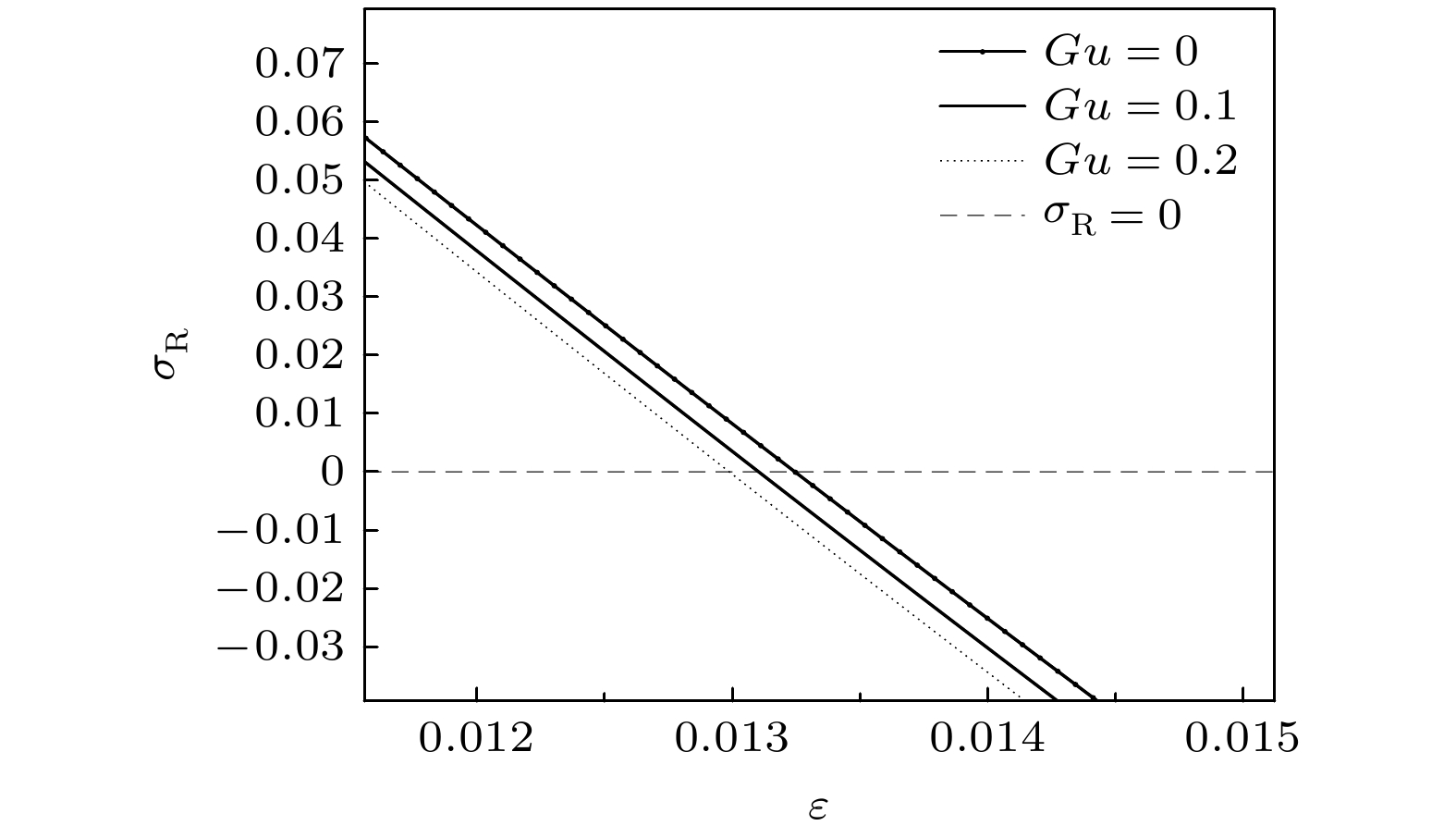

图 4 GTW-S模式的特征值的实部随$ \varepsilon $的变化曲线. 参数分别为$ n = 0, $$ \kappa = 0.3, $$ Gu = 0, {0}{.1}, {0}{.2}, $$ {\lambda _{\text{G}}} = 0.2, $$ {G_{\text{c}}} = $$ 2.0 \times {10^{ - 5}}, $$ {\varepsilon _{\text{c}}} = 0.01, $$ M = 0.08, $$ {\lambda _0} = 0.45, $ $ {W_0} = 2.1332 $$
Fig. 4. The real parts of the eigenvalues of the GTW-S mode variation with $ \varepsilon $. With the parameters $ n = 0, $ $ \kappa = 0.3, $ $ Gu = 0, {\text{ }}0.1, {\text{ }}0.2, $ $ {\lambda _{\text{G}}} = 0.2, $ $ {G_{\text{c}}} = 2.0 \times {10^{ - 5}}, $ $ {\varepsilon _{\text{c}}} = 0.01, $ $ M = 0.08, $ $ {\lambda _0} = 0.45 $ and $ {W_0} = 2.1332 $.

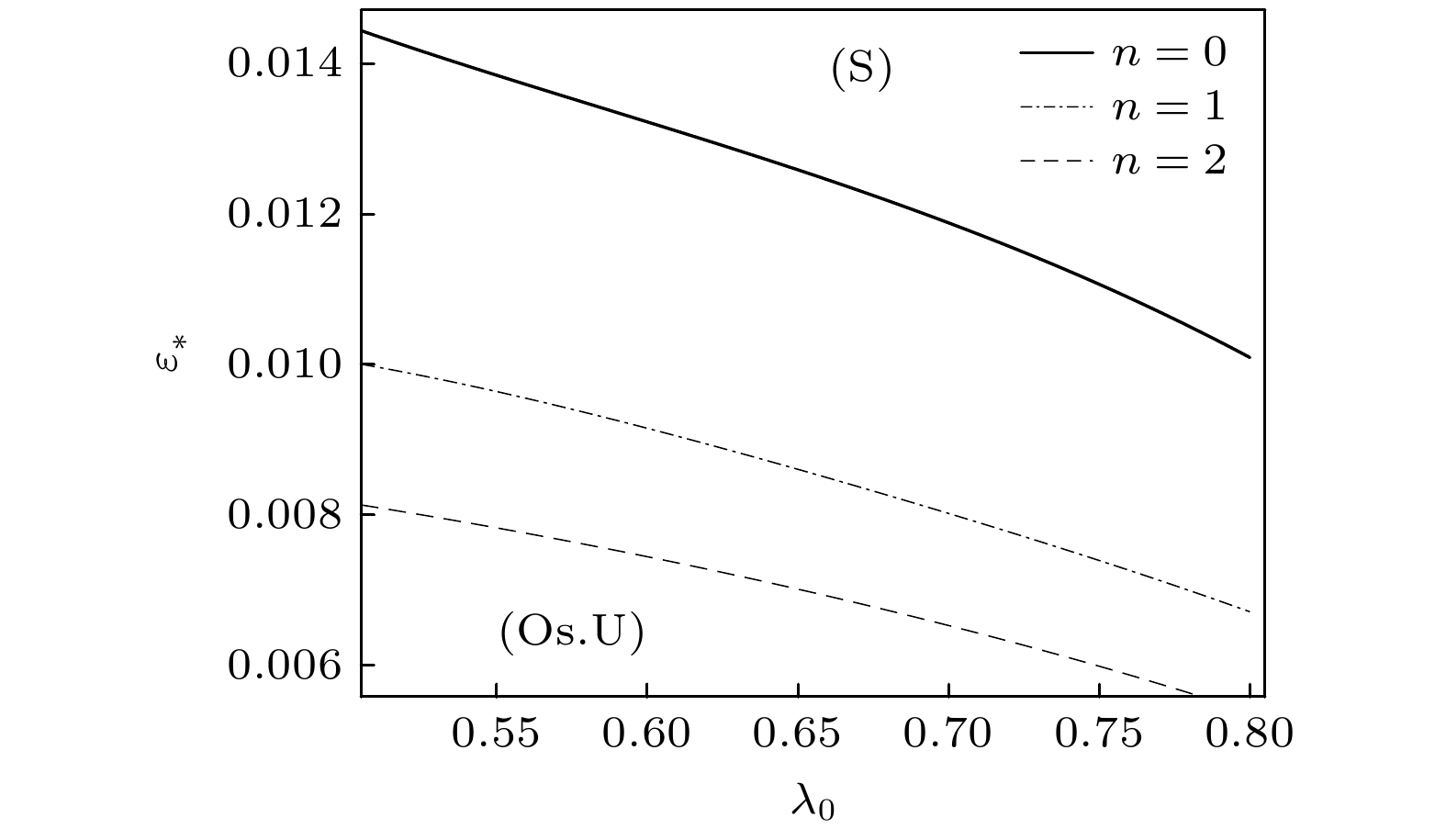

图 5 零级近似GTW-S 中性模式曲线. 参数分别为$ n = $$ 0, {\text{ 1, 2, }} $ $ \kappa = 0.29, $ $ Gu = 0.1, $ $ {\lambda _{\text{G}}} = 0.4989, $ $ {G_{\text{c}}} =0.14485 \times $$ {10^{ - 4}}, $ $ {\varepsilon _{\text{c}}} = 0.5388 \times {10^{ - 2}}, $ $ M = 0.9552 \times {10^{ - 1}} $
Fig. 5. The neutral curves of the GTW-S-modes in zeroth-order approximation for the case $ n = 0, {\text{ 1, 2, }} $ $ \kappa = 0.29, $ $ Gu = 0.1, $ $ {\lambda _{\text{G}}} = 0.4989, $ $ {G_{\text{c}}} = 0.14485 \times {10^{ - 4}}, $ $ {\varepsilon _{\text{c}}} = $$ 0.5388 \times {10^{ - 2}}, $ $ M = 0.9552 \times {10^{ - 1}} $.

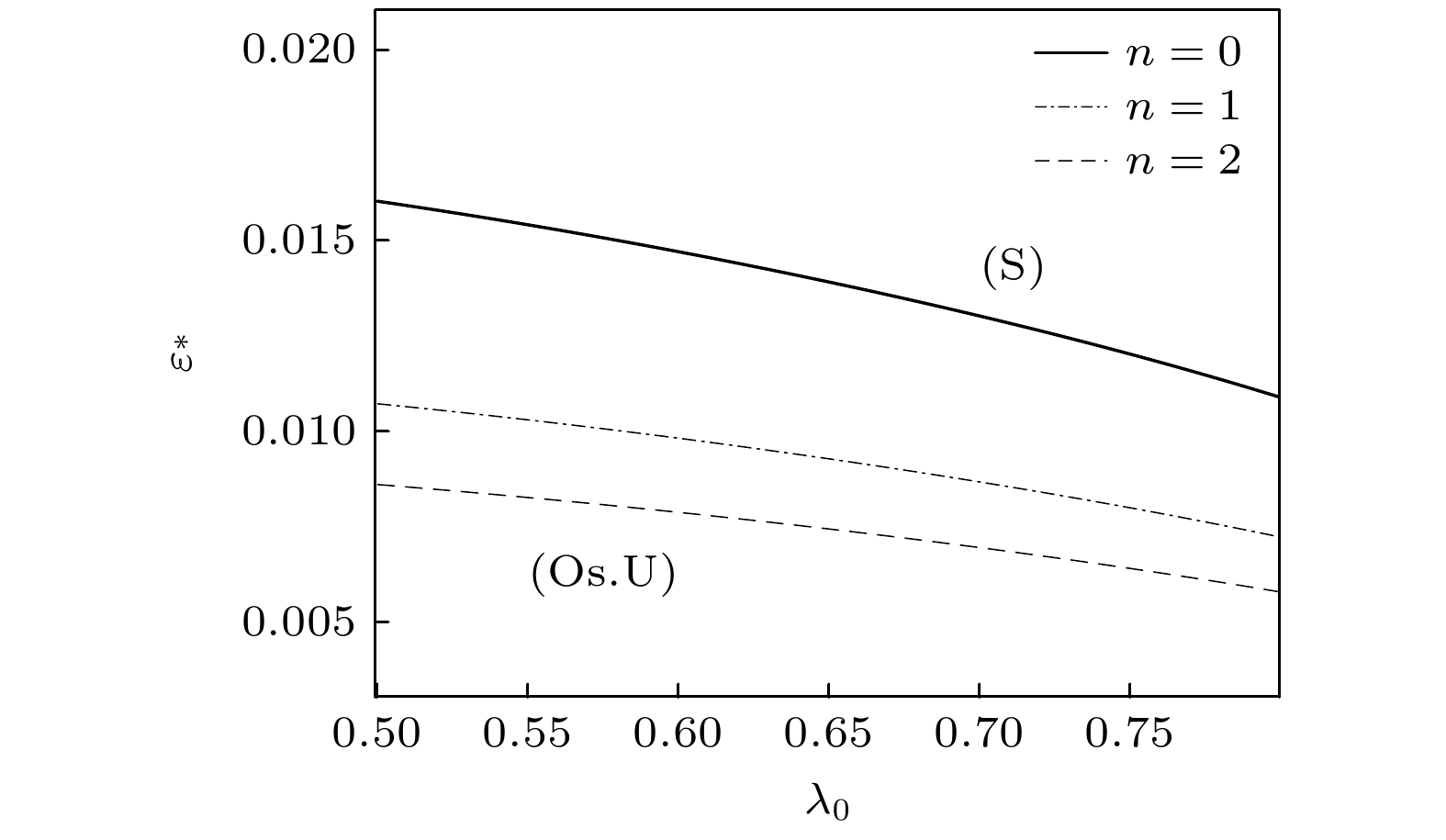

图 6 一级近似GTW-S 中性模式曲线. 参数分别为$ n = 0, {\text{ 1, 2, }} $ $ \kappa = 0.29, $ $ Gu = 0.1, $ $ {\lambda _{\text{G}}} = 0.4989, $ $ {G_{\text{c}}} = $$ 0.14485 \times {10^{ - 4}}, $ $ {\varepsilon _{\text{c}}} = 0.5388 \times {10^{ - 2}}, $ $ M = 0.9552 \times {10^{ - 1}} $$
Fig. 6. The neutral curves of the GTW-S-modes with first-order approximation for the case $ n = 0, {\text{ 1, 2, }} $ $ \kappa = 0.29, $ $ Gu = 0.1, $ $ {\lambda _{\text{G}}} = 0.4989, $ $ {G_{\text{c}}} = 0.14485 \times {10^{ - 4}}, $ $ {\varepsilon _{\text{c}}} = $$ 0.5388 \times {10^{ - 2}}, $ $ M = 0.9552 \times {10^{ - 1}} $

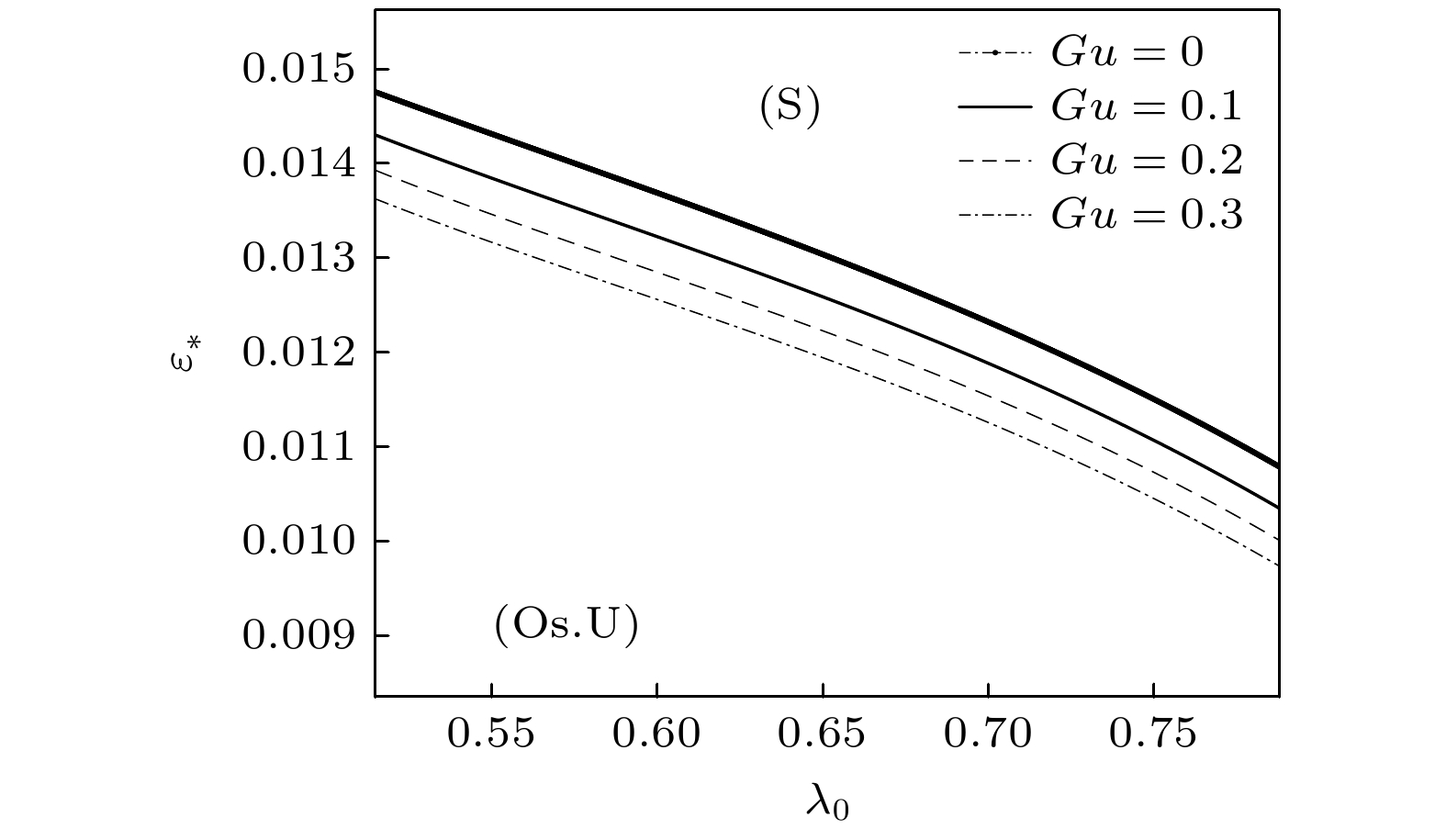

图 7 一级近似GTW-S 中性模式曲线$ \left( {n = 0} \right) $. 参数分别为$ Gu = 0, {\text{ }}0.1, {0}{.2}, {\text{ }}0.3, $ $ n = 0, $ $ {\lambda _{\text{G}}} = 0.4989, $ $ {G_{\text{c}}} = $$ 0.14485 \times {10^{ - 4}}, $ $ {\varepsilon _{\text{c}}} = 0.5388 \times {10^{ - 2}}, $ $ \kappa = 0.29, $ $ M = $$ 0.9552 \times {10^{ - 1}} $
Fig. 7. The neutral curves of the GTW-S-modes $ \left( {n = 0} \right) $ with first-order approximation for the case $ Gu =0, $$ 0.1, {0.2}, {\text{ }}0.3, $$ n = 0, $ $ {\lambda _{\text{G}}} = 0.4989, $ $ {G_{\text{c}}} = 0.14485 \times {10^{ - 4}}, $ $ {\varepsilon _{\text{c}}} = 0.5388 \times {10^{ - 2}}, $ $ \kappa = 0.29, $ $ M = 0.9552 \times {10^{ - 1}} $
-
