传统光学模型的改进及其在重离子碰撞反应中的应用

梁春恬 孙小军 黄俊曦 杨昊瑜 李小华 蔡崇海

引用本文:
Citation:

传统光学模型的改进及其在重离子碰撞反应中的应用

梁春恬, 孙小军, 黄俊曦, 杨昊瑜, 李小华, 蔡崇海

Improvements of traditional optical model and its applications in heavy-ion collision reaction

LIANG Chuntian, SUN Xiaojun, HUANG Junxi, YANG Haoyu, LI Xiaohua, CAI Chonghai
Article Text (iFLYTEK Translation)
PDF
HTML
导出引用
  • 本文针对重离子碰撞中弹核与靶核质量相近体系的相互作用问题, 提出改进型光学模型APOMHI. 该模型突破传统框架中仅侧重靶核贡献的局限, 通过对称化处理弹核与靶核的势场影响, 在Woods-Saxon型光学势场构建中, 弹靶核的扩散宽度与半径参数采用对等形式, 确保两者贡献的等价性. 同时, 角动量耦合方式也相应由L-S耦合替代了j-j耦合. 将改进后的光学模型应用于以18O作为弹核的系列重离子碰撞反应, 通过拟合弹性散射角分布与复合核吸收截面数据, 得到了一组普适唯象光学势, 经比较, 理论结果与现有实验数据大体相符.
    To describe the projectile-target interaction in heavy-ion collision, the traditional optical model is improved and a corresponding optical model for heavy-ion collisions is established in this work The program APOMHI is developed accordingly. In heavy-ion collisions, the mass of the projectile is comparable to the mass of target nucleus. Therefore, the projectile and target nucleus must be treated equally. The potential field for their relative motion must arise from an equivalent contribution of both nuclei, not just from the target nucleus. Consequently, the angular momentum coupling scheme must adopt L - S coupling, instead of j - j coupling. The projectile spin i and target spin I first couple to form the projectile-target system spin S (which varies between $ \left| {I - i} \right| $ and $ i + I $). Then, the spin S of this system couples with the orbital angular momentum L of relative motion, forming a total angular momentum J . Thus, the radial wave function UlSJ (r) involves three quantum numbers: l , S , and J , while traditional optical model only involves l and j . Furthermore, since the mass of projectile is similar the mass of target, the form of the optical model potential is symmetrical relative to the projectile and target. The projectile nucleus and the target nucleus are still assumed to be spherical, and their excited states are not considered. The projectile may be lighter or heavier than the target, but they cannot be identical particles. By using this optical model program APOMHI, the elastic scattering angular distributions and compound nucleus absorption cross sections for heavy-ion collisions can be calculated. Taking for example a series of heavy-ion collision reactions with 18O as the projectile nucleus, a corresponding set of universal optical potential parameters is obtained by fitting experimental data. The comparisons show that the theoretical calculations generally accord well with the available experimental data. Here, the results for fusion cross-sections and elastic scattering angular distributions using several representative target nuclei (lighter, comparable in mass, heavier, and heavy compared to the projectile nucleus) are taken for example. Specifically, the fusion cross-section results correspond to targets 9Be, 27Al, 63Cu and 150Sm, while the elastic scattering angular distributions correspond to targets 16O, 24Mg, 58Ni, and 120Sn.

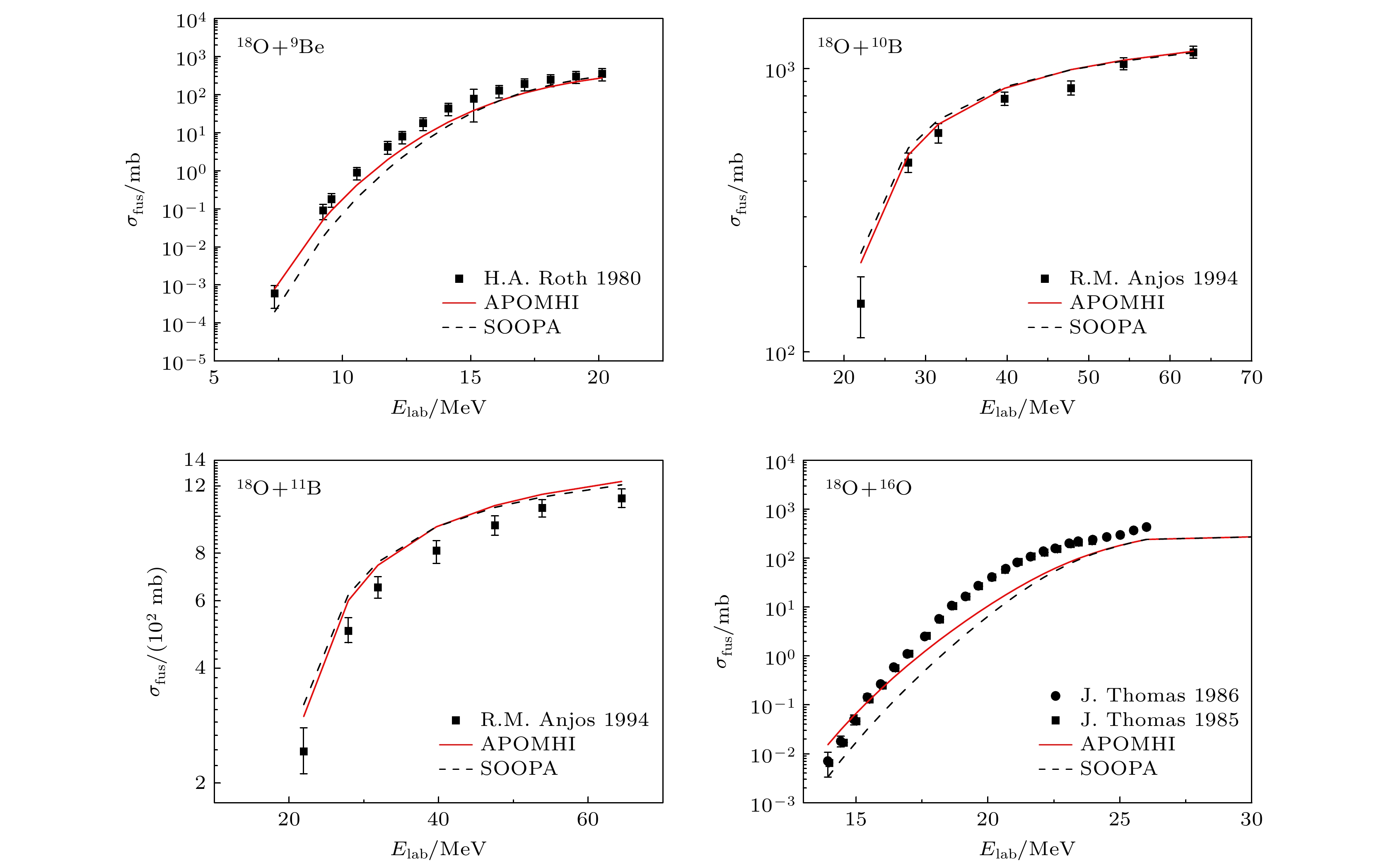

  • 图 1  9Be, 10B, 11B和16O作为靶核的熔合截面理论与实验比较(实验数据来源为: H. A. Roth 1980[32], R. M. Anjos 1994[33], J. Thomas 1985[35], J. Thomas 1986[36])

    Fig. 1.  Comparison between theoretical results and experimental data of fusion cross section for 9Be, 10B, 11B and 16O target. The experimental data come from H.A. Roth 1980[32], R.M. Anjos 1994[33], J. Thomas 1985[35], J. Thomas 1986[36].

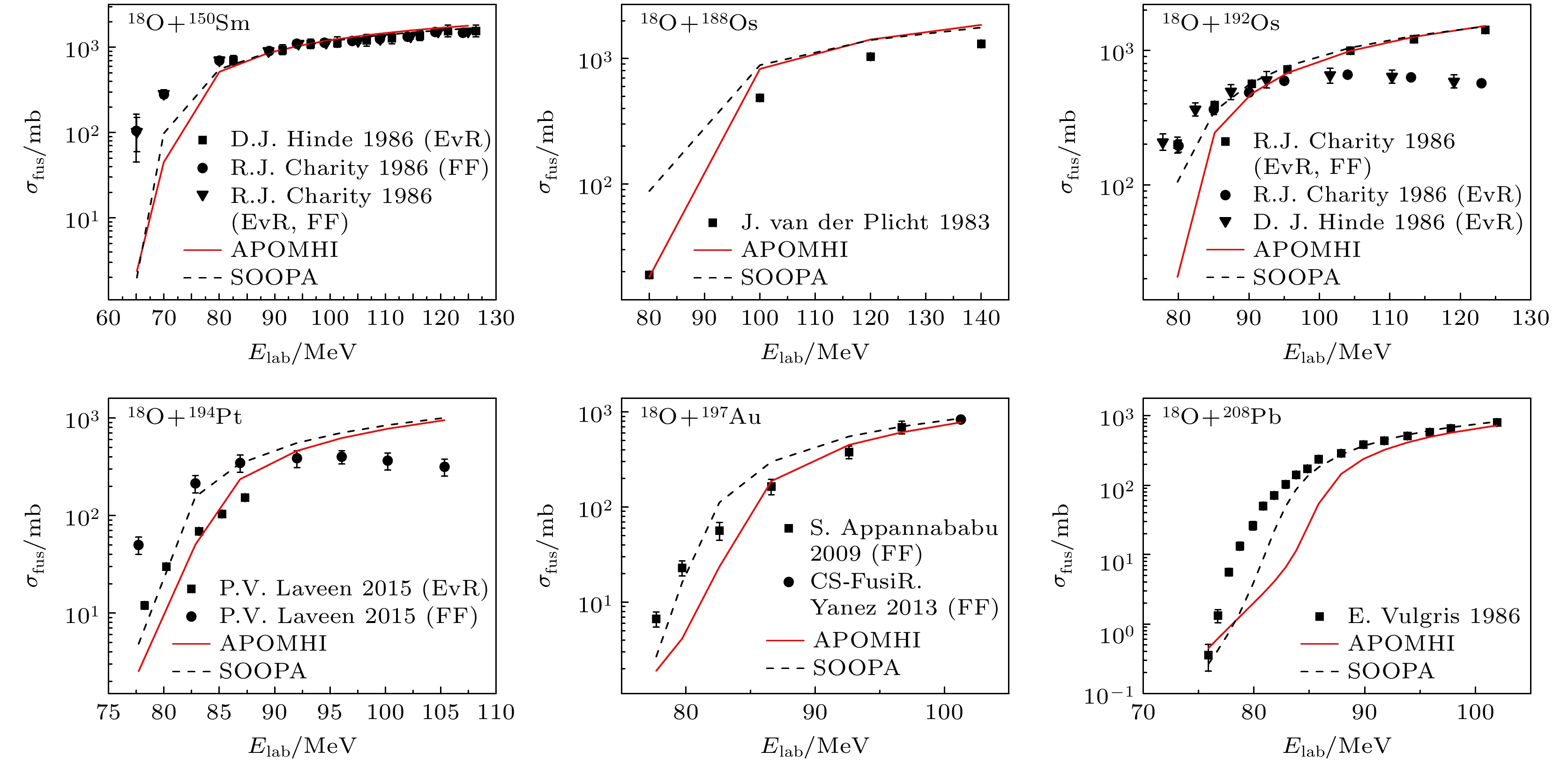

    图 4  150Sm, 188Os, 192Os, 194Pt, 197Au和208Pb作为靶核的熔合截面理论与实验比较(实验数据来源为: D. J. Hinde 1986 (EVR)[56], R. J. Charity 1986 (FF)[57], R. J. Charity 1986 (EVR FF)[57], J. van der Plicht 1983[59], P. V. Laveen 2015 (EVR)[60], P. V. Laveen 2015 (FF)[60], R. Yanez 2013 (FF)[61], S. Appannababu 2009 (FF)[62], E. Vulgaris 1986[63])

    Fig. 4.  Comparison between theoretical results and experimental data of fusion cross section for 150Sm, 188Os, 192Os, 194Pt, 197Au and 208Pb target. The experimental data come from D. J. Hinde 1986 (EVR)[56], R. J. Charity 1986 (FF)[57], R. J. Charity 1986 (EVR FF)[57], J. van der Plicht 1983[59], P. V. Laveen 2015 (EVR)[60], P. V. Laveen 2015 (FF)[60], R. Yanez 2013 (FF)[61], S. Appannababu 2009 (FF)[62], E. Vulgaris 1986[63].

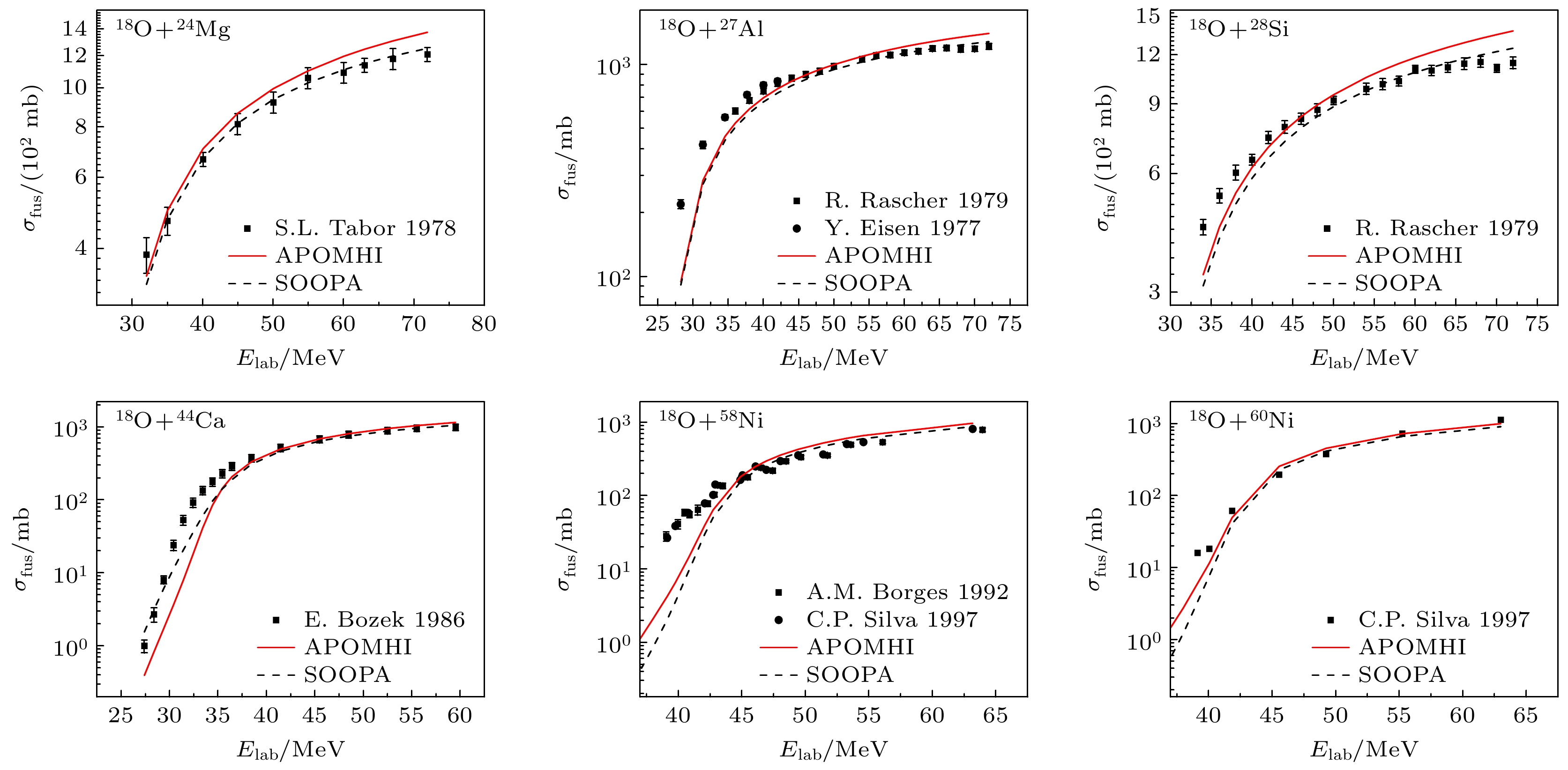

    图 2  24Mg, 27Al, 28Si, 44Ca, 58Ni和60Ni 作为靶核的熔合截面理论与实验比较(实验数据来源为: S. L. Tabor 1978[38], R. Rascher 1979[40], Y. Eisen 1977[41], E. Bozek 1986[42], A. M. Borges 1992[43], C. P. Silva 1997[44])

    Fig. 2.  Comparison between theoretical results and experimental data of fusion cross section for 24Mg, 27Al, 28Si, 44Ca, 58Ni and 60Ni target. The experimental data come from S.L. Tabor 1978[38], R. Rascher 1979[40], Y. Eisen 1977[41], E. Bozek 1986[42], A. M. Borges 1992[43], C. P. Silva 1997[44].

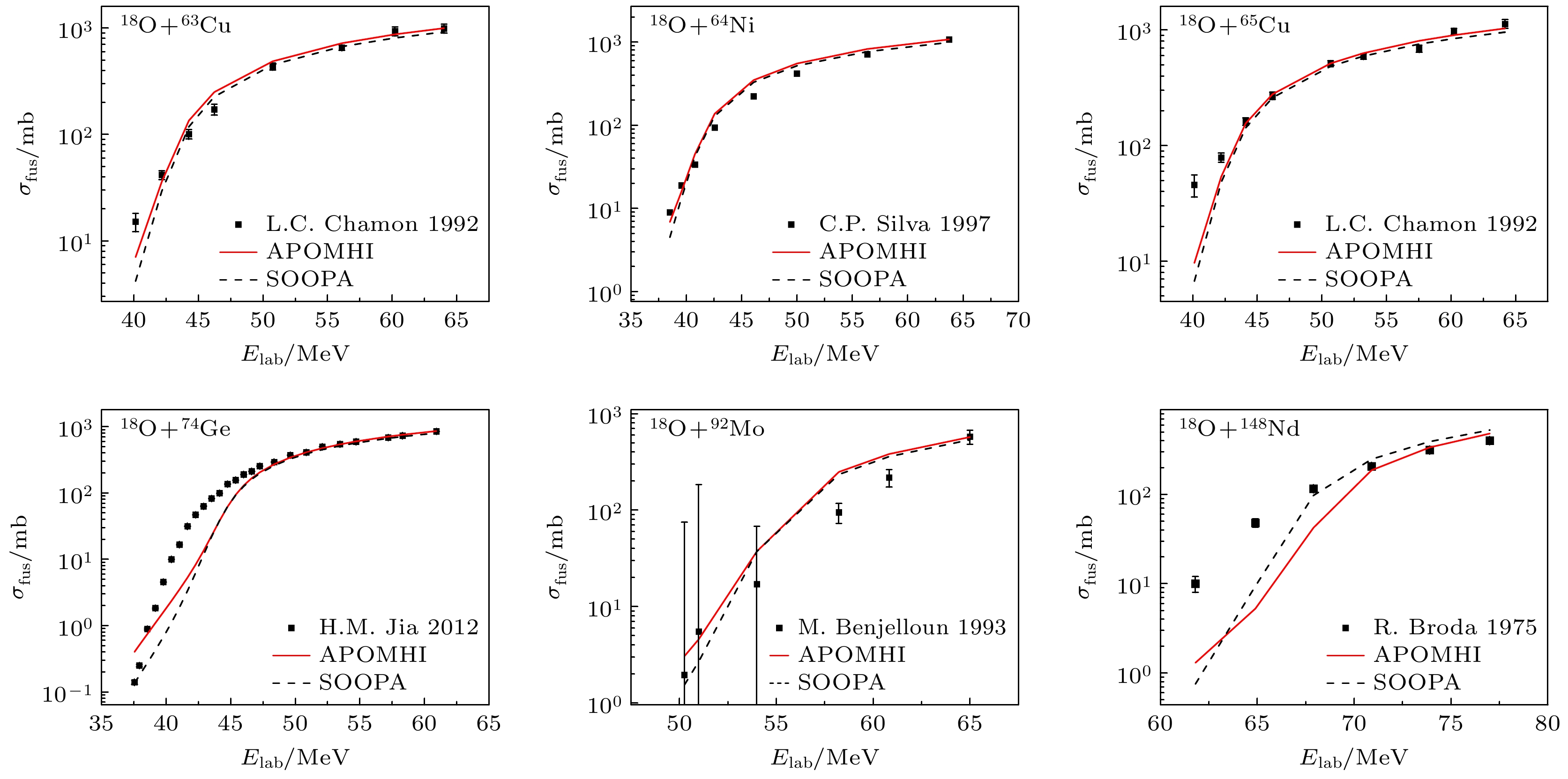

    图 3  63Cu, 64Ni, 65Cu, 74Ge, 92Mo和148Nd 作为靶核的熔合截面理论与实验比较(实验数据来源为: L. C. Chamon 1992[48], C. P. Silva 1997[44], H. M. Jia 2012[50], M. Bonjelloun 1993[52], R. Broda 1975[55])

    Fig. 3.  Comparison between theoretical results and experimental data of fusion cross section for 63Cu, 64Ni, 65Cu, 74Ge, 92Mo and 148Nd target. The experimental data come from L.C. Chamon 1992[48], C.P. Silva 1997[44], H.M. Jia 2012[50], M. Bonjelloun 1993[52], R. Broda 1975[55].

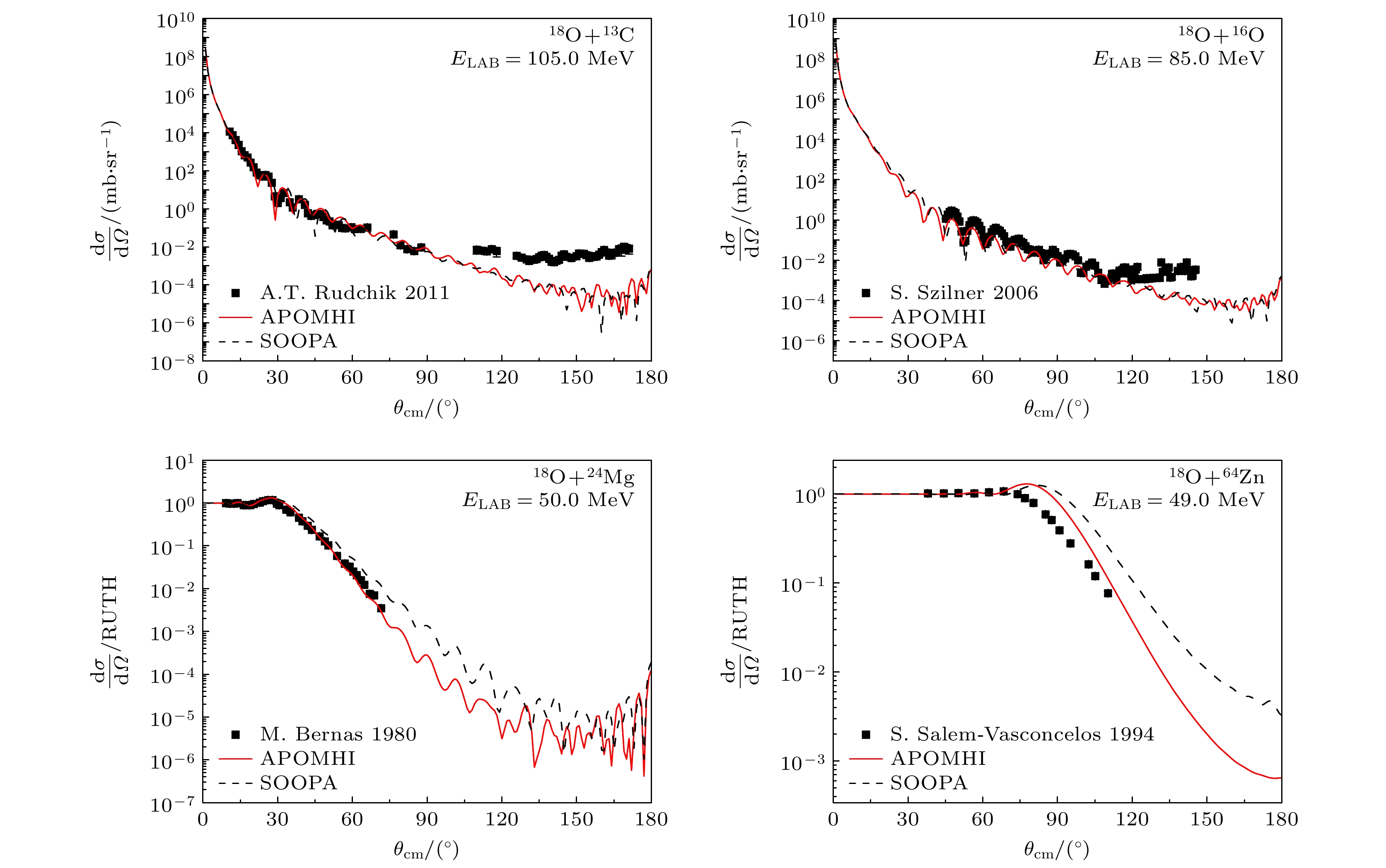

    图 5  不同入射能量下13C, 16O, 24Mg和64Zn作为靶核的弹性散射角分布理论与实验比较(实验数据来源: A. T. Rudchik 2011[34], S. Szilner 2006[37], M. Bernas 1980[39], S. Salem-Vasconcelos 1994[49])

    Fig. 5.  Comparison between theoretical results and experimental data of elastic scattering angular distribution for 13C, 16O, 24Mg and 64Zn target at different incident energies. The experimental data come from A. T. Rudchik 2011[34], S. Szilner 2006[37], M. Bernas 1980[39], S. Salem-Vasconcelos 1994[49].

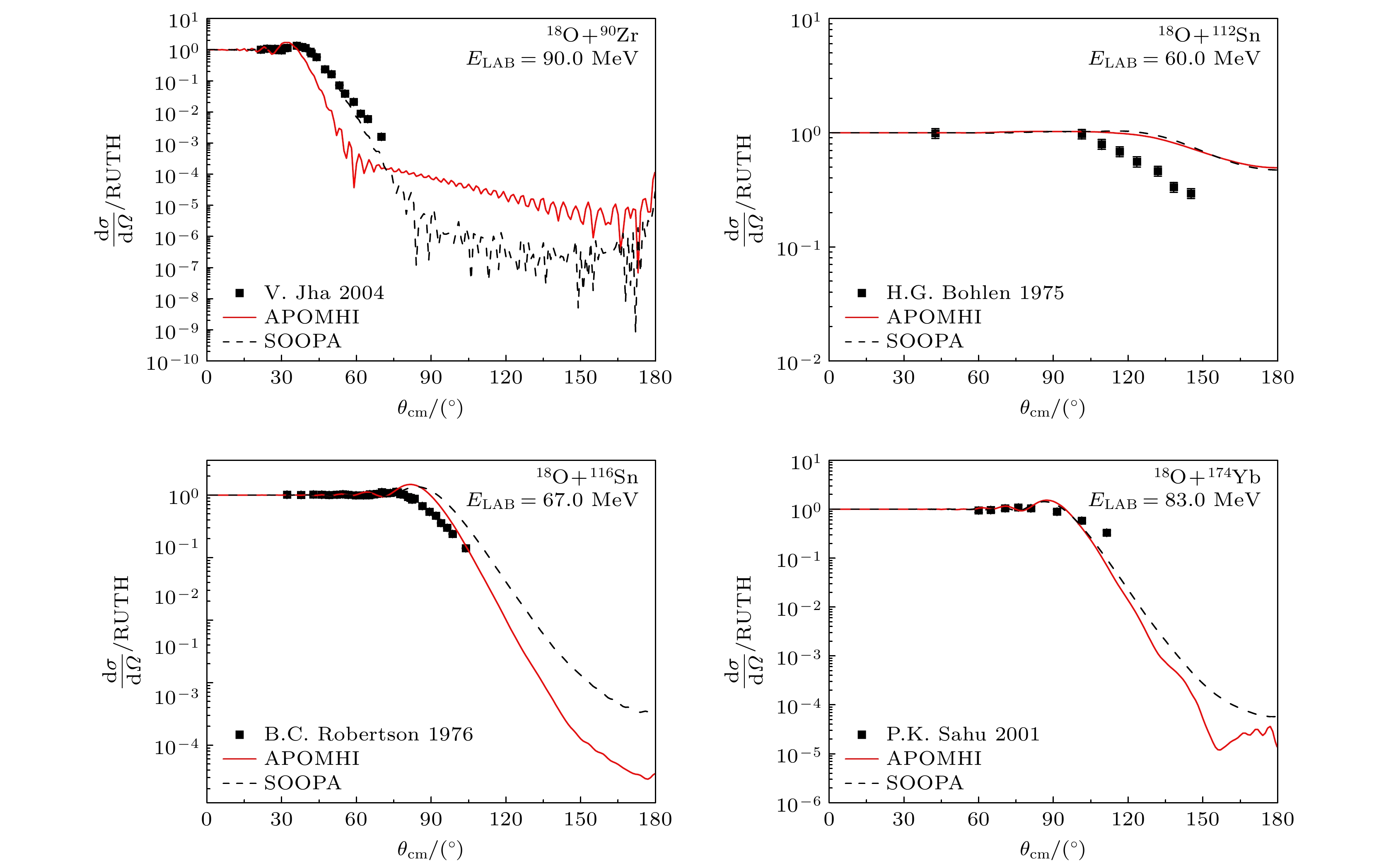

    图 7  不同入射能量下90Zr, 112, 116Sn和174Yb作为靶核的弹性散射角分布理论与实验比较(实验数据来源为: V. Jha 2004[51], H. G. Bohlen 1975[53], B. C. Robertson 1976[54], P. K. Sahu 2001[58])

    Fig. 7.  Comparison between theoretical results and experimental data of elastic scattering angular distribution for 90Zr, 112, 116Sn and 174Yb target at different incident energies. The experimental data come from V. Jha 2004[51], H. G. Bohlen 1975[53], B. C. Robertson 1976[54], P. K. Sahu 2001[58].

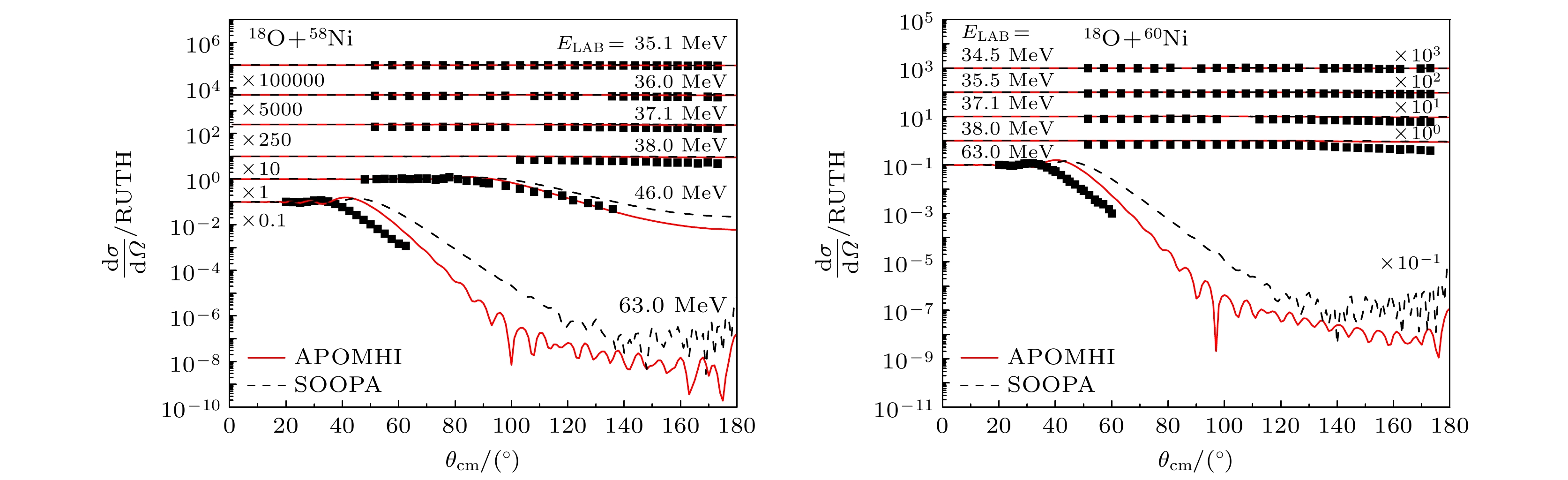

    图 6  不同入射能量下58Ni和60Ni作为靶核的弹性散射角分布理论与实验比较

    Fig. 6.  Comparison between theoretical results and experimental data of elastic scattering angular distribution for 58Ni and 60Ni target at different incident energies.

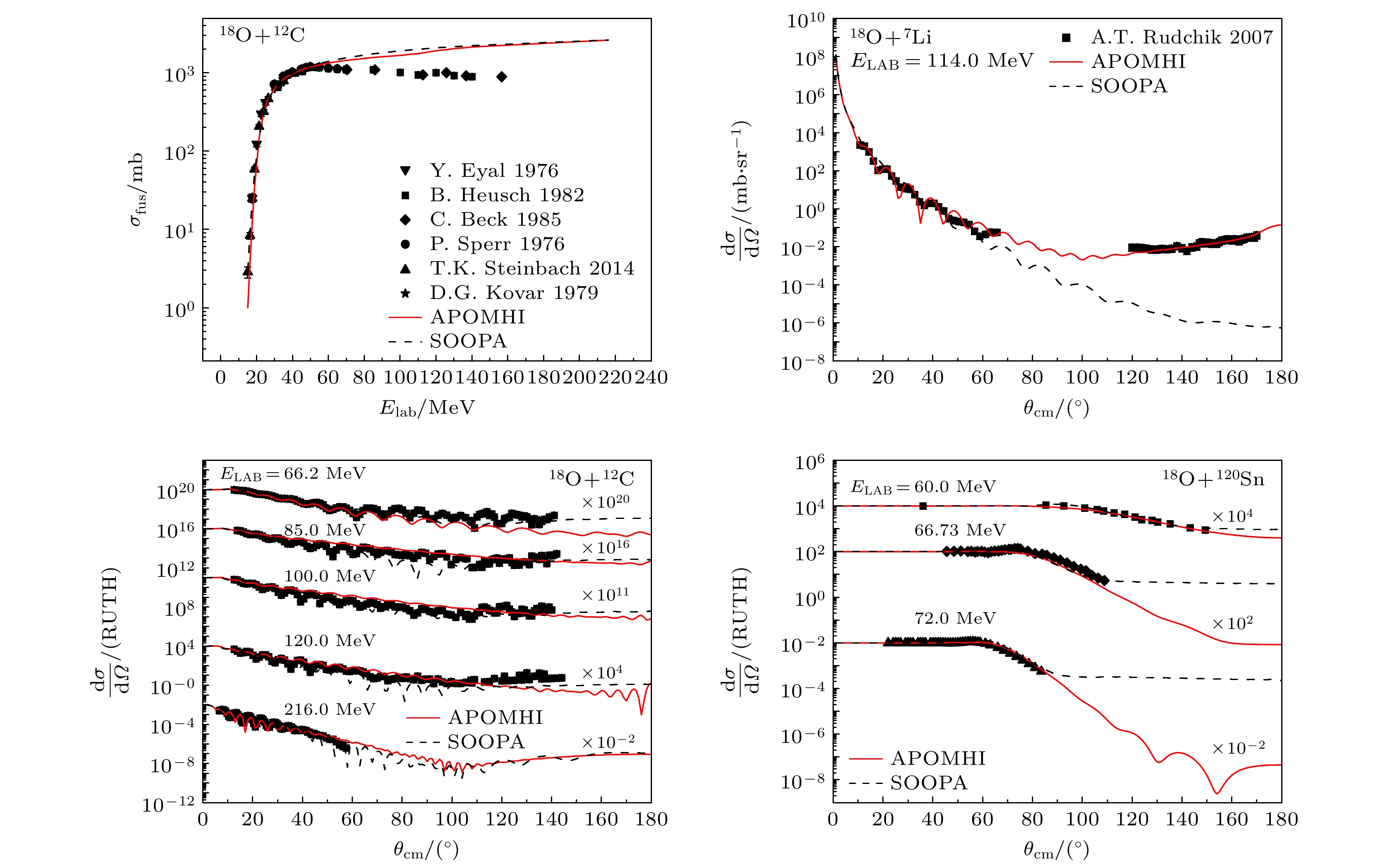

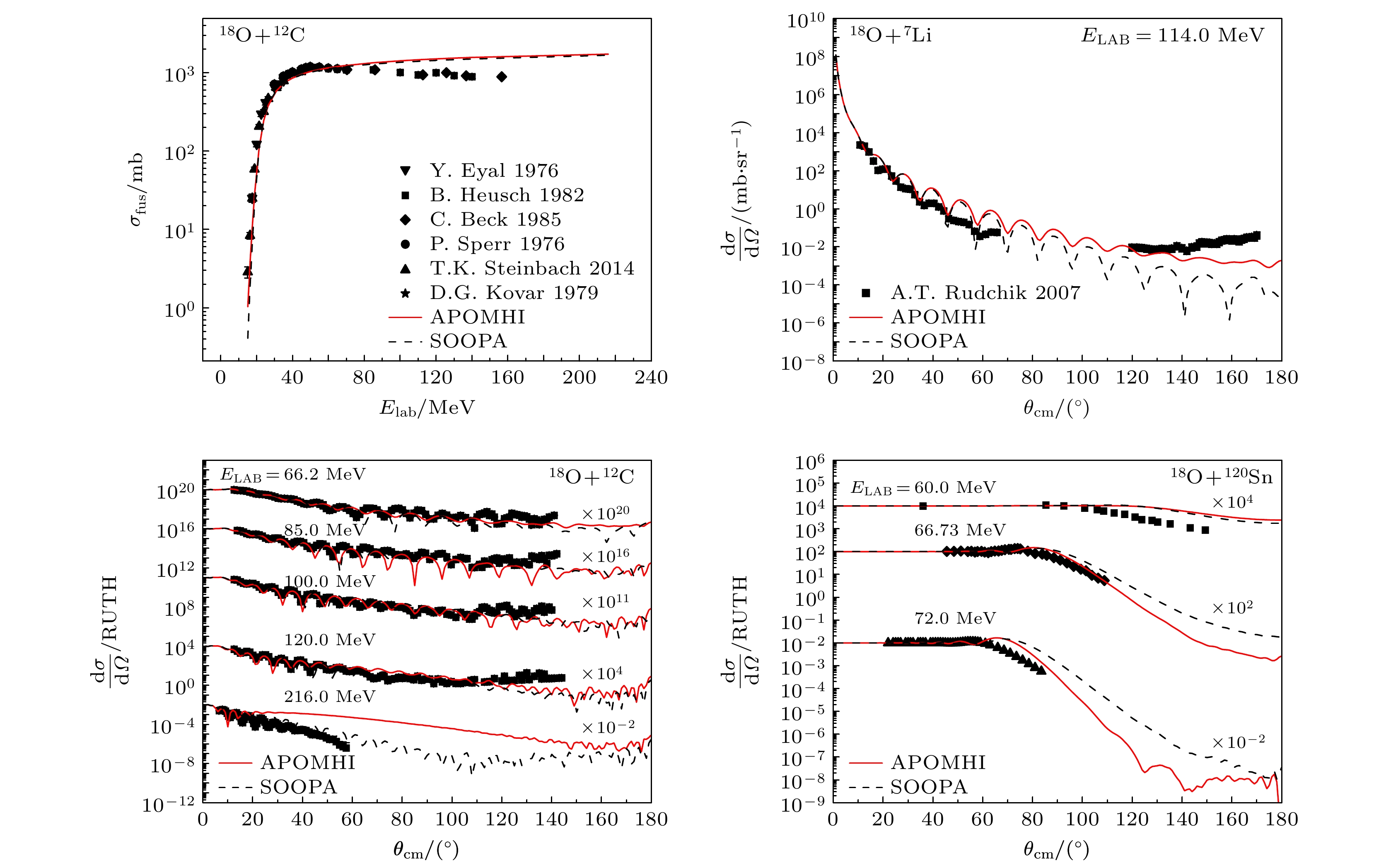

    图 8  普适光参下靶核为7Li, 12C和120Sn的熔合截面与弹性散射角分布情况(实验数据来源为: B. Heusch 1982[65], C. Beck 1985[66], D. G. Kovar 1979[67], P. Sperr 1976[68], T. K. Steinbach 2014[69], Y. Eyal 1976[70], A. T. Rudchik 2007[64])

    Fig. 8.  Fusion cross section and elastic scattering angular distribution for 7Li, 12C and 120Sn target with global optical parameters. The experimental data come from B. Heusch 1982[65], C. Beck 1985[66], D. G. Kovar 1979[67], P. Sperr 1976[68], T. K. Steinbach 2014[69], Y. Eyal 1976[70], A. T. Rudchik 2007[64].

    图 9  单核光参下靶核为7Li, 12C和120Sn的熔合截面与弹性散射角分布情况(实验数据来源为: B. Heusch 1982[65], C. Beck 1985[66], D. G. Kovar 1979[67], P. Sperr 1976[68], T. K. Steinbach 2014[69], Y. Eyal 1976[70], A. T. Rudchik 2007[64])

    Fig. 9.  Fusion cross section and elastic scattering angular distribution for 7Li, 12C and 120Sn target with single nuclear optical parameters. The experimental data come from B. Heusch 1982[65], C. Beck 1985[66], D. G. Kovar 1979[67], P. Sperr 1976[68], T.K. Steinbach 2014[69], Y. Eyal 1976[70], A. T. Rudchik 2007[64].

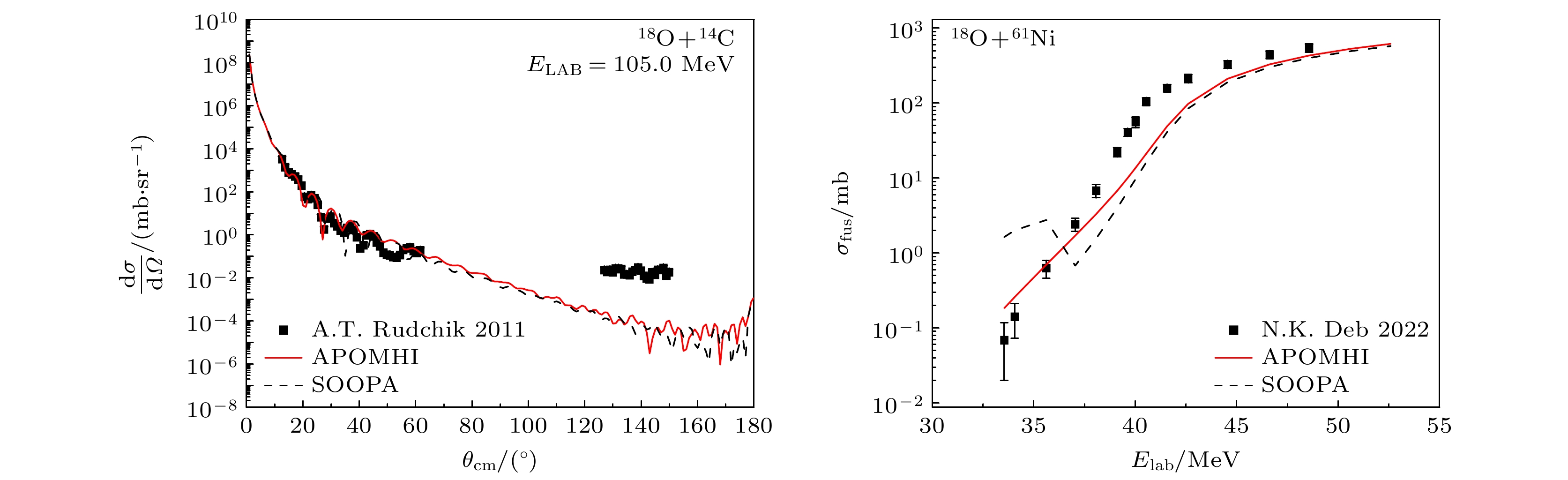

    图 10  普适光参对14C和61Ni靶核的验证(实验数据来源: A. T. Rudchik 2011[73], N. K. Deb 2022[74])

    Fig. 10.  Verification for 14C and 61Ni target with the global optical parameters. The experimental data come from A. T. Rudchik 2011[73], N. K. Deb 2022[74].

    表 1  APOMHI光学模型势参数

    Table 1.  Parameters in the APOMHI optical model.

    各部分光学势 参数 数目
    库仑势 $ {V}_{\mathrm{C}}\left(r\right) $ $ {r}_{\mathrm{C}\mathrm{A}}, {r}_{\mathrm{C}\mathrm{B}} $ 2
    中心势 $ {V}_{\mathrm{c}}\left(r\right) $ $ {r}_{\mathrm{c}\mathrm{A}} $, $ {r}_{\mathrm{c}\mathrm{B}}, {a}_{\mathrm{c}\mathrm{A}}, {a}_{\mathrm{c}\mathrm{B}0}, {a}_{\mathrm{C}\mathrm{B}1} $ 5
    面吸收虚部势 $ {W}_{\mathrm{S}}\left(r\right) $ $ {r}_{\mathrm{S}\mathrm{A}}, {r}_{\mathrm{S}\mathrm{B}}, {a}_{\mathrm{S}\mathrm{B}1}, {a}_{\mathrm{S}\mathrm{A}}, {a}_{\mathrm{S}\mathrm{B}0} $ 5
    体系收虚部势 $ {W}_{\mathrm{V}}\left(r\right) $ $ {r}_{\mathrm{V}\mathrm{A}}, {r}_{\mathrm{V}\mathrm{B}}, {a}_{\mathrm{V}\mathrm{A}}, {a}_{\mathrm{V}\mathrm{B}0}, {a}_{\mathrm{V}\mathrm{B}1} $ 5
    自旋-轨道实部势 $ {V}_{\mathrm{S}\mathrm{O}}\left(r\right) $ rRSOA, rRSOB, aRSOA,
    aRSOB0, aRSOB1,$ {\overline{V}}_{\mathrm{S}\mathrm{O}} $
    6
    自旋-轨道虚部势 $ {W}_{\mathrm{S}\mathrm{O}}\left(r\right) $ rISOA, rISOB, aISOA,
    aISOB0, aISOB1${\overline{W}}_{\mathrm{S}\mathrm{O}} $
    6
    中心势强度 $ {\overline{V}}_{\mathrm{c}} $ $ {\overline{V}}_{0}, {\overline{V}}_{1}, {\overline{V}}_{2}, {\overline{V}}_{\mathrm{B}}, {\overline{V}}_{4} $ 5
    面吸收势强度 $ {\overline{W}}_{\mathrm{S}} $ $ {\overline{W}}_{\mathrm{S}0}, {\overline{W}}_{\mathrm{S}1}, {\overline{W}}_{\mathrm{S}\mathrm{B}}, {\overline{W}}_{\mathrm{S}2} $ 4
    体系收势强度 $ {\overline{W}}_{\mathrm{V}} $ $ {\overline{W}}_{\mathrm{V}0}, {\overline{W}}_{\mathrm{V}1}, {\overline{W}}_{\mathrm{V}2} $ 3
    总计 41
    下载: 导出CSV

    表 2  SOOPA光学模型势参数

    Table 2.  Parameters in the SOOPA optical model.

    各部分光学势 参数 数目
    库仑势 $ {V}_{\mathrm{C}}\left(r\right) $ $ {r}_{\mathrm{C}} $ 1
    0级弥散宽度 $ {a}_{i0} $ $ {a}_{\mathrm{R}0}, {a}_{\mathrm{S}0}, {a}_{\mathrm{V}0}, {a}_{\mathrm{S}\mathrm{O}0} $ 4
    0级半径参数 $ {r}_{i0} $ $ {r}_{\mathrm{R}0}, {r}_{\mathrm{S}0}, {r}_{\mathrm{V}0}, {r}_{\mathrm{S}\mathrm{O}0} $ 4
    修正参数 $ \xi $ $ \xi $ 1
    1级弥散宽度 $ {W}_{\mathrm{V}}\left(r\right) $ $ {a}_{\mathrm{R}1}, {a}_{\mathrm{S}1}, {a}_{\mathrm{V}1}, {a}_{\mathrm{S}\mathrm{O}1} $ 4
    1级半径参数 $ {V}_{\mathrm{S}\mathrm{O}}\left(r\right) $ $ {r}_{\mathrm{R}1}, {r}_{\mathrm{S}1}, {r}_{\mathrm{V}1}, {r}_{\mathrm{S}\mathrm{O}1} $ 4
    中心势强度 $ {\overline{V}}_{\mathrm{c}} $ $ {\overline{V}}_{0}, {\overline{V}}_{1}, {\overline{V}}_{2}, {\overline{V}}_{3}, {\overline{V}}_{4} $ 5
    面吸收势强度 $ {\overline{W}}_{\mathrm{S}} $ $ {\overline{W}}_{\mathrm{S}0}, {\overline{W}}_{\mathrm{S}1}, {\overline{W}}_{\mathrm{S}2}, {\overline{W}}_{\mathrm{S}3} $ 4
    体系收势强度 $ {\overline{W}}_{\mathrm{V}} $ $ {\overline{W}}_{\mathrm{V}0}, {\overline{W}}_{\mathrm{V}1}, {\overline{W}}_{\mathrm{V}2}{, \stackrel{-}{W}}_{\mathrm{V}3} $ 4
    自旋-轨道实部
    势强度
    $ {\overline{V}}_{\mathrm{S}\mathrm{O}} $ VSO 1
    自旋-轨道虚部
    势强度
    $ {\overline{W}}_{\mathrm{S}\mathrm{O}} $ WSO 1
    总计 33
    下载: 导出CSV

    表 3  本文实验数据来源

    Table 3.  Experimental data used in this work

    序号靶核熔合截面弹性散射角分布
    EL/MeV文献EL/MeV文献
    19Be7.0—21.0[32]
    210B22.0—63.0[33]
    311B21.0—65.0[33]
    413C105.0[34]
    516O13.9—85.0[35,36]85.0[37]
    624Mg32.0—72.0[38]50.0[39]
    727Al28.0—72.0[40,41]
    828Si34.0—72.0[40]
    944Ca27.0—60.0[42]
    1058Ni35.0—64.0[43,44]35.1, 36.0, 37.1, 38.0, 46.0, 63.0[4547]
    1160Ni40.0—63.0[44]34.5, 35.5, 37.1, 38.0, 63.0[45,47]
    1264Ni38.5—64.0[44]
    1363Cu40.0—65.0[48]
    1465Cu40.0—65.0[48]
    1564Zn49.0[49]
    1674Ge37.0—61.0[50]
    1790Zr90.0[51]
    1892Mo50.0—65.0[52]
    19112Sn60.0[53]
    20116Sn67.0[54]
    21148Nd61.8—77.0[55]
    22150Sm65.0—125.0[56,57]
    23174Yb83.0[58]
    24188Os80.0—140.0[59]
    25192Os79.0—124.0[56,57]
    26194Pt77.6—106.0[60]
    27197Au77.6—102.0[61,62]
    28208Pb75.0—102.0[63]
    297Li114[64]
    3012C15.0—216[6570]66.2, 85.0, 100.0, 120.0, 216.0[71,72]
    31120Sn60.0, 66.7, 72.0[47,53,54]
    3214C105.0[73]
    3361Ni33.5—52.6[74]
    下载: 导出CSV

    表 4  18O作为弹核系列核反应APOMHI模型下普适光学势最佳参数

    Table 4.  The APOMHI optimal OMP parameters for 18O projectiles incidence on different target nuclei.

    序号参数数值序号参数数值
    1$ {\overline{V}}_{0} $451.0000000022$ {a}_{\mathrm{R}\mathrm{S}\mathrm{O}\mathrm{B}0} $0.06584537
    2$ {\overline{V}}_{1} $15.3000000023$ {a}_{\mathrm{I}\mathrm{S}\mathrm{O}\mathrm{A}} $0.48015487
    3$ {\overline{V}}_{2} $0.4800000024$ {a}_{\mathrm{I}\mathrm{S}\mathrm{O}\mathrm{B}0} $0.01976280
    4$ {\overline{V}}_{\mathrm{B}} $0.0000000025$ {r}_{\mathrm{c}\mathrm{A}} $1.03999996
    5$ {\overline{V}}_{4} $18.7319297826$ {r}_{\mathrm{c}\mathrm{B}} $1.04000000
    6$ {\overline{W}}_{\mathrm{S}0} $30.0000000027$ {r}_{\mathrm{S}\mathrm{A}} $1.84839511
    7$ {\overline{W}}_{\mathrm{S}1} $–0.9900000028$ {r}_{\mathrm{S}\mathrm{B}} $1.46500000
    8$ {\overline{W}}_{\mathrm{S}\mathrm{B}} $0.0000000029$ {r}_{\mathrm{V}\mathrm{A}} $1.93000000
    9$ {\overline{W}}_{\mathrm{S}2} $0.0000000030$ {r}_{\mathrm{V}\mathrm{B}} $1.47000000
    10$ {\overline{W}}_{\mathrm{V}0} $10.0000000031$ {r}_{\mathrm{R}\mathrm{S}\mathrm{O}\mathrm{A}} $1.04999995
    11$ {\overline{W}}_{\mathrm{V}1} $13.0000000032$ {r}_{\mathrm{R}\mathrm{S}\mathrm{O}\mathrm{B}} $1.55366528
    12$ {\overline{W}}_{\mathrm{V}2} $–0.0120000033$ {r}_{\mathrm{I}\mathrm{S}\mathrm{O}\mathrm{A}} $1.05001342
    13$ {\overline{V}}_{\mathrm{S}\mathrm{O}} $80.0000000034$ {r}_{\mathrm{I}\mathrm{S}\mathrm{O}\mathrm{B}} $1.75388050
    14$ {\overline{W}}_{\mathrm{S}\mathrm{O}} $25.0000000035$ {r}_{\mathrm{C}\mathrm{A}} $1.25000000
    15$ {a}_{\mathrm{c}\mathrm{A}} $0.8500000036$ {r}_{\mathrm{C}\mathrm{B}} $1.25000000
    16$ {a}_{\mathrm{c}\mathrm{B}0} $0.0822956637$ {a}_{\mathrm{c}\mathrm{B}1} $0.24493097
    17$ {a}_{\mathrm{S}\mathrm{A}} $0.3510782138$ {a}_{\mathrm{S}\mathrm{B}1} $0.35000000
    18$ {a}_{\mathrm{S}\mathrm{B}0} $0.3477544839$ {a}_{\mathrm{V}\mathrm{B}1} $0.09000000
    19$ {a}_{\mathrm{V}\mathrm{A}} $0.3962688140$ {a}_{\mathrm{R}\mathrm{S}\mathrm{O}\mathrm{B}1} $0.11783799
    20$ {a}_{\mathrm{V}\mathrm{B}0} $0.3833678141$ {a}_{\mathrm{I}\mathrm{S}\mathrm{O}\mathrm{B}1} $0.07000000
    21$ {a}_{\mathrm{R}\mathrm{S}\mathrm{O}\mathrm{A}} $0.79141617
    下载: 导出CSV

    表 5  18O作为弹核系列核反应SOOPA模型下普适光学势最佳参数

    Table 5.  The SOOPA optimal OMP parameters for 18O projectiles incidence on different target nuclei.

    序号参数数值序号参数数值
    1$ {\overline{V}}_{0} $1300.0000000018$ {a}_{\mathrm{V}0} $0.64614904
    2$ {\overline{V}}_{1} $9.3295412119$ {a}_{\mathrm{S}\mathrm{O}0} $0.55000001
    3$ {\overline{V}}_{2} $–0.0331055720$ {r}_{\mathrm{R}0} $1.20000005
    4$ {\overline{V}}_{3} $–45.0000000021$ {r}_{\mathrm{S}0} $1.24034297
    5$ {\overline{V}}_{4} $34.9734268222$ {r}_{\mathrm{V}0} $1.20000005
    6$ {\overline{W}}_{\mathrm{S}0} $27.7965812723$ {r}_{\mathrm{S}\mathrm{O}0} $1.25000000
    7$ {\overline{W}}_{\mathrm{S}1} $–0.8797226024$ {r}_{\mathrm{C}} $1.25000000
    8$ {\overline{W}}_{\mathrm{S}2} $1.8755728025$ \xi $0.11376333
    9$ {\overline{W}}_{\mathrm{S}3} $1.0761344426$ {a}_{\mathrm{R}1} $0.02999442
    10$ {\overline{W}}_{\mathrm{V}0} $65.9998703027$ {a}_{\mathrm{S}1} $0.02947382
    11$ {\overline{W}}_{\mathrm{V}1} $5.4015379028$ {a}_{\mathrm{V}1} $–0.03926823
    12$ {\overline{W}}_{\mathrm{V}2} $0.0888160029$ {a}_{\mathrm{S}\mathrm{O}1} $0.00000000
    13$ {\overline{W}}_{\mathrm{V}3} $–5.0999999030$ {r}_{\mathrm{R}1} $–0.00313194
    14$ {\overline{V}}_{\mathrm{S}\mathrm{O}0} $10.0000000031$ {r}_{\mathrm{S}1} $0.18612149
    15$ {\overline{W}}_{\mathrm{S}\mathrm{O}0} $1.0000000032$ {r}_{\mathrm{V}1} $0.01397228
    16$ {a}_{\mathrm{R}0} $0.5215224633$ {r}_{\mathrm{S}\mathrm{O}1} $0.00000000
    17$ {a}_{\mathrm{S}0} $0.34999999
    下载: 导出CSV

    表 6  APOMHI与SOOPA两种模型下理论与实验偏差比较

    Table 6.  Deviation of theoretical results and experimental data with APOMHI and SOOPA model respectively.

    靶核APOMISPOOA
    $ \chi _{\text{f}}^2 $$ \chi _{\text{e}}^{2} $$ {\chi ^2} $$ \chi _{\text{f}}^{2} $$ \chi _{\text{e}}^{2} $$ {\chi ^2} $
    9Be1.391.392.332.33
    10B2.172.172.892.89
    11B4.024.024.514.51
    13C286.27286.27467.75467.75
    16O21.00162.4491.7232.16147.7489.95
    24Mg3.119.746.430.3897.8249.10
    27Al17.6017.6016.5216.52
    28Si15.4315.437.727.72
    44Ca12.0512.056.106.10
    58Ni88.30646.73367.5197.932046.431072.18
    60Ni21.251404.33712.7935.383194.351614.86
    64Ni43.2843.2842.0142.01
    63Cu5.065.064.424.42
    65Cu3.903.905.245.24
    64Zn120.98120.98579.60579.60
    74Ge2165.572165.572468.202468.20
    90Zr498.31498.3169.4869.48
    92Mo10.4510.458.458.45
    112Sn74.1174.1188.7988.79
    116Sn403.03403.031026.081026.08
    148Nd42.0742.0721.8521.85
    150Sm9.209.205.315.31
    174Yb12.5712.579.349.34
    188Os80.4980.491422.21422.20
    192Os13.5713.573.843.84
    194Pt26.6526.6530.6630.66
    197Au32.4532.4515.8515.85
    208Pb33.2933.2914.7714.77
    总(以上多核综合)120.56361.85181.87193.12772.73326.79
    7Li166.49166.4985.9585.95
    12C42.2332018.8816030.5542.546563.203302.87
    120Sn229.43229.43354.57354.57
    14C21.3521.3530.1430.14
    61Ni14.0814.08137.80137.80
    下载: 导出CSV

    表 7  7Li, 12C和120Sn靶核单独调参的$ {\chi ^2} $结果

    Table 7.  The $ {\chi ^2} $ results for 7Li, 12C and 120Sn with individual parameter.

    靶核 APOMHI(单核) SOOPA(单核)
    $ \chi _{\text{f}}^{2} $ $ \chi _{\text{e}}^{2} $ $ {\chi ^2} $ $ \chi _{\text{f}}^{2} $ $ \chi _{\text{e}}^{2} $ $ {\chi ^2} $
    7Li 9.91 9.91 5.86 5.86
    12C 84.23 1437.90 761.07 109.70 2501.96 1305.83
    120Sn 24.84 24.84 15.87 15.87
    下载: 导出CSV
