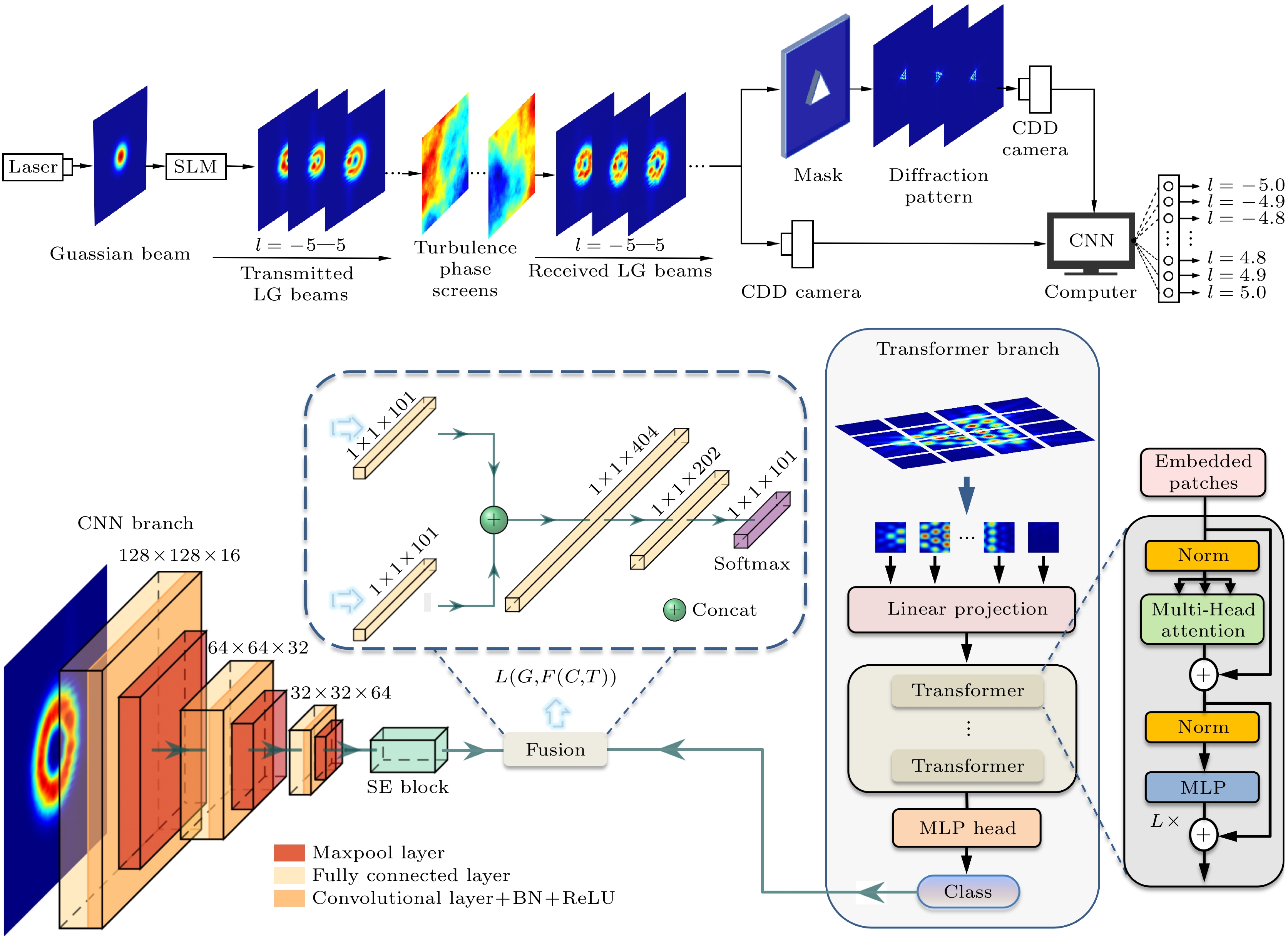

利用分数阶涡旋光束(fractional vortex beams, FVBs)作为信息载体可显著提高通信系统容量, 但由于相邻分数阶轨道角动量(fractional orbital angular momentum, FOAM)模态之间的间隔差异较小, 使得FVBs极易受到大气湍流影响, 因此精确地测量失真的FOAM模态对实际基于FVBs的通信系统而言至关重要. 本文提出了一种基于卷积神经网络-Transformer混合架构的双通道深度学习模型, 通过学习并融合FVBs光强分布与其衍射图样的互补特征信息, 实现对大气湍流环境下FOAM模态的有效识别. 结果表明, 在1000 m传输距离之内, 本文构建模型在弱、中湍流强度下识别101个FOAM模态的准确率可达100%, 强湍流时也能达到98.12%, 并且在未知湍流强度下也表现出良好的泛化能力, 为准确识别FOAM模态提供了一种新方法.Utilizing fractional vortex beams (FVBs) as information carriers can significantly enhance the capacity of communication systems. However, the small gap difference between adjacent fractional orbital angular momentum (FOAM) modes makes FVBs highly sensitive to atmospheric turbulence. Therefore, precise measurement of distorted FOAM modes is crucial for practical FVBs-based communication systems. To fully utilize the beam intensity information and the triangular diffraction pattern information, we propose a dual-channel deep learning model with a hybrid architecture combining convolutional neural network (CNN) and vision transformer (ViT). The beam intensity information is extracted using the CNN, while the diffraction pattern information is extracted using the ViT. Then, by combining the complementary feature information from the intensity distribution of FVBs and their triangular diffraction patterns, this model can effectively identify the FOAM modes. The results show that the proposed model only requires a relatively small number of samples to reach convergence, namely 100 sets of data under weak turbulence and 400 sets of data under strong turbulence. Moreover, within a transmission distance of 1000 m, the proposed model can identify 101 FOAM modes with a mode spacing of 0.1 with an accuracy of 100% under weak and moderate turbulences, and maintains 98.12% accuracy under strong turbulence. Furthermore, the model can expand the detection range of turbulence intensity with only a minimal loss in accuracy, exhibiting strong generalization ability under unknown atmospheric turbulence strengths, thus providing a novel approach for accurately identifying FOAM modes.
-
Keywords:
- fractional orbital angular momentum /
- deep learning /
- triangular diffraction /
- atmospheric turbulence
-

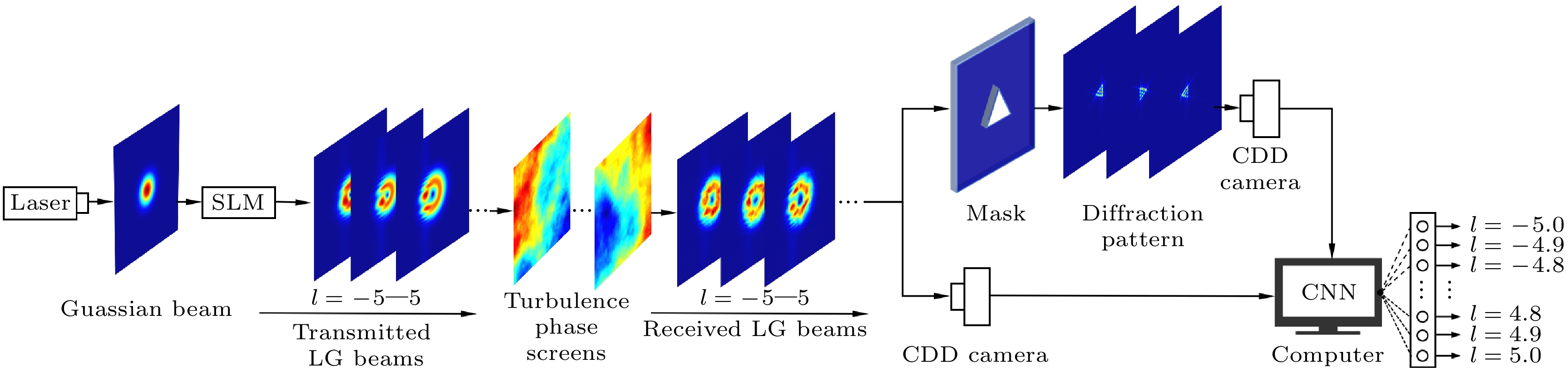

图 1 大气湍流环境下FOAM模态的传输与检测系统架构
Fig. 1. Architecture of propagation and detection system for FOAM modes in atmospheric turbulence.

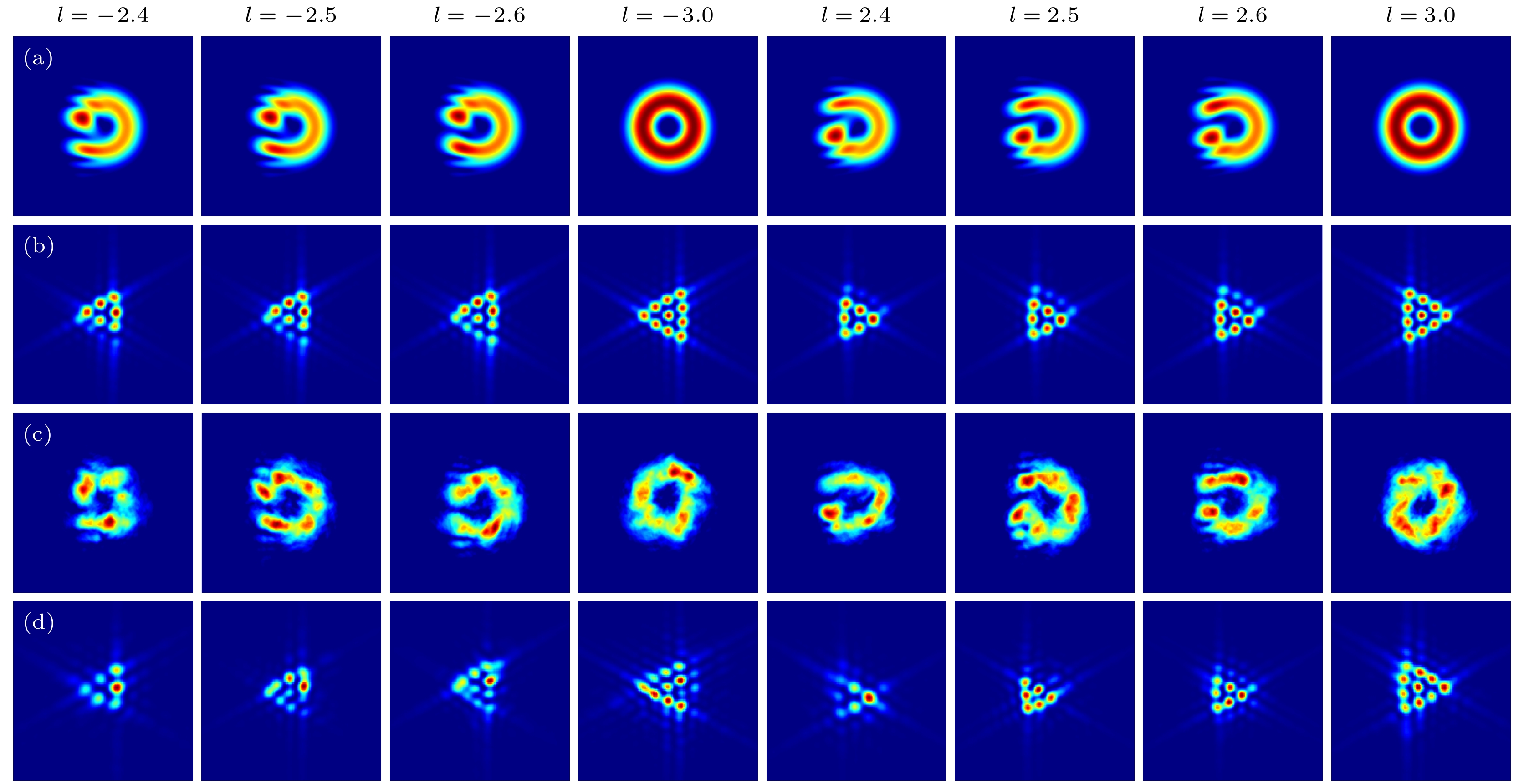

图 2 无湍流时FLG光束的(a)光强分布和(b)对应的衍射图样, 以及强湍流时FLG光束的(c)光强分布和(d)对应的衍射图样
Fig. 2. (a) Intensity distribution and (b) its corresponding diffraction pattern of FLG in the absence of turbulence, as well as (c) intensity distribution and (d) its corresponding diffraction pattern of FLG in strong turbulence

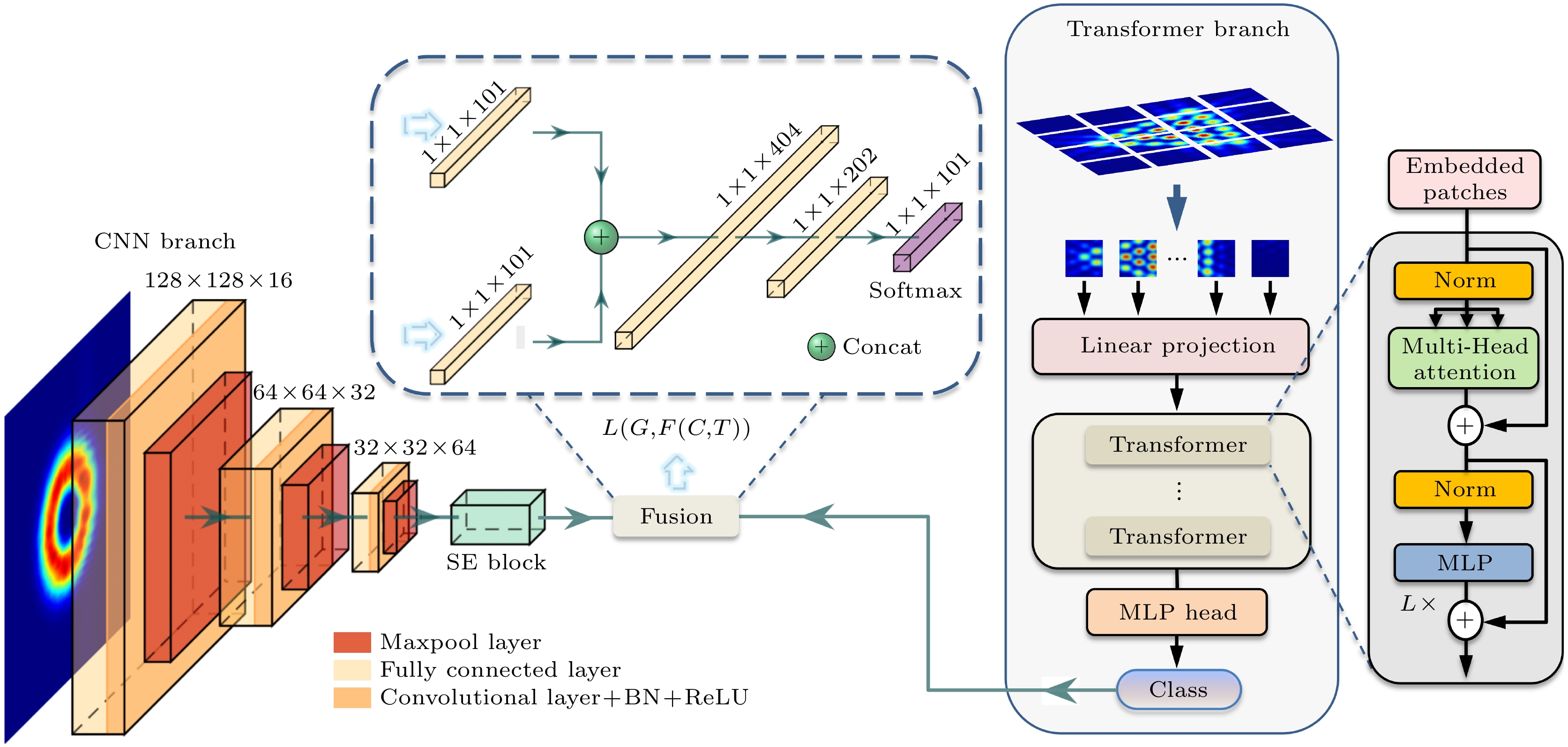

图 3 双通道CNN-Transformer模型结构示意图
Fig. 3. Schematic diagram of the dual channel CNN-Transformer network structure.

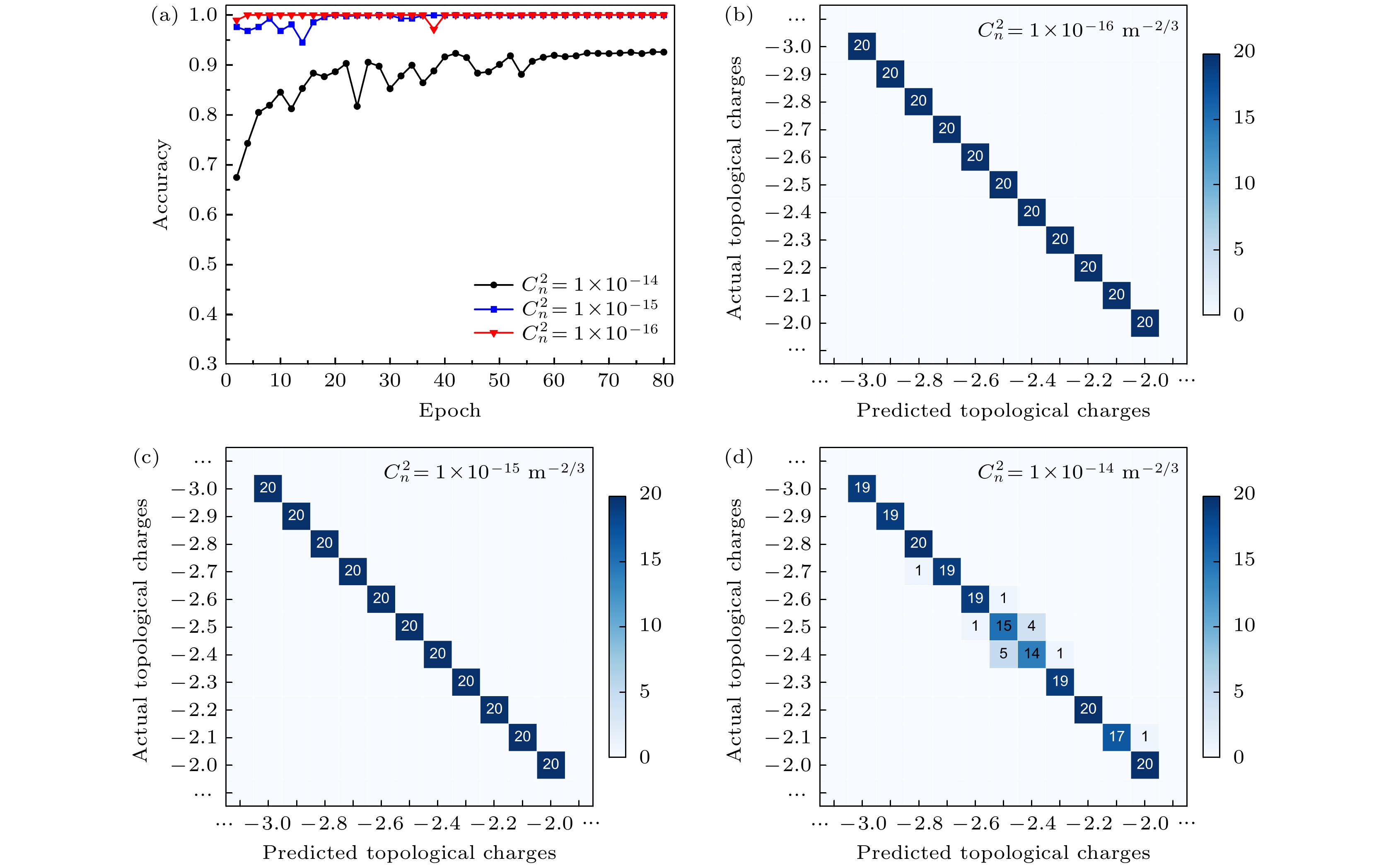

图 4 (a)不同湍流情况下的识别准确率以及(b)弱、(c)中、(d)强湍流时的混淆矩阵
Fig. 4. (a) Recognition accuracy of the DC-CNN-T model under different turbulence conditions, and confusion matrices for (b) weak, (c) moderate, and (d) strong turbulences.

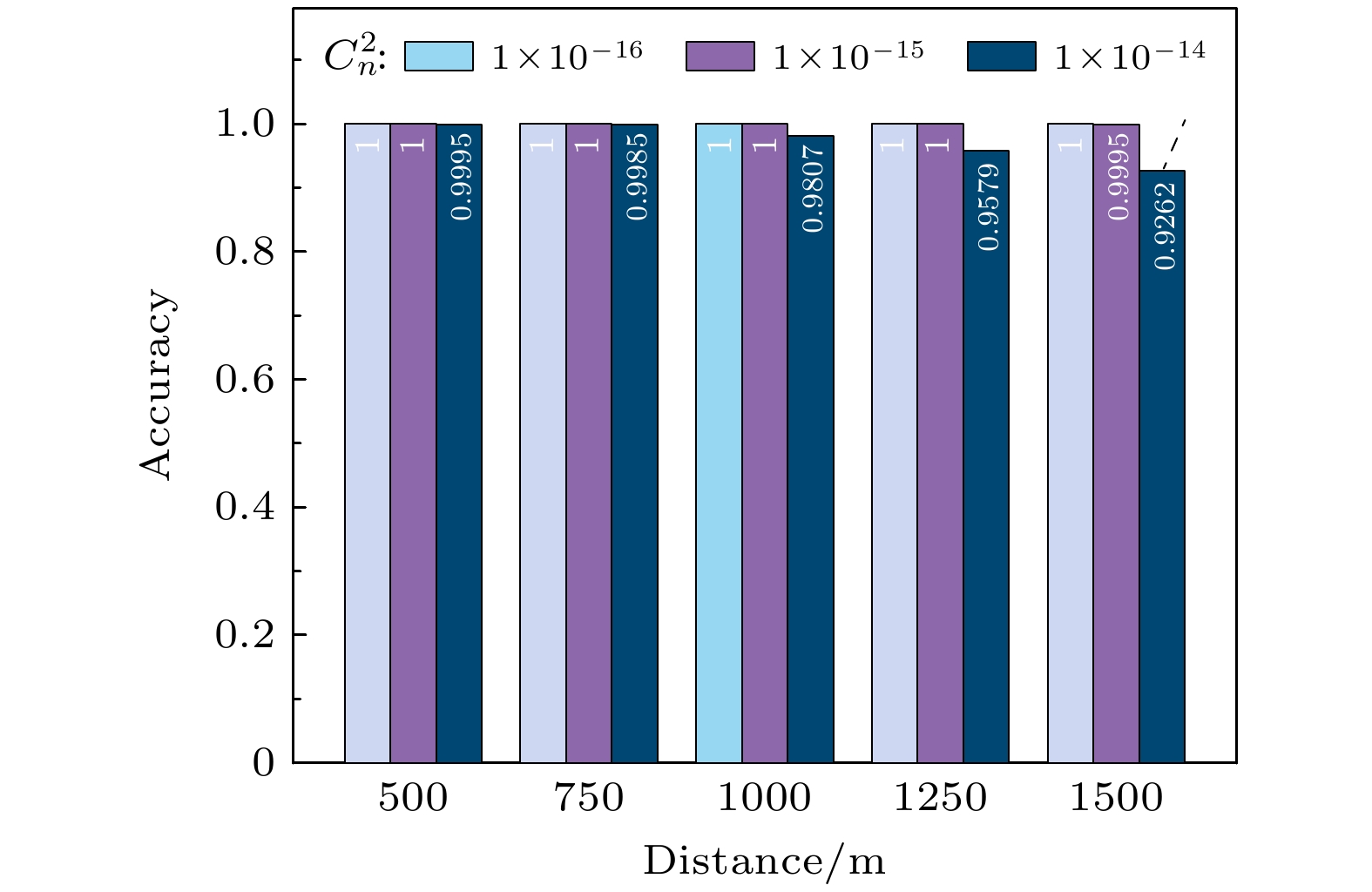

图 5 不同传输距离和湍流强度下的识别准确率
Fig. 5. Recognition accuracy for different transmission distances and turbulence intensities.

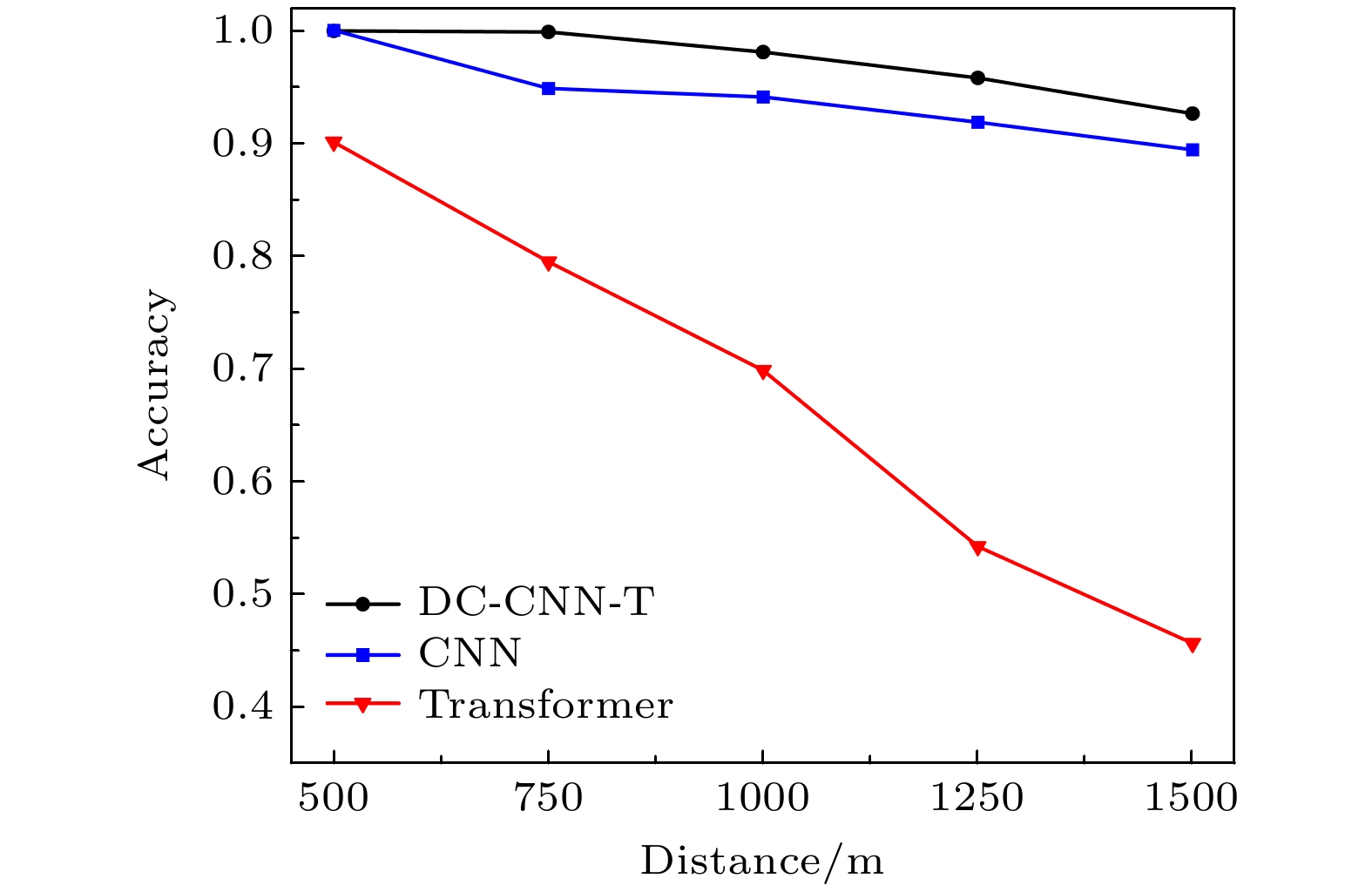

图 6 不同模型在不同传输距离下的识别准确率
Fig. 6. Recognition accuracy of DC-CNN-T, CNN and Transformer models under different transmission distances.

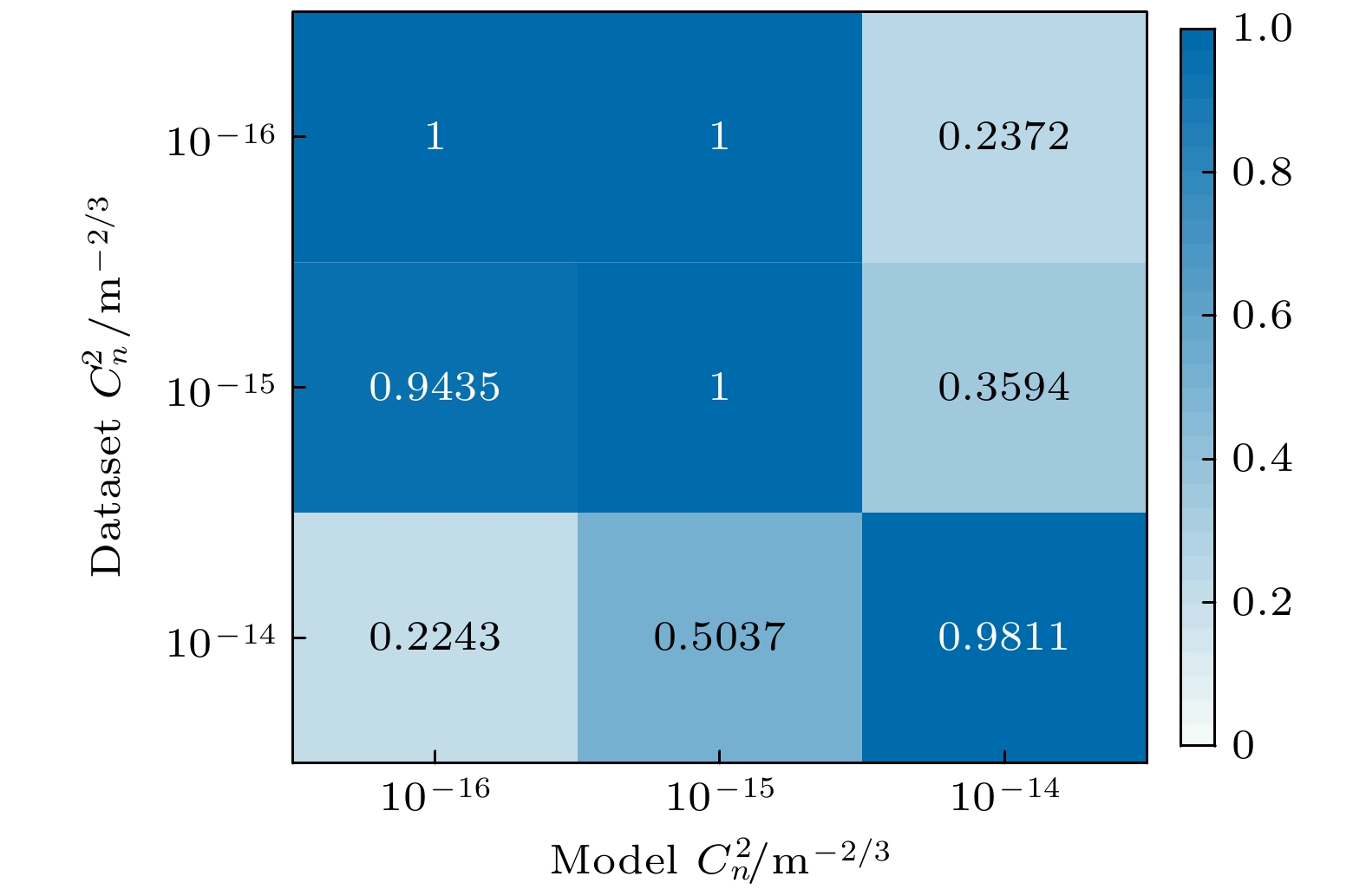

图 7 不同训练集下DC-CNN-T模型在各种大气湍流强度下的交叉测试结果
Fig. 7. Cross-test results of the DC-CNN-T model under different training sets and various atmospheric turbulence intensities.

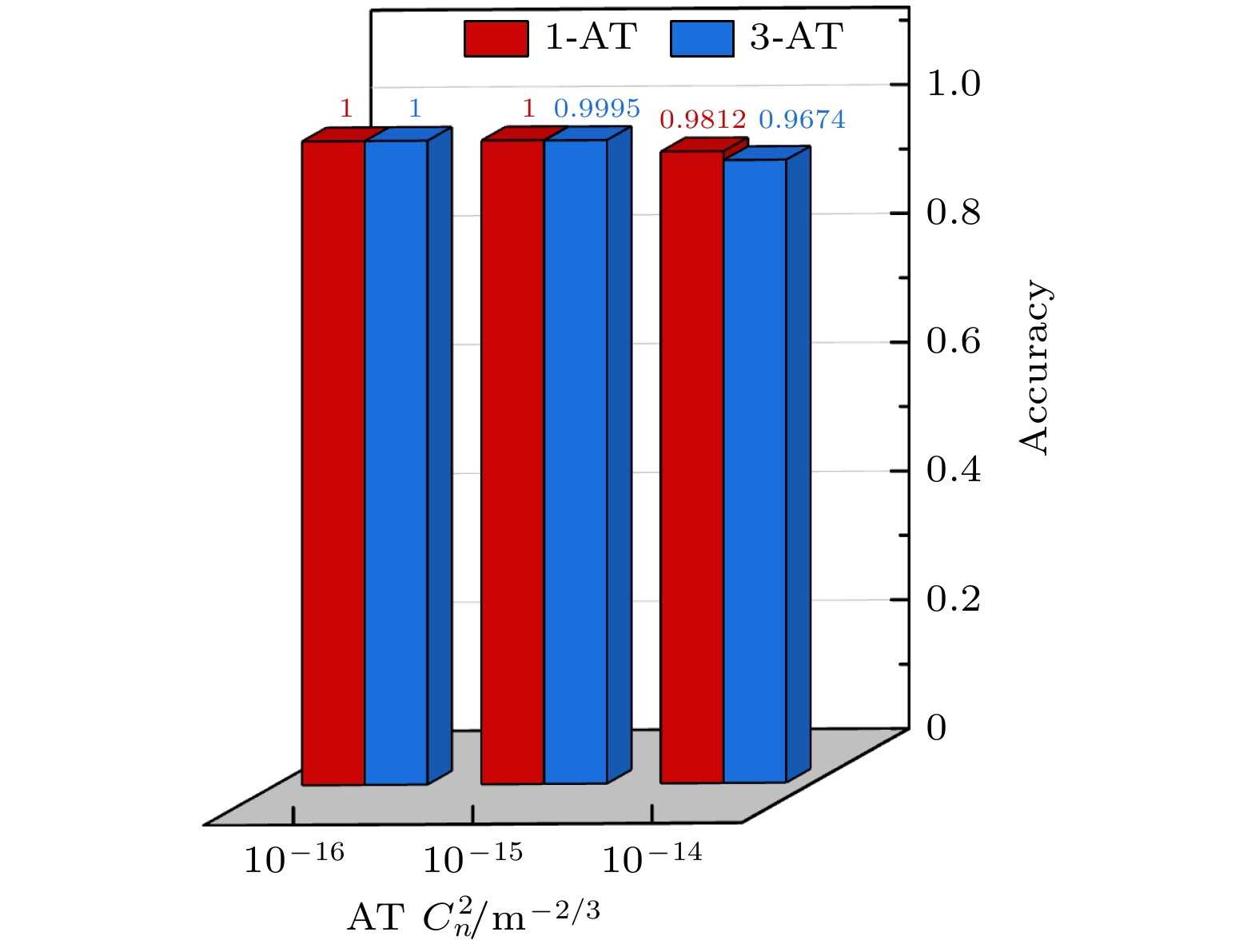

图 8 在1-AT和3-AT数据集下训练的 DC-CNN-T 模型的识别准确率
Fig. 8. Recognition accuracy of the DC-CNN-T model trained on the 1-AT and 3-AT datasets.
-
