Real-time locking of 1550 nm single-photon linear polarization state

YU Bo; YIN Zhenqiang; DING Weijie; ZHAI Rongrong; ZHANG Hong

doi:10.7498/aps.74.20251055

Abstract

The key security of quantum key distribution (QKD) is guaranteed by the basic principle of quantum mechanics, which makes it possible to combine information theory security communication with one-time encryption. The key is usually encoded on the polarization dimension or phase dimension of a single-photon. It is considered that the birefringence effect of single-mode fiber leads to a random variation of polarization state, which would induce the bit error rate. So it is of great significance to keep the single-photon linear polarization state stable for both polarization encoding QKD system and phase encoding QKD system. By using the single-photon polarization modulation technology, the single-photon linear polarization state periodically varies with the external modulation signal. The flicker noise is suppressed effectively, and the signal-to-noise ratio (SNR) of single-photon counting is increased as indicated by the phase-sensitive detection with a lock-in amplifier (LIA). The error signal is generated by demodulating the modulated single photons and it is used to lock an arbitrary 1550 nm single-photon linear polarization state to the optical axis of in-line polarizer (ILP). The modulation frequency reaches up to 5 kHz, which can eliminate the influence of low frequency flicker noise. The LIA demodulates the single-photon pulses by using 78.1 Hz filter bandwidth, with a time constant of 1 ms and a filter slope of 24 dB. The SNR of error signal is 20. The zero-crossing point of error signal represents the single photon’s linear polarization state aligned to the optical axis of ILP. The linear slope around the zero-crossing point for the polarization state angle versus the error signal amplitude is 1.267 rad/V. When the negative feedback loop does not work, the polarization drift of single-photon pulses is 0.082 rad due to the random environmental noise. However, by using the single-photon polarization modulation technology, the polarization drift of stable single-photon pulses is limited to 0.0011 rad within 2000 s through the precise control with a polarization rotator, and the corresponding Allan deviation reaches the minimal value of 6.7×10^–5 at an integration time of 128 ms. The advantages for the single-photon polarization modulation technology are as follows: i) the linear polarization state drift is compensated in real-time at the single-photon level; ii) single frequency polarization modulation can be extended to multiple frequency polarization modulation in order to achieve simultaneous locking of multiple linear polarization states of single-photon pulses; iii) these 1550 nm single-photon pulses with the 0.0011 rad linear polarization state stability can be directly used as the single-photon source in either polarization encoding or phase encoding QKD system.

Keywords:

Authors and contacts

1.
Department of Physics, Xinzhou Normal University, Xinzhou 034000, China
2.
CAS Key Laboratory of Quantum Information, University of Science and Technology of China, Hefei 230026, China
3.
CAS Center for Excellence in Quantum Information and Quantum Physics, University of Science and Technology of China, Hefei 230026, China
4.
Hefei National Laboratory, University of Science and Technology of China, Hefei 230088, China
5.
Anhui Province Key Laboratory of Quantum Network, University of Science and Technology of China, Hefei 230026, China

Corresponding author: YU Bo, yb@xztu.edu.cn

Funds: Project supported by the Fundamental Research Program of Shanxi Province, China (Grant No. 202403021211084) and the Science & Technology Program of Xinzhou City, China (Grant No. 20240509).

FullText HTML

References

[1]	Xu F H, Ma X F, Zhang Q, Lo H K, Pan J W 2020 Rev. Mod. Phys. 92 025002 Google Scholar
[2]	Portmann C, Renner R 2022 Rev. Mod. Phys. 94 025008 Google Scholar
[3]	Li Y, Li Y H, Xie H B, Li Z P, Jiang X, Cai W Q, Ren J G, Yin J, Liao S K, Peng C Z 2019 Opt. Lett. 44 5262 Google Scholar
[4]	Stein A, Grande I H L, Castelvero L, Pruneri V 2023 Opt. Express 31 13700 Google Scholar
[5]	Wang Z X, Xu H X, Li J, Yu H C, Huang J Q, Han H, Wang C L, Zhang P, Yin F F, Xu K, Liu B, Dai Y T 2025 EPJ Quantum Technol. 12 47 Google Scholar
[6]	Tang Z Y, Liao Z F, Xu F H, Qi B, Qian L, Lo H K 2014 Phys. Rev. Lett. 112 190503 Google Scholar
[7]	Yin J, Li Y H, Liao S K, Yang M, Cao Y, Zhang L, Ren J G, Cai W Q, Liu W Y, Li S L, Shu R, Huang Y M, Deng L, Li L, Zhang Q, Liu N L, Chen Y A, Lu C Y, Wang X B, Xu F H, Wang J Y, Peng C Z, Ekert Artur K, Pan J W 2020 Nature 582 501 Google Scholar
[8]	Chen Y A, Zhang Q, Chen T Y, Cai W Q, Liao S K, Zhang J, Chen K, Yin J, Ren J G, Chen Z, Han S L, Yu Q, Liang K, Zhou F, Yuan X, Zhao M S, Wang T Y, Jiang X, Zhang L, Liu W Y, Li Y, Shen Q, Cao Y, Lu C Y, Shu R, Wang J Y, Li L, Liu N L, Xu F H, Wang X B, Peng C Z, Pan J W 2021 Nature 589 214 Google Scholar
[9]	Tang Y L, Yin H L, Zhao Q, Liu H, Sun X X, Huang M Q, Zhang W J, Chen S J, Zhang L, You L X, Wang Z, Liu Y, Lu C Y, Jiang X, Ma X F, Zhang Q, Chen T Y, Pan J W 2016 Phys. Rev. X 6 011024
[10]	Liu Y, Zhang W J, Jiang C, Chen J P, Zhang C, Pan W X, Ma D, Dong H, Xiong J M, Zhang C J, Li H, Wang R C, Wu J, Chen T Y, You L, Wang X B, Zhang Q, Pan J W 2023 Phys. Rev. Lett. 130 210801 Google Scholar
[11]	Zhu H T, Huang Y Z, Pan W X, Zhou C W, Tang J J, He H, Cheng M, Jin X D, Zou M, Tang S B, Ma X F, Chen T Y, Pan J W 2024 Optica 11 883 Google Scholar
[12]	Mamdoohi G, Abas A F, Samsudin K 2012 Eng. Appl. Artif. Intell. 25 869 Google Scholar
[13]	刘令令, 景明勇, 于波, 胡建勇, 肖连团, 贾锁堂 2015 激光与光电子学进展 52 072701 Google Scholar Liu L L, Jing M Y, Yu B, Hu J Y, Xiao L T, Jia S T 2015 Laser Optoelectron. Prog. 52 072701 Google Scholar
[14]	Xi L X, Zhang X G, Tian F, Tang X F, Weng X, Zhang G Y, Li X X, Xiong Q J 2010 IEEE Photon. J. 2 195 Google Scholar
[15]	Asgari H, Khodabandeh M, Hajibaba S, Dadahkhani A H, Madani S A 2025 Indian J. Phys. 99 1471 Google Scholar
[16]	唐鹏毅, 李国春, 高松, 余刚, 代云启, 相耀, 李东东, 张英华, 吴冰, 赵子岩, 高德荃, 刘建宏, 王坚 2018 光学学报 38 0106005 Google Scholar Tang P Y, Li G C, Gao S, Yu G, Dai Y Q, Xiang Y, Li D D, Zhang Y H, Wu B, Zhao Z Y, Gao D Q, Liu J H, Wang J 2018 Acta Opt. Sin. 38 0106005 Google Scholar
[17]	李鹏程, 刘琨, 江俊峰, 潘亮, 马鹏飞, 李志辰, 张炤, 李鑫, 刘铁根 2018 中国激光 45 0510002 Google Scholar Li P C, Liu K, Jiang J F, Pan L, Ma P F, Li Z C, Zhang S, Li X, Liu T G 2018 Chin. J. Lasers 45 0510002 Google Scholar
[18]	马兵斌, 柯熙政, 张颖 2019 中国激光 46 0106002 Google Scholar Ma B B, Ke X Z, Zhang Y 2019 Chin. J. Lasers 46 0106002 Google Scholar
[19]	夏骞, 张涛, 刘金璐, 杨杰, 何远杭, 黄伟, 李大双, 徐兵杰 2020 光学学报 40 1526001 Google Scholar Xia Q, Zhang T, Liu J, Yang J, He Y H, Huang W, Li D S, Xu B J 2020 Acta Opt. Sin. 40 1526001 Google Scholar
[20]	Huang T, Dong S L, Guo X J, Xiao L T, Jia S T 2006 Appl. Phys. Lett. 89 061102 Google Scholar
[21]	王晶晶, 何博, 于波, 刘岩, 王晓波, 肖连团, 贾锁堂 2012 物理学报 61 204203 Google Scholar Wang J J, He B, Yu B, Liu Y, Wang X B, Xiao L T, Jia S T 2012 Acta Phys. Sin. 61 204203 Google Scholar
[22]	Lounis B, Orrit M 2005 Rep. Prog. Phys. 68 1129 Google Scholar

Cited By

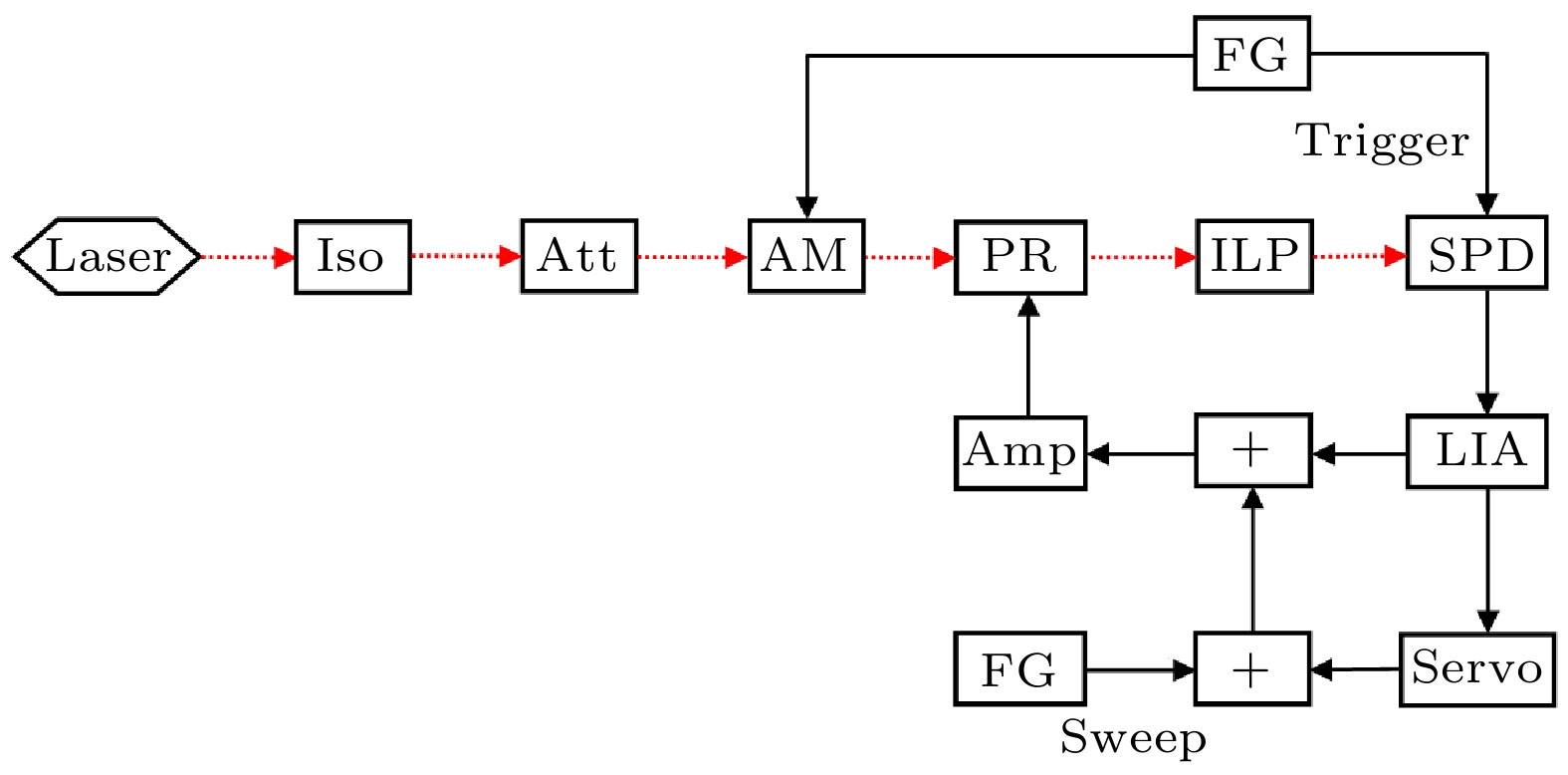

图 1 实时锁定1550 nm单光子线偏振态的实验装置(红色虚线代表光信号, 黑色实线代表电信号), 其中Iso为隔离开关; Att为衰减器; AM为强度调制器; PR为偏振旋转器; ILP为同轴检偏器; SPD为单光子探测器; FG为函数发生器; LIA为锁相放大器; Amp为放大器

Figure 1. Experimental setup of real-time locking the 1550 nm single-photon linear polarization state (red dashed lines for the light signal, black solid lines for the electrical signal), where Iso represents isolator; Att represents attenuator; AM represents amplitude modulator; PR represents polarization rotator; ILP represents in-line polarizer; SPD represents single-photon detector; FG represents function generator; LIA represents lock-in amplifier; Amp represents amplifier.

DownLoad: Full-Size Img PowerPoint

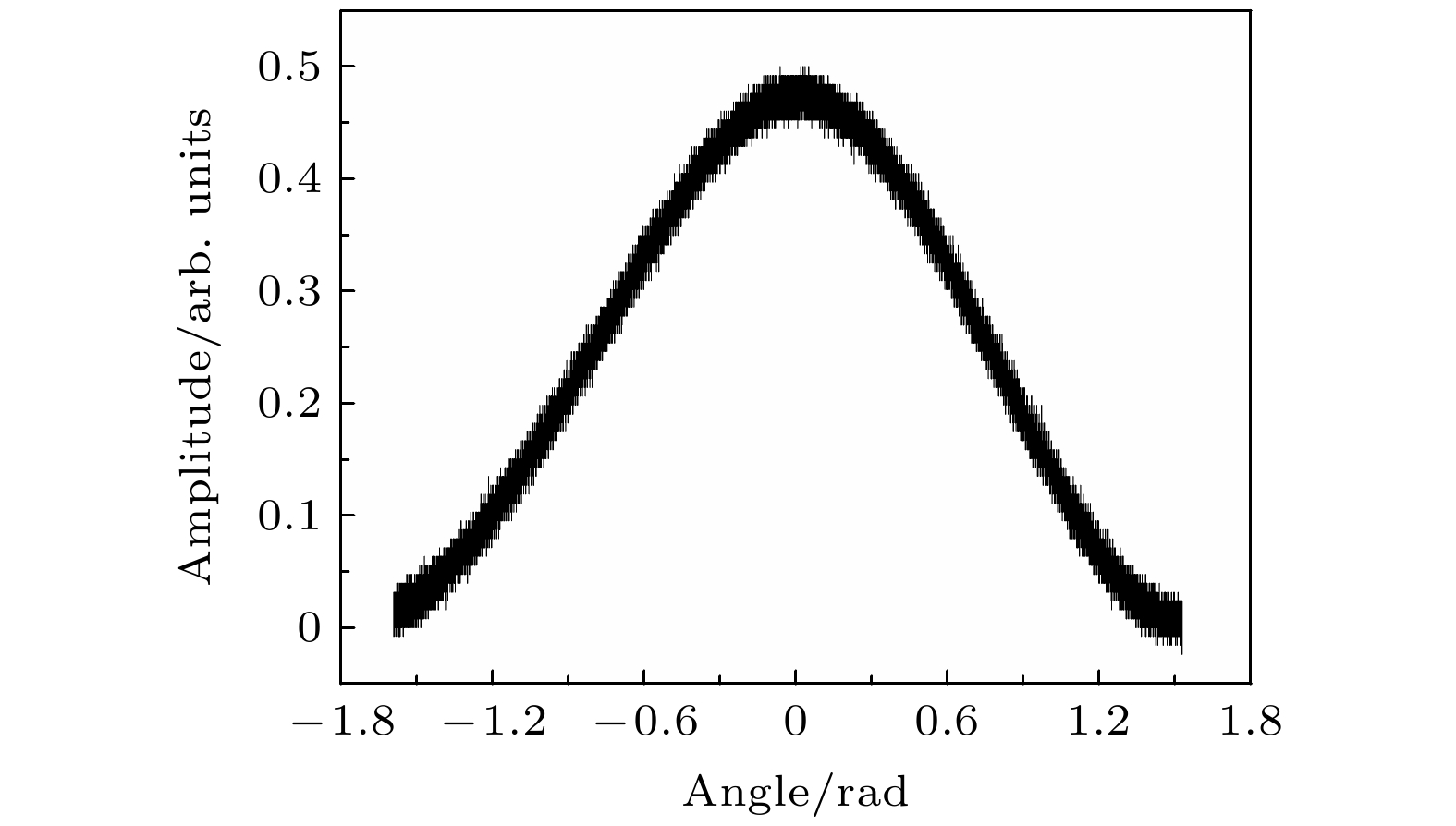

图 2 透射信号

Figure 2. Transmission signal.

DownLoad: Full-Size Img PowerPoint

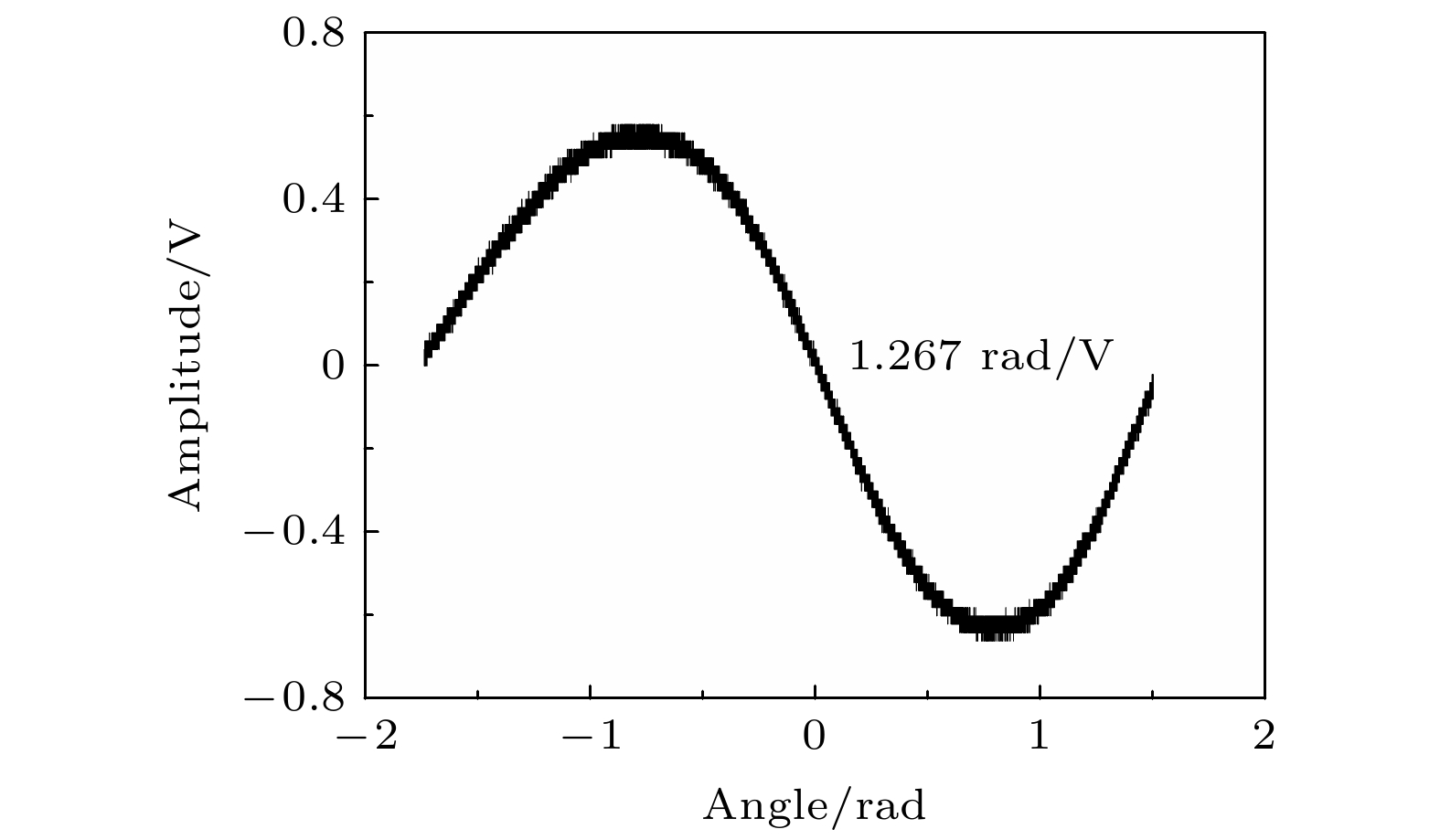

图 3 误差信号

Figure 3. Error signal.

DownLoad: Full-Size Img PowerPoint

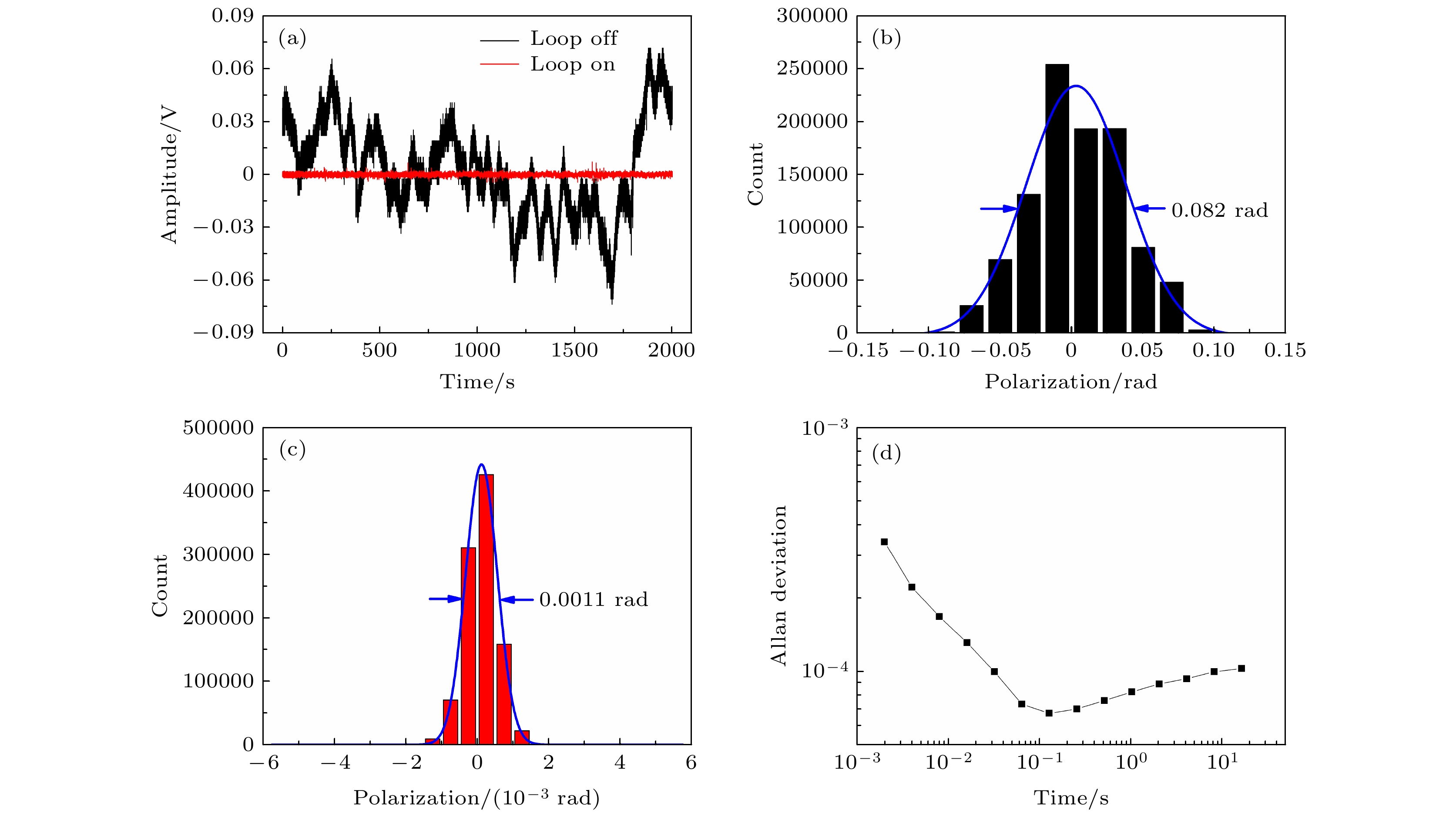

图 4 (a) 单光子偏振态未锁定和锁定的测量结果; (b) 单光子偏振态未锁定时误差信号的统计结果; 单光子偏振态锁定时误差信号的统计结果(c)和对应的阿伦偏差分析结果(d)

Figure 4. (a) Measurement results of unlocked and locked single-photon polarization states; (b) statistics results of error signal for unlocked single-photon polarization state; statistics results of error signal for locked single-photon polarization state (c) and corresponding analysis results of Allan deviation (d).

DownLoad: Full-Size Img PowerPoint
