双气隙下介质阻挡放电斑图的放电特性与参数诊断

田爽 张寒 张喜 张雪雪 李雪辰 李庆 冉俊霞

引用本文:
Citation:

双气隙下介质阻挡放电斑图的放电特性与参数诊断

田爽, 张寒, 张喜, 张雪雪, 李雪辰, 李庆, 冉俊霞

Discharge characteristics and parameter diagnosis of dielectric barrier discharge patterns in double-gap configuration

TIAN Shuang, ZHANG Han, ZHANG Xi, ZHANG Xuexue, LI Xuechen, LI Qing, RAN Junxia
Article Text (iFLYTEK Translation)
PDF
HTML
导出引用
  • 斑图放电是介质阻挡放电的重要模式之一, 在众多领域具有广泛的应用前景. 本工作在氩气/空气混合气体介质阻挡放电系统中, 采用正六边形和方形组成的双气隙边界, 通过改变实验参数, 获得了多个全新的复杂斑图. 利用光学与电学手段研究了其放电特性及其时间相关性. 结果表明放电斑图在每半个电压周期内均有多次放电并在时间上具有相关性. 利用增强型电荷耦合设备拍摄了方形点阵斑图时间分辨的放电图像, 发现半个电压周期内的多次放电其实是斑图在径向上从外向内逐渐点亮的过程, 理论分析了该斑图的形成机理. 采集了方形点阵斑图的发射光谱, 通过线比法和玻尔兹曼拟合法探究了方形点阵斑图的电子密度、电子温度、分子振动温度、分子转动温度的变化. 结果显示电子密度沿着径向方向从外到内逐渐减小, 电子温度与分子振动温度沿着径向方向从外到内逐渐增加, 分子转动温度几乎不变.
    Pattern discharge is a common mode in dielectric barrier discharge (DBD) and has broad application prospects in various industrial fields, such as material surface treatment, environmental monitoring, and biomedical applications. In this work, a mixed gas of 75% argon and 25% air is used to generate a pattern discharge. A double-gap boundary composed of hexagonal configuration and square configuration is employed, and the gas pressure is fixed at 20 kPa. By varying the applied voltage amplitude, single-ring pattern, square-point-line pattern, square lattice pattern, and annular-lattice pattern are obtained for the first time. The discharge characteristics and their temporal correlation are studied using both optical method and electrical method. The results show that the discharge patterns exhibit multiple discharges in each half of the voltage cycle, and these discharges are temporally correlated with each other. Time-resolved discharge images of the square lattice pattern are captured using an enhanced charge-coupled device (ICCD). The experimental results reveal that multiple discharges in a half-voltage cycle correspond to the ignition process of the pattern in the radial direction from the outside to the inside. The morphology of the square lattice pattern observed by the naked eye is actually the result of the temporal superposition of luminescence from points at different positions in the evolution process. The formation mechanism of this pattern is analyzed through electric field simulations and theoretical calculations. Plasma parameters are diagnosed by collecting the emission spectrum of the square dot-lattice pattern. The results show that the electron density gradually decreases radially from the outer region to the inner region, while the electron temperature and molecular vibrational temperature increase radially from the outer region to the inner region, and the molecular rotational temperature remains almost unchanged. The temporal evolution of the square lattice pattern is shown in the following figures, where the current waveform marks the timing of each frame of ICCD imaging for the complete square lattice pattern:

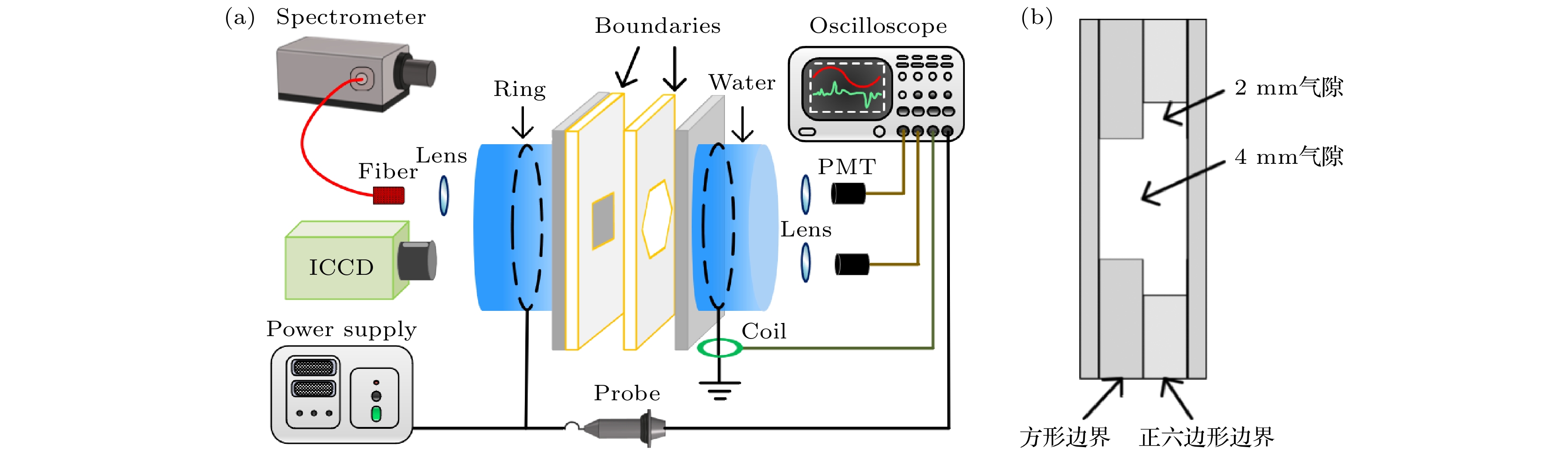

  • 图 1  (a)实验装置示意图; (b)气隙结构侧视图

    Fig. 1.  (a) Schematic diagram of the experimental setup; (b) side view of the gap structure.

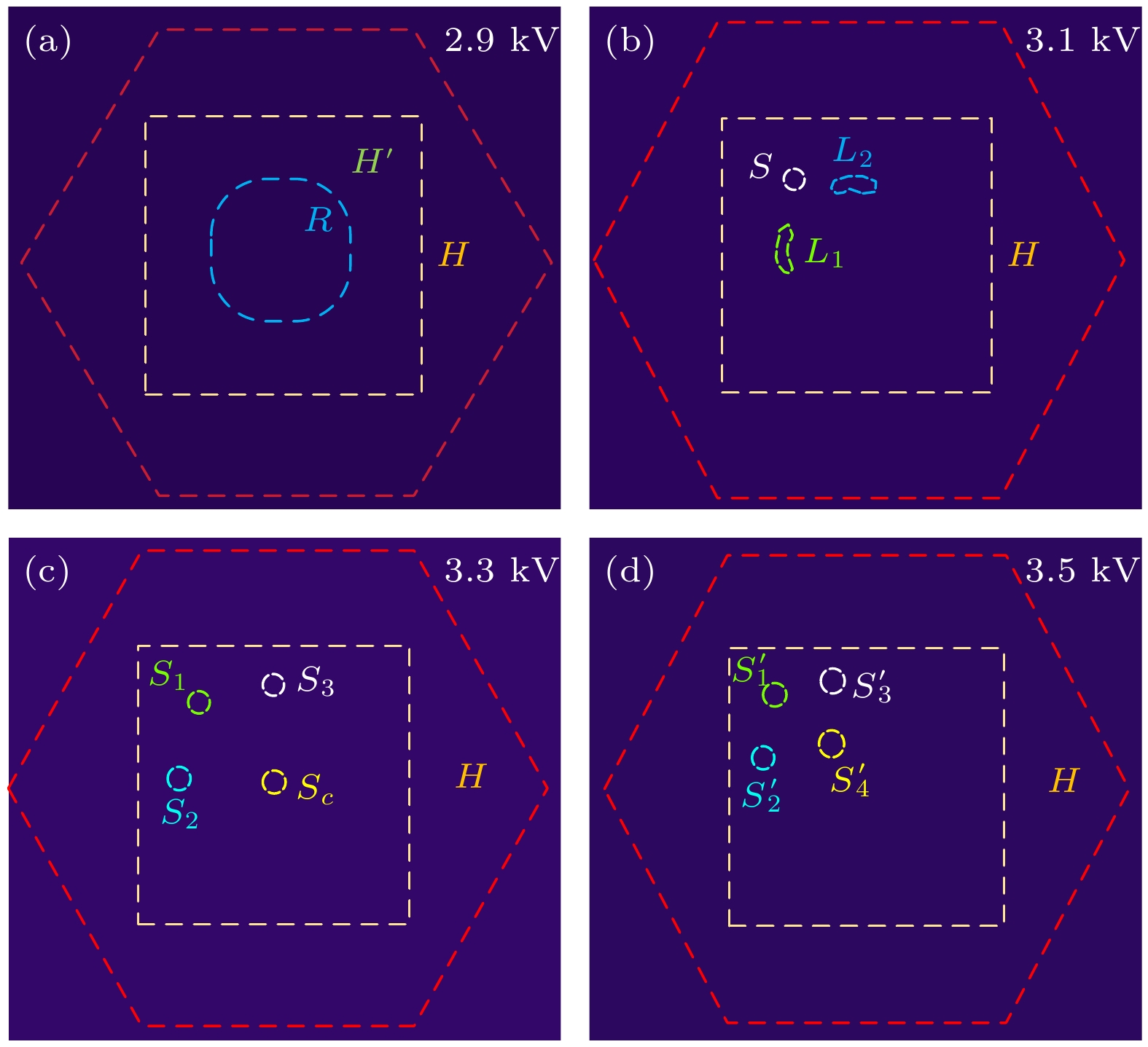

    图 2  不同电压下斑图照片, 曝光时间为0.1 s

    Fig. 2.  Patterned discharges under different applied voltages with an exposure time of 0.1 s.

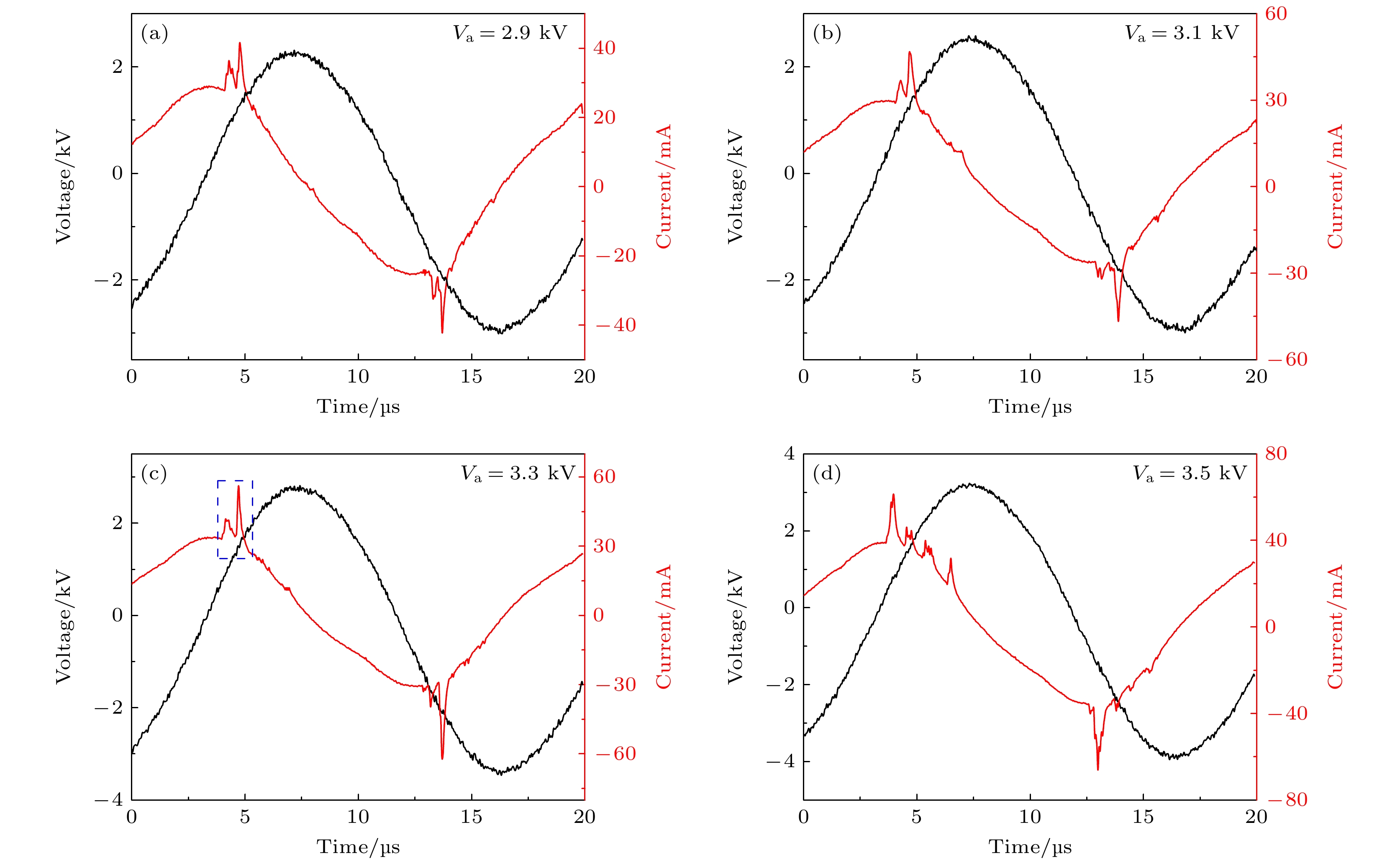

    图 3  不同斑图对应的电压与放电电流的波形图

    Fig. 3.  Waveforms of applied voltage and discharge current for different patterns.

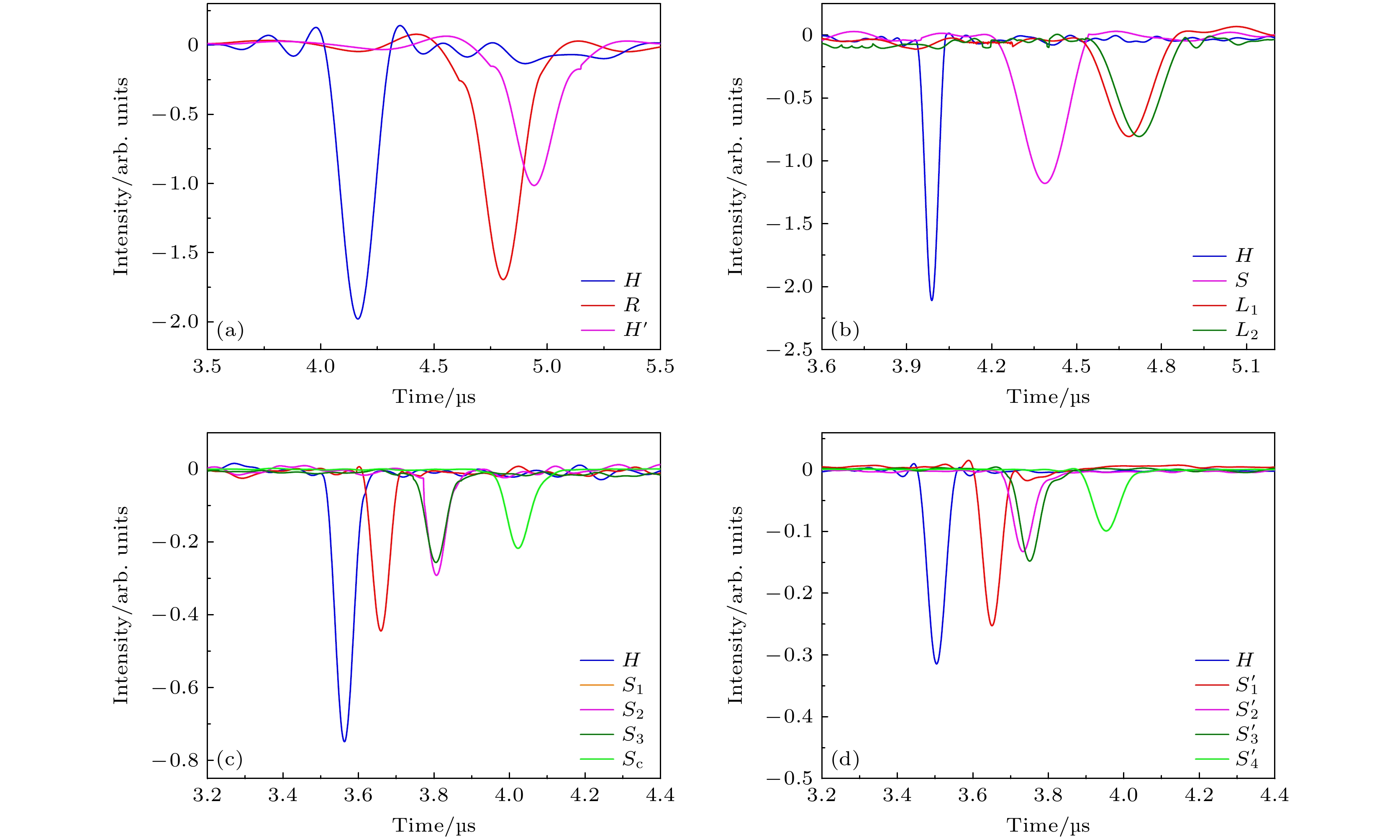

    图 4  斑图的时间相关性 (a)—(d)分别对应图2(a)(d)

    Fig. 4.  Temporal correlation from the pattern: (a)–(d) Correspond to Fig. 2(a)-(d), respectively.

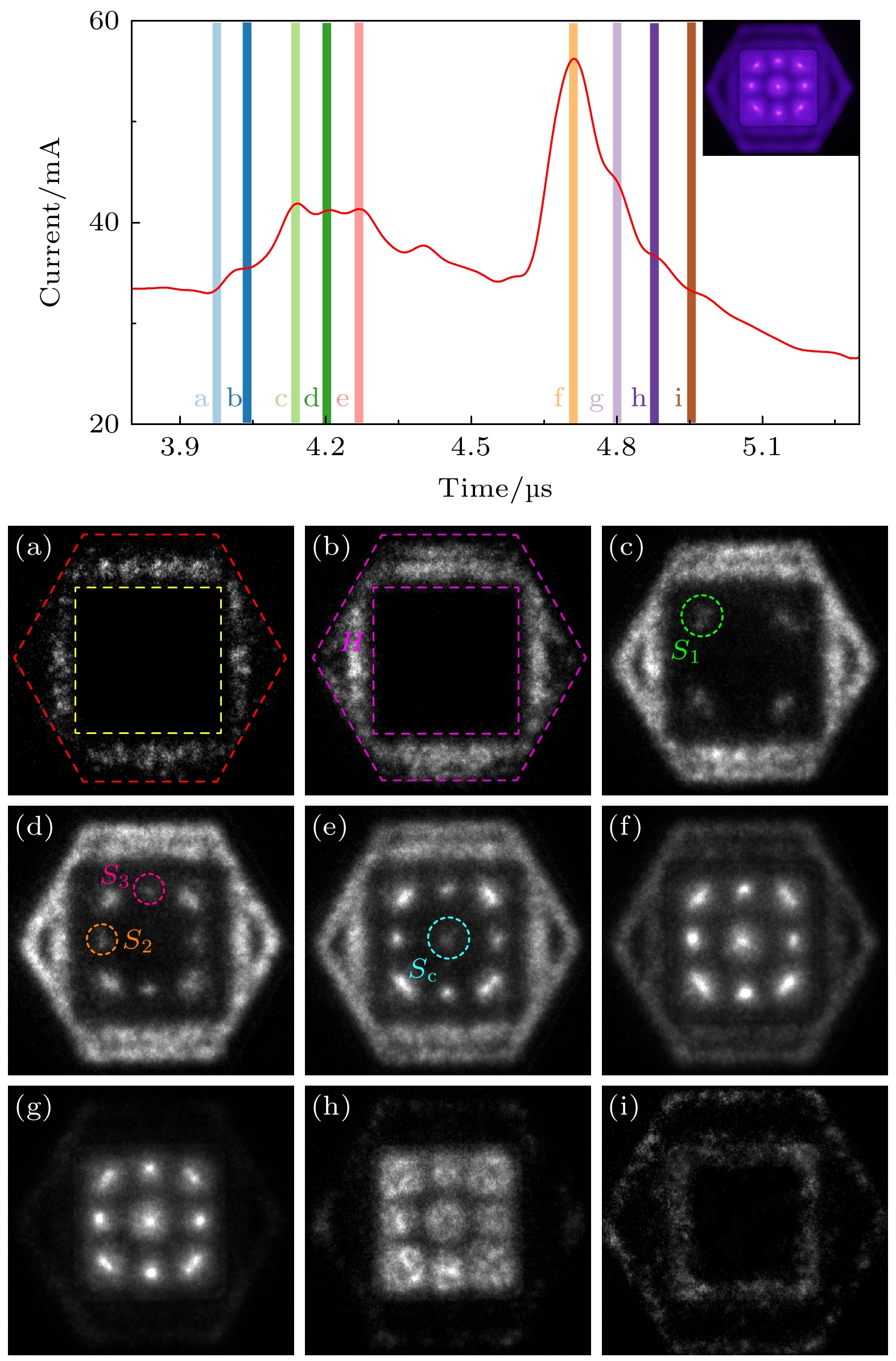

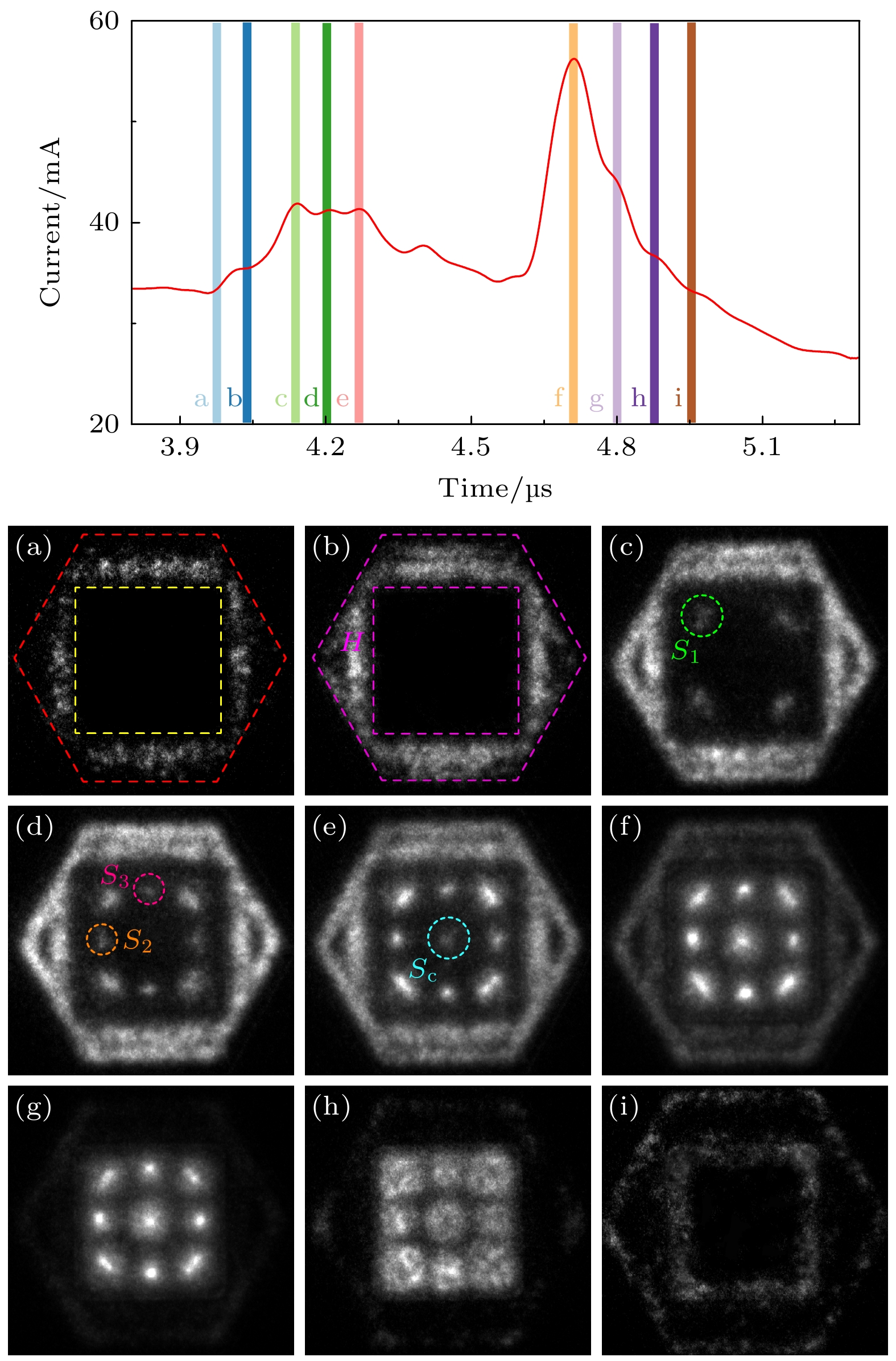

    图 5  方形点阵斑图的时间演化, 上方的电流波形中标示了各幅图对应的ICCD拍摄时刻, 曝光时间为20 ns (单次拍摄)

    Fig. 5.  Temporal evolution of the square lattice pattern. The current waveform shows the ICCD shooting time of each picture, and the exposure time is 20 ns (single shot).

    图 6  (a) 介质阻挡放电等效电路图; (b) 外加电场仿真结果

    Fig. 6.  (a) Equivalent circuit diagram of dielectric barrier discharge; (b) simulation results of applied electric field.

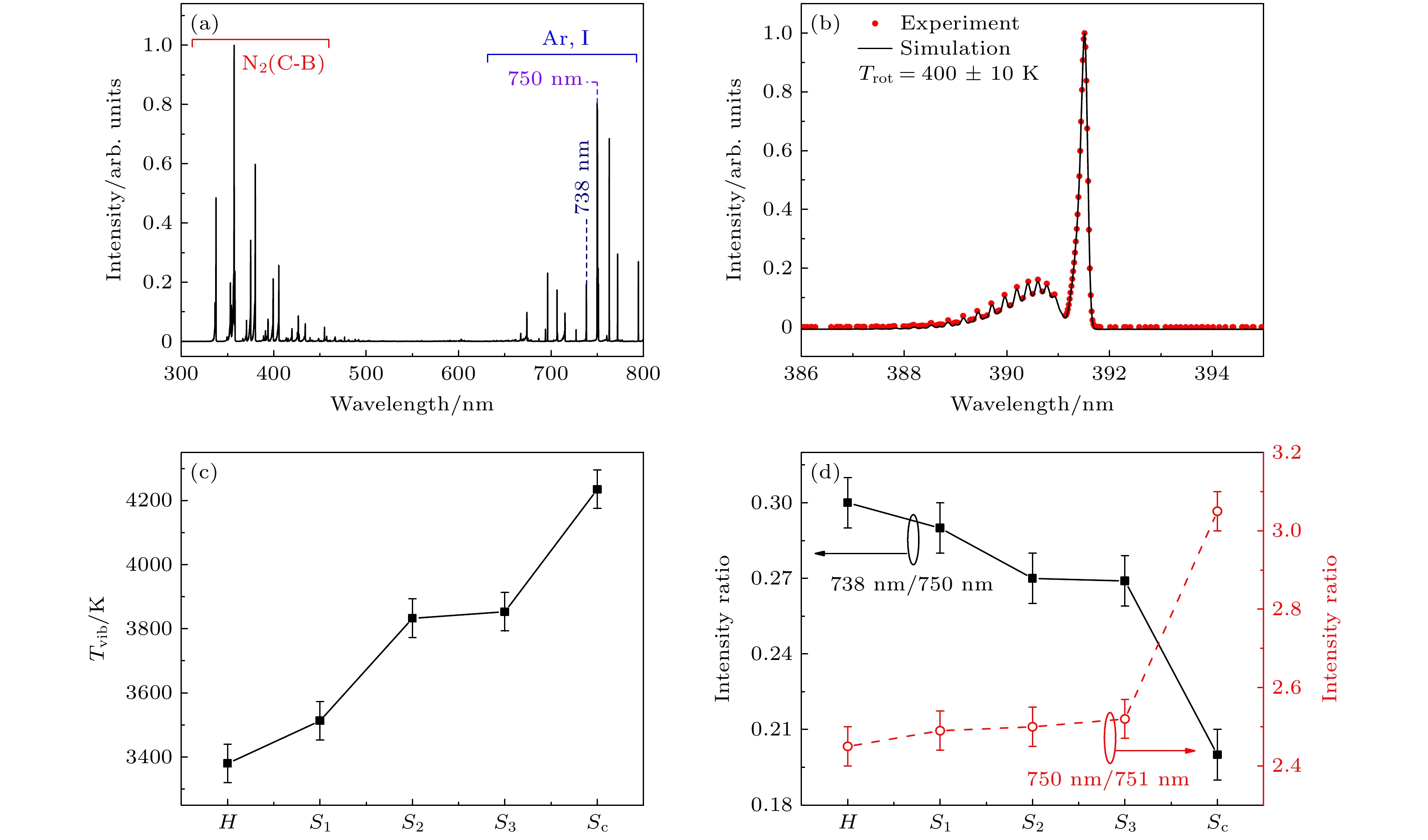

    图 7  (a) 300—800 nm放电的发射光谱; (b) $ {\text{N}}_{2}^{+} $(B-X)转动谱带拟合结果; (c)方形点阵斑图不同位置处的Tvib; (d)方形点阵斑图不同位置处的Tene

    Fig. 7.  (a) 300–800 nm optical emission spectrum from the discharge; (b) fitting result of rotational bands of the $ {\text{N}}_{2}^{+} $(B-X); (c) Tvib at different positions in the square lattice pattern; (d) Te and ne at different positions in square lattice pattern.
