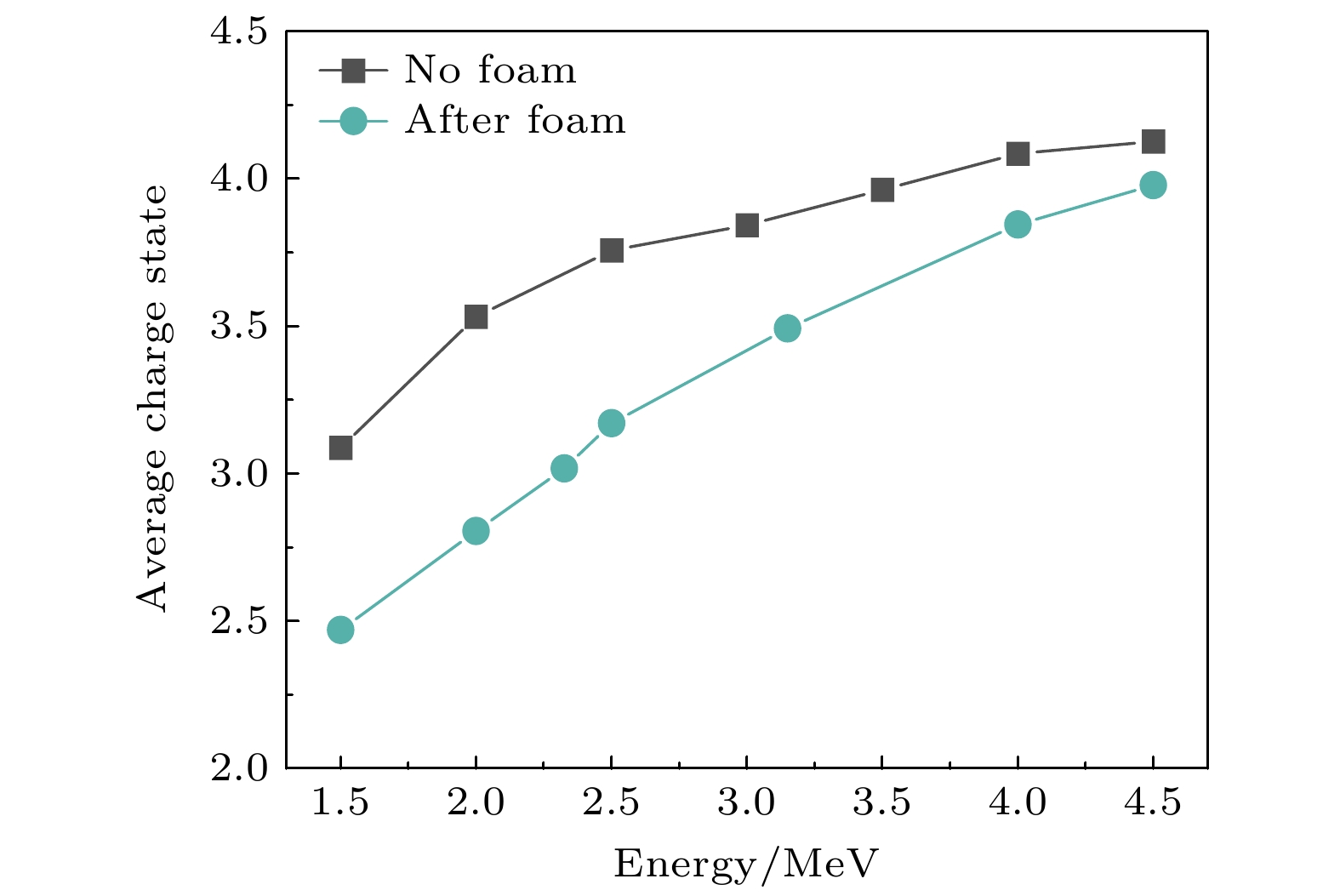

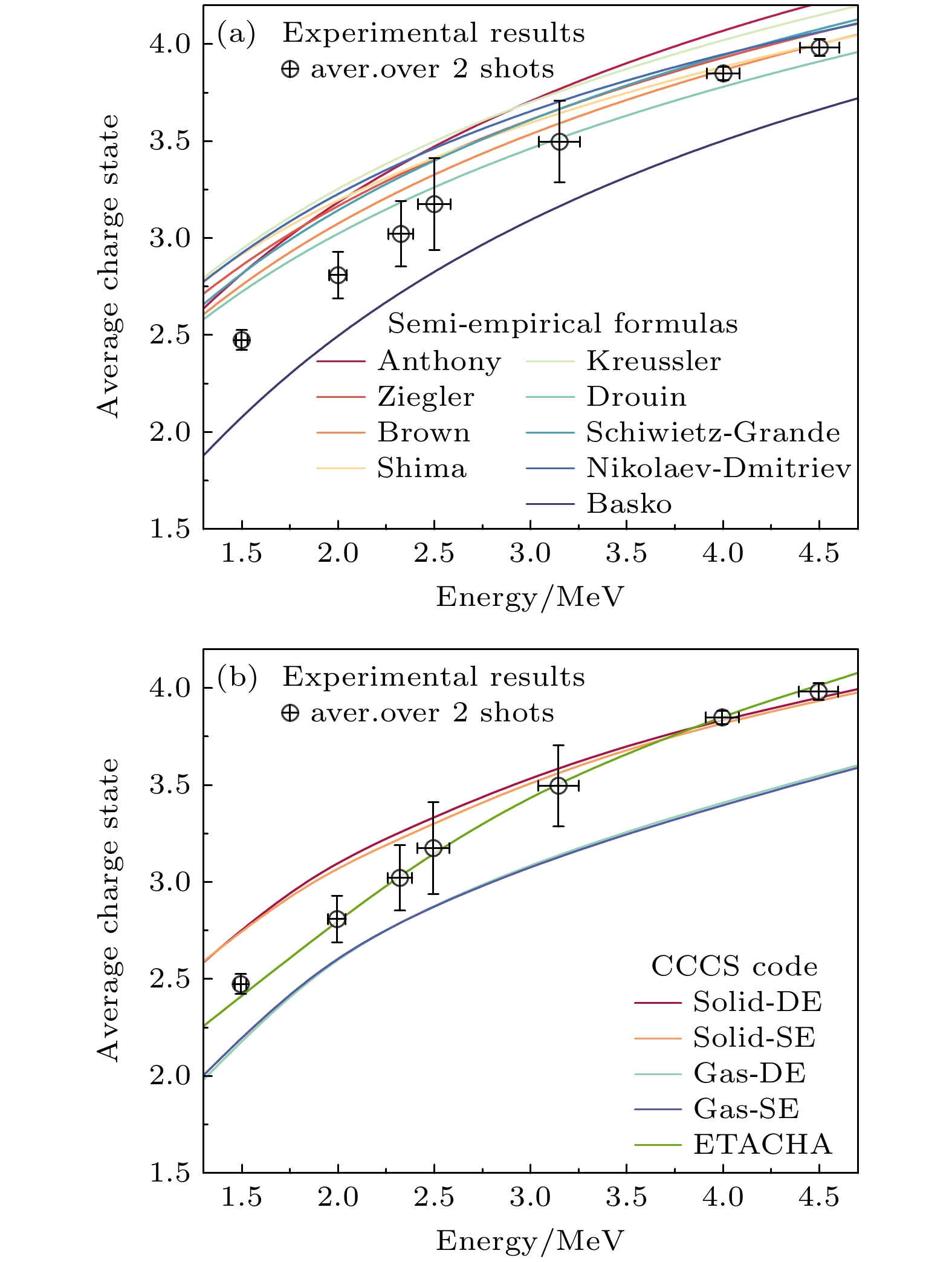

Charge transfer processes in ion-matter interactions are crucial for ion beam-driven high-energy density physics, materials irradiation damage and charge state stripping in accelerator techniques. Here we generated carbon ion beams with energies in the MeV energy range through TNSA (target normal sheath acceleration) mechanism, and measured the average charge state of 1.5 ~ 4.5 MeV carbon ion beams passing through porous C9H16O8 foam with 2 mg/cm3 volume density. The measured average charge states are compared with various semi-empirical formula and rate equation-predicted equilibrated average charge state. The results show that the rate equation predictions fully considering the ionization, capture, excitation, and de-excitation processes are in good agreement with experiment. The rate equation prediction using gas target cross-section data underestimated the experimental data, because the target density effects caused by the solid fiber filaments in foam-structured target increases the ionization probability through frequent collisions and decrease the electron capture probability, which leads to an enhancement of ion charge states. In the projectile energy range above 3 MeV, the experimental data agree with rate equation predictions employing solid-target cross-section data. However, a significant deviation emerges in the energy region below 3 MeV due to the fact that in this energy regime, the lifetime of ion excited states is shorter than the collisional time scale. In this case, excited electrons have time to de-excite to the ground state before the second collision occurs. Consequently, the target density effects are weakened, and the charge states was reduced. The experimental results agree well with predictions from the ETACHA code, which considers excitation and de-excitation processes in detail. This work provides data and references to better understand the ion-matter interactions and to discriminate the various charge exchange models.
-
Keywords:
- Laser acceleration /
- Carbon ion beam /
- Charge transfer /
- Target density effects
-
[1] Shima K, Kuno N, Yamanouchi M 1989Phys. Rev. A 40 3557
[2] Zhao Y T, Zhang Y N, Cheng R, He B, Liu C L, Zhou X M, Lei Y, Wang Y Y, Ren J R, Wang X, Chen Y H, Xiao G Q, Savin S M, Gavrilin R, Golubev A A, Hoffmann D H H 2021Phys. Rev. Lett. 126 115001
[3] Rothard H, Grandin J P, Jung M, Clouvas A, Rozet J P, Wünsch R 1997Nucl. Instrum. Methods Phys. Res. Sect. B 132 359
[4] Betz H D 1972Rev. Mod. Phys. 44 465
[5] Deutsch C, Maynard G 2016Matter Radiat. Extremes 1 277
[6] Gao J, Hu Z, Wu Y, Wang J, Sisourat N, Dubois A 2021Matter Radiat. Extremes 6 014404
[7] Erb W GSI Report GSI-P-78 1978 Darmstadt
[8] Ali R, Beiersdorfer P, Harris C L, Neill P A 2016Phys. Rev. A 93 012711
[9] Ma X W, Zhang S F, Wen W Q, Huang Z K, Hu Z M, Guo D L, Gao J W, Najjari B, Xu S Y, Yan S C, Yao K, Zhang R T, Gao Y, Zhu X L 2022Chin. Phys. B 31 093401
[10] Kawata S, Karino T, Ogoyski A I 2016Matter Radiat. Extremes 1 89
[11] Hofmann I 2018Matter Radiat. Extremes 3 1
[12] Zhao Q, Cao S C, Liu M, Sheng X K, Wang Y R, Zong Y, Zhang X M, Jing Y, Cheng R, Zhao Y T, Zhang Z M, Du Y C, Gai W 2016Nucl. Instrum. Methods Phys. Res. Sect. A 832 144
[13] Zhao Y, Zhang Z, Gai W, Du Y, Cao S, Qiu J, Zhao Q, Cheng R, Zhou X, Ren J, Huang W, Tang C, Xu H, Zhan W 2016Laser Part. Beams 34 338
[14] Zhao Y T, Rui Cheng R, Wang Y Y, Zhou X M, Lei Y, Sun Y B, Xu G, Ren J R, Sheng L N, Zhang Z M, Xiao G Q 2014High Power Laser Science and Engineering. 2 e39
[15] Bohr N 1941Phys. Rev. 59 270
[16] Anthony J M, Lanford W A 1892Phys. Rev. A 25 1868
[17] Ziegler J F, Biersack J P 1985Treatise on Heavy - Ion Science 6 93
[18] Kreussler S, Varelas C, Brandt W 1981Phys. Rev. B 23 82
[19] Nikolaev V S, Dmitriev I S 1968Phys. Lett. A 28 277
[20] Brown M D, Moak C D 1972Phys. Rev. B 6 90
[21] Shima K, Ishihara T, Mikumo T 1982Nucl. Instrum. Methods Phys. Res. 200 605
[22] To K X, Drouin R 1976Phys. Scr. 14 277
[23] Schiwietz G, Grande P L 2001Nucl. Instrum. Methods Phys. Res. Sect. B 175 125
[24] Basko M M 1984Sov. J. Plasma Phys. 10 689
[25] Northcliffe L C 1960Phys. Rev. 120 1744
[26] Gauthier M, Chen S N, Levy A, Audebert P, Blancard C, Ceccotti T, Cerchez M, Doria D, Floquet V, Lamour E, Peth C, Romagnani L, Rozet J P, Scheinder M, Shepherd R, Toncian T, Vernhet D, Willi O, Borghesi M, Faussurier G, Fuchs J 2013Phys. Rev. Lett. 110 135003
[27] Tolstikhina I Y, Shevelko V P 2018Phys. - Usp. 61 247
[28] Lassen N O 1951Kgl. Danske Vidensk. Selskab. Math. - Fys. Medd. 26 5
[29] Bohr N, Lindhard J 1954Kgl. Danske Vidensk. Selskab. Math. - Fys. Medd. 28 7
[30] Shevelko V P, Rosmej O, Tawara H, Tolstikhina I Y 2004J. Phys. B: At. Mol. Opt. Phys. 37 201
[31] Shevelko V P, Tawara H, Ivanov O V, Miyoshi T, Noda K, Sato Y, Subbotin A V, Tolstikhina I Y 2005J. Phys. B: At. Mol. Opt. Phys. 38 2675
[32] Kistler S S 1931Nature 127 741
[33] Rosmej O N, Suslov N, Martsovenko D, Vergunova G, Borisenko N, Orlov N, Rienecker T, Klir D, Rezack K, Orekhov A, Borisenko L, Krousky E, Pfeifer M, Dudzak R, Maeder R, Schaechinger M, Schoenlein A, Zaehter S, Jacoby J, Limpouch J, Ullschmied J, Zhidkov N 2015Plasma Phys. Control. Fusion 57 094001
[34] Ren J R, Deng Z G, Qi W, Chen B Z, Ma B B, Wang X, Yin S, Feng J H, Liu W, Xu Z F, Hoffmann D H H, Wang S Y, Fan Q P, Cui B, He S K, Cao Z R, Zhao Z Q, Cao L F, Gu Y Q, Zhu S P, Cheng R, Zhou X M, Xiao G Q, H W, Zhang Y H, Zhang Z, Li Y T, Wu D, Zhou W M, Zhao Y T 2020Nat. Commu. 11 5157
[35] Ma B B, Ren J R, Wang S Y, Hoffmann D H H, Deng Z G, Qi W, Wang X, Yin S, Feng J H, Fan Q P, Liu W, Xu Z F, Chen Y, Cui B, He S K, Cao Z R, Zhao Z Q, Gu Y Q, Zhu S P, Cheng R, Zhou X M, Xiao G Q, Zhao H W, Zhang Y H, Zhang Z, Li Y T, Xu X, Wei W Q, Chen B Z, Zhang S Z, Hu Z M, Liu L R, Li F F, Xu H, Zhou W M, Cao L F, Zhao Y T 2021Astrophys. J. 920 106
[36] Renner O, Klimo O, Krus K, Nicolaï P, Poletaeva A, Bukharskii N, Tikhonchuk V T 2025Matter Radiat. Extremes 10 037403
[37] Braenzel J, Andreev A A, Platonov K, Klingsporn K, Ehrentraut L, Sandner W, Schnürer M 2015Phys. Rev. Lett.114 124801
[38] Henig A, Steinke S, Schnürer M, Sokollik T, Hörlein R, Kiefer D, Jung D, Schreiber J, Hegelich B M, Yan X Q, Meyer-ter V J, Tajima T, Nickles P V, Sandner W, Habs D 2009Phys. Rev. Lett. 103 245003
[39] Braenzel J, Barriga-Carrasco M D, Morales R, Schnürer M 2018Phys. Rev. Lett. 120 184801
[40] Zhu Jun-Gao, Lu Hai-Yang, Zhao Yuan, Lai Mei-Fu, Gu Yong-Li, Xu Shi-Xiang, Zhou Cang-Tao 2022Acta Phys. Sin. 71 194102(in Chinese) [朱军高，卢海洋，赵媛，赖美福，古永力，徐世祥，周沧涛2022物理学报71 194102]
[41] Shuan Zhao, Chen Lin, Jia-Er Chen, Wen-Jun Ma, Jun-Jie Wang, Xue-Qing Yan 2016Chin. Phys. Lett. 33 035202
[42] Ren J R, Ma B B, Liu L R, Wei W Q, Chen B Z, Zhang S Z, Xu H, Hu Z M, Li F F, Wang X, Yin S, Feng J H, Zhou X M, Gao Y F, Li Y, Shi X H, Li J X, Ren X G, Xu Z F, Deng Z G, Qi W, Wang S Y, Fan Q P, Cui B, Wang W W, Yuan Z Q, Teng J, Wu Y C, Cao Z R, Zhao Z Q, Gu Y Q, Cao L F, Zhu S P, Cheng R, Lei Y, Wang Z, Zhou Z X, Xiao G Q, Zhao H W, Hoffmann D H H, Zhou W M, Zhao Y T 2023Phys. Rev. Lett. 130 095101
[43] Ma B B, Ren J R, Liu L R, Wei W Q, Chen B Z, Zhang S Z, Xu H, Hu Z M, Li F F, Wang X, Li W X, Li Q Y, Yin S, Feng J H, Zhou X M, Gao Y F, Li Y, Shi X H, Li J X, Ren X G, Xu Z F, Deng Z G, Qi W, Wang S Y, Fan Q P, Cui B, Wang W W, Yuan Z Q, Teng J, Wu Y C, Cao Z R, Zhao Z Q, Gu Y Q, Cao L F, Zhu S P, Cheng R, Lei Y, Wang Z, Zhou Z X, Xiao G Q, Zhao H W, Hoffmann D H H, Zhou W M, Zhao Y T 2024Phys. Rev. A 109 042810
[44] Hattass M, Schenkel T, Hamza A V, Barnes A V, Newman M W, McDonald J W, Niedermayr T R, Machicoane G A, Schneider D H 1999Phys. Rev. Lett. 82 4795
[45] Charge changing cross sections code, Novikov N V http://cdfe.sinp.msu.ru/services/cccc/htm/ [2024-7-28]
[46] Novikov N V, Teplova Y A 2014Phys. Lett. A 378 1286
[47] Rozet J P, Stephan C, Vemhet D 1996Nucl. Instrum. Methods Phys. Res. Sect. B 107 67
[48] Tarasov O B, Bazin D 2008Nucl. Instrum. Methods Phys. Res. Sect. B 266 4657
[49] Lamour E, Fainstein P D, Galassi M, Prigent C, Ramirez C A, Rivarola R D, Rozet J P, Trassinelli M, Vernhet D 2015Phys. Rev. A 92 042703
[50] Soumaya, Manai, Salhi D E, Nasr S B, Jelassi H 2022Results Phys. 37 105487
