可重构超构表面实现L波段波束动态调控及信息调制

许一帆 邓烨 佟琬婷 王海峰 王学运 赵俊明 姜田 张升康 陈克 冯一军

引用本文:
Citation:

可重构超构表面实现L波段波束动态调控及信息调制

许一帆, 邓烨, 佟琬婷, 王海峰, 王学运, 赵俊明, 姜田, 张升康, 陈克, 冯一军

L-band reconfigurable metasurface for dynamic beam control and direct information modulation

XU Yifan, DENG Ye, TONG Wanting, WANG Haifeng, WANG Xueyun, ZHAO Junming, JIANG Tian, ZHANG Shengkang, CHEN Ke, FENG Yijun
Article Text (iFLYTEK Translation)
PDF
导出引用

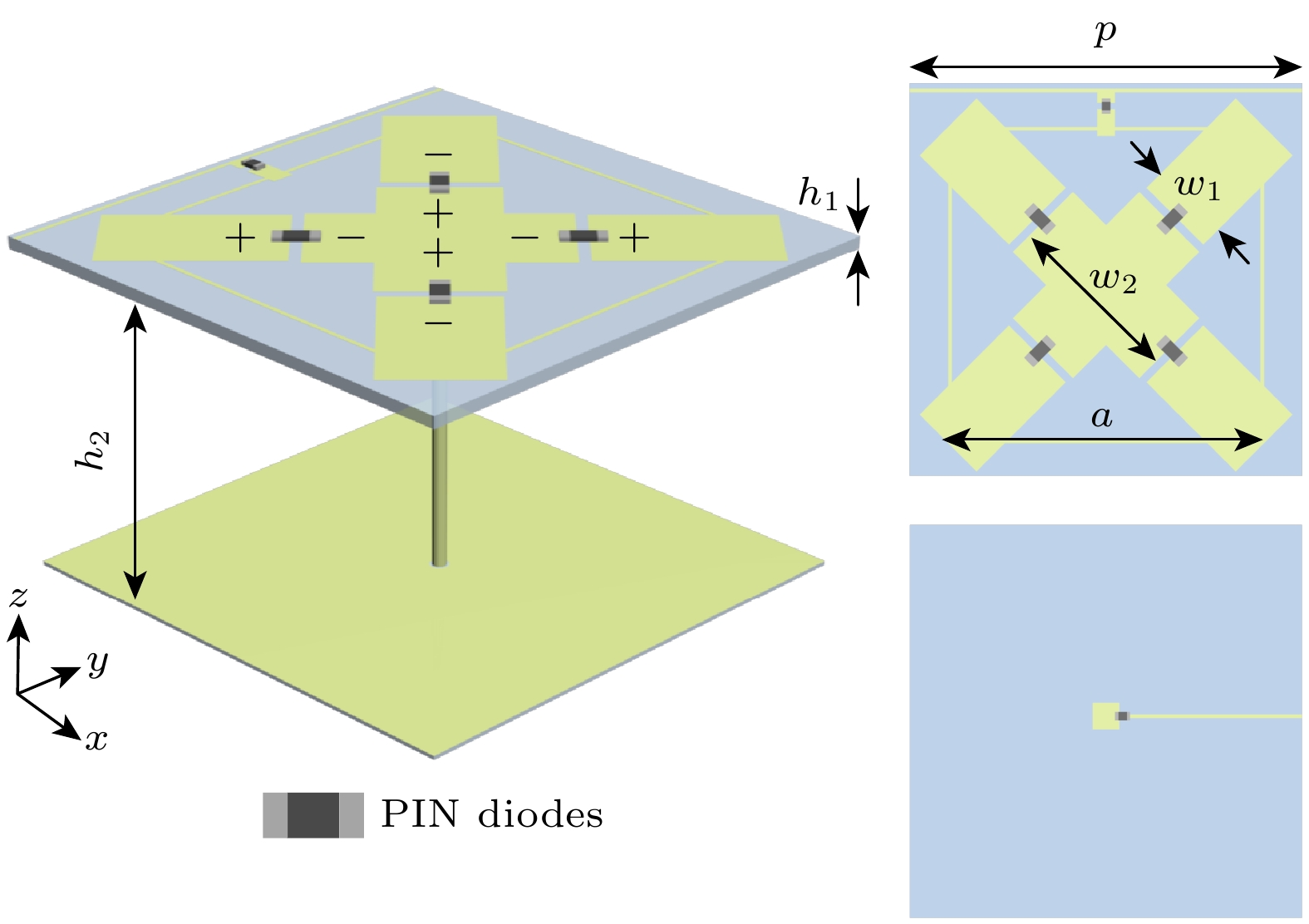

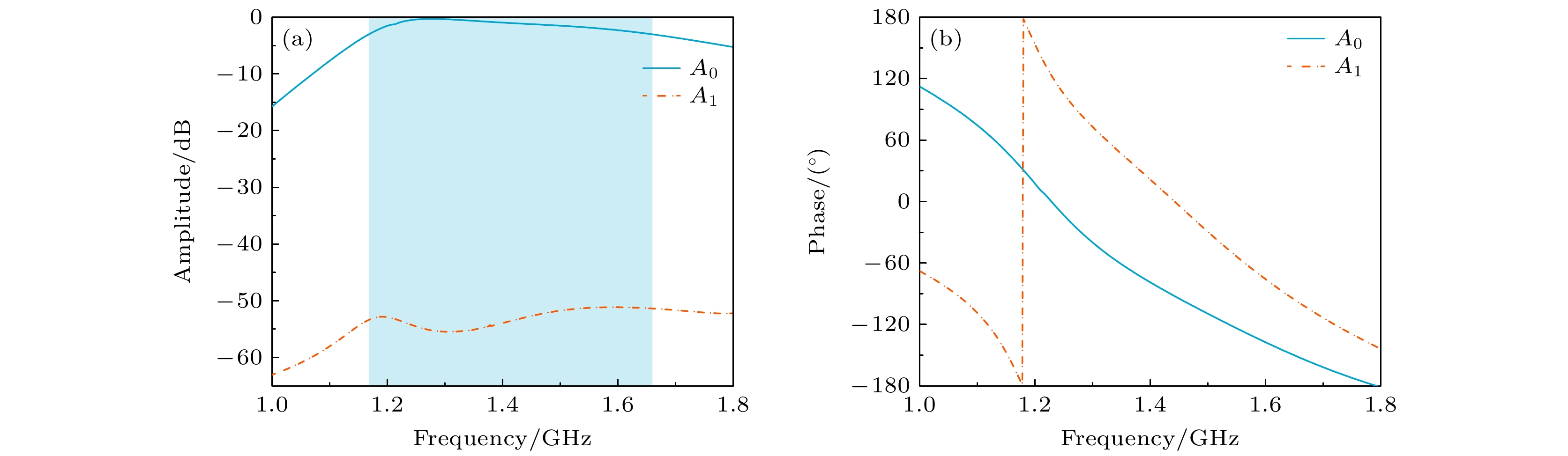

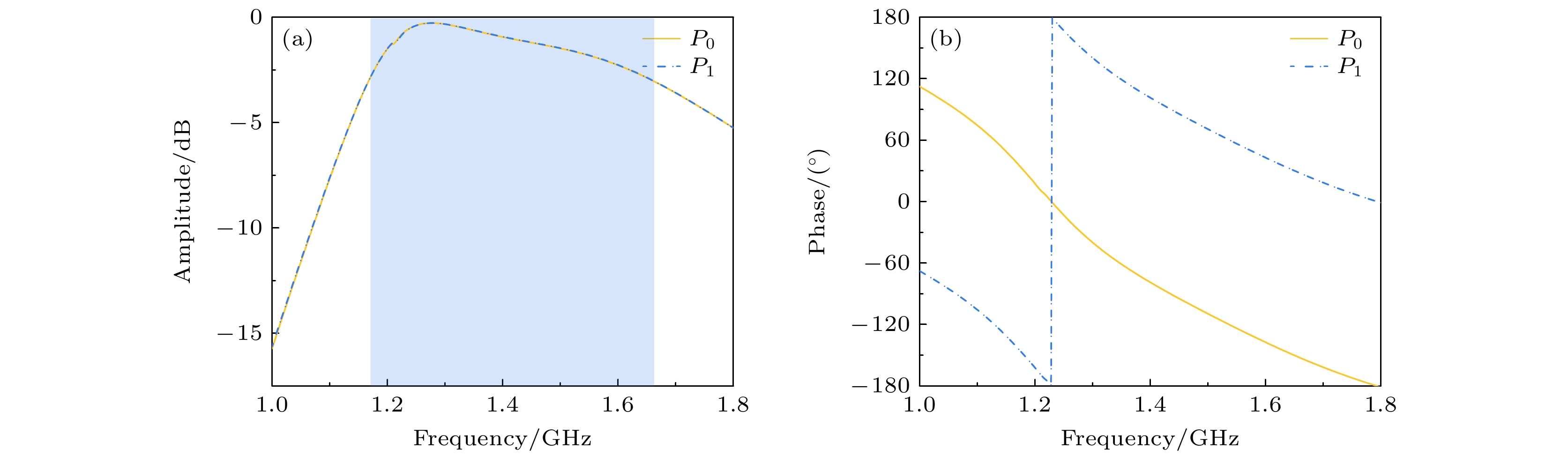

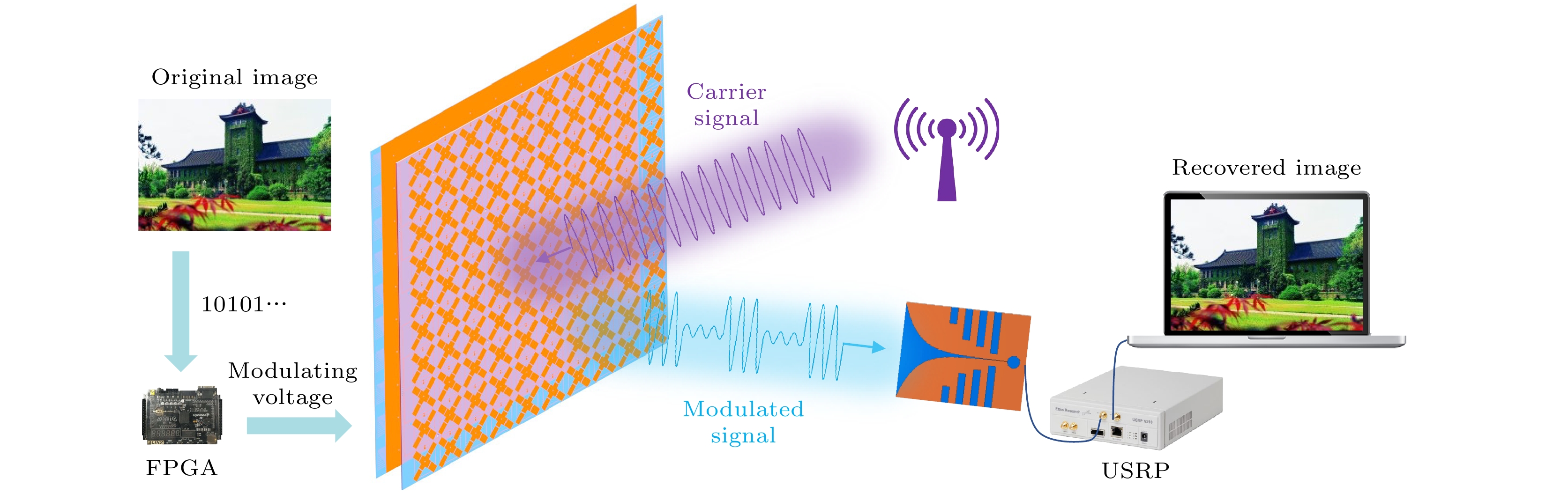

  • 本文提出了一种工作在L波段的宽带可重构转极化超构表面设计方法,并实现了BASK(Binary Amplitude Shift Keying,二进制幅移键控)和BPSK(Binary Phase Shift Keying,二进制相移键控)两种调制方式的超构表面信息直接调制。通过控制超构表面单元结构上的开关二极管通断状态,可在1.17GHz-1.66GHz频段改变单元的转极化反射幅值和相位,并通过对其幅相分布特性的实时编码实现波束调控与信息调制。在此基础上,构建了基于BASK和BPSK两种调制方式的超构表面新型无线通信系统,实现了对数字信息的实时调制与传输。本文提出的超构表面及其设计方法有望在信息传输、卫星通信等应用中发挥作用。

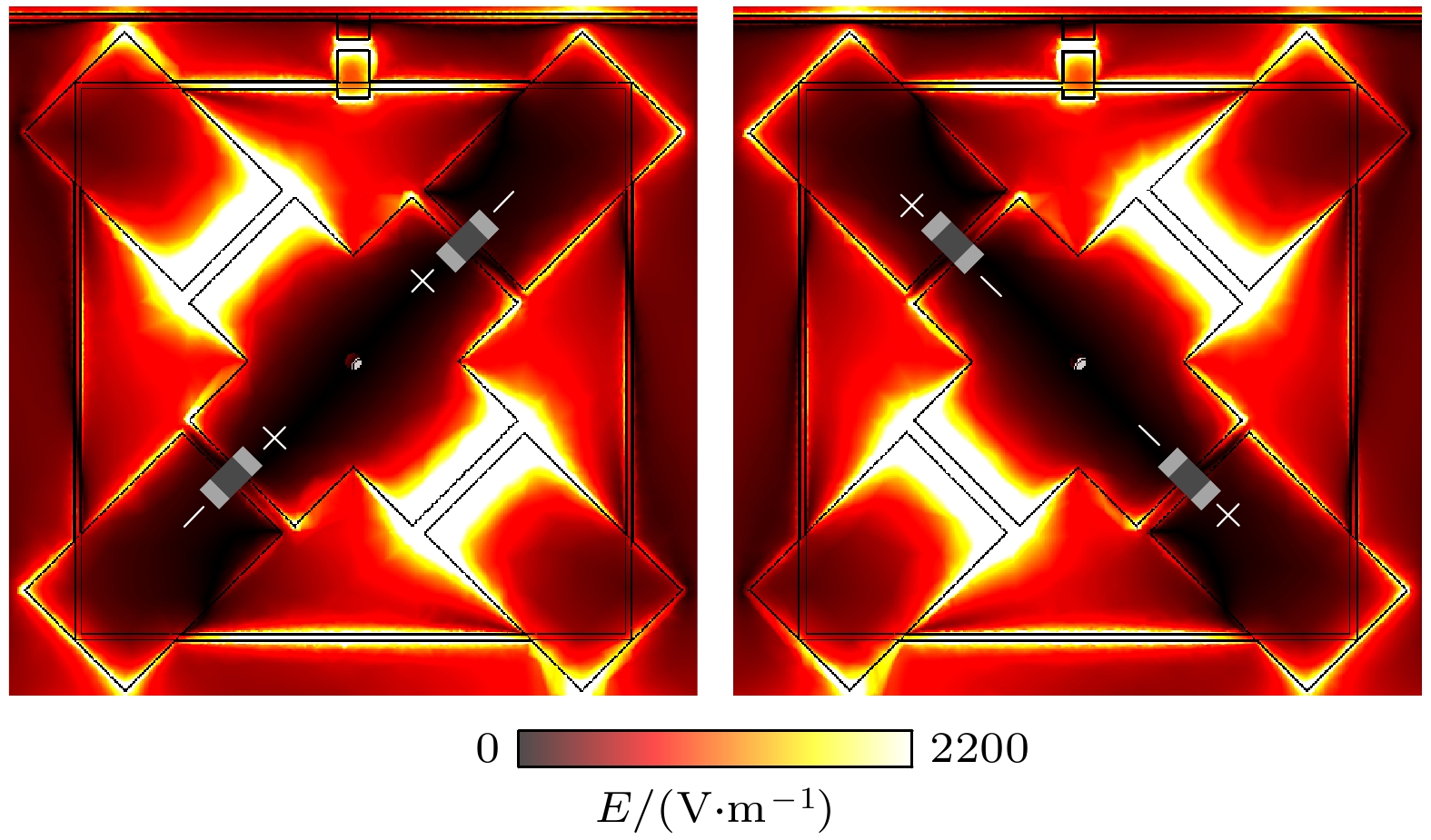

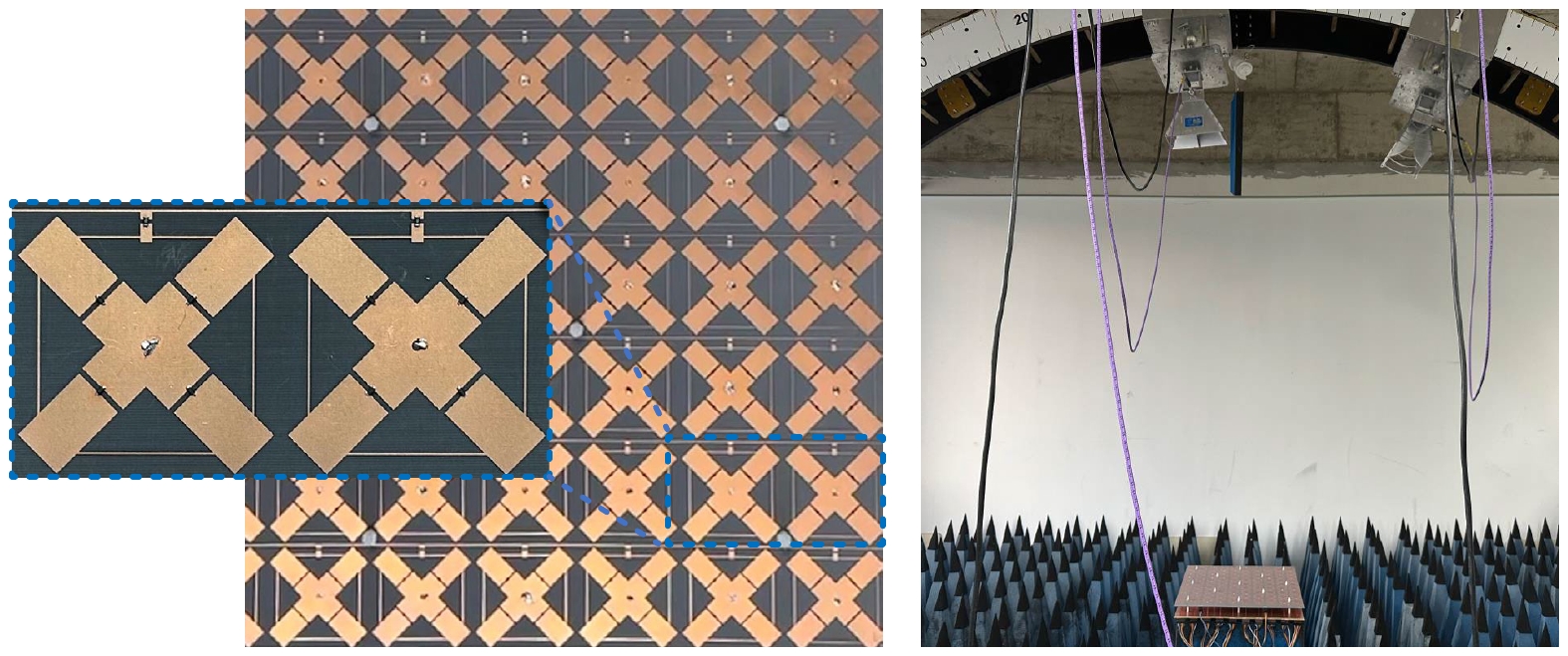

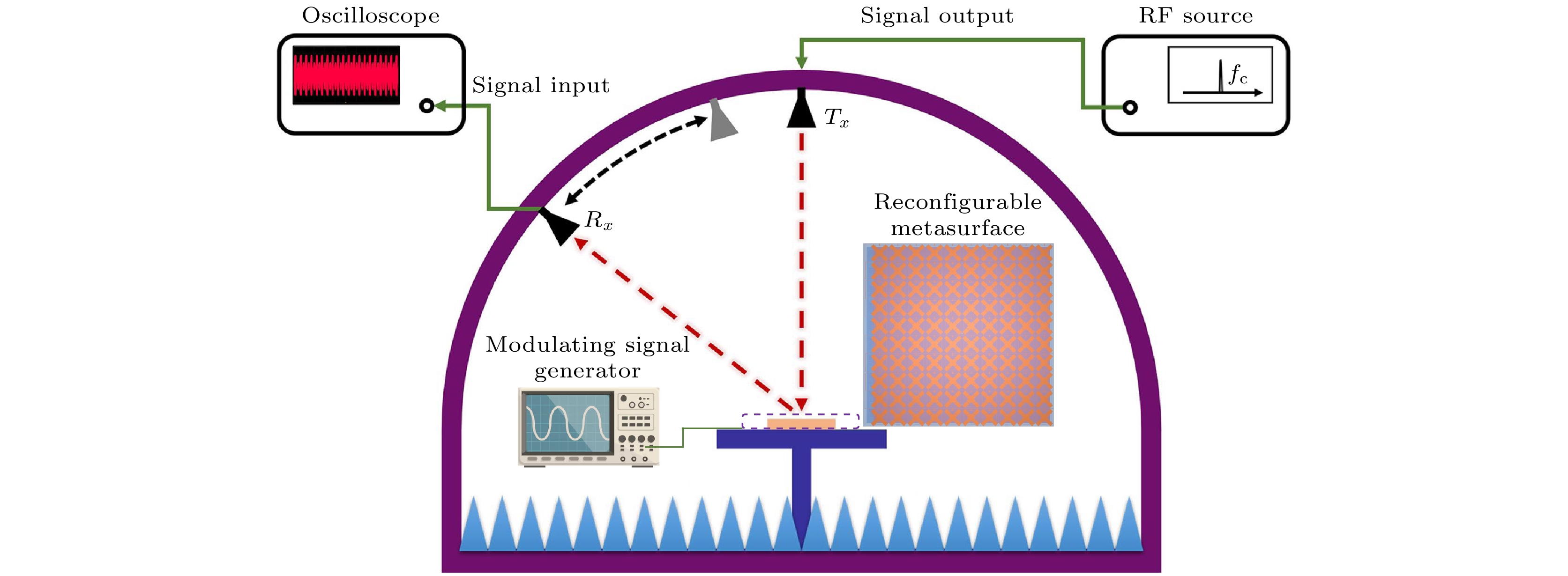

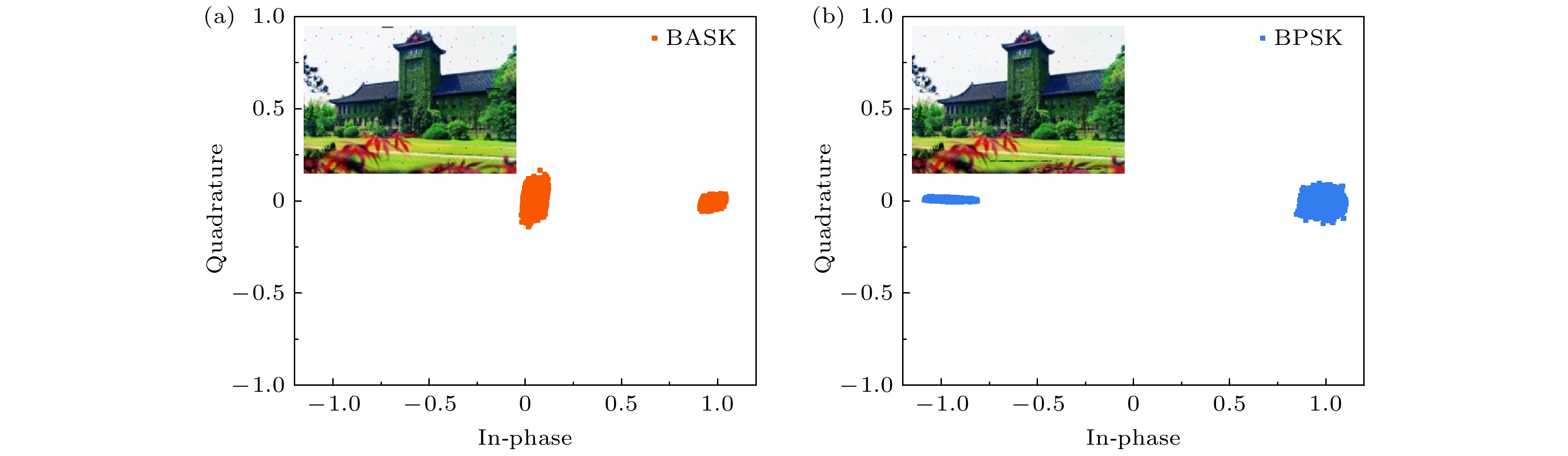

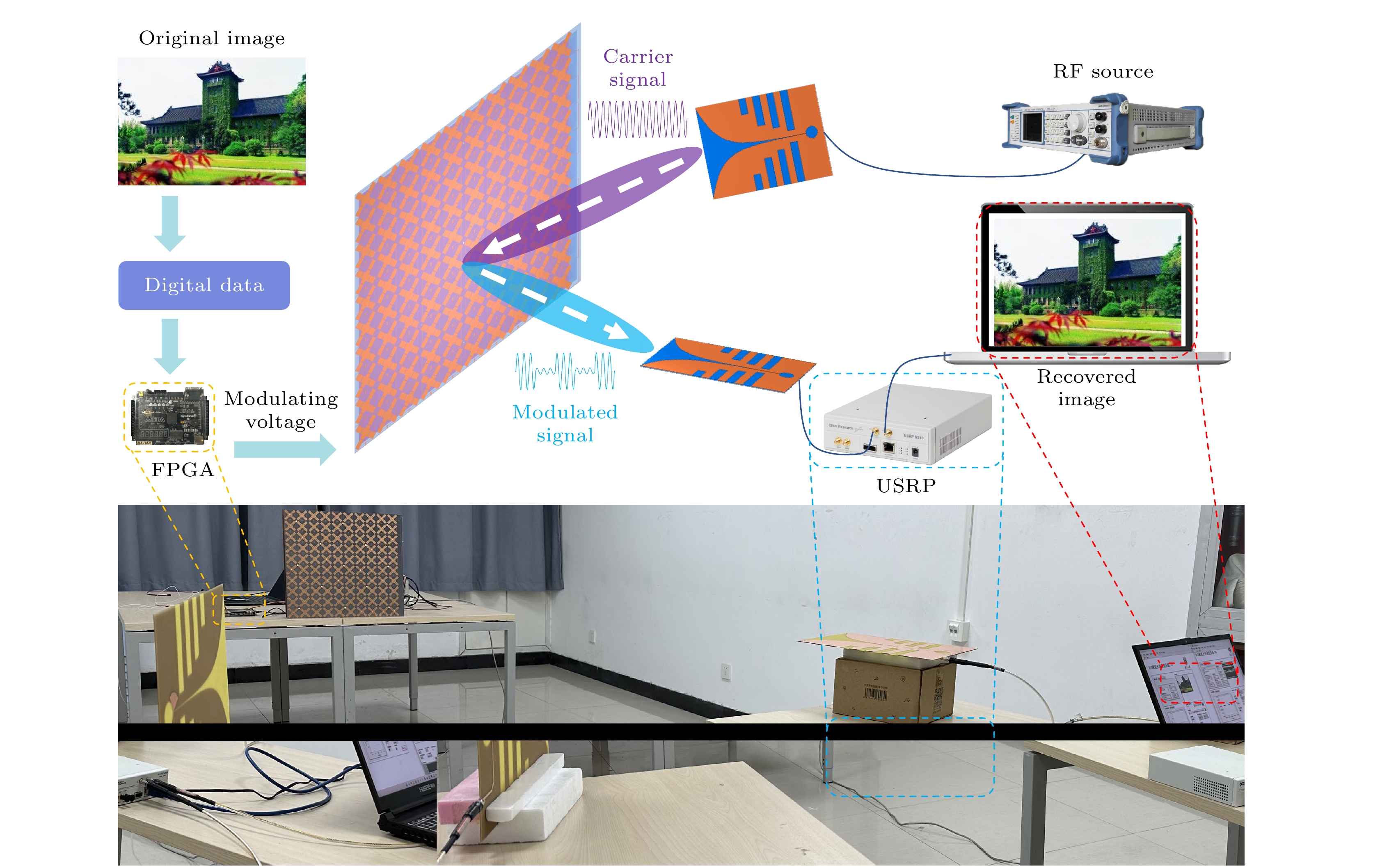

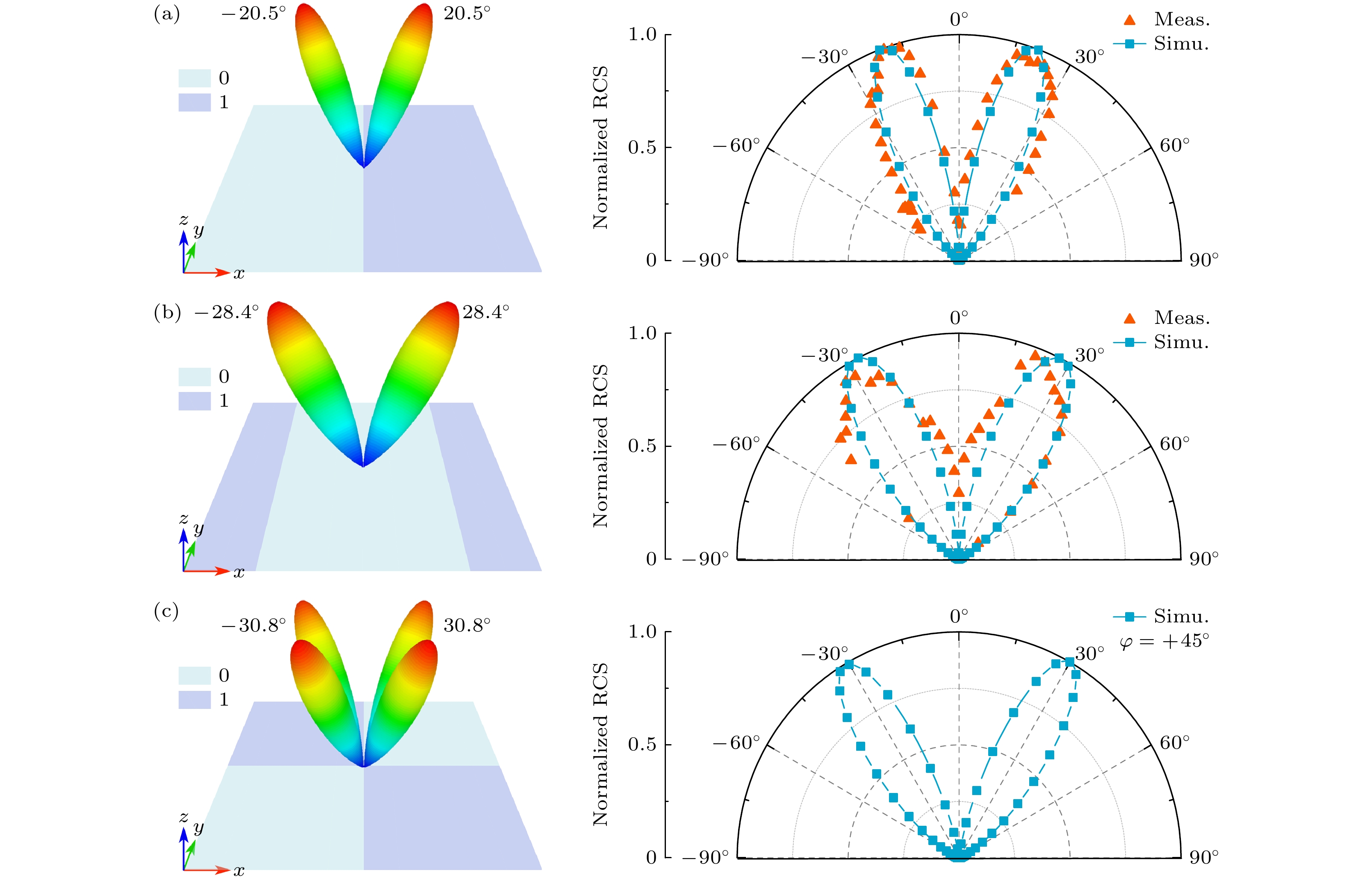

    In this paper, a design method for broadband reconfigurable polarization-converting metasurface operating in L-band is proposed, which is also used to directly modulate the information using two modulation modes of Binary Amplitude Shift Keying (BASK) and Binary Phase Shift Keying (BPSK). Switching the PIN diode's ON/OFF state can be used to modify the amplitude and phase responses of the cross-polarized reflection of the element in the frequency band of 1.17 GHz-1.66 GHz, thereby creating a 1-bit digital coding meta-atom. By altering the real-time coding patterns of the amplitude and phase, the reconfigurable metasurface enables the control of beams and information modulation. Simulation results show that twin-beams and four-beams with different reflection angles can be achieved by changing the coding patterns of the metasurface, fully validating the dynamic far-field beam control capability. As an experimental verification, a reconfigurable metasurface consisting of 10×10 meta-atoms is fabricated, and its beam steering and information modulation functions are tested. We measure the far-field patterns of the metasurface with different coding phase distributions. Furthermore, modulation signals of varying high/low voltage levels and rates are loaded onto the metasurface, with the aim of controlling its modulation mode and rate. The modulated signals reflected from metasurface are captured by a high-speed RF (Radio Frequency) oscilloscope at varying rates and reflection angles, and then demodulated to recover the original information. On this basis, a metasurface wireless communication system based on BASK and BPSK has been constructed to transmit digital image information in a real-world environment. In the experiment, an image is firstly represented by a sequence of digital '0' and '1' bits, corresponding to the sequence of operating states of the metasurface for the transmission of information. The FPGA (Field Programmable Gate Array) is then used to generate signals with high and low voltage levels in real time according to the sequence of working states of the metasurface, and to modulate the carrier signal shining onto the metasurface. Therefore, the signal is converted into a modulated signal and received by the antenna. Finally, the signal is demodulated by the USRP (Universal Software Radio Peripheral) and transmitted to the terminal equipment, yielding the constellation diagrams and enabling the recovery of the images. The image information recovered under both modulation schemes has verified that the system can achieve real-time modulation and transmission of digital information. The proposed metasurface and the design method may be used in many applications, such as satellite communications and digital broadcasting.
  • [1]

    Luo X G 2019Adv. Mater. 31 1804680

    [2]

    Liu L X, Zhang X Q, Kenney M, Su X Q, Xu N N, Ouyang C M, Shi Y L, Han J G, Zhang W L, Zhuang S 2014Adv. Mater. 265031

    [3]

    Zhang X H, Pu M B, Guo Y H, Jin J J, Li X, Ma X L, Luo J, Wang C T, Luo X G 2019Adv. Funct. Mater. 29 1809145

    [4]

    Guo Y H, Ma X L, Pu M B, Li X, Zhao Z Y, Luo X G 2018Adv. Opt. Mater. 6 1800592

    [5]

    Yang J N, Huang C, Wu XY, Sun B, Luo X G 2018Adv. Opt. Mater. 6 1800073

    [6]

    Ni X J, Wong Z J, Mrejen M, Wang Y, Zhang X 2015Science 349 1310

    [7]

    Pendry J B 2000Phys. Rev. Lett. 85 3966

    [8]

    Chen K, Ding G W, Hu G W, Jin Z W, Zhao J M, Feng Y J, Jiang T, Alu A, Qiu C W, 2020Adv. Mater. 32 1906352

    [9]

    Li J T, Wang G C, Yue Z, Liu J Y, Li J, Zheng C L, Zhang Y T, Zhang Y, Yao J Q 2022Opto-Electron. Adv. 5210062-1

    [10]

    Rubin N A, D’Aversa G, Chevalier P, Shi Z J, Chen W T, Capasso F, 2019Science 365 eaax1839

    [11]

    Monticone F, Estakhri N M, Alu A 2013Phys. Rev. Lett. 110 203903.

    [12]

    Yu N F, Genevet P, Kats M A, Aieta F, Tetienne J P, Capasso F, Gaburro Z 2011Science 334 333

    [13]

    Dabidian N, Dutta-Gupta S, Kholmanov I, Lai K, Feng L, Jin M Z, Trendafilov S, Khanikaev A, Fallahazad B, Tutuc M, Belkin M A, Shvets G 2016Nano Lett. 16 3607

    [14]

    Zeng C, Lu H, Mao D, Du Y Q, Hua H, Zhao W, Zhao J L 2022Opto-Electron. Adv. 5200098

    [15]

    Chu C H, Tseng M L, Chen J, Wu P C, Chen Y H, Wang H C, Chen T Y, Hsieh W T, Wu H J, Sun G, Tsai D P 2016Laser Photonics Rev. 10 986

    [16]

    Shaltout A M, Shalaev V M, Brongersma M L. 2019Science 364 3100

    [17]

    Cui T J, Qi M Q, Wan X, Zhao J, Cheng Q 2014Light Sci. Appl. 3 218

    [18]

    Li L L, Cui T J, Ji W, Liu S, Ding J, Wan X, Li Y B, Jiang M H, Qiu C W, Zhang S. 2017Nat. Commun. 8 197

    [19]

    Chen K, Zhang N, Ding G W, Zhao J M, Jiang T, Feng Y J 2020Adv. Mater. Technol. 5 1900930

    [20]

    Chen K, Feng Y J, Monticone F, Zhao J M, Zhu B, Jiang T, Zhang L, Kim Y J, Ding X M, Zhang S, Alu A, Qiu C W 2017Adv. Mater. 29 1606422

    [21]

    Tang K, Hu Q, Zhao J M, Chen K, Feng Y J 2022Journal on Communications 43 24(in Chinese) [唐奎, 胡琪, 赵俊明, 陈克, 冯一军2022通信学报 43 24]

    [22]

    Zhang N, Zhao J M, Chen K, Zhao J M, Jiang T, Feng Y J 2021Acta Phys. Sin. 70 178102(in Chinese) [张娜赵健民陈克赵俊明姜田冯一军2021物理学报 70 178102]

    [23]

    Zheng Y L, Chen K, Xu Z Y, Zhang N, Wang J, Zhao J M, Feng Y J 2022Adv. Sci. 92204558

    [24]

    Zhao H T, Shuang Y, Wei M L, Cui T J, Hougne P D, Li L L 2020Nat. Commun. 11 3926

    [25]

    Cui T J, Liu S, Bai G D, Ma Q 2019Research 20192584609

    [26]

    Hu Q, Chen K, Zheng Y L, Xu Z Y, Zhao J M 2023Nanophotonics. 12 1327

    [27]

    Chen K, Guo W L, Ding G W, Zhao J M, Jiang T, Feng Y J 2020Opt. Express. 28 12638

    [28]

    Ten Brink S, Kramer G, Ashikhmin A 2004IEEE Trans. Commun. 52 670

    [29]

    Xing L J, Li Z, Bai B M, Wang X M 2008Acta Phys. Sin. 57 4695(in Chinese) [邢莉娟李卓白宝明王新梅2008物理学报 57 4695]
