随着半导体工艺的发展, 具有深沟槽隔离(DTI)技术的双极晶体管因其优异的电气性能和隔离效果, 逐步应用于性能和集成度要求更高的先进半导体器件. 现有的双极晶体管单粒子效应研究表明, 深沟槽隔离技术会导致双极器件产生新的单粒子效应机制. 本文针对深沟槽隔离结构的多晶硅发射极双极晶体管, 开展了质子入射角度对其单粒子效应的影响研究. 实验结果表明, 质子入射角度会显著影响晶体管集电极的单粒子瞬态电压脉冲振幅. 利用Sentaurus TCAD软件模拟了多晶硅发射极双极晶体管的单粒子效应电荷收集过程, 根据模拟结果分析了深沟槽隔离器件的灵敏体积, 并基于Geant4蒙特卡罗模拟方法开展了质子不同角度入射深沟槽器件灵敏体积的模拟, 结果表明, 次级离子在灵敏体积内的积分截面会随着入射角度的增加而增大, 为深沟槽隔离双极晶体管的单粒子效应抗辐射加固提供了理论支撑.
-
关键词:
- 深沟槽隔离 /
- 质子单粒子效应 /
- TCAD数值模拟 /
- Geant4粒子仿真
Deep-trench isolation (DTI) bipolar transistors have been increasingly adopted in high-performance, highly integrated advanced semiconductor devices due to their superior electrical characteristics and isolation capabilities. However, existing research has shown that DTI bipolar transistors exhibit a lower linear energy transfer (LET) threshold for single-event effects (SEEs) and a larger saturated cross-section than traditional structures, making the traditional rectangular parallelepiped (RPP) model unsuitable for such devices. In this study, we investigate the influence of proton incidence angle on single-event effects in high-speed DTI bipolar transistors. Proton multi-angle irradiation experiments reveal that the incidence angle significantly changes the amplitude characteristics of single-event transient voltage pulses at the collector. By introducing a nested sensitive volume in TCAD numerical simulations, the sensitive region of the DTI device is accurately defined. Geant4 simulations further demonstrate that with the increase of proton incidence angle, the integral cross-section of secondary ions in the sensitive volume significantly increases, which is determined to be the primary reason for the voltage amplitudes at the collector and base increasing with augment of tilt angle. This work provides theoretical support for radiation hardening of DTI bipolar transistors against single-event effects. -
Keywords:
- deep trench isolation /
- proton single event effects /
- TCAD numerical simulation /
- Geant4 particle simulation
-

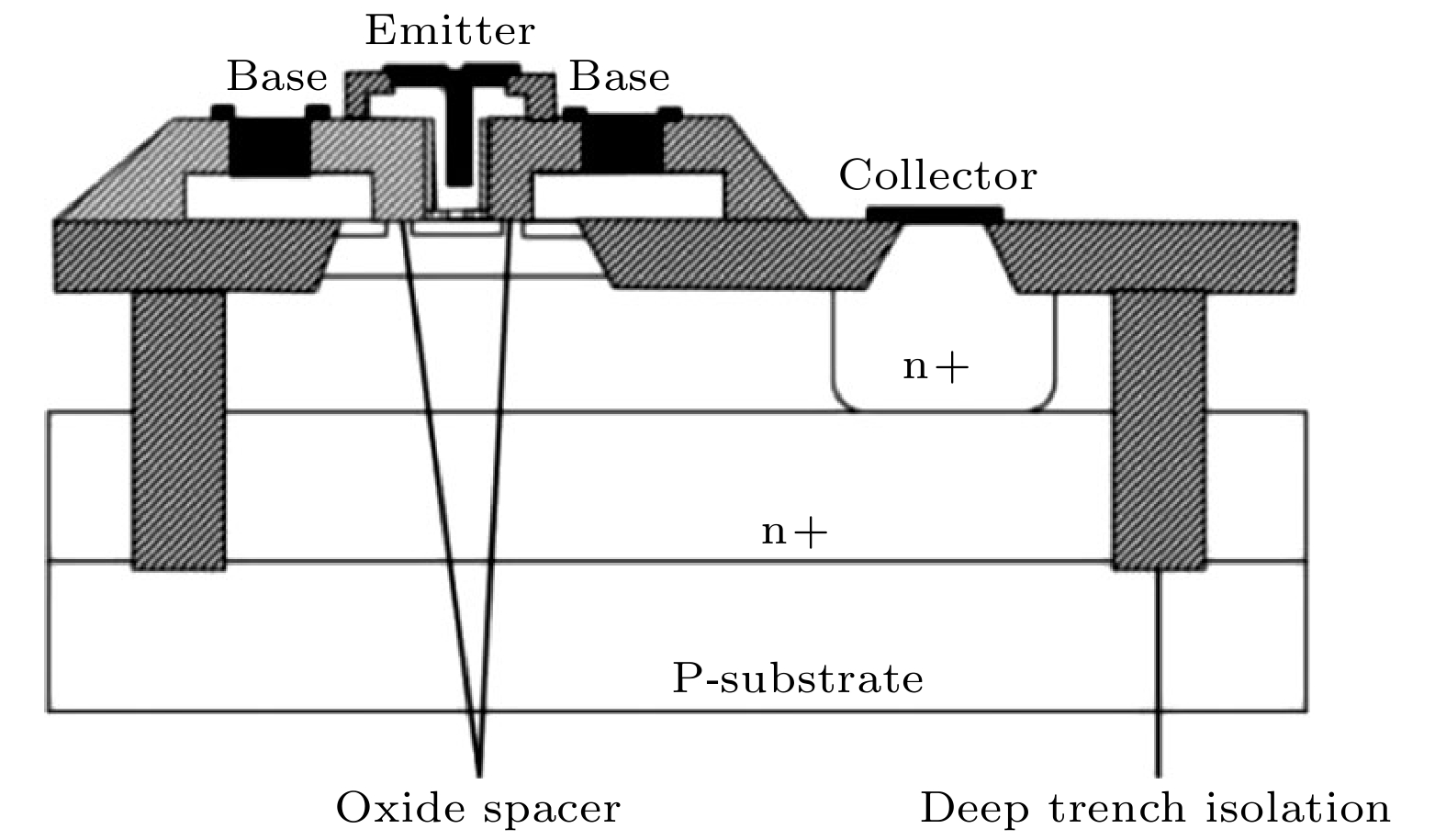

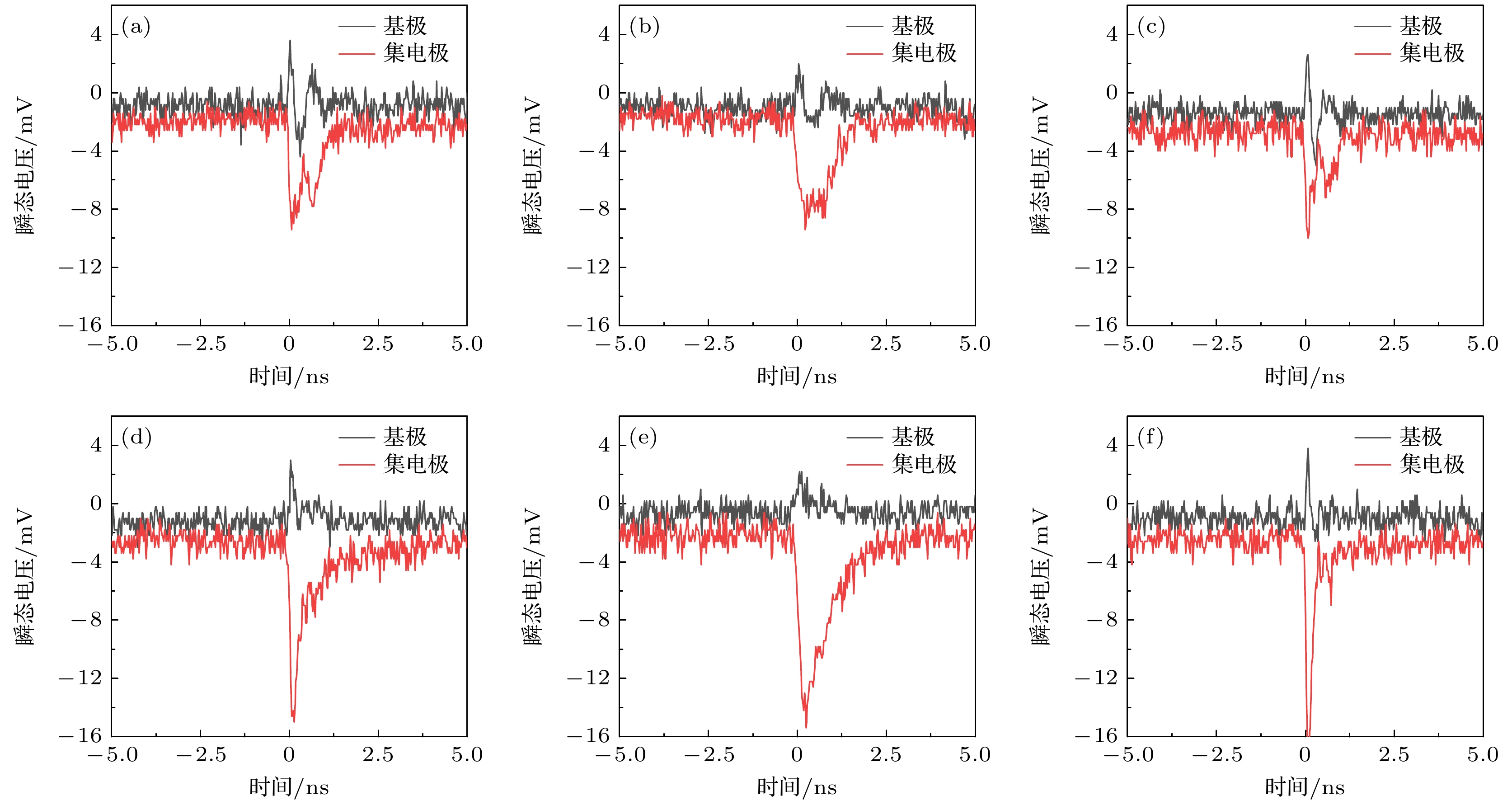

图 2 不同入射角度下质子引起的基极和集电极的瞬态电压脉冲随时间的变化
Fig. 2. Transient voltage pulse of base and collector vs. time, induced by protons at different incidence angles.

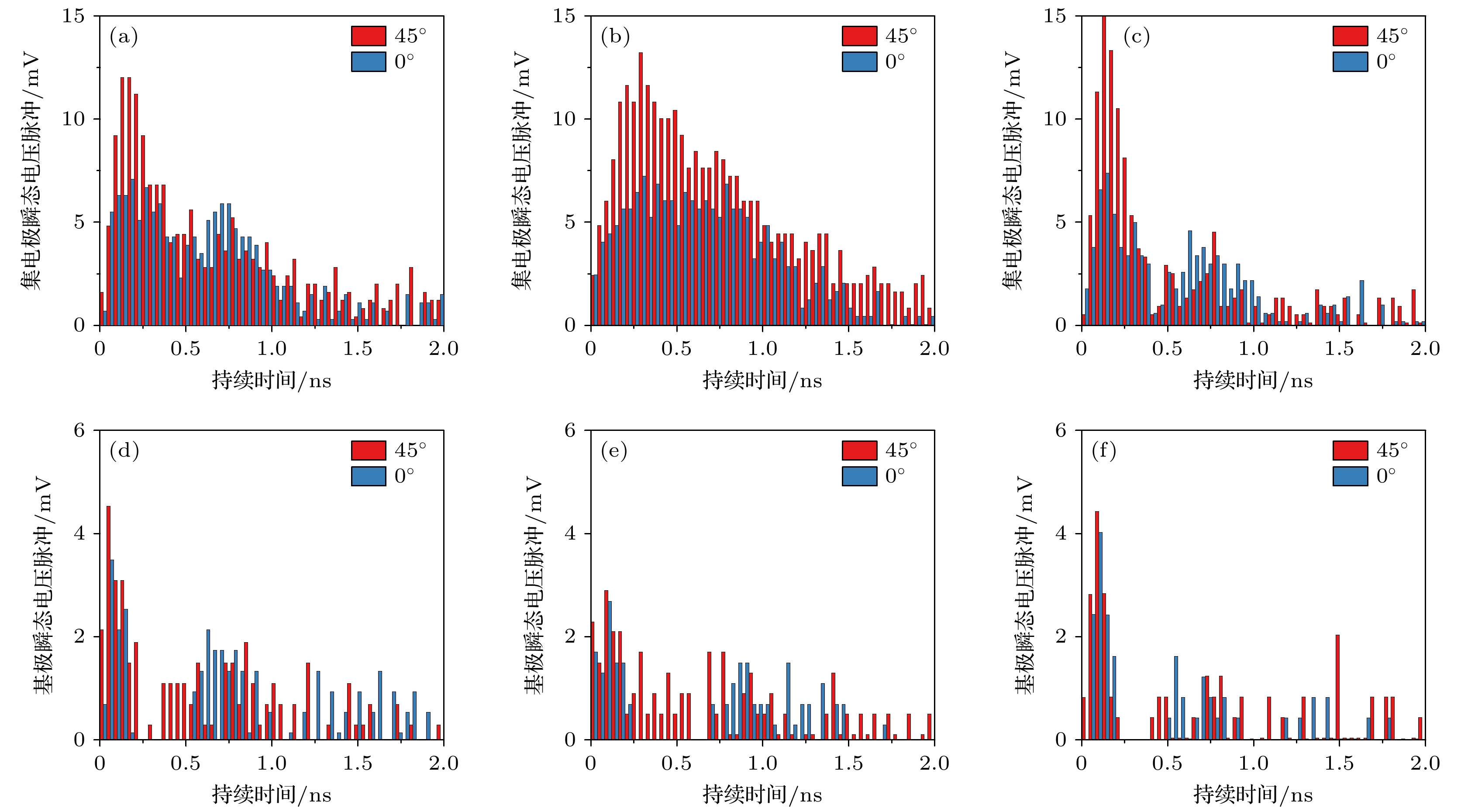

图 3 不同入射角度质子引起的集电极与基极瞬态电压脉冲幅度随时间的变化
Fig. 3. Changes of collector and base transient voltage pulse amplitude with time caused by protons at different incident angles.

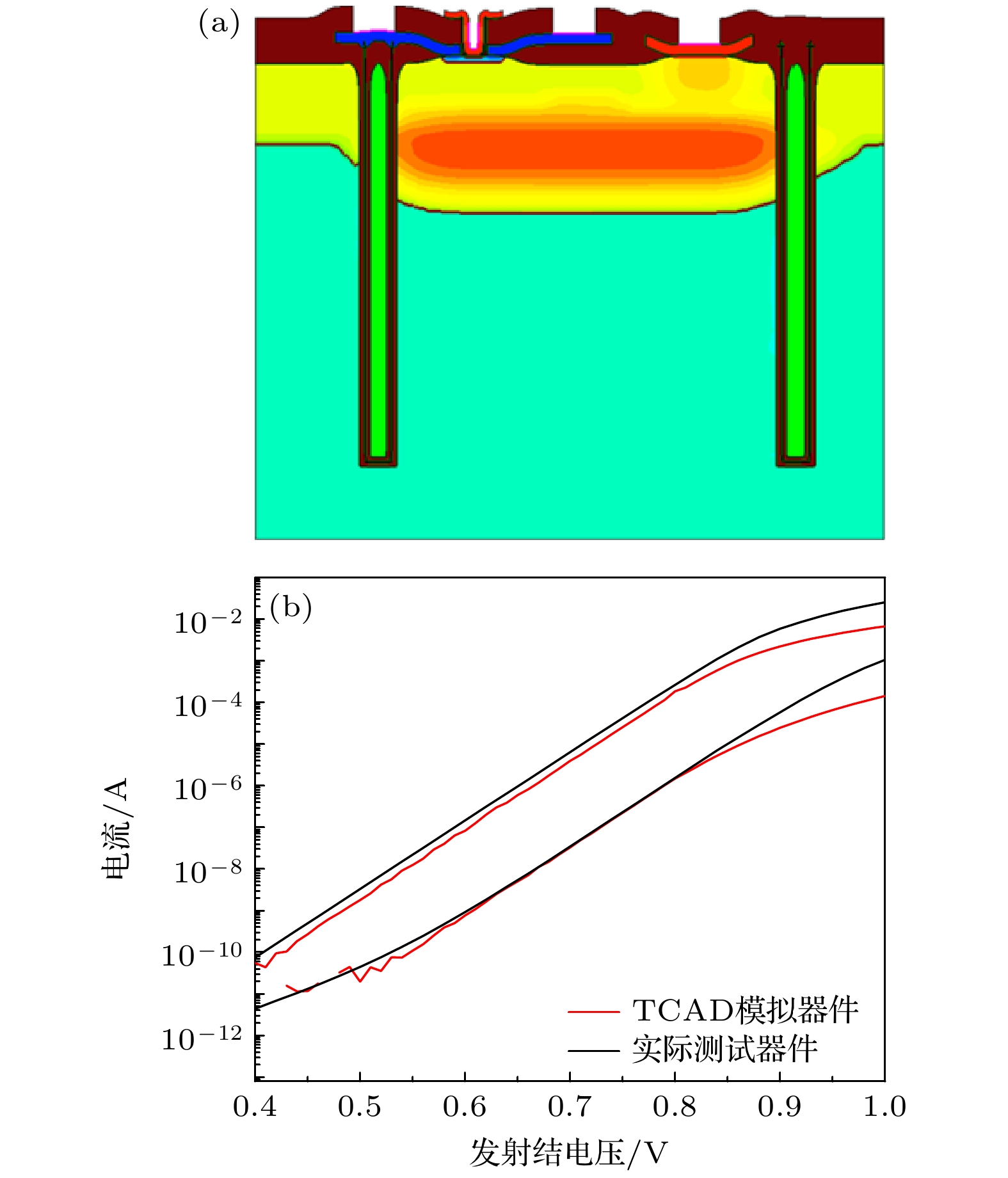

图 4 PE BJT器件模型与电学特性曲线 (a) PE BJT模型仿真截面; (b) 仿真器件与实验器件的Gummel特性曲线
Fig. 4. PE BJT device model and electrical characteristics: (a) Cross-sectional view of the PE BJT simulation model; (b) Gummel characteristics comparison between simulated and experimental devices.

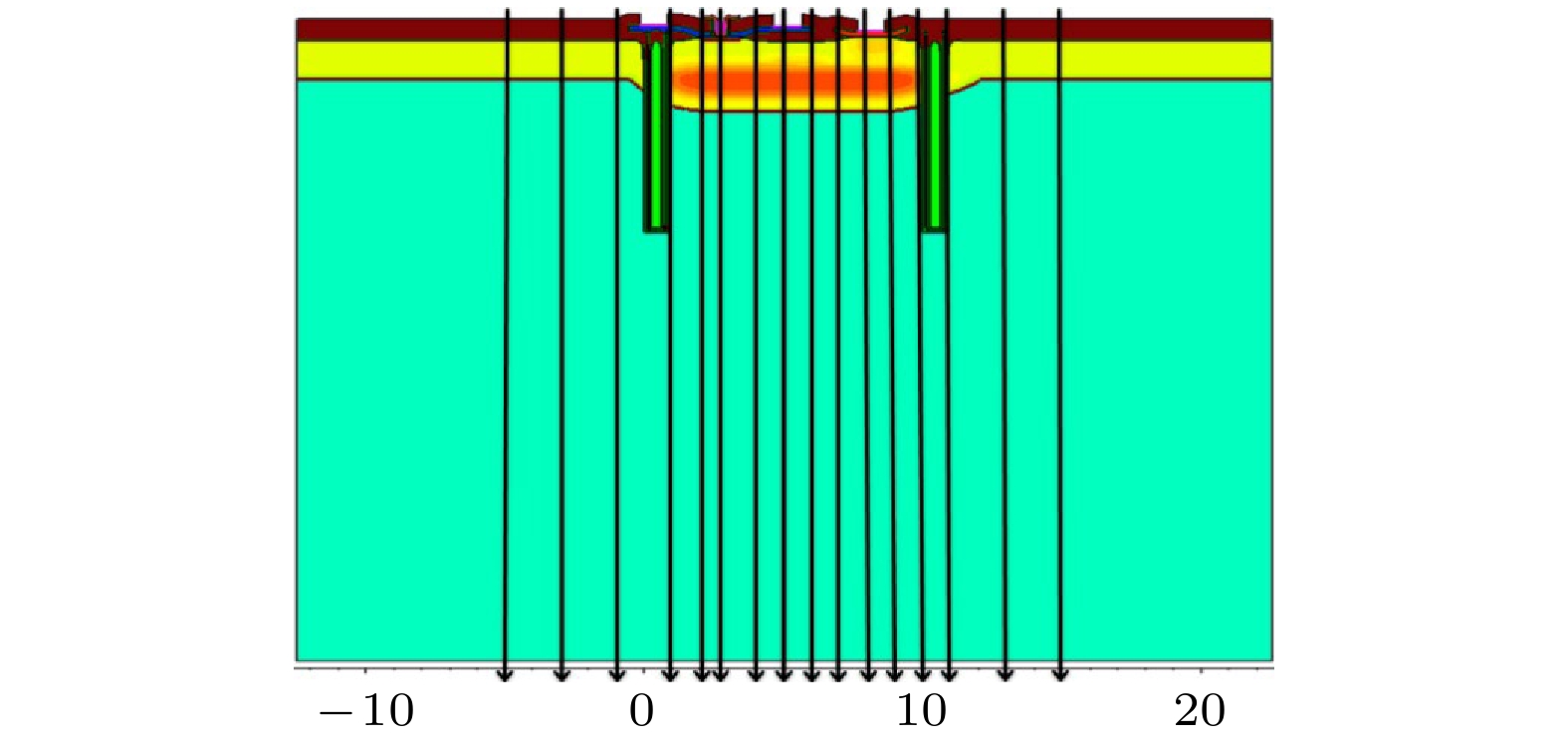

图 5 TCAD模拟重离子入射位置分布示意图
Fig. 5. Distribution of heavy ion incidence in TCAD simulation.

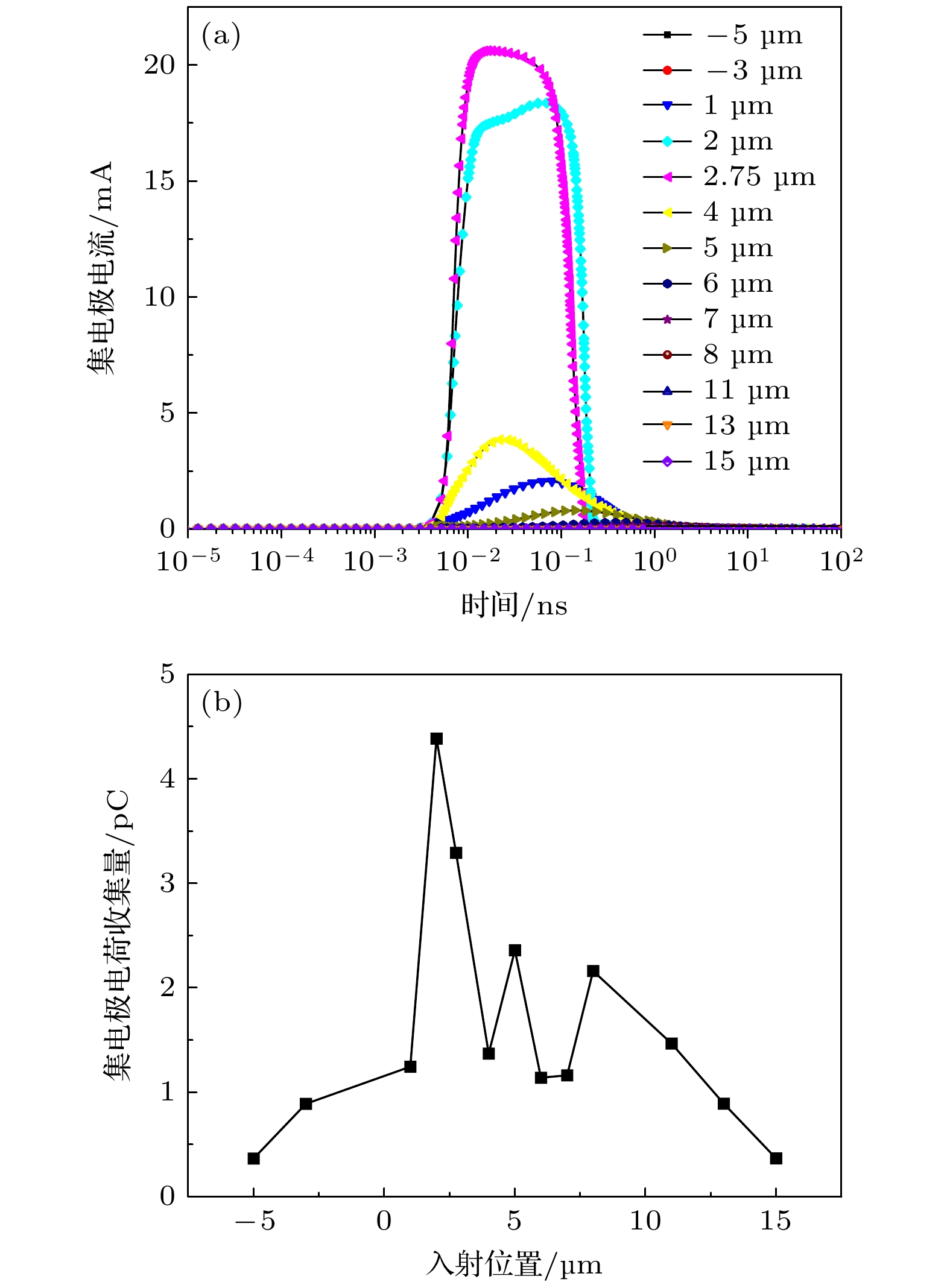

图 6 TCAD模拟重离子入射不同位置后集电极电流与电荷收集的变化 (a) 离子不同位置入射时集电极瞬态电流随时间的变化关系; (b) 集电极电荷收集量随离子入射位置的变化关系
Fig. 6. TCAD Simulation of collector current and charge collection under heavy-ion strikes at different positions: (a) Transient collector current vs. time for ion strikes at different locations; (b) collected charge as a function of ion strike position.

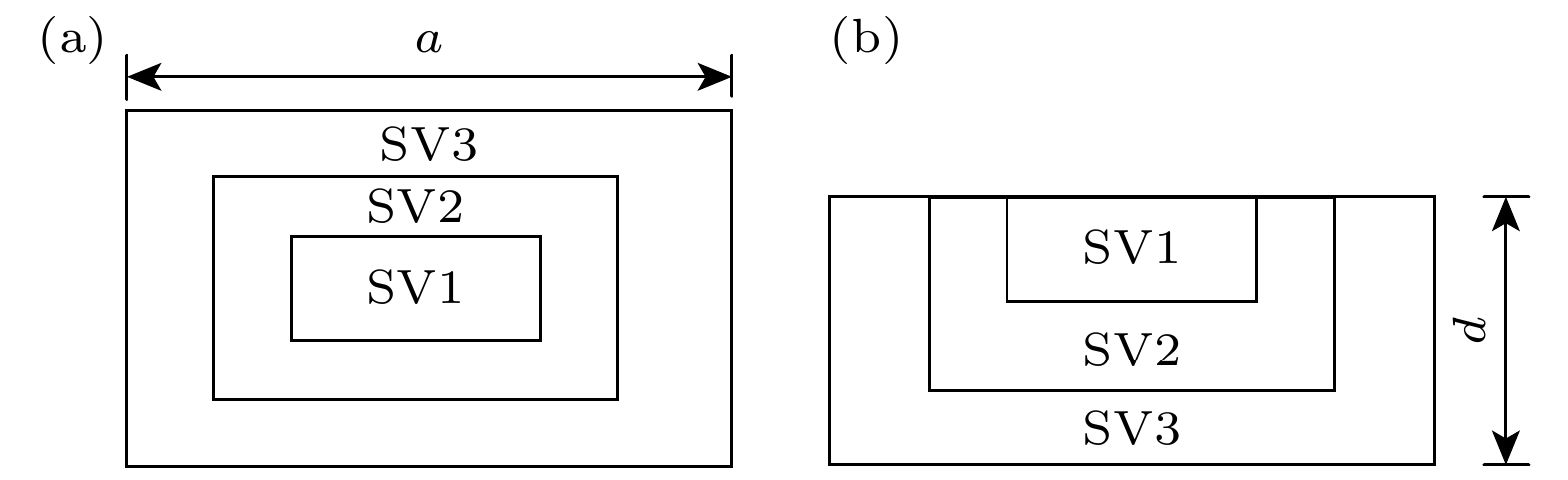

图 7 仿真所得PE BJT器件单粒子效应灵敏体积分布 (a) 俯视图; (b) 侧视图
Fig. 7. Simulated sensitive volume distribution of the PE BJT device under single-event effects: (a) Top view; (b) side view.

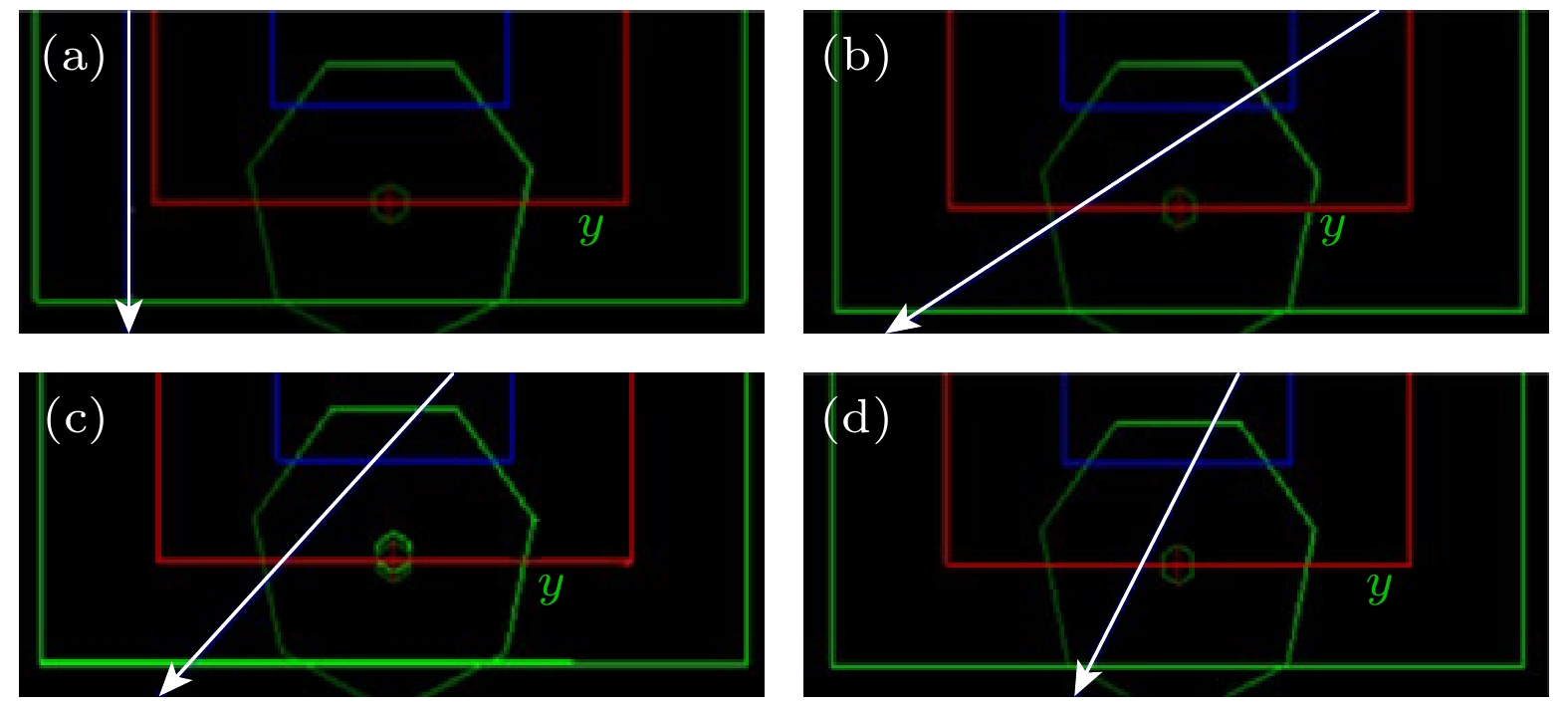

图 8 质子多角度入射PE BJT灵敏体积Geant4仿真示意图 (a) 0°入射; (b) 30°入射; (c) 45°入射; (d) 60°入射
Fig. 8. Geant4 simulation schematic of the sensitive volume in a PE BJT under proton irradiation at different angles: (a) 0° incidence; (b) 30° incidence; (c) 45° incidence; (d) 60° incidence.

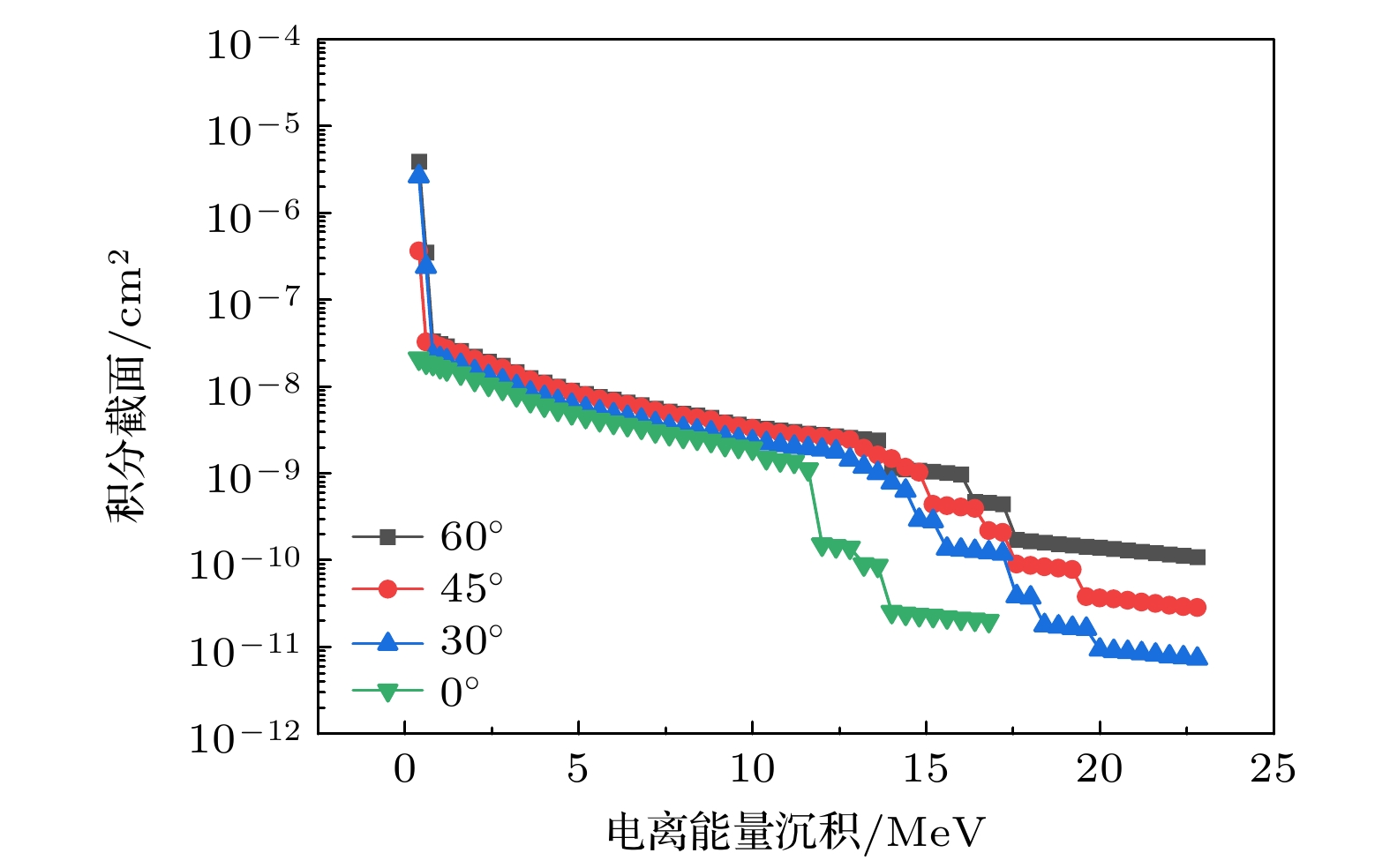

图 9 不同入射角度下质子入射时积分截面随灵敏体积中电离能量沉积的变化
Fig. 9. Integrated cross sections of proton induced at different angles vs ionizing energy deposition in the sensitive volume.
表 1 不同灵敏区域电荷收集效率
Table 1. Charge collection efficiency in different sensitivity regions.
灵敏区域 电荷收集效率/% SV1 31.84 SV2 14.14 SV3 7.99
下载: 导出CSV
表 2 60 MeV质子多角度入射后产生的次级粒子信息
Table 2. Information on secondary particles generated by 60 MeV proton incidence at multiple angles.
次级粒子种类
(0°/30°/45°/60°)最高能量/MeV
(0°/30°/45°/60°)LET/(MeV·cm2·mg–1)
(0°/30°/45°/60°)射程/μm
(0°/30°45°/60°)Si 8.1/5.9/6.5/6.6 12.4/11.6/11.9/11.9 4.2/3.4/3.6/3.7 P 6.1/3.2/3.3/3.2 11.3/9.2/9.3/9.2 3.5/2.3/2.4/2.3 O 11.1/8.3/2.2/6.7 6.8/7.0/6.5/7.1 7.8/6.1/2.4/5.1 Ne 11.3/7.0/9.9/10.2 8.9/8.6/8.8/8.9 6.9/4.8/6.2/6.4 Na 11.9/9.5/8.9/7.6 10.3/10.2/10.8/10.0 6.7/5.7/5.5/4.9 Mg 11.5/9.3/8.5/9.0 11.4/11.2/11.0/11.1 6.2/5.4/5.1/5.3 Al 8.2/8.3/7.1/7.3 11.3/11.4/11.0/11.1 4.8/4.9/4.4/4.5 F(仅30°入射) 1.2 5.2 1.6
下载: 导出CSV
-
