First-principles study of structure, elasticity, and electronic properties of ternary semiconductor Al4In2N6 under high pressure

CHEN Meijuan; GUO Jiaxin; WU Hao; ZHENG Xiaoran; MIN Nan; TIAN Hui; LI Quanjun; DU Shiyu; SHEN Longhai

doi:10.7498/aps.74.20250287

Abstract

The effects of pressure on the crystal structure, elastic properties, and electronic characteristics of Al₄In₂N₆ are systematically studied using first-principles density functional theory. The lattice constants of Al₄In₂N₆ decrease with the increase of pressure, exhibiting anisotropic compression with greater compressibility along the c-axis. In terms of mechanical properties, the bulk modulus increases with the increase of pressure, indicating enhanced compressive resistance. Notably, the Vickers hardness decreases with the increase of pressure, indicating that high pressure can induce plastic deformation in Al₄In₂N₆. The calculations of elastic constants and phonon spectra confirm that Al₄In₂N₆ retains mechanical and dynamical stability in the pressure range of 0–30 GPa. Electronic structure calculations reveal that Al₄In₂N₆ possesses a direct band gap, and non-overlapping conduction and valence bands at the Fermi level. The conduction band has a higher carrier mobility than the valence band. The band gap increases almost linearly with pressure rising from 3.35 eV at 0 GPa to 4.24 eV at 30 GPa, demonstrating significant pressure-induced modulation of the electronic structure. Furthermore, the analysis of differential charge densities reveals that increasing pressure can strengthen the Al-N and In-N bonds in Al₄In₂N₆ through shortened interatomic distances and stronger atomic interactions, increasing its compression resistance. In summary, this study not only deepens our understanding of the high-pressure properties of Al₄In₂N₆ but also provides theoretical guidance for its application in UV optoelectronics. Pressure-driven modulation of its mechanical and electronic characteristics highlights its potential in efficient high-pressure optoelectronic devices and materials.

Keywords:

Authors and contacts

1.
School of Science, Shenyang Ligong University, Shenyang 100159, China
2.
State Key Laboratory of Superhard Materials, Jinlin University, Changchun 130012, China
3.
College of Materials Science and Chemical Engineering, Harbin Engineering University, 150001 Harbin, China
4.
Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, Ningbo 315201, China
5.
School of Materials Science and Engineering, China University of Petroleum (East China), Qingdao 266580, China

Corresponding author: TIAN Hui, huitian2022sylu@126.com ; SHEN Longhai, shenlonghai@163.com

Funds: Project supported by the National Natural Science Foundation of China (Grant Nos. 12274304, 12404060), the Liaoning Provincial Doctoral Research Initiation Fund of China (Grant No. 2024-BS-115), the Liaoning Provincial Department of Education Project (Independent Selection Project) of China (Grant No. LJ212410144038), the Shenyang Ligong University Introduced High-level Talents for Scientific Research Support Funds in 2022, China (Grant No. 1010147001132), and the Shenyang Ligong University Introduced High-Level Talents for Scientific Research Support Funds in 2024, China (Grant No. 1010147001325).

FullText HTML

References

[1]	Liu B, Chen D, Lu H, Tao T, Zhuang Z, Shao Z, Xu W, Ge H, Zhi T, Ren F, Ye J, Xie Z, Zhang R 2020 Adv. Mater. 32 1904354 Google Scholar
[2]	Hahn C, Zhang Z, Fu A, Wu C H, Hwang Y J, Gargas D J, Yang P 2011 ACS Nano 5 3970 Google Scholar
[3]	Yu J, Wang L, Hao Z, Luo Y, Sun C, Wang J, Han Y, Xiong B, Li H 2020 Adv. Mater. 32 1903407 Google Scholar
[4]	Chen K, Kapadia R, Harker A, Desai S, Javey A 2016 Nat. Commun. 7 10502 Google Scholar
[5]	仇鹏, 刘恒, 朱晓丽, 田丰, 杜梦超, 邱洪宇, 陈冠良, 胡玉玉, 孔德林, 杨晋, 卫会云, 彭铭曾, 郑新和 2024 物理学报 73 038102 Google Scholar Qiu P, Liu H, Zhu X L, Tian F, Du M C, Qiu H Y, Chen G L, Hu Y Y, Kong D L, Yang J, Wei H Y, Peng M Z, Zheng X H 2024 Acta Phys. Sin. 73 038102 Google Scholar
[6]	Manjón F J, Errandonea D, Garro N, Romero A H, Serrano J, Kuball M 2007 Phys. Status Solidi B 244 42 Google Scholar
[7]	E Abid A, Bensalem R, Sealy B J 1986 J. Mater. Sci. 21 1301 Google Scholar
[8]	Yu R, Liu G, Wang G, Chen C, Xu M, Zhou H, Wang T, Yu J, Zhao G, Zhang L 2021 J. Mater. Chem. C 9 1852 Google Scholar
[9]	Ibáñez J, Segura A, García-Domene B, Oliva R, Manjón F J, Yamaguchi T, Nanishi Y, Artús L 2012 Phys. Rev. B 86 035210 Google Scholar
[10]	Khan N, Sedhain A, Li J, Lin J Y, Jiang H X 2008 Appl. Phys. Lett. 92 172101 Google Scholar
[11]	Davydov V Y, Klochikhin A, Seisyan R, Emtsev V, Ivanov S, Bechstedt F, Furthmüller J, Harima H, Mudryi A, Aderhold J 2002 Phys. Status Solidi B 229 r1 Google Scholar
[12]	Tansley T L, Foley C P 1986 J. Appl. Phys. 59 3241 Google Scholar
[13]	Liu X K, Lin Z C, Lin Y H, Chen J J, Zou P, Zhou J, Li B, Shen L H, Zhu D L, Liu Q, Yu W J, Li X H, Zhu H, Wang X Z, Huang S W 2023 Chin. Phys. B 32 117701 Google Scholar
[14]	Wu J, Walukiewicz W, Yu K M, Ager J W, Haller E E, Lu H, Schaff W J, Saito Y, Nanishi Y 2002 Appl. Phys. Lett. 80 3967 Google Scholar
[15]	Beladjal K, Kadri A, Zitouni K, Mimouni K 2021 Superlattices Microstruct. 155 106901 Google Scholar
[16]	Guo Q G Q, Yoshida A Y A 1994 Jpn. J. Appl. Phys. 33 2453 Google Scholar
[17]	Zhao F, Yao G R, Song J J, Ding B B, Xiong J Y, Su C, Zheng S W, Zhang T, Fan G H 2013 Chin. Phys. B 22 058503 Google Scholar
[18]	Chen J J, Shen L H, Qi D L, Wu L J, Li X, Song J Y, Zhang X L 2022 Ceram. Int. 48 2802 Google Scholar
[19]	Moussa R, Abdiche A, Khenata R, Wang X, Varshney D, Sun X W, Omran S B, Bouhemadou A, Rai D 2018 J. Phys. Chem. Solids 119 36 Google Scholar
[20]	Mao W, Zhang J C, Xue J S, Hao Y, Ma X H, Wang C, Liu H X, Xu S R, Yang L A, Bi Z W, Liang X Z, Zhang J F, Kuang X W 2010 Chin. Phys. Lett. 27 128501 Google Scholar
[21]	Wen X X, Yang X D, He M, Li Y, Wang G, Lu P Y, Qian W N, Li Y, Zhang W W, Wu W B, Chen F S, Ding L Z 2012 Chin. Phys. Lett. 29 097304 Google Scholar
[22]	Zhang X F, Wang L, Liu J, Wei L, Xu J 2013 Chin. Phys. B 22 017202 Google Scholar
[23]	Han T C, Zhao H D, Yang L, Wang Y 2017 Chin. Phys. B 26 107301 Google Scholar
[24]	Zhan X M, Hao M L, Wang Q, Li W, Xiao H L, Feng C, Jiang L J, Wang C M, Wang X L, Wang Z G 2017 Chin. Phys. Lett. 34 047301 Google Scholar
[25]	Dong Y, Son D H, Dai Q, Lee J H, Won C H, Kim J G, Chen D, Lee J H, Lu H, Zhang R, Zheng Y 2018 Sensors 18 1314 Google Scholar
[26]	Li A, Wang C, Xu S, Zheng X, He Y, Ma X, Lu X, Zhang J, Liu K, Zhao Y Hao Y 2021 Appl. Phys. Lett. 119 122104 Google Scholar
[27]	Robin Chang Y H, Yoon T L, Lim T L 2016 Curr. Appl. Phys. 16 1277 Google Scholar
[28]	Borovac D, Sun W, Song R, Wierer J J, Tansu N 2020 J. Cryst. Growth 533 125469 Google Scholar
[29]	Yonenaga I, Ohkubo Y, Deura M, Kutsukake K, Tokumoto Y, Ohno Y, Yoshikawa A, Wang X Q 2015 AIP Adv. 5 077131 Google Scholar
[30]	Tan X, Xin Z Y, Liu X J, Mu Q G 2013 Adv. Mater. Res. 821–822 841 Google Scholar
[31]	Chen M, Guo G C, He L 2010 J. Phys. Condens. Matter 22 445501 Google Scholar
[32]	Al-Khatatbeh Y, Lee K K M, Kiefer B 2009 Phys. Rev. B 79 134114 Google Scholar
[33]	Man X X, Gong B C, Sun P H, Liu K, Lu Z Y 2022 Phys. Rev. B 106 035136 Google Scholar
[34]	Yu F, Liu Y 2019 Computation 7 57 Google Scholar
[35]	Velpula R T, Jain B, Philip M R, Nguyen H D, Wang R, Nguyen H P T 2020 Sci. Rep. 10 2547 Google Scholar
[36]	Robin Chang Y H, Yoon T L, Lim T L, Rakitin M 2016 J. Alloys Compd. 682 338 Google Scholar
[37]	Glass C W, Oganov A R, Hansen N 2006 Comput. Phys. Commun. 175 713 Google Scholar
[38]	Oganov A R, Lyakhov A O, Valle M 2011 Acc. Chem. Res. 44 227 Google Scholar
[39]	Lyakhov A O, Oganov A R, Stokes H T, Zhu Q 2013 Comput. Phys. Commun. 184 1172 Google Scholar
[40]	Kresse G, Furthmüller J 1996 Phys. Rev. B 54 11169 Google Scholar
[41]	Kresse G, Furthmüller J 1996 Comput. Mater. Sci. 6 15 Google Scholar
[42]	Blöchl P E 1994 Phys. Rev. B 50 17953 Google Scholar
[43]	Wu Z, Cohen R E 2006 Phys. Rev. B 73 235116 Google Scholar
[44]	Monkhorst H J, Pack J D 1976 Phys. Rev. B 13 5188 Google Scholar
[45]	Togo A, Oba F, Tanaka I 2008 Phys. Rev. B 78 134106 Google Scholar
[46]	Togo A, Tanaka I 2015 Scr. Mater. 108 1 Google Scholar
[47]	Heyd J, Scuseria G E, Ernzerhof M 2003 J. Chem. Phys. 118 8207 Google Scholar
[48]	Muscat J, Wander A, Harrison N M 2001 Chem. Phys. Lett. 342 397 Google Scholar
[49]	Garza A J, Scuseria G E 2016 J. Phys. Chem. Lett. 7 4165 Google Scholar
[50]	Sugita Y, Miyake T, Motome Y 2018 Phys. Rev. B 97 035125 Google Scholar
[51]	Robin Chang Y H, Yoon T L, Lim T L, Tuh M H 2017 J. Alloys Compd. 704 160 Google Scholar
[52]	Mouhat F, Coudert F X 2014 Phys. Rev. B 90 224104 Google Scholar
[53]	Voigt W 1889 Ann. Phys. 274 573 Google Scholar
[54]	Reuss A 1929 ZAMM - J. Appl. Math. Mech. Z. Für Angew. Math. Mech. 9 49 Google Scholar
[55]	Hill R 1952 Proc. Phys. Soc. London, Sect. A 65 349 Google Scholar
[56]	Frantsevich I N, Voronov F F and Bokuta S A 1983 Elastic Constants and Elastic Moduli of Metals and Insulators Handbook (Kiev: Naukova Dumka) pp60–180
[57]	Tian Y, Xu B, Zhao Z 2012 Int. J. Refract. Met. Hard Mater. 33 93 Google Scholar
[58]	Meng J, Sun L, Zhang Y, Xue F, Chu C, Bai J 2020 Materials 13 427 Google Scholar

Cited By

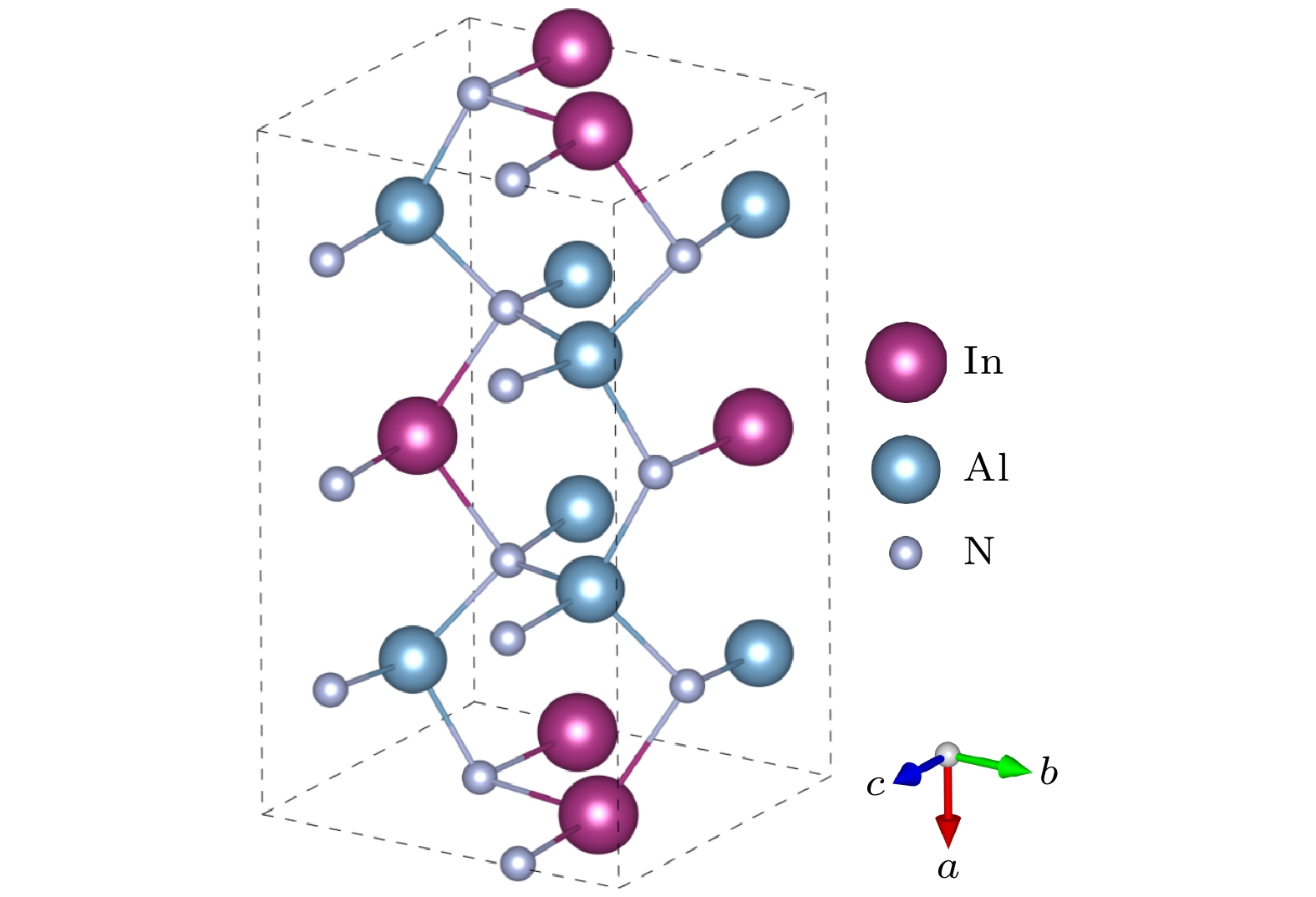

图 1 Al₄In₂N₆的晶体结构

Figure 1. Crystal structure of Al₄In₂N₆.

DownLoad: Full-Size Img PowerPoint

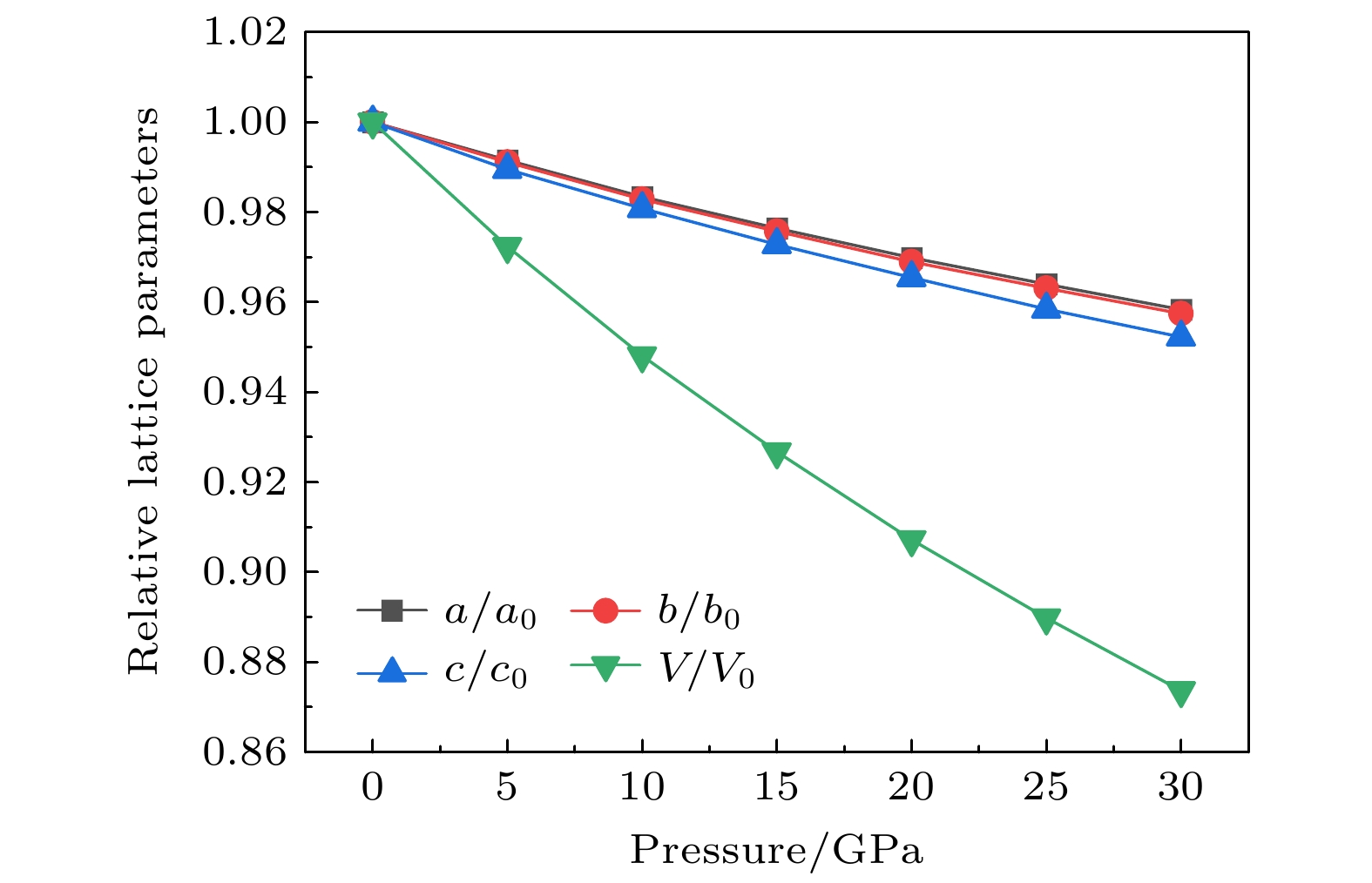

图 2 Al₄In₂N₆的相对晶格参数和相对体积随压力的变化

Figure 2. Pressure dependence of relative lattice parameters and relative unit cell volume for Al₄In₂N₆.

DownLoad: Full-Size Img PowerPoint

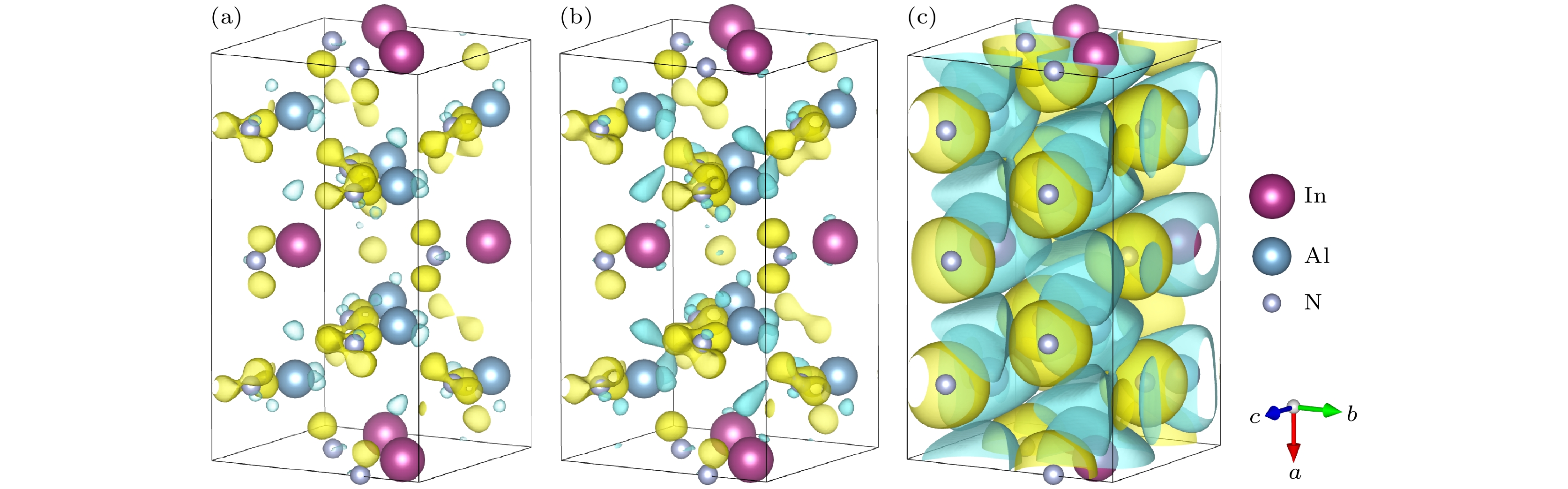

图 3 不同压力下Al₄In₂N₆的差分电荷密度　(a) 0 GPa; (b) 15 GPa; (c) 30 GPa

Figure 3. Differential charge density of Al₄In₂N₆ under different pressures: (a) 0 GPa; (b) 15 GPa; (c) 30 GPa.

DownLoad: Full-Size Img PowerPoint

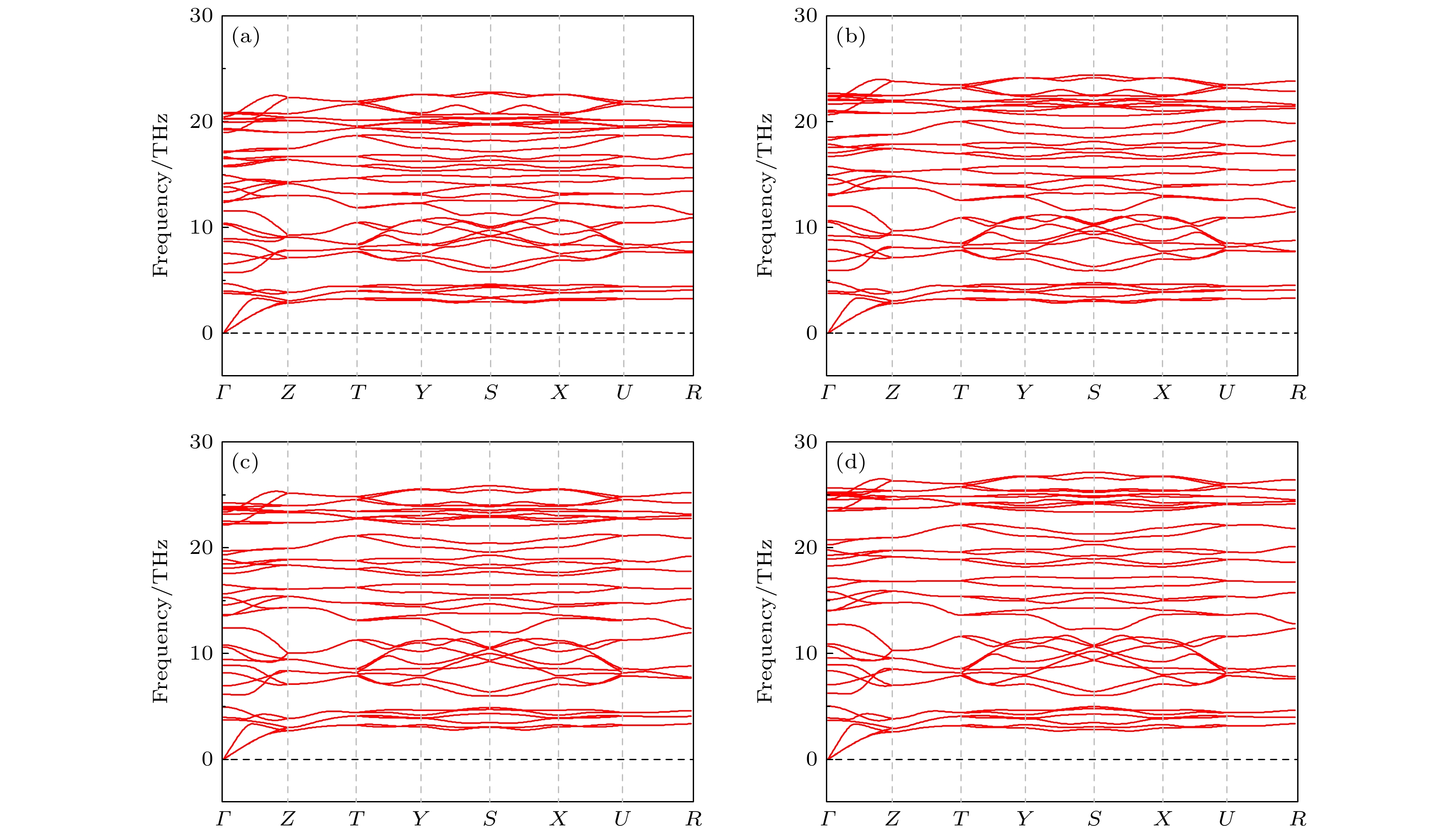

图 4 不同压力下Al₄In₂N₆的声子色散曲线　(a) 0 GPa; (b) 10 GPa; (c) 20 GPa; (d) 30 GPa

Figure 4. Phonon dispersion curves for Al₄In₂N₆ at different pressures: (a) 0 GPa; (b) 10 GPa; (c) 20 GPa; (d) 30 GPa.

DownLoad: Full-Size Img PowerPoint

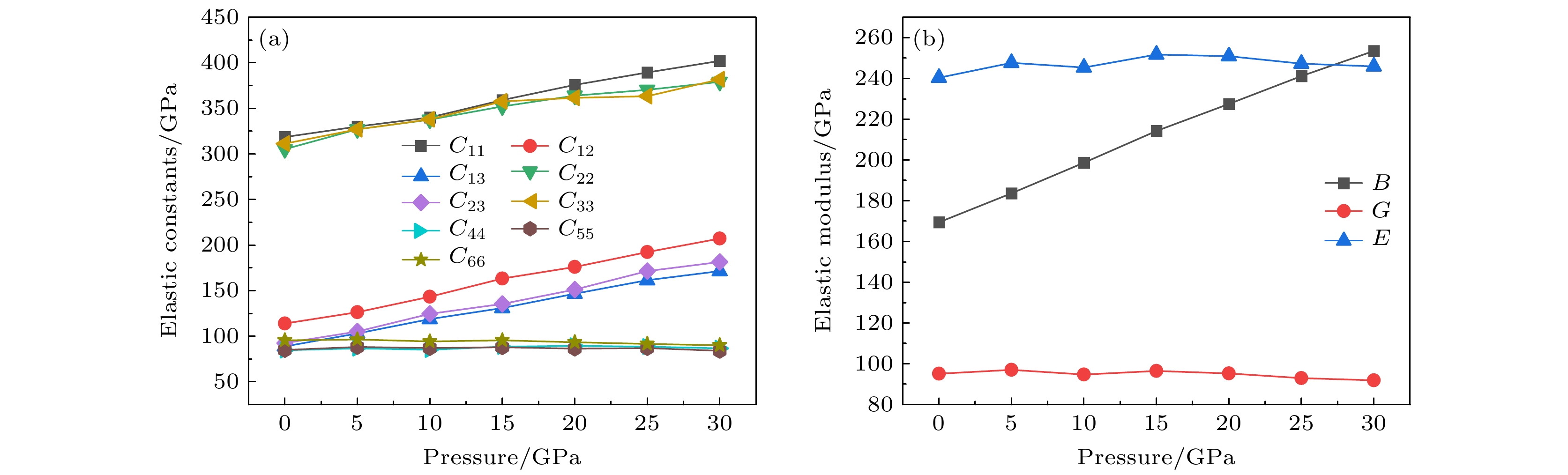

图 5 Al₄In₂N₆的弹性常数(a)和弹性模量(b)随压力的变化

Figure 5. The elastic constants (a) and elastic modulus (b) of Al₄In₂N₆ change with pressure.

DownLoad: Full-Size Img PowerPoint

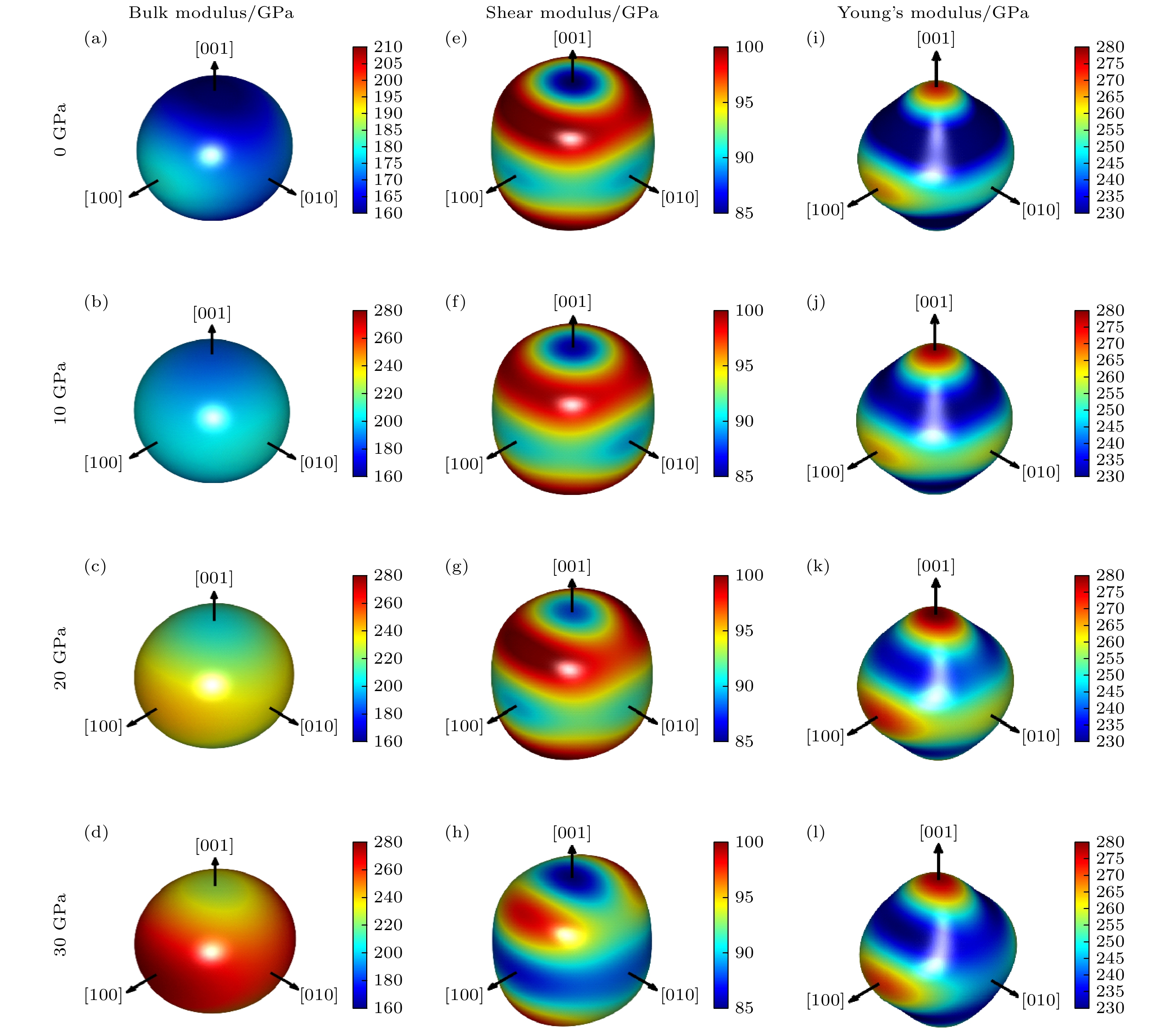

图 6 在0, 10, 20, 30 GPa压力下Al₄In₂N₆的三维体积模量((a)—(d)), 剪切模量((e)—(h)), 杨氏模量((i)—(l))

Figure 6. The 3D plot of bulk modulus ((a)–(d)), shear modulus ((e)–(h)), and Young’s modulus ((i)–(l)) of Al₄In₂N₆ under pressures of 0, 10, 20, and 30 GPa.

DownLoad: Full-Size Img PowerPoint

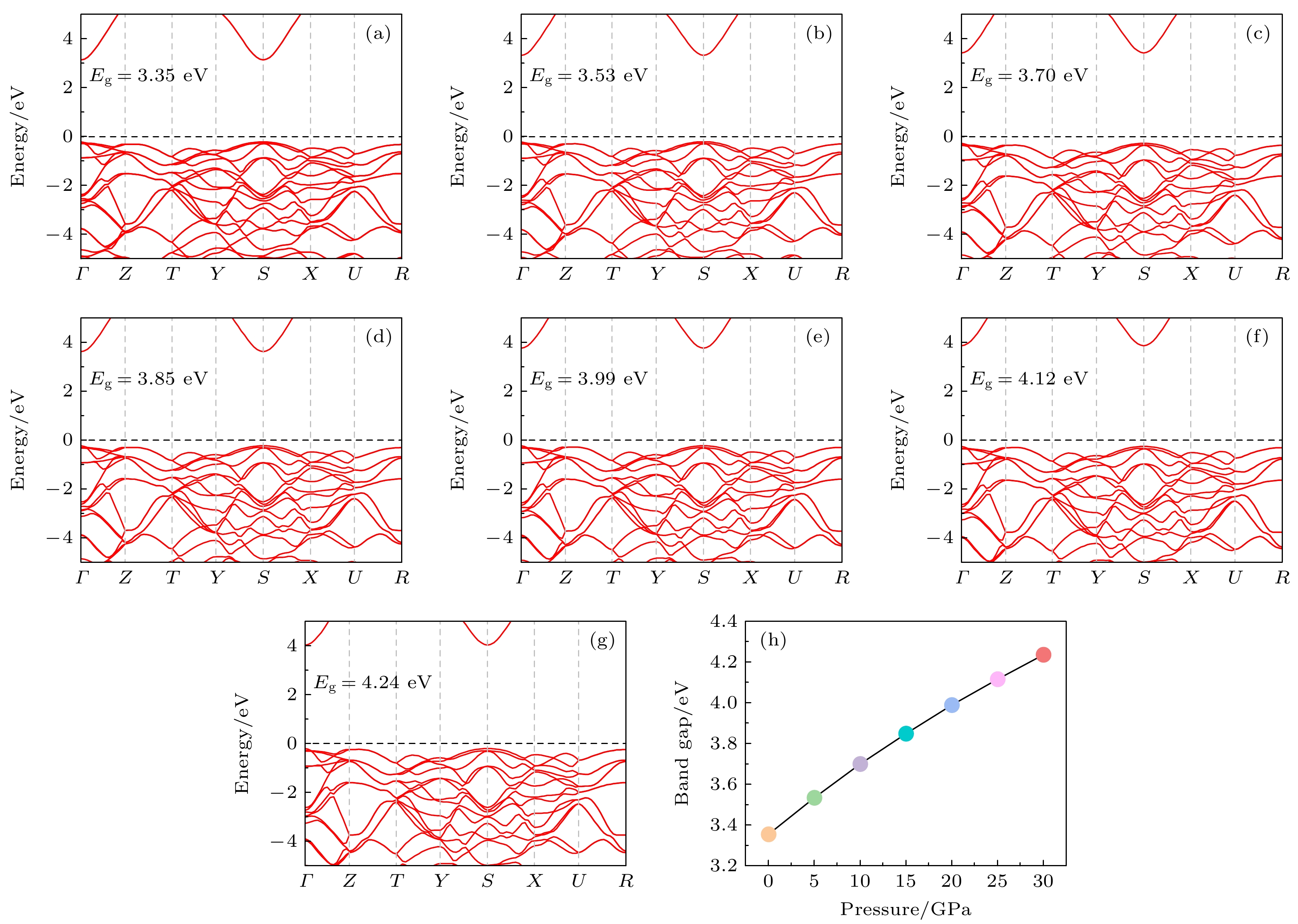

图 7 Al₄In₂N₆在(a) 0 GPa, (b) 5 GPa, (c) 10 GPa, (d) 15 GPa, (e) 20 GPa, (f) 25 GPa, (g) 30 GPa下的能带结构和(h)带隙随压强的变化趋势

Figure 7. The band structures of Al₄In₂N₆ at (a) 0 GPa, (b) 5 GPa, (c) 10 GPa, (d) 15 GPa, (e) 20 GPa, (f) 25 GPa, (g) 30 GPa, and (h) the variation trend of the band gap with pressure.

DownLoad: Full-Size Img PowerPoint

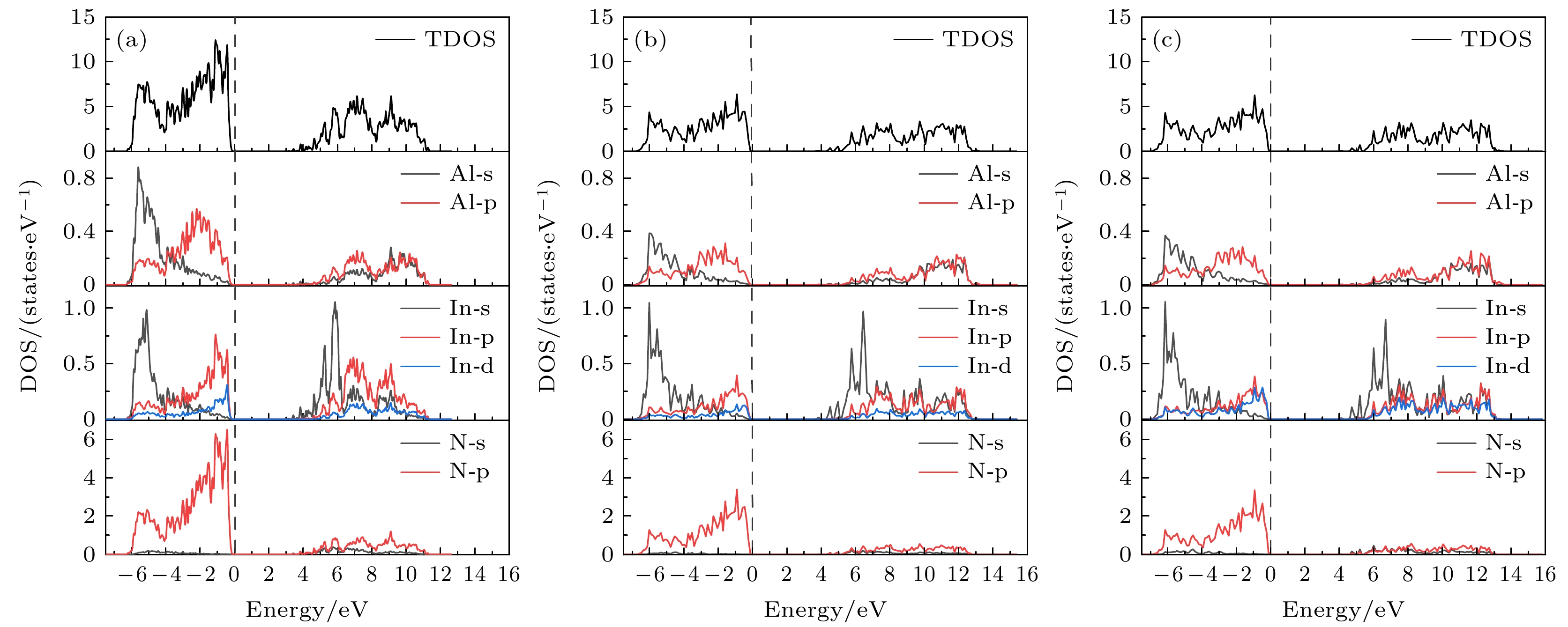

图 8 Al₄In₂N₆在(a) 0, (b) 20和(c) 30 GPa下的总态密度和分波态密度

Figure 8. The total density of states and partial density of states of Al₄In₂N₆ at (a) 0, (b) 20, and (c) 30 GPa.

DownLoad: Full-Size Img PowerPoint

表 1 Al₄In₂N₆在不同压力下的晶格参数

Table 1. Lattice parameters of Al₄In₂N₆ under different pressures.

Pressure/GPa	a/Å	b/Å	c/Å
0	9.832	5.654	5.250
5	9.749	5.603	5.195
10	9.669	5.557	5.149
15	9.600	5.516	5.107
20	9.535	5.478	5.068
25	9.477	5.445	5.032
30	9.422	5.413	4.999

DownLoad: CSV

表 2 在0—30 GPa 压力 Al₄In₂N₆的弹性常数

Table 2. Elastic constant of Al₄In₂N₆ under 0–30 GPa pressures.

Pressure/GPa	C₁₁/GPa	C₁₂/GPa	C₁₃/GPa	C₂₂/GPa	C₂₃/GPa	C₃₃/GPa	C₄₄/GPa	C₅₅/GPa	C₆₆/GPa
0	318.606	113.886	89.017	305.200	92.444	311.408	84.739	84.903	95.602
5	330.169	126.317	103.218	327.053	105.181	326.999	86.887	88.385	96.321
10	340.077	143.266	118.822	337.579	124.623	338.138	85.186	87.028	94.397
15	359.171	163.187	130.986	352.270	135.623	357.799	88.682	87.873	95.539
20	375.952	175.971	146.621	363.912	151.179	361.684	89.566	86.445	93.548
25	389.382	192.252	161.374	370.366	171.460	363.533	88.451	87.052	91.683
30	402.037	207.158	171.490	379.130	181.476	381.927	86.653	84.002	90.021

DownLoad: CSV

表 3 0—30 GPa 压力下Al₄In₂N₆的弹性模量(B, G, E, B/G)、硬度H_V和泊松比$\mu $

Table 3. The elastic modulus (B, G, E, B/G), hardness (H_V), and Poisson’s ratio ($\mu $) of Al₄In₂N₆ under pressures of 0–30 GPa.

Pressure/GPa	B/GPa	E/GPa	G/GPa	B/G	$\mu $	H_V/GPa
0	169.443	240.336	95.099	1.782	0.264	11.998
5	183.649	247.651	97.099	1.891	0.275	11.377
10	198.718	245.38	94.800	2.096	0.294	9.952
15	214.192	251.75	96.522	2.219	0.304	9.447
20	227.465	250.967	95.344	2.386	0.316	8.625
25	241.177	247.277	93.023	2.593	0.329	7.711
30	253.426	245.888	91.866	2.759	0.338	7.123

DownLoad: CSV

[1]	Liu B, Chen D, Lu H, Tao T, Zhuang Z, Shao Z, Xu W, Ge H, Zhi T, Ren F, Ye J, Xie Z, Zhang R 2020 Adv. Mater. 32 1904354 Google Scholar
[2]	Hahn C, Zhang Z, Fu A, Wu C H, Hwang Y J, Gargas D J, Yang P 2011 ACS Nano 5 3970 Google Scholar
[3]	Yu J, Wang L, Hao Z, Luo Y, Sun C, Wang J, Han Y, Xiong B, Li H 2020 Adv. Mater. 32 1903407 Google Scholar
[4]	Chen K, Kapadia R, Harker A, Desai S, Javey A 2016 Nat. Commun. 7 10502 Google Scholar
[5]	仇鹏, 刘恒, 朱晓丽, 田丰, 杜梦超, 邱洪宇, 陈冠良, 胡玉玉, 孔德林, 杨晋, 卫会云, 彭铭曾, 郑新和 2024 物理学报 73 038102 Google Scholar Qiu P, Liu H, Zhu X L, Tian F, Du M C, Qiu H Y, Chen G L, Hu Y Y, Kong D L, Yang J, Wei H Y, Peng M Z, Zheng X H 2024 Acta Phys. Sin. 73 038102 Google Scholar
[6]	Manjón F J, Errandonea D, Garro N, Romero A H, Serrano J, Kuball M 2007 Phys. Status Solidi B 244 42 Google Scholar
[7]	E Abid A, Bensalem R, Sealy B J 1986 J. Mater. Sci. 21 1301 Google Scholar
[8]	Yu R, Liu G, Wang G, Chen C, Xu M, Zhou H, Wang T, Yu J, Zhao G, Zhang L 2021 J. Mater. Chem. C 9 1852 Google Scholar
[9]	Ibáñez J, Segura A, García-Domene B, Oliva R, Manjón F J, Yamaguchi T, Nanishi Y, Artús L 2012 Phys. Rev. B 86 035210 Google Scholar
[10]	Khan N, Sedhain A, Li J, Lin J Y, Jiang H X 2008 Appl. Phys. Lett. 92 172101 Google Scholar
[11]	Davydov V Y, Klochikhin A, Seisyan R, Emtsev V, Ivanov S, Bechstedt F, Furthmüller J, Harima H, Mudryi A, Aderhold J 2002 Phys. Status Solidi B 229 r1 Google Scholar
[12]	Tansley T L, Foley C P 1986 J. Appl. Phys. 59 3241 Google Scholar
[13]	Liu X K, Lin Z C, Lin Y H, Chen J J, Zou P, Zhou J, Li B, Shen L H, Zhu D L, Liu Q, Yu W J, Li X H, Zhu H, Wang X Z, Huang S W 2023 Chin. Phys. B 32 117701 Google Scholar
[14]	Wu J, Walukiewicz W, Yu K M, Ager J W, Haller E E, Lu H, Schaff W J, Saito Y, Nanishi Y 2002 Appl. Phys. Lett. 80 3967 Google Scholar
[15]	Beladjal K, Kadri A, Zitouni K, Mimouni K 2021 Superlattices Microstruct. 155 106901 Google Scholar
[16]	Guo Q G Q, Yoshida A Y A 1994 Jpn. J. Appl. Phys. 33 2453 Google Scholar
[17]	Zhao F, Yao G R, Song J J, Ding B B, Xiong J Y, Su C, Zheng S W, Zhang T, Fan G H 2013 Chin. Phys. B 22 058503 Google Scholar
[18]	Chen J J, Shen L H, Qi D L, Wu L J, Li X, Song J Y, Zhang X L 2022 Ceram. Int. 48 2802 Google Scholar
[19]	Moussa R, Abdiche A, Khenata R, Wang X, Varshney D, Sun X W, Omran S B, Bouhemadou A, Rai D 2018 J. Phys. Chem. Solids 119 36 Google Scholar
[20]	Mao W, Zhang J C, Xue J S, Hao Y, Ma X H, Wang C, Liu H X, Xu S R, Yang L A, Bi Z W, Liang X Z, Zhang J F, Kuang X W 2010 Chin. Phys. Lett. 27 128501 Google Scholar
[21]	Wen X X, Yang X D, He M, Li Y, Wang G, Lu P Y, Qian W N, Li Y, Zhang W W, Wu W B, Chen F S, Ding L Z 2012 Chin. Phys. Lett. 29 097304 Google Scholar
[22]	Zhang X F, Wang L, Liu J, Wei L, Xu J 2013 Chin. Phys. B 22 017202 Google Scholar
[23]	Han T C, Zhao H D, Yang L, Wang Y 2017 Chin. Phys. B 26 107301 Google Scholar
[24]	Zhan X M, Hao M L, Wang Q, Li W, Xiao H L, Feng C, Jiang L J, Wang C M, Wang X L, Wang Z G 2017 Chin. Phys. Lett. 34 047301 Google Scholar
[25]	Dong Y, Son D H, Dai Q, Lee J H, Won C H, Kim J G, Chen D, Lee J H, Lu H, Zhang R, Zheng Y 2018 Sensors 18 1314 Google Scholar
[26]	Li A, Wang C, Xu S, Zheng X, He Y, Ma X, Lu X, Zhang J, Liu K, Zhao Y Hao Y 2021 Appl. Phys. Lett. 119 122104 Google Scholar
[27]	Robin Chang Y H, Yoon T L, Lim T L 2016 Curr. Appl. Phys. 16 1277 Google Scholar
[28]	Borovac D, Sun W, Song R, Wierer J J, Tansu N 2020 J. Cryst. Growth 533 125469 Google Scholar
[29]	Yonenaga I, Ohkubo Y, Deura M, Kutsukake K, Tokumoto Y, Ohno Y, Yoshikawa A, Wang X Q 2015 AIP Adv. 5 077131 Google Scholar
[30]	Tan X, Xin Z Y, Liu X J, Mu Q G 2013 Adv. Mater. Res. 821–822 841 Google Scholar
[31]	Chen M, Guo G C, He L 2010 J. Phys. Condens. Matter 22 445501 Google Scholar
[32]	Al-Khatatbeh Y, Lee K K M, Kiefer B 2009 Phys. Rev. B 79 134114 Google Scholar
[33]	Man X X, Gong B C, Sun P H, Liu K, Lu Z Y 2022 Phys. Rev. B 106 035136 Google Scholar
[34]	Yu F, Liu Y 2019 Computation 7 57 Google Scholar
[35]	Velpula R T, Jain B, Philip M R, Nguyen H D, Wang R, Nguyen H P T 2020 Sci. Rep. 10 2547 Google Scholar
[36]	Robin Chang Y H, Yoon T L, Lim T L, Rakitin M 2016 J. Alloys Compd. 682 338 Google Scholar
[37]	Glass C W, Oganov A R, Hansen N 2006 Comput. Phys. Commun. 175 713 Google Scholar
[38]	Oganov A R, Lyakhov A O, Valle M 2011 Acc. Chem. Res. 44 227 Google Scholar
[39]	Lyakhov A O, Oganov A R, Stokes H T, Zhu Q 2013 Comput. Phys. Commun. 184 1172 Google Scholar
[40]	Kresse G, Furthmüller J 1996 Phys. Rev. B 54 11169 Google Scholar
[41]	Kresse G, Furthmüller J 1996 Comput. Mater. Sci. 6 15 Google Scholar
[42]	Blöchl P E 1994 Phys. Rev. B 50 17953 Google Scholar
[43]	Wu Z, Cohen R E 2006 Phys. Rev. B 73 235116 Google Scholar
[44]	Monkhorst H J, Pack J D 1976 Phys. Rev. B 13 5188 Google Scholar
[45]	Togo A, Oba F, Tanaka I 2008 Phys. Rev. B 78 134106 Google Scholar
[46]	Togo A, Tanaka I 2015 Scr. Mater. 108 1 Google Scholar
[47]	Heyd J, Scuseria G E, Ernzerhof M 2003 J. Chem. Phys. 118 8207 Google Scholar
[48]	Muscat J, Wander A, Harrison N M 2001 Chem. Phys. Lett. 342 397 Google Scholar
[49]	Garza A J, Scuseria G E 2016 J. Phys. Chem. Lett. 7 4165 Google Scholar
[50]	Sugita Y, Miyake T, Motome Y 2018 Phys. Rev. B 97 035125 Google Scholar
[51]	Robin Chang Y H, Yoon T L, Lim T L, Tuh M H 2017 J. Alloys Compd. 704 160 Google Scholar
[52]	Mouhat F, Coudert F X 2014 Phys. Rev. B 90 224104 Google Scholar
[53]	Voigt W 1889 Ann. Phys. 274 573 Google Scholar
[54]	Reuss A 1929 ZAMM - J. Appl. Math. Mech. Z. Für Angew. Math. Mech. 9 49 Google Scholar
[55]	Hill R 1952 Proc. Phys. Soc. London, Sect. A 65 349 Google Scholar
[56]	Frantsevich I N, Voronov F F and Bokuta S A 1983 Elastic Constants and Elastic Moduli of Metals and Insulators Handbook (Kiev: Naukova Dumka) pp60–180
[57]	Tian Y, Xu B, Zhao Z 2012 Int. J. Refract. Met. Hard Mater. 33 93 Google Scholar
[58]	Meng J, Sun L, Zhang Y, Xue F, Chu C, Bai J 2020 Materials 13 427 Google Scholar

[1]	Wei Wei, Guan Feng, Fang Xin. Integrated vibration absorption and isolation design method for metamaterial beams based on bandgap wave-insulating vibration isolatior. Acta Physica Sinica, 2024, 73(22): 224602. doi: 10.7498/aps.73.20241135
[2]	Ding Yi, Sheng Lei-Mei. First-principles study of torsional single-walled carbon nanotubes. Acta Physica Sinica, 2023, 72(19): 197302. doi: 10.7498/aps.72.20230566
[3]	Shi Xu-Han, Li Hai-Yan, Yao Zhen, Liu Bing-Bing. First-principles study of Ca₅N₄ at high pressure. Acta Physica Sinica, 2020, 69(6): 067101. doi: 10.7498/aps.69.20191808
[4]	Yao Pan-Pan, Wang Ling-Rui, Wang Jia-Xiang, Guo Hai-Zhong. Evolutions of structural and optical properties of lead-free double perovskite Cs₂TeCl₆ under high pressure. Acta Physica Sinica, 2020, 69(21): 218801. doi: 10.7498/aps.69.20200988
[5]	Wang Yan, Cao Qian-Hui, Hu Cui-E, Zeng Zhao-Yi. First-principles calculations of high pressure phase transition of Ce-La-Th alloy. Acta Physica Sinica, 2019, 68(8): 086401. doi: 10.7498/aps.68.20182128
[6]	Guo Jing, Wu Qi, Sun Li-Ling. Pressure-induced phenomena and physics in iron-based superconductors. Acta Physica Sinica, 2018, 67(20): 207409. doi: 10.7498/aps.67.20181651
[7]	Duan De-Fang, Ma Yan-Bin, Shao Zi-Ji, Xie Hui, Huang Xiao-Li, Liu Bing-Bing, Cui Tian. Structures and novel superconductivity of hydrogen-rich compounds under high pressures. Acta Physica Sinica, 2017, 66(3): 036102. doi: 10.7498/aps.66.036102
[8]	Dong Jia-Jun, Yao Ming-Guang, Liu Shi-Jie, Liu Bing-Bing. Studies of quasi one-dimensional nanostructures at high pressures. Acta Physica Sinica, 2017, 66(3): 039101. doi: 10.7498/aps.66.039101
[9]	Liu Bo, Wang Xuan-Jun, Bu Xiao-Yu. First principles investigations of structural, electronic and elastic properties of ammonium perchlorate under high pressures. Acta Physica Sinica, 2016, 65(12): 126102. doi: 10.7498/aps.65.126102
[10]	Wang Jin-Rong, Zhu Jun, Hao Yan-Jun, Ji Guang-Fu, Xiang Gang, Zou Yang-Chun. First-principles study of the structural, elastic and electronic properties of RhB under high pressure. Acta Physica Sinica, 2014, 63(18): 186401. doi: 10.7498/aps.63.186401
[11]	Yan Xiao-Zhen, Kuang Xiao-Yu, Mao Ai-Jie, Kuang Fang-Guang, Wang Zhen-Hua, Sheng Xiao-Wei. First-principles study on the elastic, electronic and thermodynamic properties of ErNi2B2C under high pressure. Acta Physica Sinica, 2013, 62(10): 107402. doi: 10.7498/aps.62.107402
[12]	Wang Hai-Yan, Li Chang-Yun, Gao Jie, Hu Qian-Ku, Mi Guo-Fa. First-principles studies of the structural and thermodynamic properties of TiAl3 under high pressure. Acta Physica Sinica, 2013, 62(6): 068105. doi: 10.7498/aps.62.068105
[13]	Zhang Pin-Liang, Gong Zi-Zheng, Ji Guang-Fu, Liu Song. First-principles study of high-pressure physical properties of α-Ti2Zr. Acta Physica Sinica, 2013, 62(4): 046202. doi: 10.7498/aps.62.046202
[14]	Zhou Da-Wei, Lu Cheng, Li Gen-Quan, Song Jin-Fan, Song Yu-Ling, Bao Gang. First principles investigations of the structural stability and thermal dynamical properties of metal Ba under high pressure. Acta Physica Sinica, 2012, 61(14): 146301. doi: 10.7498/aps.61.146301
[15]	Chen Zhong-Jun. First principles study of the elastic, electronic and optical properties of MgS under pressure. Acta Physica Sinica, 2012, 61(17): 177104. doi: 10.7498/aps.61.177104
[16]	Ming Xing, Wang Xiao-Lan, Du Fei, Chen Gang, Wang Chun-Zhong, Yin Jian-Wu. Phase transition and properties of siderite FeCO3 under high pressure: an ab initio study. Acta Physica Sinica, 2012, 61(9): 097102. doi: 10.7498/aps.61.097102
[17]	Hu Jia-Guang, Xu Wen, Xiao Yi-Ming, Zhang Ya-Ya. The two-dimensional phononic crystal band gaps tuned by the symmetry and orientation of the additional rods in the center of unit cell. Acta Physica Sinica, 2012, 61(23): 234302. doi: 10.7498/aps.61.234302
[18]	Deng Yang, Wang Ru-Zhi, Xu Li-Chun, Fang Hui, Yan Hui. Pressure induced band-gap changes in (Ba0.5Sr0.5)TiO3 (BST) from first-principles calculations. Acta Physica Sinica, 2011, 60(11): 117309. doi: 10.7498/aps.60.117309
[19]	Mu Zhong-Fei, Wu Fu-Gen, Zhang Xin, Zhong Hui-Lin. Effect of translation group symmetry on phononic band gaps studied by supercell calculation. Acta Physica Sinica, 2007, 56(8): 4694-4699. doi: 10.7498/aps.56.4694
[20]	Wu Fu-Gen, Liu You-Yan. . Acta Physica Sinica, 2002, 51(7): 1434-1434. doi: 10.7498/aps.51.1434

Catalog

Vol. 74, Issue 17 - 2025-09-05

Metrics

Abstract views: 956
PDF Downloads: 19
Cited By: 0

姓名
邮箱
手机号码
标题
留言内容
验证码

Search

Article

留言板

First-principles study of structure, elasticity, and electronic properties of ternary semiconductor Al₄In₂N₆ under high pressure

Abstract

Authors and contacts

Corresponding author: TIAN Hui, huitian2022sylu@126.com ; SHEN Longhai, shenlonghai@163.com

FullText HTML

References

Cited By

Catalog

Metrics

Authors

Referees

About Journal

About

Search

Article

留言板
