磁性高熵合金在能量转换、磁滞电机、电磁控制机构等相关领域具有一定的应用前景. 采用选区激光熔化(SLM)成形技术在不同工艺参数下制备出AlCoCrCuFeNi高熵合金, 对合金的相组成、微观组织结构、磁性能和微观力学行为进行了系统的研究. 结果表明, SLM成形态合金主要由体心立方(BCC)基体相和少量近似球形的面心立方(FCC)纳米析出相组成, 其纳米硬度随着激光功率的增加而减小, 随着扫描速度的变化在一定范围波动, 但是整体均呈现出优异的微观力学性能, 且其纳米压痕蠕变变形机制异于传统经典蠕变理论, 主要受位错运动控制. SLM成形态合金均表现出典型的半硬磁特性, 其饱和磁化强度受SLM工艺参数影响较小, 保持在43 A·m2/kg左右; 矫顽力随着激光功率的增加从1.72 kA/m增加到2.71 kA/m, 随着扫描速度的增加从2.37 kA/m减小到1.98 kA/m. 磁性能研究表明, 该成形态AlCoCrCuFeNi高熵合金的磁性能有望广泛应用于磁控机构等领域. 本工作可为后续优化SLM高熵合金的综合磁学性能以及纳米压痕室温蠕变机制提供一定的理论基础和实验方向.
-
关键词:
- 选区激光熔化 /
- AlCoCrCuFeNi高熵合金 /
- 半硬磁特性 /
- 微观力学
Magnetic high-entropy alloy (HEA) has certain application prospects in the fields of energy conversion, hysteresis motor, electromagnetic control mechanism and others. In this study, AlCoCrCuFeNi HEA is prepared by selective laser melting (SLM) with different process parameters, and the phase composition, microstructure, magnetic properties and micromechanical behavior are studied systematically. The results show that the SLMed alloy mainly consists of a BCC matrix phase with a small quantity of approximately spherical FCC precipitated nanophase. The nanohardness decreases with the increase of laser power and fluctuates in a certain range with the change of scanning speed, but the whole sample shows excellent micromechanical properties. Besides, it is found that the room-temperature nanoindentation creep deformation mechanism of AlCoCrCuFeNi HEAs is mainly controlled by dislocation motion, which is different from the results given by the traditional classical creep theory. Both of SLMed alloys exhibit typical semi-hard magnetic properties. The saturation magnetization is affected slightly by the SLM process parameters and remains at about 43 A·m2/kg because all samples have a similar quantity of ferromagnetic elements (Fe, Co and Ni). However, the coercivity increases from 1.72 to 2.71 kA/m with the increase of laser power (P), and decreases from 2.37 to 1.98 kA/m with the increase of scanning speed (v), which can be attributed to the different effects of porosity and internal stress on the pinning of domain walls under different process parameters (P and v). This work provides a theoretical basis and experimental direction for further studying the optimization of comprehensive magnetic properties and the room temperature creep mechanism of SLMed high-entropy alloy.-
Keywords:
- selective laser melting /
- AlCoCrCuFeNi high-entropy alloy /
- semi-hard magnetic property /
- micro-mechanical behavior
[1] 严密, 彭晓领 2019 磁学基础与磁性材料 (杭州: 浙江大学出版社)第184页
Yan M, Peng X L 2019 Foudamentals of Magnetics and Magnetic Materials (Hangzhou: Zhejiang University Press) p184
[2] Borkar T, Gwalani B, Choudhuri D, Mikler C V, Yannetta C J, Chen X, Ramanujan R V, Styles M J, Gibson M A, Banerjee R 2016 Acta Mater. 116 63
Google Scholar
[3] Huang P K, Yeh J W, Shun T T, Chen S K 2004 Adv. Eng. Mater. 6 74
Google Scholar
[4] Yeh J W, Chen S K, Lin S J, Gan J Y, Chin T S, Shun T T, Tsau C H, Chang S Y 2004 Adv. Eng. Mater. 6 299
Google Scholar
[5] Cantor B 2014 Entropy 16 4749
Google Scholar
[6] Taheriniya S, Sonkusare R, Boll T, Divinski S V, Peterlechner M, Rösner H, Wilde G 2024 Acta Mater. 281 120421
Google Scholar
[7] Liu C, Zhang L C, Wang K, Wang L 2025 Acta Mater. 283 120526
Google Scholar
[8] Liu Y, Liang J, Guo W, Sun S, Tian Y, Lin H T 2024 J. Adv. Ceram. 13 780
Google Scholar
[9] Feltrin A C, Hedman D, Akhtar F 2024 J. Adv. Ceram. 13 1268
Google Scholar
[10] 任县利, 张伟伟, 伍晓勇, 吴璐, 王月霞 2020 物理学报 67 046102
Google Scholar
Ren X L, Zhang W W, Wu X Y, Wu L, Wang Y X 2020 Acta Phys. Sin. 67 046102
Google Scholar
[11] 陈晶晶, 邱小林, 李柯, 周丹, 袁军军 2022 物理学报 71 199601
Google Scholar
Cheng J J, Qiu X L, Li K, Zhou D, Yuan J J 2022 Acta Phys. Sin. 71 199601
Google Scholar
[12] Han L, Maccari F, Souza Filho I R, Peter N J, Wei Y, Gault B, Gutfleisch O, Li Z, Raabe D 2022 Nature 608 310
Google Scholar
[13] Li Z, Zhang Z, Liu X, Li H, Zhang E, Bai G, Xu H, Liu X, Zhang X 2023 Acta Mater. 254 118970
Google Scholar
[14] Yu P F, Zhang L J, Cheng H, Zhang H, Ma M Z, Li Y C, Li G, Liaw P K, Liu R P 2016 Intermetallics 70 82
Google Scholar
[15] Zhang M, George E P, Gibeling J C 2021 Scr. Mater. 194 113633
Google Scholar
[16] Jo M G, Suh J Y, Kim M Y, Kim H J, Jung W S, Kim D I, Han H N 2022 Mater. Sci. Eng. , A 838 142748
Google Scholar
[17] Cao T, Shang J, Zhao J, Cheng C, Wang R, Wang H 2016 Mater. Lett. 164 344
Google Scholar
[18] Liu C J, Gadelmeier C, Lu S L, Yeh J W, Yen H W, Gorsse S, Glatzel U, Yeh A C 2022 Acta Mater. 237 118188
Google Scholar
[19] Xu Z, Zhang H, Li W, Mao A, Wang L, Song G, He Y 2019 Addit. Manuf. 28 766
Google Scholar
[20] 李军, 赵锴, 李波, 赵宇, 郭欢, 韩思远 2024 材料工程
Li J, Zhao K, Li B, Zhao Y, Guo H, Han S Y 2024 J. Mater. Eng. https://link.cnki.net/urlid/11.1800.TB.20240918.1046.002
[21] Wu S, Qiao D, Zhao H, Wang J, Lu Y 2021 J. Alloys Compds. 889 161800
Google Scholar
[22] Zhang M, George E P, Gibeling J C 2021 Acta Mater. 218 117181
Google Scholar
[23] Miao J, Yao H, Wang J, Lu Y, Wang T, Li T 2022 J. Alloys Compds. 894 162380
Google Scholar
[24] Zhou J, Liao H, Chen H, Huang A 2021 J. Alloys Compds. 859 157851
Google Scholar
[25] Karlsson D, Marshal A, Johansson F, Schuisky M, Sahlberg M, Schneider J M, Jansson U 2019 J. Alloys Compds. 784 195
Google Scholar
[26] Yu Y, Zhao Y, Feng K, Chen R, Han B, Ji K, Qin M, Li Z, Ramamurty U 2024 Mater. Sci. Eng. , A 918 147469
Google Scholar
[27] Zhao Y, Guo Q, Ma Z, Yu L 2020 Mater. Sci. Eng., A 791 139735
Google Scholar
[28] Song X, Liaw P K, Wei Z, Liu Z, Zhang Y 2023 Addit. Manuf. 71 103593
Google Scholar
[29] Özden M G, Freeman F S H B, Morley N A 2023 Adv. Eng. Mater. 25 2300597
Google Scholar
[30] Hu X, Xu Z, Jia X, Li S, Zhu Y, Xia A 2025 J. Alloys Compds. 1010 177740
Google Scholar
[31] Manzoni A M, Glatzel U 2019 Mater. Charact. 147 512
Google Scholar
[32] Wang Y, Li R, Niu P, Zhang Z, Yuan T, Yuan J, Li K 2020 Intermetallics 120 106746
Google Scholar
[33] Allia P, Baricco M, Tiberto P, Vinai F 1993 J. Appl. Phys. 74 3137
Google Scholar
[34] 张尚洲, 李子福, 王瑞, 孙广宝, 刘国浩, 于鸿垚 2024 航空制造技术 67 14
Google Scholar
Zhang S Z, Li Z F, Wang R, Sun G B, Liu G H, Yu H Y 2024 Aeronaut. Manuf. Technol. 67 14
Google Scholar
[35] Oboz M, Zajdel P, Zubko M, Świec P, Szubka M, Kądziołka-Gaweł M, Maximenko A, Trump B A, Yakovenko A A 2024 J. Magn. Magn. Mater. 589 171506
Google Scholar
[36] Uporov S, Bykov V, Pryanichnikov S, Shubin A, Uporova N 2017 Intermetallics 83 1
Google Scholar
[37] Brück E H ed. 2017 Handbook of Magnetic Materials (Amsterdam: Elsevier) pp9–11
[38] Tan X, Chen L, Lü M, Peng W, Xu H 2023 Materials 16 7222
Google Scholar
[39] 徐震霖 2021 博士学位论文(马鞍山: 安徽工业大学)
Xu Z L 2021 Ph. D. Dissertation (Ma Anshan: Anhui University of Technology
[40] Niu P D, Li R D, Yuan T C, Zhu S Y, Chen C, Wang M B, Huang L 2019 Intermetallics 104 24
Google Scholar
[41] Poisl W H, Oliver W C, Fabes B D 1995 J. Mater. Res. 10 2024
Google Scholar
[42] Nabarro F R N, De Villiers F 2018 Physics of Creep and Creep-resistant Alloys (London: CRC Press) pp46–81
-

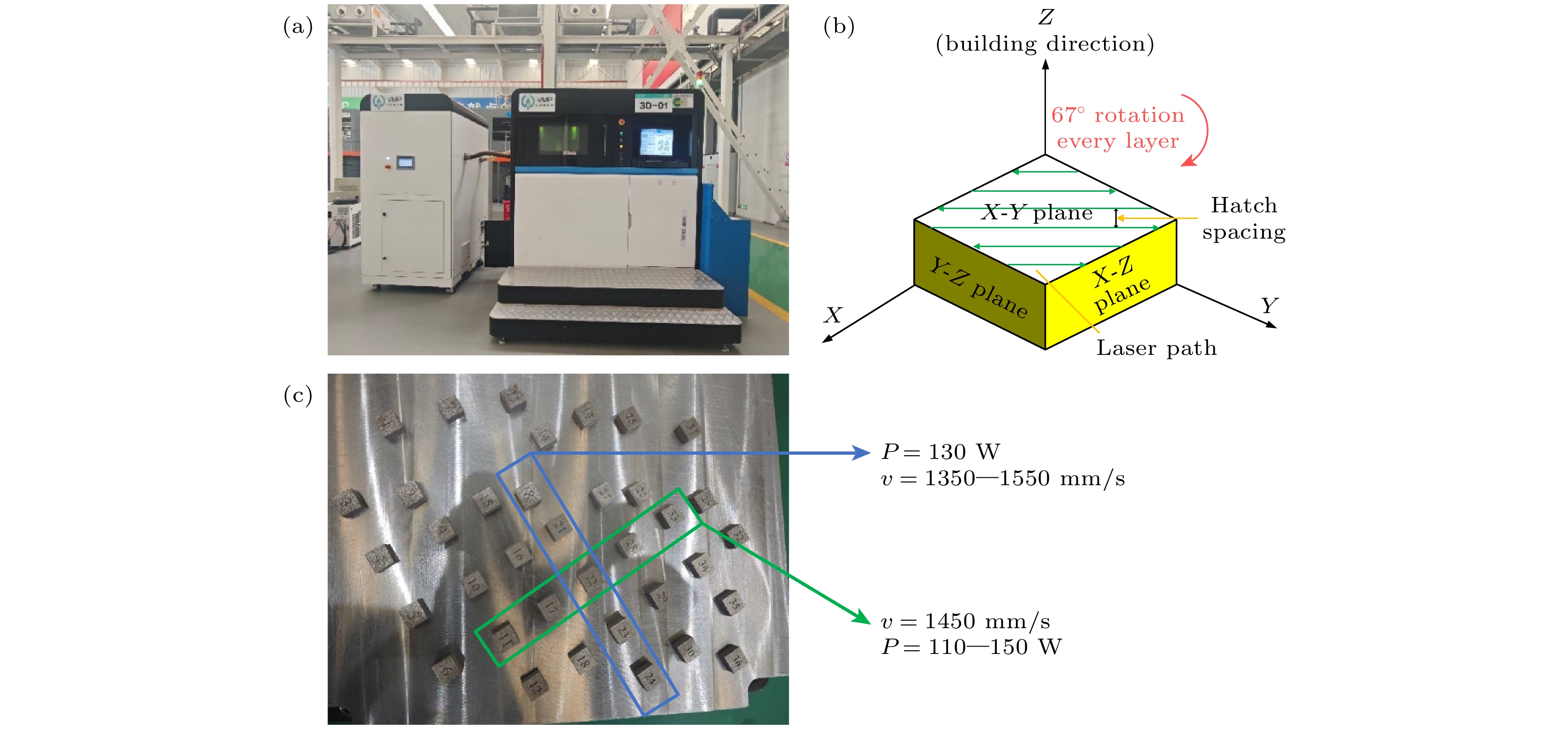

图 1 SLM成形设备(a)、SLM工艺示意图(b), 以及SLM成形样品顶面实物图(c)
Fig. 1. SLM equipment (a), schematic diagram of the SLM process (b), and the top-view physical picture of SLMed alloys (c).

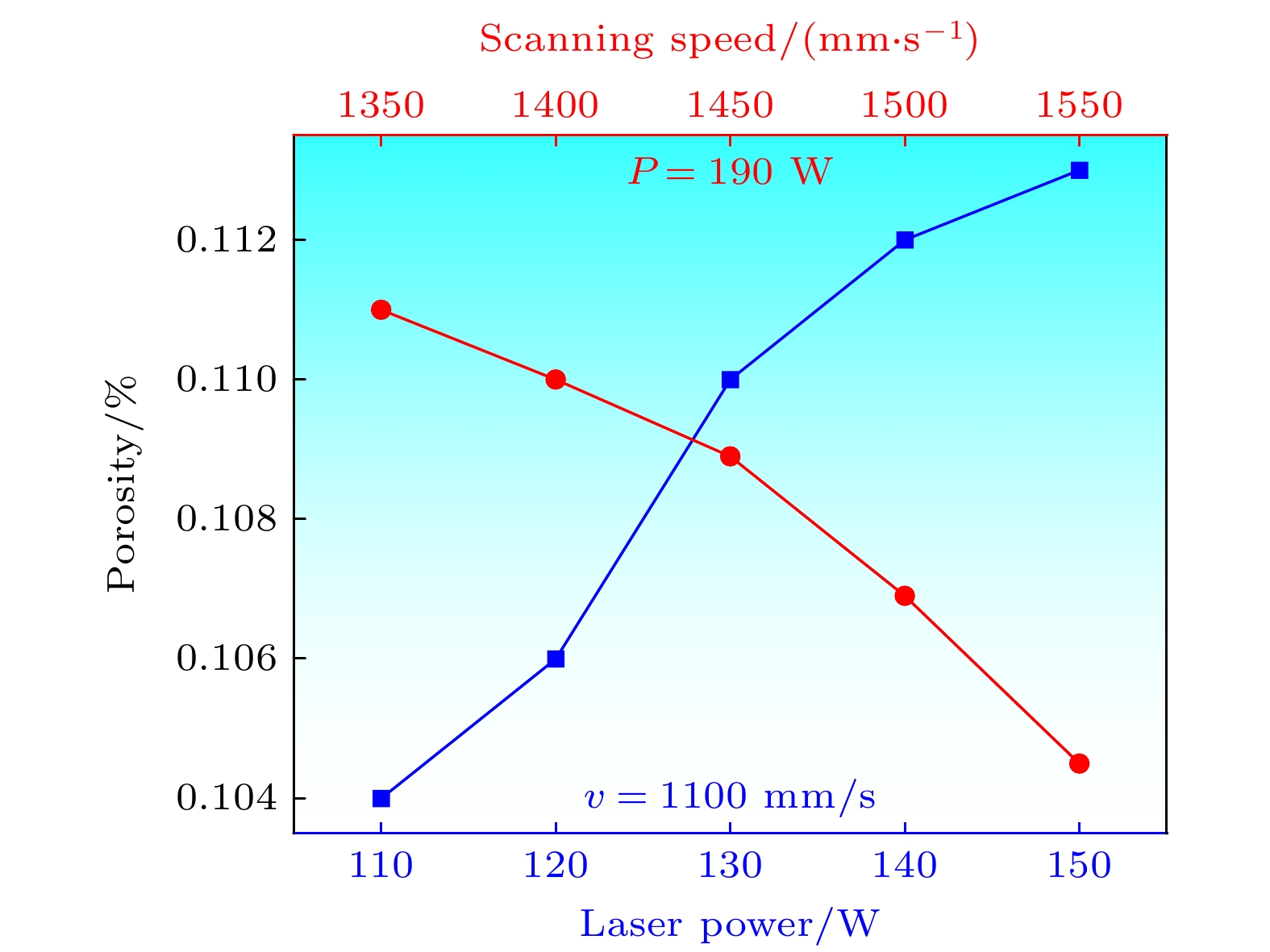

图 2 SLM成形态AlCoCrCuFeNi高熵合金在不同工艺参数下的孔隙率变化
Fig. 2. Variation of porosity with laser power and scanning speed of the SLMed AlCoCrCuFeNi HEAs.

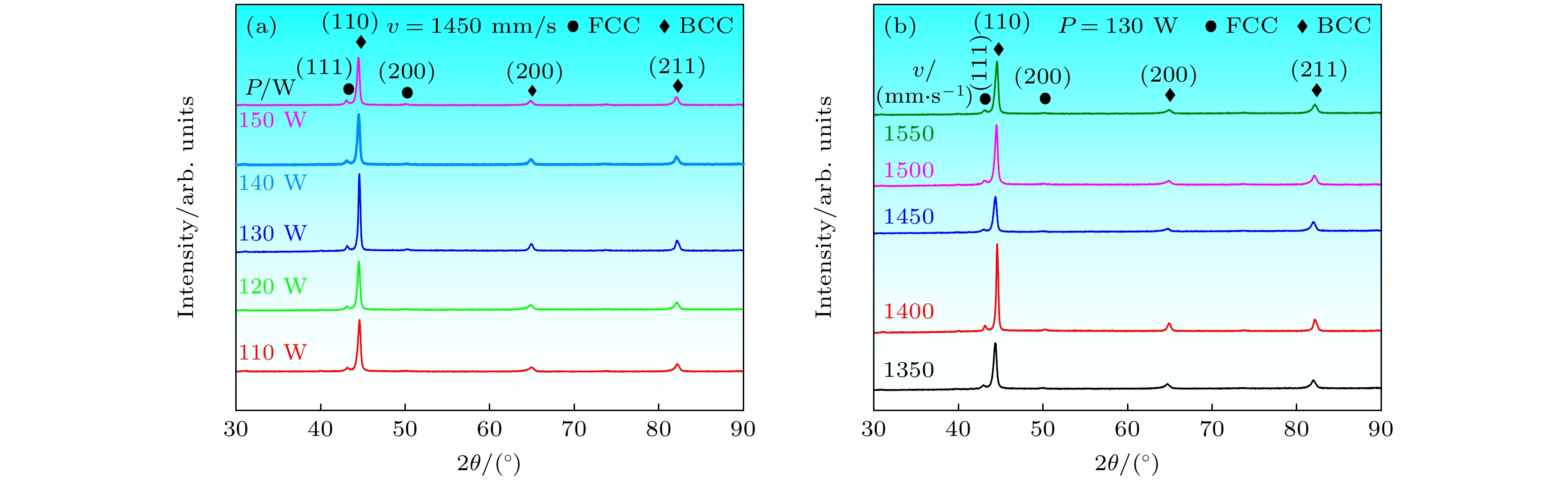

图 3 不同工艺参数下制备的SLM成形态AlCoCrCuFeNi高熵合金的XRD图谱 (a) 激光扫描速率为1450 mm/s, 激光功率为110—150 W; (b) 激光功率为130 W, 激光扫描速率为1350—1550 mm/s
Fig. 3. The XRD spectra of SLMed samples, (a) processed at 1450 mm/s laser scanning and different laser power (110–150 W), (b) processed at 130 W laser power and different (1350–1550 mm/s) laser scanning speed, respectively.

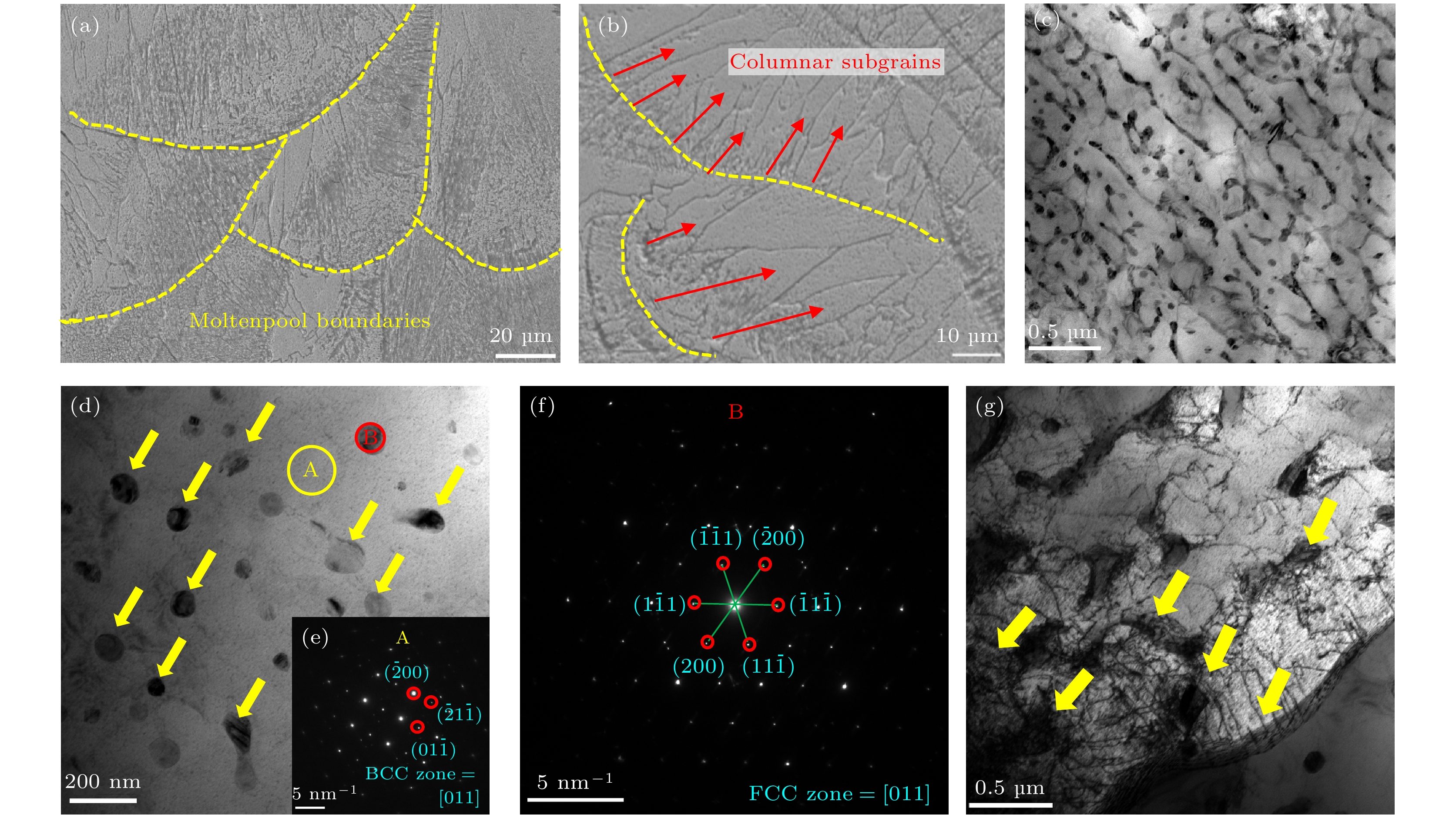

图 4 SLM成形态试样的典型微观结构 (a), (b) SEM形貌图; (c), (d) TEM明场像图; (e), (f) 选区电子衍射图; (g)表示位错堆积和缠结的TEM明场像图
Fig. 4. Typical microstructures of SLMed samples: (a), (b) SEM images; (c), (d) bright-field TEM images; (e), (f) the selective area electron diffraction; (g) TEM bright field image showing the dislocation pile up and entanglement.

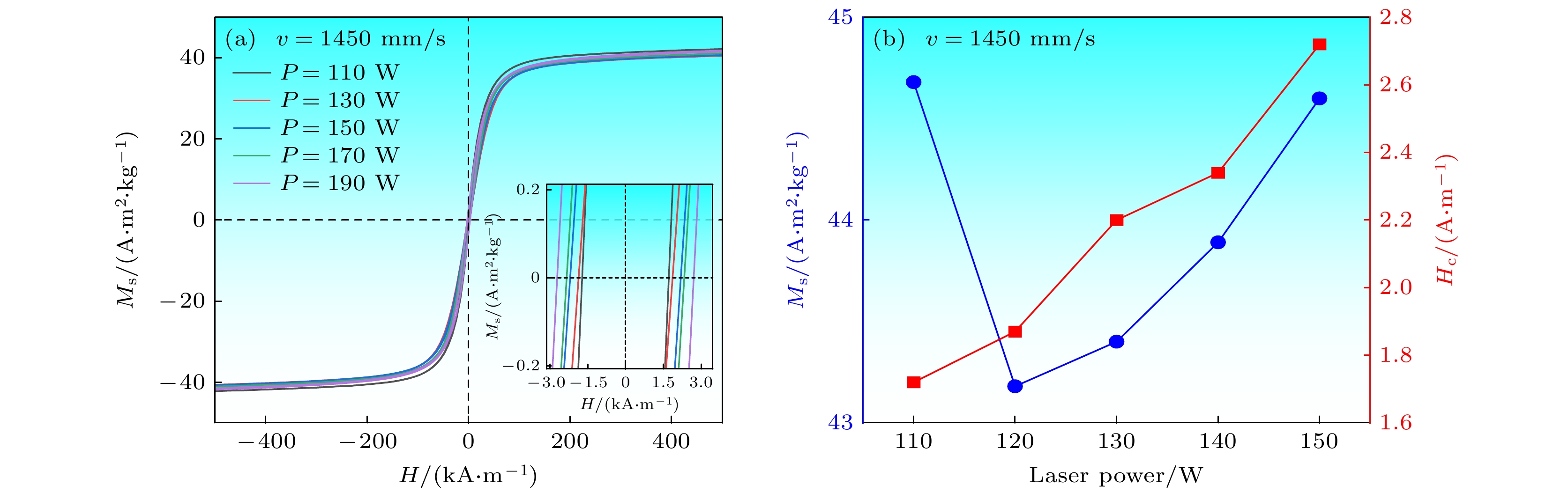

图 5 SLM成形态AlCoCrCuFeNi高熵合金在不同激光功率下的磁滞回线(a)(插图为局部放大图)和磁性参数(b)的变化规律
Fig. 5. Hysteresis loops (a) and variation in Ms, Hc (b) of SLMed AlCoCrCuFeNi specimens at different power, respectively. The illustration is partial enlargement of panel (a)

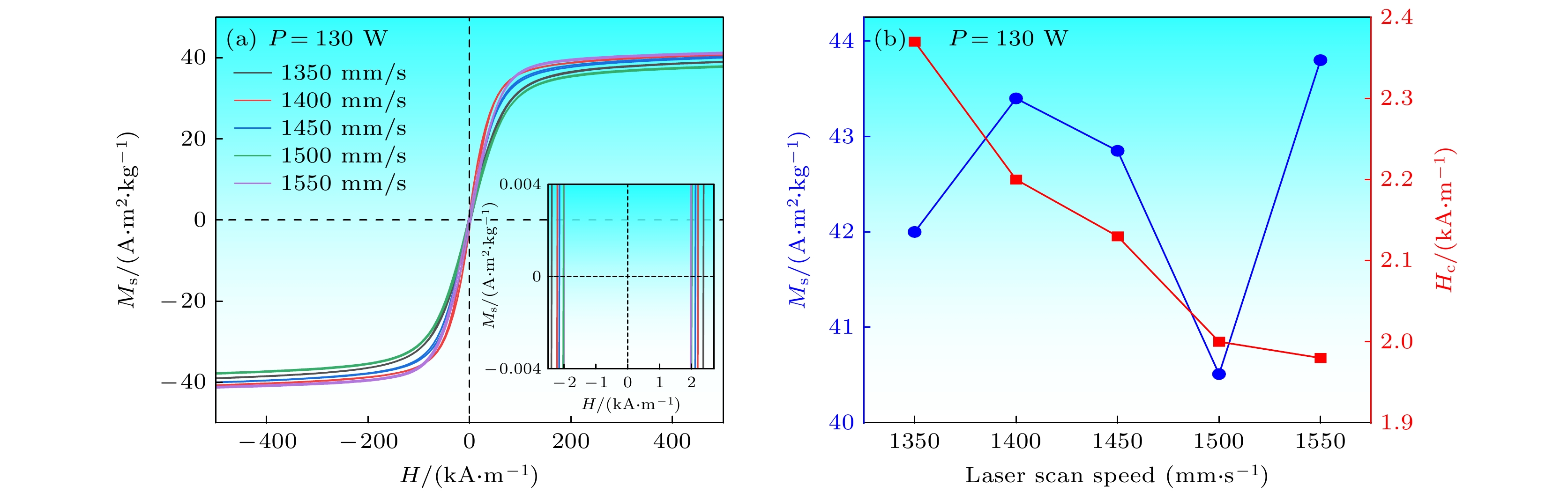

图 6 SLM成形态AlCoCrCuFeNi高熵合金在不同扫描速率下的磁滞回线(a) (插图为局部放大图)和磁性参数(b)的变化规律
Fig. 6. Hysteresis loops (a) and the variation in Ms, Hc (b) of SLMed AlCoCrCuFeNi specimens at different scanning speed, respectively. The illustration is partial enlargement of panel (a)

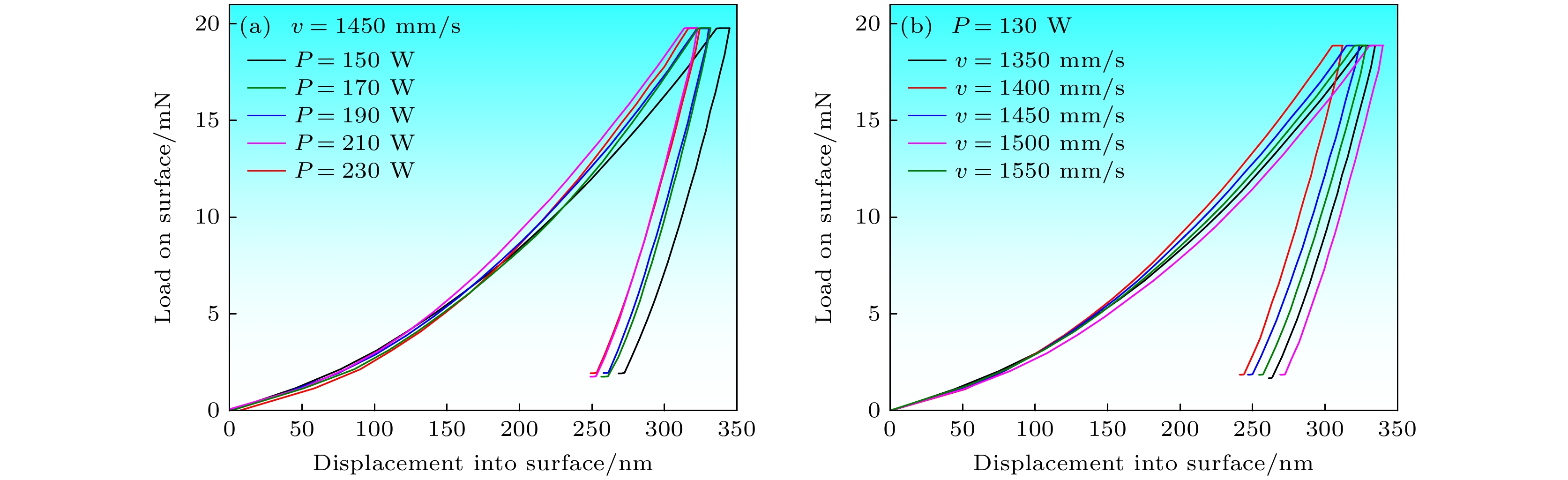

图 7 纳米压痕实验. 不同激光扫描速度(a)和激光功率(b)条件下打印态试样的压痕深度-载荷关系曲线
Fig. 7. Nanoindentation test. The curves of load on surface vs. displacement into surface of printed samples with different P (a) and v (b).

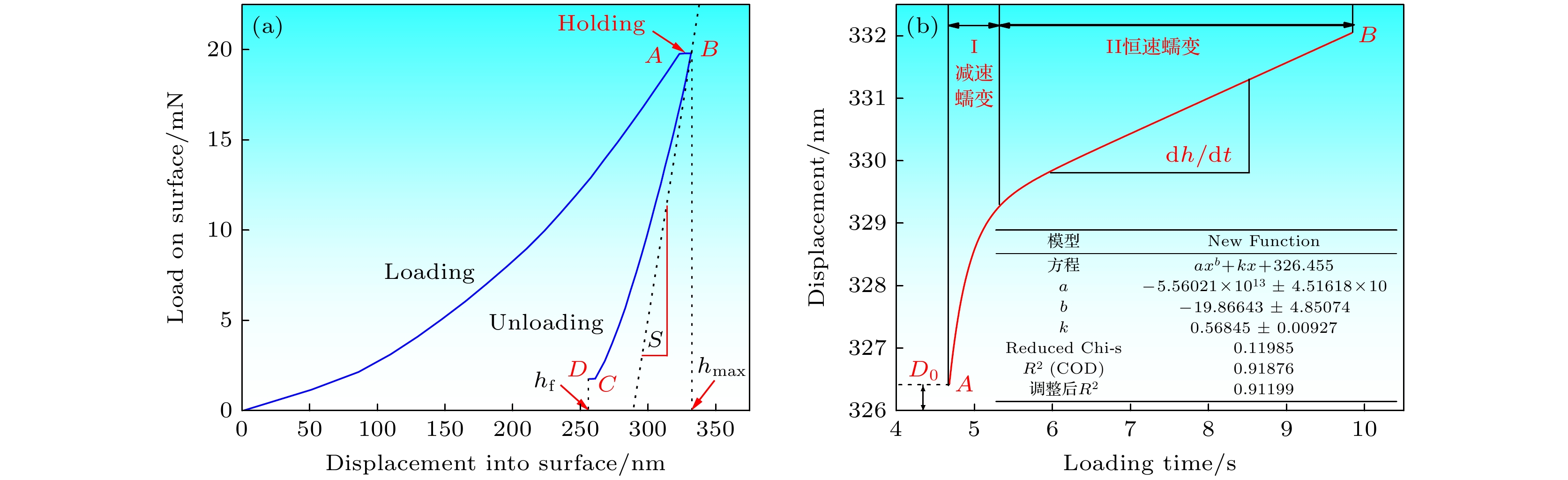

图 8 纳米压痕实验 (a)压痕深度和载荷关系曲线; (b)拟合蠕变曲线
