Fe-based amorphous alloys have exceptional properties such as low coercivity and core loss. In recent years, the development of amorphous alloys by using selective laser melting (SLM) technology has become the focus of attention. However, the glass-forming ability (GFA) and mechanical properties pose challenges for fabricating Fe-based amorphous alloys with complex geometries. This work aims to establish fundamental processing-(micro) structure-property links in Fe-based amorphous alloys processed by selective laser melting (SLM). With that purpose, a low-energy-input melt pool is achieved and the overlap quality between adjacent melt tracks and successive deposition layers is enhanced, through optimization of printing parameters. The Fe-based amorphous alloy is obtained with a high relative density of 94.3% and low coercivity of 0.5 Oe. Furthermore, the saturation magnetization of the printed alloy increases to 0.89 T compared with that of the powder feedstock. This work overcomes the mutual constraint between the GFA and part quality in fabricating of complex-structure Fe-based amorphous alloys, and is of great significance for promoting the application of Fe-based amorphous alloys.
[1] Wang Y J, Lucia O, Zhang Z, Guan Y S, Xu D G 2020 IET Power Electron. 13 1711
Google Scholar
[2] Battal F, Balci S, Sefa I 2020 Meas. J. Int. Meas. Confed. 171 108848
Google Scholar
[3] Mahesh M, Kumar K V, Abebe M, Udayakumar L, Mathankumar M 2021 Mater. Today Proc. 46 3888
Google Scholar
[4] 姚可夫, 施凌翔, 陈双琴, 邵洋, 陈娜, 贾蓟丽 2018 物理学报 67 016101
Google Scholar
Yao K F, Shi L X, Chen S Q, Shao Y, Chen N, Jia J L 2018 Acta Phys. Sin. 67 016101
Google Scholar
[5] Li H X, Lu Z C, Wang S L, Wu Y, Lu Z P 2019 Prog. Mater. Sci. 103 235
Google Scholar
[6] Inoue A, Shinohara Y, Gook J S 1995 Mater. Trans. 36 1427
Google Scholar
[7] Ponnambalam V, Poon S J, Shiflet G J 2004 J. Mater. Res. 19 1320
Google Scholar
[8] Amiya K, Inoue A 2006 Mater. Trans. 47 1615
Google Scholar
[9] 张雅楠, 王有骏, 孔令体, 李金富 2012 物理学报 61 454
Google Scholar
Zhang Y N, Wang Y J, Kong L T, Li J F 2012 Acta Phys. Sin. 61 454
Google Scholar
[10] Suryanarayana C, Inoue A 2013 Int. Mater. Rev. 58 131
Google Scholar
[11] 孙吉, 沈鹏飞, 尚其忠, 张鹏雁, 刘莉, 李明瑞, 侯龙, 李维火 2023 物理学报 72 026101
Google Scholar
Sun J, Shen P F, Shang Q Z, Zhang P Y, Liu L, Li M R, Hong L, Li W H 2023 Acta Phys. Sin. 72 026101
Google Scholar
[12] Sohrabi S, Fu J N, Li L Y, Zhang Y, Li X, Sun F, Ma J, Wang W H 2024 Prog. Mater. Sci. 144 101283
Google Scholar
[13] DebRoy T, Wei H L, Zuback J S, Mukherjee T, Elmer J W, Milewski J O, Beese A M, Wilson-Heid A D, De A, Zhang W 2018 Prog. Mater. Sci. 92 112
Google Scholar
[14] Pauly S, Löber L, Petters R, Stoica M, Scudino S, Kühn U, Eckert J 2013 Mater. Today 16 37
Google Scholar
[15] Mahbooba Z, Thorsson L, Unosson M, Skoglund P, West H, Horn T, Rock C, Vogli E, Harrysson O 2018 Appl. Mater. Today 11 264
Google Scholar
[16] Thorsson L, Unosson M, Pérez-Prado M T, Jin X, Tiberto P, Barrera G, Adam B, Neuber N, Ghavimi A, Frey M, Busch R 2022 Mat. Design 215 110483
Google Scholar
[17] Lu Y Z, Huang Y J, Wu J, Lu X, Qin Z X, Daisenberger D, Chiu Y L 2018 Intermetallics 103 67
Google Scholar
[18] Ouyang D, Xing W, Li N, Li Y C, Liu L 2018 Addit. Manuf. 23 246
[19] Marattukalam J J, Pacheco V, Karlsson D, Riekehr L, Lindwall J, Forsberg F, Jansson U, Sahlberg M, Hjörvarsson B 2020 Addit. Manuf. 33 101124
[20] Qiu C, Panwisawas C, Ward M, Basoalto H C, Brooks J W, Attallah M M 2015 Acta Mater. 96 72
Google Scholar
[21] Xing W, Ouyang D, Li N, Liu L 2018 Intermetallics 103 101
Google Scholar
[22] Ren Z, Zhang D Z, Fu G, Jiang J, Zhao M 2021 Mat. Design 207 109857
Google Scholar
[23] Ge Y Q, Qiao J F, Chang Z X, Hou M, Xu H J, Yang A A, Song Y, Bi W H, Ma N S 2024 Mater. Today Commun. 39 108597
Google Scholar
[24] Nguyen Q B, Luu D N, Nai S M, Zhu Z, Chen Z, Wei J 2018 Arch. Civ. Mech. Eng. 18 948
Google Scholar
[25] Yang G L, Lin X, Liu F C, Hu Q, Ma L, Li J F, Huang W D 2012 Intermetallics 22 110
Google Scholar
[26] Nam Y G, Koo B, Chang M S, Yang S, Yu J, Park Y H, Jeong J W 2020 Mater. Lett. 261 127068
Google Scholar
[27] 石岩, 魏登松 2023 中国激光 50 131
Google Scholar
Shi Y, Wei D S 2023 Chin. J. Lasers 50 131
Google Scholar
[28] Han Q, Gu H, Setchi R 2019 Powder Technol. 352 91
Google Scholar
[29] Luo N, Scheitler C, Ciftci N, Galgon F, Fu Z, Uhlenwinkel V, Schmidt M, Körner C 2020 Mater. Charact. 162 110206
Google Scholar
[30] Yadroitsev I, Yadroitsava I, Bertrand P, Smurov I 2012 Rapid Prototyp. J. 18 201
Google Scholar
[31] Yuan W, Chen H, Cheng T, Wei Q 2020 Mat. Design 189 108542
Google Scholar
[32] Zhang Y, Liu H S, Mo J Y, Wang M Z, Chen Z, He Y Z, Yang W M, Tang C G 2019 Phys. Chem. Chem. Phys. 21 12406
Google Scholar
[33] Özden M G, Morley N A 2023 J. Alloys Compd. 960 170644
Google Scholar
[34] Sun H, Flores K M 2013 Intermetallics 43 53
Google Scholar
[35] Li S Y, Fu G, Li H L, Ren Z H, Li S B, Xiao H Q, Peng Q G 2023 J. Alloys Compd. 967 171778
Google Scholar
[36] Murayama S, Inaba H, Hoshi K, Obi Y 1993 IEEE Trans. Magn. 29 2682
Google Scholar
[37] Żrodowski Ł, Wysocki B, Wróblewski R, Krawczyńska A, Adamczyk-Cieślak B, Zdunek J, Błyskun P, Ferenc J, Leonowicz M, Święszkowski W 2019 J. Alloys Compd. 771 769
Google Scholar
[38] 邬小萍, 刘淑凤, 马通达, 王书明, 王梦圆 2024 金属功能材料 31 99
Google Scholar
Wu X P, Liu S F, Ma T D, Wang S M, Wang M Y 2024 AM& D. 31 99
Google Scholar
[39] 郭子政, 胡旭波 2013 物理学报 62 057501
Google Scholar
Guo Z Z, Hu X B 2013 Acta Phys. Sin. 62 057501
Google Scholar
[40] Jung H Y, Choi S J, Prashanth K G, Stoica M, Scudino S, Yi S, Kühn U, Kim D H, Kim K B, Eckert J 2015 Mat. Design 86 703
Google Scholar
[41] Rodríguez-Sánchez M, Sadanand S, Ghavimi A, Busch R, Tiberto P, Ferrara E, Barrera G, Thorsson L, Wachter H J, Gallino I, Pérez-Prado M T 2024 Mater. 35 102111
-

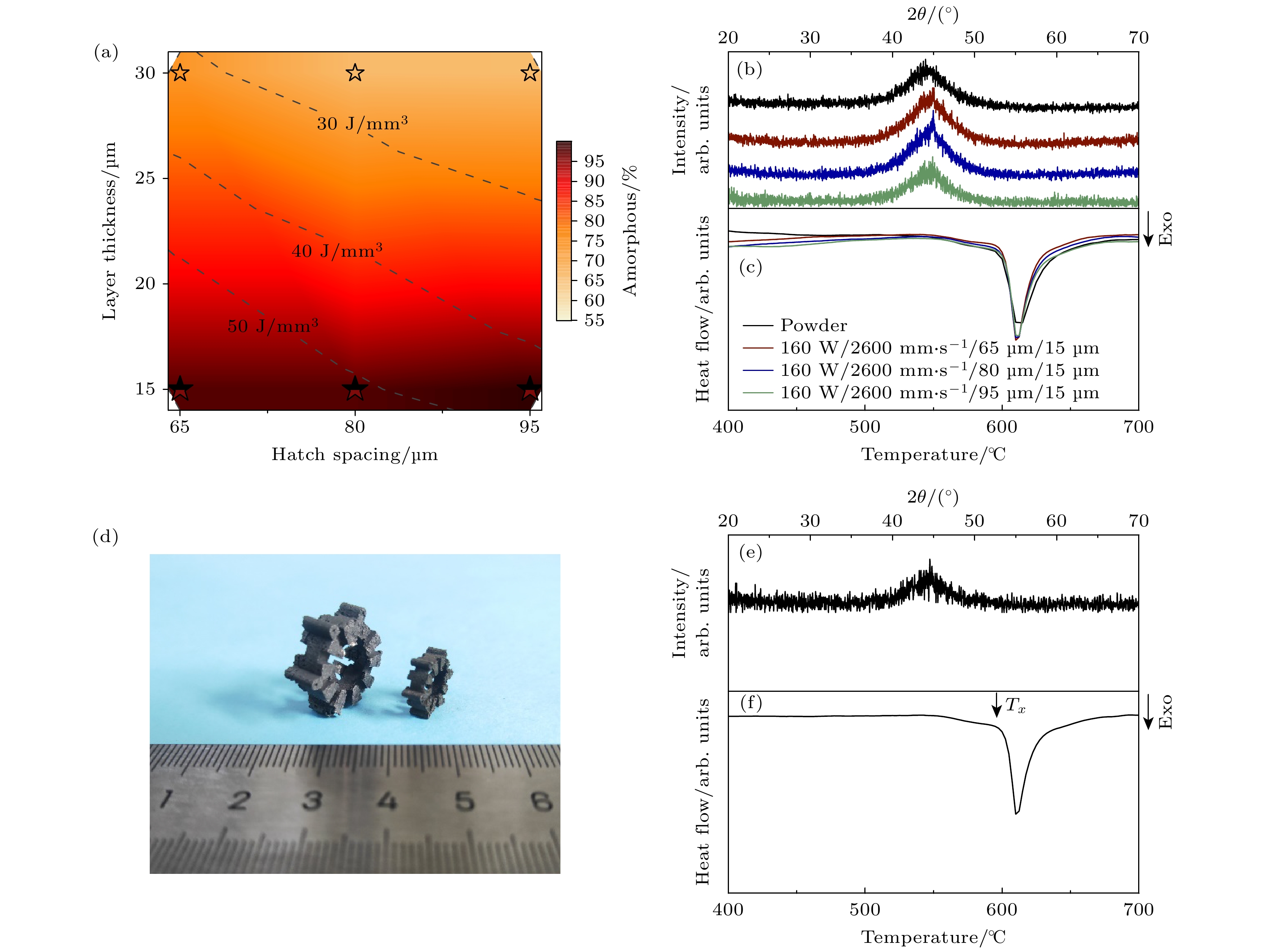

图 6 (a)不同h和t下样品的非晶含量; (b)不同h和t下样品的XRD图; (c) DSC图; (d) 电机结构; (e)电机结构的XRD图; (f) DSC图
Figure 6. (a) Amorphous content of samples under different h and t conditions; (b) XRD diagram of samples under different h and t conditions; (c) DSC diagram; (d) motor structure; (e) XRD diagram of motor structure; (f) DSC diagram.
表 1 本研究中获得的相对密度、非晶分数和磁性能, 并与文献报道的对比
Table 1. Comparison of the relative density, amorphous fraction, and magnetic properties achieved in this study with those reported in the literature for similar alloys.
BMG Composition Density
/%Amorphous fraction/% Ms/
THc/
OeReference Fe68.3C6.9Si2.5B6.7P8.7Cr2.3Mo2.5Al2.1 99.7 — 1.08 0.35 [40] Fe71Si10B11C6Cr2 94 90 1.3 4.98 [37] Fe73.7B11Si11Cr2.3C2 96 47 1.22 20.1 [26,32] Fe73Si11B11C3Cr2 98 70 1.29 6.4 [16] Fe73.7B11Si11Cr2.3C2 74 46 1.19 35.06 [41] Powder (Fe70W9Mo3Cr5Ni3Si4B4CMn)
—
100
0.84
2
This workBulk (160 W/2600 mm/s /95 μm/15 μm)
79.1
98.1
0.89
0.7
This workBulk (160 W/2600 mm/s /65 μm /15 μm)
94.3
100
0.88
0.5
This work -
