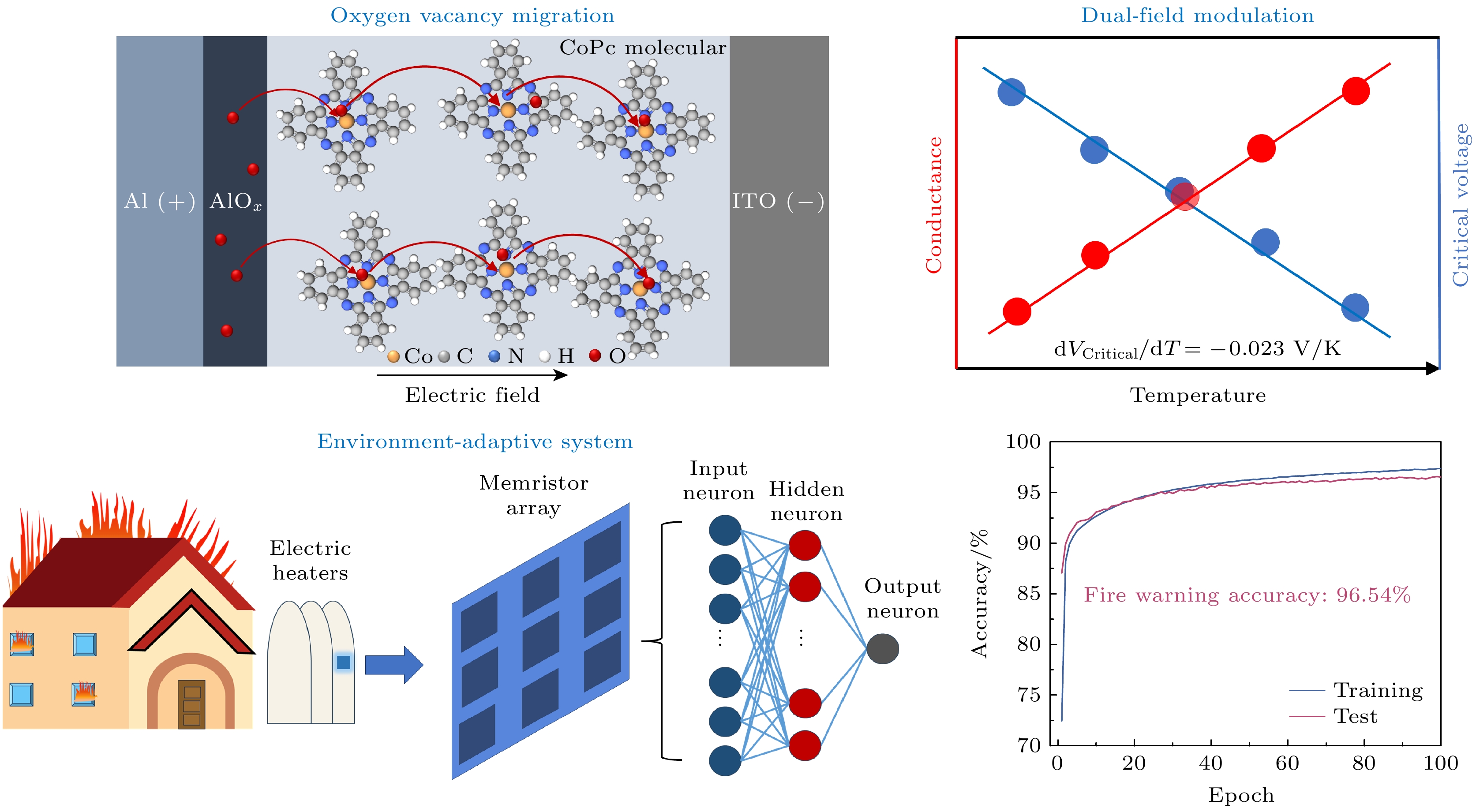

忆阻器驱动的神经形态计算芯片通过在硬件层面模拟生物突触的多维可塑性, 实现了高能效并行计算架构, 为类脑智能系统提供了新型硬件范式. 然而, 现有的大部分有机忆阻器在动态突触可塑性调控方面仍面临环境适应性不足的挑战. 本文提出了一种基于酞菁钴 (CoPc) 的双场调控忆阻器, 利用外加电场和温度协同耦合控机制, 在293—473 K的宽温域内展现出温度弹性特性, 临界电压随温度变化而自适应漂移 (3—9 V), 实现了跨尺度动态突触可塑性的高效调控. 在此基础上, 构建了由CoPc忆阻器阵列与深度学习模型集成的智能火灾预警系统, 有效保障了家用电热器的安全监测需求. 该研究不仅提出了环境自适应的忆阻器动态调控策略, 也为发展下一代鲁棒、高效的类脑神经形态计算平台奠定了物理与工程基础.Memristor-driven neuromorphic computing offers a promising path for brain-inspired intelligence by emulating the multidimensional plasticity of biological synapses, thereby achieving energy-efficient parallel computation. However, in the context of dynamically modulating synaptic plasticity, achieving strong environmental adaptability, especially in response to temperature fluctuation, remains a major challenge for organic memristors. In order to solve this problem, a bio-inspired cobalt phthalocyanine (CoPc)-based memristor is developed specifically for synergistic electric-thermal field modulation. The device utilizes the stable planar π-conjugated system of CoPc molecules and leverages dynamic oxygen vacancy (OV) migration at the CoPc/AlOx interface. A comprehensive electrical characterisation is conducted, incorporating X-ray photoelectron spectroscopy (XPS), in-situ Raman spectroscopy, and temperature-dependent electrical measurements across a wide range (293–473 K). This is supported by physical modelling (SCLC, FNT, Arrhenius) to elucidate the underlying mechanisms. Evidence indicates that the device can effectively replicate key aspects of synaptic plasiticy, including short-term potentiation/depression (STP/STD), and pairedpulse facilitation/depression (PPF/PPD), through the regulation of an electric field. The index increases to 151%, indicating a significant increase. Spike-amplitude-dependent plasticity (SADP, 45% weight increase), spike-timing-dependent plasticity (STDP, ΔW = ±90%), and learning-forgetting-relearning dynamics are revealed, unveiling cumulative memory effects linked to OV transport. The device exhibits excellent temperature resilience over the range of 293–473 K, characterised by a linear adaptive shift in its critical voltage (VCritical) from 8.7 V at 293 K to 4.5 V, with dVCritical/dT = 0.023 V/K. Physical analysis attributes this adaptive threshold and stable operation to a dual-field synergistic mechanism based on trap-assisted carrier transport. Elevated temperature thermally activates carriers, reducing the effective barrier for trap escape and OV migration activation energy (Ea = 0.073–0.312 eV), which facilitates conduction through Fowler-Nordheim tunneling (FNT) at lower electric fields. Conversely, lower temperatures require higher electric fields to enhance trap ionization efficiency through the Poole-Frenkel effect, compensating for reduced thermal energy. The validation of the linear VCritical-T relationship as a sensitive temperature transduction mechanism is achieved by developing an intelligent fire warning system. This study involves a 6 × 6 CoPc memristor array integrated into household heaters, combined with a deep learning model consisting of a fully connected network with 20 × 16 + 16 × 8 + 8 × 1 neurons. The resulting model achieves an accuracy of 96.54% in identifying high abnormal temperature. This work establishes a novel paradigm for environmentally adaptive neuromorphic devices through molecular/ interface design and synergistic multi-field modulation, providing a physical realization of temperature-elastic synaptic operation and demonstrating its practical feasibility for powerful next-generation brain-inspired computing platforms.
-
Keywords:
- memristor /
- dual-field modulation /
- critical voltage /
- dynamic synaptic plasticity
-

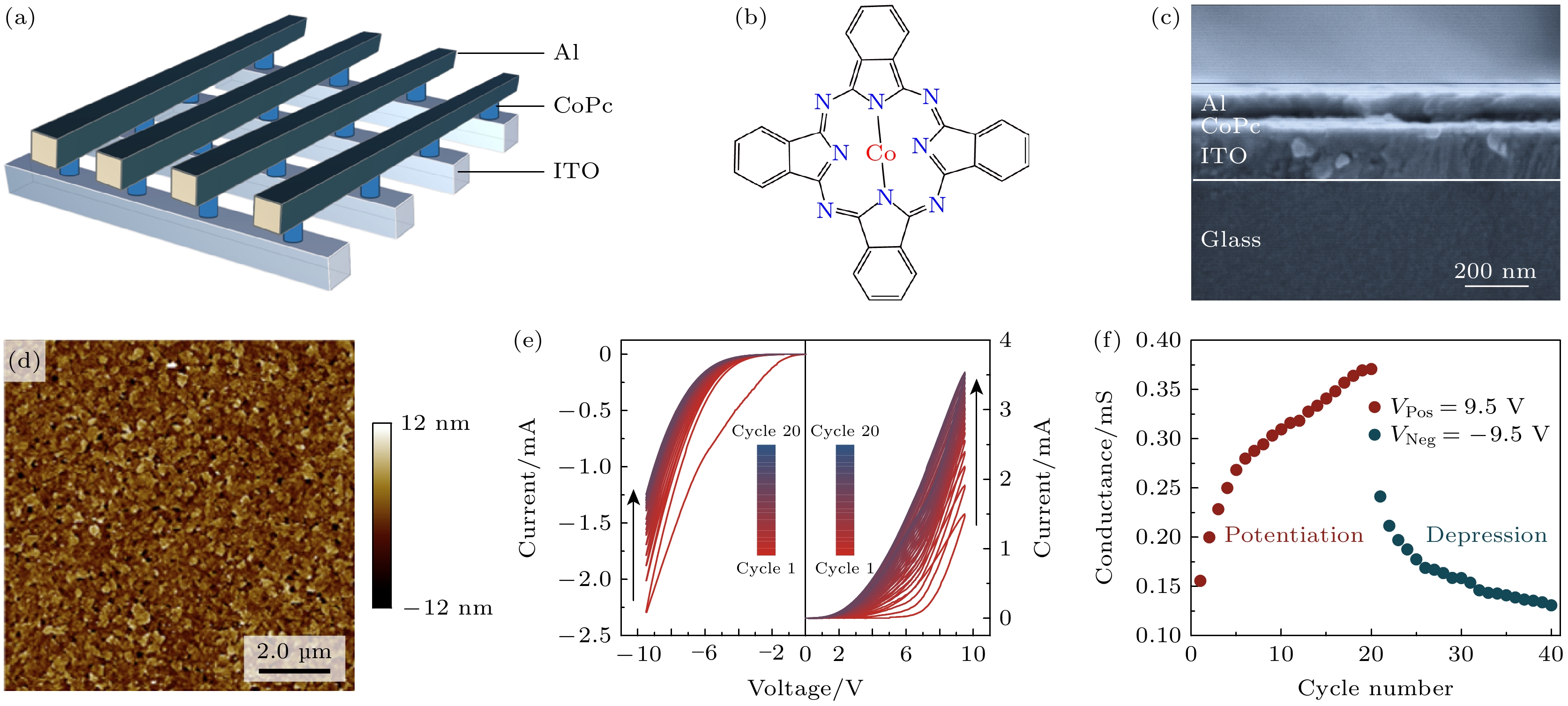

图 1 CoPc忆阻器性能 (a) 器件结构示意图; (b) 酞菁钴 (CoPc)的分子结构; (c) 器件横截面SEM图像; (d) CoPc薄膜AFM图像; (e) ITO/CoPc/Al忆阻器在0→–9.5→0 V(左)和0→9.5→0 V(右)的20个电压扫描周期的I-V曲线; (f) 从(e)中提取的增强(9.5 V)和抑制(–9.5 V)特性的电导
Fig. 1. Performance of CoPc memristor: (a) Schematic diagram of the device structure; (b) molecular structure of cobalt phthalocyanine (CoPc); (c) cross-sectional SEM image of the device; (d) AFM image of the CoPc film; (e) I-V curves of the CoPc memristor during 20 voltage-sweep cycles of 0→–9.5→0 V (left) and 0→9.5→0 V (right), respectively; (f) conductance of the potentiation (9.5 V) and depression (–9.5 V) characteristics extracted from (e).

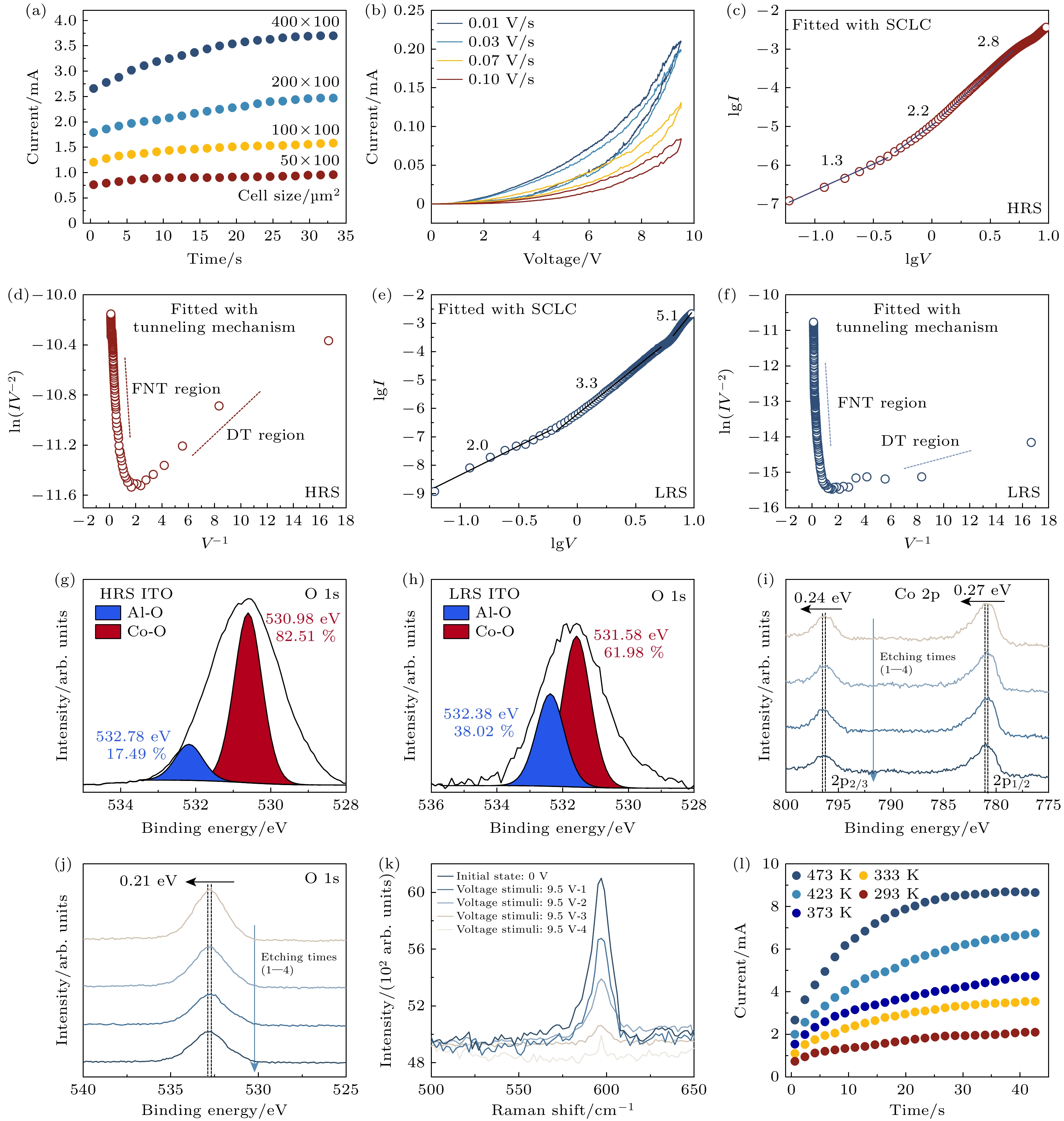

图 2 CoPc忆阻器机理分析 (a) 器件面积-电流依赖特性; (b) 扫描速率-回滞面积依赖特性; 忆阻器高阻态的I-V曲线进行SCLC (c)和FNT (d)拟合; 忆阻器低阻态的I-V曲线进行SCLC (e)和FNT (f)拟合; 在HRS (g)和LRS (h)时从ITO电极收集的O 1s XPS能谱; 在不同深度采集的(i) Co 2p和(j) O 1s的XPS能谱; (k) 9.5 V电压刺激下的原位拉曼光谱; (l) 在不同温度(293—473 K)下连续施加9.5 V尖峰电压获得的电流曲线
Fig. 2. Mechanism analysis of CoPc memristor: (a) Cell size-current dependent characteristics; (b) scan speed-hysteresis area dependent characteristics; I-V curves of the HRS of the memristor fitted by SCLC (c) and FNT (d); I-V curves of the LRS of the memristor fitted by SCLC (e) and FNT (f); O 1s XPS spectra collected from the ITO electrode at HRS (g) and LRS (h); XPS energy spectra of (i) Co 2p and (j) O 1s collected at different depths; (k) in situ Raman spectra under 9.5 V voltage stimuli; (l) current obtained by continuously applying spike voltages of 9.5 V at different temperatures (293–473 K).

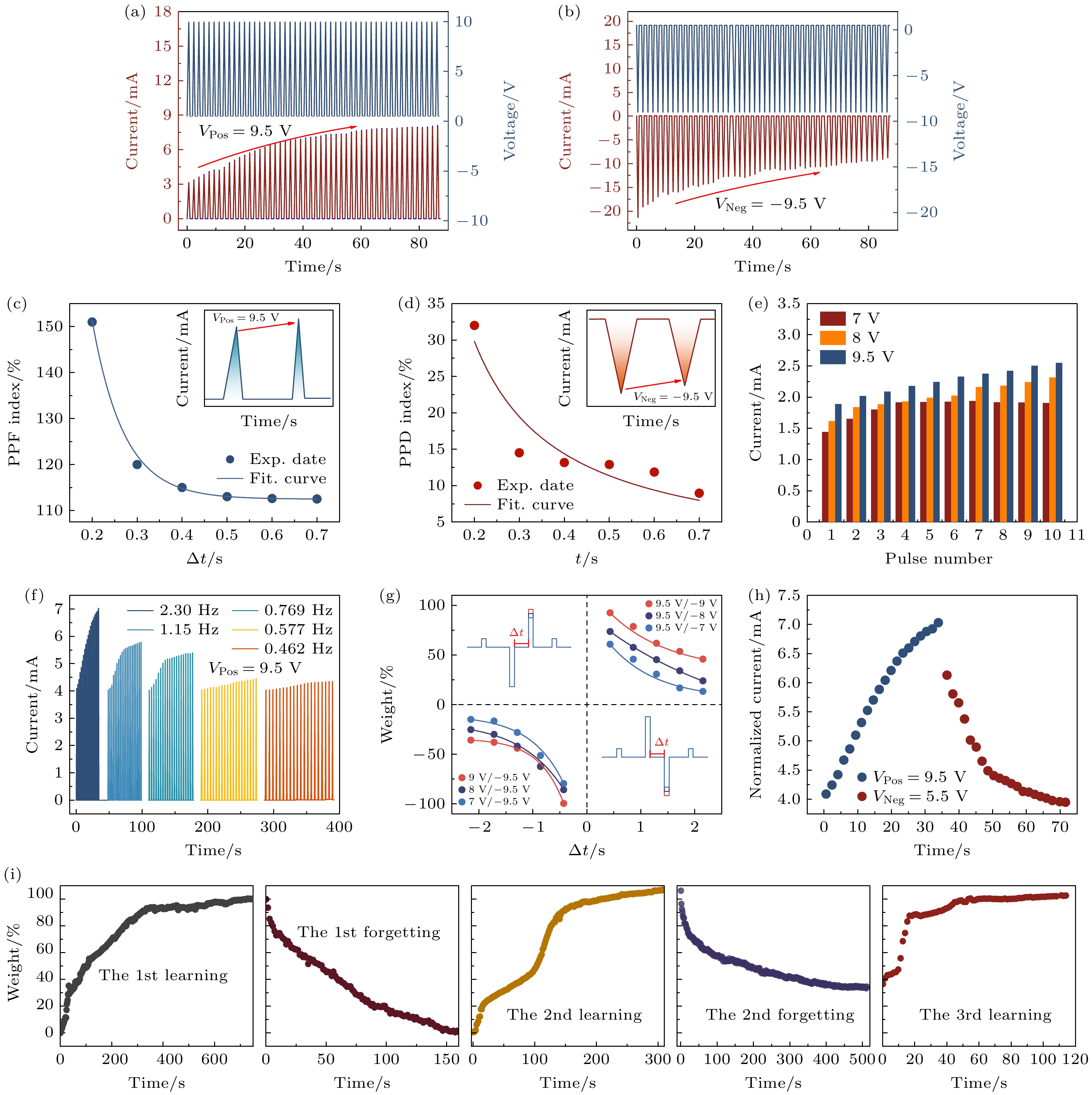

图 3 CoPc忆阻器的突触可塑性 (a) 短时程增强和(b) 短时程抑制曲线(50个电压脉冲刺激, VPos = 9.5 V, VNeg = –9.5 V, VRead = 1 V, Δt = 430 ms); (c) 配对脉冲异化PPF和(d) 配对脉冲抑制 PPD指数曲线, 插图为对应的电流曲线; (e) 脉冲幅值 (7, 8, 9.5 V) 依赖可塑性曲线; (f) 脉冲频率(2.30, 1.15, 0.769, 0.577, 0.462 Hz)依赖可塑性曲线; (g) 尖峰时序依赖可塑性曲线; (h) 归一化的增强(VPos = 9.5 V)和抑制(VNeg = 5.5 V)曲线; (i) 学习-遗忘-再学习曲线
Fig. 3. Synaptic plasticity of CoPc memristor. STP (a) and STD (b) curves under 50 voltage pulses (VPos = 9.5 V, VNeg = –9.5 V, VRead = 1 V, Δt = 430 ms); PPF (c) and PPD (d) index curves, with insets showing the corresponding current curves; (e) spike amplitude (7, 8, and 9.5 V) dependent plasticity curves; (f) spike frequency (2.30, 1.15, 0.769, 0.577, 0.462 Hz) dependent plasticity curves; (g) STDP curves; (h) normalized potentiation (VPos = 9.5 V) and depression (VNeg = 5.5 V) curves; (i) learning-forgetting-relearning curves.

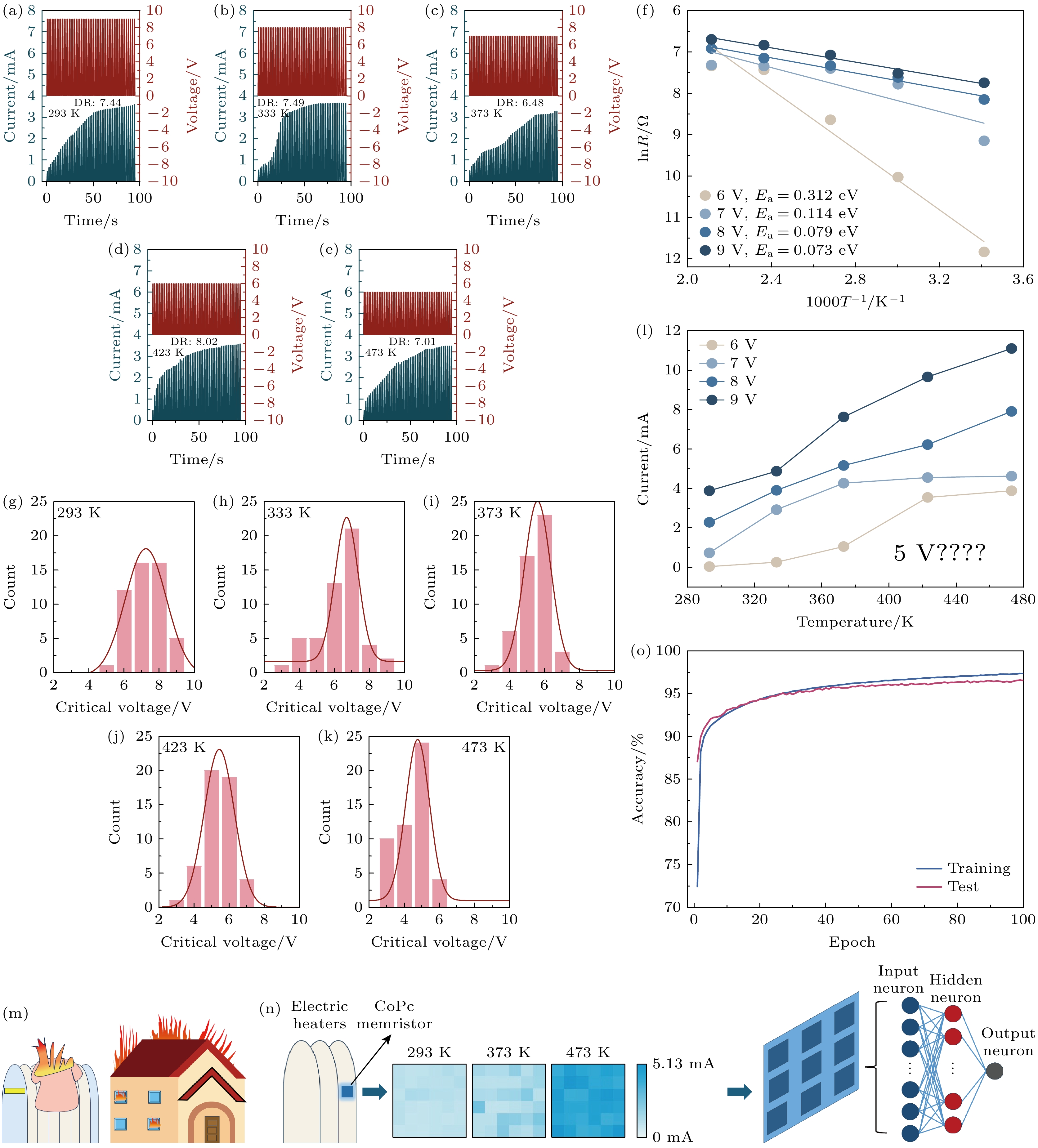

图 4 CoPc忆阻器的温度梯度调控特性 CoPc忆阻器依次在(a) 温度为293 K、刺激电压为9 V; (b) 333 K, 8 V; (c) 373 K, 7 V; (d) 423 K, 6 V; (e) 473 K, 5 V下的短时程可塑性; (f) 不同电压(6, 7, 8和9 V)下的LRS电阻随1000/T变化的Arrhenius模型; 在不同温度(g) 293 K, (h) 333 K, (i) 373 K, (j) 423, (k) 473 K的测试环境下器件50个临界电压的概率分布; (l) 在5个温度(293, 333, 373, 423和473 K)与5个电压(5, 6, 7, 8和9 V)下, 总计25种工作状态下的100 s刺激后的稳态电流; (m) 家用电热器存在的火灾隐患示意图; (n) 基于CoPc忆阻器的智能预警装置示意图; (o) 在100次训练后对异常状态识别正确率
Fig. 4. Temperature gradient control characteristics of CoPc memristor: STP of the CoPc memristor at (a) a temperature of 293 K and an amplitude of 9 V; (b) 333 K and 8 V; (c) 373 K and 7 V; (d) 423 K and 6 V; (e) 473 K and 5 V in sequence; (f) Arrhenius model of LRS resistance varying with 1000/T at different voltages (6, 7, 8, and 9 V); the probability distribution of 50 critical voltages of the device under the different temperatures of (g) 293 K, (h) 333 K, (i) 373 K, (j) 423 (k) and 473 K; (1) steady-state currents after 100 s of stimulation at five temperatures (293, 333, 373, 423, and 473 K) with five voltages (5, 6, 7, 8, 9 V) for a total of 25 operating states; (m) schematic diagram of fire hazards existing in household electric heaters; (n) schematic diagram of the intelligent early warning device based on CoPc memristor; (o) the accuracy rate in identifying abnormal states after 100 training epoch.
表 1 文献中报告的温度弹性忆阻器工作温度范围、动态可调性、功耗、识别准确率总结
Table 1. Summary of the operating temperature range, dynamic adjustability, power consumption and recognition accuracy of temperature-elastic memristors reported in the literature.
Active
layerWorking
temperature/KMaterial Dynamic
modulationRecognition
accuracy rate/%Power
consumptionRef CoPc 293–473 Organic Yes 96.54 1.95 nJ This work SF:Ca2+ 300 Organic No — 2.25 μJ [59] TaOx 298–418 Inorganic No 100 — [60] CIGSe 623 Inorganic No 90 — [61] TaO1.8/TaO2.7/TaO1.8 300–343 Inorganic No — — [62] AlFeO3 298–413 Inorganic No — — [63] Chitosan/PNIPAM 290–410 Organic Yes — 0.23 mJ [64] Co-TCPP 288–313 Organic No 93.95 — [65] CsPbBr2I 300–513 Inorganic No — — [66] VO2 294–315 Inorganic No 98.1 3.9 nJ [67] VOPc 303–373 Organic Yes — — [68]
