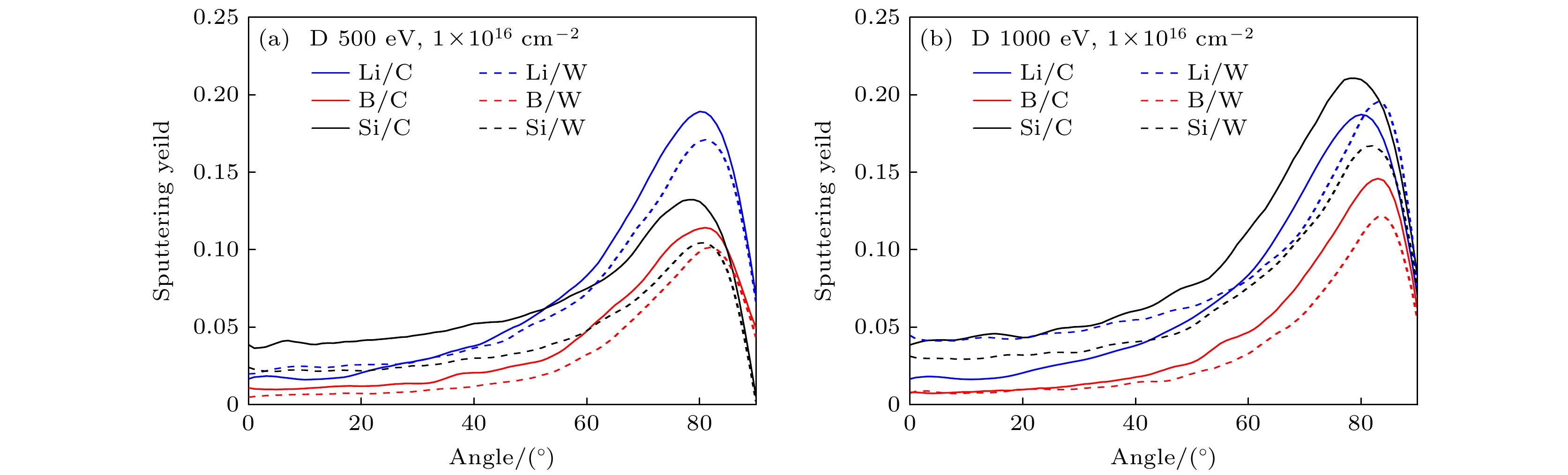

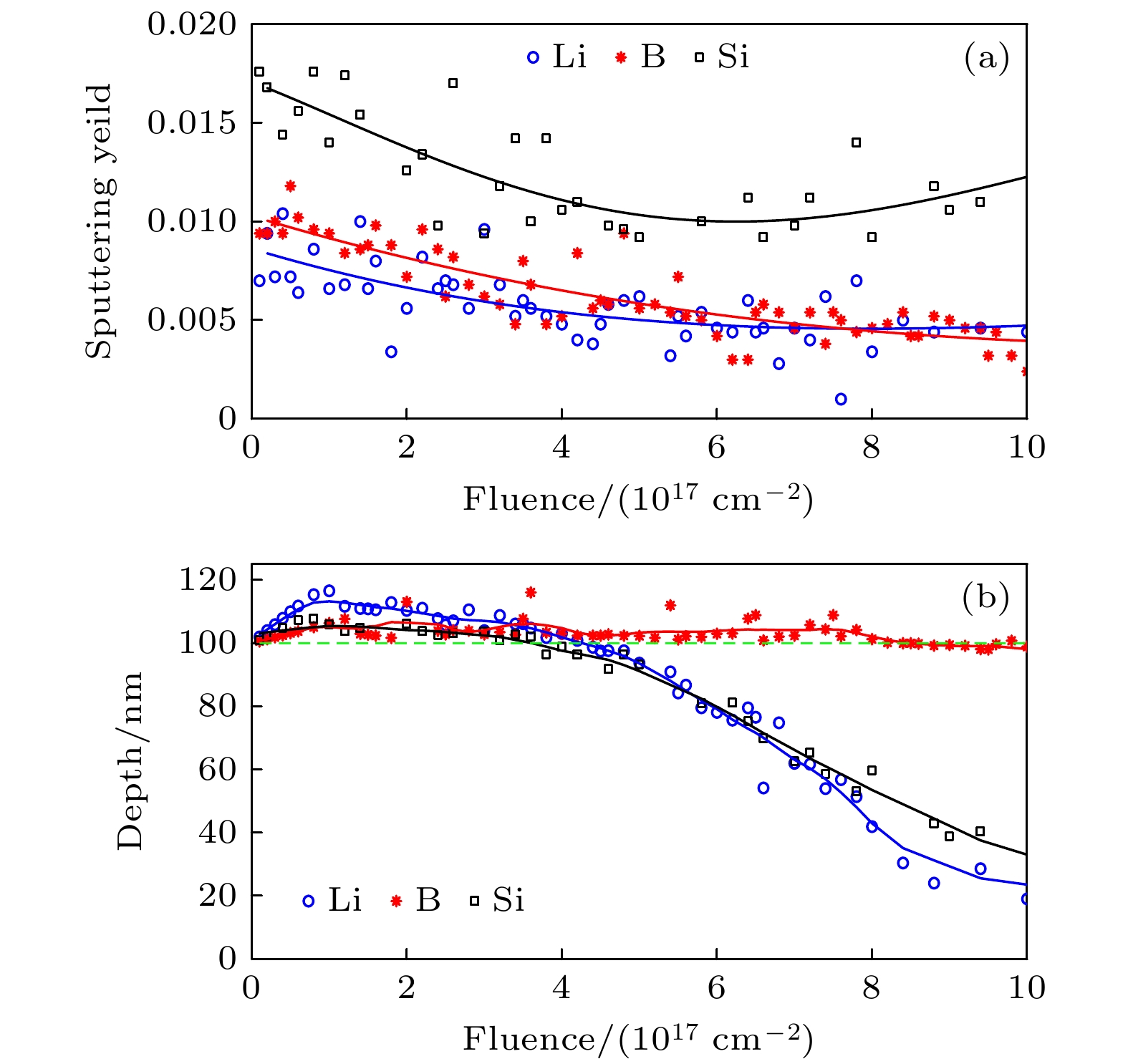

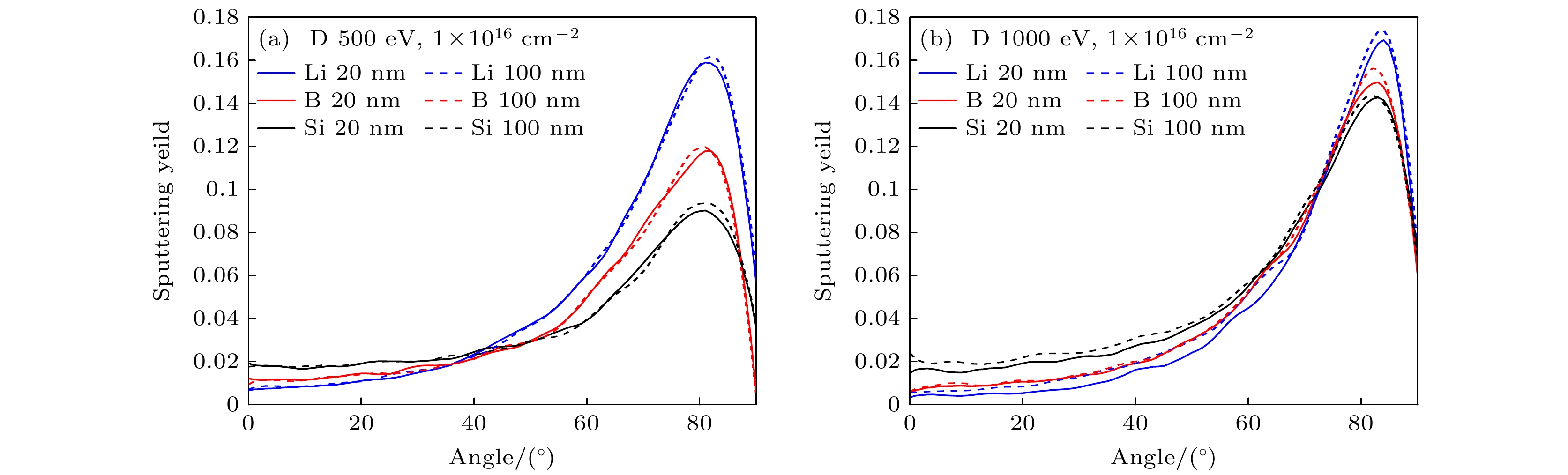

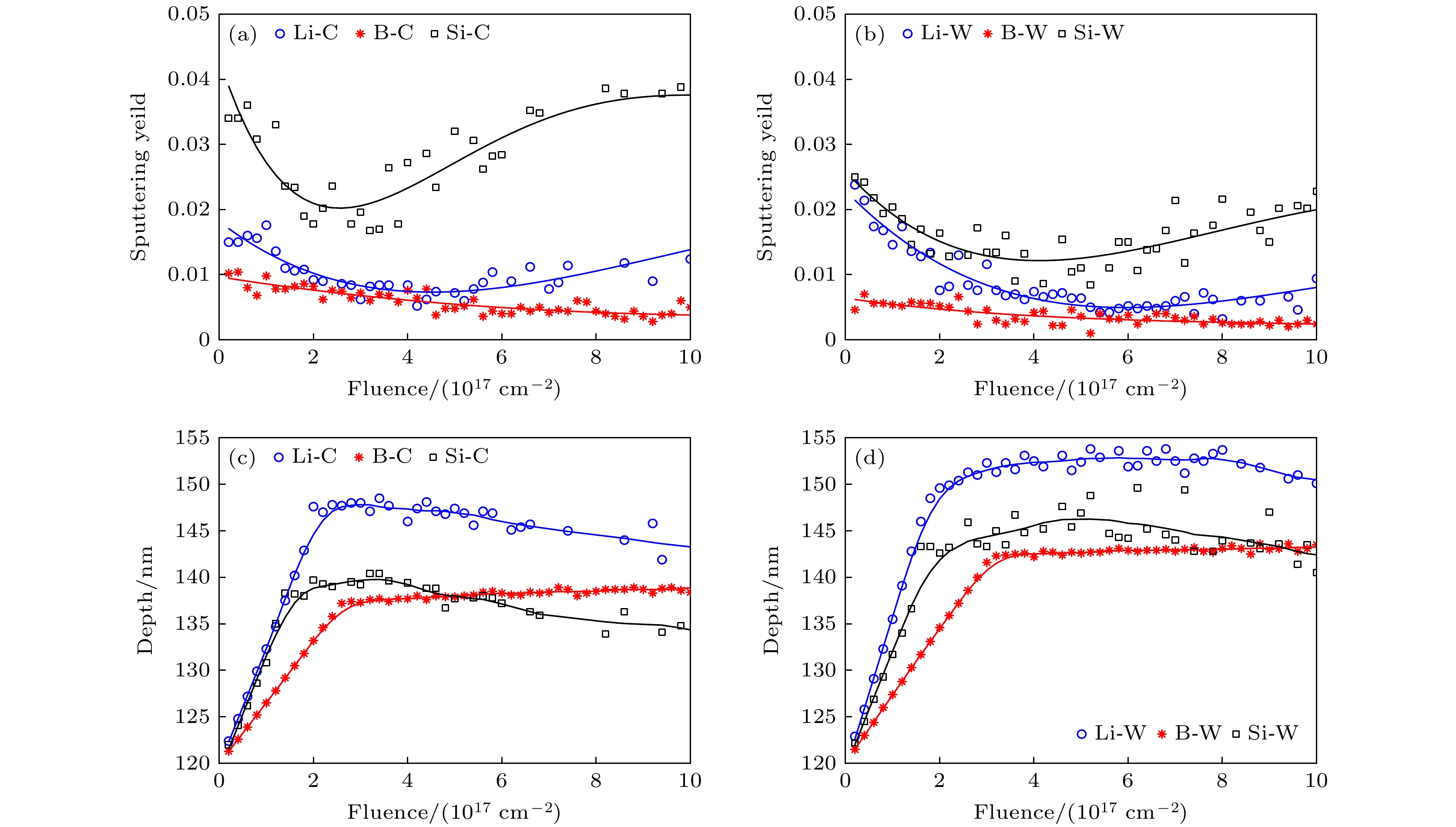

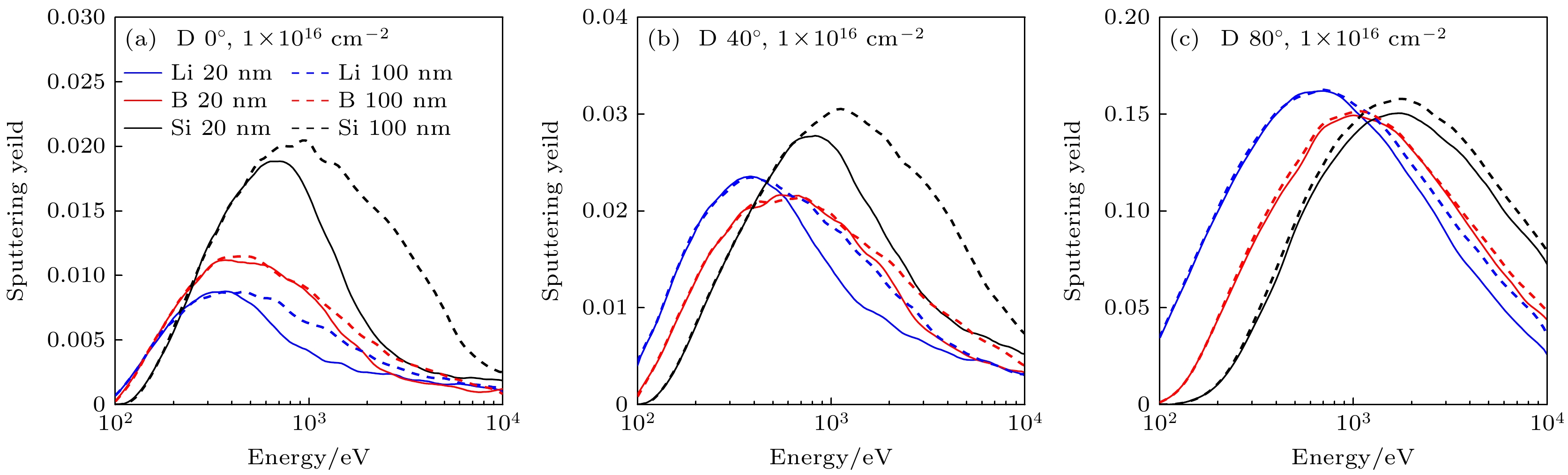

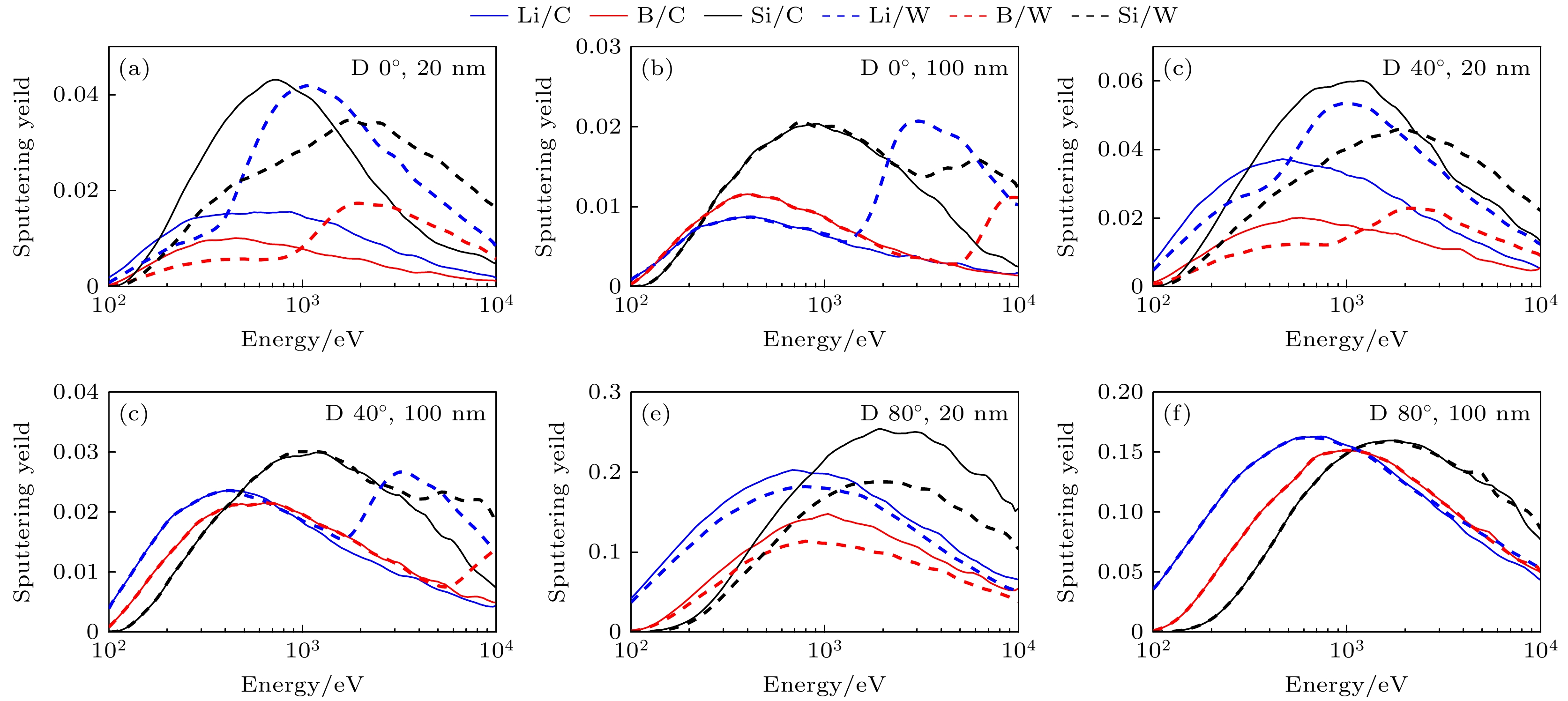

聚变装置表面涂覆壁处理如锂化、硼化、硅化等形成的涂层在高能氘粒子的轰击下会因为物理化学溅射损失，从而使壁条件变差，影响等离子体放电性能。为了评估不同壁涂层的溅射损失行为，本文采用两体碰撞近似模型，对以碳、钨为基材的锂、硼和硅涂层材料在氘粒子轰击下的物理溅射行为进行了模拟分析。结果表明，因锂具有低的表面结合能而硅具有高的原子序数，锂和硅分别在一定入射条件下溅射产额最大。对于双层靶，钨基涂层的溅射产额在特定能量出现剧增，主要是由于钨溅射阈值高，入射粒子在钨界面被大量反射，并且具有较高的能量。最后，由于靶表面成分会随着入射通量增加而变化，涂层材料的溅射产额也随之变化。本研究为聚变装置壁处理涂层寿命的评估提供数据支持，并为壁处理涂层材料设计及处理策略提供了重要的理论参考。Wall conditioning coatings—lithium(Li), boron(B) and silicon(Si) —introduced by lithiumization, boronization, or siliconization, serve as a critical strategy for suppressing fuel recycling and reducing impurity fluxes from the wall of a tokamak. These techniques directly improve plasma initiation, reproducibility, energy confinement and operational stability in fusion devices. However, these coatings undergo both physical and chemical sputtering by boundary plasma bombardment. This erosion behavior critically determines coating lifetime and, consequently, long-pulse plasma performance. To evaluate the impact of physical sputtering on coating durability and to compare material-specific differences, we employ binary collision approximation (BCA) simulations to investigate the physical sputtering behavior of Li, B, and Si coatings. Carbon (C) and tungsten (W) substrates are also modeled to assess interface effects. The results reveal pronounced differences in the sputtering yields of Li, B, and Si across incident angles and deuterium energies. Owing to its low surface binding energy, lithium exhibits the highest sputtering yield at large angles and low energies; whereas silicon, with the highest atomic number, presents the highest sputtering yield at small angles and high energies. Sputtering yields of carbon-based and tungsten-based coatings vary with angle and energy, driven by differences in deuterium backscattering at the interface and substrate sputtering. Notably, for tungsten-based coatings, the sputtering yields increase dramatically at specific energies. This arises because, due to tungsten’s high surface binding energy, incident deuterium atoms are reflected at the tungsten interface and subsequently collide with coating elements. Consequently, when the energy transferred to the surface element is higher than its sputtering threshold, the sputtering yield increases. Additionally, increasing incident fluence modifies the target composition, leading to corresponding changes in the sputtering yields of coating materials. In summary, coating materials should be selected according to the expected angle- and energy-distribution of the incident plasma particles. To suppress the abrupt yield increase observed of tungsten substrates at specific energies, the coatings must be sufficiently thick. These findings provide a theoretical basis for selecting conditioning materials and optimizing wall conditioning strategies in fusion devices.
-
[1] Zhu Y K 2010 Vacuum Science and technology in Nuclear Engineering (Beijing: Atomic Energy Press) pp160-177(in Chinese) [朱毓坤2010 核真空科学技术(北京：原子能出版社) 第160-177页].
[2] Pitts R A, Loarte A, Wauters T, Dubrov M, Gribov Y, Köchl F, Pshenov A, Zhang Y, Artola J, Bonnin X, Chen L, Lehnen M, Schmid K, Ding R, Frerichs H, Futtersack R, Gong X, Hagelaar G, Hodille E, Hobirk J, Krat S, Matveev D, Paschalidis K, Qian J, Ratynskaia S, Rizzi T, Rozhansky V, Tamain P, Tolias P, Zhang L, Zhang W 2025 Nucl. Mater. Energy 42 101854
[3] Winter J 1996 Plasma Phys. Control. Fusion 38(6) 1503
[4] Kaita R 2019 Plasma Phys. Control. Fusion 61 113001
[5] Skinner C H, Allain J P, Bell M G, Friesen F Q L, Heim B, Jaworski M A, Kugel H, Maingi R, Rais B, Taylor C N 2011 Phys. Scr. T145 014020
[6] Sun Z, Maingi R, Hu J S, Xu W, Zuo G Z, Yu Y W, Wu C R, Huang M, Meng X C, Zhang L, Wang L, Mao S T, Ding F, Mansfield D K, Canik J, Lunsford R, Bortolon A, Gong X Z 2019 Nucl. Mater. Energy 19 124
[7] Cheng Y X, Zhang L,Hu A L,Shigeru Morita S, Zhang W M, Zhou C X, Mitnik D, Zhang F L, Ma J Y, Li Z W, Cao Y M, Liu H Q 2024 Nucl. Mater. Energy 41 101744
[8] Rohde V, Balden M, Krieger K, Neu R, ASDEX Upgrade Team 2025, Nucl. Mater. Energy 43 101923
[9] Masuzaki S, Shoji M, Nespoli F, Lunsford R, Motojima G, Yajima M, Tokitani M, Oishi T, Kawate T, Goto M 2025 Nucl. Mater. Energy 42 101843
[10] Samm U, Bogen P, Esser G, Hey J D, Hintz E, Huber A, Könen L, Lie Y T, Mertens P, Philipps V,Pospieszcyk A, Rusbüldt D, Seggern J, Schorn R P, Schweer B, Tokar' M, Unterberg B, Vietzke E, Wienhold P, Winter J 1995 J. Nucl. Mater. 220 25
[11] Duan X R, Cao Z, Cui C H, Cai X, Sun H H, Ding X T, Pan Y D, Wang M X, Yang Q W, Song X M, HL-2A Team 2007 J. Nucl. Mater. 363-365 1340
[12] Effenberg F, Abe S, Sinclair G, Abrams T, Bortolon A, Wampler W R, Laggner F M, Rudakov D L, Bykov I, Lasnier C J, Mauzey D, Nagy A, Nazikian R, Scotti F, Wang H Q, Wilcox R S, the DIII-D Team 2023 Nucl. Fusion 63 106004
[13] Xu W, Hu J, Sun Z, Maingi R, Zhang L, Yu Y W, Li C L, Zuo G Z, Qian Y Z, Huang M, Meng X C, Gao W, Duan Y M, Chen Y J, Wang K, Lin X D, Gao X 2020 Plasma Phys. Control. Fusion 62 085012
[14] Sereda S, Brezinsek S, Wang E, Barbui T, Brakel R, Buttenschön B, Goriaev A, U. Hergenhahn, Höfel U, Jakubowski M, Knieps A, König R, Krychowiak M, Kwak S, Liang Y, Naujoks D, Pavone A, Rasinski M, Rudischhauser L, Ślęczka M, Svensson J, Viebke H, Wauters T, Wei Y, Winters V, Zhang D, the W7-X team 2020 Nucl. Fusion 60 086007
[15] Dibon M, Rohde V, Stelzer F, Hegele K, Uhlmann M, ASDEX Upgrade Team 2012 Fusion Eng. Des. 165 112233
[16] Tramontin L, Antoni V, Bagatin M, Boscarino D, Cattaruzza E, Rigato V, Zandolin S 1999 J. Nucl. Mater. 266–269 709
[17] Miyagawa Y, Nakadate H, Djurabekova F, Miyagawa S, Surf. Coat. Technol. 158–159 87
[18] Miyagawa Y, Miyagawa S 1983 J. Appl. Phys. 54 7124.
[19] Miyagawa Y, Ikeyama M, Saito K, Massouras G, Miyagawa S 1991 J. Appl. Phys. 70 7289
[20] Shao Q Y, Huo Y K, Chen J X, Wu S M, Pan Z Y 1991 Acta Phys. Sin. 40(4) 659 (in Chinese)[邵其鋆, 霍裕昆, 陈建新, 吴士明, 潘正瑛. 1991物理学报 40(4) 659]
[21] Lu F 2022 Technology and Application of Vacuum Coating(Beijing: Chemical Industry Press) pp149-153(in Chinese)[陆峰 2022 真空镀膜技术与应用(北京：化学工业出版社)第149-153页].
[22] Shao Q Y, Pan Z Y 1995 Acta Phys. Sin. 1995 44(3) 479(in Chinese)[邵其鋆, 潘正瑛. 1995. 物理学报44(3) 479]
