本文提出一种基于物理信息神经网络的量子绝热捷径方案. 与传统的绝热捷径技术相比, 创新性地引入机器学习技术, 利用参数化的物理信息神经网络解含参数的微分方程, 将神经网络作为量子绝热演化过程的逼近函数, 并将含参数的微分方程和微分方程的各种物理约束条件作为参数化的神经网络的损失函数, 训练神经网络, 拟合量子系统演化过程, 获得布居反转的驱动控制函数. 数值实验表明, 量子系统可以在短时间内实现布居反转, 并且具有很高的保真度、很强的鲁棒性. 神经网络具有很强的计算能力, 适合复杂系统的驱动控制函数的生成. 与传统的绝热捷径技术相比, 具有更好的效果和更强的实用性.A quantum shortcut to adiabaticity scheme based on physics-informed neural networks is proposed in this work. Compared with traditional shortcut to adiabaticity technology, our method innovatively integrates machine learning methods by employing parameterized physics-informed neural networks to solve parameterized differential equations. The neural networks serve as an approximating function for quantum adiabatic evolution processes, while incorporating parameter-dependent differential equations and various physical constraints as components of the loss function. Through networks training, we effectively simulate quantum system dynamics and derive the driving control field for population inversion. Numerical simulations show that the quantum system can achieve rapid population inversion within significantly reduced time while maintaining high fidelity and exceptional robustness against parameter fluctuations. The neural networks exhibit remarkable computational capabilities, particularly suitable for generating control functions in complex quantum systems. Compared with conventional counter-diabatic driving and transitionless quantum driving methods, this PINN-based framework not only achieves better control performance but also provides the improved practicality for experimental implementations. The success of this method demonstrates its promising applications in quantum control tasks, including but not limited to quantum state preparation, quantum gate optimization, and adiabatic quantum computing acceleration.
-
Keywords:
- shortcuts to adiabaticity /
- deep learning /
- physics-Informed neural networks /
- differential equation
-

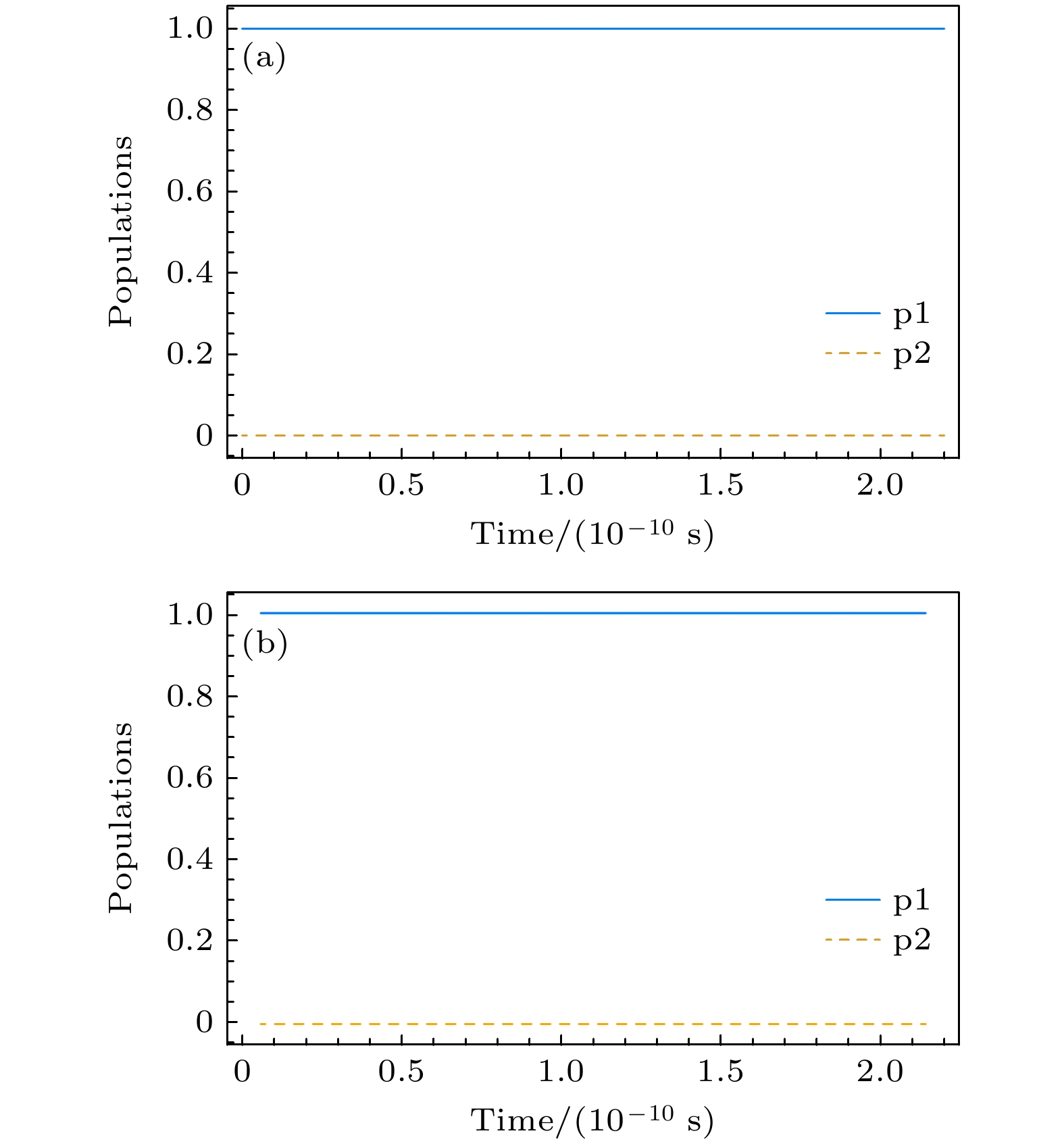

图 2 PINN方法仿真和Mathematica软件仿真无驱动布居转移情况对比图 (a) PINN仿真无驱动布居转移; (b) Mathematica软件中无驱动布居转移的仿真. 参数选取为: $ {t_0} = $$ 5 \times {10^{ - 12}} {\text{ s}}, \;{t_{\text{f}}} = 2 \times {10^{ - 10}} {\text{ s}}, \;{\varOmega _0} = 10 {\text{ MHz}}, \;\delta = 600 {\text{ }} {\text{MHz}} $
Fig. 2. Comparison between PINN method simulation and Mathematica software simulation of undriven population transfer: (a) PINN simulated undriven population transfer; (b) simulation of undriven population transfer in Mathematica software. The parameters are selected as: $ {t_0} = 5 \times $$ {10^{ - 12}} {\text{ s}}, \;{t_{\text{f}}} = 2 \times {10^{ - 10}} {\text{ s}}, \;{\varOmega _0} = 10 {\text{ MHz}}, \;\delta = 600 {\text{ MHz}} $.

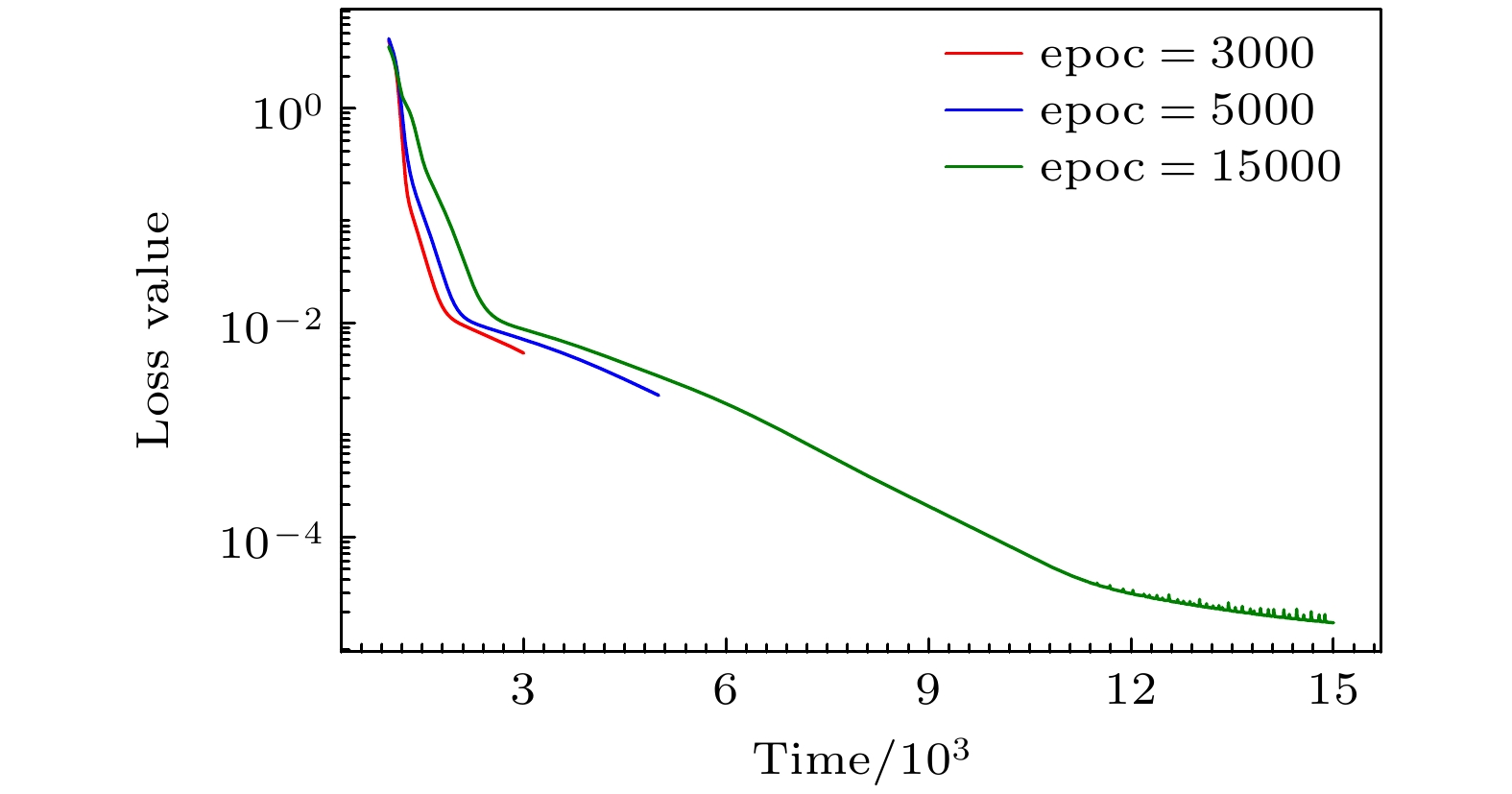

图 3 不同训练次数下的损失函数曲线图. 参数选取为$ {t_0} = 5 \times {10^{ - 12}} {\text{ s}}$, $ {t_{\text{f}}} = 2 \times {10^{ - 10}} {\text{ s}} $, $ {\varOmega _0} = 10 {\text{ MHz}}$, $\delta = $$ 600 {\text{ MHz}} $
Fig. 3. Loss function curves under different training times. The parameters are selected as: $ {t_0} = 5 \times {10^{ - 12}} {\text{ s}}, \;{t_{\text{f}}} = 2 \times $$ {10^{ - 10}} {\text{ s}}$, $ {\varOmega _0} = 10 {\text{ MHz}}, \;\delta = 600 {\text{ MHz}} $.

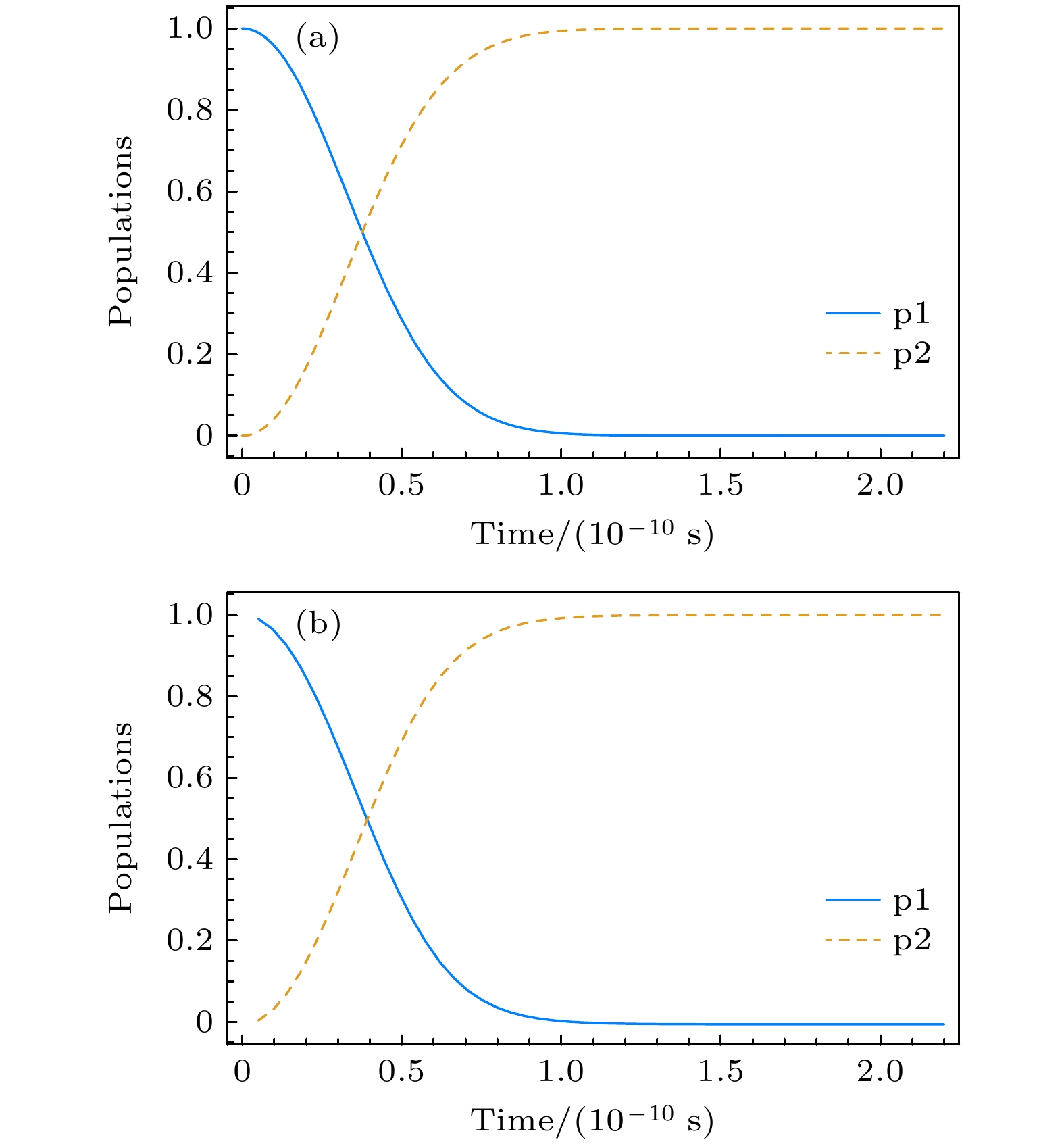

图 4 STAPINN方法和Mathematica软件仿真加驱动的布居转移情况对比 (a) STAPINN仿真加驱动的布居转移情况; (b) Mathematica仿真加驱动的布居转移情况. 参数选取为: ${t_0} = 5 \times {10^{ - 12}} {\text{ s}} $, $ {t_{\text{f}}} = 2 \times {10^{ - 10}} {\text{ s}} $, ${\varOmega _0} = 10 {\text{ MHz}} $, $\delta = 600 {\text{ MHz}} $
Fig. 4. Comparison of driver population transfer after STAPINN method and Mathematica software simulation and optimization: (a) STAPINN simulation optimization drives population transfer; (b) population transfer driven by Mathematica simulation optimization. The parameters are selected as: $ {t_0} = 5 \times {10^{ - 12}} {\text{ s}}$, ${t_{\text{f}}} = 2 \times {10^{ - 10}} {\text{ s}} $, ${\varOmega _0} = $$ 10 {\text{ MHz}}$, $\delta = 600 {\text{ MHz}} $.

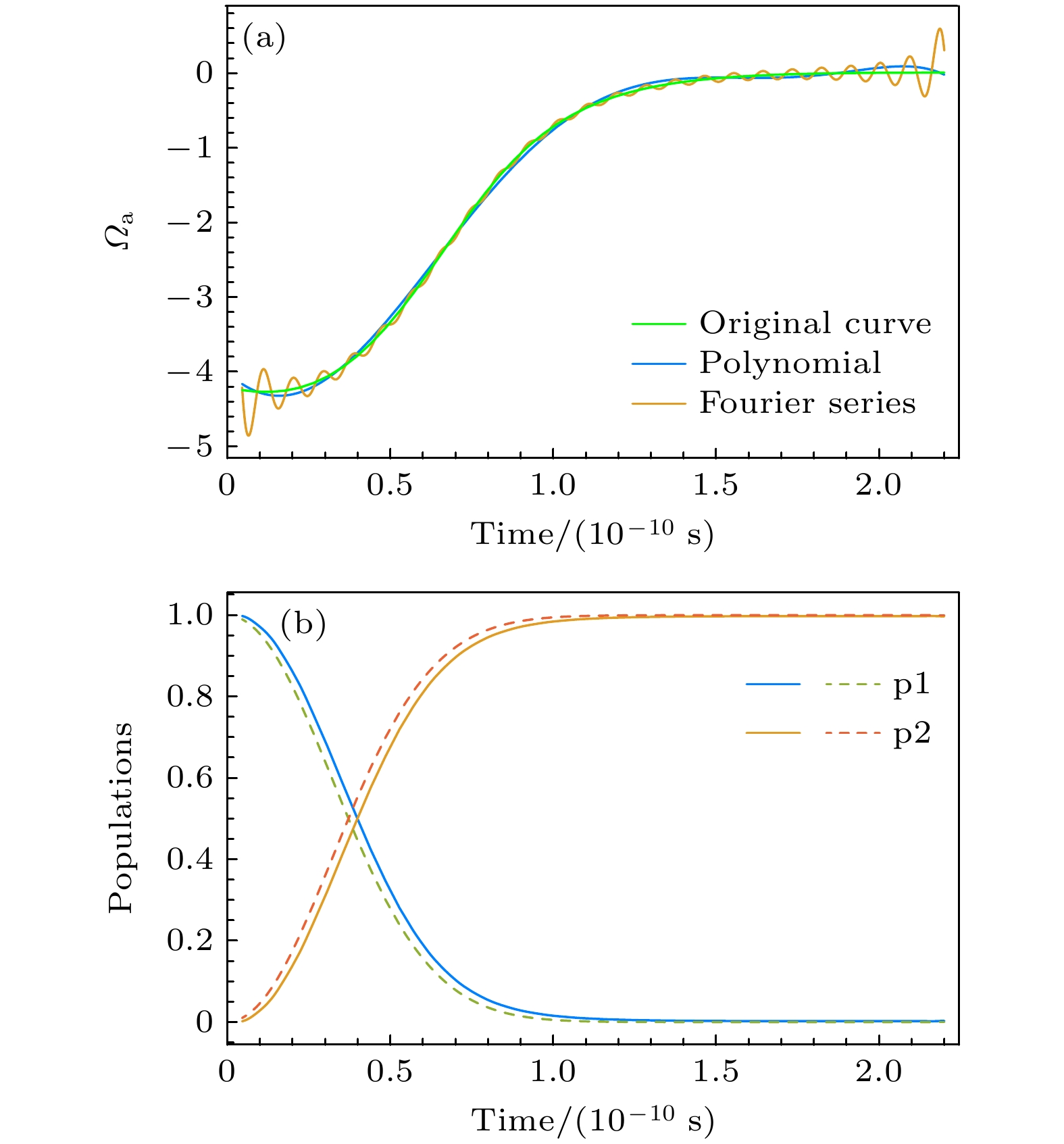

图 5 (a)多项式展开的驱动函数和傅里叶级数展开的驱动函数对比图, 黄色曲线为STAPINN方法找到的驱动曲线, 蓝色曲线为多项式拟合的驱动曲线, 绿色曲线为傅里叶级数拟合的驱动曲线; (b)利用Mathematica软件模拟此驱动下的布居转移情况, 蓝色和褐色实线为傅里叶级数展开的驱动函数对应的布居数反转曲线, 红色和绿色虚线为多项式展开的驱动函数对应的布居反转曲线. 参数选取为: $ {t_0} = 5 \times $$ {10^{ - 12}} {\text{ s}} $, ${t_{\text{f}}} = 2 \times {10^{ - 10}} {\text{ s}} $, ${\varOmega _0} = 10 {\text{ MHz}} $, $\delta = 600 {\text{ MHz}} $
Fig. 5. (a) Comparison between the driver function of polynomial expansion and the driver function of Fourier series expansion. The yellow curve is the optimized driver curve found by STAPINN method, the blue curve is the driver curve of polynomial fitting expansion, and the green curve is the driver curve of Fourier series fitting expansion; (b) using Mathematica software to simulate the population transfer under this drive, the blue and brown solid lines are the population inversion curves corresponding to the driver function of Fourier series expansion, and the red and green dashed lines are the population inversion curves corresponding to the driver function of polynomial expansion. The parameters are selected as: $ {t_0} = 5 \times {10^{ - 12}} {\text{ s}} $, ${t_{\text{f}}} = 2 \times $$ {10^{ - 10}} {\text{ s}} $, ${\varOmega _0} = 10 {\text{ MHz}} $, $\delta = 600 {\text{ MHz}} $.

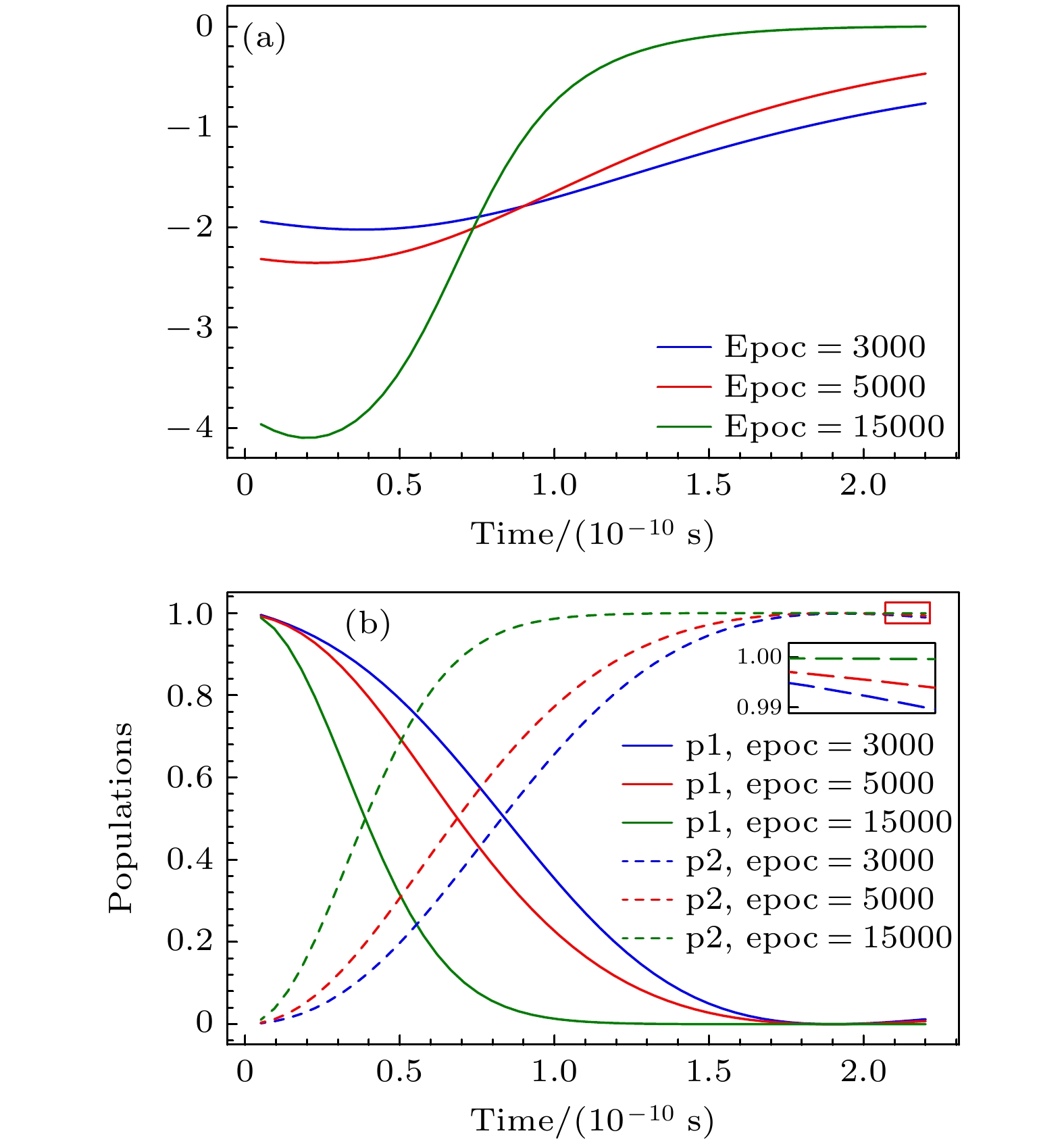

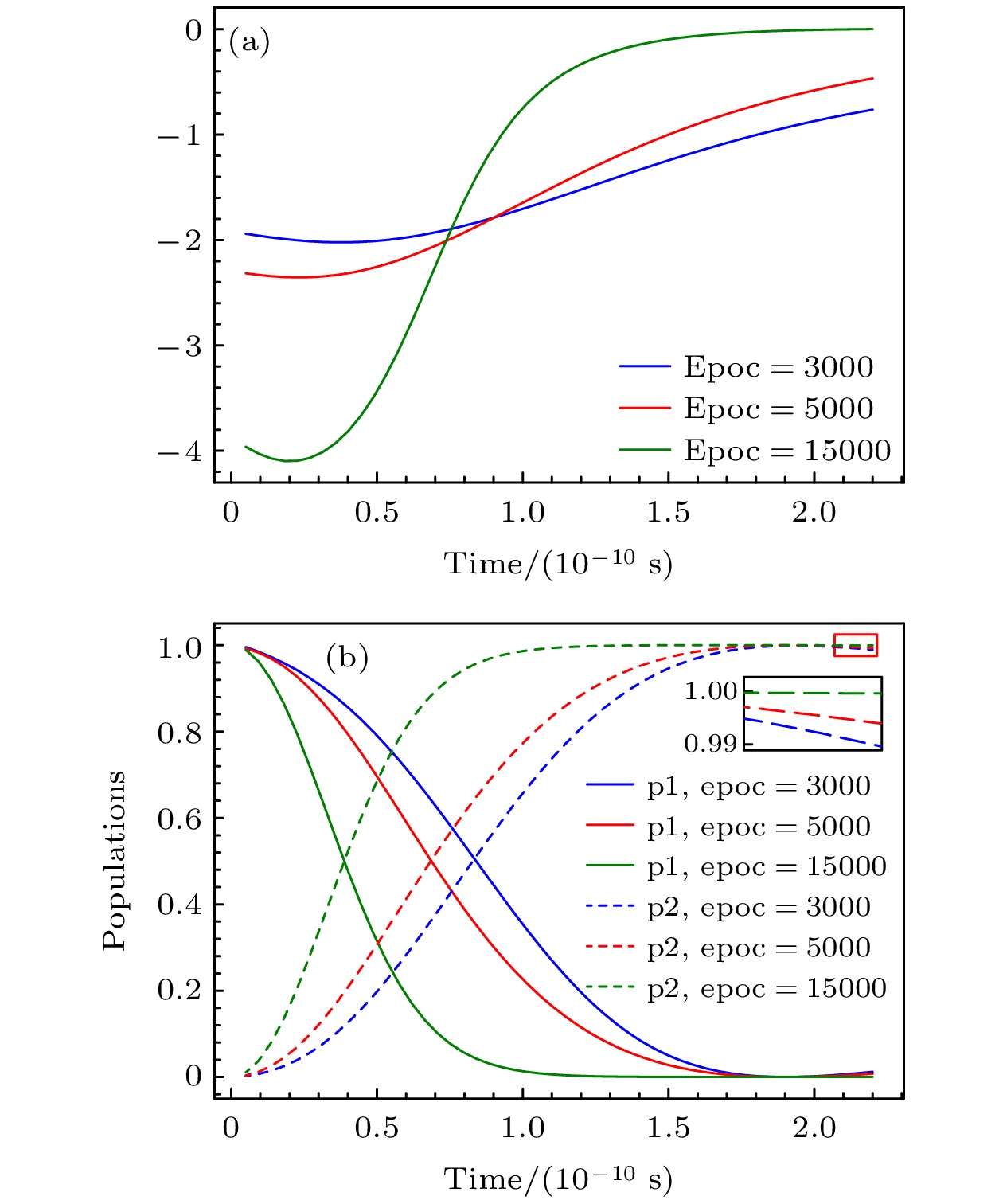

图 6 (a)不同训练次数下的驱动曲线图; (b)不同训练次数下的驱动实现的布居转移情况对比图. 参数选取为: $ {t_0} = 5 \times $$ {10^{ - 12}} {\text{ s}}$, ${t_{\text{f}}} = 2 \times {10^{ - 10}} {\text{ s}} $, ${\varOmega _0} = 10 {\text{ MHz}} $, $\delta = 600 {\text{ MHz}} $
Fig. 6. (a) Drive curves under different training times; (b) comparison diagram of population transfer of the drive under different training times. Set the parameter to: $ {t_0} = 5 \times $$ {10^{ - 12}} {\text{ s}}$, ${t_{\text{f}}} = 2 \times {10^{ - 10}} {\text{ s}} $, ${\varOmega _0} = 10 {\text{ MHz}} $, $\delta = 600{\text{ }} {\text{ MHz}} $
-
[1] Vitanov N V, Halfmann T, Shore B W 2001 Annu Rev. Phys. Chem. 52 763
Google Scholar
[2] Law C K, Eberly J H 1996 Phys. Rev. Lett. 76 1055
Google Scholar
[3] Kuhn A, Hennrich M, Bondo T 1999 Appl Phys. B 69 373
Google Scholar
[4] Torosov B T, Guérin S, Vitanov N V 2011 Phys. Rev. Lett. 106 233001
Google Scholar
[5] Brif C, Chakrabarti R, Rabitz H 2010 New J. Phys. 12 075008
Google Scholar
[6] Demirplak M, Rice S A 2002 J. Chem. Phys. 116 8028
Google Scholar
[7] del Campo A 2011 Phys. Rev. A 84 031606
Google Scholar
[8] del Campo A 2013 Phys. Rev. Lett. 111 100502
Google Scholar
[9] Tian L 2012 Phys. Rev. Lett. 108 153604
Google Scholar
[10] Berry M V 2009 J. Phys. A: Math. Theor. 42 365303
Google Scholar
[11] Ibáñez S, Li Y C, Chen X 2015 Phys. Rev. A 92 062136
Google Scholar
[12] Song X K, Ai Q, Qiu J 2016 Phys. Rev. A 93 052324
Google Scholar
[13] Liu S, Chen Y H, Wang Y 2022 Phys. Rev. A 106 042430
Google Scholar
[14] Masuda S, Nakamura K 2008 Phys. Rev. A 78 062108
Google Scholar
[15] Masuda S, Nakamura K 2011 Phys. Rev. A 84 043434
Google Scholar
[16] Zhu J J, Chen X 2021 Phys. Rev. A 103 023307
Google Scholar
[17] Luo D W, Pyshkin P, Lam C H 2015 Phys. Rev. A 92 062127
Google Scholar
[18] Kang Y H, Chen Y H, Huang B H 2017 Ann. Phys. 529 1700004
Google Scholar
[19] Torrontegui E, Martínez-Garaot S, Muga J 2014 Phys. Rev. A 89 043408
Google Scholar
[20] Güngördü U, Wan Y, FasihiM A 2012 Phys. Rev. A 86 062312
[21] 张瑶, 张云波, 陈立 2021 物理学报 70 168702
Google Scholar
Zhang Y, Zhang Y B, Chen L 2021 Acta Phys. Sin. 70 168702
Google Scholar
[22] 田十方, 李彪 2023 物理学报 72 100202
Google Scholar
Tian S F, Li B 2023 Acta Phys. Sin. 72 100202
Google Scholar
[23] 方波浪, 王建国, 冯国斌 2022 物理学报 71 200601
Google Scholar
Fang B L, Wang J G, Feng G B 2022 Acta Phys. Sin. 71 200601
Google Scholar
[24] Cai Y H, He Y L, Lang S N, Cui X B, Zhang X Q, Yao Z J 2025 Comput. Geosci. 196 105857
Google Scholar
[25] Nursyiva I, Maharani A B, Fatimah N H, Sugiyarto S, Danang A P 2025 Results Appl. Math. 25 100539
Google Scholar
[26] Ko T, Kim D, Park J, Lee S H 2025 Appl. Energy 382 125318
Google Scholar
[27] Zheng J C, Yang Y L 2024 Appl. Soft Comput. 167 112370
Google Scholar
[28] Chen X, Peng W Q 2025 Commun. Theor. Phys. 77 025002
Google Scholar
[29] Roy A, Chatterjee T, Adhikari S 2024 Probab. Eng. Mech. 78 103701
Google Scholar
[30] Han J, Jentzen A, Weinan E 2018 Proc. Natl. Acad. Sci. U. S. A 115 8505
Google Scholar
[31] Rudy H S, Brunton L S, Proctor L J, Kutz N 2017 Sci. Adv. 3 e1602614
Google Scholar
[32] Raissi M, Karniadakis G E 2018 J. Comput. Phys. 357 125
Google Scholar
[33] Li J, Chen Y 2021 Commun. Theor. Phys. 73 015001
Google Scholar
[34] Pu J C, Li J, Chen Y 2021 Nonlinear Dyn. 105 1723
[35] Pu J C, Chen Y 2022 Chaos, Solitons Fractals 160 112182
Google Scholar
[36] Lin S N, Chen Y 2022 J. Comput. Phys. 41 898
[37] Ding Y C, Ban Y, Martín J, Solano E, Casanova J, Chen X 2021 Phys. Rev. A 103 L040401
Google Scholar
[38] Norambuena A, Mattheakis M, González F, Coto R 2024 Phys. Rev. Lett 132 010801
Google Scholar
