Synergistic improvement of specific strength and plasticity achieved in Ti-based metallic glass designed based on quasicrystal structure

CAI Zhengqing; LI Zijing; FENG Shidong; WANG Limin; LIU Riping

doi:10.7498/aps.75.20251415

Abstract
Achieving a balance between low density, high strength, and good ductility remains a major challenge in the development of structural materials. Ti-based bulk metallic glasses (BMGs) have attracted considerable attention due to their exceptionally high specific strength. However, the intrinsic strength–plasticity trade-off has hindered their practical applications. Based on a quasicrystal-derived structural heredity and minor-element microalloying, this work realizes a synergistic enhancement of specific strength and plasticity in Ti-based BMGs. The resulting ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)₉₇Al₃ BMGs demonstrate an ultrahigh specific strength of 5.34 × 10⁵ N·m·kg^–1, establishing a new record for Ti-based BMGs, along with a plastic strain of 13%, breaking through the traditional strength–plasticity limitation of BMGs. Structural analyses show that Al microalloying effectively inherits and modulates the short-range order derived from quasicrystalline structures, thereby achieving an observed synergistic enhancement in both strength and plasticity. This work provides new insights into composition design and lightweight structural applications of Ti-based BMGs.

Keywords:
titanium-based bulk metallic glasses /

specific strength /

plasticity /

microalloying
FullText HTML

Cited By

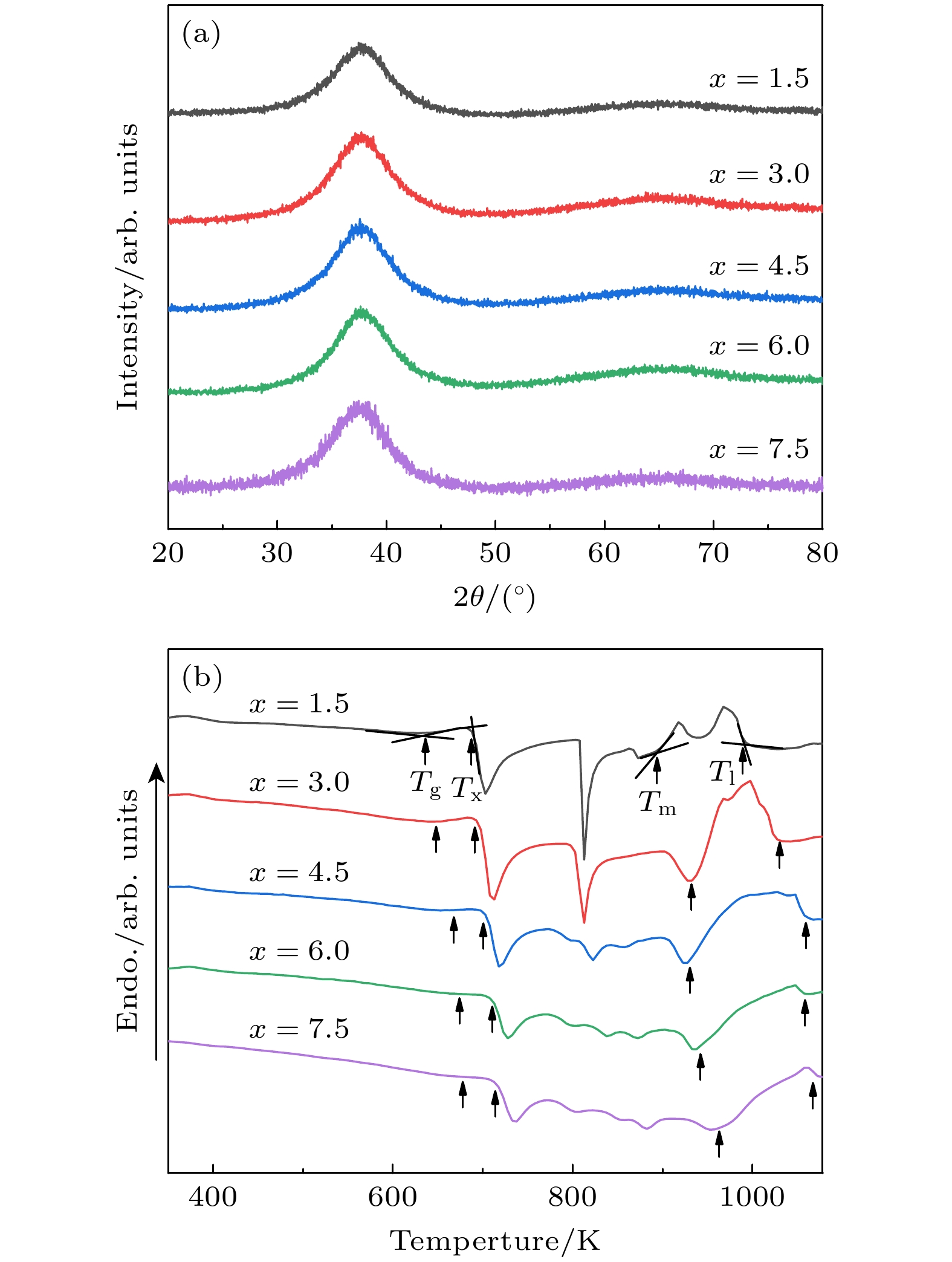

图 1 直径2 mm的((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_xBMGs的(a) XRD图谱和(b) DSC曲线

Figure 1. (a) XRD spectrum and (b) DSC curve of ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_xBMGs with a diameter of 2 mm.

DownLoad: Full-Size Img PowerPoint

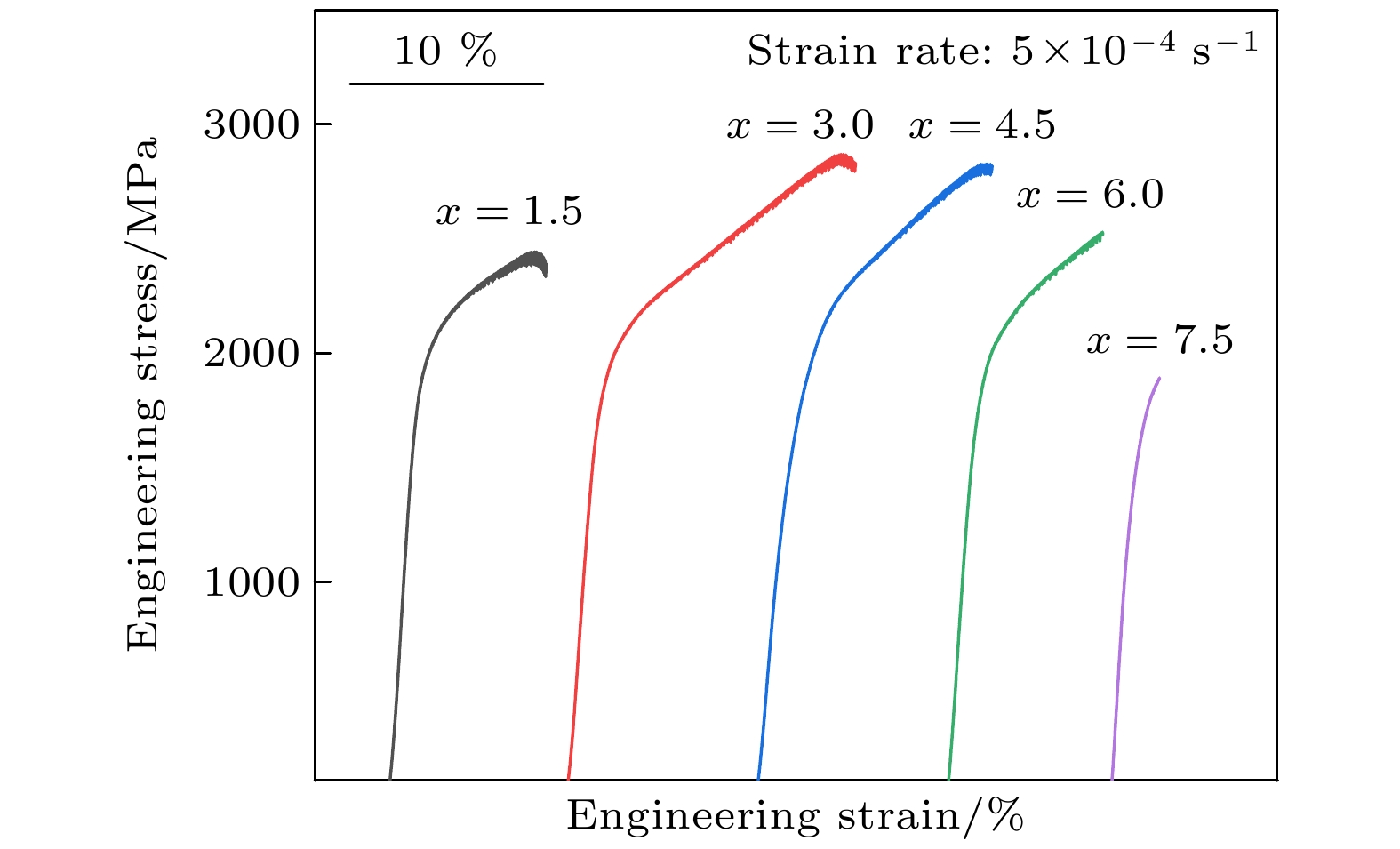

图 2 直径2 mm的((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_x BMGs的单轴压缩应力应变曲线

Figure 2. The uniaxial compression stress-strain curve of ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_x BMGs with a diameter of 2 mm.

DownLoad: Full-Size Img PowerPoint

图 3 ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_x BMGs的断口形貌及侧面剪切带形貌 (a₁)—(a₃) x = 1.5; (b₁)—(b₃) x = 3; (c₁)—(c₃) x = 6

Figure 3. The fracture morphology and side shear band morphology of the ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_x BMGs with a diameter of 2 mm: (a₁)–(a₃) x = 1.5; (b₁)–(b₃) x = 3; (c₁)–(c₃) x = 6.

DownLoad: Full-Size Img PowerPoint

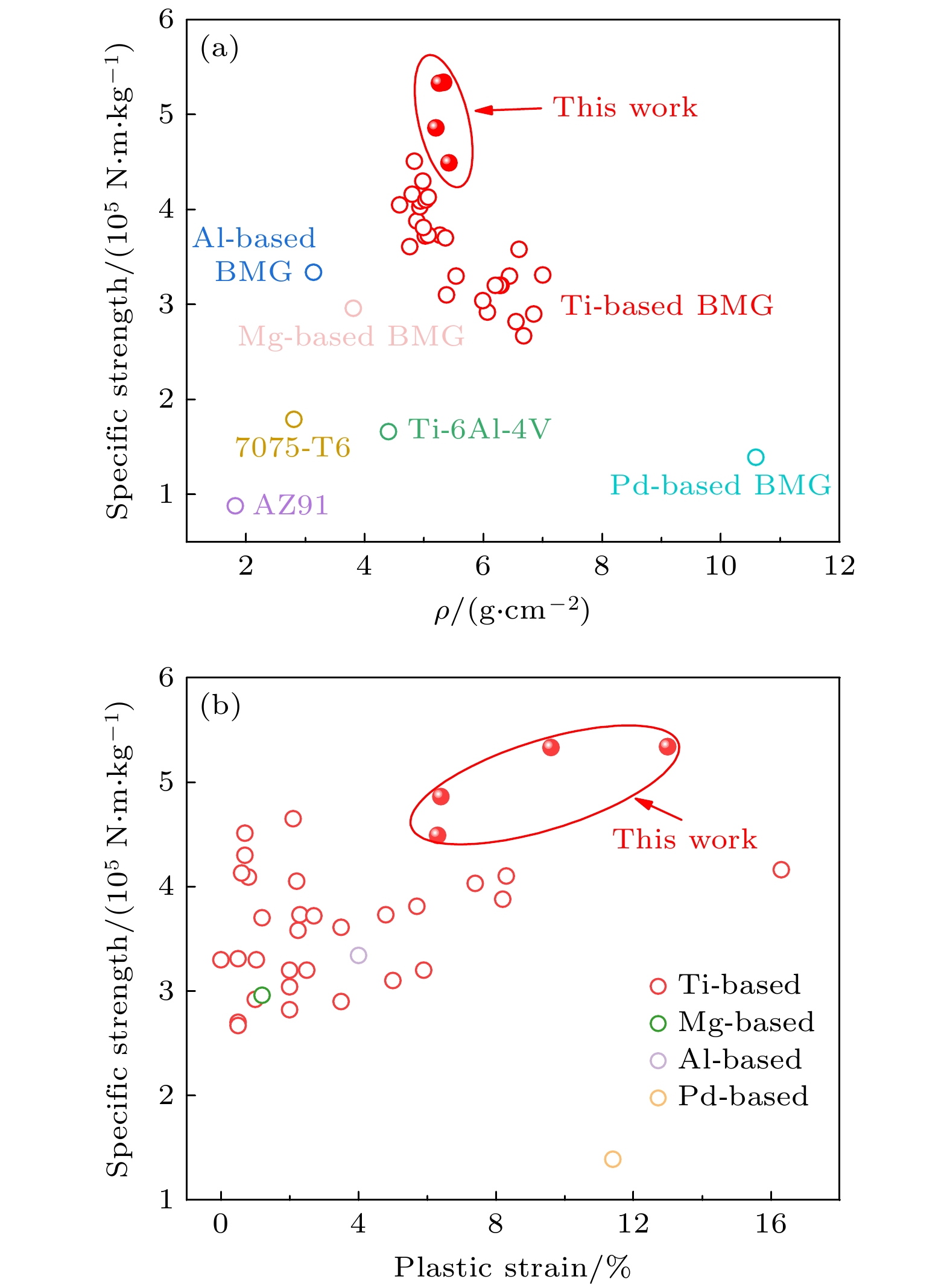

图 4 ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_x BMG的性能与传统晶体合金及其他BMG的对比　(a)密度和比强度与其他体系对比; (b)塑性变形能力和比强度与其他体系对比

Figure 4. Comparison of the properties of the ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_x BMGs with traditional crystalline alloys and other BMGs: (a) Comparison of density and specific strength with other systems; (b) comparison of plastic deformation ability and specific strength with other systems.

DownLoad: Full-Size Img PowerPoint

表 1 ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_xBMGs的热物性参数

Table 1. Thermal physical parameters of ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_x BMGs.

Composition	T_g/K	T_x/K	T_m/K	T_l/K	ΔT_x/K	T_rg	γ
x = 1.5	633.1	690.6	898.9	988.9	57.5	0.64	0.43
x = 3	641.1	698.2	939.2	1026.0	57.1	0.62	0.42
x = 4.5	644.3	705.6	930.3	1056	61.3	0.61	0.41
x = 6	649.4	712.1	938.8	1089.5	62.7	0.60	0.41
x = 7.5	655.4	718.2	976.1	1125.3	62.8	0.58	0.40

DownLoad: CSV

表 2 ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_x BMGs的力学性能及密度

Table 2. The mechanical properties and density of the ((Ti₄₀Zr₄₀Ni₂₀)₇₂Be₂₈)_100–xAl_x BMGs.

Alloy	σ_y/MPa	σ_max/MPa	ɛ_p/%	ρ/(g·cm^–2)	σ_c/(N·m·kg^–1)
x = 1.5	1830 ± 51	2433 ± 28	6.3 ± 1.1	5.42 ± 0.1	4.49 × 10⁵
x = 3	1833 ± 37	2845 ± 30	13 ± 1.7	5.33 ± 0.07	5.34 × 10⁵
x = 4.5	1822 ± 43	2803 ± 32	9.6 ± 2.2	5.26 ± 0.09	5.33 × 10⁵
x = 6	1756 ± 21	2529 ± 19	6.4 ± 1.4	5.20 ± 0.1	4.86 × 10⁵
x = 7.5	1884 ± 28	1884 ± 23	—	5.16 ± 0.05	3.65 × 10⁵

DownLoad: CSV
