光谱稳定的混合卤素蓝光钙钛矿LED设计

冯继雨 刘敏 屈正国 赵东楠 李道鹏 史同飞

引用本文:
Citation:

光谱稳定的混合卤素蓝光钙钛矿LED设计

冯继雨, 刘敏, 屈正国, 赵东楠, 李道鹏, 史同飞

Compositional design of spectrally stable blue mixed-halide perovskite LEDs

FENG Jiyu, LIU Min, QU Zhengguo, ZHAO Dongnan, LI Daopeng, SHI Tongfei
Article Text (iFLYTEK Translation)
PDF
HTML
导出引用
  • 钙钛矿材料因其可调带隙和高荧光效率成为发光二极管(LED)的研究热点, 但混合卤素(Br/Cl)体系的相分离问题严重制约蓝光LED的稳定性. 本文提出通过调控前驱体中铯铅含量比, 形成CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6复合相结构. 结果表明, Cs4Pb(Br1–xClx)6相的纳米晶颗粒聚集并包复在CsPb(Br1–xClx)3大晶粒周围, 物理上阻隔了卤素离子的迁移, 避免了相分离的产生. 宽带隙的Cs4Pb(Br1–xClx)6还引入了量子限域效应, 钝化表面缺陷态, 提升CsPb(Br1–xClx)3材料光电性能. 优化后的器件在50 mA/cm²电流密度下光谱稳定性显著提升. 该研究为高稳定性蓝光钙钛矿LED提供了新思路.

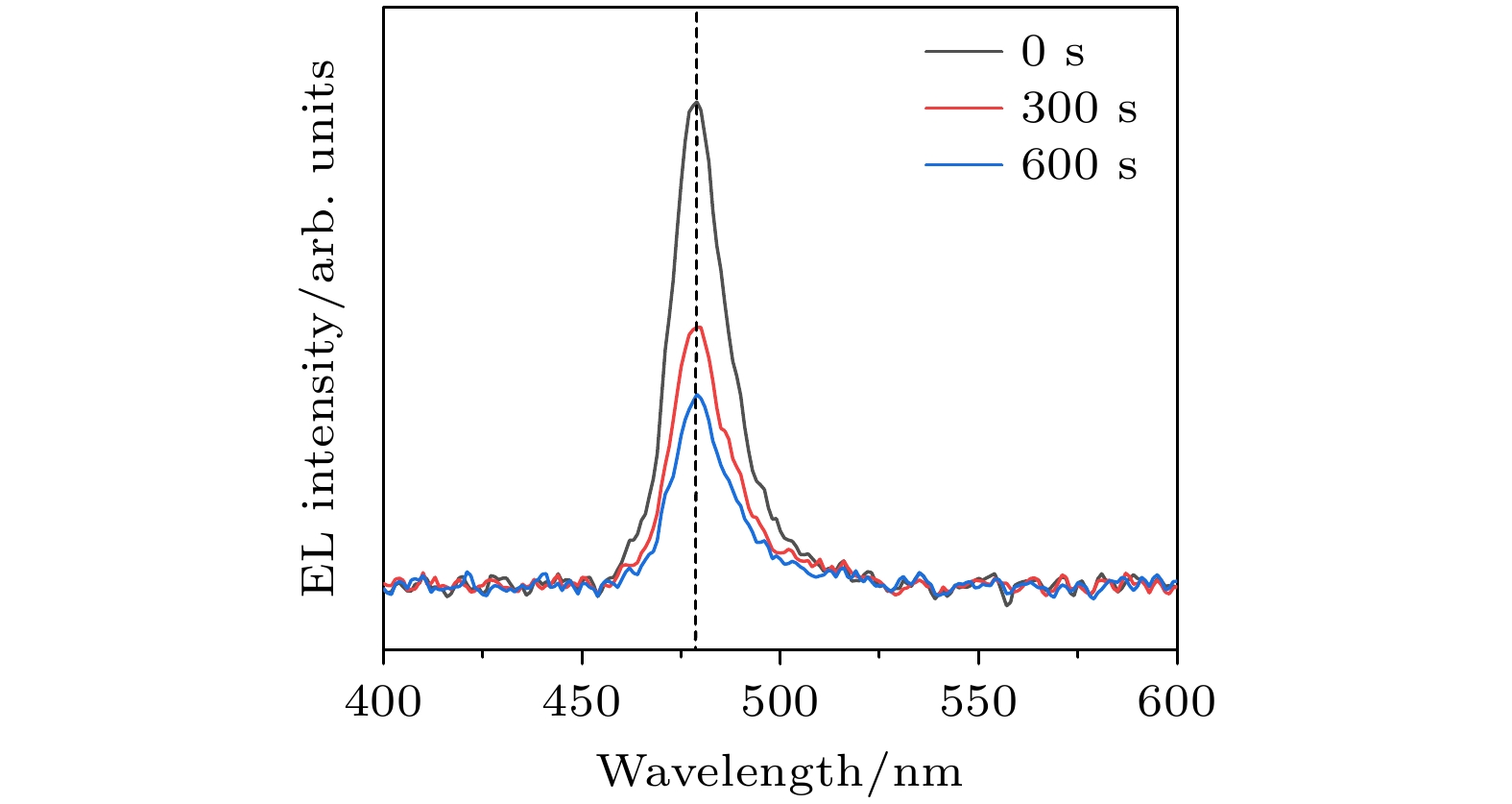

    This study tackles the significant challenge of phase separation in mixed halide (Br/Cl) perovskite systems, which severely affects the spectral stability of blue perovskite light-emitting diodes (PeLEDs). A compositional engineering strategy is proposed, precisely controlling the Cs:Pb molar ratio (1∶1 to 1.1∶1) in precursor solutions to construct a CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6 composite phase structure. Transmission electron microscopy (TEM) mapping and X-ray diffraction (XRD) analysis confirm that Cs4Pb(Br1–xClx)6 nanocrystals (5–8 nm in diameter) grow in situ and uniformly encapsulate CsPb(Br1–xClx)3 microparticles (50–100 nm). This composite architecture has double functional advantages: 1) the Cs4PbX6 shell acts as a physical barrier, reducing halide ion migration activation energy and suppressing phase segregation during continuous operation; 2) the wide-bandgap (3.9–4.3 eV) Cs4PbX6 induces quantum confinement effects, confining carriers within CsPbX3 while passivating defect states, thereby improving perovskite performance. The optimized PeLED achieves notable improvements in brightness, external quantum efficiency, and operational stability, maintaining stable emission at 478 nm under a 50 mA/cm² current density. This is achieved by inhibiting halide phase separation and enhancing the efficiency of carrier recombination achieved by the cesium-lead halide heterojunction system. This work provides fundamental insights into phase-stable perovskite design via composite crystallization kinetics, providing a viable pathway toward commercial-grade blue PeLEDs for full-color displays.

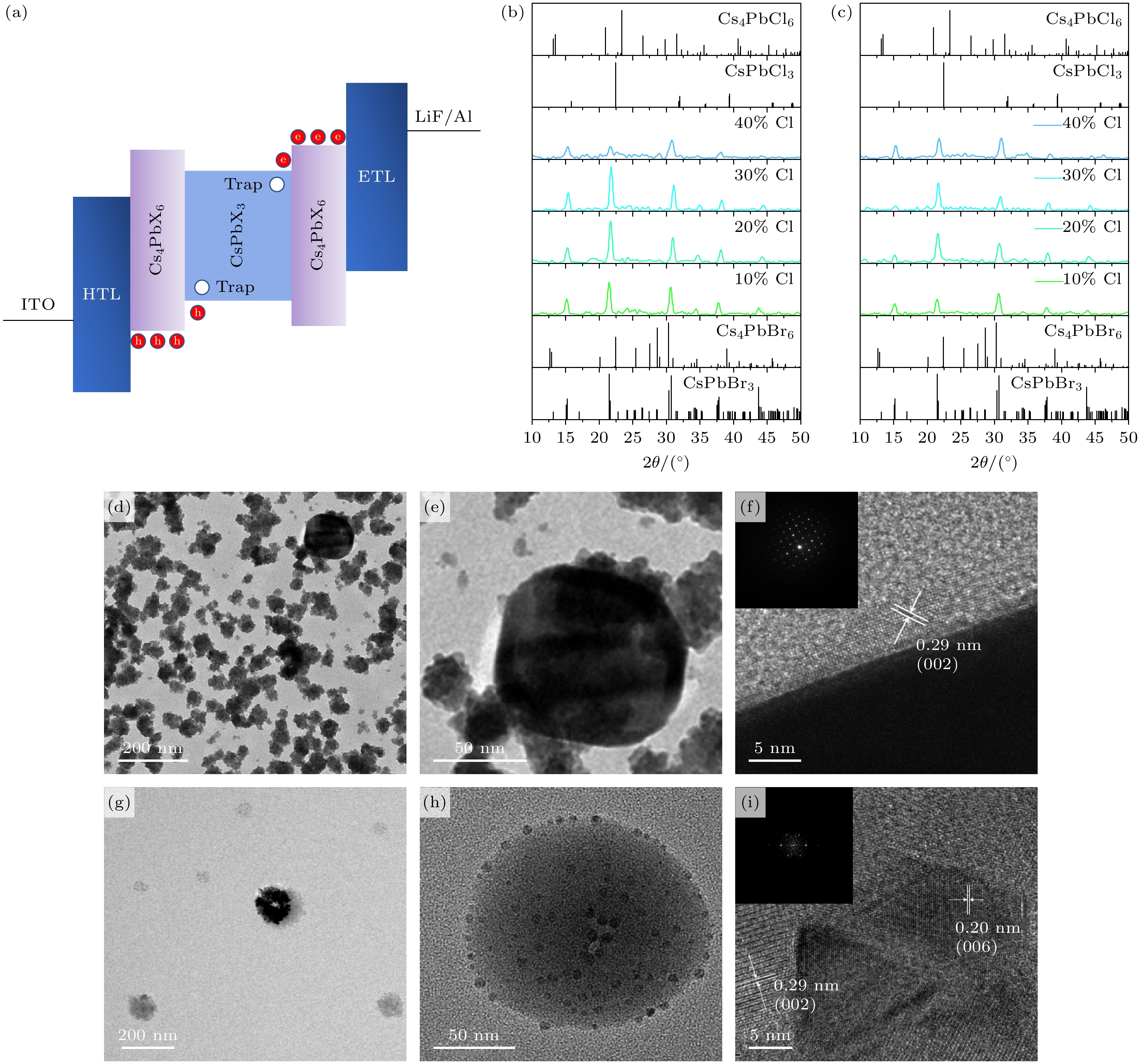

  • 图 1  (a) CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6钙钛矿器件的能级图; (b), (c) Cs/Pb = 1和Cs/Pb = 1.1的钙钛矿薄膜的XRD图谱; (d), (g) Cs/Pb = 1和Cs/Pb = 1.1的钙钛矿薄膜的TEM图像, 比例尺为200 nm; (e), (h) Cs/Pb = 1和Cs/Pb = 1.1的钙钛矿薄膜的TEM图像, 比例尺为50 nm; (f), (i) Cs/Pb = 1和Cs/Pb = 1.1的钙钛矿薄膜的高分辨透射电子显微镜(HRTEM)图像, 比例尺为5 nm, 其对应的快速傅里叶变换(FFT)图案显示在左上角

    Fig. 1.  (a) Energy level diagram of the CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6 perovskite device; (b), (c) XRD patterns of perovskite films with Cs/Pb = 1 and Cs/Pb = 1.1, respectively; (d), (g) TEM images of perovskite films with Cs/Pb = 1 and Cs/Pb = 1.1, respectively, at a scale bar of 200 nm; (e), (h) TEM images of perovskite films with Cs/Pb = 1 and Cs/Pb = 1.1, respectively, at a scale bar of 50 nm; (f), (i) HRTEM images of perovskite films with Cs/Pb = 1 and Cs/Pb = 1.1, respectively, at a scale bar of 5 nm, with their corresponding fast Fourier transform (FFT) patterns shown in the upper left corner.

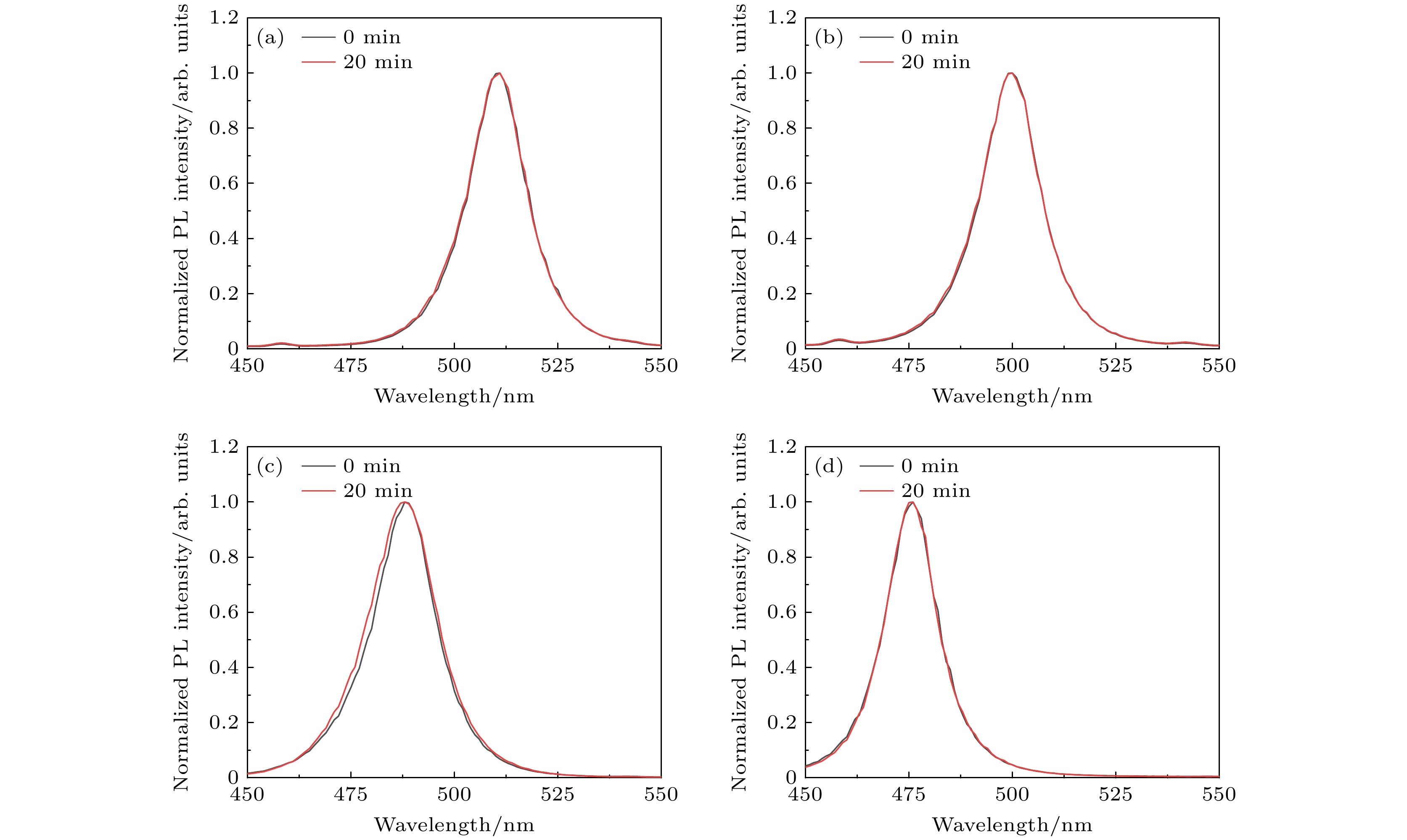

    图 2  混合卤化物钙钛矿化合物CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6的光致发光(PL)特性 (a) x = 0.1时的PL光谱; (b) x = 0.2时的PL光谱; (c) x = 0.3时的PL光谱; (d) x = 0.4时的PL光谱

    Fig. 2.  Photoluminescence (PL) mixed-halide perovskite compounds CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6: (a) PL spectrum for x = 0.1; (b) PL spectrum for x = 0.2; (c) PL spectrum for x = 0.3; (d) PL spectrum for x = 0.4.

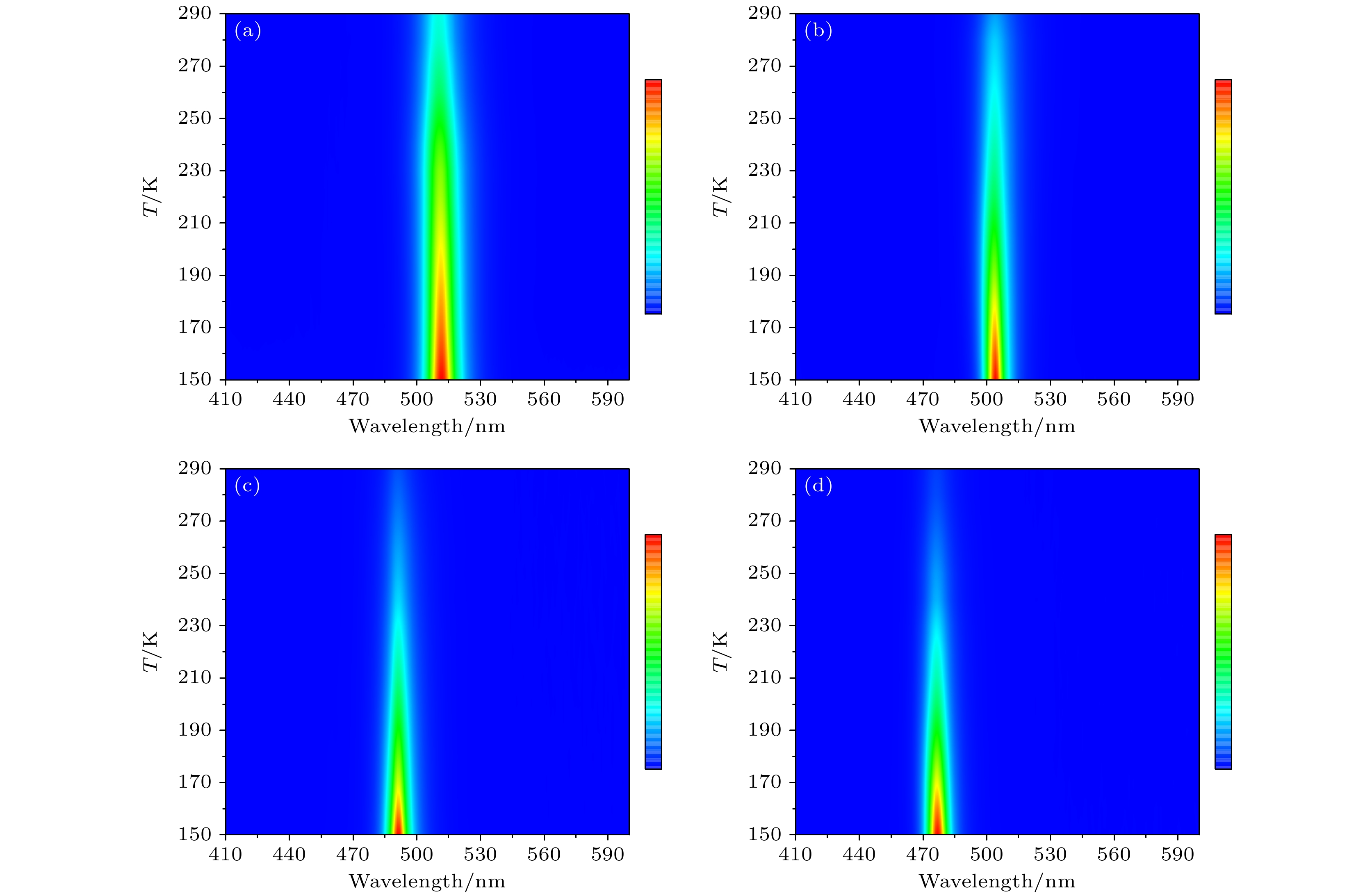

    图 3  混合卤化物钙钛矿化合物CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6在温度从290 K降至150 K时的温度依赖性光致发光(PL)光谱 (a) x = 0.1时的PL光谱; (b) x = 0.2时的PL光谱; (c) x = 0.3时的PL光谱; (d) x = 0.4时的PL光谱

    Fig. 3.  Temperature-dependent photoluminescence (PL) spectra of mixed-halide perovskite compounds CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6 as the temperature decreases from 290 to 150 K: (a) PL spectrum for x = 0.1; (b) PL spectrum for x = 0.2; (c) PL spectrum for x = 0.3; (d) PL spectrum for x = 0.4.

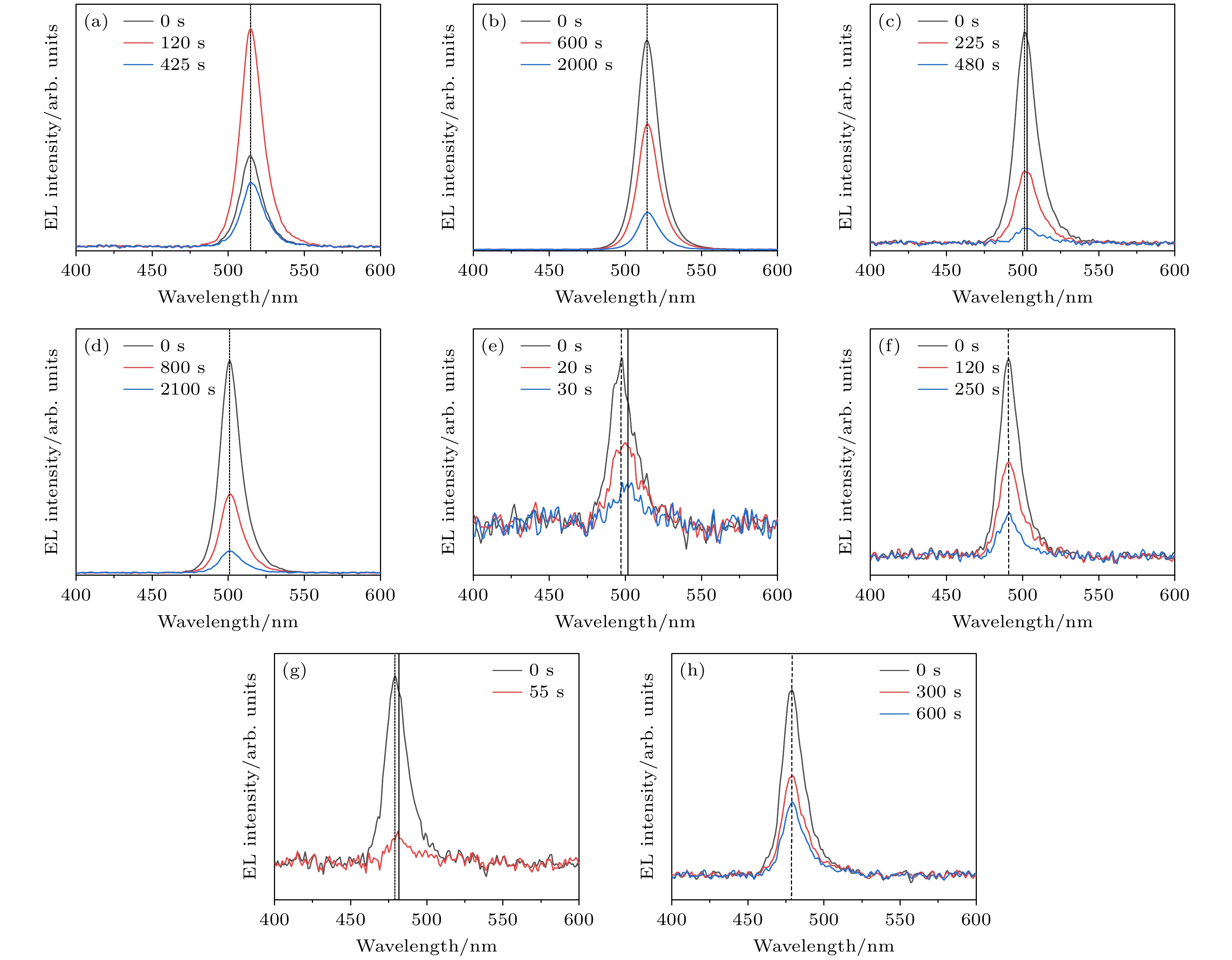

    图 4  混合卤化物钙钛矿化合物CsPb(Br1–xClx)3和CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6在电流密度为50 mA/cm²时测量的电致发光(EL)光谱 (a), (b) CsPb(Br1–xClx)3和CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6x = 0.1时的EL光谱; (c), (d) CsPb(Br1–xClx)3和CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6x = 0.2时的EL光谱; (e), (f) CsPb(Br1–xClx)3和CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6x = 0.3时的EL光谱; (g), (h) CsPb(Br1–xClx)3和CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6x = 0.4时的EL光谱

    Fig. 4.  Electroluminescence (EL) spectra of mixed-halide perovskite compounds CsPb(Br1–xClx)3 and CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6 measured under a current density of 50 mA/cm²: (a), (b) EL spectra of CsPb(Br1–xClx)3 and CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6 at x = 0.1, respectively; (c) and (d) EL spectra of CsPb(Br1-xClx)3 and CsPb(Br1-xClx)3/Cs4Pb(Br1-xClx)6 at x = 0.2, respectively; (e), (f) EL spectra of CsPb(Br1–xClx)3 and CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6 at x = 0.3, respectively; (g), (h) EL spectra of CsPb(Br1–xClx)3 and CsPb(Br1–xClx)3/Cs4Pb(Br1–xClx)6 at x = 0.4, respectively.

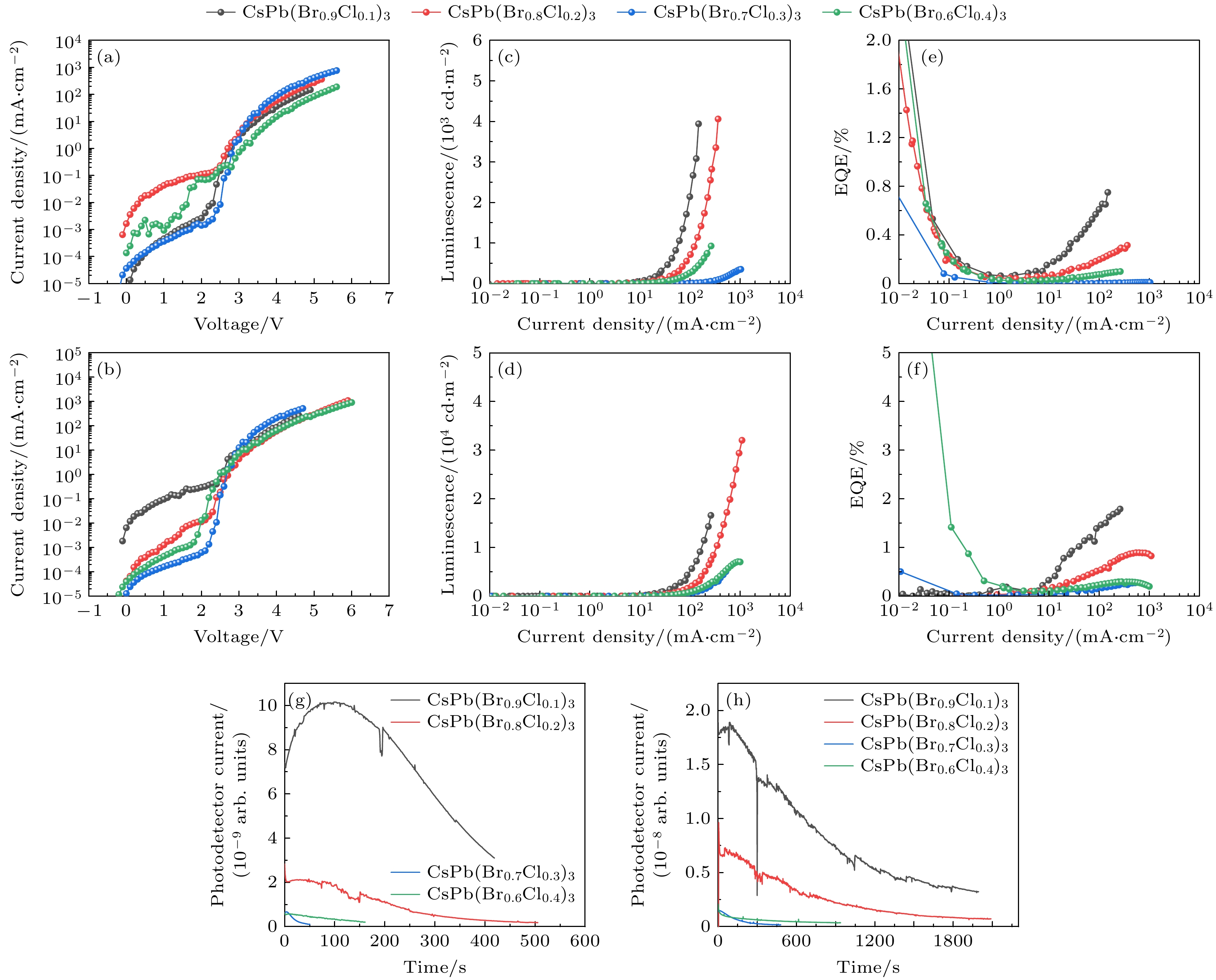

    图 5  (a), (b) Cs/Pb = 1和Cs/Pb = 1.1时CsPb(Br1–xClx)3J-V曲线; (c), (d) Cs/Pb = 1和Cs/Pb = 1.1时CsPb(Br1–xClx)3J-L曲线; (e), (f) Cs/Pb = 1和Cs/Pb = 1.1时CsPb(Br1–xClx)3的EQE曲线; (g), (h) Cs/Pb = 1和Cs/Pb = 1.1在50 mA/cm2电流密度下CsPb(Br1–xClx)3寿命曲线

    Fig. 5.  (a), (b) JV curves of CsPb(Br1–xClx)3 with Cs/Pb = 1 and Cs/Pb = 1.1, respectively; (c), (d) JL curves of CsPb(Br1–xClx)3 with Cs/Pb = 1 and Cs/Pb = 1.1, respectively; (e), (f) external quantum efficiency (EQE) curves of CsPb(Br1–xClx)3 with Cs/Pb = 1 and Cs/Pb = 1.1, respectively; (g), (h) lifetime curves of CsPb(Br1–xClx)3 with Cs/Pb = 1 and Cs/Pb = 1.1 measured at a current density of 50 mA/cm2, respectively.
