泵波作用下电离层等离子体中波-波、波-粒相互作用过程的数值模拟

张梦龙 方川 张子明 李和平

引用本文:
Citation:

泵波作用下电离层等离子体中波-波、波-粒相互作用过程的数值模拟

张梦龙, 方川, 张子明, 李和平

Modeling of wave-wave and wave-particle interactions in ionospheric plasma under pump wave action

ZHANG Menglong, FANG Chuan, ZHANG Ziming, LI Heping
Article Text (iFLYTEK Translation)
PDF
HTML
导出引用

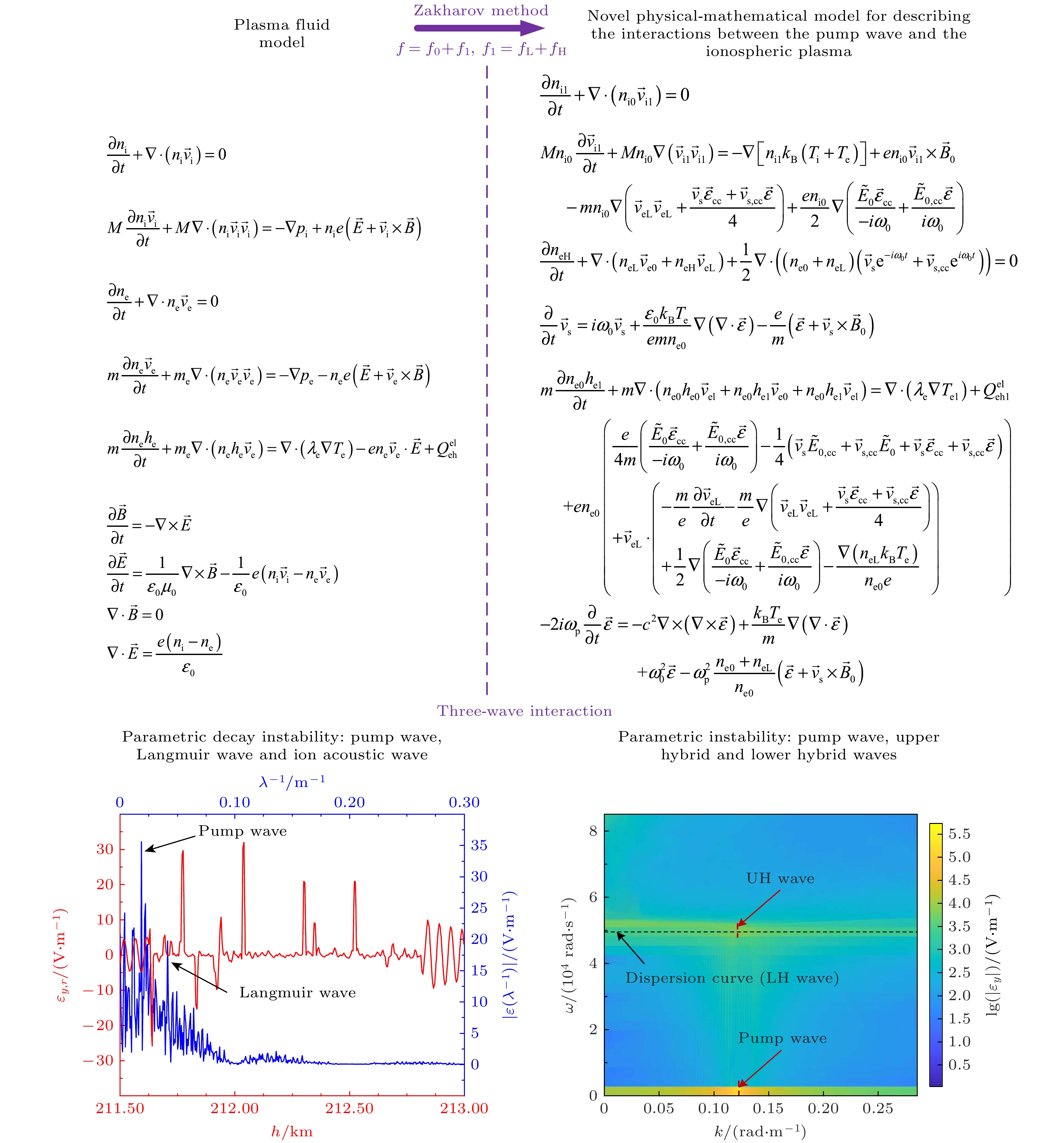

  • 以地面发射的高功率电磁波与电离层等离子体之间的相互作用为研究对象, 基于等离子体流体模型和Zakharov方法, 建立了用于描述地面泵波作用下电离层等离子体中波–波、波–粒相互作用的物理数学模型, 开展了电离层主动加热的数值模拟研究. 计算结果表明: 当地面发射的泵波在电离层等离子体中传播时, 反射高度处电磁波能量的沉积会产生较强的局部电场, 从而激发参量不稳定性过程; 当满足频率和波矢的匹配关系时, 会激发泵波、Langmuir波和离子声波三波相互作用的参量衰减不稳定性, 以及泵波、上混杂波和下混杂波三波相互作用的参量不稳定性; 在本文所研究的泵波频率和功率范围内, 泵波频率的降低会导致寻常波的反射高度降低, 且电子温度的扰动比例随着频率的降低而升高, 而泵波功率的增大则会导致等离子体从泵波中吸收的能量增大、电子温度升高. 本文数值模拟结果揭示了不同泵波参数对电离层等离子体特性时空演化的影响规律以及波–粒能量输运过程, 阐释了实验观察到的参量不稳定性和受激电磁辐射等的产生机制.
    In low-pressure plasmas, the collisions between particles are weak and insufficient damping from collisions, leading to the gradual development of various waves and instabilities. Thus, the effects of wave-particle interaction are non-negligible in the non-equilibrium transport processes in plasma under low pressure conditions. For example, the heating of ionospheric plasma by high-frequency electromagnetic waves plays an important role in achieving over-the-horizon communication. During the wave propagation through the ionosphere, the electromagnetic radiation changes the local electron temperature and density, and simultaneously, excites various wave modes and instabilities. This study focuses on the interactions between high-power electromagnetic waves emitted from the ground and ionospheric plasma. Based on the plasma fluid model and Zakharov method, a physical-mathematical model is established to describe the wave-wave and wave-particle interactions in the ionospheric plasmas under the excitation of the pump waves. The modeling results of the active heating of ionosphere show that when the ground-emitted waves propagate in the ionospheric plasma, the energy deposition of the electromagnetic waves at the reflection height will excite a strong localized electric field, leading to the parametric instabilities. When the frequency and wave vector matching conditions are satisfied, two different three-wave interactions will be excited, i.e. the parametric decay instability involving the pump wave, Langmuir wave and ion acoustic wave, as well as the parametric instability related to the pump wave, upper hybrid and lower hybrid waves. Within a certain range of pump frequency and power studied in this study, the decrease of the pump frequency will lead to the decrease of the reflection height of the ordinary waves, and simultaneously, the perturbation ratios of the electron temperature will also increase; A higher pump wave power will enhance the energy absorption of the ionospheric plasma by the pump wave, thereby increasing the electron temperature. The modeling results not only reveal the spatiotemporal evolutions of the ionospheric plasma characteristics under various pump parameters and the energy transport processes between waves and particles, but also theoretically explain the parametric instability, stimulated electromagnetic emission and other phenomena observed in experiments.
  • 图 1  电离层主动加热过程示意图

    Fig. 1.  Schematic of typical processes in active heating of ionosphere.

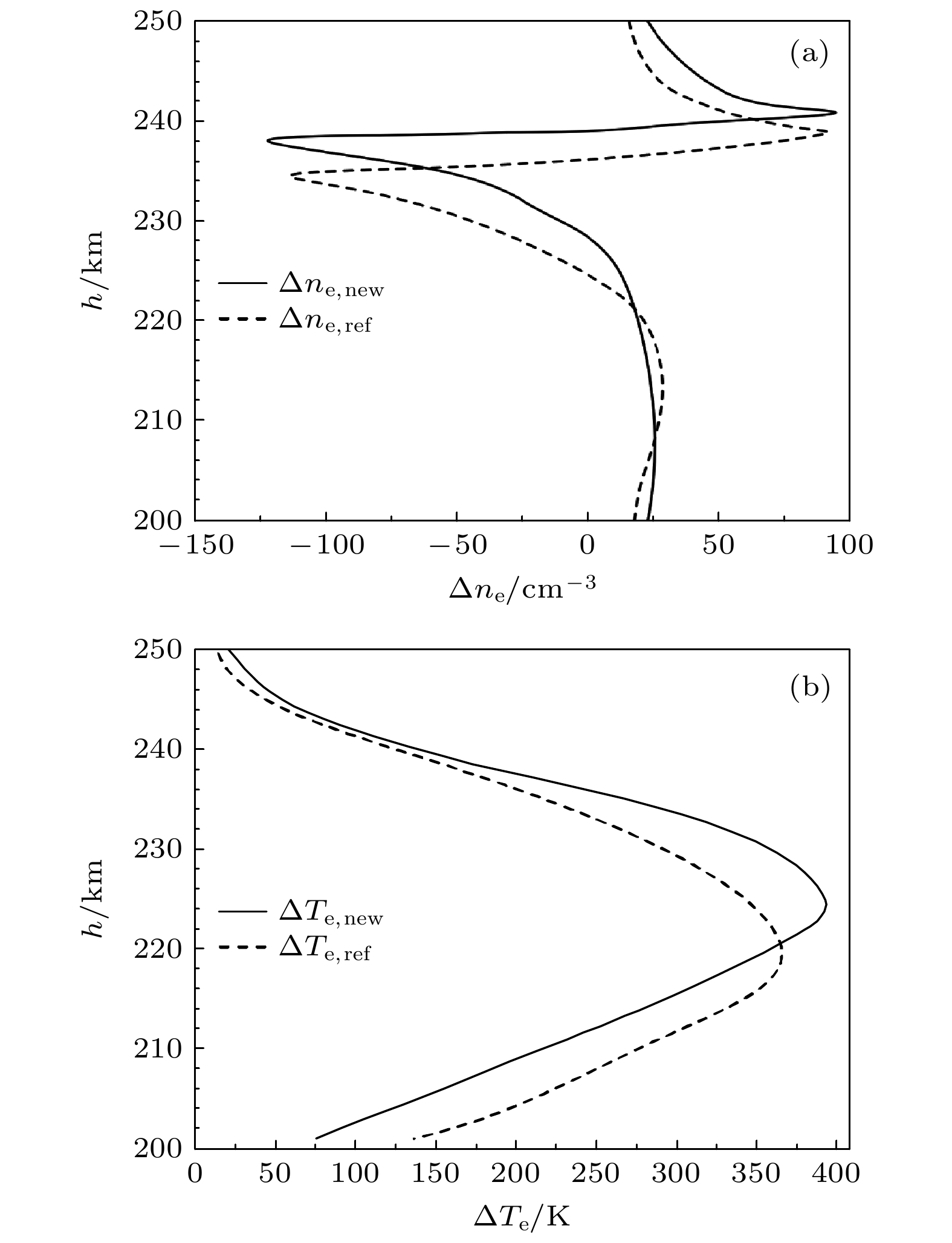

    图 2  t = 2 s时电子数密度(a)和电子温度(b)空间分布模拟结果及与文献[31]中相应结果的对比

    Fig. 2.  Simulation results of the spatial distributions of (a) electron number density and (b) temperature at t = 2 s, and comparisons with the corresponding results in Ref. [31].

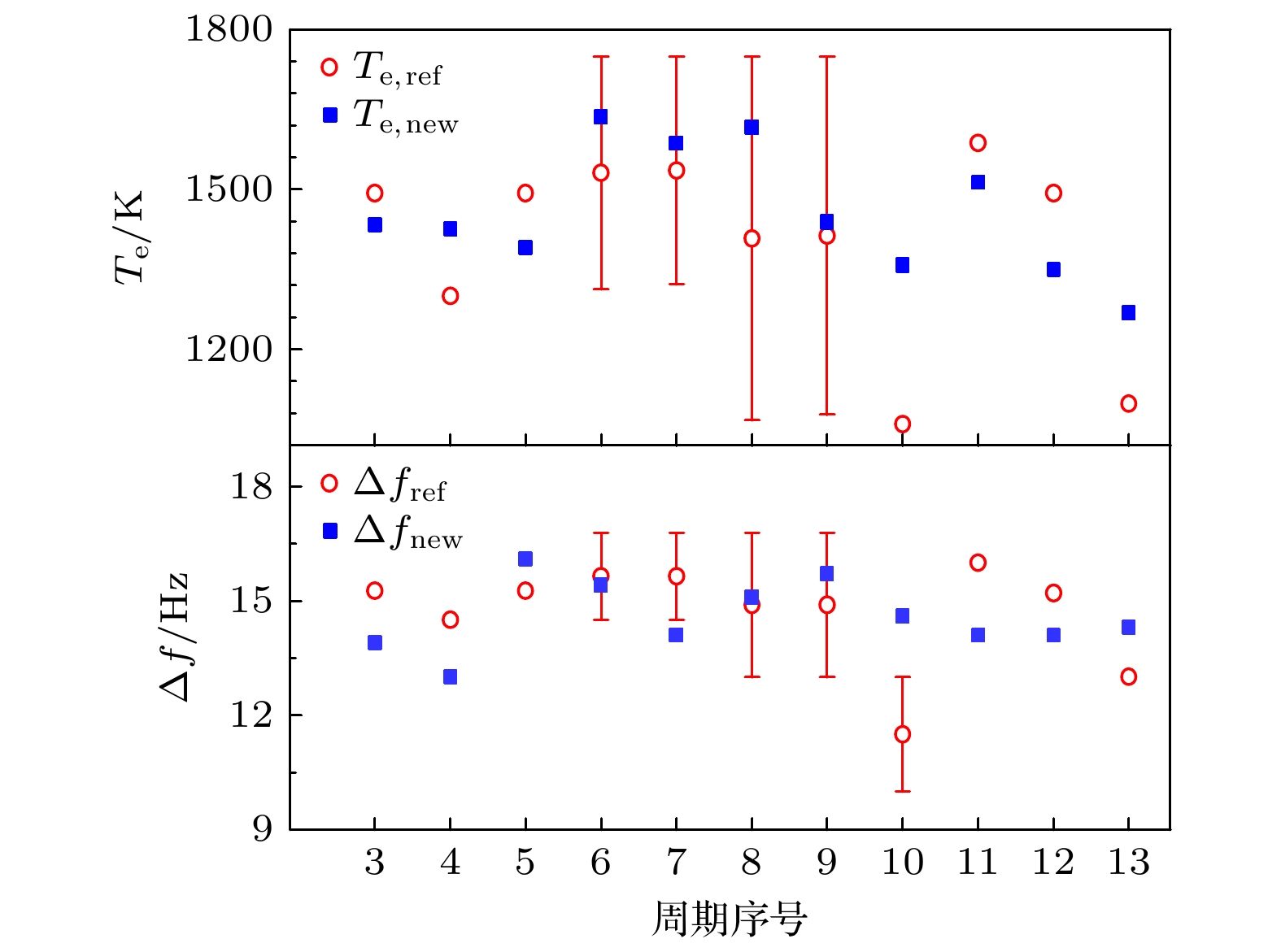

    图 3  受激布里渊散射谱线频移和电子温度的计算结果与实验结果[32]的对比

    Fig. 3.  Comparisons of the calculated and measured[32] results for the spectral line shift and electron temperature during the stimulated Brillouin scattering process.

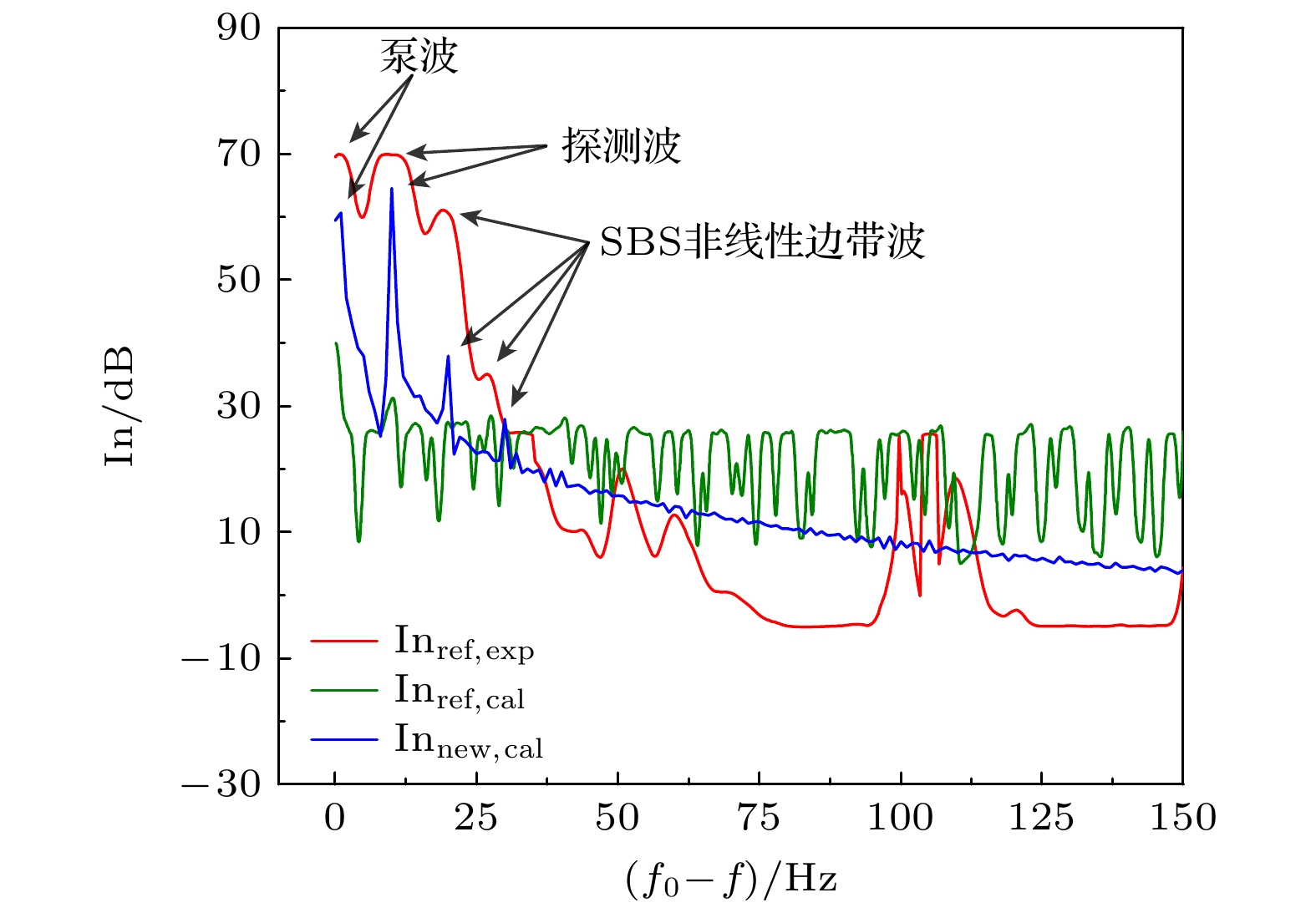

    图 4  受激电磁辐射频谱特征的模拟结果与文献[20]中的计算和实验结果的对比

    Fig. 4.  Comparison of the calculated spectrum characteristics of the stimulated electromagnetic radiation with those presented in Ref. [20].

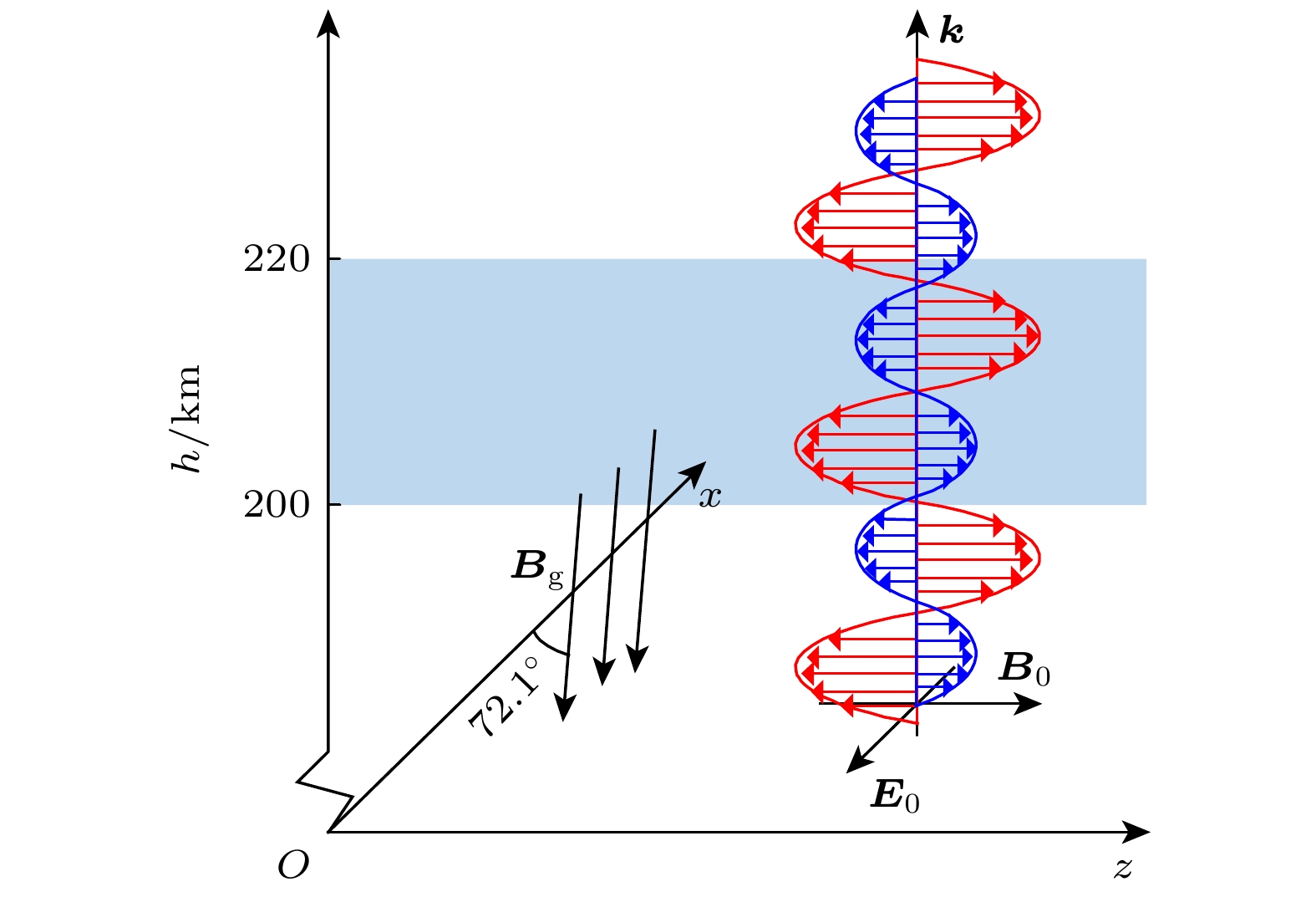

    图 5  计算域示意图

    Fig. 5.  Schematic diagram of the calculational domain.

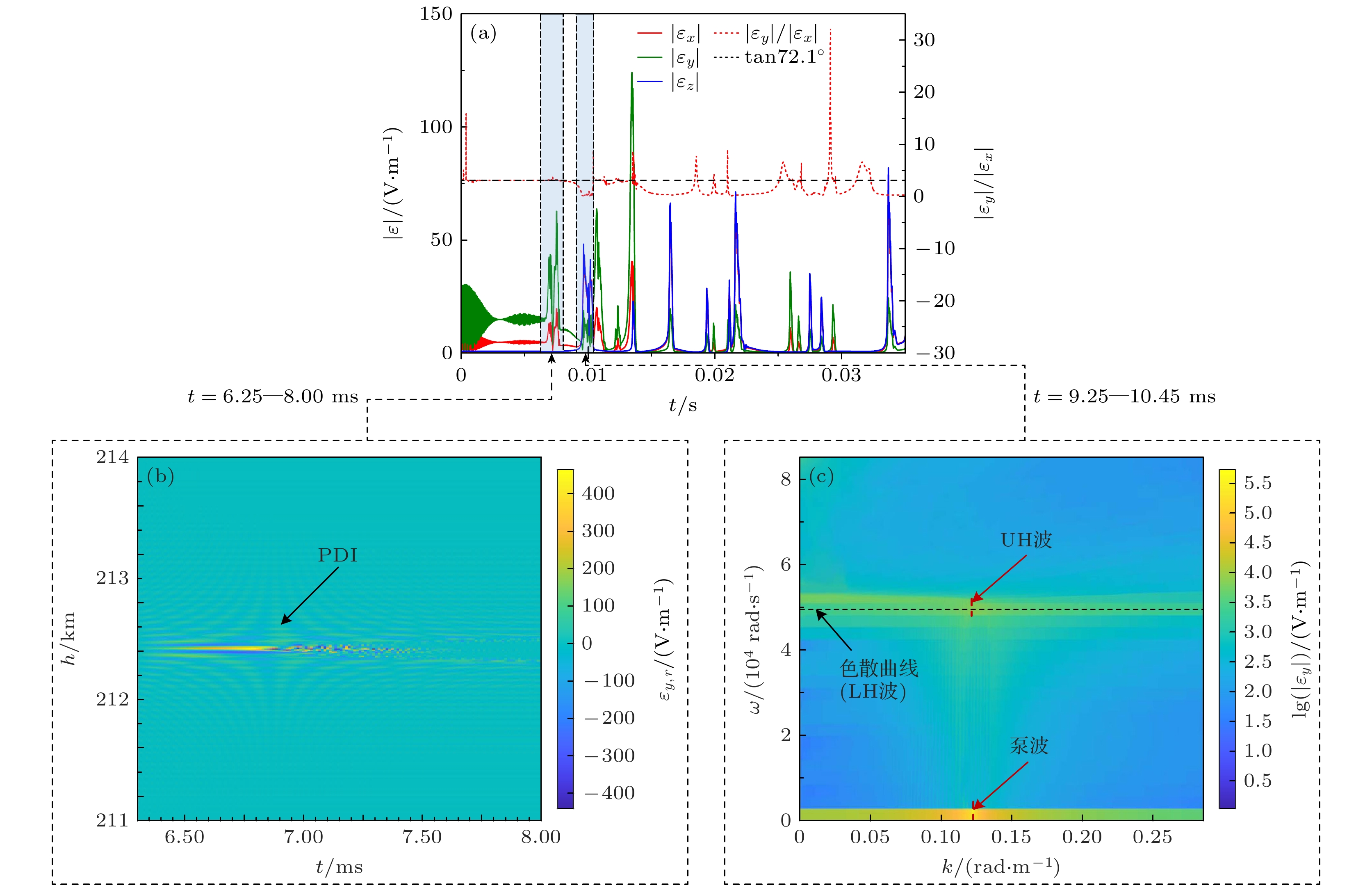

    图 6  等离子体参量不稳定性演化过程 (a) h = 212 km高度处x, y, z方向电场强度的时间演化; (b) t = 6.25—8.00 ms时间内y方向电场慢变振幅实部εy, r时空演化过程二维等值线图; (c) t = 9.25—10.45 ms时间内y方向电场强度二维Fourier变换图

    Fig. 6.  Evolutions of plasma parametric instabilities: (a) Temporal evolutions of the electric field intensity in the x, y and z directions at a height of h = 212 km; (b) two-dimensional contour of the spatiotemporal evolution of the real part of the slow-varying amplitude of the electric field in the y direction (εy, r) during t = 6.25—8.00 ms; (c) two-dimensional Fourier transform of the electric field intensity in the y direction during t = 9.25—10.45 ms.

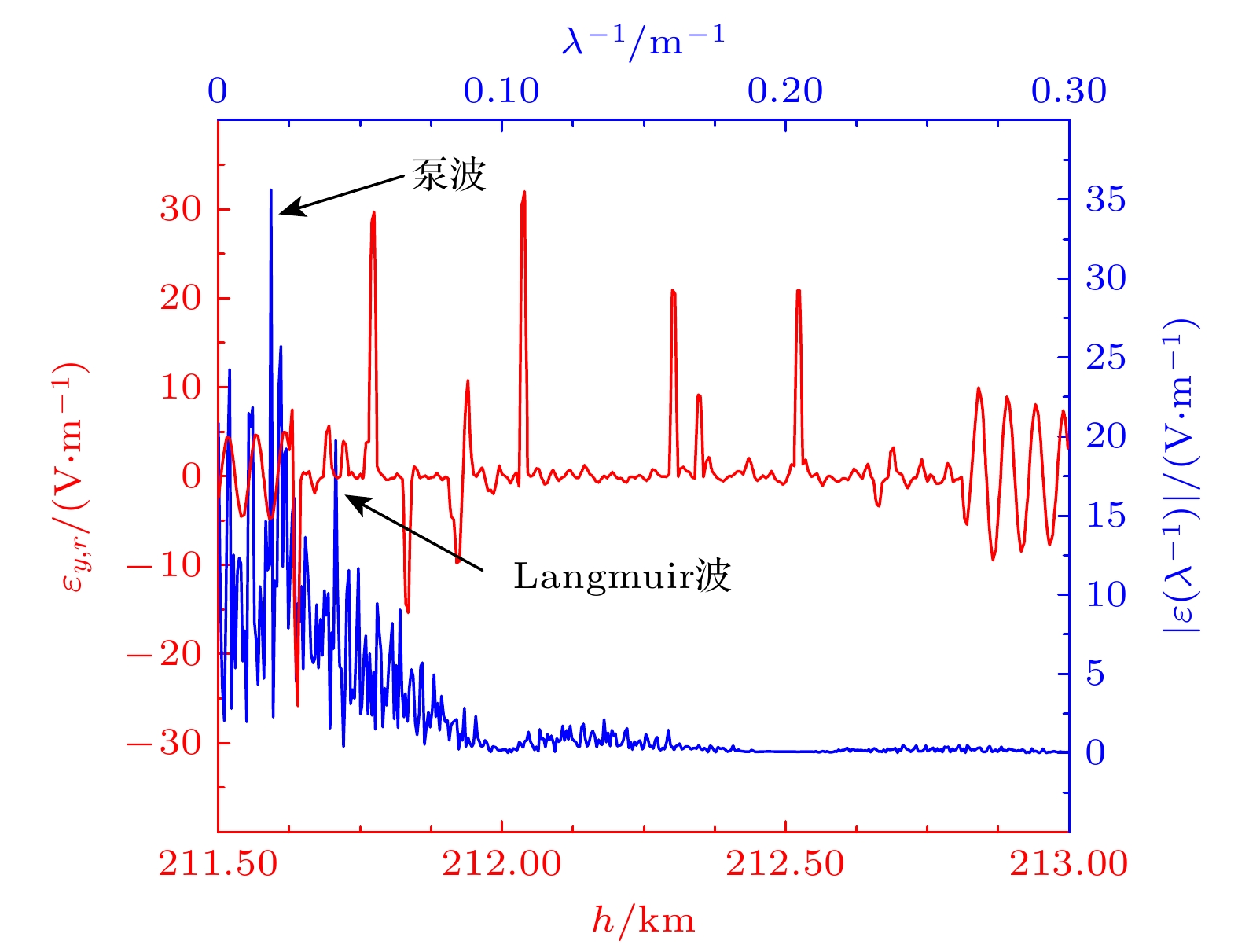

    图 7  反射高度附近y方向电场强度分量及空间Fourier变换结果

    Fig. 7.  Electric field intensity in the y direction near the reflection height and its spatial Fourier transform.

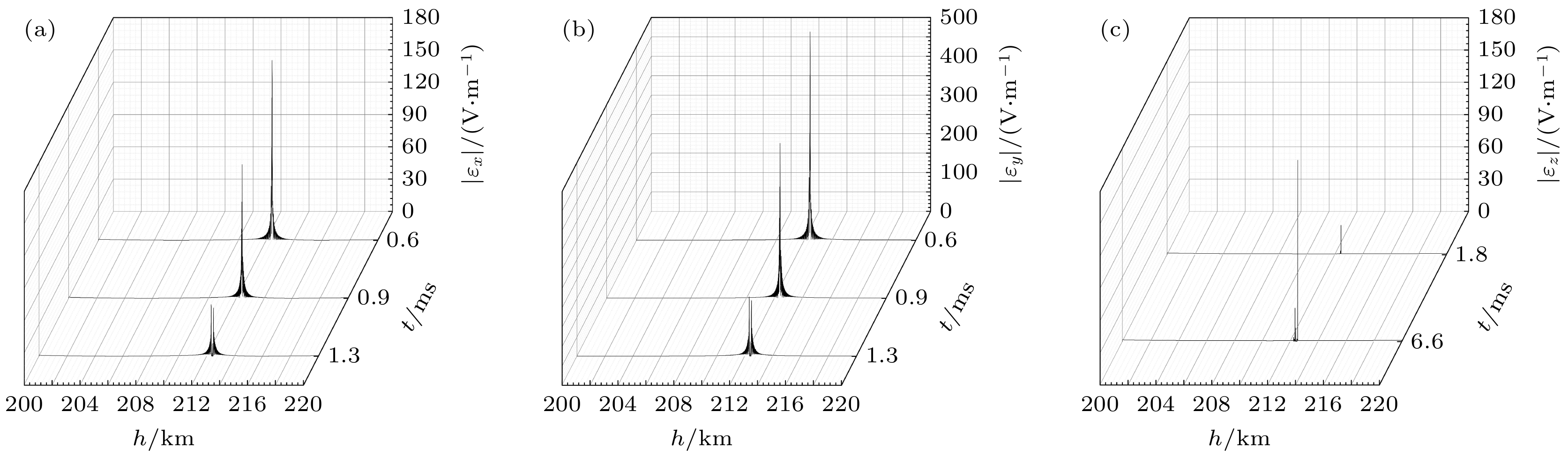

    图 8  电场复振幅模在各个方向上分量的时空分布 (a) x方向分量|εx|; (b) y方向分量|εy|; (c) z方向分量|εz|

    Fig. 8.  Spatiotemporal distributions of the complex amplitude modulus of the electric field: (a) component in x-direction |εx|; (b) component in y-direction |εy|; (c) component in z-direction |εz|.

    图 9  受激电磁辐射频谱特征模拟结果与实验结果的对比[33]

    Fig. 9.  Comparison of the calculated spectrum characteristics of the stimulated electromagnetic emission with the experimental results [33].

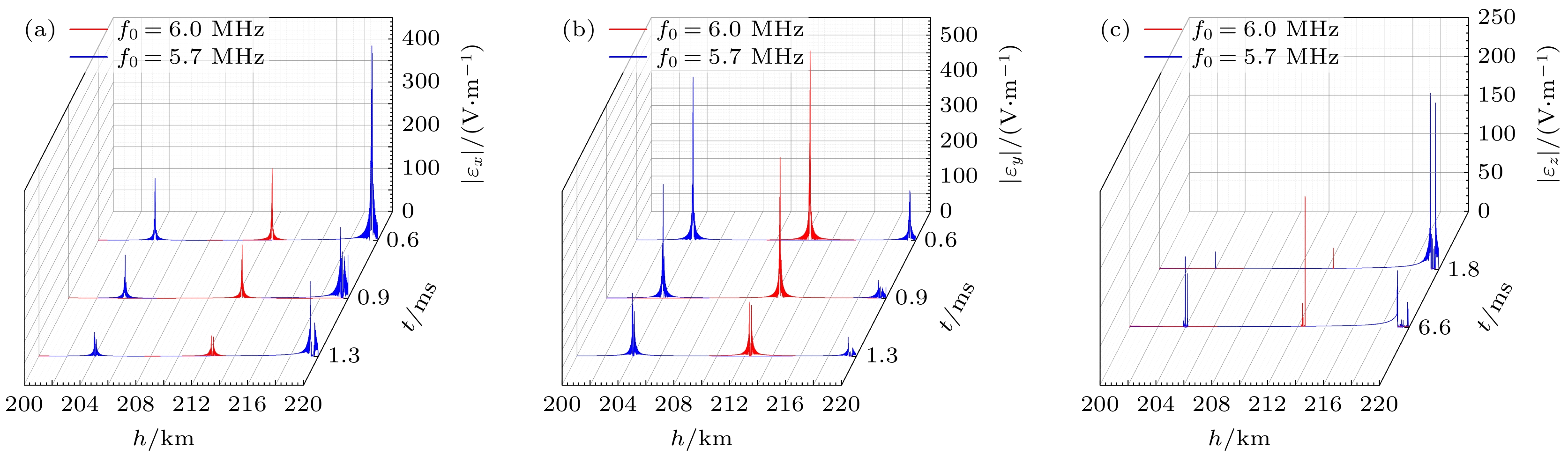

    图 10  不同泵波频率下电场复振幅模在各个方向上分量的时空分布 (a) x方向分量|εx|; (b) y方向分量|εy|; (c) z方向分量|εz|

    Fig. 10.  Spatiotemporal distributions of the complex amplitude modulus of the electric field: (a) Component in x-direction |εx|; (b) component in y-direction |εy|; (c) component in z-direction |εz|.

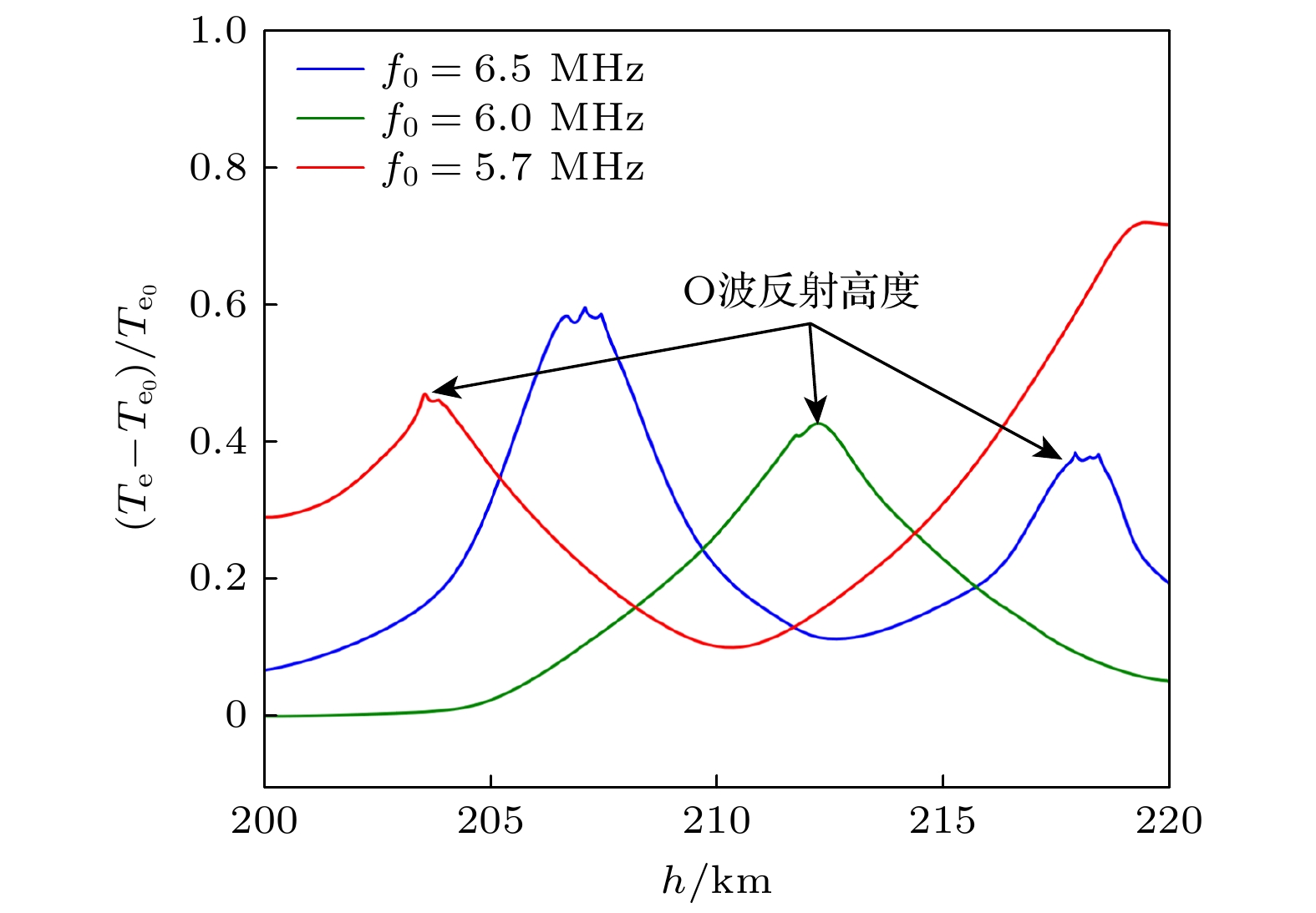

    图 11  不同泵波频率下电子温度的空间分布

    Fig. 11.  Spatial distributions of the electron temperature under different pump frequencies.

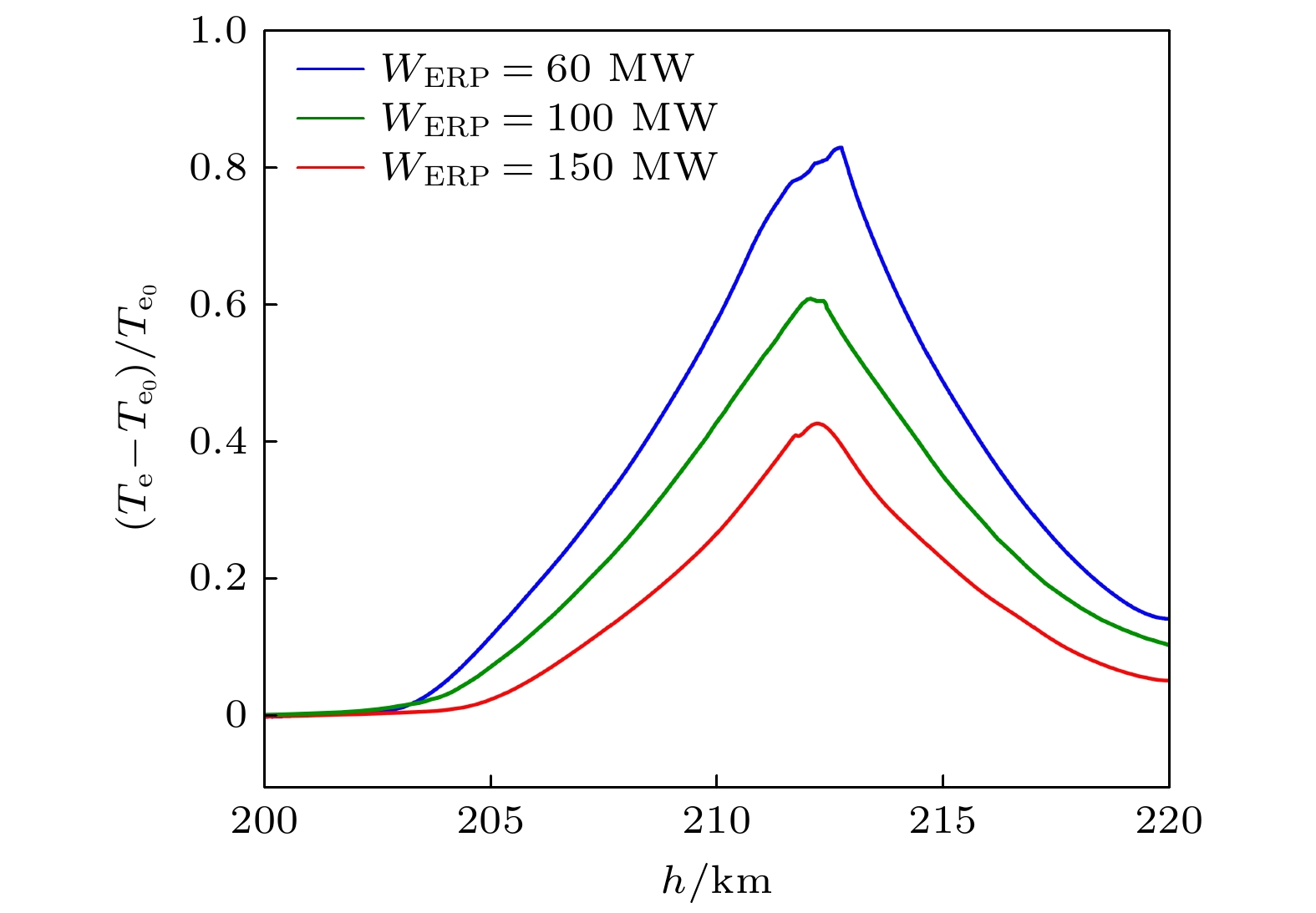

    图 12  不同泵波功率下的电子温度空间分布

    Fig. 12.  Spatial distributions of the electron temperature under different pump powers.

    表 1  平均动量传输碰撞截面$ {\bar Q_{\text{D}}} $[27]

    Table 1.  Mean momentum transfer collision cross section $ {\bar Q_{\text{D}}} $[27].

    粒子种类碰撞截面/cm2
    N2[(2.82—3.41)×10–4Te] × Te1/2×10–17
    O22.2×10–16 × (1+3.6×10–2Te1/2)
    O1×10–15
    H[(54.7—7.45)×10–3Te] × 10–16
    He5.6×10–16
    下载: 导出CSV

    表 2  电子与中性粒子碰撞频率νen[27]

    Table 2.  Electron-neutral species collision frequency νen[27]

    粒子种类碰撞频率/Hz
    N22.33×10–11n(N2) [(1—1.2)×10–4Te] Te
    O21.8×10–10n(O2) [1+3.6×10–2Te1/2] Te1/2
    O8.2×10–10n(O)Te1/2
    H4.5×10–9n(H) [(1—1.35)×10–4Te] Te1/2
    He4.6×10–10n(He)Te1/2
    下载: 导出CSV

    表 3  电磁波对电离层等离子体加热背景参数[31]

    Table 3.  Parameters for modeling of electromagnetic waves heating ionospheric plasmas[31].

    参数名称 参数值
    热层中性风速度vn/(m·s–1) 100
    模拟区域高度范围/km 150—400
    地磁场倾角θ/(°) 30.0
    地磁场磁感应强度Bg/T 4.6×10–5
    泵波频率f0/MHz 6.0
    发射机有效辐射功率WERP/MW 200
    下载: 导出CSV

    表 4  阿雷西博天文台受激布里渊散射实验参数[32]

    Table 4.  Parameters of stimulated Brillouin scattering experiment at Arecibo Observatory[32].

    参数名称 参数值
    实验地点纬度 18°20'39"N
    实验地点经度 66°45'10"W
    地磁场磁感应强度Bg/T 4.6×10–5
    泵波频率f0/MHz 5.125
    发射机有效辐射功率WERP/MW 80
    电离层F2层临界频率/MHz ~5.0
    泵波反射高度/km ~325
    下载: 导出CSV

    表 5  挪威EISCAT电离层及电磁场参数[20]

    Table 5.  Parameters of ionosphere and electromagnetic field at EISCAT in Norway[20].

    参数名称 参数值
    O波频率f0/MHz 6.3
    发射机有效辐射功率WERP/MW 554.1
    探测波频率fprobe/Hz 10
    电场强度E/(V·m–1) 0.2
    地磁场磁感应强度Bg/μT 48.59
    地磁场倾角θ/(°) 78.2
    离子温度Ti/K 1000
    下载: 导出CSV

    表 6  俄罗斯Sura装置电离层加热实验典型参数[33]

    Table 6.  Typical parameters of ionospheric heating experiment at the Sura facility in Russia[33].

    参数名称 参数值
    泵波频率/MHz 4.3—9.5
    实验时间范围/a 1996—2000
    实验地点纬度 56.13°N
    实验地点经度 46.10°E
    有效辐射功率WERP/MW 30—60
    下载: 导出CSV

    表 7  电离层背景粒子及地磁场参数

    Table 7.  Parameters of ionospheric background particles and geomagnetic field.

    参数名称 参数值
    电子温度/K 1535.3—1832.4
    电子数密度/m–3 3.72×1011—4.93×1011
    地磁场倾角/° 72.1
    地磁场磁感应强度/T 4.6×10–5
    等离子体频率/MHz 5.47—6.30
    上混杂频率/MHz 5.63—6.44
    下混杂频率/kHz 7.88
    下载: 导出CSV
