本文通过朗之万动力学模拟研究了具有非互易相互作用的布朗粒子对不对称齿轮的驱动. 结果表明, 即便在没有自推进活性的情况下, 非互易相互作用所产生的净力仍可作为一种有效的非平衡驱动力, 驱动不对称齿轮发生可控的定向旋转. 该系统展现出丰富的非平衡动力学行为: 齿轮的旋转方向不仅受其自身结构不对称性调控, 还可通过改变粒子的填充分数实现反转. 此外, 齿轮的角速度随粒子非互易强度的增强而增大, 并随温度及粒子填充分数呈现非单调变化关系, 在一定参数区间内存在使齿轮角速度达到最大的最优条件. 这些发现为微纳尺度下的定向输运与控制提供了新思路.
In this work, we use computer simulations to examine how an asymmetric gear can be driven by Brownian particles that interact in a non-reciprocal manner. Unlike many active matter systems, the particles are not self-propelled. Instead, the non-reciprocal interactions break action-reaction symmetry and produce a net force that drives the system out of equilibrium. The gear has an asymmetric shape, which helps select a preferred direction of rotation. We find that the rotation direction of the gear is influenced by both the asymmetry and parameters of system. When system parameters are identical, gears with two structures of opposite chirality exhibit equal magnitudes of average angular velocity, differing only in their rotational directions. For a specific gear, the rotation speed increases as the strength of the non-reciprocal interaction increases and shows non-monotonic dependence on temperature and particle density. Interestingly, under high density conditions, the rotation direction can reverse. At low temperatures, particle clusters form, resulting in reversed motion, whereas higher temperatures restore the rotation in the original direction. This work illustrates how non-reciprocal interactions can be used to generate directed motion in passive structures such as gears. It offers one possible approach to controlling motion in small-scale systems without external energy input, and may contribute to the design of simple nanoscale machines. -
Keywords:
- Brownian particles /
- gear /
- nonreciprocal interaction /
- directed transport
-

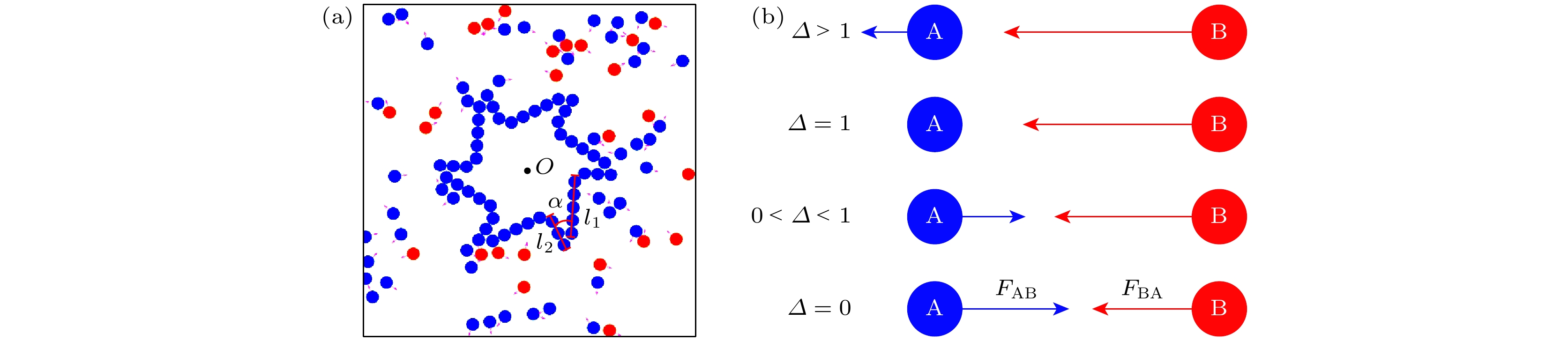

图 1 粒子-齿轮模型示意图以及非互易相互作用示意图 (a) 在具有周期性边界条件的二维箱中, 由非互易粒子(红色和蓝色圆盘)驱动的齿轮示意图; (b) 粒子A与B在不同$ {\varDelta } $值下的成对非互易相互作用示意图
Fig. 1. Schematic of the particle-gear model and illustration of non-reciprocal interactions: (a) Schematic of a gear driven by non-reciprocal particles (red disks or blue disks) in a two-dimensional box with periodic boundary conditions; (b) illustration of pairwise non-reciprocal interactions between particle A and B for different $ {\varDelta } $.

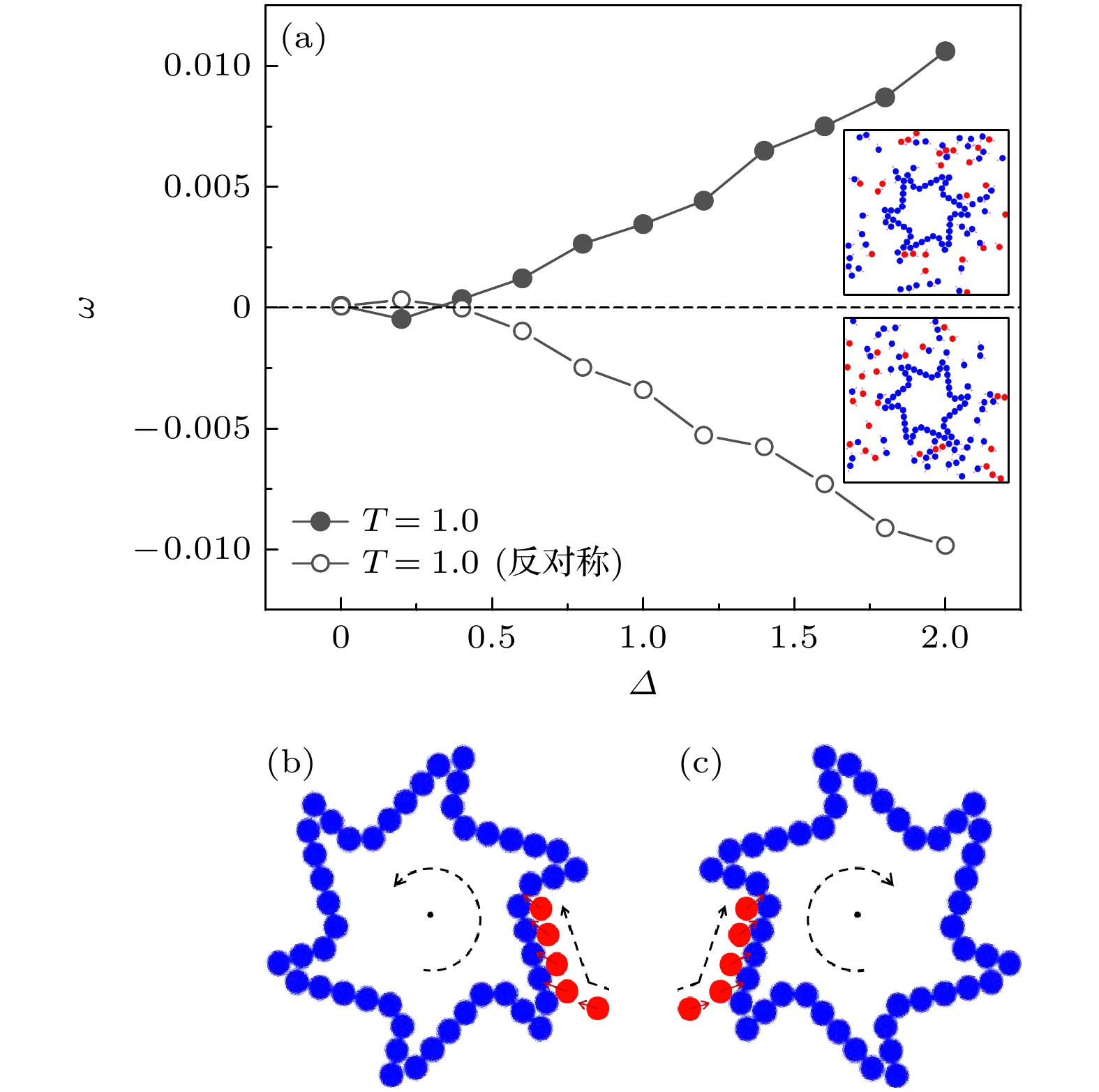

图 2 齿轮平均角速度$ \omega $随非互易强度$ {\varDelta } $的变化关系 (a) 在温度$ T=1.0 $、填充分数$ \phi =0.1 $时两种手性相反的齿轮$ \omega $随$ {\varDelta } $的变化关系; (b) 齿轮的逆时针旋转机制图; (c) 反对称齿轮的顺时针旋转机制图
Fig. 2. Dependence of the average angular velocity $ \omega $ on the non-reciprocal interaction strength $ {\varDelta } $: (a) The average angular velocity $ \omega $ as a function of the non-reciprocal interaction strength $ {\varDelta } $ for two chirally symmetric gears at $ T=1.0 $ and $ \phi =0.1 $; (b) mechanism of counterclockwise rotation in the gear; (c) mechanism of clockwise rotation in the antisymmetric gear.

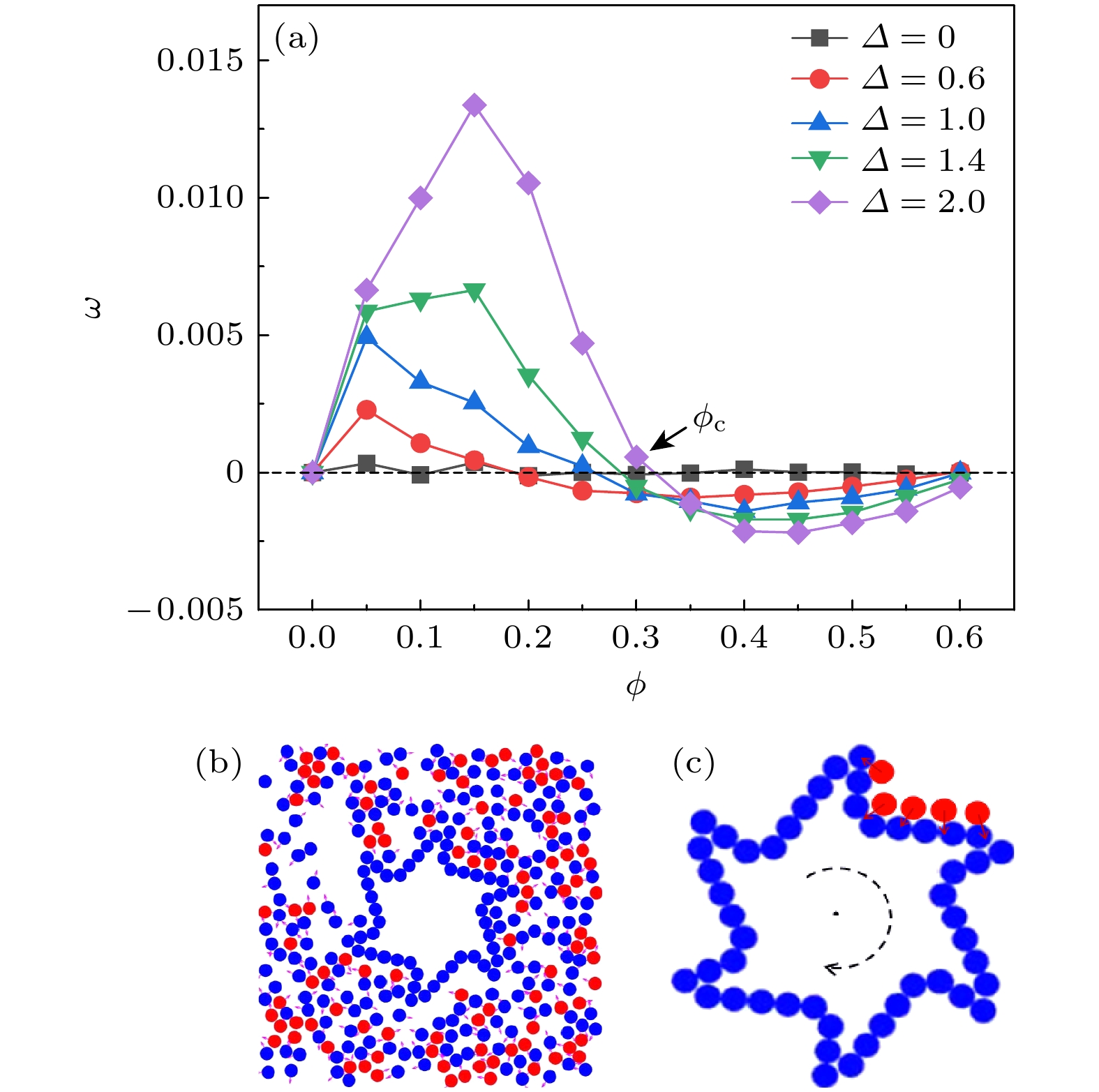

图 3 不同非互易强度$ {\varDelta } $下齿轮平均角速度$ \omega $随填充分数$ \phi $的变化关系 (a) 在温度$ T=1.0 $时, 不同$ {\varDelta } $下$ \omega $随$ \phi $的变化关系; (b) 在$ T=1.0 $, $ \phi =0.4 $, $ {\varDelta }=2.0 $条件下的模拟快照; (c) 密度诱导的齿轮顺时针旋转机制图
Fig. 3. Dependence of the average angular velocity $ \omega $ on the packing fraction $ \phi $ for different non-reciprocal interaction strengths $ {\varDelta } $: (a) The average angular velocity $ \omega $ as a function of the packing fraction $ \phi $ for different $ {\varDelta } $ at $ T=1.0 $; (b) simulation snapshot at $ T=1.0 $, $ \phi =0.4 $ and $ {\varDelta }=2.0 $; (c) schematic of the density-induced clockwise rotation of the gear.

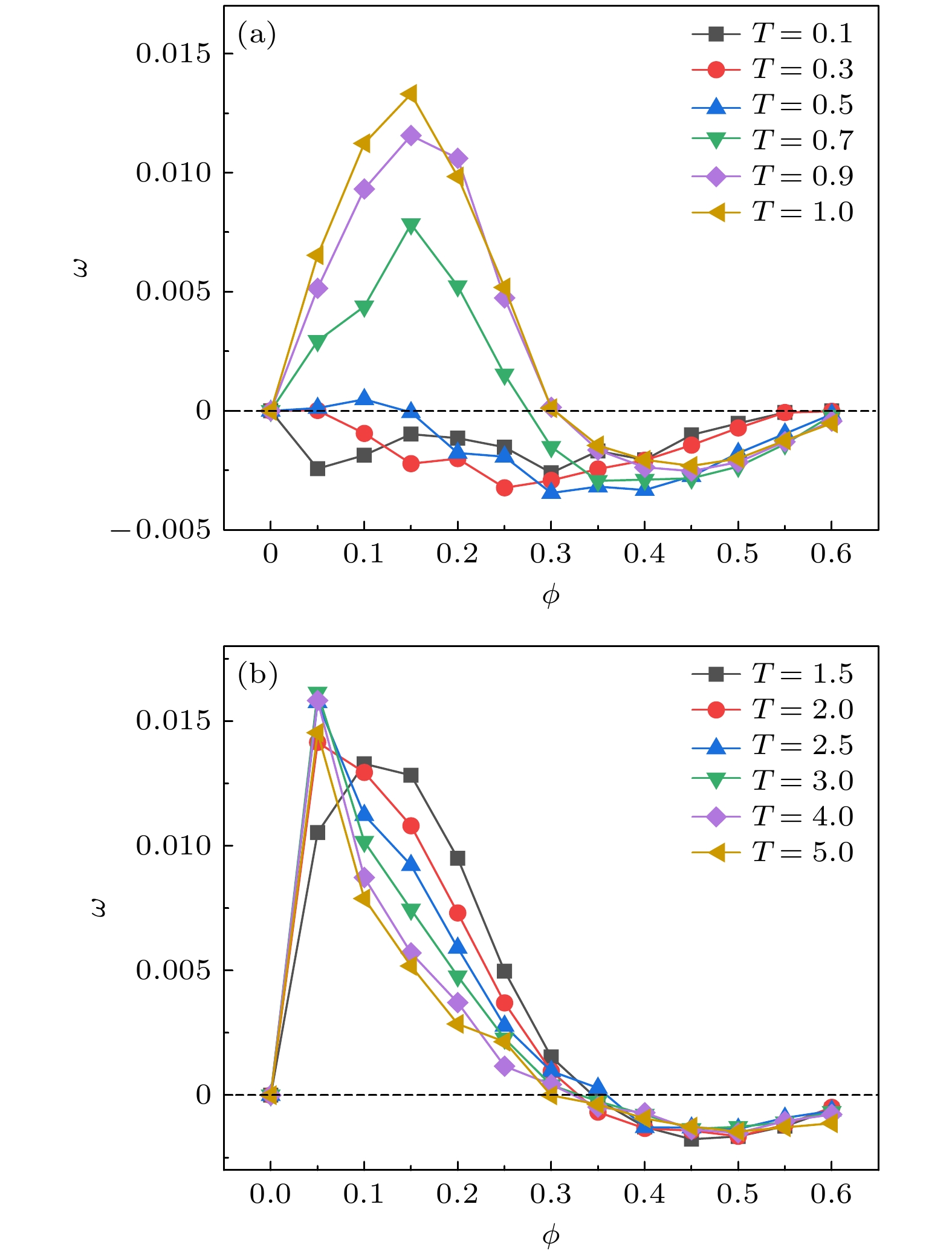

图 4 在非互易强度$ {\varDelta }=2.0 $时, 不同温度下齿轮平均角速度$ \omega $随填充分数$ \phi $的变化关系 (a) T = 0.1—1.0; (b) T = 1.5—5.0
Fig. 4. Dependence of the average angular velocity $ \omega $ on the packing fraction $ \phi $ for different temperature at $ {\varDelta }=2.0 $: (a) T = 0.1–1.0; (b) T = 1.5–5.0

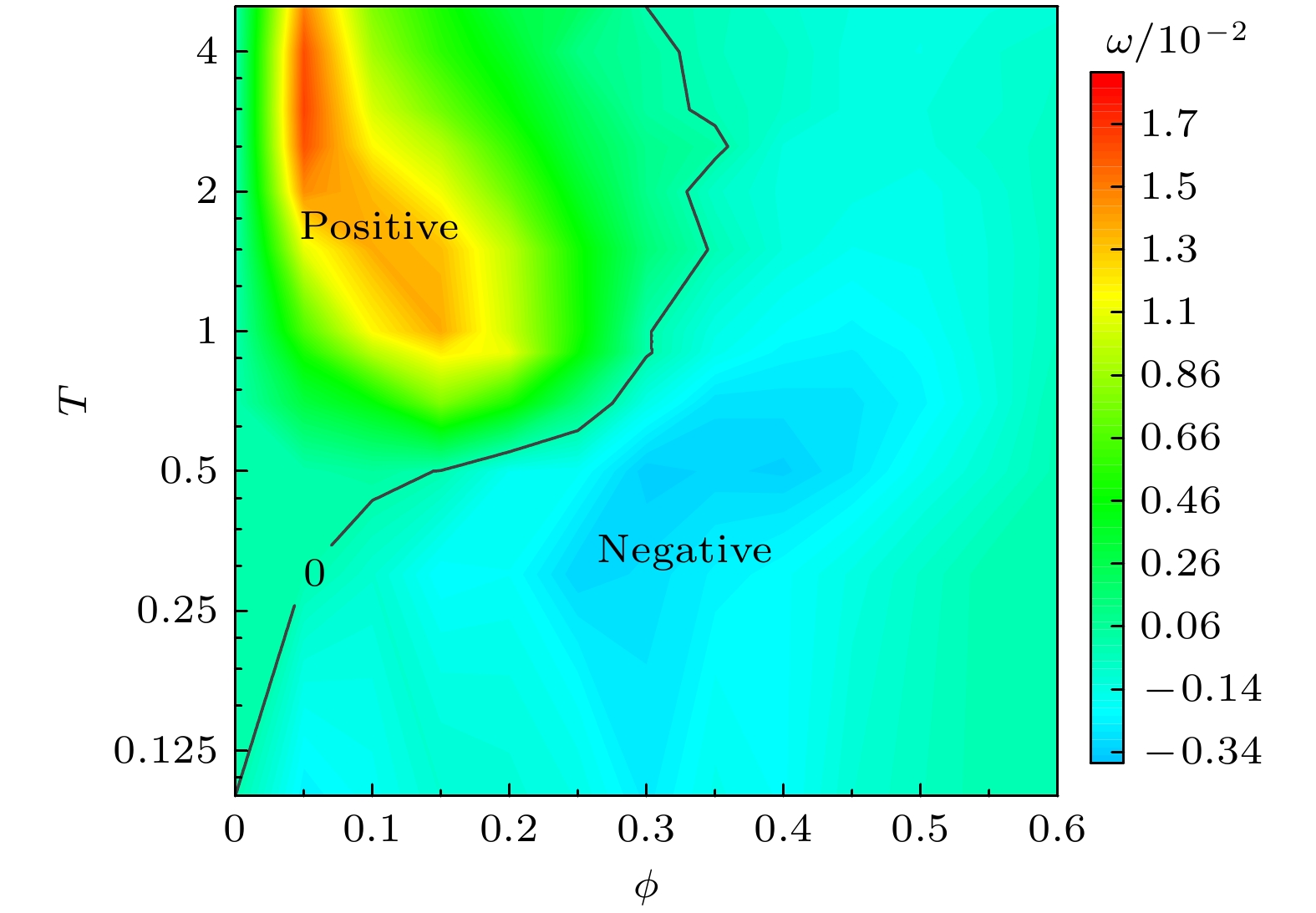

图 5 在非互易强度$ {\varDelta }=2.0 $时, 齿轮平均角速度$ \omega $随系统参数$ T $和$ \phi $变化的等高线图
Fig. 5. Contour plots of the average angular velocity $ \omega $ as a function of the system parameters $ T $ and $ \phi $ at $ {\varDelta }=2.0 $

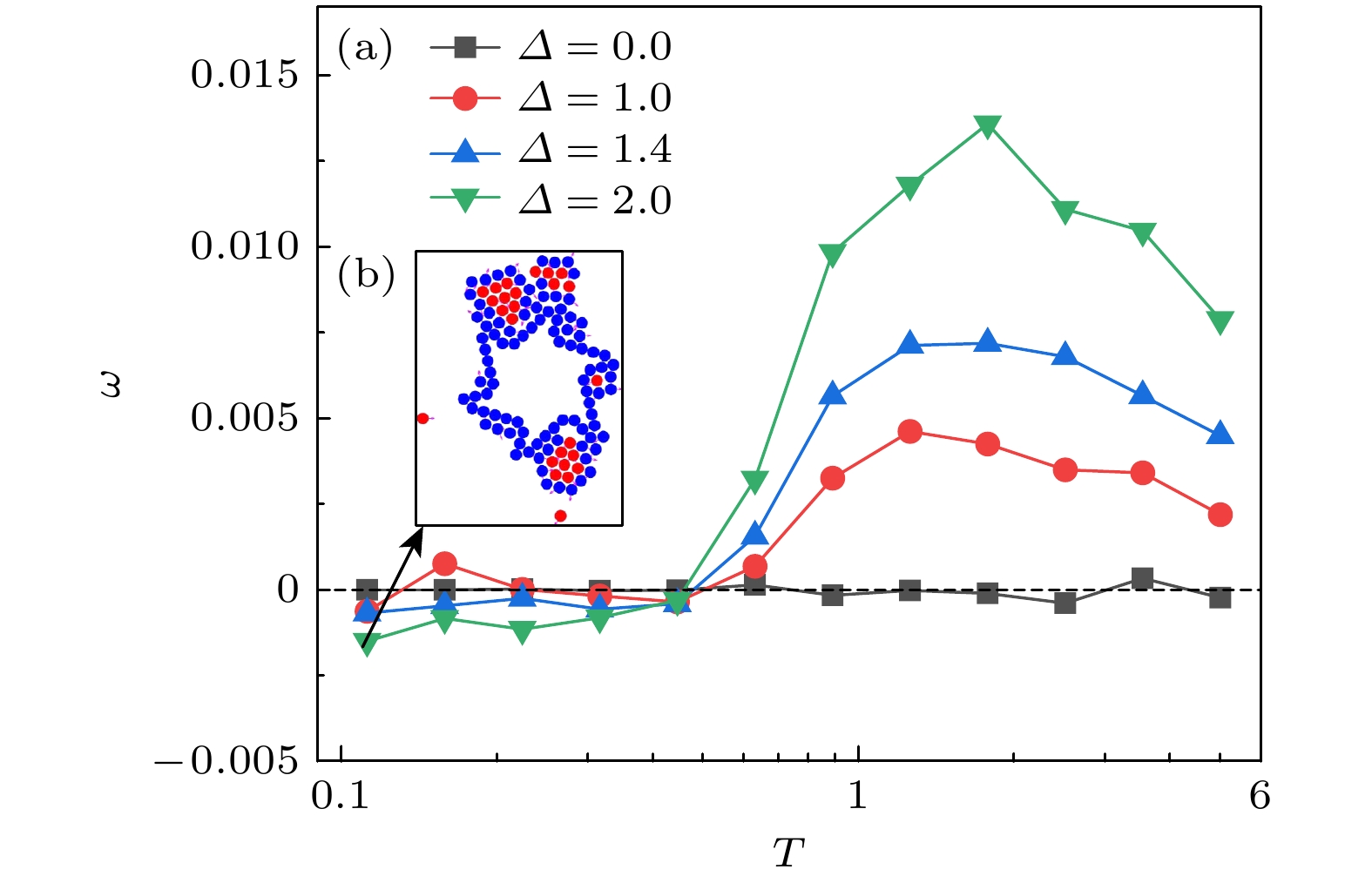

图 6 不同非互易强度$ {\varDelta } $下齿轮平均角速度$ \omega $随温度$ T $的变化关系 (a) 在填充分数$ \phi =0.1 $时, 不同$ {\varDelta } $下$ \omega $随$ T $的变化关系; (b) 在$ T=0.1 $, $ \phi =0.1 $, $ {\varDelta }=2.0 $条件下的模拟快照
Fig. 6. Dependence of the average angular velocity $ \omega $ on the temperature $ T $ for different non-reciprocal interaction strengths $ {\varDelta } $: (a) The average angular velocity $ \omega $ as a function of the temperature $ T $ for different $ {\varDelta } $ at $ \phi =0.1 $; (b) simulation snapshot at $ T=0.1 $ and $ {\varDelta }=2.0 $.
表 1 不同填充分数对应的布朗粒子数
Table 1. Number of Brownian particles corresponding to different packing fractions.
$ \phi $ $ {N}_{\text{p}} $ $ \phi $ $ {N}_{\text{p}} $ 0.05 36 0.35 250 0.10 72 0.40 286 0.15 108 0.45 322 0.20 143 0.50 358 0.25 179 0.55 393 0.30 215 0.60 429
