Dual-absorption-layer heterojunction strategy for enhancing photovoltaic performance of all-perovskite tandem solar cell

YUAN Xiang; ZHANG Zifa; WANG Mingji; HE Danmin; LU Yingshen; HONG Feng; JIANG Zuimin; XU Run; WANG Yingmin; MA Zhongquan; SONG Hongwei; XU Fei

doi:10.7498/aps.74.20250372

Abstract

Organic cations in hybrid organic-inorganic perovskite solar cells are susceptible to decomposition under high temperatures and ultraviolet light, leading their power conversion efficiency (PCE) to decrease. All-inorganic perovskite solar cells exhibit both high PCE and superior photothermal stability, making them promising candidates for single-junction and tandem photovoltaic applications. The mixed-halide perovskite CsPbI₂Br has received much attention as a top cell in semi-transparent and tandem solar cells due to its excellent thermal stability and suitable bandgap (1.90 eV). Although the PCE of CsPbI₂Br-based solar cells is approaching its theoretical limit, the energy loss caused by non-radiative recombination remains a major barrier to further improving performance. This non-radiative recombination is mainly caused by inadequate band alignment between the absorption layer and the transport layer, resulting in the loss of open-circuit voltage (V_OC) and decrease of short-circuit current density (J_SC). Two-dimensional perovskite passivation formed through solution processing can mitigate interfacial recombination, but it can also impede efficient charge transport. Constructing three-dimensional perovskite structures not only provides an effective solution to these limitations but also enhances sunlight absorption and facilitates carrier transport. In this study, we propose a dual-absorption-layer perovskite heterojunction (DPHJ) strategy, which involves integrating a staggered type-II perovskite heterojunction (p-pCsPbI₂Br-CsPbIBr₂) into the absorption layer of the top cell in an all-perovskite tandem solar cell. The simulation result indicates that stacking a 100-nm-thick CsPbIBr₂ layer atop a 300-nm-thick CsPbI₂Br layer greatly enhances the PCE of the single-junction device from 19.46% to 22.29%. This improvement is mainly attributed to band bending at the CsPbI₂Br/CsPbIBr₂ interface, which enhances the built-in electric field, facilitates carrier transport, and suppresses non-radiative recombination within the absorption layer. Compared with the tandem solar cell utilizing a single-absorption-layer CsPbI₂Br top cell, the DPHJ-based tandem solar cell significantly increases V_OC from 2.16 to 2.25 V and J_SC from 15.96 to 16.76 mA⋅cm^–2. As a result, the DPHJ-based tandem solar cell achieves a high theoretical PCE of 32.47%. In addition, the DPHJ-based tandem solar cell exhibits a significantly enhanced external quantum efficiency in a wavelength range of 500–580 nm, which can be attributed to the band-edge absorption of CsPbIBr₂. This enhanced absorption generates more photogenerated carriers, thereby significantly improving the J_SC. The V_OC and PCE values in this study exceed those experimentally reported values of current CsPbI₂Br single-junction and all-perovskite tandem solar cells. Compared with the single-layer CsPbI₂Br (E₂ = 101.9 meV, electron-phonon coupling strength $ {\gamma _{{\text{ac}}}} = 1.2 \times {10^{ - 2}},{\text{ }}{\gamma _{{\text{LO}}}} = 6.9 \times {10^3} $), the double-absorption-layer film exhibits a high exciton binding energy (E₂ = 110.7 meV) and reduced electron-phonon coupling strength ($ {\gamma _{{\text{ac}}}} = 1.1 \times {10^{ - 2}},{\text{ }}{\gamma _{{\text{LO}}}} = $$ 6.3 \times {10^3} $), which helps suppress phase segregation and enhance both optical and thermal stability, which is favorable for fabricating long-term stable all-perovskite tandem solar cells. This work provides new ideas and theoretical guidance for improving the efficiency and stability of all-perovskite tandem solar cells. In addition, it also proposes a universal design concept for optimizing absorption layers in all-perovskite multijunction cells, which is expected to further advance the research in this field.

Keywords:

Authors and contacts

1.
Shanghai Key Laboratory of High Temperature Superconductors, Department of Physics, Shanghai University, Shanghai 200444, China
2.
State Key Laboratory of Surface Physics, Department of Physics, Fudan University, Shanghai 200433, China
3.
Department of Electronic Information Materials, Shanghai University, Shanghai 200444, China
4.
School of Instrument Science and Optoelectronic Engineering, Nanchang Hangkong University, Nanchang 330063, China

Corresponding author: WANG Yingmin, wym@nchu.edu.cn ; XU Fei, feixu@shu.edu.cn

Funds: Project supported by the National Key Research and Development Projiect of China (Grant No. 2024YFA1209500), the National Natural Science Foundation of China (Grant Nos. 62350054, 12175131, 12374379), the Shangrao Technology Project, China (Grant No. 2022A004), and the Key Research and Development Project of Jiangxi Province, China (Grant Nos. 20223BBE51026, 20232BBE50035).

FullText HTML

References

[1]	Jiang Q, Zhu K 2024 Nat. Rev. Mater. 6 399
[2]	Zhang Z, Wang X, Yan Q, Yuan X, Lu Y, Cao H, He D, Jiang Z, Xu R, Chen T, Ma Z, Song H, Hong F, Xu F 2024 Sol. RRL 8 2400216 Google Scholar
[3]	蒋泵, 陈思良, 崔晓磊, 胡紫婷, 李跃, 张笑铮, 吴康敬, 王文贞, 蒋最敏, 洪峰, 马忠权, 赵磊, 徐飞, 徐闰, 詹义强 2019 物理学报 68 246801 Google Scholar Jiang B, Chen S, Cui X, Hu Z, Li Y, Zhang X, Wu K, Wang W, Jiang Z, Hong F, Ma Z, Zhao L, Xu F, Xu R, Zhan Y 2019 Acta Phys. Sin. 68 246801 Google Scholar
[4]	Khan F, Rezgui B D, Khan M T, Al-Sulaiman F 2022 Renewable Sustainable Energy Rev. 165 112553 Google Scholar
[5]	Kim J, Lee H, Lee Y, Kim J 2024 ChemSusChem 17 e202400945 Google Scholar
[6]	Bai Y, Tian R, Sun K, Liu C, Lang X, Yang M, Meng Y, Xiao C, Wang Y, Lu X, Wang J, Pan H, Song Z, Zhou S, Ge Z 2024 Energy Environ. Sci. 17 8557 Google Scholar
[7]	Xie G, Li H, Wang X, Fang J, Lin D, Wang D, Li S, He S, Qiu L 2023 Adv. Funct. Mater. 33 2308794 Google Scholar
[8]	Liu Z, Lin R, Wei M, Yin M, Wu P, Li M, Li L, Wang Y, Chen G, Carnevali V, Agosta L, Slama V, Lempesis N, Wang Z, Wang M, Deng Y, Luo H, Gao H, Rothlisberger U, Zakeeruddin S M, Luo X, Liu Y, Grätzel M, Tan H 2025 Nat. Mater. 24 252 Google Scholar
[9]	Zou F, Duan C, Lin Z, Zhang Z, Xu S, Chen C, Chen J, Li J, Zou S, Ding L, Luo H, Yan K 2024 Chem. Eng. J. 491 152118 Google Scholar
[10]	Chu X, Ye Q, Wang Z, Zhang C, Ma F, Qu Z, Zhao Y, Yin Z, Deng H X, Zhang X, You J 2023 Nat. Energy 8 372 Google Scholar
[11]	Patil J V, Mali S S, Hong C K 2024 Adv. Funct. Mater. 33 2408721
[12]	张子发, 袁翔, 鹿颖申, 何丹敏, 严全河, 曹浩宇, 洪峰, 蒋最敏, 徐闰, 马忠权, 宋宏伟, 徐飞 2024 物理学报 73 098803 Google Scholar Zhang Z, Yuan X, Lu Y, He D, Yan Q, Cao H, Hong F, Jiang Z, Xu R, Ma Z, Song H, Xu F 2024 Acta Phys. Sin. 73 098803 Google Scholar
[13]	Duan C, Zhang K, Peng Z, Li S, Zou F, Wang F, Li J, Zhang Z, Chen C, Zhu Q, Qiu J, Lu X, Li N, Ding L, Brabec C J, Gao F, Yan K 2025 Nature 637 1111 Google Scholar
[14]	Lu Y, He D, Yuan X, Yan Q, Shu X, Hu Z, Zhang Z, Liu Z, Jiang Z, Xu R, Wang W, Ma Z, Chen T, Xu H, Xu F, Hong F, Song H 2025 Adv. Funct. Mater. 35 2413507 Google Scholar
[15]	Xu H, Guo Z, Chen P, Wang S 2024 Chem. Commun. 60 12287 Google Scholar
[16]	Sha W E I, Wang X Y, Chen W C, Fu Y H, Zhang L J, Tian L, Lin M S, Jiao S D, Xu T, Sun T G, Liu D X 2025 Chin. Phys. B 34 018801 Google Scholar
[17]	Liu X, Li J, Liu Z, Tan X, Sun B, Xi S, Shi T, Tang Z, Liao G 2020 Electrochimica Acta 330 135266 Google Scholar
[18]	Zou C, Zheng J, Chang C, Majumdar A, Lin L Y 2019 Adv. Opt. Mater. 7 1900558 Google Scholar
[19]	Roy R, Byranvand M M, Zohdi M R, et al. 2025 Energy Environ. Sci. 18 1920 Google Scholar
[20]	Wang Y, Li J, Chen Q, Liu W, Gao Z, Fu Y, Liu Q, He D, Li Y 2023 ACS Appl. Energy Mater. 6 4584 Google Scholar
[21]	Sittinger V, Schulze P S C, Messmer C, Pflug A, Goldschmidt J C 2022 Opt. Express 30 37957 Google Scholar
[22]	Steirer K X, Ndione P F, Widjonarko N E, Lloyd M T, Meyer J, Ratcliff E L, Kahn A, Armstrong N R, Curtis C J, Ginley D S, Berry J J, Olson D C 2011 Adv. Energy Mater. 1 813 Google Scholar
[23]	Wang N, Zhou Y, Ju M G, Garces H F, Ding T, Pang S, Zeng X C, Padture N P, Sun X W 2016 Adv. Energy Mater. 6 1601130 Google Scholar
[24]	Stewart A W, Bouich A, Soucase B M 2021 J. Mater. Sci. 56 20071 Google Scholar
[25]	Wang J, Zhao P, Hu Y, Lin Z, Su J, Zhang J, Chang J, Hao Y 2021 Sol. RRL 5 2100121 Google Scholar
[26]	Rahman M S, Miah S, Marma M S W, Ibrahim M 2020 2020 IEEE Reg. 10 Conf. Cox'sBazar, Bangladesh, February 7–9, 2019 p140
[27]	Chen W, Li D, Chen S, Liu S, Shen Y, Zeng G, Zhu X, Zhou E, Jiang L, Li Y, Li Y 2020 Adv. Energy Mater. 10 2000851 Google Scholar
[28]	Yuan Y, Yan G, Hong R, Liang Z, Kirchartz T 2022 Adv. Mater. 34 2108132 Google Scholar
[29]	Li Y, Zhang Y, Zhu P, Li J, Wu J, Zhang J, Zhou X, Jiang Z, Wang X, Xu B 2023 Adv. Funct. Mater. 33 2309010 Google Scholar
[30]	Protesescu L, Yakunin S, Bodnarchuk M I, Krieg F, Caputo R, Hendon C H, Yang R X, Walsh A, Kovalenko M V 2015 Nano Lett. 15 3692 Google Scholar
[31]	Zhuang J, Wei Y, Luan Y, Chen N, Mao P, Cao S, Wang J 2019 Nanoscale 11 14553 Google Scholar
[32]	Ozturk T, Akman E, Shalan A E, Akin S 2021 Nano Energy 87 106157 Google Scholar
[33]	Han Y, Zhao H, Duan C, Yang S, Yang Z, Liu Z, Liu S (Frank) 2020 Adv. Funct. Mater. 30 1909972 Google Scholar
[34]	Meng L, Wei Z, Zuo T, Gao P 2020 Nano Energy 75 104866 Google Scholar
[35]	Lin R, Wang Y, Lu Q, et al. 2023 Nature 620 994 Google Scholar
[36]	Tress W, Petrich A, Hummert M, Hein M, Leo K, Riede M 2011 Appl. Phys. Lett. 98 063301 Google Scholar
[37]	Liu M, Wan Q, Wang H, Carulli F, Sun X, Zheng W, Kong L, Zhang Q, Zhang C, Zhang Q, Brovelli S, Li L 2021 Nat. Photonics 15 379 Google Scholar
[38]	Jiang B, Li Y, Zhu J, Hu Z, Zhou X, Zhang Y, Gao M, Wang W, Jiang Z, Ma Z, Zhao L, Chen T, Xu Z, Xu H, Xu F, Xu R, Hong F 2020 Appl. Phys. Lett. 116 072104 Google Scholar
[39]	Yang Z, Wang M, Qiu H, Yao X, Lao X, Xu S, Lin Z, Sun L, Shao J 2018 Adv. Funct. Mater. 28 1705908 Google Scholar
[40]	Dai J, Zheng H, Zhu C, Lu J, Xu C 2016 J. Mater. Chem. C 4 4408 Google Scholar
[41]	Zeng Q, Zhang X, Liu C, Feng T, Chen Z, Zhang W, Zheng W, Zhang H, Yang B 2019 Sol. RRL 3 1800239 Google Scholar
[42]	Blancon J C, Tsai H, Nie W, et al. 2017 Science 355 1288 Google Scholar
[43]	Li C, Cao Q, Wang F, Xiao Y, Li Y, Delaunay J J, Zhu H 2018 Chem. Soc. Rev. 47 4981 Google Scholar
[44]	Gregg B A, Hanna M C 2003 J. Appl. Phys. 93 3605 Google Scholar
[45]	Jin B, Zuo N, Hu Z Y, Cui W, Wang R, Van Tendeloo G, Zhou X, Zhai T 2020 Adv. Funct. Mater. 30 2006166 Google Scholar
[46]	Wright A D, Verdi C, Milot R L, Eperon G E, Pérez-Osorio M A, Snaith H J, Giustino F, Johnston M B, Herz L M 2016 Nat. Commun. 7 11755 Google Scholar
[47]	Bischak C G, Hetherington C L, Wu H, Aloni S, Ogletree D F, Limmer D T, Ginsberg N S 2017 Nano Lett. 17 1028 Google Scholar
[48]	Hoke E T, Slotcavage D J, Dohner E R, Bowring A R, Karunadasa H I, McGehee M D 2015 Chem. Sci. 6 613 Google Scholar
[49]	Ji R, Zhang Z, Hofstetter Y J, Buschbeck R, Hänisch C, Paulus F, Vaynzof Y 2022 Nat. Energy 7 1170 Google Scholar
[50]	Mali S S, Patil J V, Shao J Y, Zhong Y W, Rondiya S R, Dzade N Y, Hong C K 2023 Nat. Energy 8 989 Google Scholar
[51]	Xiao H, Zuo C, Yan K, Jin Z, Cheng Y, Tian H, Xiao Z, Liu F, Ding Y, Ding L 2023 Adv. Energy Mater. 13 2300738 Google Scholar
[52]	Shan S, Xu C, Wu H, Niu B, Fu W, Zuo L, Chen H 2023 Adv. Energy Mater. 13 2203682 Google Scholar
[53]	Liu X, Lian H, Zhou Z, Zou C, Xie J, Zhang F, Yuan H, Yang S, Hou Y, Yang H G 2022 Adv. Energy Mater. 12 2103933 Google Scholar
[54]	Guo Z, Jena A K, Takei I, Ikegami M, Ishii A, Numata Y, Shibayama N, Miyasaka T 2021 Adv. Funct. Mater. 31 2103614 Google Scholar
[55]	Mali S S, Patil J V, Shinde P S, de Miguel G, Hong C K 2021 Matter 4 635 Google Scholar
[56]	Ahmad K, Ahmad Khan R, Shakhawat Hossain M, Sonic M M R 2024 ChemistrySelect 9 e202401827 Google Scholar
[57]	Duan Q, Ji J, Hong X, Fu Y, Wang C, Zhou K, Liu X, Yang H, Wang Z Y 2020 Sol. Energy 201 555 Google Scholar
[58]	Karthick S, Velumani S, Bouclé J 2020 Sol. Energy 205 349 Google Scholar
[59]	Lin R, Xu J, Wei M, Wang Y, Qin Z, Liu Z, Wu J, Xiao K, Chen B, Park S M, Chen G, Atapattu H R, Graham K R, Xu J, Zhu J, Li L, Zhang C, Sargent E H, Tan H 2022 Nature 603 73 Google Scholar
[60]	Chen J, Du J, Cai J, Ouyang B, Li Z, Wu X, Tian C, Sun A, Zhuang R, Wu X, Chen C, Cen T, Li R, Xue T, Zhao Y, Zhao K, Chen Q, Chen C C 2025 ACS Energy Lett. 10 1117 Google Scholar
[61]	Pan Y, Wang J, Sun Z, et al. 2024 Nat. Commun. 15 7335 Google Scholar
[62]	Li M, Yan J, Zhang A, Zhao X, Yang X, Yan S, Ma N, Ma T, Luo D, Chen Z, Li L, Li X, Chen C, Song H, Tang J 2025 Joule 9 101825 Google Scholar
[63]	Hu H, Pan T, Singh R, Nejand B A, Paetzold U W 2025 ACS Appl. Mater. Interfaces 17 7804 Google Scholar
[64]	Wang W, Yu G, Attique S 2023 Sol. RRL 7 2201064 Google Scholar
[65]	Xie Z, Zhang S, Chen S, Pei Y, Li L, Yang J, Fu G, Wu P 2025 Chem. Eng. J. 506 159788 Google Scholar
[66]	Xie Z, Chen S, Pei Y, Li L, Zhang S, Wu P 2024 Chem. Eng. J. 482 148638 Google Scholar
[67]	Moradbeigi M, Razaghi M 2024 Renewable Energy 220 119723 Google Scholar
[68]	Rajagopal A, Yang Z, Jo S B, Braly I L, Liang P W, Hillhouse H W, Jen A K Y 2017 Adv. Mater. 29 1702140 Google Scholar
[69]	Lim E L, Yang J, Wei Z 2023 Energy Environ. Sci. 16 862 Google Scholar

Cited By

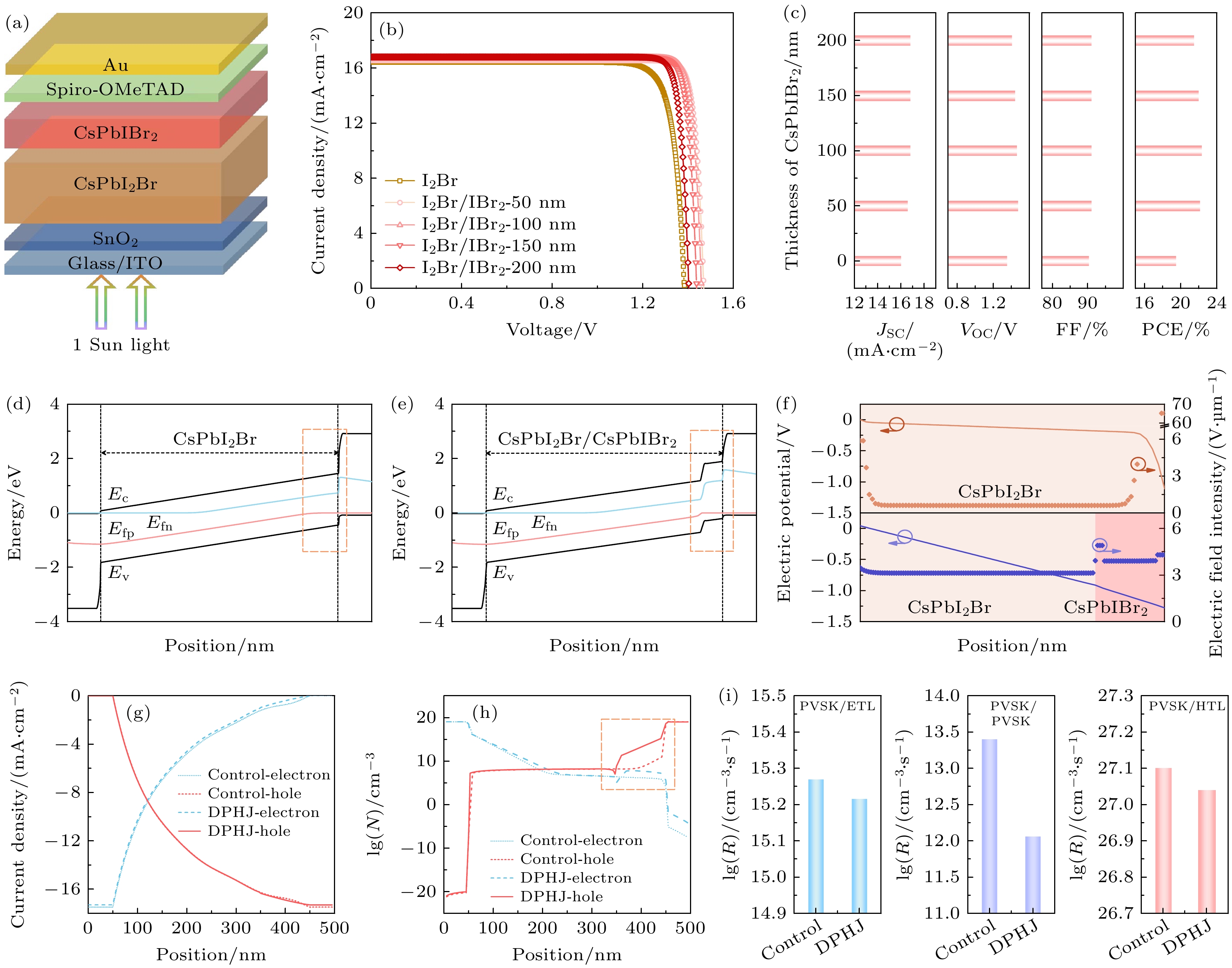

图 1 双吸收层钙钛矿异质结(p-pCsPbI₂Br-CsPbIBr₂)太阳电池　(a) 电池结构图; (b) J-V曲线; (c) 光伏参数; (d) Control电池能带图; (e) DPHJ电池能带图. Control和DPHJ电池 (f) 内部电势和电场强度图; (g) 电子电流密度和空穴电流密度分布曲线; (h) 载流子浓度分布曲线; (i) 钙钛矿与传输层界面处的复合速率

Figure 1. Dual-absorption-layer perovskite heterojunction (p-pCsPbI₂Br-CsPbIBr₂) solar cells: (a) Device architecture diagram; (b) J-V curves; (c) photovoltaic parameters; (d) energy band diagram of Control device; (e) energy band diagram of DPHJ device. Control and DPHJ cells: (f) Internal potential and electric field–strength diagrams; (g) distribution curves of electron and hole current densities; (h) carrier concentration distribution curve; (i) recombination rate at the perovskite and transport layer interface.

DownLoad: Full-Size Img PowerPoint

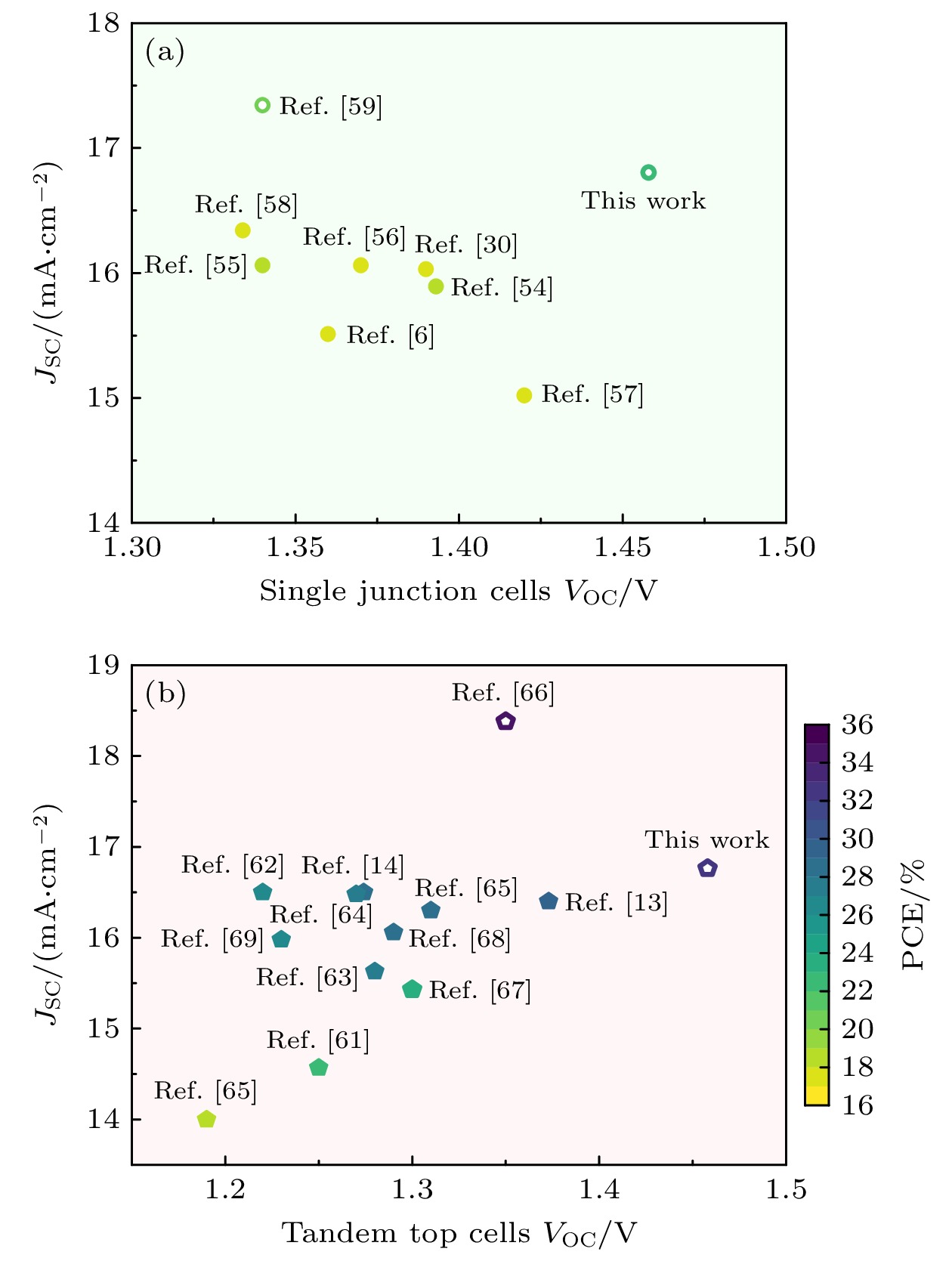

图 4 (a) 本工作与已经报道的CsPbI₂Br钙钛矿单结太阳电池开路电压与效率对比图; (b) 本工作与全钙钛矿叠层太阳电池顶电池开路电压与效率对比图 (实心点表示实验结果, 空心点为模拟结果)

Figure 4. Performance benchmarking of this work: (a) Comparison of V_OC and PCE between this work and previously reported perovskite single-junction solar cells; (b) comparison of V_OC of the top subcell and PCE in this work with those of all-perovskite tandem solar cells reported in the literature. (Solid symbols: experimental records; open symbols: simulated values).

DownLoad: Full-Size Img PowerPoint

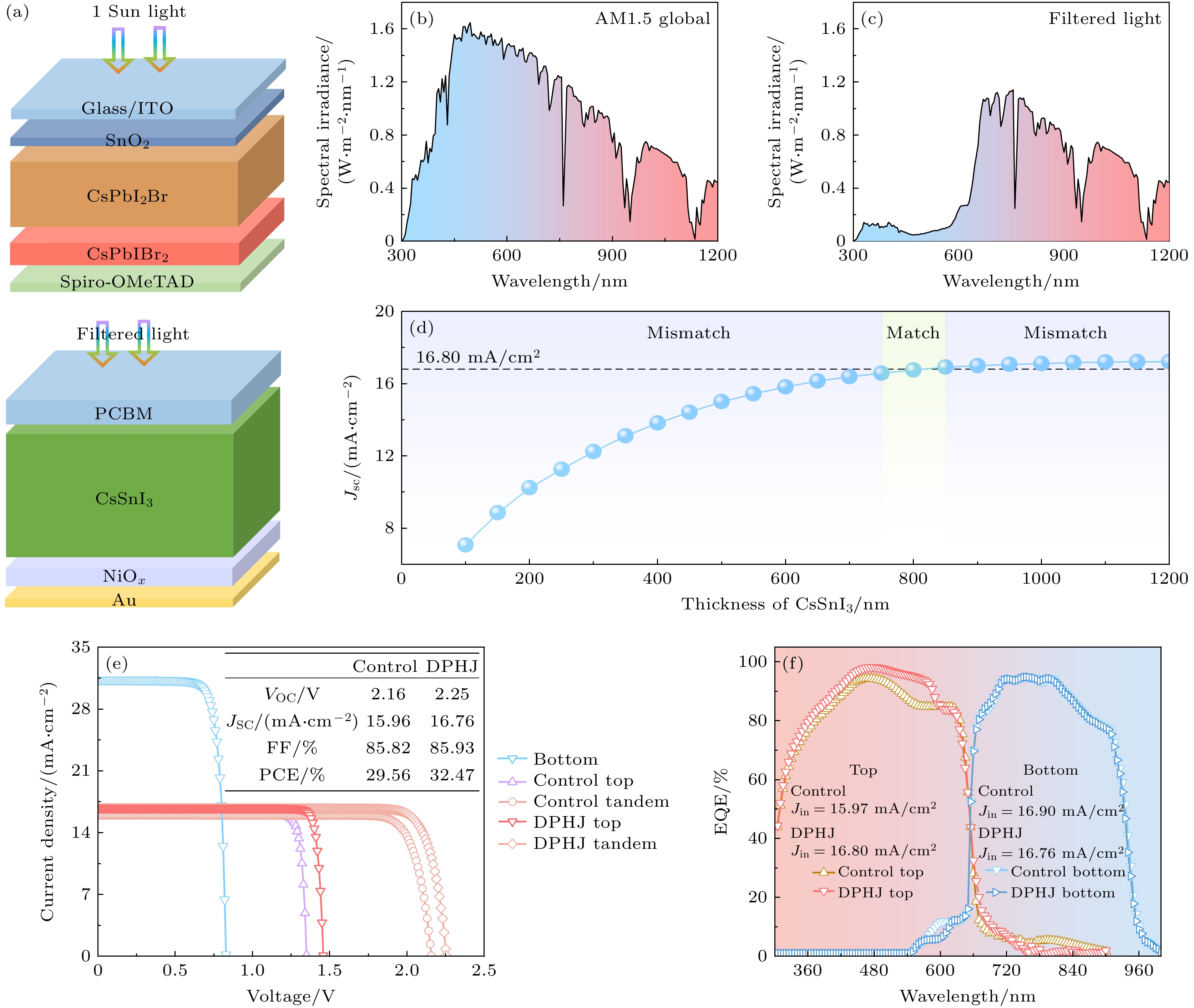

图 2 (a) 叠层太阳电池电池结构图; (b) AM1.5G标准太阳光谱辐照度; (c) 经过顶电池过滤后的太阳光谱辐照度; (d) 底电池的短路电流随厚度变化曲线; Control电池和DPHJ电池作为顶电池的叠层太阳电池及其子电池的J-V曲线(e)和EQE曲线(f)

Figure 2. (a) Device architecture of tandem solar cells; (b) AM1.5G standard solar spectral irradiance; (c) filtered spectral irradiance through the top cell; (d) thickness-dependent short-circuit current density of the bottom cell; (e) J-V curves and (f) EQE spectra of tandem solar cells with control top cell and DPHJ top cell.

DownLoad: Full-Size Img PowerPoint

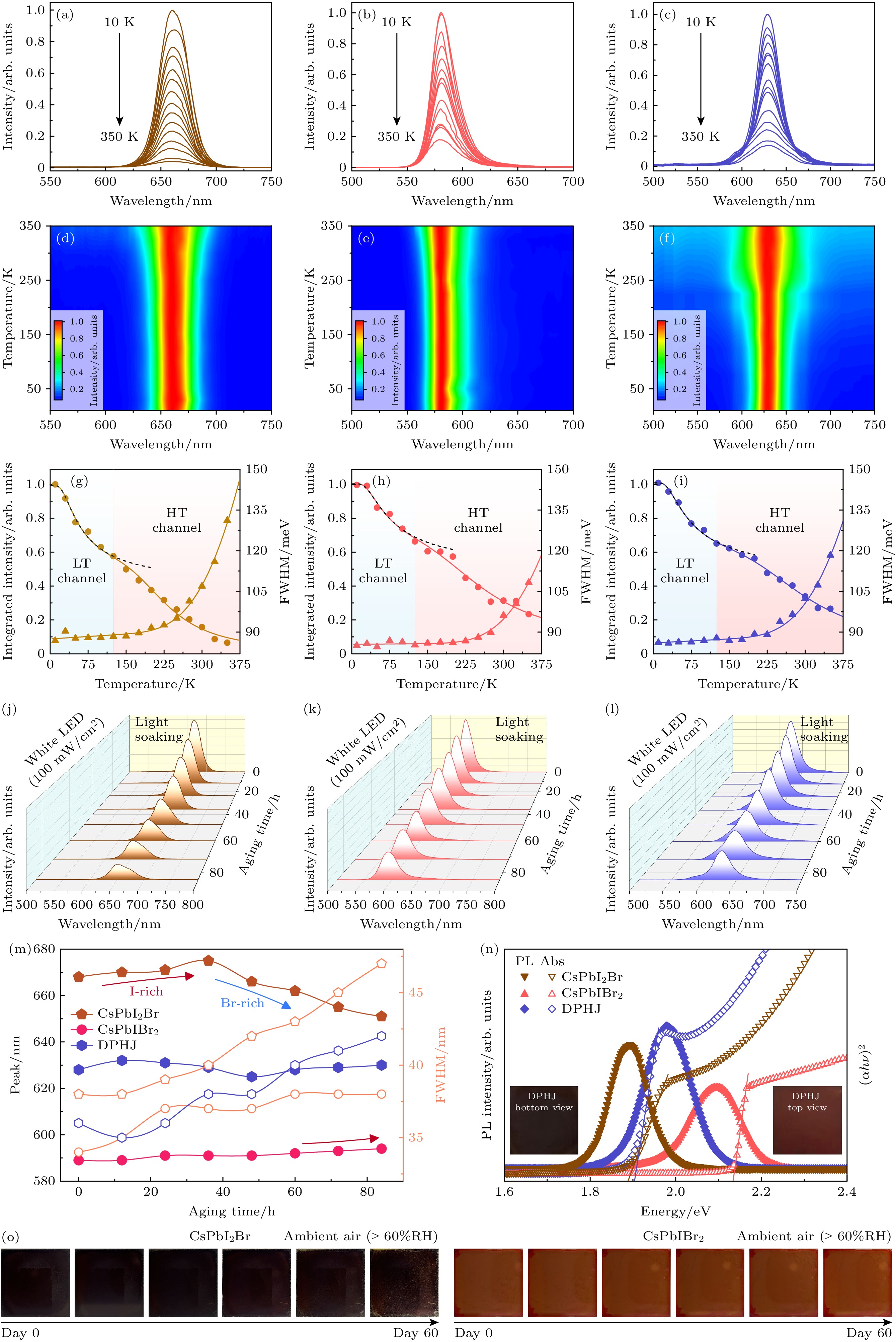

图 3 CsPbI₂Br薄膜、CsPbIBr₂薄膜和DPHJ薄膜的 (a)—(c) 变温PL谱, (d)—(f) 归一化投影图, (g)—(i) 积分强度和半高宽的温度变化曲线(虚线为采用(10)式的单指数函数拟合的曲线); 持续光照下薄膜的PL谱随时间的变化　(j) CsPbI₂Br, (k) CsPbIBr₂, (l) DPHJ; (m) 峰位和半高宽随时间变化曲线(实心表示峰位; 空心表示半高宽); (n) DPHJ薄膜的顶视图和底视图以及其PL及紫外-可见吸收光谱; (o) CsPbI₂Br薄膜和CsPbIBr₂薄膜随时间老化图像

Figure 3. (a)–(c) PL spectra of CsPbI₂Br films, CsPbIBr₂ films and DPHJ films; (d)–(f) normalized projection diagram; (g)–(i) temperature dependence of the integrated PL intensity and full width at half-maximum (FWHM); Dashed lines are single-exponential fits according to Eq. (10). Evolution of the PL spectra under continuous illumination for (j) CsPbI₂Br, (k) CsPbIBr₂ and (l) DPHJ films; (m) temporal evolution of the PL peak position (filled symbols) and FWHM (open symbols); (n) top-view and bottom-view photographs of the DPHJ film together with its PL and UV–vis absorption spectra; (o) photographic images showing the aging of CsPbI₂Br and CsPbIBr₂ films over time.

DownLoad: Full-Size Img PowerPoint

表 1 全无机钙钛矿光吸收层和传输层的光伏模拟参数^[10,24-28]

Table 1. Photovoltaic simulation parameters of all-inorganic perovskite light-absorbing layer coupled with transport layers (ETL/HTL) ^[10,24-28].

参数	CsPbI₂Br	CsPbIBr₂	CsSnI₃	NiO_X	PCBM	SnO₂	Spiro-OMeTAD
厚度/nm	300	100	800	30	30	50	50
受主浓度/cm^–3	1×10¹⁵	1×10¹⁵	5×10¹⁶	1×10¹⁵	0	0	1×10¹⁹
施主浓度/cm^–3	0	0	0	0	5×10¹⁷	1×10¹⁹	0
带隙/eV	1.92	2.11	1.27	3.50	2	3.49	2.6
导带有效态密度/cm^–3	5.1×10¹⁷	1×10¹⁹	1.58×10¹⁹	2.8×10¹⁹	1×10¹⁹	4.36×10¹⁸	2.5×10²⁰
价带有效态密度/cm^–3	1.8×10¹⁸	1×10¹⁹	1.47×10¹⁸	1.8×10¹⁹	1×10¹⁹	2.52×10¹⁹	2.5×10²⁰
电子亲合能/eV	4.16	3.56	4.47	1.80	4.30	4.31	2.60
相对介电常数	7.43	20	10.59	10.70	4	9	3
电子迁移率/(cm²⋅V^–1⋅s^–1)	1.02×10⁵	2.3×10³	4.37	12	1×10^–4	240	2×10^–4
空穴迁移率/(cm²⋅V^–1⋅s^–1)	1.93×10⁴	3.2×10²	4.37	25	1×10^–2	25	2×10^–4

DownLoad: CSV

表 2 变温PL的拟合参数

Table 2. Temperature-dependent photoluminescence fitting parameters.

Sample	E₁/meV	E₂/meV	γ_ac	γ_LO	E_LO/meV
CsPbI₂Br	7.85	101.9	1.2×10^–2	6.9×10³	156.6
CsPbIBr₂	9.25	85.8	1.8×10^–3	5.8×10³	167.7
DPHJ	8.98	110.7	1.1×10^–2	6.3×10³	162.5

DownLoad: CSV
