为了明确La0.9Pr0.1Fe12B6合金的变磁相变属性和对应的晶体结构特征, 以及伴随的磁热效应, 本文研究了该合金在磁场诱导和温度诱导下的变磁相变过程及其对应的X射线衍射图谱(X-ray diffraction spectrum, XRD)变化, 并对不同测量模式下磁热性能进行深入对比. 结果表明, La0.9Pr0.1Fe12B6合金主相在低场升温过程中, 温度诱导的磁相变顺序为反铁磁态→铁磁态→顺磁态; 在等温磁化过程中, 在不同温度区间呈现出了3种磁场诱导的变磁相变, 即在低温时的两种反铁磁态(antiferromagnetic, AFM)与铁磁态(ferromagnetic, FM)之间的相变, 以及高温的顺磁态(paramagnetic state, PM)与FM态之间的相变, 且其对应的临界磁场(critical magnetic field, HC)比LaFe12B6母合金的低得多. 零场和加场变温XRD图谱显示La0.9Pr0.1Fe12B6合金的主相在磁无序和有序态间的转变过程中, 会伴随磁晶耦合现象, 其结果是XRD图谱中除原有主相的衍射峰外, 还会出现一些PM态下无法观察到的新衍射峰, 并且其强度随着温度的降低或磁场的增大而增强. 另外, 在基于连续测量模式下的等温磁化数据所计算的磁熵变随温度变化曲线中, 可在居里温度附近观察到因磁场诱导PM-FM一级变磁相变而导致的大磁熵变($ \Delta {S_{\text{M}}} $), 如在70 kOe的磁场下, 在50 K附近的最大磁熵变可达19 J/(kg·K), 相对制冷量约为589.1 J/kg. 然而在同样的测量模式下, 却没有观察到因AFM-FM变磁相变所期望的大磁熵变. 但采用非连续测量模式, 则同样观察到AFM-FM变磁相变过程伴随的大磁熵变, 如在70 kOe的磁场下, 8 K附近的最大磁熵变可达–12 J/(kg·K).
-
关键词:
- La0.9Pr0.1Fe12B6合金 /
- 磁相变 /
- 磁热效应
In order to clarify the metamagnetic transition properties and corresponding crystal parameter characteristics of La0.9Pr0.1Fe12B6 alloy, as well as the accompanying magnetocaloric effects, we study the magnetic phase transition process of the alloy induced by magnetic field and temperature, and the corresponding changes of X-ray diffraction patterns, and conduct in-depth comparisons of the magnetocaloric properties between different measurement modes. The results indicate that the La0.9Pr0.1Fe12B6 sample mainly consists of about 90 wt.% SrNi12B6 type structural main phase and about 10 wt.% Fe2B and α-Fe, which are consistent with those given in the reference literature. In the zero-field increasing temperature process, the magnetic state sequence of the main phase of La0.9Pr0.1Fe12B6 alloy is antiferromagnetic (AFM)→ferromagnetic (FM)→paramagnetic (PM); in the isothermal magnetization process, three types of magnetic field-induced metamagnetic transitions occur in different temperature ranges, namely, two different transitions between AFM and FM states at low temperatures, and a transition between PM and FM states above the Curie temperature (TC). The corresponding critical magnetic field (HC) is much lower than that of the LaFe12B6 parent alloy. On the contrary, the main phase of La0.9Pr0.1Fe12B6 alloy exhibits only PM-FM transition. This indicates that after the alloy transitions from PM state to FM state in the cooling process, even after the temperature drops to a certain value, it will not transition to AFM state. Similar phenomena also exist in other alloy of LaFe12B6 system. Based on the Néel temperature (TN) and TC obtained from the ZFCW mode M-T curves, the magnetic state phase diagram of La0.9Pr0.1Fe12B6 alloy is plotted. The results indicate that as the external magnetic field increases, TC moves linearly towards higher temperatures at a rate of almost 0.48 K/kOe. Conversely, TN1 and TN2 gradually move towards lower temperatures at rates of 0.48 K/kOe and 0.26 K/kOe, respectively. The zero-field and field-variable temperature XRD patterns show that during the magnetic transition between disorder and order states of the main phase in La0.9Pr0.1Fe12B6 alloy, there is a phenomenon of magnetocrystalline coupling. As a result, in addition to the original diffraction peaks of the main phase, some new diffraction peaks that are not observable in the PM state also appear, and their intensities increase with the decrease of temperature or the increase of magnetic field. Through Retveld refinement on XRD patterns under different conditions, it is found that the atomic occupancy rates of La/Pr and Fe are very stable in different environments, but the atomic occupancy rate of B varies greatly, which may be the main factor leading to the appearance of new diffraction peaks. In addition, in the temperature dependent magnetic entropy change curve calculated based on isothermal magnetization data in continuous measurement mode, a large magnetic entropy change can be observed near TC due to the magnetic field induced first-order metamagnetic transition of PM-FM. For example, under a magnetic field of 70 kOe, the maximum magnetic entropy change near 50 K can reach 19 J/(kg·K), and the relative cooling capacity is about 589.1 J/kg. However, under the same measurement mode, the expected large magnetic entropy change due to the AFM-FM metamagnetic transition is not observed. But, when using a discontinuous measurement mode, the large magnetic entropy change accompanying the AFM-FM transition process is also observed. For example, under a magnetic field of 70 kOe, the maximum magnetic entropy change near 8 K can reach –12 J/kg·K.
-
Keywords:
- La0.9Pr0.1Fe12B6 alloy /
- magnetic transition /
- magnetocaloric effect
-

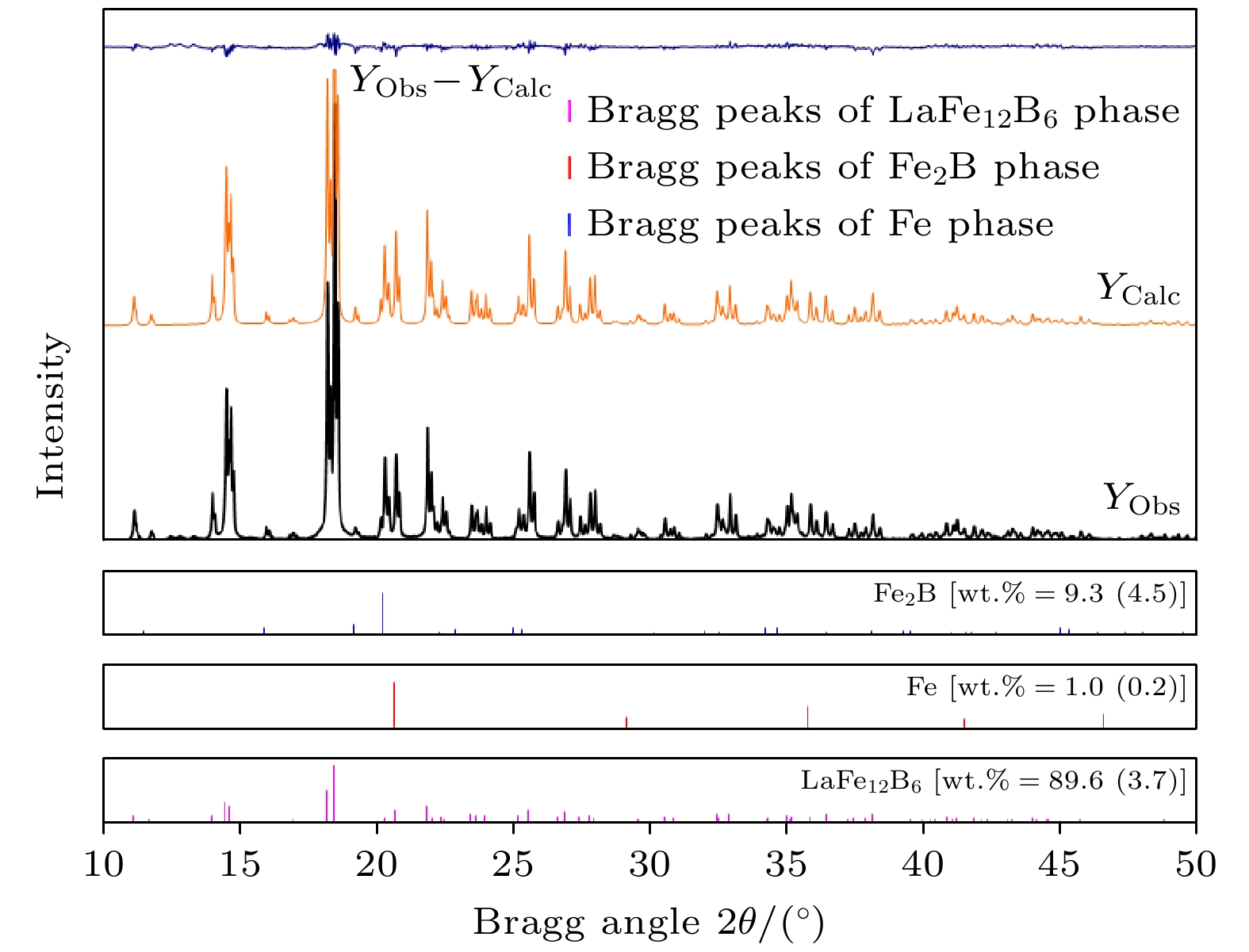

图 1 La0.9Pr0.1Fe12B6合金的室温XRD谱及Rietveld精修结果(蓝线表示测量值(Yobs)和计算值(Ycalc)之间的差值, 以蓝色显示在顶部, 图形方差因子(Rp)为8.16%, 布拉格因子(RB)为7.94%, 预期可靠性(Rexp)为3.87%)
Fig. 1. Room temperature XRD spectrum (black line) and Rietveld refinement result (orange line) of La0.9Pr0.1Fe12B6 alloy (The blue line represents the difference between measurement value (Yobs) and calculated value (Ycalc) shown on top in blue, graph variance factor (Rp) is 8.16%, Bragg factor (RB) is 7.94%, and expected reliability (Rexp) is 3.87%).

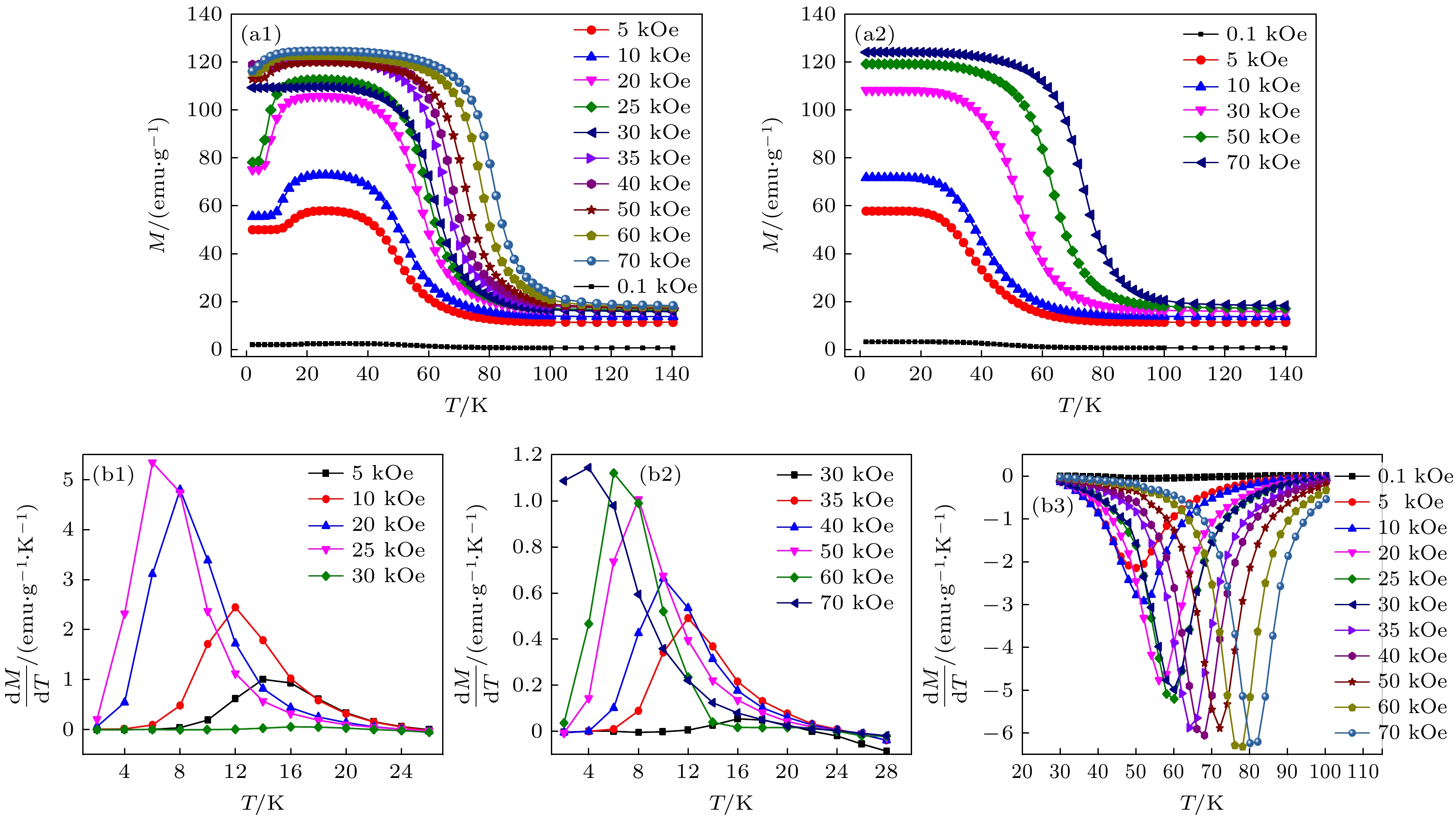

图 2 在0.1—70 kOe的外加磁场中, ZFCW模式(a1)和FC模式(a2)下La0.9Pr0.1Fe12B6合金的磁化强度-温度(M-T)曲线; 不同磁场和温度下ZFCW模式磁化数据导出的dM/dT曲线 (b1) 5—30 kOe, 2—26 K; (b2) 30—70 kOe, 2—28 K; (b3) 0.1—70 kOe, 30—100 K
Fig. 2. Magnetization-temperature M-T curves measured under zero-magnetic field cooled warming (ZFCW) (a1) mode and field cooling (FC) (a2) modes in applied magnetic fields of 0.1–70 kOe. (b1)–(b3) dM/dT curves derived from magnetization data of ZFCW mode under different magnetic fields and temperatures: (b1) 5–30 kOe, 2–26 K; (b2) 30–70 kOe, 2–28 K; (b3) 0.1–70 kOe, 30–100 K.

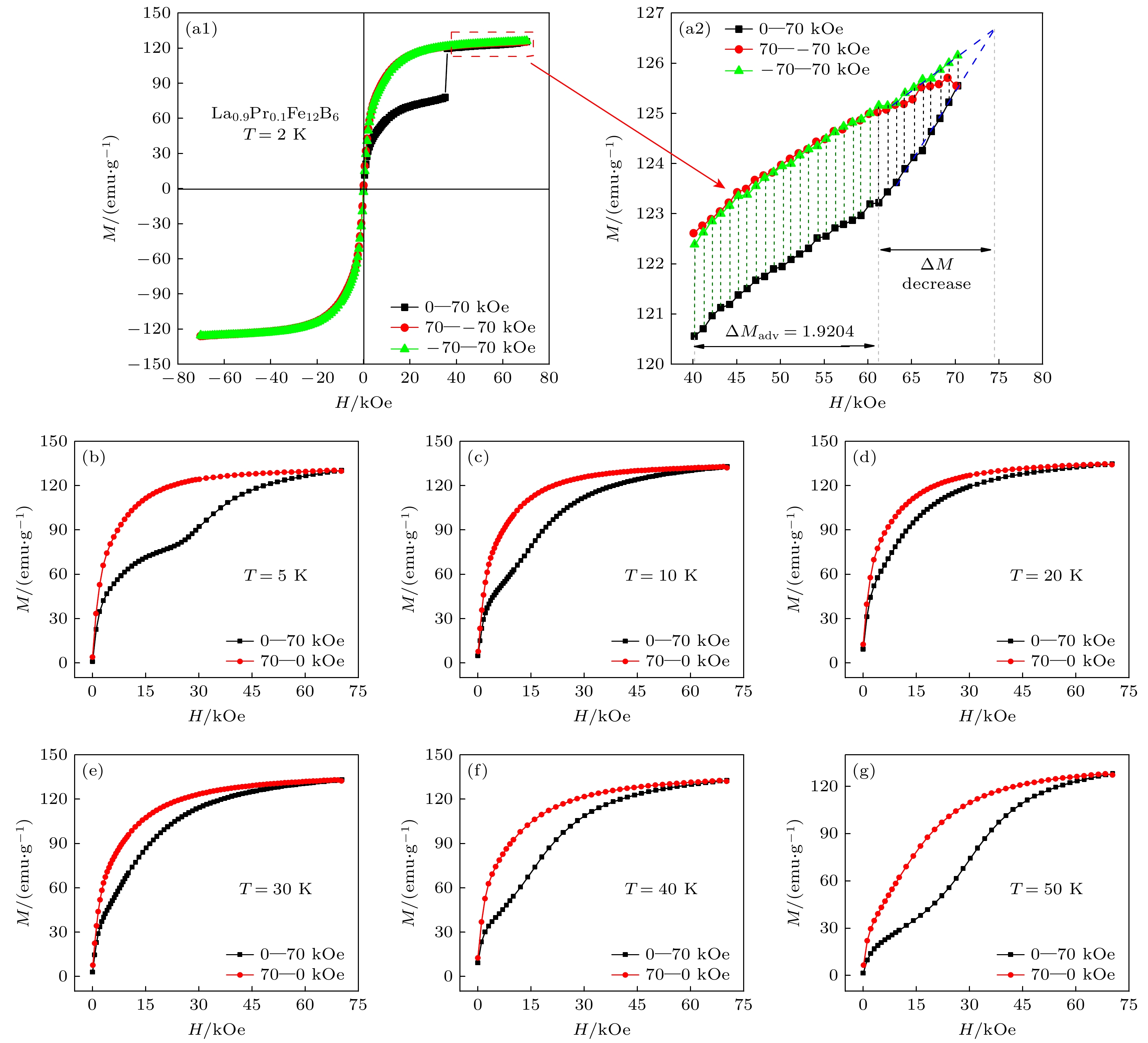

图 3 基于非连续方法测得的不同温度下的加场和降场等温磁化强度-磁场(M-H)曲线(ΔM为加场和退场之间的磁化差, ΔMavg为平均磁化差) (a1), (a2) 2 K; (b) 5 K; (c) 10 K; (d) 10 K; (e) 30 K; (f) 40 K; (g) 50 K
Fig. 3. Isothermal M-H curves measured under increasing and decreasing fields at different temperatures via discontinuous method (ΔM—the difference in magnetization between adding and removing fields, ΔMavg—the average difference in magnetization): (a1), (a2) 2 K; (b) 5 K; (c) 10 K; (d) 10 K; (e) 30 K; (f) 40 K; (g) 50 K.

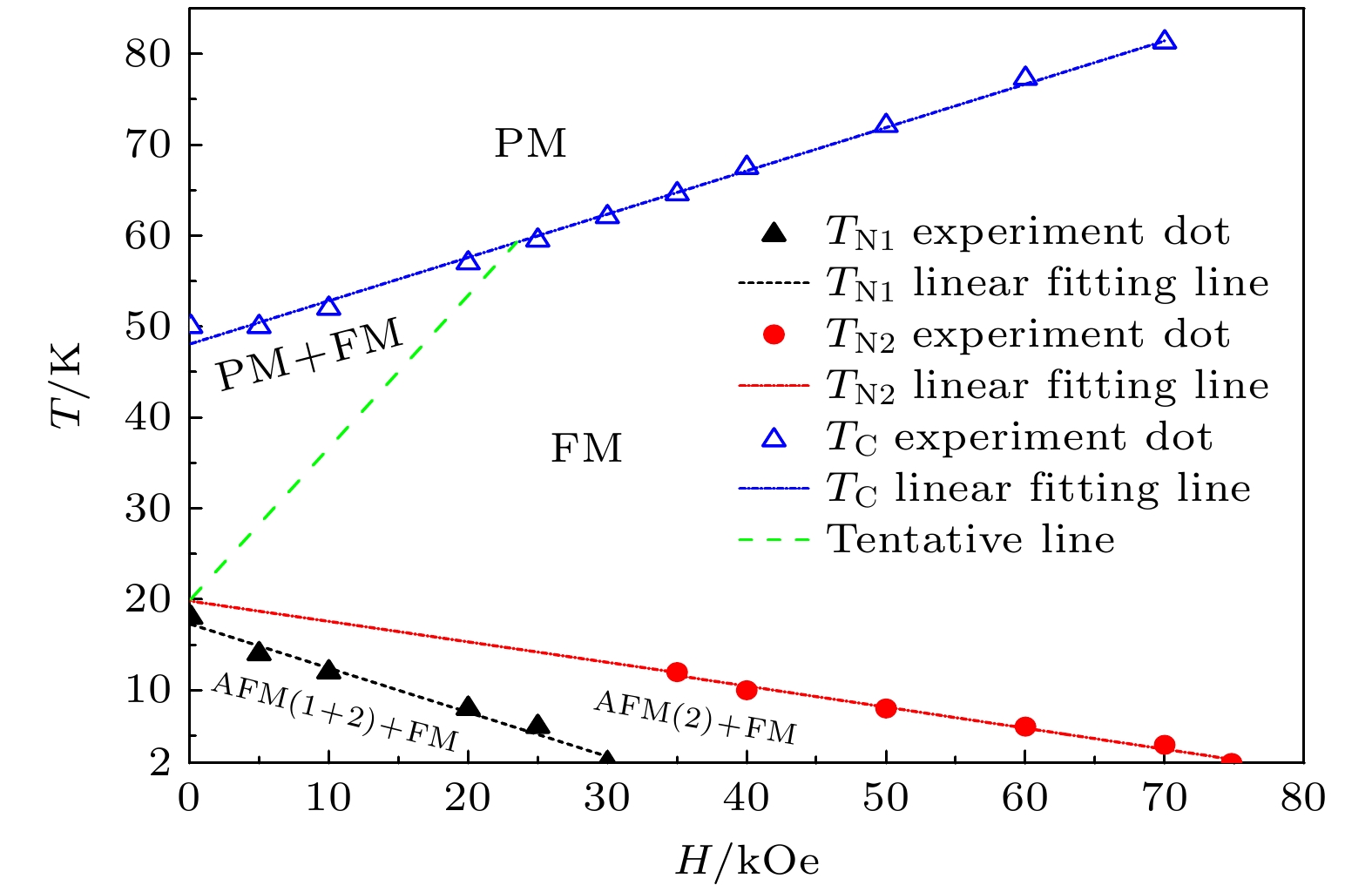

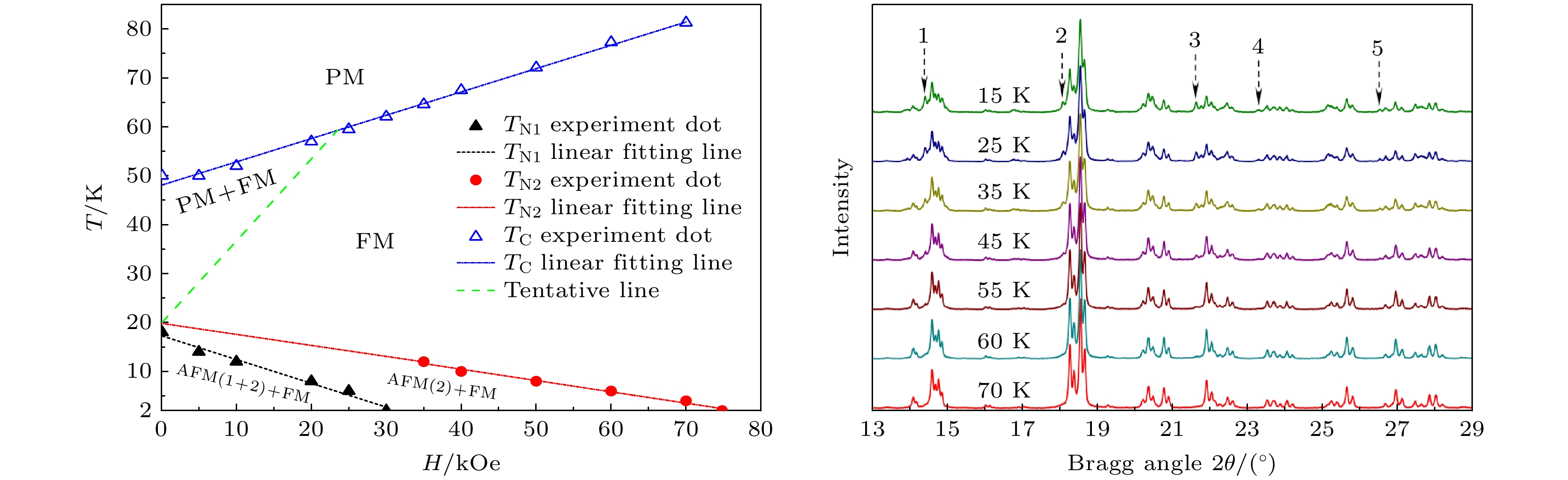

图 4 La0.9Pr0.1Fe12B6合金的磁场-温度磁相图
Fig. 4. Field-temperature magnetic phase diagram of La0.9Pr0.1Fe12B6 compound.

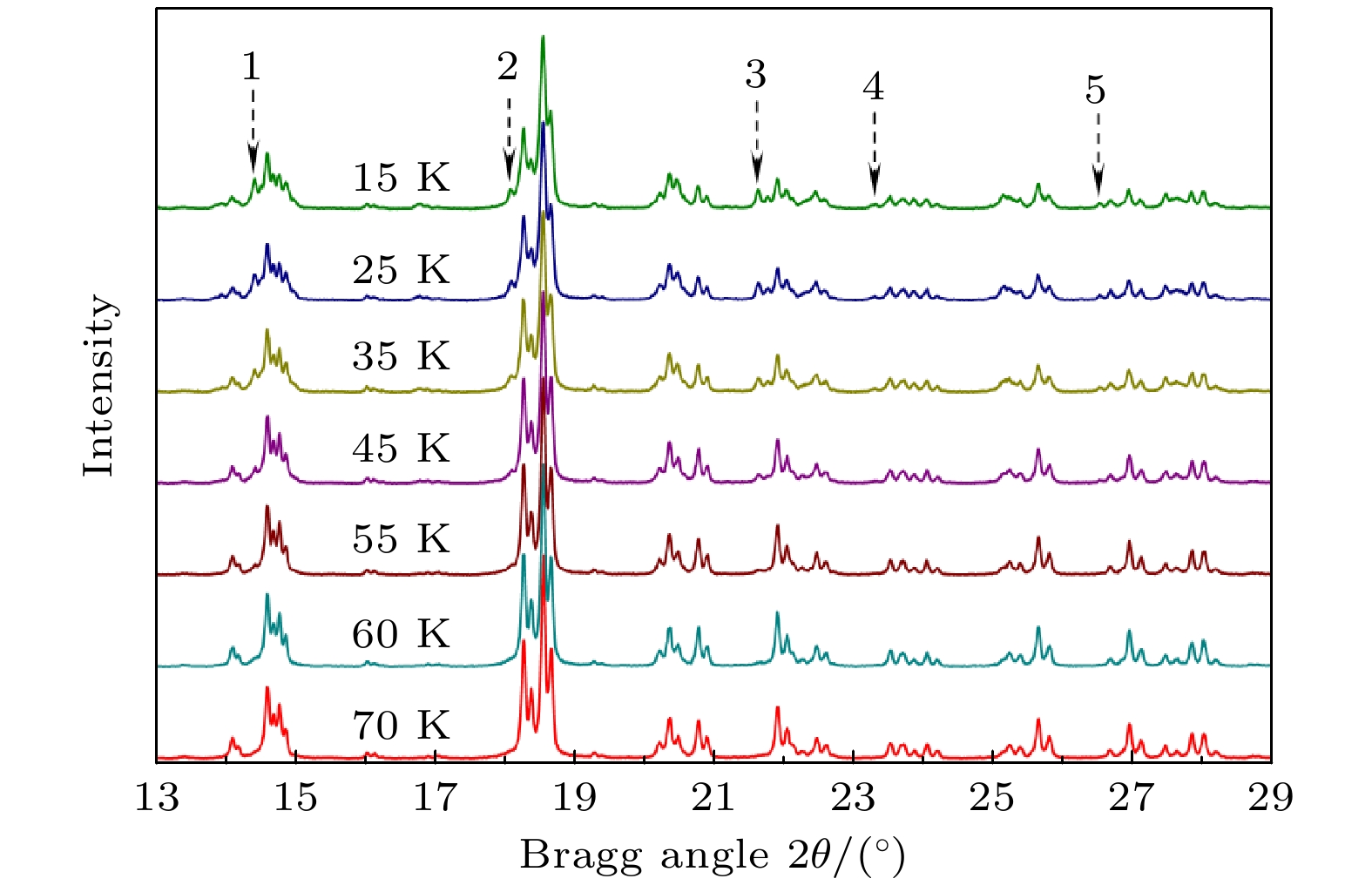

图 5 零场下样品从室温冷却至不同温度后的XRD谱及合金主相的晶格常数随温度变化曲线
Fig. 5. XRD spectra of the sample cooled from room temperature to different temperatures.

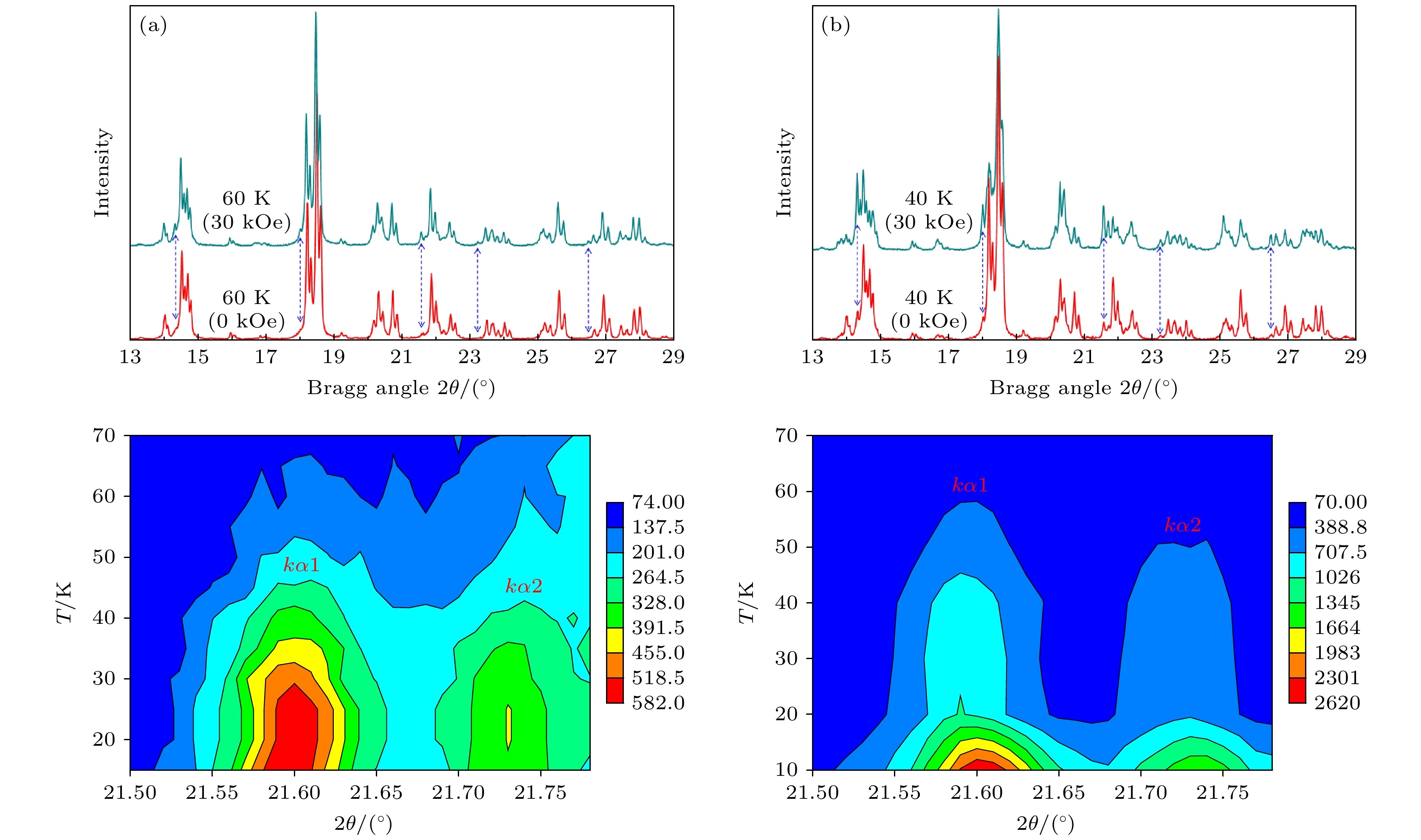

图 6 La0.9Pr0.1Fe12B6合金在ZFCW模式下的零场和加场XRD谱, 其中(a) 60 K; (b) 40 K; 衍射强度-温度等值线图, 其中(c) 0 kOe; (d) 30 kOe
Fig. 6. XRD spectra ((a) 60 K, (b) 40 K) and temperature-dependent diffraction intensity contour maps ((c) 0 kOe, (d) 30 kOe) of La0.9Pr0.1Fe12B6 alloys in ZFCW mode with and without magnetic field.

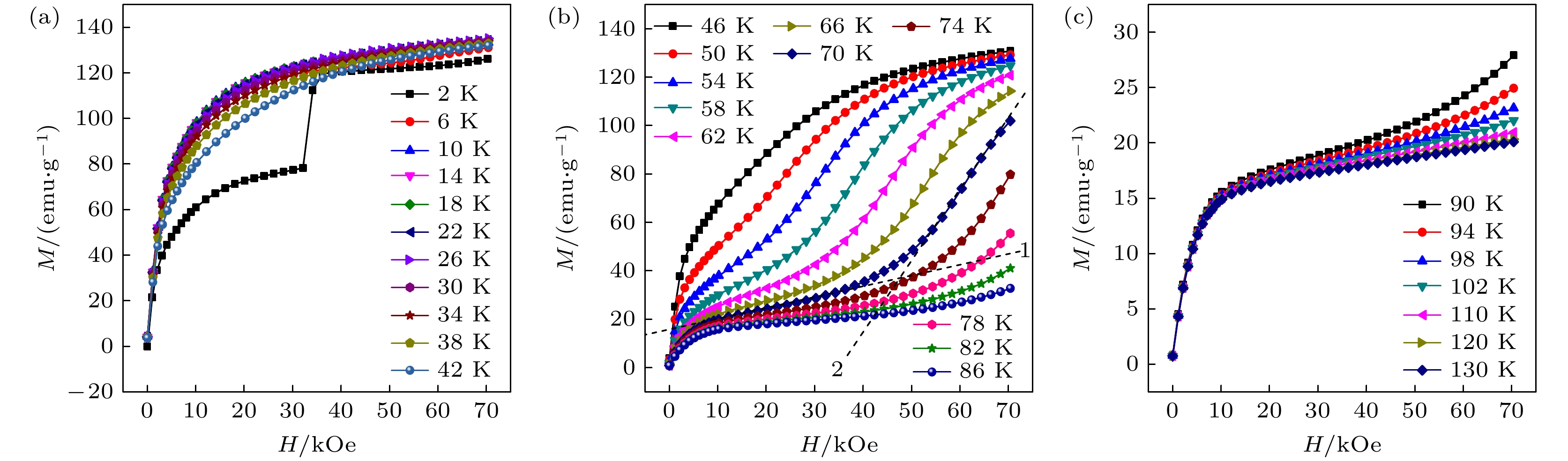

图 7 基于连续方法测得的不同温度下的等温M-H曲线 (a) 2—42 K; (b) 46—86 K; (c) 90—130 K
Fig. 7. Isothermal M-H curves at different temperatures obtained via continuous method: (a) 2–42 K; (b) 46–86 K; (c) 90–130 K.

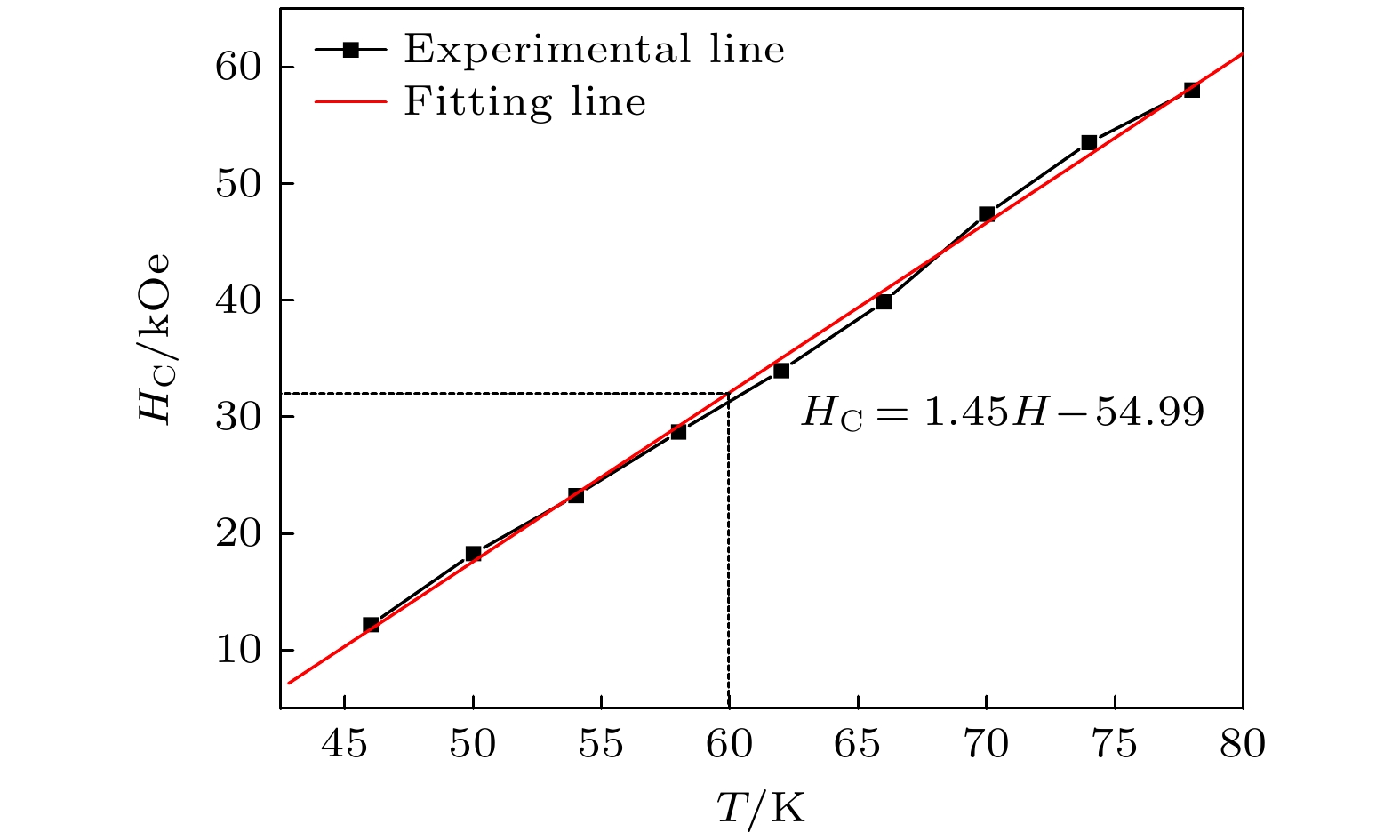

图 8 PM-FM变磁相变中临界磁场(HC)随温度(45—78 K)的变化曲线
Fig. 8. Critical magnetic field (HC) of magnetic field induced PM-FM transition as a function of temperature from 45 to 78 K (H—magnetic field).

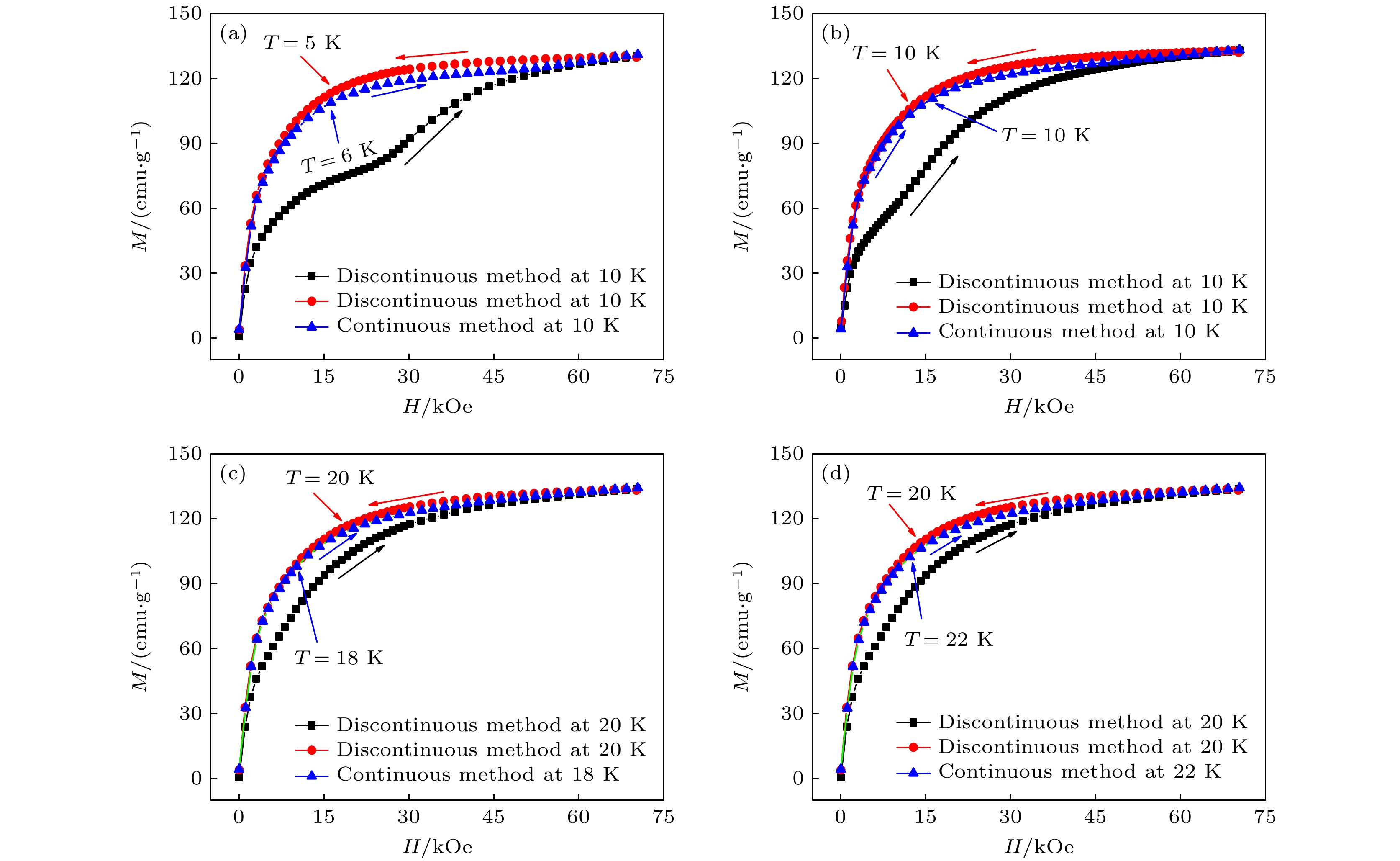

图 9 基于连续和非连续方法测得的加场与退场M-H曲线 (a) 5, 6 K; (b) 10 K; (c) 18, 20 K; (d) 20, 22 K
Fig. 9. Adding field and removing field M-H curves measurement by continuous discontinuous methods: (a) 5, 6 K; (b) 10 K; (c) 18, 20 K; (d) 20, 22 K.

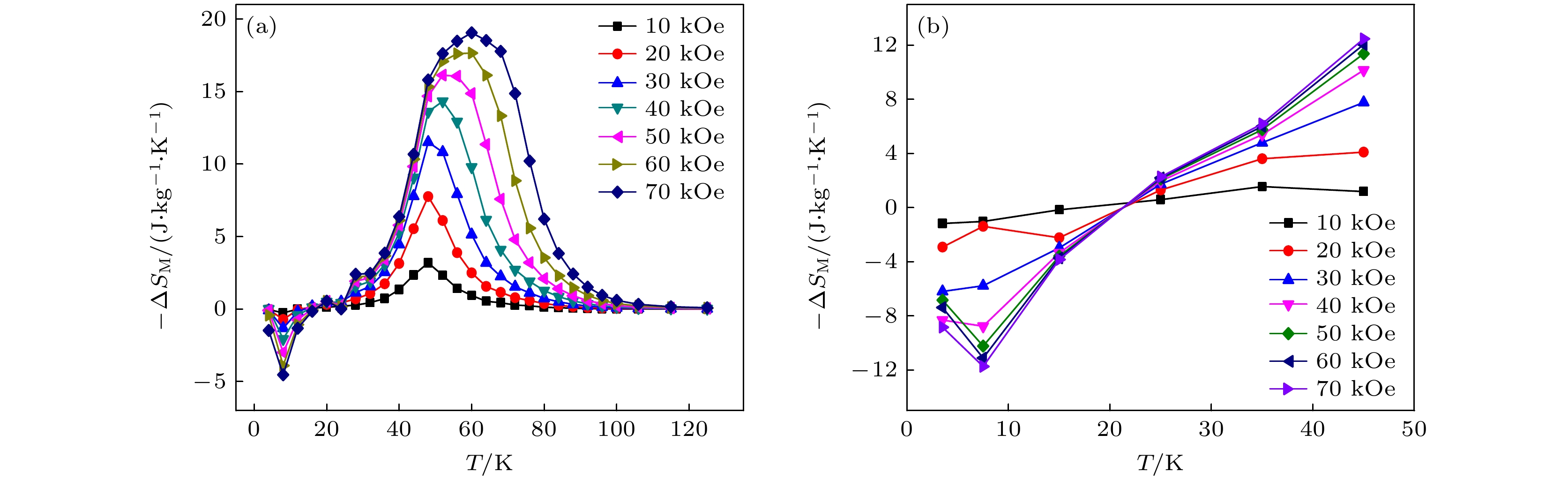

图 10 不同磁场下La0.9Pr0.1Fe12B6合金的磁熵变($\Delta {S_{{\text{Max}}}}$)随温度的变化 (a) 根据图7中的等温磁化数据使用麦克斯韦关系式通过连续方法得出; (b) 根据图3中相同施加磁场变化间隔内的等温磁化数据得出
Fig. 10. Temperature dependence of the magnetic entropy change ($\Delta {S_{{\text{Max}}}}$) curves of La0.9Pr0.1Fe12B6 alloy under different magnetic fields: (a) $\Delta {S_{{\text{Max}}}}$derived from isothermal magnetization data in Fig. 7 measured by continuous method using Maxwell relation; (b) $\Delta {S_{{\text{Max}}}}$derived from isothermal magnetization data in Fig. 3 in the same applied magnetic field change intervals.

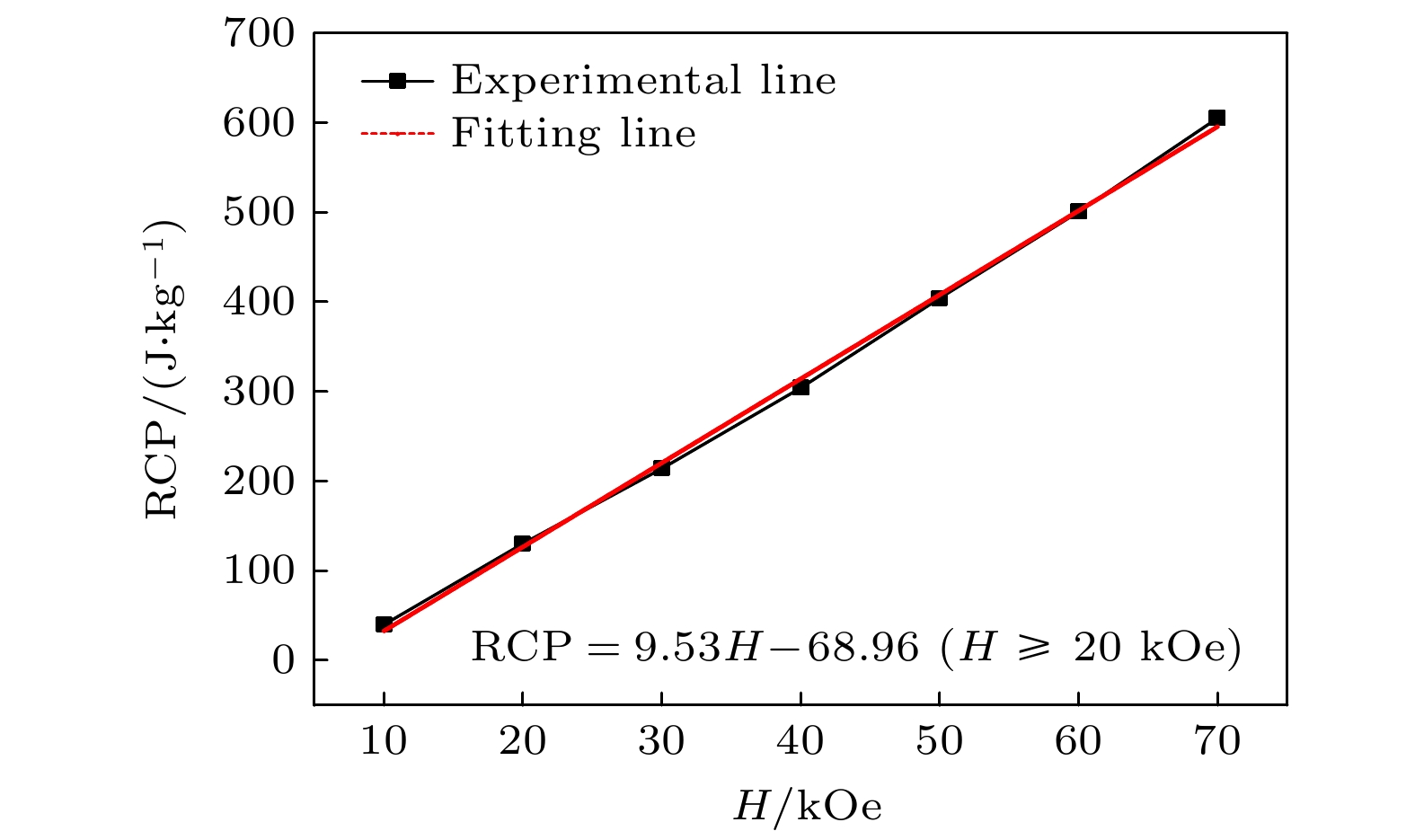

图 11 相对制冷量随磁场的变化曲线
Fig. 11. Relative cooling capacity (RCP) as a function of magnetic field.
表 1 合金中SrNi12B6结构主相在不同环境中的原子位置
Table 1. Atomic positions of SrNi12B6 structural main phase under different environments.
Atoms Site Fill 300 K (0 kOe) 40 K (0 kOe, PM and FM) 40 K (30 kOe field, FM) x y z x y z x y z La/Pr 3 a 1 0 0 0 0 0 0 0 0 0 B 18 h 1 0.17978 0.82022 0.06178 0.17538 0.82462 0.08121 0.14972 0.85028 0.13183 Fe 18 g 1 0.36916 0 1/2 0.37055 0 1/2 0.37107 0 1/2 Fe 18 h 1 0.42487 0.57513 0.03504 0.42418 0.57582 0.03553 0.42500 0.57500 0.03855 Note: PM—paramagnetism, FM—ferromagnetism; x, y, z—three coordinates.
