利用密度泛函理论结合非平衡格林函数的第一性原理方法, 研究了金属相1T-MoS2和Pd金属为非对称源漏电极的5 nm二维SiC场效应晶体管的输运性质, 并系统分析了1T-MoS2电极层数增加以及工作电压减小对器件工作性能的影响机制. 研究结果表明1T-MoS2层数增加会增大器件空穴肖特基势垒高度, 但同时提高带边输运系数, 二者相互竞争共同影响器件的工作性能. SiC的宽禁带特征可以显著抑制短沟道效应, 使所有器件都可以满足关态要求. 更重要的是, 所有器件在0. 64 V工作电压下的亚阈值摆幅都接近60 mV/dec物理极限, 且各项工作性能参数均能显著超越国际设备和系统路线图(IRDS)为高性能器件设定的标准. 此外, 器件的工作电压可以进一步降低至0.52 V, 对应的功耗延迟积和延迟时间低至0.086 fJ/μm和0.038 ps, 仅为IRDS标准的14%和4%. 本工作提出的非对称源漏电极设计策略, 不仅很好地解决了现有二维材料场效应晶体管开态电流不高以及短沟道效应制约关态电流的问题, 更为后摩尔时代超低功耗纳米电子器件的发展提供了重要的解决方案.By using the first-principles method based on density functional theory and non-equilibrium Green’s function, the transport properties of 5-nm two-dimensional SiC field-effect transistors with asymmetric metal phase 1T-MoS2 sources and Pd drain electrodes are investigated. The influence mechanism of increasing the electrode layers of 1T-MoS2 and reducing the working electrical compression on the device performance is systematically analyzed. The Schottky barriers extracted from the zero bias and zero gate voltage transport spectra show that the valence band maximum of SiC in the channel regions of MFET, BFET and TFET are closer to the Fermi level after the source drain electrode has been balanced. Therefore, these three devices belong to P-type contact, and the height of the hole Schottky barrier increases with the increase of the number of 1T-MoS2 layers in the source electrode, which are 0.6, 0.76, and 0.88 eV, respectively. In addition, the increase of 1T-MoS2 layers will also lead to the increase of the density of states in the source electrode, thereby improving the transport coefficient at the band edge. The effects of the two on the transport capacity of the device are opposite, and there is a competitive relationship. The transfer characteristics of devices show that the wide band gap of SiC can significantly suppress the short channel effect, so that all devices can meet the requirements of Off-state. More importantly, the subthreshold swings of all devices at an operating voltage of 0.64 V are all close to the physical limit of 60 mV/dec. The ON-state currents of MFET, BFET and TFET can reach 1553, 1601 and 1702 μA/μm under the more stringent IRDS HP standard, and the three performance parameters, i.e. intrinsic gate capacitance, power-delay product and delay time, can greatly exceed the standards in the international road map of equipment and systems (IRDS) for high-performance devices. In addition, the working voltage of MFET can be reduced to 0.52 V, and the corresponding power-delay product and delay time are as low as 0.086 fJ/μm and 0.038 ps, which are only 14% and 4% of the IRDS standard. The asymmetric source drain electrode design strategy proposed in this work not only solves the problems about low On-state current and short channel effect restricting Off-state current of existing two-dimensional material field-effect transistors, but also provides an important solution for developing ultra-low power nano electronic devices in the post Moore era.
-
Keywords:
- two-dimensional material /
- first principles /
- field-effect transistor /
- transfer characteristic /
- short channel effect
[1] Wang Q H, Kalantar-Zadeh K, Kis A, Coleman J N, Strano M S 2012 Nat. Nanotech. 7 699
Google Scholar
[2] 赵俊, 姚璨, 曾晖 2024 物理学报 73 126802
Google Scholar
Zhao J, Yao C, Zeng H 2024 Acta Phys. Sin. 73 126802
Google Scholar
[3] Cui Y, Li B, Li J B, Wei Z M 2018 Sci. China-Phys. Mech. Astron. 61 016801
Google Scholar
[4] Wu D, Cao X H, Jia P J, et al. 2020 Sci. China-Phys. Mech. Astron. 63 276811
Google Scholar
[5] Liu Q, Huang X D, Chen J J, Wu D, Deng X Q, Fan Z Q, Xie H Q, Chen K Q 2025 Appl. Phys. Lett. 126 253502
Google Scholar
[6] Radisavljevic B, Radenovic A, Brivio J, Giacometti V, Kis A 2011 Nat. Nanotech. 6 147
Google Scholar
[7] Cui Y, Zhou Z Q, Li T, Wang K Y, Li J B, Wei Z M 2019 Adv. Funct. Mater. 29 1900040
Google Scholar
[8] Ren Y, Zhou X Y, Zhou G H 2021 Phys. Rev. B 103 045405
Google Scholar
[9] Liu Q, Li J J, Wu D, Deng X Q, Zhang Z H, Fan Z Q, Chen K Q 2021 Phys. Rev. B 104 045412
Google Scholar
[10] Zhou W X, Cheng Y, Chen K Q, Xie G F, Wang T, Zhang G 2020 Adv. Funct. Mater. 30 1903829
Google Scholar
[11] Quhe R G, Wang Y Y, Lu J 2015 Chin. Phys. B 24 088105
Google Scholar
[12] Huang X D, Liu Q, Xie H Q, Deng X Q, Fan Z Q, Wu D, Chen K Q 2023 IEEE Trans. Electron. Dev. 70 5462
Google Scholar
[13] 郭颖, 潘峰, 姚彬彬, 孟豪, 吕劲 2024 物理学报 73 207304
Google Scholar
Guo Y, Pan F, Yao B B, Meng H, Lü J 2024 Acta Phys. Sin. 73 207304
Google Scholar
[14] Qu H Z, Zhang S L, Cao J, et al. 2024 Sci. Bull. 69 1427
Google Scholar
[15] Ma L K, Tao Q Y, Chen Y, Lu Z Y, Liu L T, Li Z W, Lu D L, Wang Y L, Liao L, Liu Y 2023 Nano Lett. 23 8303
Google Scholar
[16] Chabi S, Guler Z, Brearley A J, Benavidez A D, Luk T S 2021 Nanomaterials 11 1799
Google Scholar
[17] Zhou B H, Zhou B L, Liu G, et al. 2016 Physica B 500 106
Google Scholar
[18] Farokhnezhad M, Esmaeilzadeh M, Ahmadi S, Pournaghavi N 2015 J. Appl. Phys. 117 173913
Google Scholar
[19] Cui X Q, Liu Q, Fan Z Q, Zhang Z H 2020 Org. Electron. 84 105808
Google Scholar
[20] 邓旭良, 冀先飞, 王德君, 黄玲琴 2022 物理学报 71 058102
Google Scholar
Deng X L, Ji X F, Wang D J, Huang L Q 2022 Acta Phys. Sin. 71 058102
Google Scholar
[21] Xie H Q, Li J Y, Liu G, Cai X Y, Fan Z Q 2019 IEEE Trans. Electron Devices 66 5111
Google Scholar
[22] Xie H Q, Wu D, Deng X Q, Fan Z Q, Zhou W X, Xiang C Q, Liu Y Y 2021 Chin. Phys. B 30 117102
Google Scholar
[23] International roadmap for devices and systems (IRDS)(2023 Edition) https://irds.ieee.org
[24] Okyay A K, Chui C O, Saraswat K C 2006 Appl. Phys. Lett. 88 063506
Google Scholar
[25] Li D W, Zhao M, Liang K, et al. 2020 Nanoscal 12 21610
Google Scholar
[26] Wu J Y, Chun Y T, Li S P, Zhang T, Chu D P 2018 ACS Appl. Mater. Interfaces 10 24613
Google Scholar
[27] Liu Z, Cao G, Guan Z Z, Tian Y, Liu J D, Chen J, Deng S Z, Liu F 2024 J. Mater. Chem. C 12 17395
Google Scholar
[28] Smidstrup S, Markussen T, Vancraeyveld P, et al. 2020 J. Phys. Condens. Matter 32 015901
Google Scholar
[29] Büttiker M, Imry Y, Landauer R, Pinhas S 1985 Phys. Rev. B 31 6207
Google Scholar
[30] Liu H, Neal A T, Ye P D 2012 ACS Nano 6 8563
Google Scholar
[31] Xie H Q, Li J Y, Liu G, Cai X Y, Fan Z Q 2020 IEEE Trans. Electron Devices 67 4130
Google Scholar
[32] Zhao P, Chauhan J, Guo J 2009 Nano Lett. 9 684
Google Scholar
[33] Fan Z Q, Zhang Z H, Yang S Y 2020 Nanoscale 12 21750
Google Scholar
-

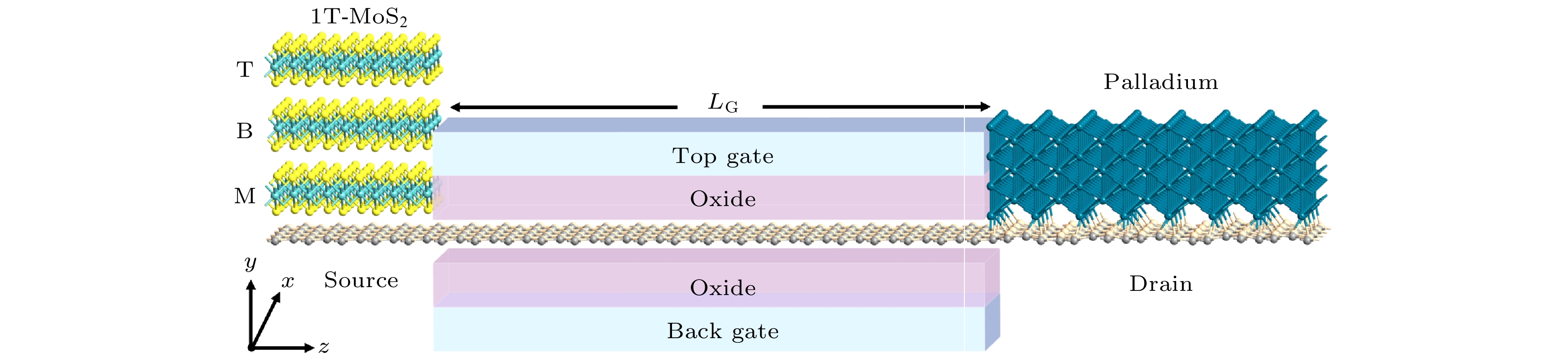

图 1 金属相1T-MoS2和Pd金属为非对称源漏电极的5 nm二维SiC场效应晶体管的结构图
Fig. 1. Detailed structure of 5 nm FET based on two-dimensional SiC with metal 1T-MoS2 contact (source) and palladium contact (drain).

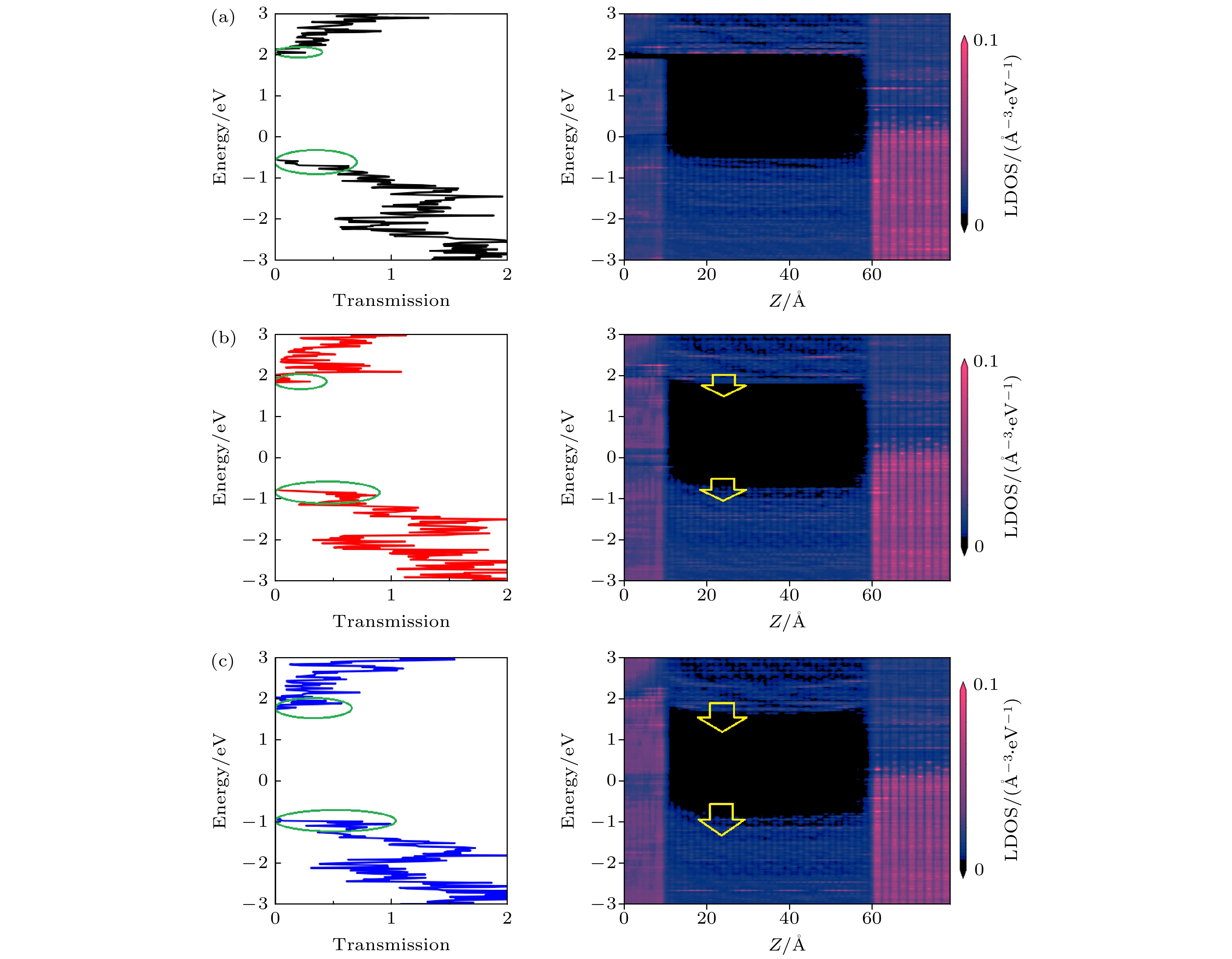

图 2 (a) MFET, (b) BFET和(c) TFET在零偏压和零栅极电压下的输运谱和投影局域态密度. 费米能级在能量标度中设置为零
Fig. 2. Transmission spectra and the projected local density of states (LDOS) of (a) MFET, (b) BFET, and (c) TFET under zero-bias voltage and zero-gate voltage. The Fermi level is set to zero in the energy scale.

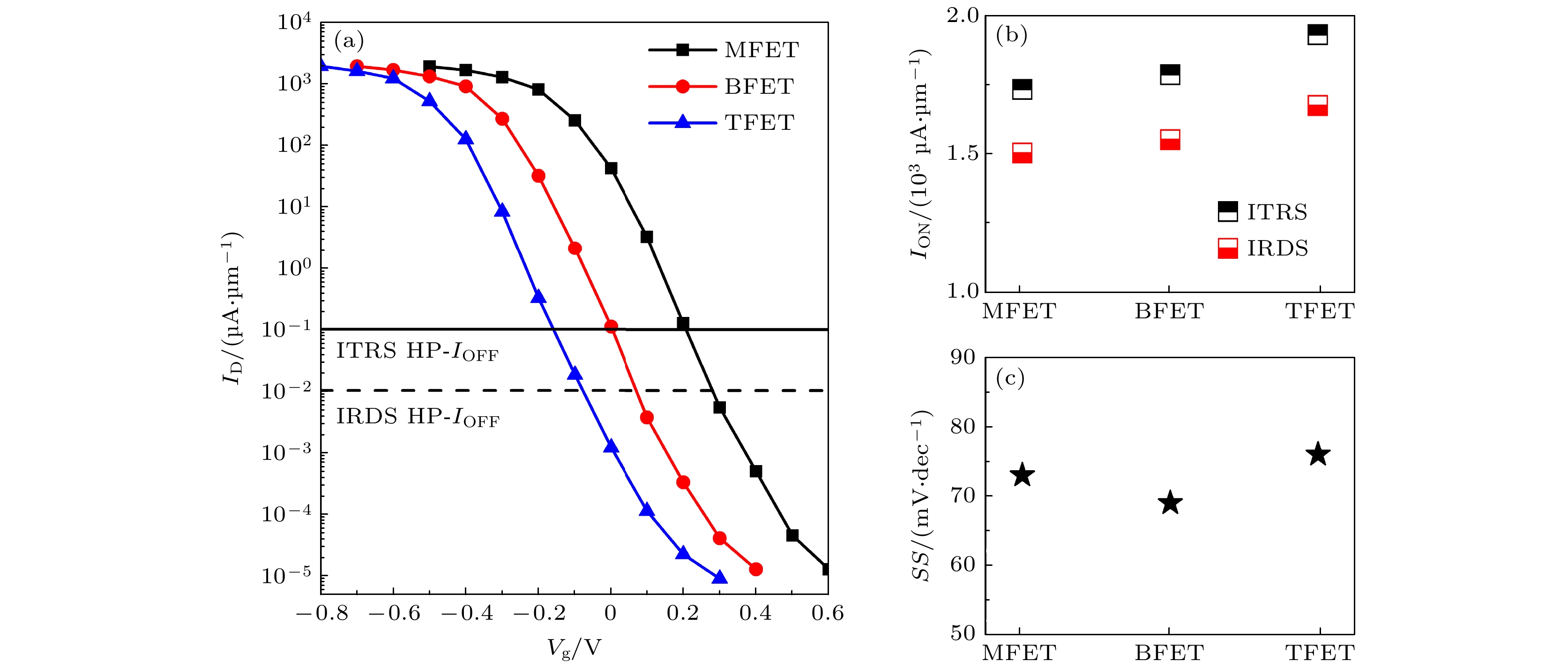

图 3 MFET, BFET和TFET的转移特性(a), 开态电流(b)和亚阈值摆幅(c)
Fig. 3. Transfer characteristic (a), ON-current (b), and subthreshold swing (c) of MFET, BFET and TFET, respectively.

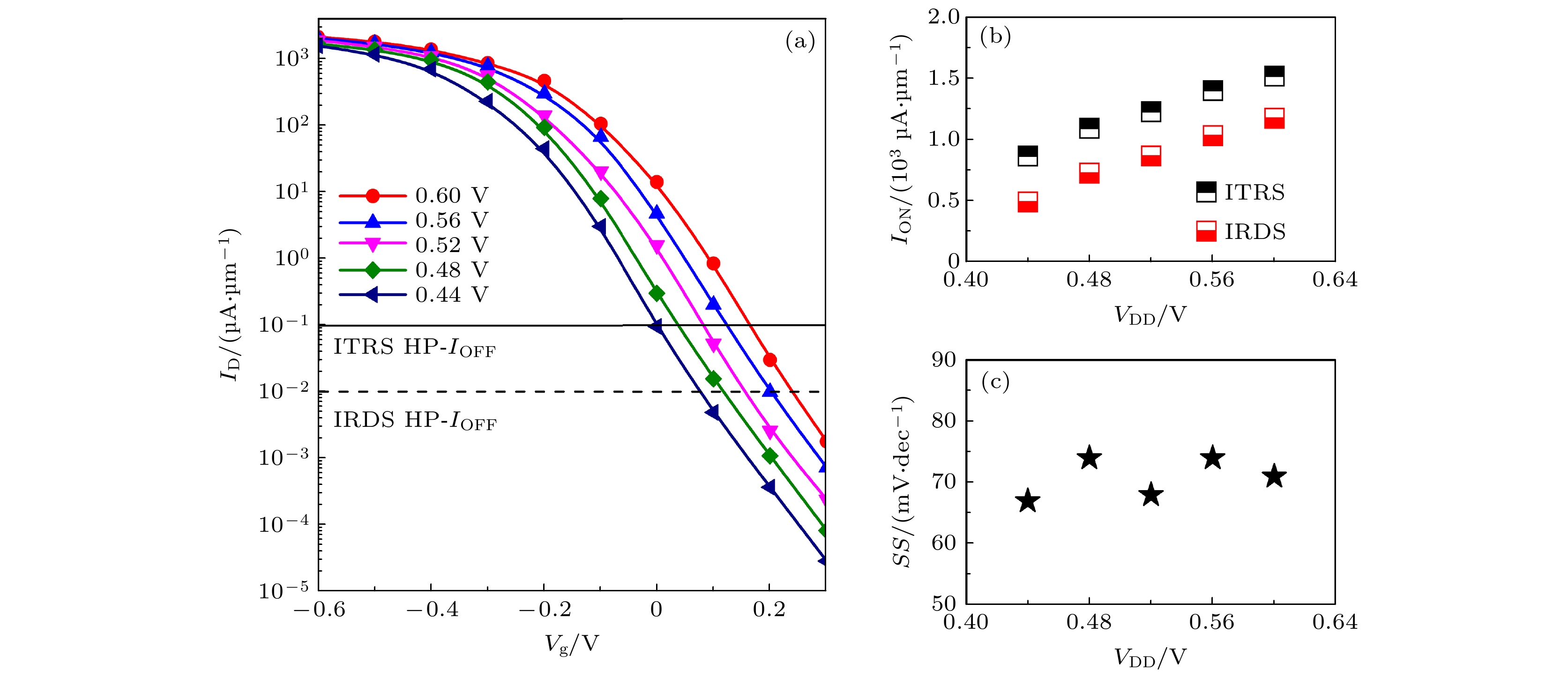

图 4 (a) MFET在0. 6 V, 0. 56 V, 0. 52 V, 0. 48 V和0. 44 V 工作电压VDD下的(a)转移特性, (b)开态电流和(c)亚阈值摆幅
Fig. 4. (a) Transfer characteristic, (b) ON-current, and (c) subthreshold swing of MFET under VDD of 0.6 V, 0.56 V, 0.52 V, 0.48 V, and 0.44 V, respectively.
表 1 MFET, BFET和TFET的性能与IRDS高性能设备要求的对比
Table 1. Performances of the MFET, BFET和TFET against the HP devices requirements of the IRDS.
Cg/
(fF·μm–1)PDP/
(fJ·μm–1)τ/ps IRDS标准 0.39 0.49 0.96 MFET (VDD = 0.64 V) 0.150 0.061 0.064 BFET (VDD = 0.64 V) 0.155 0.063 0.064 TFET (VDD = 0.64 V) 0.134 0.055 0.051 MFET (VDD = 0.60 V) 0.146 0.071 0.056 MFET (VDD = 0.56 V) 0.138 0.078 0.043 MFET (VDD = 0.52 V) 0.142 0.086 0.038
