Infrared focal plane array (IRFPA) detector, a key research focus in next-generation infrared detection technology, plays a crucial role in optoelectronic sensing. Here is the report on the integration and reliability of a PbSe-based IRFPA employing a row-column scanning readout architecture. This design features a surface passivation layer and through-hole structures to ensure robust electrical connectivity, thereby enhancing both stability and performance. The detector, with dimensions of 3.5 mm × 3.5 mm, a pixel size of 200 μm × 100 μm, and a pixel pitch of 200 μm, demonstrates structural integrity validated by electro-thermal simulations. At room temperature, the pixel-level and imaging assessments reveal an average detectivity value of 9.86×109 Jones and a responsivity value of 1.03 A/W, with a 100% effective pixel yield. Remarkably, the device retains high stability, exhibiting only a 3.6% performance decline after 150-day air exposure, which is attributed to the protective effect of the passivation layer. Infrared imaging under different light intensities shows pronounced contrast, confirming the sensitivity of the detector to illumination gradients. These results provide critical technical insights and a theoretical framework for advancing high-performance, stable PbSe-based IRFPA detectors.
-
Keywords:
- PbSe /
- focal plane /
- array /
- infrared imaging
-

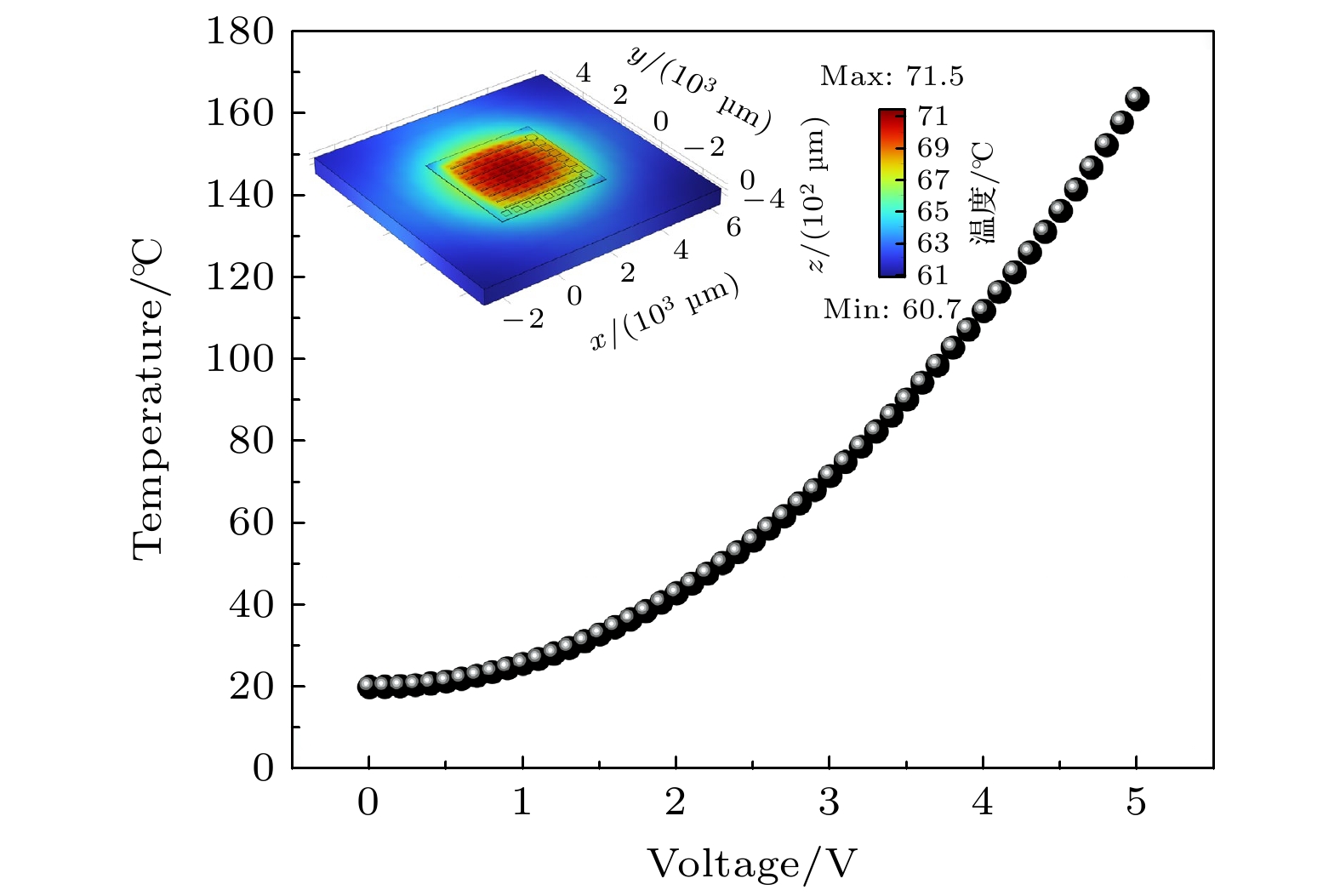

图 1 探测器最高温度随电压变化曲线
Figure 1. Maximum temperature of detector as a function of bias voltage.

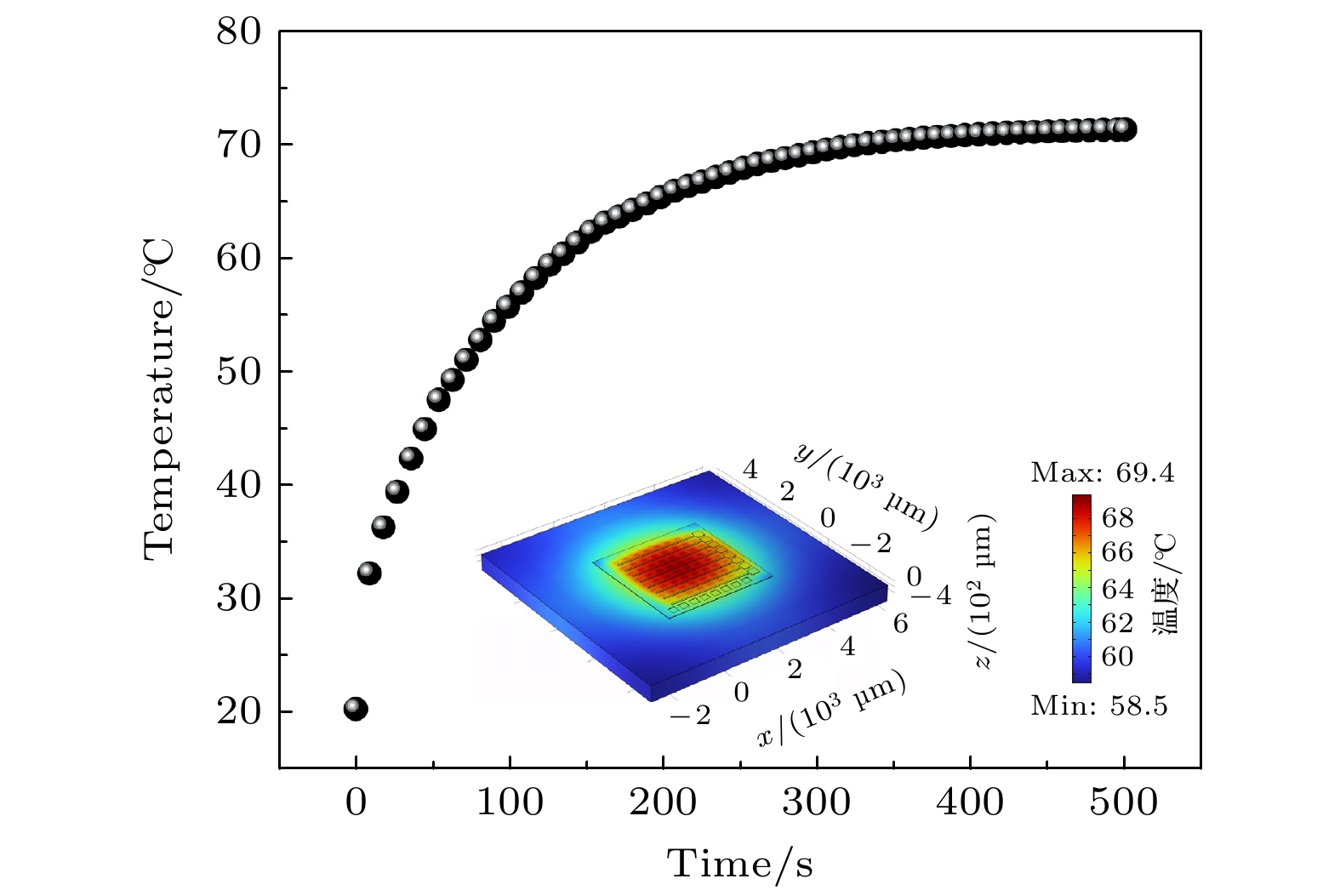

图 2 探测器最高温度随时间变化曲线
Figure 2. Maximum temperature of detector as a function of time

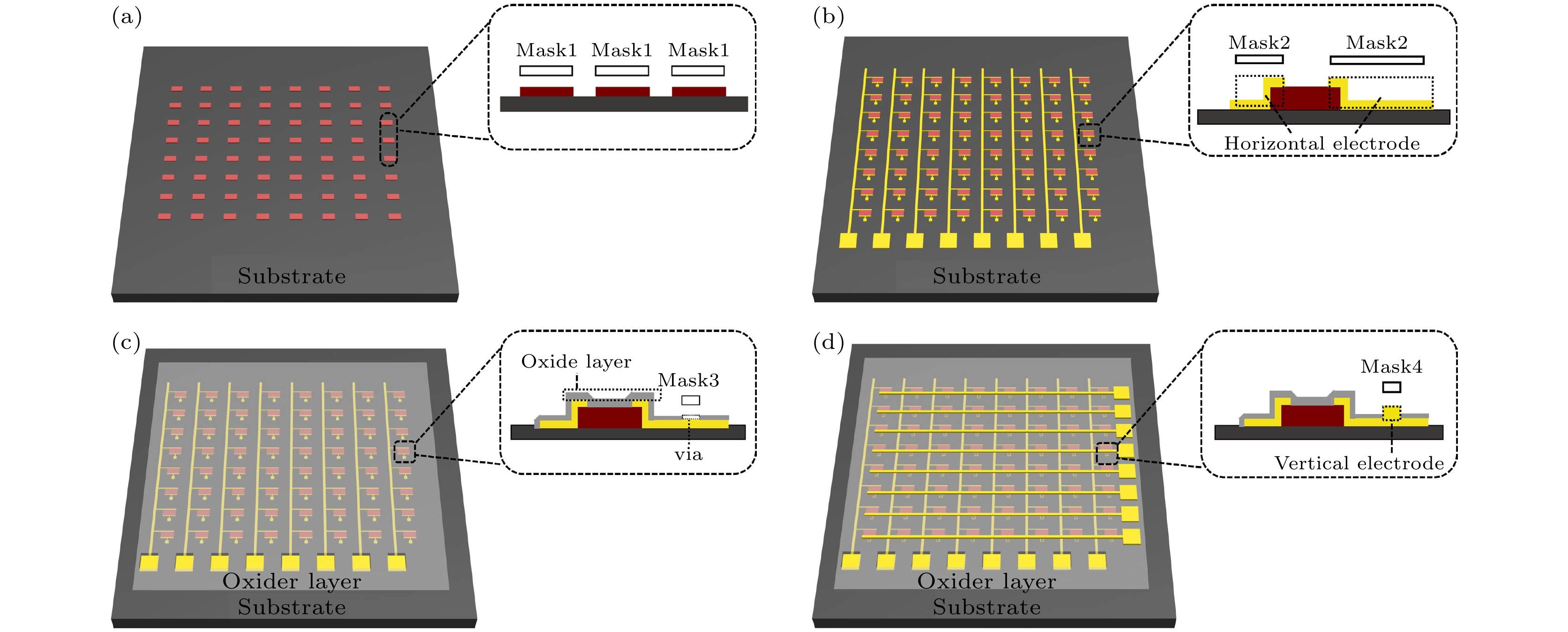

图 3 PbSe IRFPA探测器制备流程图
Figure 3. Preparation process of PbSe IRFPA detector.

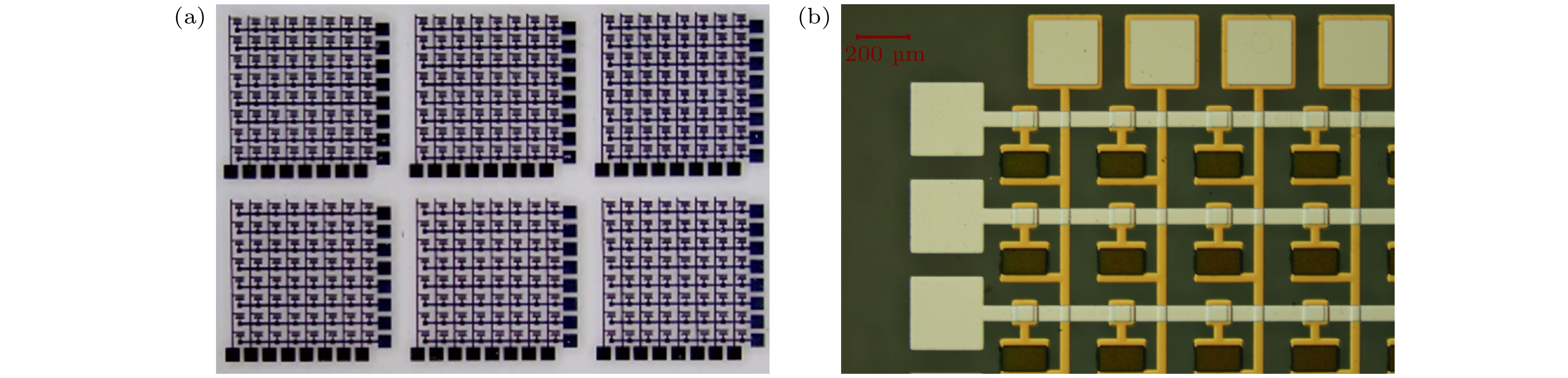

图 4 (a) PbSe IRFPA探测器整体图像; (b) 金相显微镜下局部放大图
Figure 4. (a) Physical image of PbSe IRFPA detector; (b) local magnified view under metallographic microscope.

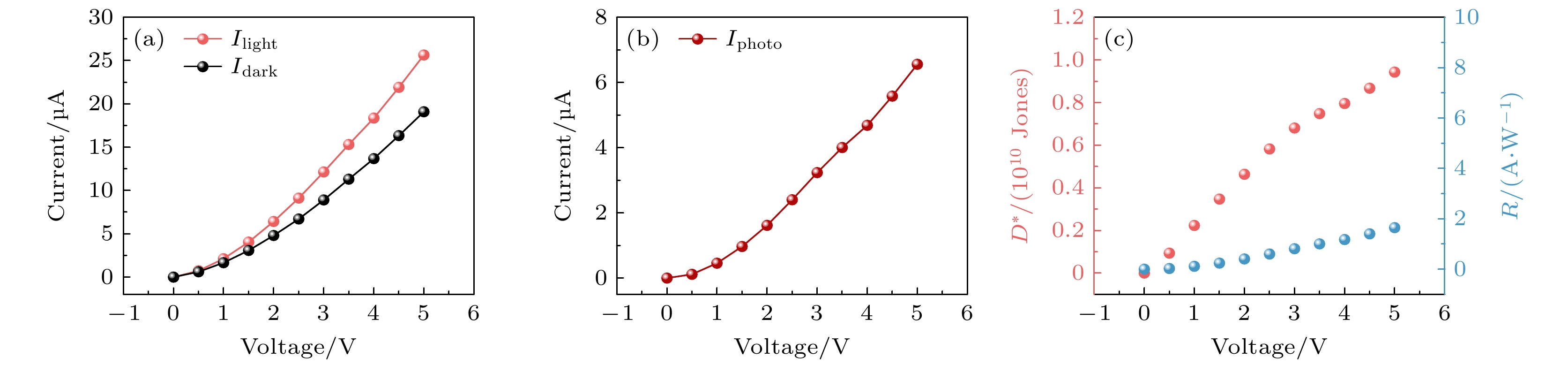

图 5 不同偏置电压下的电流变化 (a) 光电流和暗电流; (b) 光生电流; (c) 比探测率和响应率
Figure 5. Current varies with different bias voltages: (a) Light current and dark current; (b) photogenerated current; (c) specific detectivity and responsivity.

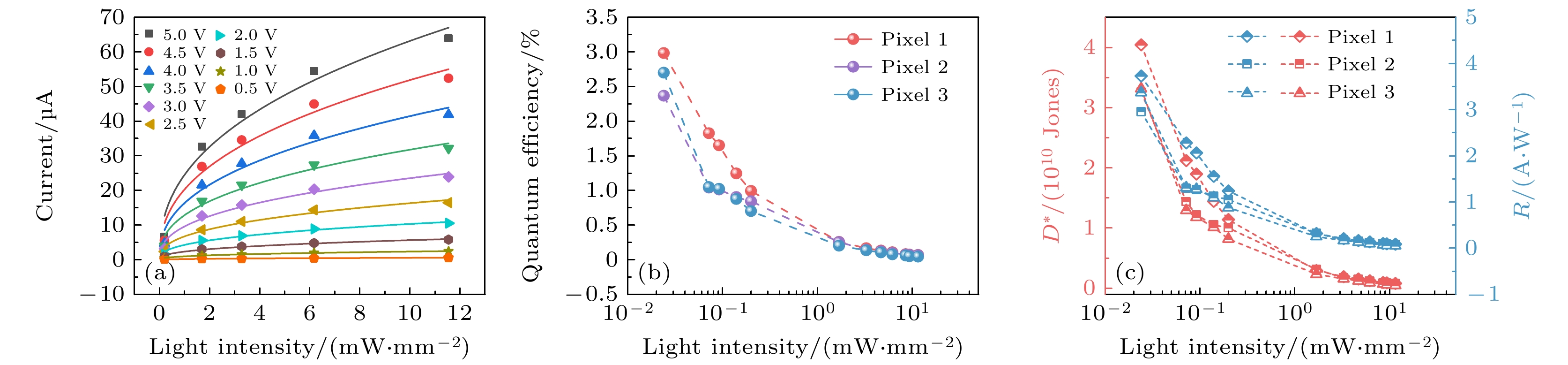

图 6 光电性能随光功率密度变化 (a) 光生电流; (b) 量子效率; (c) 比探测率和响应率
Figure 6. Photoelectric response varies with light intensity: (a) Photogenerated current; (b) quantum efficiency; (c) specific detectivity and responsivity.

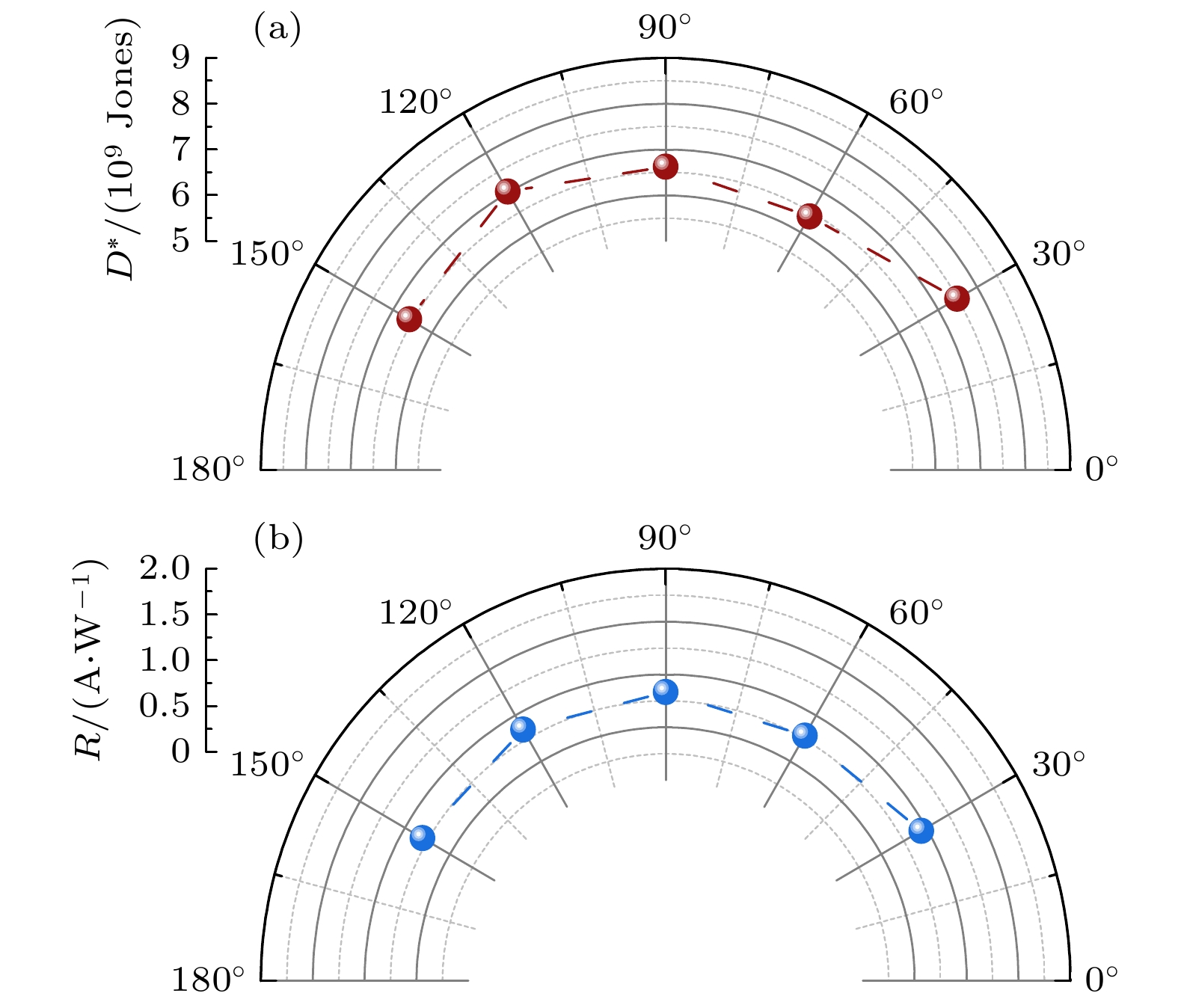

图 7 不同入射角下的探测性能 (a) 比探测率分布; (b) 响应率分布
Figure 7. Photoelectric response at different incident angles: (a) Specific detectivity distribution; (b) responsivity distribution.

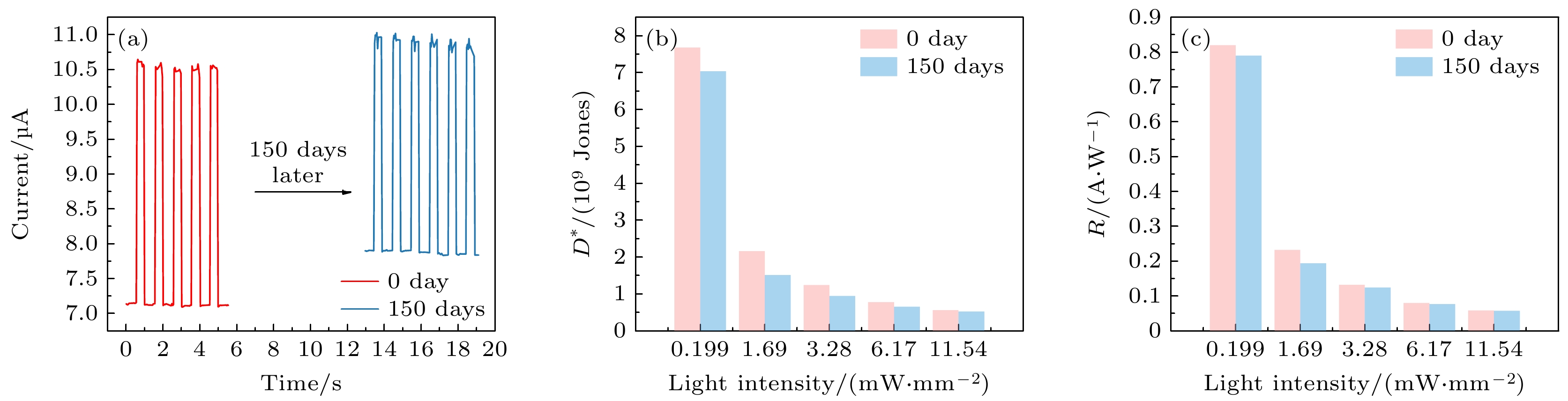

图 8 PbSe IRFPA探测器0和150天性能对比 (a) 光功率密度为0.199 mW/mm2下的I-t曲线; (b) 不同光功率密度下的比探测率对比; (c) 不同光功率密度下响应率对比
Figure 8. Comparison of 0 and 150 day performance of PbSe IRFPA detector: (a) Current varies time under 0.199 mW/mm2; (b) comparison of specific detectivity under different light intensity; (c) comparison of responsivity under different light intensity.

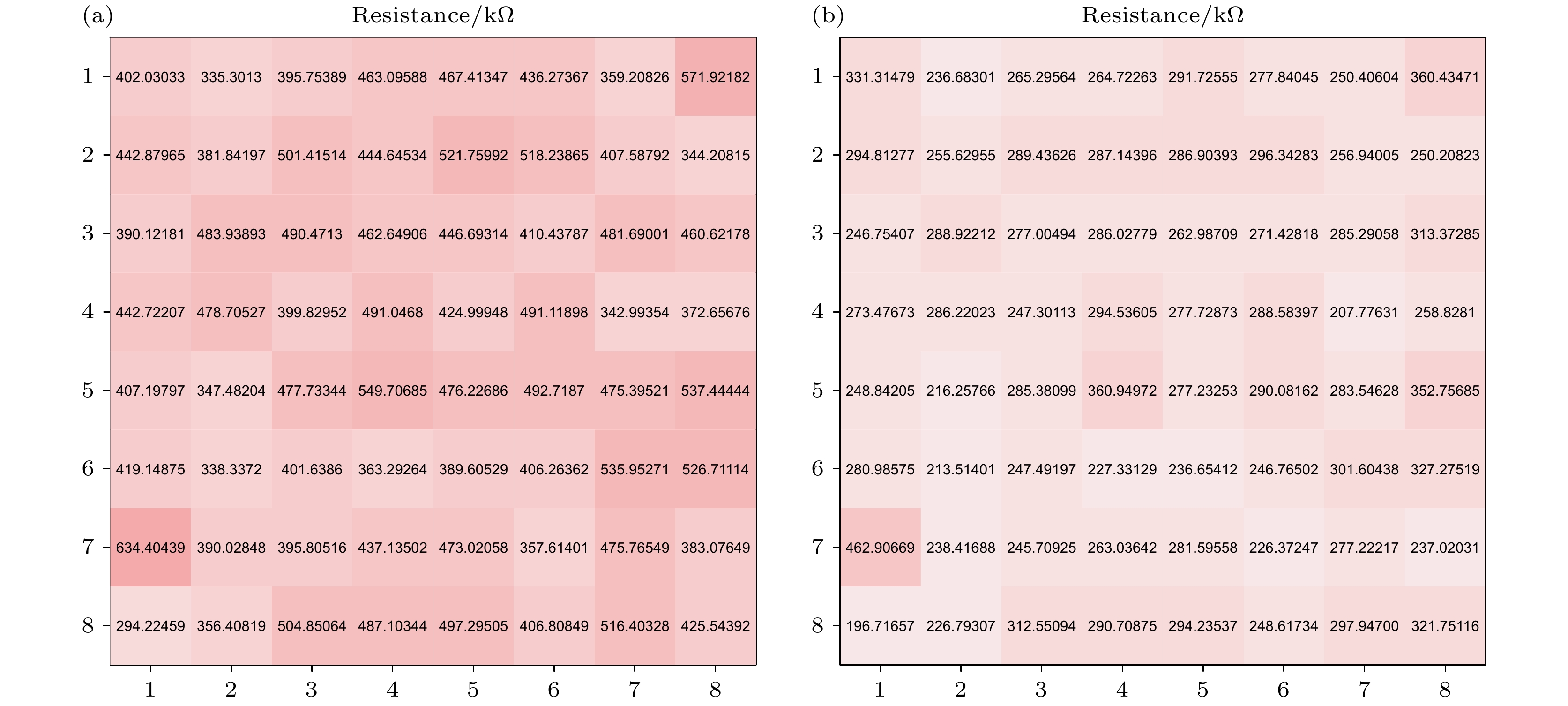

图 9 PbSe IRFPA探测器像元暗电阻分布(a) 和光电阻分布(b)
Figure 9. Dark resistance (a) and light resistance (b) distribution of PbSe IRFPA detector.

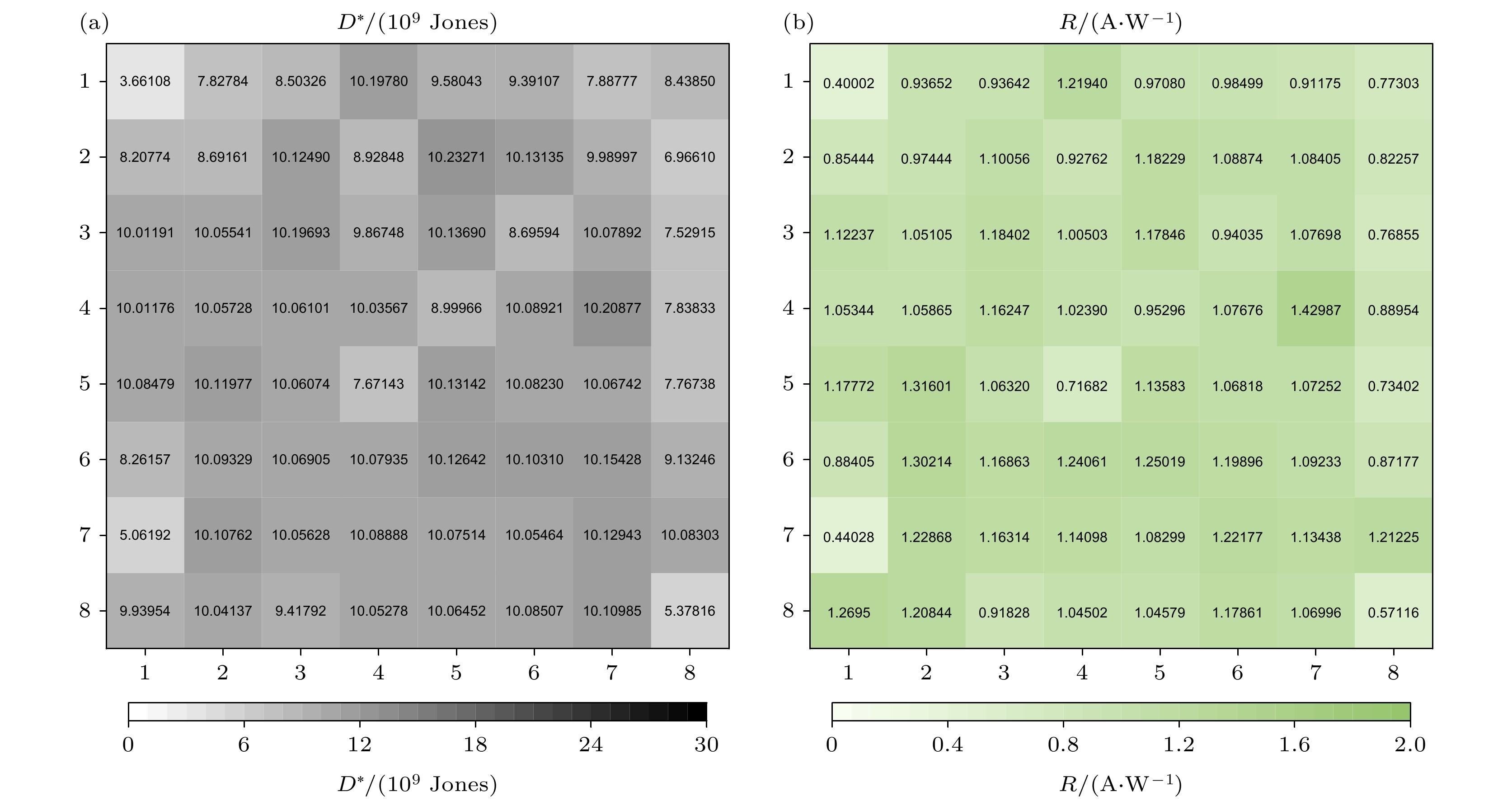

图 10 PbSe IRFPA探测器的成像性能 (a) 比探测率分布; (b) 响应率分布
Figure 10. Imaging performance of PbSe IRFPA detector: (a) Specific detectivity distribution; (b) responsivity distribution.

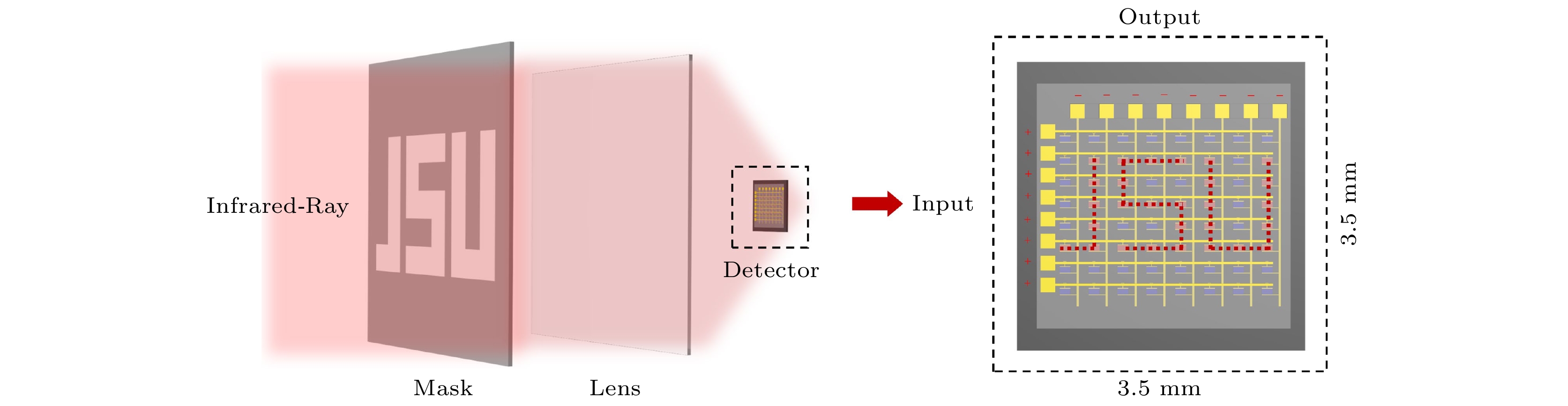

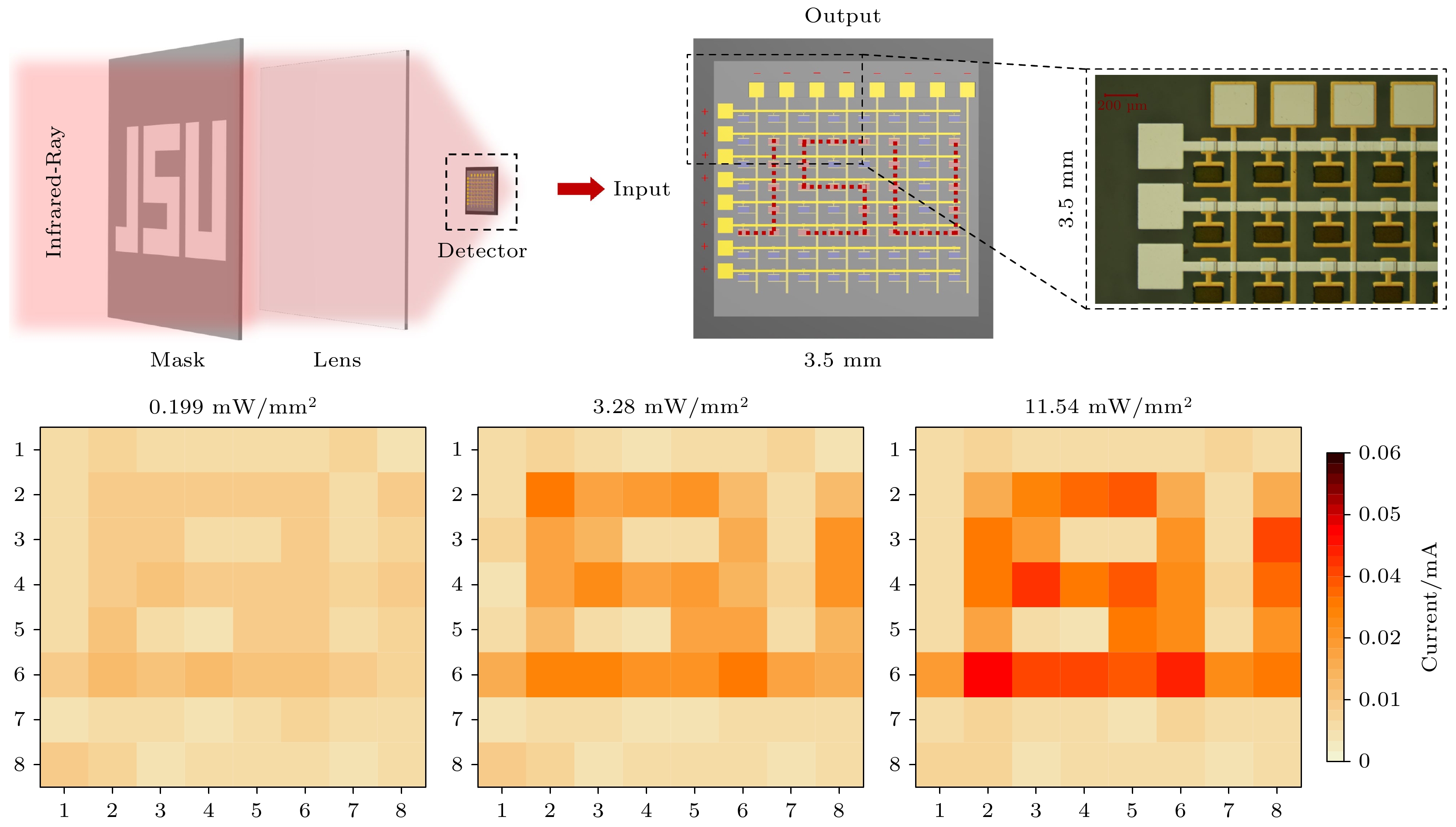

图 11 PbSe IRFPA探测器成像装置示意图
Figure 11. Schematic diagram of PbSe IRFPA detector imaging device.

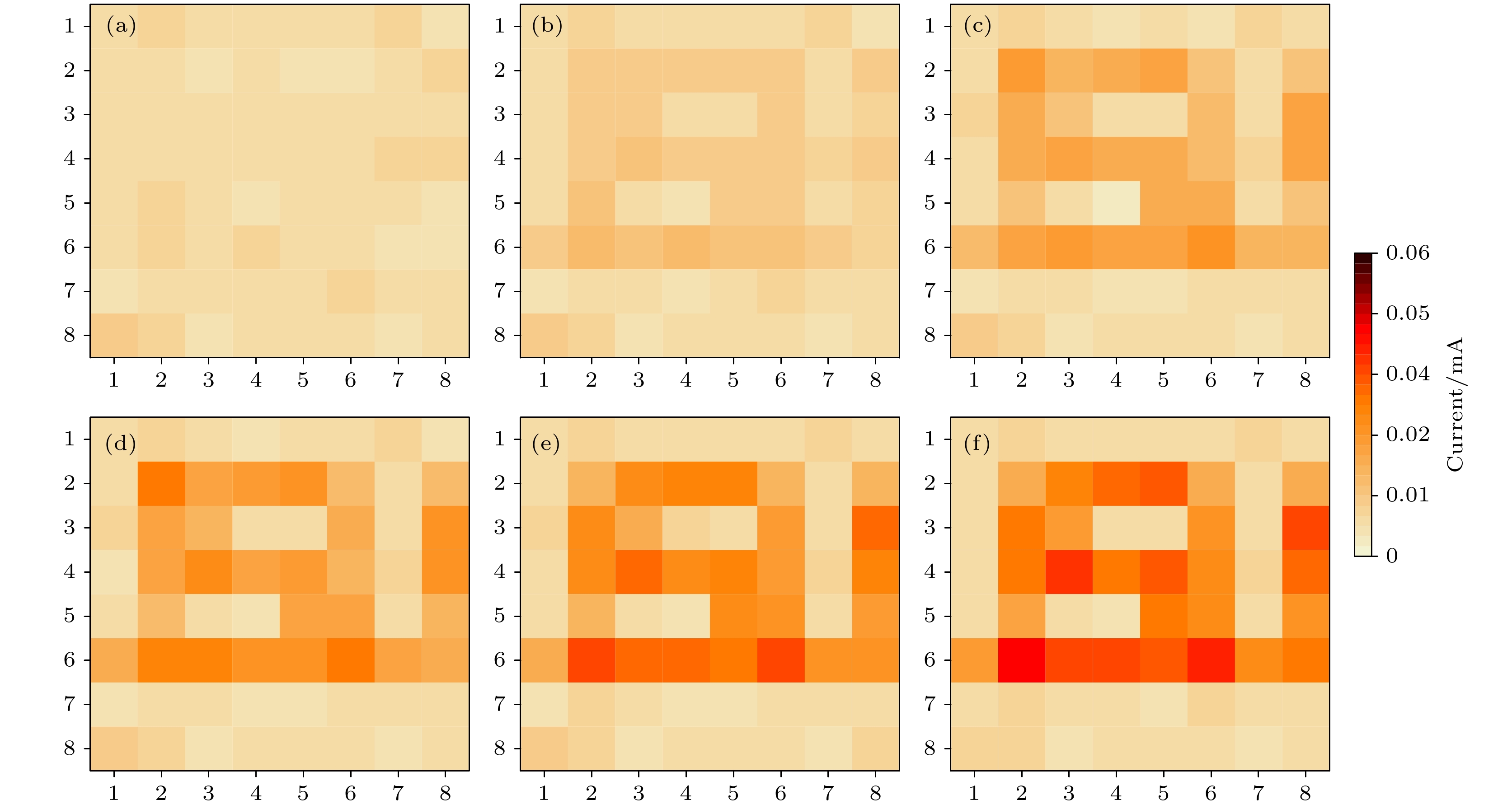

图 12 PbSe IRFPA探测器红外成像随光功率密度变化 (a) 0 mW/mm2; (b) 0.199 mW/mm2; (c) 1.69 mW/mm2; (d) 3.28 mW/mm2; (e) 6.17 mW/mm2; (f) 11.54 mW/mm2
Figure 12. Infrared imaging results of PbSe IRFPA detector vary with light density: (a) 0 mW/mm2; (b) 0.199 mW/mm2; (c) 1.69 mW/mm2; (d) 3.28 mW/mm2; (e) 6.17 mW/mm2; (f) 11.54 mW/mm2.
-
