In recent years, capacitively coupled plasmas driven by ultra-low frequency source have received increasing attention, because they are beneficial to generating ions with high energy and small scattering angle, which aligns well with the current trend in high aspect ratio etching. Since the sheath becomes thicker when an ultra-low frequency source is applied, the secondary electron emission becomes significant. Indeed, these energetic secondary electrons can enhance the ionization process and even affect the discharge mode. In this work, a two-dimensional fluid model is employed to study the influence of secondary electrons on the dual-frequency capacitively coupled plasma under different ultra-low frequency voltages, secondary electron emission coefficients and inter-electrode gaps. The high frequency is fixed at 13.6 MHz, and the ultra-low frequency is fixed at 400 kHz. First, by using the ion energy dependent secondary electron emission coefficient, it is shown that the electron density first decreases and then increases with ultra-low frequency voltage rising. This is because, on the one hand, the higher ultra-low frequency voltage leads to thicker sheath, and therefore, the effective discharge volume is compressed. On the other hand, secondary electrons emitted from electrodes can obtain more energy, thus enhancing the ionization process. By comparing with the results obtained with a fixed secondary electron emission coefficient, it is found that in the low voltage range, the evolution of the electron density is similar to that with a fixed coefficient of 0.1. While, in the high voltage range, the growth of the electron density is even more pronounced than that with a fixed coefficient of 0.2, indicating that the enhancement of the secondary electron effect by ultra-low frequency voltage is non-linear. Finally, the influence of discharge gap on the plasma properties is also discussed. It is shown that with the inter-electrode gap increasing from 2 to 4 cm, the maximum ionization rate becomes lower, but the electron density rises significantly, and the plasma radial uniformity is improved. When inter-electrode gap is large, secondary electrons can completely collide with neutral species, so their influence on the electron density at high ultra-low frequency voltage is more significant. The results obtained in this study contribute to understanding the influence of ultra-low frequency source on the secondary electron effect, and provide some guidance for optimizing plasma processing.
-
Keywords:
- capacitively coupled plasma /
- fluid model /
- ultra-low frequency power /
- secondary electron
[1] 戴忠玲, 毛明, 王友年 2006 物理 35 693
Google Scholar
Dai Z L, Mao M, Wang Y N 2006 Physics 35 693
Google Scholar
[2] Kim S S, Hamaguchi S, Yoon N S, Chang C S, Lee Y D, Ku S H 2001 Phys. Plasmas 8 1384
Google Scholar
[3] 谭毅成, 伍尚华, 朱佐祥, 向其军, 朱祖云, 田卓 2018 人工晶体学报 47 1272
Tan Y C, Wu S H, Zhu Z X, Xiang Q J, Zhu Z Y, Tian Z 2018 J. Synth. Cryst. 47 1272
[4] Lieberman M A, Lichtenberg A J 2008 Principles of Plasma Discharges & Materials Processing 11 800
Google Scholar
[5] Chabert P, Braithwaite N 2011 Physics of Radio-Frequency Plasmas (Cambridge: Cambridge University Press
[6] Lee J K, Manuilenko O V, Babaeva N Y, Kim H C, Shon J W 2005 Plasma Sources Sci. Technol. 14 89
Google Scholar
[7] Han L, Kenney J, Rauf S, Korolov I, Schulze J 2023 Plasma Sources Sci. Technol. 32 115018
Google Scholar
[8] Kim H H, Shin J H, Lee H J 2023 J. Vac. Sci. Technol. , A 41 023004
Google Scholar
[9] Zhou Y, Zhao K, Ma F F, Liu Y X, Gao F, Julian Schulze, Wang Y N 2024 Appl. Phys. Lett. 124 064102
Google Scholar
[10] Zhou Y, Zhao K, Ma F F, Sun J Y, Liu Y X, Gao F, Zhang Y R, Wang Y N 2025 Plasma Sources Sci. Technol. 34 035016
Google Scholar
[11] Wang J C, Tian P, Kenney J, Rauf S, Korolov I, Schulze J 2021 Plasma Sources Sci. Technol. 30 075031
Google Scholar
[12] Liu J, Zhang Q Z, Liu Y X, Gao F, Wang Y N 2013 J. Phys. D: Appl. Phys. 46 235202
Google Scholar
[13] Hartmann P, Korolov I, Escandon L J, Gennip W V, Buskes K, Schulze J 2022 Plasma Sources Sci. Technol. 31 055017
Google Scholar
[14] Hartmann P, Wang L, Nosges K, Berger B, Wilczek S, Brinkmann R P, Mussenbrock T, Juhasz Z, Donko Z, Derzsi A, Lee E, Schulze J 2020 Plasma Sources Sci. Technol. 29 075014
Google Scholar
[15] Liu G H, Wang X Y, Liu Y X, Sun J Y, Wang Y N 2018 Plasma Sources Sci. Technol. 27 064004
Google Scholar
[16] Schulze J, Donko Z, Luggenholscher D, Czarnetzki U 2009 Plasma Sources Sci. Technol. 18 034011
Google Scholar
[17] Takagi S, Chikata T, Sekine M 2021 Jpn. J. Appl. Phys. 60 SAAB07
[18] Donko Z, Schulze J, Hartmann P, Korolov I, Czarnetzki U, Schungel E 2010 Appl. Phys. Lett. 97 081501
Google Scholar
[19] Schulze J, Donko Z, Schuengel E, Czarnetzki U 2011 Plasma Sources Sci. Technol. 20 045007
Google Scholar
[20] Saikia P, Bhuyan H, Yap S L, Escalona M, Favre M, Wyndham E, Schulze J 2019 Phys. Plasmas 26 083505
Google Scholar
[21] 张钰如, 高飞, 王友年 2021 物理学报 70 095206
Google Scholar
Zhang Y R, Gao F, Wang Y N 2021 Acta Phys. Sin. 70 095206
Google Scholar
[22] Zhang Y R, Xiang X, Zhao S X, Bogaerts A, Wang Y N 2010 Phys. Plasma 17 113512
Google Scholar
[23] Kurokawa M, Kitajima M, Toyoshima K, Kishino T 2011 Phys. Rev. A 84 062717
Google Scholar
[24] De Heer F J, Jansen R H J, Van Der Kaay W 1979 J. Phys. B: Atom. Mol. Phys. 12 979
Google Scholar
[25] Tachibana K 1986 Phys. Rev. A 34 1007
Google Scholar
[26] Rejoub R, Lindsay B G, Stebbings R F 2002 Phys. Rev. A 65 042713
Google Scholar
[27] Ali M A, Stone P M 2008 Int. J. Mass Spectrom. 271 51
Google Scholar
[28] Phelps A V, Pitchford L C, Pedoussat C, Donko Z 1999 Plasma Sources Sci. Technol. 8 B1
Google Scholar
[29] Brinkmann R P 2007 J. Appl. Phys. 102 093303
Google Scholar
[30] Horvath B, Daksha M, Korolov I, Derzsi A, Schulze J 2017 Plasma Sources Sci. Technol. 26 124001
Google Scholar
[31] Campanell M D, Khrabrov A V, Kaganovich I D 2012 Phys. Rev. Lett. 108 255001
Google Scholar
[32] Campanell M D 2013 Phys. Rev. E 88 033103
Google Scholar
-

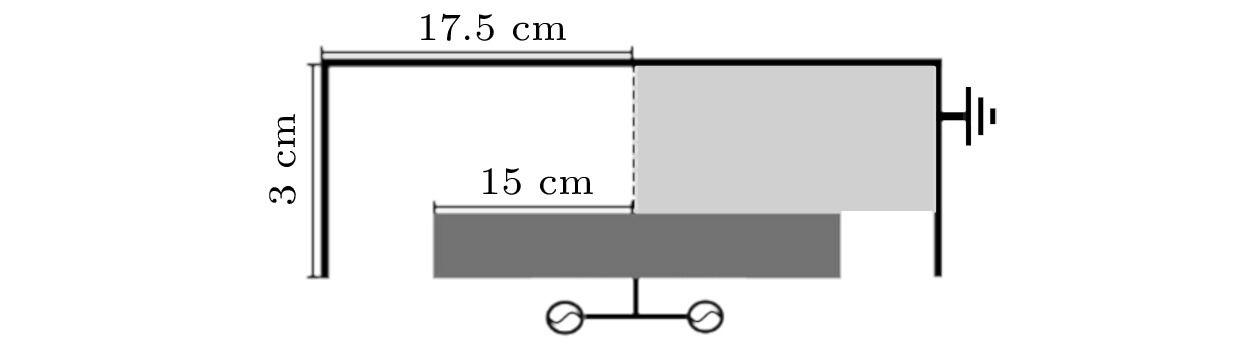

图 1 二维腔室结构示意图
Figure 1. Schematic diagram of two-dimensional chamber structure.

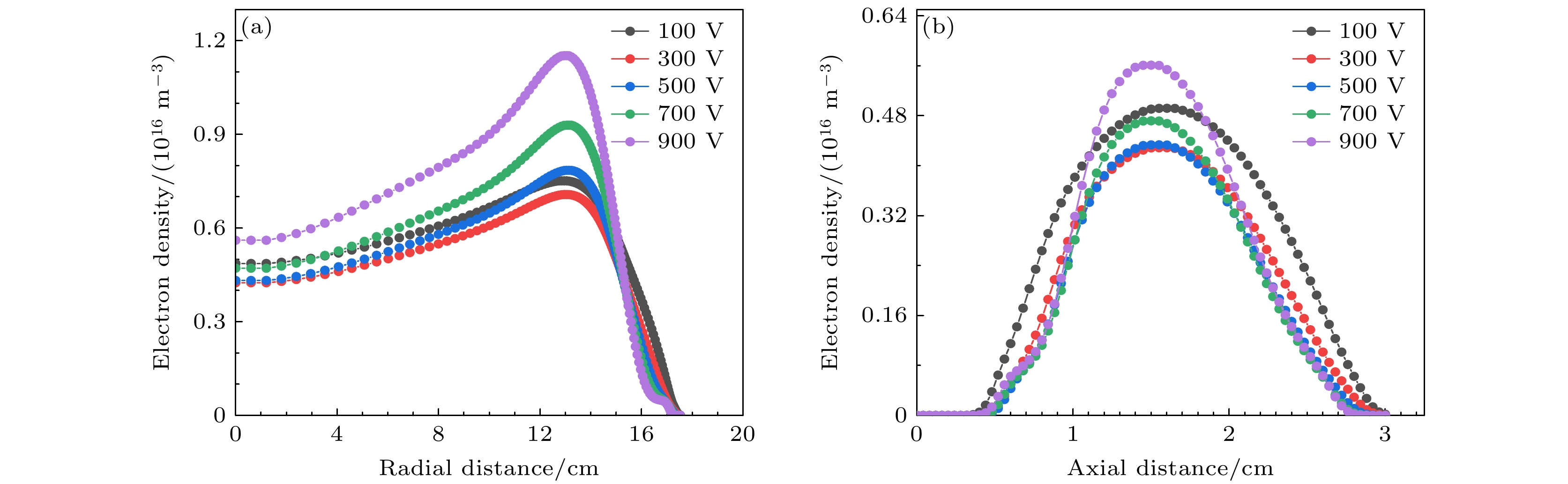

图 2 采用经验公式计算的二次电子发射系数下, 电子密度的(a)轴向分布和(b)径向分布随超低频电压的变化
Figure 2. Variation of (a) axial distribution and (b) radial distribution of electron density with ultra-low frequency voltage under secondary electron emission coefficient calculated by empirical formula.

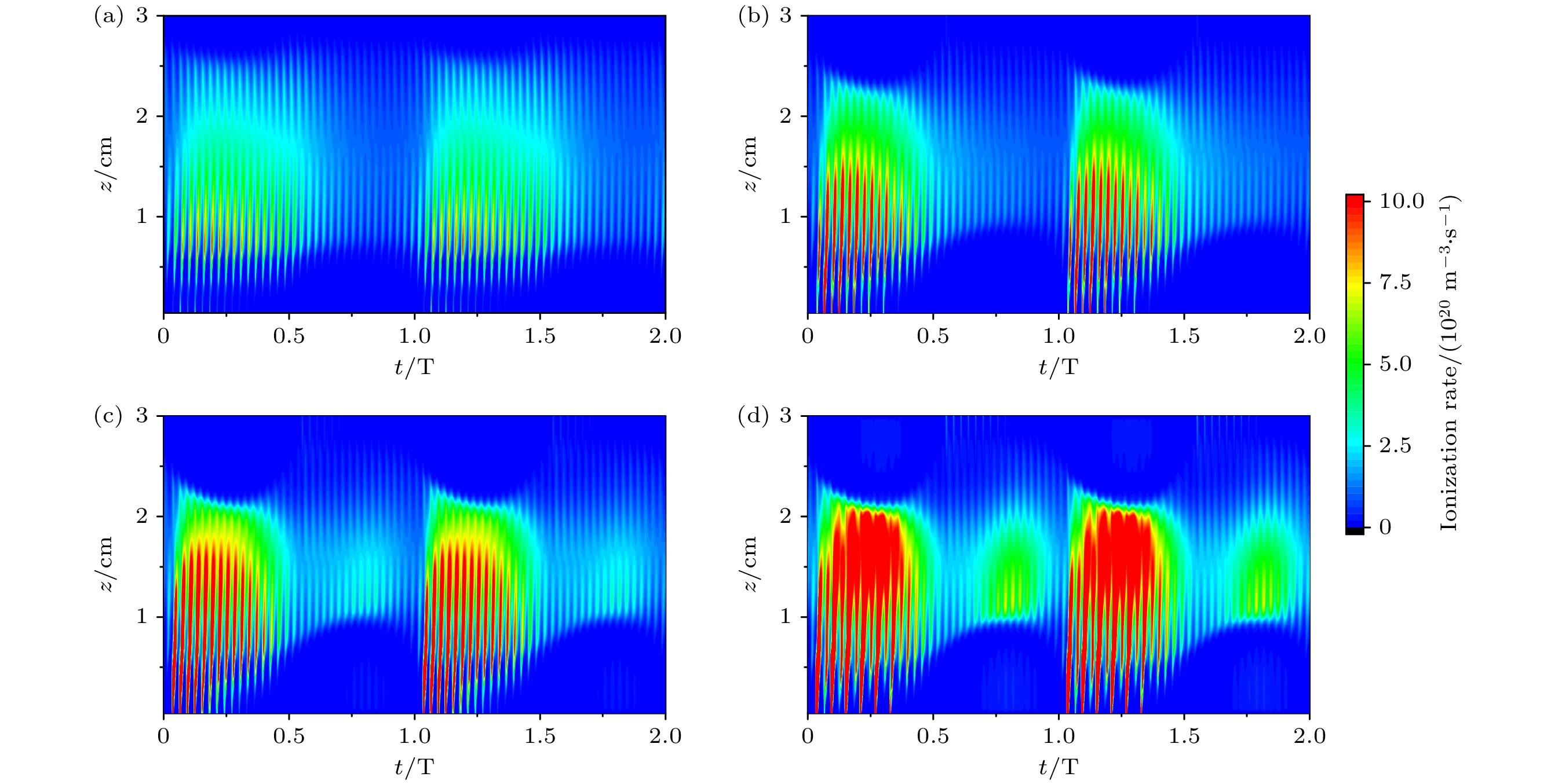

图 3 超低频电压不同时, 采用经验公式计算二次电子发射系数下, 腔室中心r = 0 cm处电离率的时空分布 (a) 100 V; (b) 400 V; (c) 700 V; (d) 1000 V
Figure 3. Using empirical formula to calculate the temporal and spatial distribution of ionization rate at r = 0 cm in the center of the chamber under the secondary electron emission coefficient, ultra-low frequency: (a) 100 V; (b) 400 V; (c) 700 V; (d) 1000 V.

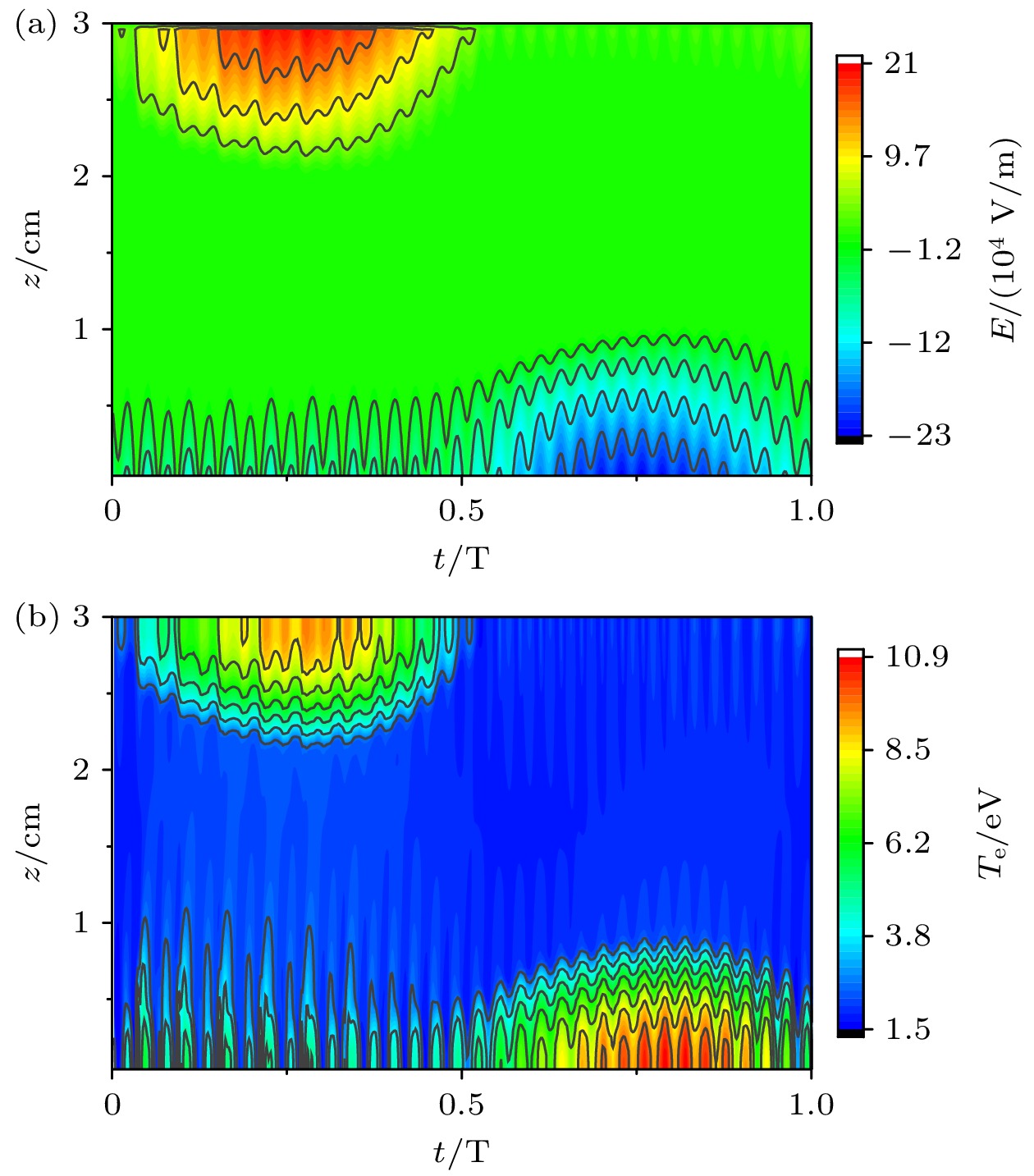

图 4 采用经验公式计算二次电子发射系数下, 超低频电压1000 V时, 腔室中心r = 0 cm处的(a)轴向电场和(b)电子温度的时空分布
Figure 4. Using empirical formula to calculate the temporal and spatial distribution of (a) axial electric field and (b) electron temperature at the center of the chamber r = 0 cm at ultra-low frequency voltage of 1000 V under the secondary electron emission coefficient.

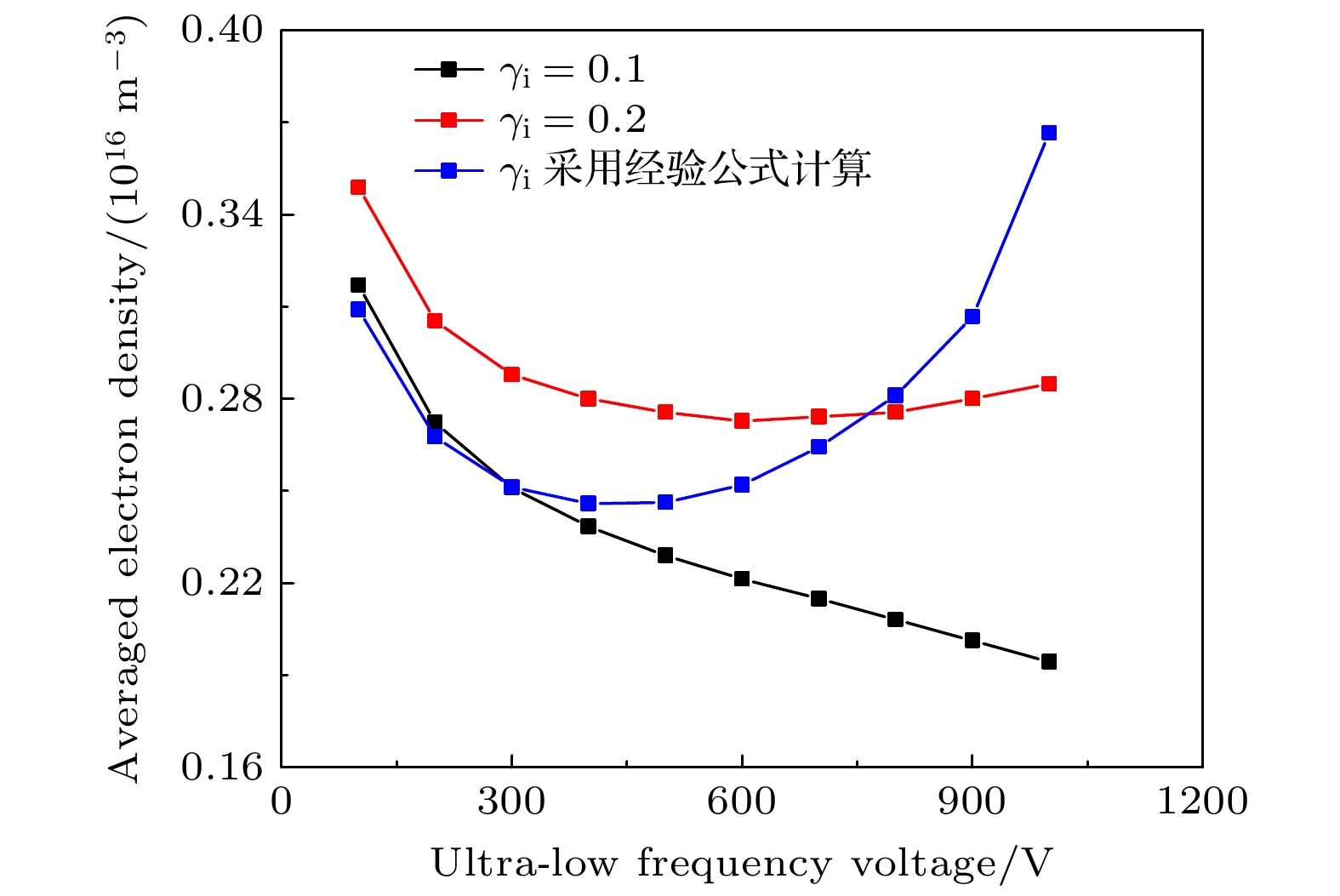

图 5 不同的二次电子发射系数下, 体平均电子密度随超低频电压的变化
Figure 5. Variation of volume average electron density with ultra-low frequency voltage under different secondary electron emission coefficients.

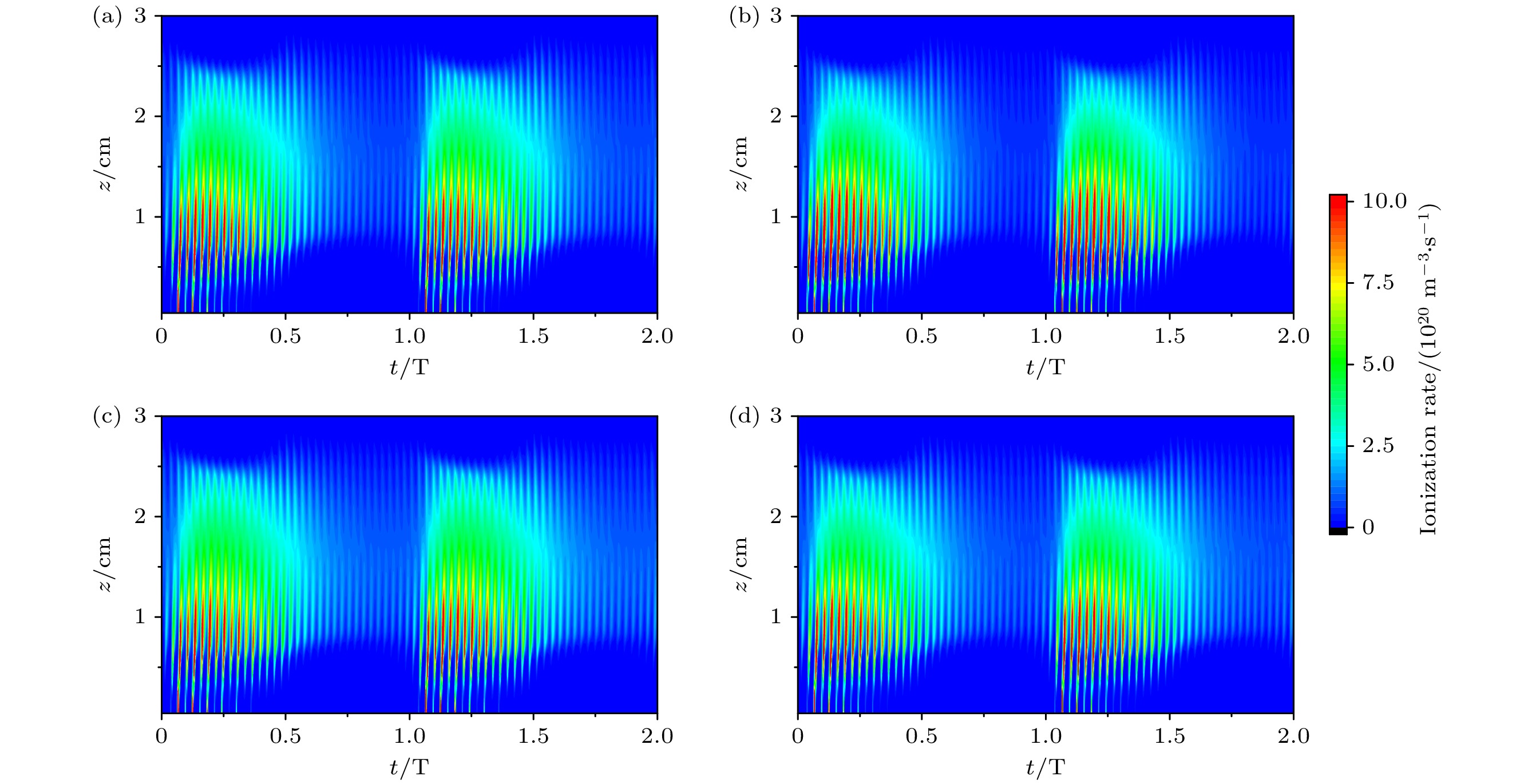

图 6 超低频电压为200 V时, 不同二次电子发射系数下, 电离率的时空分布 (a) $ {\gamma _{\text{i}}} $ = 0; (b) $ {\gamma _{\text{i}}} $ = 0.1; (c) $ {\gamma _{\text{i}}} $ = 0.2; (d)采用经验公式计算$ {\gamma _{\text{i}}} $
Figure 6. Time and space distribution of ionization rate under different secondary electron emission coefficients at ultra-low frequency voltage of 200 V: (a) $ {\gamma _{\text{i}}} $ = 0; (b) $ {\gamma _{\text{i}}} $ = 0.1; (c) $ {\gamma _{\text{i}}} $ = 0.2; (d) ${\gamma _{\mathrm{i}}} $ calculated by empirical formula.

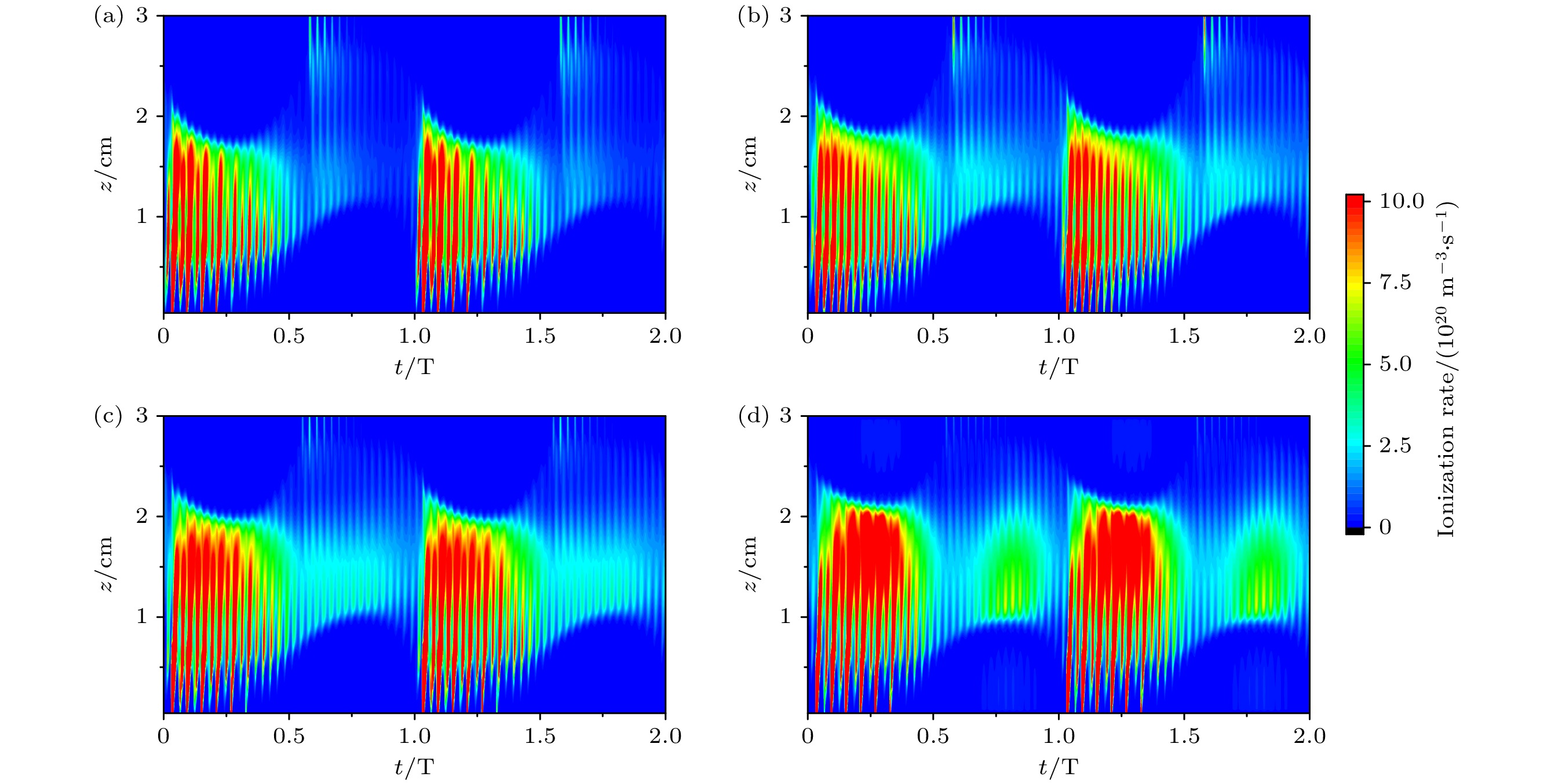

图 7 超低频电压为1000 V时, 不同二次电子发射系数下, 电离率的时空分布 (a) $ {\gamma _{\text{i}}} $ = 0; (b) $ {\gamma _{\text{i}}} $ = 0.1; (c) $ {\gamma _{\text{i}}} $ = 0.2; (d)采用经验公式计算$ {\gamma _{\mathrm{i}}} $
Figure 7. Time and space distribution of ionization rate under different secondary electron emission coefficients at ultra-low frequency voltage of 1000 V: (a) $ {\gamma _{\text{i}}} $ = 0; (b) $ {\gamma _{\text{i}}} $ = 0.1; (c) $ {\gamma _{\text{i}}} $ = 0.2; (d) $ {\gamma _{\mathrm{i}}}$ calculated by empirical formula.

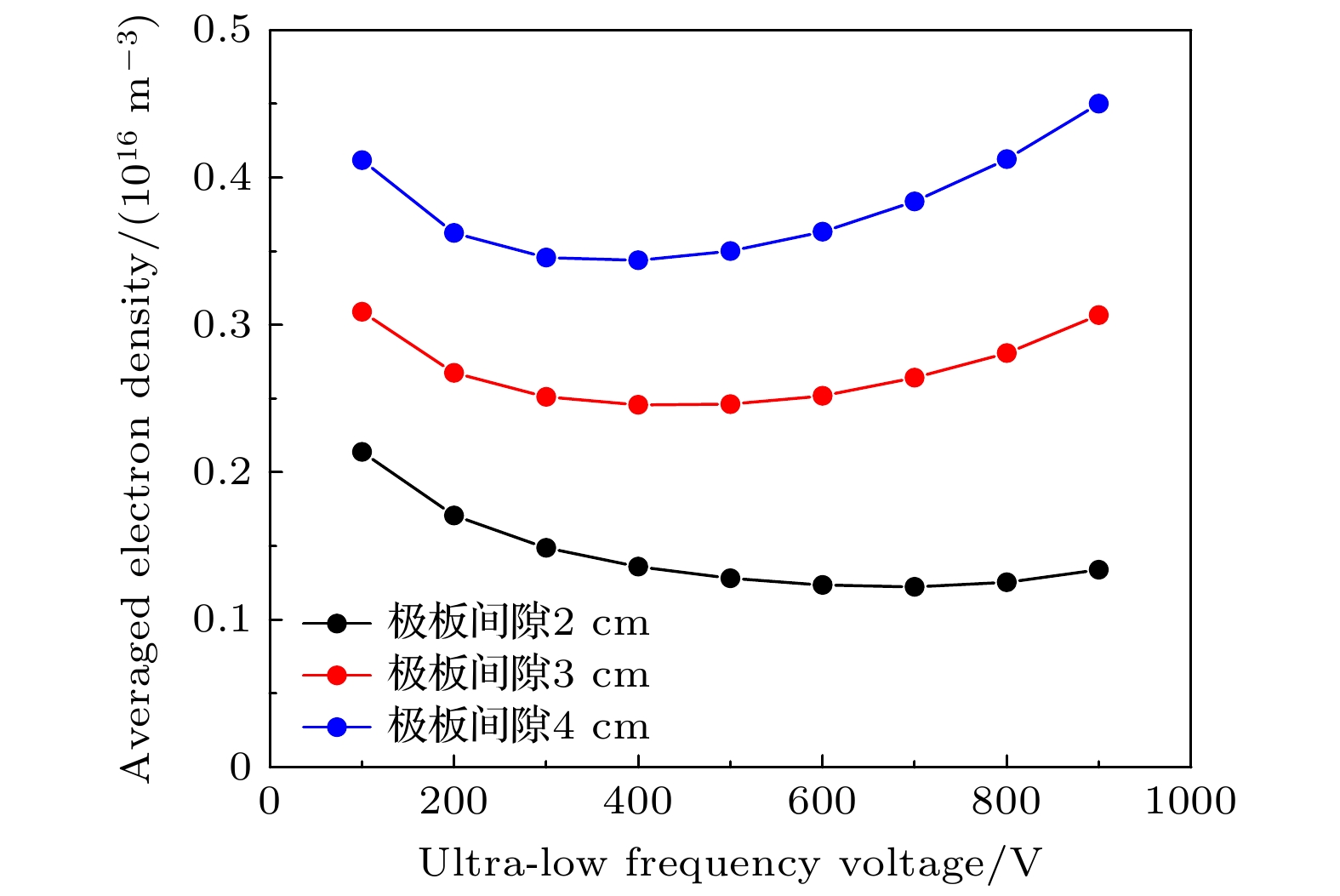

图 8 不同放电间隙下, 体平均电子密度随超低频电压的变化
Figure 8. Variation of volume average electron density with ultra-low frequency voltage under different discharge gaps.

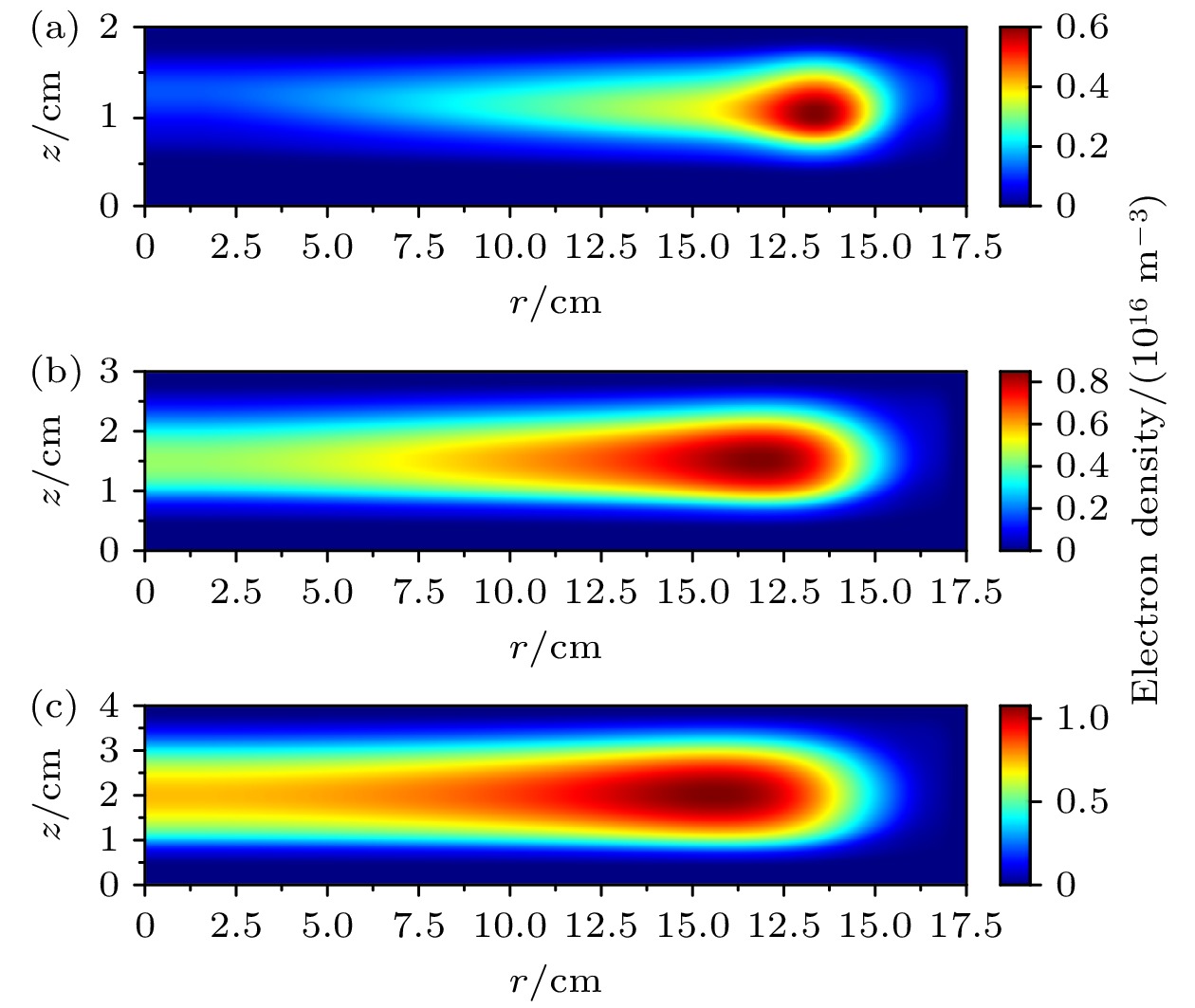

图 9 不同放电间隙下, 超低频电压为600 V时, 电子密度的分布 (a) 2 cm; (b) 3 cm; (c) 4 cm
Figure 9. Distribution of electron density under different discharge gaps and ultra-low frequency voltage of 600 V: (a) 2 cm; (b) 3 cm; (c) 4 cm.

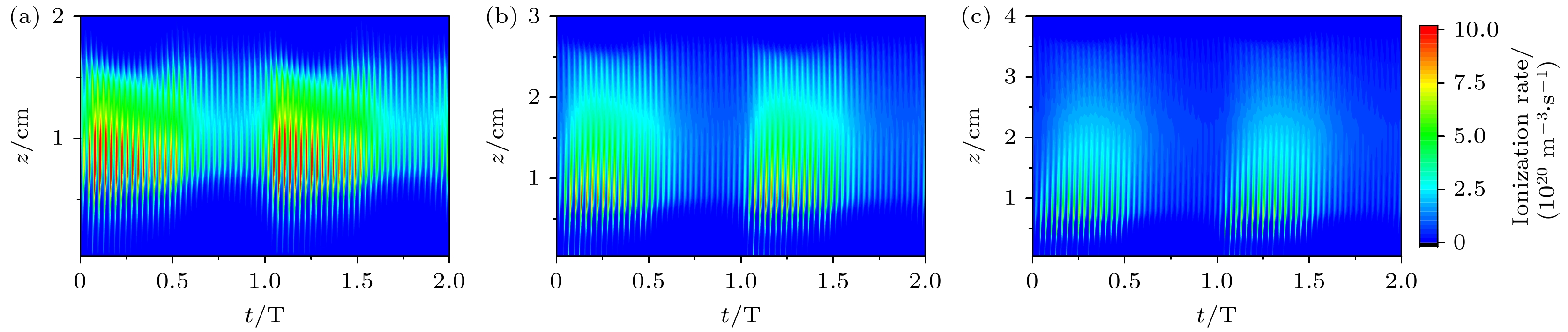

图 10 不同放电间隙下, 超低频电压为100 V时, 电离率的时空分布 (a) 2 cm; (b) 3 cm; (c) 4 cm
Figure 10. Temporal and spatial distribution of ionization rate under different discharge gaps and ultra-low frequency voltage of 100 V: (a) 2 cm; (b) 3 cm; (c) 4 cm.

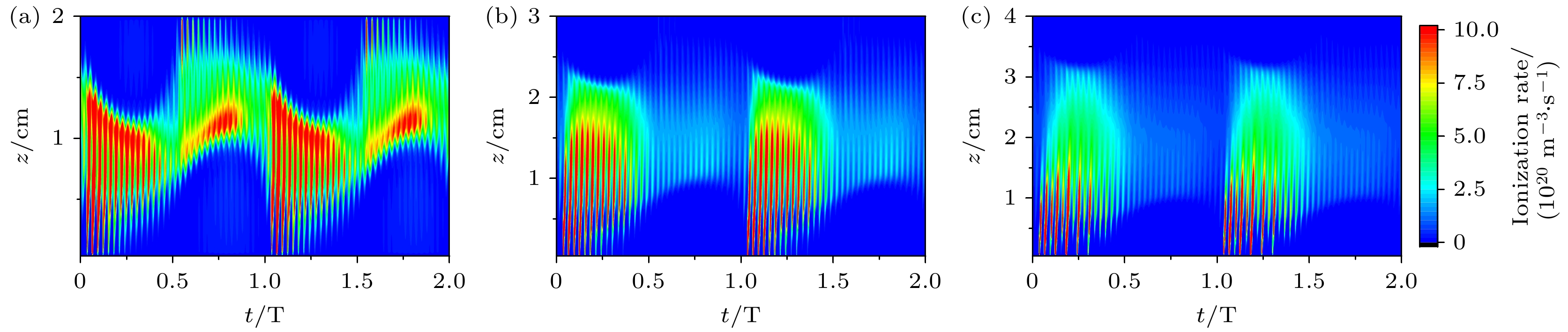

图 11 不同放电间隙下, 超低频电压为600 V时电离率的时空分布 (a) 2 cm; (b) 3 cm; (c) 4 cm
Figure 11. Temporal and spatial distribution of ionization rate under different discharge gaps and ultra-low frequency voltage of 600 V: (a) 2 cm; (b) 3 cm; (c) 4 cm.
-
